Hello

i am trying to run image magick then get the result of the compare process



#include <AutoItConstants.au3>
#include <Array.au3>

; Compare
$iPID = Run("magick compare -metric RMSE 1.jpg 2.jpg NULL:","", @SW_SHOW, $STDOUT_CHILD)

; Wait until the process has closed using the PID returned by Run.
ProcessWaitClose($iPID)

; Read the Stdout stream
$ScreenOutput = StdoutRead($iPID)

MsgBox(0,0,$ScreenOutput)



i have 2 questions:

1- why the console (logs) is always writing the result even that i didn't used  console write function

2- why msg box is empty ?

Edited by fraizor
Link to post
Share on other sites

Please provide more information:

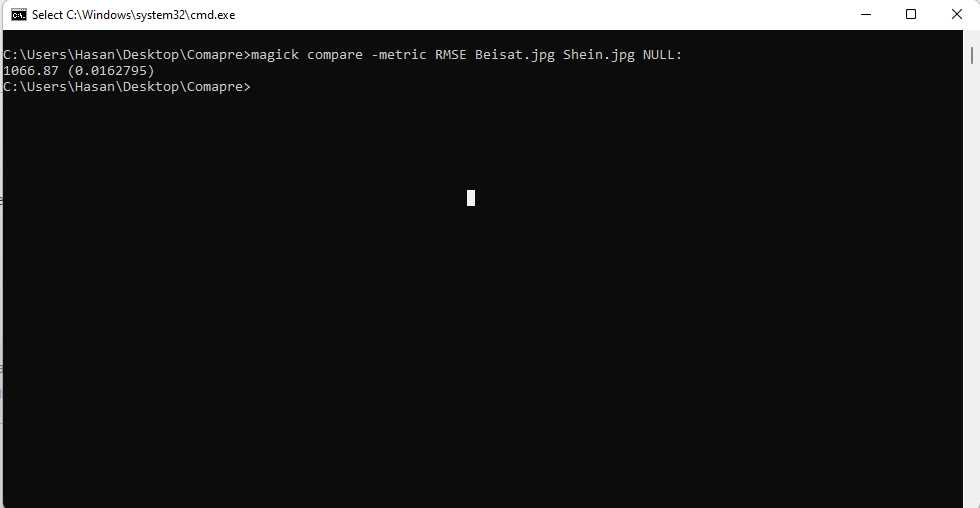

  • Post the output you get when you run "magick" in a DOS window
  • @SW_SHOW isn't a valid flag  for the Run statement
  • Check for error after each function. Run sets @error
  •  Check the length of $ScreenOutput using StringLen to make sure the string is empty

My UDFs and Tutorials:

Spoiler

UDFs:
Active Directory (NEW 2022-02-19 - Version 1.6.1.0) - Download - General Help & Support - Example Scripts - Wiki
ExcelChart (2017-07-21 - Version 0.4.0.1) - Download - General Help & Support - Example Scripts
OutlookEX (2021-11-16 - Version 1.7.0.0) - Download - General Help & Support - Example Scripts - Wiki
OutlookEX_GUI (2021-04-13 - Version 1.4.0.0) - Download
Outlook Tools (2019-07-22 - Version 0.6.0.0) - Download - General Help & Support - Wiki
PowerPoint (2021-08-31 - Version 1.5.0.0) - Download - General Help & Support - Example Scripts - Wiki
Task Scheduler (NEW 2022-07-28 - Version 1.6.0.1) - Download - General Help & Support - Wiki

Standard UDFs:
Excel - Example Scripts - Wiki
Word - Wiki

Tutorials:
ADO - Wiki
WebDriver - Wiki



Link to post
Share on other sites

Hello

thank you for fast response

1-




2- Okay what i should use ? i don't really care if it is showed or hidden



3- sorry i don't know how to do that .. can you please edit my example to teach me how ?



4- string len returns 0

Link to post
Share on other sites
52 minutes ago, water said:

Please provide more information:

  • Post the output you get when you run "magick" in a DOS window
  • @SW_SHOW isn't a valid flag  for the Run statement
  • Check for error after each function. Run sets @error
  •  Check the length of $ScreenOutput using StringLen to make sure the string is empty

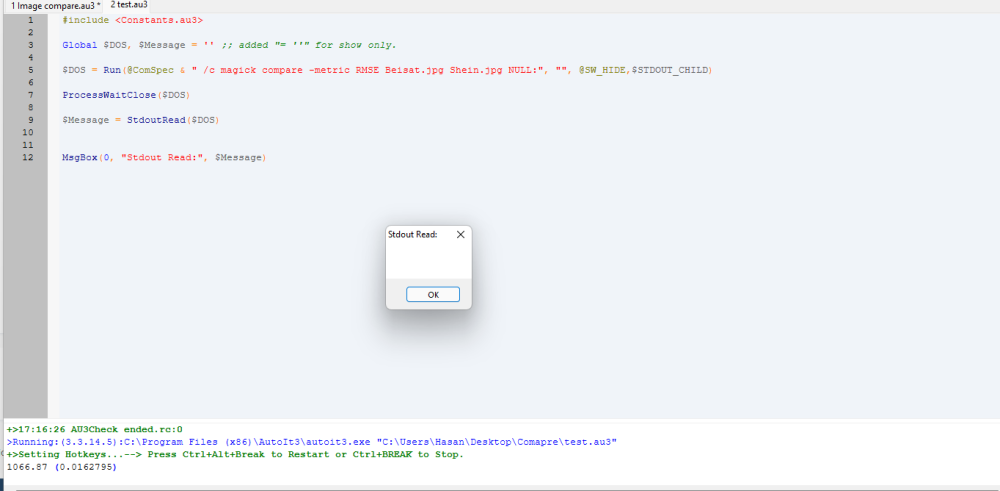

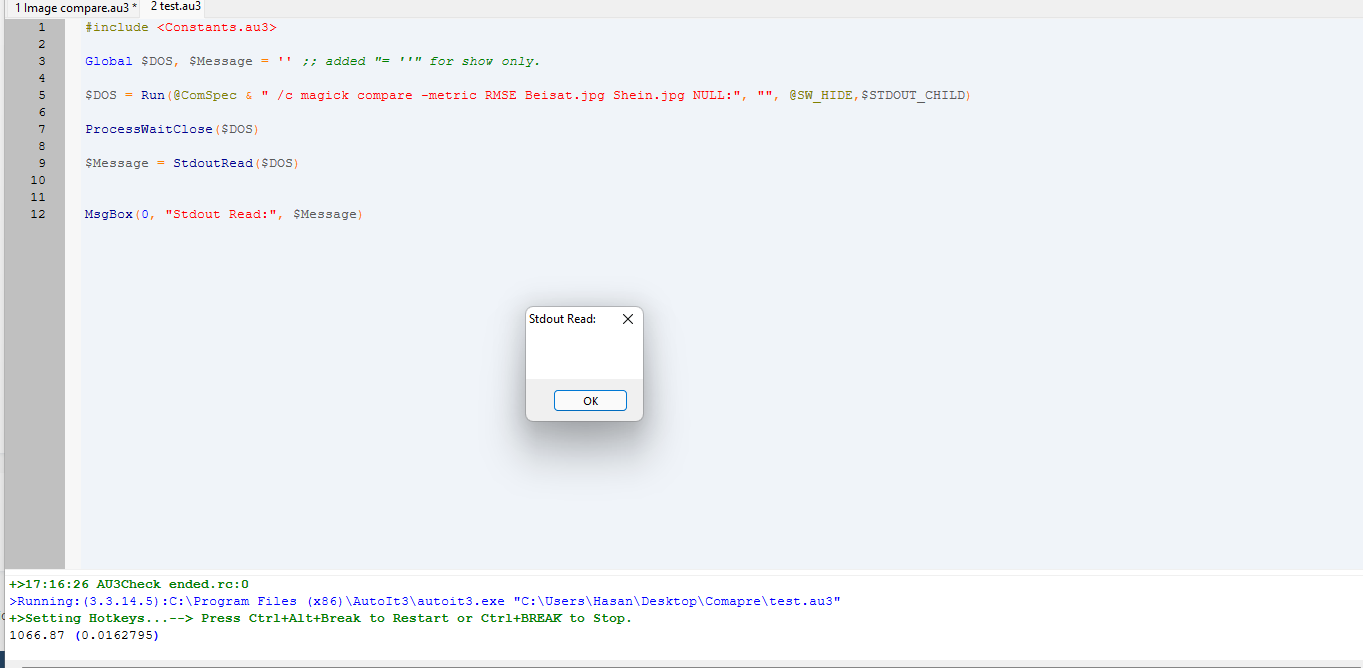

Actually the strange thing that it is working but in an unexpected way !



it is showing the correct output in the console , but not showing in msgbox !




Link to post
Share on other sites

Modified Script:

#include <AutoItConstants.au3>

; Compare
Global $iPID = Run("magick compare -metric RMSE 1.jpg 2.jpg NULL:", "", Default, $STDOUT_CHILD)
If $iPID = 0 Then Exit ConsoleWrite("Error running Magick! @error=" & @error & ", @extended=" & @extended & @CRLF)

; Wait until the process has closed using the PID returned by Run.
Global $iWait = ProcessWaitClose($iPID)
If $iWait = 0 Then Exit ConsoleWrite("Error returned by ProcessWaitClose! @error=" & @error & ", @extended=" & @extended & @CRLF)

; Read the Stdout stream
Global $sScreenOutput = StdoutRead($iPID)
If @error Then Exit ConsoleWrite("Error returned by StdOutRead! @error=" & @error & ", @extended=" & @extended & @CRLF)

MsgBox(0, 0, $sScreenOutput)



Edited by water

My UDFs and Tutorials:

Spoiler

UDFs:
Active Directory (NEW 2022-02-19 - Version 1.6.1.0) - Download - General Help & Support - Example Scripts - Wiki
ExcelChart (2017-07-21 - Version 0.4.0.1) - Download - General Help & Support - Example Scripts
OutlookEX (2021-11-16 - Version 1.7.0.0) - Download - General Help & Support - Example Scripts - Wiki
OutlookEX_GUI (2021-04-13 - Version 1.4.0.0) - Download
Outlook Tools (2019-07-22 - Version 0.6.0.0) - Download - General Help & Support - Wiki
PowerPoint (2021-08-31 - Version 1.5.0.0) - Download - General Help & Support - Example Scripts - Wiki
Task Scheduler (NEW 2022-07-28 - Version 1.6.0.1) - Download - General Help & Support - Wiki

Standard UDFs:
Excel - Example Scripts - Wiki
Word - Wiki

Tutorials:
ADO - Wiki
WebDriver - Wiki



Link to post
Share on other sites
4 minutes ago, water said:

Modified Script:

#include <AutoItConstants.au3>

; Compare
Global $iPID = Run("magick compare -metric RMSE 1.jpg 2.jpg NULL:", "", Default, $STDOUT_CHILD)
If $iPID = 0 Then Exit ConsoleWrite("Error running Magick! @error=" & @error & ", @extended=" & @extended & @CRLF)

; Wait until the process has closed using the PID returned by Run.
Global $iWait = ProcessWaitClose($iPID)
If $iWait = 0 Then Exit ConsoleWrite("Error returned by ProcessWaitClose! @error=" & @error & ", @extended=" & @extended & @CRLF)

; Read the Stdout stream
Global $sScreenOutput = StdoutRead($iPID)
If @error Then Exit ConsoleWrite("Error returned by StdOutRead! @error=" & @error & ", @extended=" & @extended & @CRLF)

MsgBox(0, 0, $sScreenOutput)

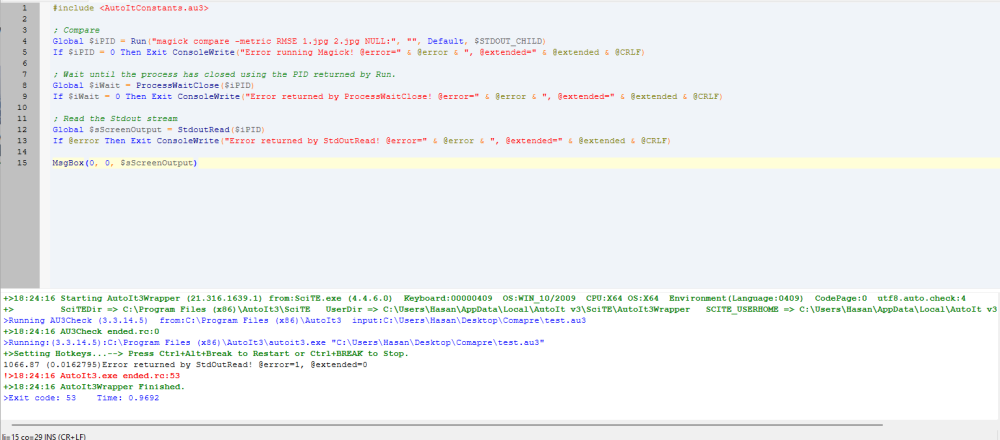

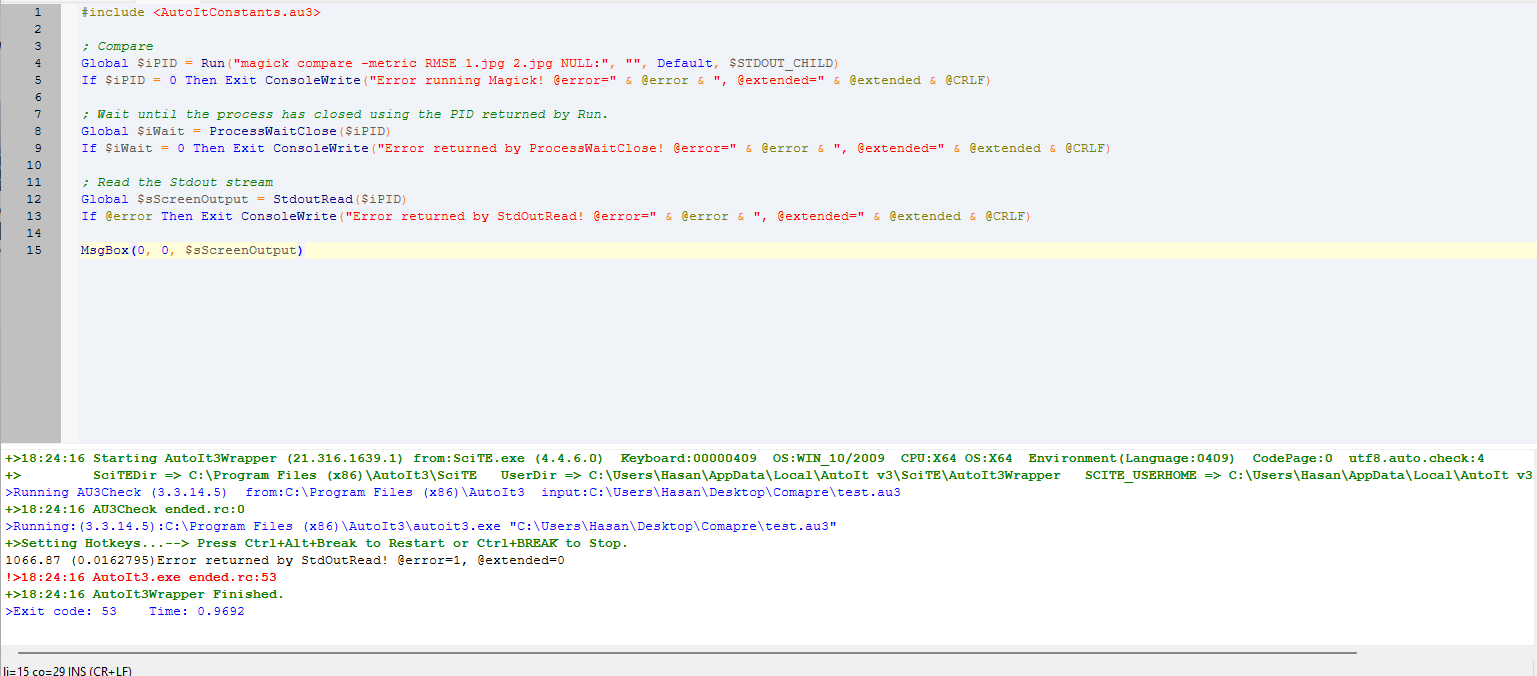

Thank you @water



actually now i get the issue



for some reason the imagemagick is returning the result in form of error !








even in CMD i tried to write the output to a file but it have me empty file , when i write the error to a file it will show the result there in output.err


Link to post
Share on other sites

Replace $STDOUT_CHILD with $STDERR_MERGED to get both streams when you read Stdout.
