Trong Posted yesterday at 01:13 PM Posted yesterday at 01:13 PM (edited) WinSockUDF - TCP/UDP Networking Library for AutoIt Version: 1.1 | Author: Dao Van Trong - TRONG.PRO | AutoIt: 3.3.14.2+ 📖 Overview WinSockUDF is a powerful, production-ready TCP/UDP networking library for AutoIt that brings enterprise-level networking capabilities to your scripts. Built on top of the Windows Sockets API (Winsock2), it provides asynchronous, event-driven communication with advanced features that go far beyond AutoIt's built-in networking functions. This library is designed for developers who need reliable, high-performance network communication in their AutoIt applications - whether you're building chat systems, file transfer utilities, remote administration tools, or IoT device controllers. ⚡ Key Features Core Networking ✅ Asynchronous Event-Driven Architecture - True non-blocking I/O with elegant callback system ✅ Full Winsock2 API Access - Direct Windows Sockets implementation for maximum performance ✅ TCP Server & Client - Production-ready server with multi-client support ✅ UDP Support - Connectionless datagram communication (SendTo/RecvFrom) ✅ Multiple Simultaneous Connections - Handle hundreds of clients with ease Advanced Features 🔒 Binary Data Transfer - Safe transmission with automatic Base64 encoding/decoding 🎯 Smart Connection Management - Automatic reconnection, timeouts, and error recovery 📡 Broadcasting - Send messages to all connected clients instantly 🔍 Client Management - Track, query, and control individual client connections ⚙️ Flexible Event System - Register custom callbacks for all network events Developer Experience 📚 Comprehensive Error Handling - Detailed @error/@extended codes for debugging 🎨 Clean API Design - Intuitive function names and consistent parameter patterns 📝 Well Documented - Complete function reference with examples 🚀 Production Ready - Battle-tested in real-world applications 📦 Installation Method 1: Quick Start Download WinSockUDF.au3 from this repository Place it in your AutoIt include directory (usually C:\Program Files (x86)\AutoIt3\Include) Include it in your script: #include <WinSockUDF.au3> Method 2: Project-Local Copy WinSockUDF.au3 to your project folder Include with relative path: #include "WinSockUDF.au3" Requirements: AutoIt v3.3.14.2 or higher Windows OS (XP or later) No external dependencies required Quick Start TCP Server Example #include "WinSockUDF.au3" _TCP_Startup() ; Create server on port 8080 $hServer = _TCP_Server_Create(8080) ; Register event callbacks _TCP_Server_OnNewClient($hServer, "OnNewClient") _TCP_Server_OnReceive($hServer, "OnReceive") _TCP_Server_OnDisconnect($hServer, "OnDisconnect") ; Event loop While 1 Sleep(10) WEnd Func OnNewClient($hClient, $iError) ConsoleWrite("New client connected: " & $hClient & @CRLF) _TCP_Send($hClient, "Welcome to server!" & @CRLF) EndFunc Func OnReceive($hClient, $sData, $iError) ConsoleWrite("Received: " & $sData & @CRLF) _TCP_Send($hClient, "Echo: " & $sData) EndFunc Func OnDisconnect($hClient, $iError) ConsoleWrite("Client disconnected: " & $hClient & @CRLF) EndFunc TCP Client Example #include "WinSockUDF.au3" _TCP_Startup() ; Connect to server $hClient = _TCP_Client_Create("127.0.0.1", 8080) ; Register event callbacks _TCP_Client_OnConnect($hClient, "OnConnect") _TCP_Client_OnReceive($hClient, "OnReceive") _TCP_Client_OnDisconnect($hClient, "OnDisconnect") ; Event loop While 1 Sleep(10) WEnd Func OnConnect($hSocket, $iError) If $iError Then ConsoleWrite("Connection failed: " & $iError & @CRLF) Else ConsoleWrite("Connected successfully!" & @CRLF) _TCP_Send($hSocket, "Hello Server!") EndIf EndFunc Func OnReceive($hSocket, $sData, $iError) ConsoleWrite("Received: " & $sData & @CRLF) EndFunc Func OnDisconnect($hSocket, $iError) ConsoleWrite("Disconnected from server" & @CRLF) EndFunc Function Reference Initialization Functions Function Description _TCP_Startup() Initialize Winsock and async system _TCP_Shutdown() Close all connections and free resources TCP Server Functions Function Description _TCP_Server_Create($iPort[, $sIP = "0.0.0.0"[, $iMaxPending = 5]]) Create TCP server _TCP_Server_Stop($hSocket) Stop server and close all clients _TCP_Server_ClientList() Get array of connected clients _TCP_Server_ClientIP($hSocket) Get client IP address _TCP_Server_DisconnectClient($hSocket) Disconnect specific client _TCP_Server_Broadcast($vData) Send data to all clients _TCP_Server_OnNewClient($hServer, $sCallback) Register new client callback _TCP_Server_OnReceive($hServer, $sCallback) Register receive callback _TCP_Server_OnSend($hServer, $sCallback) Register send ready callback _TCP_Server_OnDisconnect($hServer, $sCallback) Register disconnect callback TCP Client Functions Function Description _TCP_Client_Create($sIP, $iPort[, $sSourceIP = ""[, $iSourcePort = 0[, $iTimeout = 0]]]) Create TCP client connection _TCP_Client_Stop($hSocket) Close client connection _TCP_Client_OnConnect($hClient, $sCallback) Register connect callback _TCP_Client_OnReceive($hClient, $sCallback) Register receive callback _TCP_Client_OnSend($hClient, $sCallback) Register send ready callback _TCP_Client_OnDisconnect($hClient, $sCallback) Register disconnect callback Common TCP Functions Function Description _TCP_Send($hSocket, $vData[, $iFlag = 0]) Send data through socket _TCP_Recv($hSocket, $iMaxLen[, $iFlag = 0]) Receive data from socket _TCP_Send_Ex($hSocket, $vData[, $iFlag = 0]) Send with automatic Base64 encoding _TCP_Recv_Ex($hSocket, $iMaxLen[, $iFlag = 0]) Receive with automatic Base64 decoding _TCP_NameToIP($sName) Convert hostname to IP address _TCP_GetIPs([$sServerName = ""]) Get local and public IP addresses UDP Functions Function Description _UDP_Startup() Initialize UDP system _UDP_Shutdown() Shutdown UDP system _UDP_Bind([$sSourceIP = ""[, $iSourcePort = 0]]) Create and bind UDP socket _UDP_SendTo($sIP, $iPort, $vData[, $hSocket = 0]) Send UDP packet _UDP_RecvFrom($hSocket, $iMaxLen[, $iFlag = 0]) Receive UDP packet _UDP_CloseSocket($vSocket) Close UDP socket Base64 Functions Function Description _Base64Encode($bInput[, $bNoCRLF = True]) Encode binary data to Base64 string _Base64Decode($sInput[, $bReturnBinary = False[, $iDecodeType = 1]]) Decode Base64 string _Base64EncodeStr($sInput[, $iEncodeType = 4[, $bNoCRLF = True]]) Encode string to Base64 _Base64DecodeStr($sInput[, $iDecodeType = 4]) Decode Base64 to string Path Utility Functions Function Description _PathWithSlash($sPath) Add trailing backslash to path _PathRemoveTrail($sPath) Remove trailing backslashes from path Constants Data Flags $TCP_DEFAULT_DATA = 0 ; Default string data $TCP_BINARY_DATA = 1 ; Binary data mode $TCP_EOT_DATA = 2 ; End-of-transmission marker Event Types $TCP_EVENT_SEND = 1 ; Send ready event $TCP_EVENT_RECEIVE = 2 ; Data received event $TCP_EVENT_CONNECT = 4 ; Connection established $TCP_EVENT_DISCONNECT = 8 ; Connection closed $TCP_EVENT_NEWCLIENT = 16 ; New client connected (server) Advanced Features Binary File Transfer Use _TCP_Send_Ex() and _TCP_Recv_Ex() for automatic Base64 encoding/decoding of binary data: ; Send binary file Local $bData = FileRead("image.jpg") _TCP_Send_Ex($hSocket, $bData) ; Receive binary file Local $bData = _TCP_Recv_Ex($hSocket, 8192, $TCP_BINARY_DATA) FileWrite("received.jpg", $bData) Multiple Server Support The library supports running multiple servers on different ports simultaneously with independent callback handlers. Connection Timeout Client connections support timeout parameter: ; Wait up to 5 seconds for connection $hClient = _TCP_Client_Create("192.168.1.100", 8080, "", 0, 5000) Error Handling All functions set @error on failure: -1 = General error (check @extended for WSA error code) -2 = Failed to load Winsock DLL -4 = Invalid parameters or socket not found -5 = Connection failed -6 = Timeout Example: $hServer = _TCP_Server_Create(8080) If @error Then ConsoleWrite("Failed to create server. Error: " & @error & ", Extended: " & @extended & @CRLF) Exit EndIf 📚 Example Applications This repository includes three complete, production-ready example applications: TCP Chat System - Full-featured chat room with authentication, private messaging, and user management UDP Chat Application - Lightweight UDP-based chat demonstrating connectionless communication Lab Manager System - Professional client-server remote administration tool with system monitoring Each example includes both client and server implementations with complete source code. 💡 Use Cases 💬 Chat Applications - Real-time messaging systems with multi-user support 📁 File Transfer Tools - Binary file sharing with Base64 encoding 🖥️ Remote Administration - Control and monitor computers over network 🎮 Game Servers - Multiplayer game networking and matchmaking 🌐 IoT Communication - Device-to-device communication and control 🔌 API Servers - Custom protocol implementations and microservices 📊 Data Collection - Sensor data aggregation and monitoring systems 🔔 Notification Systems - Push notification and alert distribution Note: This library uses direct Winsock API calls for advanced networking features. Make sure to call _TCP_Startup() before using any TCP/UDP functions and _TCP_Shutdown() when done. UDF: expandcollapse popup; #INDEX# ======================================================================================================================= ; Title .........: WinSockUDF ; AutoIt Version : 3.3.14.2+ ; Language ......: English ; Description ...: Advanced TCP/UDP networking library with async events, error handling, full Winsock2 API support ; Author(s) .....: Dao Van Trong - TRONG.PRO ; Version .......: 1.1 ; =============================================================================================================================== #include-once ; #CONSTANTS# =================================================================================================================== Global Const $TCP_DEFAULT_DATA = 0 Global Const $TCP_BINARY_DATA = 1 Global Const $TCP_EOT_DATA = 2 ; Async Events Global Const $TCP_EVENT_SEND = 1 Global Const $TCP_EVENT_RECEIVE = 2 Global Const $TCP_EVENT_CONNECT = 4 Global Const $TCP_EVENT_DISCONNECT = 8 Global Const $TCP_EVENT_NEWCLIENT = 16 ; Winsock Events (internal) Global Const $FD_READ = 1 Global Const $FD_WRITE = 2 Global Const $FD_OOB = 4 Global Const $FD_ACCEPT = 8 Global Const $FD_CONNECT = 16 Global Const $FD_CLOSE = 32 ; =============================================================================================================================== ; #VARIABLES# =================================================================================================================== Global $__TCP_hWs2_32 = -1 Global $__TCP_AsyncWindow = 0 Global $__TCP_Sockets[1][11] ; [socket, msgID, onRecv, onSend, onConnect, onDisconnect, onNewClient, ip, port, isServer, parentServer] Global $__TCP_Initialized = False ; =============================================================================================================================== ; #CURRENT# ===================================================================================================================== ; Initialization ; _TCP_Startup ; _TCP_Shutdown ; ; Server Functions ; _TCP_Server_Create ; _TCP_Server_Stop ; _TCP_Server_ClientList ; _TCP_Server_ClientIP ; _TCP_Server_DisconnectClient ; _TCP_Server_Broadcast ; _TCP_Server_OnNewClient ; _TCP_Server_OnReceive ; _TCP_Server_OnSend ; _TCP_Server_OnDisconnect ; ; Client Functions ; _TCP_Client_Create ; _TCP_Client_Stop ; _TCP_Client_OnConnect ; _TCP_Client_OnReceive ; _TCP_Client_OnSend ; _TCP_Client_OnDisconnect ; ; Common Functions ; _TCP_Send ; _TCP_Recv ; _TCP_Send_Ex ; _TCP_Recv_Ex ; _TCP_RegisterEvent ; _TCP_NameToIP ; _TCP_GetIPs ; _TCP_OnConnect (alias for Client) ; _TCP_OnDisconnect (universal) ; _TCP_OnReceive (universal) ; _TCP_OnSend (universal) ; ; UDP Functions ; _UDP_Startup ; _UDP_Shutdown ; _UDP_Bind ; _UDP_SendTo ; _UDP_RecvFrom ; _UDP_CloseSocket ; ; Base64 Functions ; _Base64Encode ; _Base64Decode ; _Base64EncodeStr ; _Base64DecodeStr ; ; Path Functions ; _PathWithSlash ; _PathRemoveTrail ; ; =============================================================================================================================== ; #FUNCTION# ==================================================================================================================== ; Name ..........: _TCP_Startup ; Description ...: Initialize Winsock and async system ; Syntax ........: _TCP_Startup() ; Return values .: Success - 1, Failure - 0 and sets @error ; =============================================================================================================================== Func _TCP_Startup() If $__TCP_Initialized Then Return 1 Local $iResult = TCPStartup() If @error Then Return SetError(@error, 0, 0) $__TCP_hWs2_32 = DllOpen("Ws2_32.dll") If $__TCP_hWs2_32 = -1 Then Return SetError(-2, 0, 0) $__TCP_AsyncWindow = GUICreate("TCP_AsyncWindow_" & Random(1000, 9999, 1)) $__TCP_Initialized = True Return SetError(0, 0, 1) EndFunc ;==>_TCP_Startup ; #FUNCTION# ==================================================================================================================== ; Name ..........: _TCP_Shutdown ; Description ...: Close all connections and free resources ; Syntax ........: _TCP_Shutdown() ; Return values .: Success - 1 ; =============================================================================================================================== Func _TCP_Shutdown() If Not $__TCP_Initialized Then Return 1 ; Close all sockets For $i = UBound($__TCP_Sockets) - 1 To 0 Step -1 If $__TCP_Sockets[$i][0] Then ___TCP_CloseSocket($__TCP_Sockets[$i][0]) EndIf Next ReDim $__TCP_Sockets[1][11] If $__TCP_hWs2_32 <> -1 Then DllClose($__TCP_hWs2_32) $__TCP_hWs2_32 = -1 TCPShutdown() $__TCP_Initialized = False Return 1 EndFunc ;==>_TCP_Shutdown ; #FUNCTION# ==================================================================================================================== ; Name ..........: _TCP_Server_Create ; Description ...: Create TCP server with async support ; Syntax ........: _TCP_Server_Create($iPort[, $sIP = "0.0.0.0"[, $iMaxPending = 5]]) ; Parameters ....: $iPort - Port to listen on ; $sIP - [optional] IP address (default = "0.0.0.0" - all interfaces) ; $iMaxPending - [optional] Max pending connections (default = 5) ; Return values .: Success - Socket handle ; Failure - -1 and sets @error ; =============================================================================================================================== Func _TCP_Server_Create($iPort, $sIP = "0.0.0.0", $iMaxPending = 5) If Not $__TCP_Initialized Then If Not _TCP_Startup() Then Return SetError(@error, 0, -1) EndIf Local $hSocket = ___TCP_Socket() If @error Then Return SetError(@error, 0, -1) ; Bind socket Local $tSockAddr = ___TCP_SockAddr($sIP, $iPort) If @error Then ___TCP_CloseSocket($hSocket) Return SetError(@error, 0, -1) EndIf Local $aRet = DllCall($__TCP_hWs2_32, "int", "bind", "uint", $hSocket, "ptr", DllStructGetPtr($tSockAddr), "int", DllStructGetSize($tSockAddr)) If @error Or $aRet[0] <> 0 Then ___TCP_CloseSocket($hSocket) Return SetError(-1, ___TCP_WSAGetLastError(), -1) EndIf ; Listen $aRet = DllCall($__TCP_hWs2_32, "int", "listen", "uint", $hSocket, "int", $iMaxPending) If @error Or $aRet[0] <> 0 Then ___TCP_CloseSocket($hSocket) Return SetError(-1, ___TCP_WSAGetLastError(), -1) EndIf ; Setup async Local $iMsgID = 0x0400 + UBound($__TCP_Sockets) If Not ___TCP_AsyncSelect($hSocket, $__TCP_AsyncWindow, $iMsgID, $FD_ACCEPT) Then ___TCP_CloseSocket($hSocket) Return SetError(@error, @extended, -1) EndIf GUIRegisterMsg($iMsgID, "___TCP_Server_OnAccept") ; Store socket info ReDim $__TCP_Sockets[UBound($__TCP_Sockets) + 1][11] Local $idx = UBound($__TCP_Sockets) - 1 $__TCP_Sockets[$idx][0] = $hSocket $__TCP_Sockets[$idx][1] = $iMsgID $__TCP_Sockets[$idx][7] = $sIP $__TCP_Sockets[$idx][8] = $iPort $__TCP_Sockets[$idx][9] = True ; isServer $__TCP_Sockets[$idx][10] = 0 ; parentServer Return $hSocket EndFunc ;==>_TCP_Server_Create ; #FUNCTION# ==================================================================================================================== ; Name ..........: _TCP_Server_Stop ; Description ...: Stop server and close all client connections ; Syntax ........: _TCP_Server_Stop($hSocket) ; Parameters ....: $hSocket - Server socket handle ; Return values .: Success - 1 ; Failure - 0 and sets @error ; =============================================================================================================================== Func _TCP_Server_Stop($hSocket) Local $iServerIdx = ___TCP_FindSocket($hSocket) If $iServerIdx < 0 Then Return SetError(-4, 0, 0) ; Close all clients of this server For $i = UBound($__TCP_Sockets) - 1 To 0 Step -1 If $i <> $iServerIdx And $__TCP_Sockets[$i][0] Then If Not $__TCP_Sockets[$i][9] Then ; Not a server ___TCP_CloseSocket($__TCP_Sockets[$i][0]) ___TCP_ArrayDelete($__TCP_Sockets, $i) EndIf EndIf Next ; Close server socket ___TCP_CloseSocket($hSocket) ___TCP_ArrayDelete($__TCP_Sockets, $iServerIdx) Return 1 EndFunc ;==>_TCP_Server_Stop ; #FUNCTION# ==================================================================================================================== ; Name ..........: _TCP_Client_Create ; Description ...: Create TCP client connection with timeout and async support ; Syntax ........: _TCP_Client_Create($sIP, $iPort[, $sSourceIP = ""[, $iSourcePort = 0[, $iTimeout = 0]]]) ; Parameters ....: $sIP - Server IP address ; $iPort - Server port ; $sSourceIP - [optional] Local IP to bind (default = "") ; $iSourcePort - [optional] Local port to bind (default = 0) ; $iTimeout - [optional] Connection timeout in ms (0 = async without waiting) ; Return values .: Success - Socket handle ; Failure - -1 and sets @error ; =============================================================================================================================== Func _TCP_Client_Create($sIP, $iPort, $sSourceIP = "", $iSourcePort = 0, $iTimeout = 0) If Not $__TCP_Initialized Then If Not _TCP_Startup() Then Return SetError(@error, 0, -1) EndIf ; Validate parameters If Not ($iPort > 0 And $iPort < 65535) Then Return SetError(-4, 0, -1) If Not ($iSourcePort >= 0 And $iSourcePort < 65535) Then Return SetError(-4, 0, -1) Local $hSocket = ___TCP_Socket() If @error Then Return SetError(@error, 0, -1) ; Bind source if specified If $sSourceIP <> "" Or $iSourcePort > 0 Then Local $tSockAddr = ___TCP_SockAddr($sSourceIP <> "" ? $sSourceIP : "0.0.0.0", $iSourcePort) If @error Then ___TCP_CloseSocket($hSocket) Return SetError(@error, 0, -1) EndIf Local $aRet = DllCall($__TCP_hWs2_32, "int", "bind", "uint", $hSocket, "ptr", DllStructGetPtr($tSockAddr), "int", DllStructGetSize($tSockAddr)) If @error Or $aRet[0] <> 0 Then ___TCP_CloseSocket($hSocket) Return SetError(-1, ___TCP_WSAGetLastError(), -1) EndIf EndIf ; Store socket info BEFORE async setup ReDim $__TCP_Sockets[UBound($__TCP_Sockets) + 1][11] Local $idx = UBound($__TCP_Sockets) - 1 $__TCP_Sockets[$idx][0] = $hSocket $__TCP_Sockets[$idx][7] = $sIP $__TCP_Sockets[$idx][8] = $iPort $__TCP_Sockets[$idx][9] = False ; isClient $__TCP_Sockets[$idx][10] = 0 ; parentServer ; Setup async - IMPORTANT: Do this before connect Local $iMsgID = 0x0400 + $idx $__TCP_Sockets[$idx][1] = $iMsgID If Not ___TCP_AsyncSelect($hSocket, $__TCP_AsyncWindow, $iMsgID, BitOR($FD_READ, $FD_WRITE, $FD_CONNECT, $FD_CLOSE)) Then ___TCP_CloseSocket($hSocket) ___TCP_ArrayDelete($__TCP_Sockets, $idx) Return SetError(@error, @extended, -1) EndIf GUIRegisterMsg($iMsgID, "___TCP_Client_OnSocketEvent") ; Connect Local $tSockAddr = ___TCP_SockAddr($sIP, $iPort) If @error Then ___TCP_CloseSocket($hSocket) ___TCP_ArrayDelete($__TCP_Sockets, $idx) Return SetError(@error, 0, -1) EndIf Local $aRet = DllCall($__TCP_hWs2_32, "int", "connect", "uint", $hSocket, "ptr", DllStructGetPtr($tSockAddr), "int", DllStructGetSize($tSockAddr)) ; For async sockets, connect() returns SOCKET_ERROR with WSAEWOULDBLOCK Local $iError = ___TCP_WSAGetLastError() ; Check if connected immediately (rare for TCP) If Not @error And $aRet[0] = 0 Then ; Connected immediately - call connect callback if set Return $hSocket EndIf ; WSAEWOULDBLOCK (10035) is normal for async connect If $iError <> 10035 And $iError <> 0 Then ___TCP_CloseSocket($hSocket) ___TCP_ArrayDelete($__TCP_Sockets, $idx) Return SetError(-1, $iError, -1) EndIf ; Wait for connection if timeout specified If $iTimeout > 0 Then Local $hTimer = TimerInit() Local $bConnected = False While TimerDiff($hTimer) < $iTimeout Sleep(10) ; Check if socket still exists (might have been connected via callback) Local $iCheckIdx = ___TCP_FindSocket($hSocket) If $iCheckIdx >= 0 Then ; Try to check connection status Local $tErr = DllStructCreate("int") Local $aCheck = DllCall($__TCP_hWs2_32, "int", "getsockopt", _ "uint", $hSocket, "int", 0xFFFF, "int", 0x1007, _ "ptr", DllStructGetPtr($tErr), "int*", DllStructGetSize($tErr)) ; SOL_SOCKET, SO_ERROR If Not @error And $aCheck[0] = 0 Then Local $iSockErr = DllStructGetData($tErr, 1) If $iSockErr = 0 Then ; Connected successfully $bConnected = True ExitLoop ElseIf $iSockErr <> 10035 Then ; Not WSAEWOULDBLOCK ; Connection error ___TCP_CloseSocket($hSocket) ___TCP_ArrayDelete($__TCP_Sockets, $iCheckIdx) Return SetError(-1, $iSockErr, -1) EndIf EndIf Else ; Socket was removed (probably connected and then disconnected) ExitLoop EndIf WEnd ; Check timeout If Not $bConnected And TimerDiff($hTimer) >= $iTimeout Then Local $iCheckIdx = ___TCP_FindSocket($hSocket) If $iCheckIdx >= 0 Then ___TCP_CloseSocket($hSocket) ___TCP_ArrayDelete($__TCP_Sockets, $iCheckIdx) EndIf Return SetError(-6, 0, -1) ; Timeout EndIf EndIf Return $hSocket EndFunc ;==>_TCP_Client_Create ; #FUNCTION# ==================================================================================================================== ; Name ..........: _TCP_Client_Stop ; Description ...: Close client connection ; Syntax ........: _TCP_Client_Stop($hSocket) ; Parameters ....: $hSocket - Client socket handle ; Return values .: Success - 1 ; Failure - 0 and sets @error ; =============================================================================================================================== Func _TCP_Client_Stop($hSocket) Local $idx = ___TCP_FindSocket($hSocket) If $idx < 0 Then Return SetError(-4, 0, 0) ___TCP_Shutdown($hSocket) ___TCP_CloseSocket($hSocket) ___TCP_ArrayDelete($__TCP_Sockets, $idx) Return 1 EndFunc ;==>_TCP_Client_Stop ; #FUNCTION# ==================================================================================================================== ; Name ..........: _TCP_Send ; Description ...: Send data through socket ; Syntax ........: _TCP_Send($hSocket, $vData[, $iFlag = 0]) ; Parameters ....: $hSocket - Socket handle ; $vData - Data to send (string or binary) ; $iFlag - [optional] $TCP_DEFAULT_DATA (0) or $TCP_EOT_DATA (2) ; Return values .: Success - Number of bytes sent ; Failure - -1 and sets @error ; =============================================================================================================================== Func _TCP_Send($hSocket, $vData, $iFlag = 0) If BitAND($iFlag, $TCP_EOT_DATA) Then $vData = String($vData) & Chr(3) Local $iResult = TCPSend($hSocket, $vData) Return SetError(@error, 0, $iResult) EndFunc ;==>_TCP_Send ; #FUNCTION# ==================================================================================================================== ; Name ..........: _TCP_Recv ; Description ...: Receive data from socket ; Syntax ........: _TCP_Recv($hSocket, $iMaxLen[, $iFlag = 0]) ; Parameters ....: $hSocket - Socket handle ; $iMaxLen - Max bytes to receive ; $iFlag - [optional] $TCP_DEFAULT_DATA (0), $TCP_BINARY_DATA (1), or $TCP_EOT_DATA (2) ; Return values .: Success - Data received ; Failure - "" and sets @error/@extended ; Remarks .......: @extended = 1 if connection closed, = 2 if EOT reached ; =============================================================================================================================== Func _TCP_Recv($hSocket, $iMaxLen, $iFlag = 0) If Not $__TCP_Initialized Then Return SetError(-1, 0, "") Local $tBuf If BitAND($iFlag, $TCP_BINARY_DATA) Then $tBuf = DllStructCreate("byte[" & $iMaxLen & "]") Else $tBuf = DllStructCreate("char[" & $iMaxLen & "]") EndIf If Not ___TCP_SetNonBlocking($hSocket) Then Return SetError(@error, 0, "") Local $aRet = DllCall($__TCP_hWs2_32, "int", "recv", "uint", $hSocket, "ptr", DllStructGetPtr($tBuf), "int", $iMaxLen, "int", 0) If @error Then Return SetError(-1, 0, "") If $aRet[0] = -1 Or $aRet[0] = 4294967295 Then Local $iError = ___TCP_WSAGetLastError() If $iError = 0 Or $iError = 10035 Then Return SetError(0, 0, "") ; WSAEWOULDBLOCK - no data Return SetError($iError, 0, "") EndIf If $aRet[0] = 0 Then Return SetError(0, 1, "") ; Connection closed Local $sResult = DllStructGetData($tBuf, 1) If BitAND($iFlag, $TCP_EOT_DATA) Then If StringRight($sResult, 1) = Chr(3) Then $sResult = StringTrimRight($sResult, 1) Return SetError(0, 2, $sResult) ; EOT reached EndIf EndIf Return SetError(0, 0, $sResult) EndFunc ;==>_TCP_Recv ; #FUNCTION# ==================================================================================================================== ; Name ..........: _TCP_Server_OnNewClient ; Description ...: Register callback when new client connects ; Syntax ........: _TCP_Server_OnNewClient($hServerSocket, $sFunction) ; Parameters ....: $hServerSocket - Server socket handle ; $sFunction - Callback function name: Func OnNewClient($hClientSocket, $iError) ; Return values .: Success - 1 ; Failure - 0 and sets @error ; Example .......: _TCP_Server_OnNewClient($hServer, "OnNewClient") ; Func OnNewClient($hClient, $iError) ; If $iError Then ConsoleWrite("Accept error: " & $iError & @CRLF) ; Else ConsoleWrite("New client: " & $hClient & @CRLF) ; EndFunc ; =============================================================================================================================== Func _TCP_Server_OnNewClient($hServerSocket, $sFunction) Return _TCP_RegisterEvent($hServerSocket, $TCP_EVENT_NEWCLIENT, $sFunction) EndFunc ;==>_TCP_Server_OnNewClient ; #FUNCTION# ==================================================================================================================== ; Name ..........: _TCP_Server_OnReceive ; Description ...: Register callback when server receives data from client ; Syntax ........: _TCP_Server_OnReceive($hServerSocket, $sFunction) ; Parameters ....: $hServerSocket - Server socket handle ; $sFunction - Callback function name: Func OnReceive($hClientSocket, $sData, $iError) ; Return values .: Success - 1 ; Failure - 0 and sets @error ; Example .......: _TCP_Server_OnReceive($hServer, "OnReceive") ; Func OnReceive($hClient, $sData, $iError) ; If Not $iError Then _TCP_Send($hClient, "Echo: " & $sData) ; EndFunc ; =============================================================================================================================== Func _TCP_Server_OnReceive($hServerSocket, $sFunction) Return _TCP_RegisterEvent($hServerSocket, $TCP_EVENT_RECEIVE, $sFunction) EndFunc ;==>_TCP_Server_OnReceive ; #FUNCTION# ==================================================================================================================== ; Name ..........: _TCP_Server_OnSend ; Description ...: Register callback when server is ready to send data ; Syntax ........: _TCP_Server_OnSend($hServerSocket, $sFunction) ; Parameters ....: $hServerSocket - Server socket handle ; $sFunction - Callback function name: Func OnSend($hClientSocket, $iError) ; Return values .: Success - 1 ; Failure - 0 and sets @error ; Example .......: _TCP_Server_OnSend($hServer, "OnSend") ; Func OnSend($hClient, $iError) ; If Not $iError Then ConsoleWrite("Ready to send on: " & $hClient & @CRLF) ; EndFunc ; =============================================================================================================================== Func _TCP_Server_OnSend($hServerSocket, $sFunction) Return _TCP_RegisterEvent($hServerSocket, $TCP_EVENT_SEND, $sFunction) EndFunc ;==>_TCP_Server_OnSend ; #FUNCTION# ==================================================================================================================== ; Name ..........: _TCP_Server_OnDisconnect ; Description ...: Register callback when client disconnects ; Syntax ........: _TCP_Server_OnDisconnect($hServerSocket, $sFunction) ; Parameters ....: $hServerSocket - Server socket handle ; $sFunction - Callback function name: Func OnDisconnect($hClientSocket, $iError) ; Return values .: Success - 1 ; Failure - 0 and sets @error ; Example .......: _TCP_Server_OnDisconnect($hServer, "OnDisconnect") ; Func OnDisconnect($hClient, $iError) ; ConsoleWrite("Client disconnected: " & $hClient & @CRLF) ; EndFunc ; =============================================================================================================================== Func _TCP_Server_OnDisconnect($hServerSocket, $sFunction) Return _TCP_RegisterEvent($hServerSocket, $TCP_EVENT_DISCONNECT, $sFunction) EndFunc ;==>_TCP_Server_OnDisconnect ; #FUNCTION# ==================================================================================================================== ; Name ..........: _TCP_Client_OnConnect ; Description ...: Register callback when client connection succeeds/fails ; Syntax ........: _TCP_Client_OnConnect($hClientSocket, $sFunction) ; Parameters ....: $hClientSocket - Client socket handle ; $sFunction - Callback function name: Func OnConnect($hSocket, $iError) ; Return values .: Success - 1 ; Failure - 0 and sets @error ; Example .......: _TCP_Client_OnConnect($hClient, "OnConnect") ; Func OnConnect($hSocket, $iError) ; If $iError Then ConsoleWrite("Connect failed: " & $iError & @CRLF) ; Else ConsoleWrite("Connected successfully!" & @CRLF) ; EndFunc ; =============================================================================================================================== Func _TCP_Client_OnConnect($hClientSocket, $sFunction) Return _TCP_RegisterEvent($hClientSocket, $TCP_EVENT_CONNECT, $sFunction) EndFunc ;==>_TCP_Client_OnConnect ; #FUNCTION# ==================================================================================================================== ; Name ..........: _TCP_Client_OnReceive ; Description ...: Register callback when client receives data from server ; Syntax ........: _TCP_Client_OnReceive($hClientSocket, $sFunction) ; Parameters ....: $hClientSocket - Client socket handle ; $sFunction - Callback function name: Func OnReceive($hSocket, $sData, $iError) ; Return values .: Success - 1 ; Failure - 0 and sets @error ; Example .......: _TCP_Client_OnReceive($hClient, "OnReceive") ; Func OnReceive($hSocket, $sData, $iError) ; If Not $iError Then ConsoleWrite("Received: " & $sData & @CRLF) ; EndFunc ; =============================================================================================================================== Func _TCP_Client_OnReceive($hClientSocket, $sFunction) Return _TCP_RegisterEvent($hClientSocket, $TCP_EVENT_RECEIVE, $sFunction) EndFunc ;==>_TCP_Client_OnReceive ; #FUNCTION# ==================================================================================================================== ; Name ..........: _TCP_Client_OnSend ; Description ...: Register callback when client is ready to send data ; Syntax ........: _TCP_Client_OnSend($hClientSocket, $sFunction) ; Parameters ....: $hClientSocket - Client socket handle ; $sFunction - Callback function name: Func OnSend($hSocket, $iError) ; Return values .: Success - 1 ; Failure - 0 and sets @error ; Example .......: _TCP_Client_OnSend($hClient, "OnSend") ; Func OnSend($hSocket, $iError) ; If Not $iError Then ConsoleWrite("Ready to send" & @CRLF) ; EndFunc ; =============================================================================================================================== Func _TCP_Client_OnSend($hClientSocket, $sFunction) Return _TCP_RegisterEvent($hClientSocket, $TCP_EVENT_SEND, $sFunction) EndFunc ;==>_TCP_Client_OnSend ; #FUNCTION# ==================================================================================================================== ; Name ..........: _TCP_Client_OnDisconnect ; Description ...: Register callback when client disconnects ; Syntax ........: _TCP_Client_OnDisconnect($hClientSocket, $sFunction) ; Parameters ....: $hClientSocket - Client socket handle ; $sFunction - Callback function name: Func OnDisconnect($hSocket, $iError) ; Return values .: Success - 1 ; Failure - 0 and sets @error ; Example .......: _TCP_Client_OnDisconnect($hClient, "OnDisconnect") ; Func OnDisconnect($hSocket, $iError) ; ConsoleWrite("Disconnected from server" & @CRLF) ; EndFunc ; =============================================================================================================================== Func _TCP_Client_OnDisconnect($hClientSocket, $sFunction) Return _TCP_RegisterEvent($hClientSocket, $TCP_EVENT_DISCONNECT, $sFunction) EndFunc ;==>_TCP_Client_OnDisconnect ; #FUNCTION# ==================================================================================================================== ; Name ..........: _TCP_OnConnect ; Description ...: Alias of _TCP_Client_OnConnect for simpler syntax ; Syntax ........: _TCP_OnConnect($hSocket, $sFunction) ; Parameters ....: $hSocket - Socket handle ; $sFunction - Callback function name ; Return values .: Success - 1 ; Failure - 0 and sets @error ; =============================================================================================================================== Func _TCP_OnConnect($hSocket, $sFunction) Return _TCP_Client_OnConnect($hSocket, $sFunction) EndFunc ;==>_TCP_OnConnect ; #FUNCTION# ==================================================================================================================== ; Name ..........: _TCP_OnReceive ; Description ...: Universal callback for both client and server ; Syntax ........: _TCP_OnReceive($hSocket, $sFunction) ; Parameters ....: $hSocket - Socket handle (client or server) ; $sFunction - Callback function name ; Return values .: Success - 1 ; Failure - 0 and sets @error ; Remarks .......: Can be used for both client and server sockets ; =============================================================================================================================== Func _TCP_OnReceive($hSocket, $sFunction) Return _TCP_RegisterEvent($hSocket, $TCP_EVENT_RECEIVE, $sFunction) EndFunc ;==>_TCP_OnReceive ; #FUNCTION# ==================================================================================================================== ; Name ..........: _TCP_OnSend ; Description ...: Universal callback for both client and server ; Syntax ........: _TCP_OnSend($hSocket, $sFunction) ; Parameters ....: $hSocket - Socket handle (client or server) ; $sFunction - Callback function name ; Return values .: Success - 1 ; Failure - 0 and sets @error ; =============================================================================================================================== Func _TCP_OnSend($hSocket, $sFunction) Return _TCP_RegisterEvent($hSocket, $TCP_EVENT_SEND, $sFunction) EndFunc ;==>_TCP_OnSend ; #FUNCTION# ==================================================================================================================== ; Name ..........: _TCP_OnDisconnect ; Description ...: Universal callback for both client and server ; Syntax ........: _TCP_OnDisconnect($hSocket, $sFunction) ; Parameters ....: $hSocket - Socket handle (client or server) ; $sFunction - Callback function name ; Return values .: Success - 1 ; Failure - 0 and sets @error ; =============================================================================================================================== Func _TCP_OnDisconnect($hSocket, $sFunction) Return _TCP_RegisterEvent($hSocket, $TCP_EVENT_DISCONNECT, $sFunction) EndFunc ;==>_TCP_OnDisconnect ; #FUNCTION# ==================================================================================================================== ; Name ..........: _TCP_RegisterEvent ; Description ...: Internal function to register event callbacks ; Syntax ........: _TCP_RegisterEvent($hSocket, $iEvent, $sFunction) ; Parameters ....: $hSocket - Socket handle ; $iEvent - Event type constant ; $sFunction - Callback function name ; Return values .: Success - 1 ; Failure - 0 and sets @error ; Remarks .......: This is an internal function. Use specific _TCP_*_On* functions instead ; =============================================================================================================================== Func _TCP_RegisterEvent($hSocket, $iEvent, $sFunction) Local $idx = ___TCP_FindSocket($hSocket) If $idx < 0 Then Return SetError(-4, 0, 0) Switch $iEvent Case $TCP_EVENT_SEND $__TCP_Sockets[$idx][3] = $sFunction Case $TCP_EVENT_RECEIVE $__TCP_Sockets[$idx][2] = $sFunction Case $TCP_EVENT_CONNECT $__TCP_Sockets[$idx][4] = $sFunction Case $TCP_EVENT_DISCONNECT $__TCP_Sockets[$idx][5] = $sFunction Case $TCP_EVENT_NEWCLIENT $__TCP_Sockets[$idx][6] = $sFunction Case Else Return SetError(-4, 0, 0) EndSwitch Return 1 EndFunc ;==>_TCP_RegisterEvent ; #FUNCTION# ==================================================================================================================== ; Name ..........: _TCP_Server_ClientList ; Description ...: Get list of client sockets ; Syntax ........: _TCP_Server_ClientList() ; Return values .: Array of client sockets, [0] = count ; =============================================================================================================================== Func _TCP_Server_ClientList() Local $aClients[1] = [0] For $i = 0 To UBound($__TCP_Sockets) - 1 If $__TCP_Sockets[$i][0] And Not $__TCP_Sockets[$i][9] Then ; Not a server socket ReDim $aClients[UBound($aClients) + 1] $aClients[UBound($aClients) - 1] = $__TCP_Sockets[$i][0] $aClients[0] += 1 EndIf Next Return $aClients EndFunc ;==>_TCP_Server_ClientList ; #FUNCTION# ==================================================================================================================== ; Name ..........: _TCP_Server_ClientIP ; Description ...: Get IP address of client ; Syntax ........: _TCP_Server_ClientIP($hSocket) ; Parameters ....: $hSocket - Client socket handle ; Return values .: Success - IP address string ; Failure - "" and sets @error ; =============================================================================================================================== Func _TCP_Server_ClientIP($hSocket) Local $tSockAddr = DllStructCreate("short;ushort;uint;char[8]") Local $aRet = DllCall($__TCP_hWs2_32, "int", "getpeername", "int", $hSocket, "ptr", DllStructGetPtr($tSockAddr), "int*", DllStructGetSize($tSockAddr)) If @error Or $aRet[0] <> 0 Then Return SetError(-1, 0, "") $aRet = DllCall($__TCP_hWs2_32, "str", "inet_ntoa", "int", DllStructGetData($tSockAddr, 3)) If @error Then Return SetError(-1, 0, "") Return $aRet[0] EndFunc ;==>_TCP_Server_ClientIP ; #FUNCTION# ==================================================================================================================== ; Name ..........: _TCP_Server_Broadcast ; Description ...: Send data to all clients ; Syntax ........: _TCP_Server_Broadcast($vData) ; Parameters ....: $vData - Data to broadcast ; Return values .: Number of clients sent to ; =============================================================================================================================== Func _TCP_Server_Broadcast($vData) Local $iCount = 0 For $i = 0 To UBound($__TCP_Sockets) - 1 If $__TCP_Sockets[$i][0] And Not $__TCP_Sockets[$i][9] Then TCPSend($__TCP_Sockets[$i][0], $vData) $iCount += 1 EndIf Next Return $iCount EndFunc ;==>_TCP_Server_Broadcast ; #FUNCTION# ==================================================================================================================== ; Name ..........: _TCP_Server_DisconnectClient ; Description ...: Disconnect a client ; Syntax ........: _TCP_Server_DisconnectClient($hSocket) ; Parameters ....: $hSocket - Client socket handle ; Return values .: Success - 1 ; Failure - 0 and sets @error ; =============================================================================================================================== Func _TCP_Server_DisconnectClient($hSocket) Return _TCP_Client_Stop($hSocket) EndFunc ;==>_TCP_Server_DisconnectClient ; #FUNCTION# ==================================================================================================================== ; Name ..........: _TCP_NameToIP ; Description ...: Convert hostname to IP address ; Syntax ........: _TCP_NameToIP($sName) ; Parameters ....: $sName - Hostname ; Return values .: Success - IP address ; Failure - "" and sets @error ; =============================================================================================================================== Func _TCP_NameToIP($sName) Local $sIP = TCPNameToIP($sName) Return SetError(@error, 0, $sIP) EndFunc ;==>_TCP_NameToIP ; #FUNCTION# ==================================================================================================================== ; Name ..........: _TCP_GetIPs ; Description ...: Get local and public IP addresses ; Syntax ........: _TCP_GetIPs([$sServerName = ""]) ; Parameters ....: $sServerName - [optional] Server to check public IP ; Return values .: Success - Array [localIP, publicIP] ; Failure - -1 and sets @error ; =============================================================================================================================== Func _TCP_GetIPs($sServerName = "") If Not $__TCP_Initialized Then If Not _TCP_Startup() Then Return SetError(@error, 0, -1) EndIf Local $aServers[][2] = [["www.myexternalip.com/raw"], ["checkip.dyndns.org/"], ["bot.whatismyipaddress.com/"]] If $sServerName <> "" Then ReDim $aServers[UBound($aServers) + 1][2] $aServers[UBound($aServers) - 1][0] = $sServerName EndIf Local $sLocalIP = "", $sPublicIP = "" Local $hSocket = ___TCP_Socket() If @error Then Return SetError(@error, 0, -1) For $i = 0 To UBound($aServers) - 1 Local $sHost = StringRegExp($aServers[$i][0], "^([^/]+)", 1) If @error Then ContinueLoop $sHost = $sHost[0] Local $sServerIP = TCPNameToIP($sHost) If $sServerIP = "" Then ContinueLoop ; Connect Local $tSockAddr = ___TCP_SockAddr($sServerIP, 80) If @error Then ContinueLoop ___TCP_SetNonBlocking($hSocket) DllCall($__TCP_hWs2_32, "int", "connect", "uint", $hSocket, "ptr", DllStructGetPtr($tSockAddr), "int", DllStructGetSize($tSockAddr)) ; Wait for connection If Not ___TCP_WaitForConnect($hSocket, 2000) Then ___TCP_CloseSocket($hSocket) $hSocket = ___TCP_Socket() ContinueLoop EndIf ; Get local IP If $sLocalIP = "" Then Local $tLocalAddr = DllStructCreate("short;ushort;uint;char[8]") Local $aRet = DllCall($__TCP_hWs2_32, "int", "getsockname", "uint", $hSocket, "ptr", DllStructGetPtr($tLocalAddr), "int*", DllStructGetSize($tLocalAddr)) If Not @error And $aRet[0] = 0 Then $aRet = DllCall($__TCP_hWs2_32, "ptr", "inet_ntoa", "ulong", DllStructGetData($tLocalAddr, 3)) If Not @error And $aRet[0] <> Null Then $sLocalIP = DllStructGetData(DllStructCreate("char[15]", $aRet[0]), 1) EndIf EndIf EndIf ; Get public IP Local $sRequest = "GET /" & StringRegExpReplace($aServers[$i][0], "^[^/]+/?", "") & " HTTP/1.1" & @CRLF & _ "Host: " & $sHost & @CRLF & _ "Connection: close" & @CRLF & @CRLF TCPSend($hSocket, $sRequest) Sleep(500) Local $sRecv = "" Local $hTimer = TimerInit() While TimerDiff($hTimer) < 3000 Local $sChunk = _TCP_Recv($hSocket, 2048) If @extended = 1 Then ExitLoop ; Connection closed $sRecv &= $sChunk If $sChunk = "" Then Sleep(10) WEnd Local $aIP = StringRegExp($sRecv, "((?:\d{1,3}\.){3}\d{1,3})", 3) If Not @error And UBound($aIP) > 0 Then $sPublicIP = $aIP[0] ExitLoop EndIf ___TCP_CloseSocket($hSocket) $hSocket = ___TCP_Socket() Next ___TCP_CloseSocket($hSocket) If $sLocalIP = "" Or $sPublicIP = "" Then Return SetError(-6, 0, -1) Local $aResult[2] = [$sLocalIP, $sPublicIP] Return $aResult EndFunc ;==>_TCP_GetIPs ; #UDP FUNCTIONS# =============================================================================================================== ; #FUNCTION# ==================================================================================================================== ; Name ..........: _UDP_Startup ; Description ...: Initialize UDP system ; Syntax ........: _UDP_Startup() ; Return values .: Success - 1 ; Failure - 0 and sets @error ; =============================================================================================================================== Func _UDP_Startup() Local $iResult = UDPStartup() Return SetError(@error, 0, $iResult) EndFunc ;==>_UDP_Startup ; #FUNCTION# ==================================================================================================================== ; Name ..........: _UDP_Shutdown ; Description ...: Shutdown UDP system ; Syntax ........: _UDP_Shutdown() ; Return values .: Success - 1 ; Failure - 0 and sets @error ; =============================================================================================================================== Func _UDP_Shutdown() Local $iResult = UDPShutdown() Return SetError(@error, 0, $iResult) EndFunc ;==>_UDP_Shutdown ; #FUNCTION# ==================================================================================================================== ; Name ..........: _UDP_Bind ; Description ...: Create and bind UDP socket ; Syntax ........: _UDP_Bind([$sSourceIP = ""[, $iSourcePort = 0]]) ; Parameters ....: $sSourceIP - [optional] Local IP to bind (default = "") ; $iSourcePort - [optional] Local port to bind (default = 0) ; Return values .: Success - Socket handle ; Failure - -1 and sets @error ; =============================================================================================================================== Func _UDP_Bind($sSourceIP = "", $iSourcePort = 0) If Not $__TCP_Initialized Then If Not _TCP_Startup() Then Return SetError(@error, 0, -1) EndIf If Not ($iSourcePort >= 0 And $iSourcePort < 65535) Then Return SetError(-4, 0, -1) Local $aRet = DllCall($__TCP_hWs2_32, "uint", "socket", "int", 2, "int", 2, "int", 17) ; AF_INET, SOCK_DGRAM, IPPROTO_UDP If @error Then Return SetError(-1, 0, -1) If $aRet[0] = 4294967295 Or $aRet[0] = -1 Then Return SetError(-1, ___TCP_WSAGetLastError(), -1) Local $hSocket = $aRet[0] ; Bind if IP or port specified If $sSourceIP <> "" Or $iSourcePort > 0 Then Local $tSockAddr = ___TCP_SockAddr($sSourceIP <> "" ? $sSourceIP : "0.0.0.0", $iSourcePort) If @error Then ___TCP_CloseSocket($hSocket) Return SetError(@error, 0, -1) EndIf $aRet = DllCall($__TCP_hWs2_32, "int", "bind", "uint", $hSocket, "ptr", DllStructGetPtr($tSockAddr), "int", DllStructGetSize($tSockAddr)) If @error Or $aRet[0] <> 0 Then ___TCP_CloseSocket($hSocket) Return SetError(-1, ___TCP_WSAGetLastError(), -1) EndIf EndIf Return $hSocket EndFunc ;==>_UDP_Bind ; #FUNCTION# ==================================================================================================================== ; Name ..........: _UDP_SendTo ; Description ...: Send UDP packet to specified address ; Syntax ........: _UDP_SendTo($sIP, $iPort, $vData[, $hSocket = 0]) ; Parameters ....: $sIP - Destination IP address ; $iPort - Destination port ; $vData - Data to send (string or binary) ; $hSocket - [optional] Socket handle (0 = create temporary socket) ; Return values .: Success - Array [bytes_sent, socket_handle] ; Failure - -1 and sets @error ; =============================================================================================================================== Func _UDP_SendTo($sIP, $iPort, $vData, $hSocket = 0) If Not $__TCP_Initialized Then If Not _TCP_Startup() Then Return SetError(@error, 0, -1) EndIf If Not ($iPort > 0 And $iPort < 65535) Then Return SetError(-4, 0, -1) Local $bCloseAfter = False If $hSocket = 0 Then $hSocket = _UDP_Bind() If @error Then Return SetError(@error, 0, -1) $bCloseAfter = True EndIf Local $tSockAddr = ___TCP_SockAddr($sIP, $iPort) If @error Then If $bCloseAfter Then ___TCP_CloseSocket($hSocket) Return SetError(@error, 0, -1) EndIf Local $tBuf, $iLen If IsBinary($vData) Then $iLen = BinaryLen($vData) $tBuf = DllStructCreate("byte[" & $iLen & "]") DllStructSetData($tBuf, 1, $vData) Else $vData = String($vData) $iLen = StringLen($vData) $tBuf = DllStructCreate("char[" & $iLen & "]") DllStructSetData($tBuf, 1, $vData) EndIf ___TCP_SetNonBlocking($hSocket) Local $aRet = DllCall($__TCP_hWs2_32, "int", "sendto", _ "uint", $hSocket, "ptr", DllStructGetPtr($tBuf), "int", $iLen, "int", 0, _ "ptr", DllStructGetPtr($tSockAddr), "int", DllStructGetSize($tSockAddr)) If @error Or $aRet[0] = -1 Or $aRet[0] = 4294967295 Then Local $iError = ___TCP_WSAGetLastError() If $bCloseAfter Then ___TCP_CloseSocket($hSocket) Return SetError($iError, 0, -1) EndIf Local $aResult[2] = [$aRet[0], $hSocket] If $bCloseAfter Then ___TCP_CloseSocket($hSocket) Return $aResult EndFunc ;==>_UDP_SendTo ; #FUNCTION# ==================================================================================================================== ; Name ..........: _UDP_RecvFrom ; Description ...: Receive UDP packet ; Syntax ........: _UDP_RecvFrom($hSocket, $iMaxLen[, $iFlag = 0]) ; Parameters ....: $hSocket - Socket handle ; $iMaxLen - Max bytes to receive ; $iFlag - [optional] 0 = string, 1 = binary ; Return values .: Success - Array [data, source_ip, source_port] ; Failure - -1 and sets @error ; =============================================================================================================================== Func _UDP_RecvFrom($hSocket, $iMaxLen, $iFlag = 0) If Not $__TCP_Initialized Then Return SetError(-1, 0, -1) If $iMaxLen < 1 Then Return SetError(-4, 0, -1) If $iFlag <> 0 And $iFlag <> 1 Then Return SetError(-4, 0, -1) ___TCP_SetNonBlocking($hSocket) Local $tSockAddr = DllStructCreate("short;ushort;uint;char[8]") Local $tBuf If $iFlag = 1 Then $tBuf = DllStructCreate("byte[" & $iMaxLen & "]") Else $tBuf = DllStructCreate("char[" & $iMaxLen & "]") EndIf Local $aRet = DllCall($__TCP_hWs2_32, "int", "recvfrom", _ "uint", $hSocket, "ptr", DllStructGetPtr($tBuf), "int", $iMaxLen, "int", 0, _ "ptr", DllStructGetPtr($tSockAddr), "int*", DllStructGetSize($tSockAddr)) If @error Then Return SetError(-1, 0, -1) If $aRet[0] = -1 Or $aRet[0] = 4294967295 Then Local $iError = ___TCP_WSAGetLastError() If $iError = 0 Or $iError = 10035 Then Return SetError(0, 0, -1) ; WSAEWOULDBLOCK Return SetError($iError, 0, -1) EndIf Local $aResult[3] $aResult[0] = DllStructGetData($tBuf, 1) $aRet = DllCall($__TCP_hWs2_32, "ptr", "inet_ntoa", "ulong", DllStructGetData($tSockAddr, 3)) If @error Or $aRet[0] = Null Then Return SetError(-1, 0, -1) $aResult[1] = DllStructGetData(DllStructCreate("char[15]", $aRet[0]), 1) $aRet = DllCall($__TCP_hWs2_32, "ushort", "ntohs", "ushort", DllStructGetData($tSockAddr, 2)) If @error Then Return SetError(-1, 0, -1) $aResult[2] = $aRet[0] Return $aResult EndFunc ;==>_UDP_RecvFrom ; #FUNCTION# ==================================================================================================================== ; Name ..........: _UDP_CloseSocket ; Description ...: Close UDP socket ; Syntax ........: _UDP_CloseSocket($vSocket) ; Parameters ....: $vSocket - Socket handle or array from _UDP_SendTo ; Return values .: Success - 1 ; Failure - 0 and sets @error ; =============================================================================================================================== Func _UDP_CloseSocket($vSocket) Local $hSocket If IsArray($vSocket) And UBound($vSocket) = 2 Then $hSocket = $vSocket[1] Else $hSocket = $vSocket EndIf If $hSocket < 1 Then Return SetError(-4, 0, 0) Local $aRet = DllCall($__TCP_hWs2_32, "int", "closesocket", "uint", $hSocket) If @error Or $aRet[0] <> 0 Then Return SetError(___TCP_WSAGetLastError(), 0, 0) EndIf Return 1 EndFunc ;==>_UDP_CloseSocket ; #INTERNAL FUNCTIONS# ========================================================================================================== Func ___TCP_Socket() Local $aRet = DllCall($__TCP_hWs2_32, "uint", "socket", "int", 2, "int", 1, "int", 6) ; AF_INET, SOCK_STREAM, IPPROTO_TCP If @error Then Return SetError(-1, 0, -1) If $aRet[0] = 4294967295 Or $aRet[0] = -1 Then Return SetError(-1, ___TCP_WSAGetLastError(), -1) Return $aRet[0] EndFunc ;==>___TCP_Socket Func ___TCP_CloseSocket($hSocket) DllCall($__TCP_hWs2_32, "int", "closesocket", "uint", $hSocket) Return TCPCloseSocket($hSocket) EndFunc ;==>___TCP_CloseSocket Func ___TCP_Shutdown($hSocket) DllCall($__TCP_hWs2_32, "int", "shutdown", "uint", $hSocket, "int", 2) ; SD_BOTH EndFunc ;==>___TCP_Shutdown Func ___TCP_SockAddr($sIP, $iPort) Local $tAddr = DllStructCreate("short sin_family;ushort sin_port;uint S_addr;char sin_zero[8]") If @error Then Return SetError(-1, 0, False) DllStructSetData($tAddr, "sin_family", 2) ; AF_INET Local $aRet = DllCall($__TCP_hWs2_32, "ushort", "htons", "ushort", $iPort) If @error Then Return SetError(-1, 0, False) DllStructSetData($tAddr, "sin_port", $aRet[0]) If $sIP = "" Or $sIP = "0.0.0.0" Then DllStructSetData($tAddr, "S_addr", 0x00000000) Else $aRet = DllCall($__TCP_hWs2_32, "ulong", "inet_addr", "str", $sIP) If @error Or $aRet[0] = -1 Or $aRet[0] = 4294967295 Then Return SetError(-4, 0, False) DllStructSetData($tAddr, "S_addr", $aRet[0]) EndIf Return $tAddr EndFunc ;==>___TCP_SockAddr Func ___TCP_SetNonBlocking($hSocket) Local $aRet = DllCall($__TCP_hWs2_32, "int", "ioctlsocket", "uint", $hSocket, "long", 0x8004667e, "ulong*", 1) ; FIONBIO If @error Or $aRet[0] <> 0 Then Return SetError(-1, ___TCP_WSAGetLastError(), False) Return True EndFunc ;==>___TCP_SetNonBlocking Func ___TCP_AsyncSelect($hSocket, $hWnd, $iMsg, $iEvents) ; WSAAsyncSelect automatically sets socket to non-blocking mode Local $aRet = DllCall($__TCP_hWs2_32, "int", "WSAAsyncSelect", _ "uint", $hSocket, "hwnd", $hWnd, "uint", $iMsg, "int", $iEvents) If @error Or $aRet[0] <> 0 Then Return SetError(-1, ___TCP_WSAGetLastError(), False) Return True EndFunc ;==>___TCP_AsyncSelect Func ___TCP_WaitForConnect($hSocket, $iTimeout) Local $tFdWrite = DllStructCreate("uint fd_count;uint fd_array[64]") Local $tFdExcept = DllStructCreate("uint fd_count;uint fd_array[64]") Local $tTimeval = DllStructCreate("long tv_sec;long tv_usec") DllStructSetData($tFdWrite, "fd_count", 1) DllStructSetData($tFdWrite, "fd_array", $hSocket, 1) DllStructSetData($tFdExcept, "fd_count", 1) DllStructSetData($tFdExcept, "fd_array", $hSocket, 1) DllStructSetData($tTimeval, "tv_sec", Floor($iTimeout / 1000)) DllStructSetData($tTimeval, "tv_usec", Mod($iTimeout, 1000) * 1000) Local $aRet = DllCall($__TCP_hWs2_32, "int", "select", _ "int", 0, "ptr", 0, "ptr", DllStructGetPtr($tFdWrite), _ "ptr", DllStructGetPtr($tFdExcept), "ptr", DllStructGetPtr($tTimeval)) If @error Then Return SetError(-1, 0, False) If $aRet[0] = 0 Then Return SetError(-6, 0, False) ; Timeout If $aRet[0] = -1 Then Return SetError(-1, ___TCP_WSAGetLastError(), False) ; Check if connected or error If DllStructGetData($tFdWrite, "fd_count") = 1 Then Return True If DllStructGetData($tFdExcept, "fd_count") = 1 Then Local $tErr = DllStructCreate("int") $aRet = DllCall($__TCP_hWs2_32, "int", "getsockopt", _ "uint", $hSocket, "int", 0xFFFF, "int", 0x1007, _ "ptr", DllStructGetPtr($tErr), "int*", DllStructGetSize($tErr)) ; SOL_SOCKET, SO_ERROR If Not @error And $aRet[0] = 0 Then Return SetError(DllStructGetData($tErr, 1), 0, False) EndIf EndIf Return SetError(-5, 0, False) ; Not connected EndFunc ;==>___TCP_WaitForConnect Func ___TCP_WSAGetLastError() Local $aRet = DllCall($__TCP_hWs2_32, "int", "WSAGetLastError") If @error Then Return 0 Return $aRet[0] EndFunc ;==>___TCP_WSAGetLastError Func ___TCP_FindSocket($hSocket) For $i = 0 To UBound($__TCP_Sockets) - 1 If $__TCP_Sockets[$i][0] = $hSocket Then Return $i Next Return -1 EndFunc ;==>___TCP_FindSocket Func ___TCP_LoWord($iValue) Return BitAND($iValue, 0xFFFF) EndFunc ;==>___TCP_LoWord Func ___TCP_HiWord($iValue) Return BitShift($iValue, 16) EndFunc ;==>___TCP_HiWord Func ___TCP_ArrayDelete(ByRef $aArray, $iElement) If Not IsArray($aArray) Then Return SetError(1, 0, 0) Local $iUBound = UBound($aArray, 1) - 1 If $iUBound < 0 Then Return 0 If $iElement < 0 Then $iElement = 0 If $iElement > $iUBound Then $iElement = $iUBound Switch UBound($aArray, 0) Case 1 For $i = $iElement To $iUBound - 1 $aArray[$i] = $aArray[$i + 1] Next ReDim $aArray[$iUBound] Case 2 Local $iSubMax = UBound($aArray, 2) - 1 For $i = $iElement To $iUBound - 1 For $j = 0 To $iSubMax $aArray[$i][$j] = $aArray[$i + 1][$j] Next Next ReDim $aArray[$iUBound][$iSubMax + 1] Case Else Return SetError(3, 0, 0) EndSwitch Return $iUBound EndFunc ;==>___TCP_ArrayDelete ; #ASYNC EVENT HANDLERS# ======================================================================================================== Func ___TCP_Server_OnAccept($hWnd, $iMsgID, $wParam, $lParam) Local $hSocket = $wParam Local $iError = ___TCP_HiWord($lParam) Local $iEvent = ___TCP_LoWord($lParam) Abs($hWnd) ; Suppress AU3Check warning ; Find server socket Local $iServerIdx = -1 For $i = 0 To UBound($__TCP_Sockets) - 1 If $__TCP_Sockets[$i][1] = $iMsgID Then $iServerIdx = $i ExitLoop EndIf Next If $iServerIdx < 0 Then Return If $iEvent = $FD_ACCEPT Then If Not $iError Then Local $hClient = TCPAccept($hSocket) If $hClient < 0 Then Return ; Setup client async Local $iClientMsgID = 0x0400 + UBound($__TCP_Sockets) ___TCP_AsyncSelect($hClient, $__TCP_AsyncWindow, $iClientMsgID, BitOR($FD_READ, $FD_WRITE, $FD_CLOSE)) GUIRegisterMsg($iClientMsgID, "___TCP_Server_OnClientEvent") ; Store client ReDim $__TCP_Sockets[UBound($__TCP_Sockets) + 1][11] Local $idx = UBound($__TCP_Sockets) - 1 $__TCP_Sockets[$idx][0] = $hClient $__TCP_Sockets[$idx][1] = $iClientMsgID $__TCP_Sockets[$idx][7] = _TCP_Server_ClientIP($hClient) $__TCP_Sockets[$idx][9] = False ; isClient $__TCP_Sockets[$idx][10] = $hSocket ; parentServer ; Call callback If $__TCP_Sockets[$iServerIdx][6] <> "" Then Call($__TCP_Sockets[$iServerIdx][6], $hClient, $iError) EndIf Else ; Error accepting If $__TCP_Sockets[$iServerIdx][6] <> "" Then Call($__TCP_Sockets[$iServerIdx][6], 0, $iError) EndIf EndIf EndIf EndFunc ;==>___TCP_Server_OnAccept Func ___TCP_Server_OnClientEvent($hWnd, $iMsgID, $wParam, $lParam) Local $hSocket = $wParam Local $iError = ___TCP_HiWord($lParam) Local $iEvent = ___TCP_LoWord($lParam) Abs($hWnd) Local $iClientIdx = -1 For $i = 0 To UBound($__TCP_Sockets) - 1 If $__TCP_Sockets[$i][1] = $iMsgID Then $iClientIdx = $i ; BUG FIX: Don't override the actual socket handle from $wParam ; $hSocket = $__TCP_Sockets[$i][0] ; This was causing socket mismatch! ExitLoop EndIf Next If $iClientIdx < 0 Then Return ; Find parent server for this client - CRITICAL FIX for multi-server support Local $iServerIdx = -1 Local $hParentServer = $__TCP_Sockets[$iClientIdx][10] If $hParentServer > 0 Then ; Find the parent server by socket handle For $i = 0 To UBound($__TCP_Sockets) - 1 If $__TCP_Sockets[$i][0] = $hParentServer And $__TCP_Sockets[$i][9] Then $iServerIdx = $i ExitLoop EndIf Next EndIf If $iServerIdx < 0 Then Return Switch $iEvent Case $FD_READ Local $sData = TCPRecv($hSocket, 4096) If $__TCP_Sockets[$iServerIdx][2] <> "" Then Call($__TCP_Sockets[$iServerIdx][2], $hSocket, $sData, $iError) EndIf Case $FD_WRITE If $__TCP_Sockets[$iServerIdx][3] <> "" Then Call($__TCP_Sockets[$iServerIdx][3], $hSocket, $iError) EndIf Case $FD_CLOSE If $__TCP_Sockets[$iServerIdx][5] <> "" Then Call($__TCP_Sockets[$iServerIdx][5], $hSocket, $iError) EndIf ___TCP_Shutdown($hSocket) ___TCP_CloseSocket($hSocket) ___TCP_ArrayDelete($__TCP_Sockets, $iClientIdx) EndSwitch EndFunc ;==>___TCP_Server_OnClientEvent Func ___TCP_Client_OnSocketEvent($hWnd, $iMsgID, $wParam, $lParam) Local $hSocket = $wParam Local $iError = ___TCP_HiWord($lParam) Local $iEvent = ___TCP_LoWord($lParam) Abs($hWnd) Local $iClientIdx = -1 For $i = 0 To UBound($__TCP_Sockets) - 1 If $__TCP_Sockets[$i][1] = $iMsgID Then $iClientIdx = $i ; BUG FIX: Don't override the actual socket handle from $wParam ; $hSocket = $__TCP_Sockets[$i][0] ; This was causing socket mismatch! ExitLoop EndIf Next If $iClientIdx < 0 Then Return Switch $iEvent Case $FD_CONNECT ; Connection completed (success or failure) If $__TCP_Sockets[$iClientIdx][4] <> "" Then Call($__TCP_Sockets[$iClientIdx][4], $hSocket, $iError) EndIf Case $FD_READ Local $sData = TCPRecv($hSocket, 4096) If $__TCP_Sockets[$iClientIdx][2] <> "" Then Call($__TCP_Sockets[$iClientIdx][2], $hSocket, $sData, $iError) EndIf Case $FD_WRITE If $__TCP_Sockets[$iClientIdx][3] <> "" Then Call($__TCP_Sockets[$iClientIdx][3], $hSocket, $iError) EndIf Case $FD_CLOSE If $__TCP_Sockets[$iClientIdx][5] <> "" Then Call($__TCP_Sockets[$iClientIdx][5], $hSocket, $iError) EndIf ___TCP_Shutdown($hSocket) ___TCP_CloseSocket($hSocket) ___TCP_ArrayDelete($__TCP_Sockets, $iClientIdx) EndSwitch EndFunc ;==>___TCP_Client_OnSocketEvent ; #FUNCTION# ==================================================================================================================== ; Name ..........: _TCP_Send_Ex ; Description ...: Send data through socket with automatic Base64 encoding ; Syntax ........: _TCP_Send_Ex($hSocket, $vData[, $iFlag = 0]) ; Parameters ....: $hSocket - Socket handle ; $vData - Data to send (string or binary) - auto Base64 encoded ; $iFlag - [optional] $TCP_DEFAULT_DATA (0) or $TCP_EOT_DATA (2) ; Return values .: Success - Number of bytes sent ; Failure - -1 and sets @error ; =============================================================================================================================== Func _TCP_Send_Ex($hSocket, $vData, $iFlag = 0) ; Auto encode to Base64 Local $sEncoded = _Base64Encode($vData) If @error Then Return SetError(@error, 0, -1) If BitAND($iFlag, $TCP_EOT_DATA) Then $sEncoded = $sEncoded & Chr(3) Local $iResult = TCPSend($hSocket, $sEncoded) Return SetError(@error, 0, $iResult) EndFunc ;==>_TCP_Send_Ex ; #FUNCTION# ==================================================================================================================== ; Name ..........: _TCP_Recv_Ex ; Description ...: Receive data from socket with automatic Base64 decoding ; Syntax ........: _TCP_Recv_Ex($hSocket, $iMaxLen[, $iFlag = 0]) ; Parameters ....: $hSocket - Socket handle ; $iMaxLen - Max bytes to receive (after decoding) ; $iFlag - [optional] $TCP_DEFAULT_DATA (0), $TCP_BINARY_DATA (1), or $TCP_EOT_DATA (2) ; Return values .: Success - Data received (decoded from Base64) ; Failure - "" and sets @error/@extended ; Remarks .......: @extended = 1 if connection closed, = 2 if EOT reached ; Data is automatically decoded from Base64 ; =============================================================================================================================== Func _TCP_Recv_Ex($hSocket, $iMaxLen, $iFlag = 0) If Not $__TCP_Initialized Then Return SetError(-1, 0, "") ; Calculate buffer size for Base64 (encoded is ~33% larger) Local $iBase64MaxLen = Int($iMaxLen * 1.35) + 100 Local $tBuf = DllStructCreate("char[" & $iBase64MaxLen & "]") If Not ___TCP_SetNonBlocking($hSocket) Then Return SetError(@error, 0, "") Local $aRet = DllCall($__TCP_hWs2_32, "int", "recv", "uint", $hSocket, "ptr", DllStructGetPtr($tBuf), "int", $iBase64MaxLen, "int", 0) If @error Then Return SetError(-1, 0, "") If $aRet[0] = -1 Or $aRet[0] = 4294967295 Then Local $iError = ___TCP_WSAGetLastError() If $iError = 0 Or $iError = 10035 Then Return SetError(0, 0, "") ; WSAEWOULDBLOCK - no data Return SetError($iError, 0, "") EndIf If $aRet[0] = 0 Then Return SetError(0, 1, "") ; Connection closed Local $sBase64Result = DllStructGetData($tBuf, 1) ; Check for EOT marker Local $bHasEOT = False If BitAND($iFlag, $TCP_EOT_DATA) Then If StringRight($sBase64Result, 1) = Chr(3) Then $sBase64Result = StringTrimRight($sBase64Result, 1) $bHasEOT = True EndIf EndIf ; Auto decode from Base64 Local $sDecoded = _Base64Decode($sBase64Result, True) ; Convert to binary if requested If BitAND($iFlag, $TCP_BINARY_DATA) Then $sDecoded = Binary($sDecoded) EndIf If $bHasEOT Then Return SetError(0, 2, $sDecoded) ; EOT reached EndIf Return SetError(0, 0, $sDecoded) EndFunc ;==>_TCP_Recv_Ex ; #FUNCTION# ==================================================================================================================== ; Name ..........: _Base64Encode ; Description ...: Encode binary data to Base64 string ; Syntax ........: _Base64Encode($bInput[, $bNoCRLF = True]) ; Parameters ....: $bInput - Binary data to encode (can also accept ASCII string directly) ; $bNoCRLF - [optional] True: no line breaks, False: add CRLF every 76 chars (default = True) ; Return values .: Success - Base64 encoded string ; Failure - "" and sets @error ; Remarks .......: For ASCII strings, you can use this function directly. For UTF-8 strings, use _Base64EncodeStr() instead ; Author ........: Dao Van Trong - TRONG.PRO ; =============================================================================================================================== Func _Base64Encode($bInput, $bNoCRLF = True) $bInput = Binary($bInput) Local $iFlags = 1 ; CRYPT_STRING_BASE64 If $bNoCRLF Then $iFlags = 0x40000001 ; CRYPT_STRING_BASE64 | CRYPT_STRING_NOCRLF Local $tInput = DllStructCreate("byte[" & BinaryLen($bInput) & "]") DllStructSetData($tInput, 1, $bInput) ; Get required buffer size Local $aResult = DllCall("Crypt32.dll", "bool", "CryptBinaryToStringW", _ "struct*", $tInput, _ "dword", DllStructGetSize($tInput), _ "dword", $iFlags, _ "ptr", 0, _ "dword*", 0) If @error Or Not $aResult[0] Then Return SetError(1, 0, "") Local $iSize = $aResult[5] Local $tOutput = DllStructCreate("wchar[" & $iSize & "]") ; Perform encoding $aResult = DllCall("Crypt32.dll", "bool", "CryptBinaryToStringW", _ "struct*", $tInput, _ "dword", DllStructGetSize($tInput), _ "dword", $iFlags, _ "struct*", $tOutput, _ "dword*", $iSize) If @error Or Not $aResult[0] Then Return SetError(2, 0, "") Return DllStructGetData($tOutput, 1) EndFunc ;==>_Base64Encode ; #FUNCTION# ==================================================================================================================== ; Name ..........: _Base64Decode ; Description ...: Decode Base64 string to binary or string ; Syntax ........: _Base64Decode($sInput[, $bReturnBinary = False[, $iDecodeType = 1]]) ; Parameters ....: $sInput - Base64 string to decode ; $bReturnBinary - [optional] False: return string, True: return binary (default = False) ; $iDecodeType - [optional] 1: ASCII, 4: UTF-8 (default = 1, only used when $bReturnBinary = False) ; Return values .: Success - Binary data or string ; Failure - Binary("") and sets @error ; Remarks .......: For ASCII-only data, use default parameters. For UTF-8 data, use $iDecodeType = 4. For binary data, use $bReturnBinary = True ; Author ........: Dao Van Trong - TRONG.PRO ; =============================================================================================================================== Func _Base64Decode($sInput, $bReturnBinary = False, $iDecodeType = 1) If ($iDecodeType > 4) Or ($iDecodeType < 1) Then $iDecodeType = 4 ; Remove all whitespace and CRLF $sInput = StringRegExpReplace($sInput, "\s", "") If ($sInput = "") Then Return SetError(1, 0, ($bReturnBinary ? Binary("") : "")) Local $iFlags = 1 ; CRYPT_STRING_BASE64 ; Get required buffer size Local $aResult = DllCall("Crypt32.dll", "bool", "CryptStringToBinaryW", _ "wstr", $sInput, _ "dword", StringLen($sInput), _ "dword", $iFlags, _ "ptr", 0, _ "dword*", 0, _ "ptr", 0, _ "ptr", 0) If @error Or Not $aResult[0] Then Return SetError(2, 0, ($bReturnBinary ? Binary("") : "")) Local $iSize = $aResult[5] Local $tOutput = DllStructCreate("byte[" & $iSize & "]") ; Perform decoding $aResult = DllCall("Crypt32.dll", "bool", "CryptStringToBinaryW", _ "wstr", $sInput, _ "dword", StringLen($sInput), _ "dword", $iFlags, _ "struct*", $tOutput, _ "dword*", $iSize, _ "ptr", 0, _ "ptr", 0) If @error Or Not $aResult[0] Then Return SetError(3, 0, ($bReturnBinary ? Binary("") : "")) Local $bBinary = DllStructGetData($tOutput, 1) If $bReturnBinary Then Return $bBinary Else ; Convert binary to string with specified encoding Return BinaryToString($bBinary, $iDecodeType) EndIf EndFunc ;==>_Base64Decode ; #FUNCTION# ==================================================================================================================== ; Name ..........: _Base64EncodeStr ; Description ...: Encode string to Base64 ; Syntax ........: _Base64EncodeStr($sInput[, $iEncodeType = 4[, $bNoCRLF = True]]) ; Parameters ....: $sInput - String to encode ; $iEncodeType - [optional] 1: ASCII, 4: UTF-8 (default = 4) ; $bNoCRLF - [optional] True: no line breaks, False: add CRLF (default = True) ; Return values .: Success - Base64 encoded string ; Failure - "" and sets @error ; Author ........: Dao Van Trong - TRONG.PRO ; =============================================================================================================================== Func _Base64EncodeStr($sInput, $iEncodeType = 4, $bNoCRLF = True) If ($iEncodeType > 4) Or ($iEncodeType < 1) Then $iEncodeType = 4 Local $bBinary = StringToBinary($sInput, $iEncodeType) Return _Base64Encode($bBinary, $bNoCRLF) EndFunc ;==>_Base64EncodeStr ; #FUNCTION# ==================================================================================================================== ; Name ..........: _Base64DecodeStr ; Description ...: Decode Base64 string to text string ; Syntax ........: _Base64DecodeStr($sInput[, $iDecodeType = 4]) ; Parameters ....: $sInput - Base64 string to decode ; $iDecodeType - [optional] 1: ASCII, 4: UTF-8 (default = 4) ; Return values .: Success - Text string ; Failure - "" and sets @error ; Author ........: Dao Van Trong - TRONG.PRO ; =============================================================================================================================== Func _Base64DecodeStr($sInput, $iDecodeType = 4) Return _Base64Decode($sInput, False, $iDecodeType) EndFunc ;==>_Base64DecodeStr ; #FUNCTION# ==================================================================================================================== ; Name ..........: _PathWithSlash ; Description ...: Add single backslash to path if not present ; Syntax ........: _PathWithSlash($sPath) ; Parameters ....: $sPath - Path string ; Return values .: Path with trailing backslash ; Author ........: Dao Van Trong - TRONG.PRO ; =============================================================================================================================== Func _PathWithSlash($sPath) Return _PathRemoveTrail($sPath) & '\' EndFunc ;==>_PathWithSlash ; #FUNCTION# ==================================================================================================================== ; Name ..........: _PathRemoveTrail ; Description ...: Remove trailing backslashes from path ; Syntax ........: _PathRemoveTrail($sPath) ; Parameters ....: $sPath - Path string ; Return values .: Path without trailing backslashes ; Author ........: Dao Van Trong - TRONG.PRO ; =============================================================================================================================== Func _PathRemoveTrail($sPath) $sPath = StringStripWS($sPath, 3) While (StringRight($sPath, 1) == '\') $sPath = StringTrimRight($sPath, 1) WEnd Return $sPath EndFunc ;==>_PathRemoveTrail Edited 2 hours ago by Trong Gianni 1 Enjoy my work? Buy me a 🍻 or tip via ❤️ PayPal

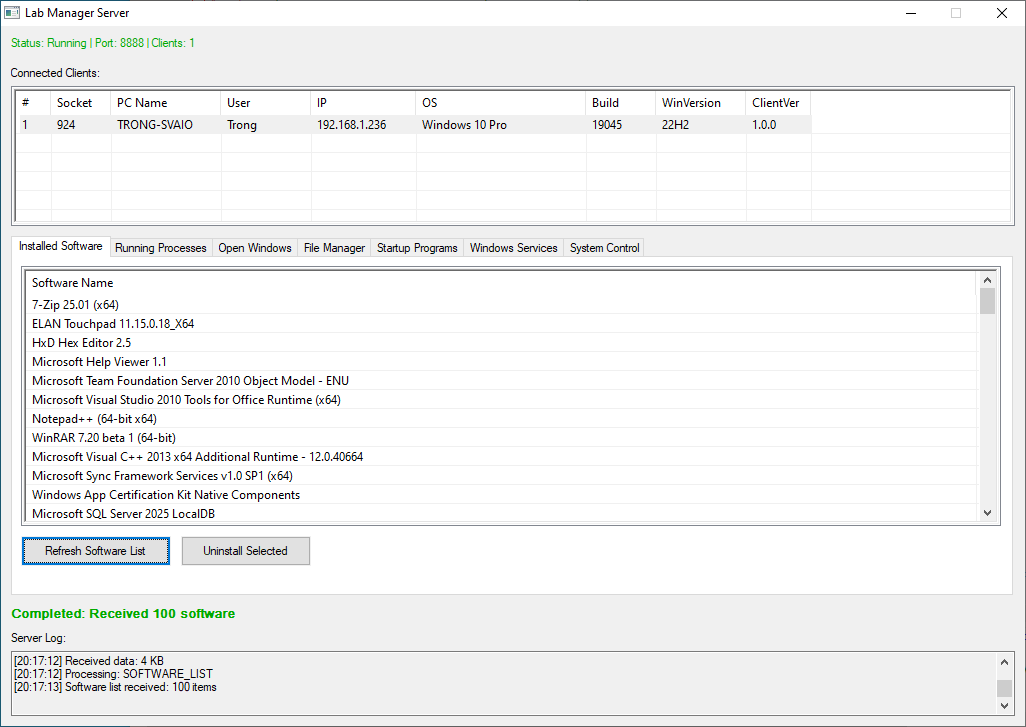

Trong Posted yesterday at 01:19 PM Author Posted yesterday at 01:19 PM (edited) Lab Manager System Example 📋 Overview The Lab Manager System is a professional client-server application for remote computer administration and monitoring. This production-ready example demonstrates advanced WinSockUDF features including system monitoring, remote control, file transfer, process management, and automatic updates - perfect for computer labs, IT administration, and fleet management. 🎯 Features Server Features (LabManager_Server.au3) 🖥️ Multi-Computer Management - Monitor and control multiple computers simultaneously 🎮 Process Management - View, kill, and start processes remotely 📁 File Operations - browse, delete files 💻 Remote Command Execution - Run commands on client computers 🔐 User Session Control - Lock, unlock, logoff, reboot, shutdown 📝 Activity Logging - Complete audit trail of all actions 📈 Statistics Dashboard - Client status overview 🎨 Modern GUI - Professional management interface 🔄 Auto-reconnect - Automatic client reconnection handling Client Features (LabManager_Client.au3) 🔇 Silent Operation - Runs in system tray (no visible window) 🔄 Auto-start - Optionally add to Windows startup 💓 Keep-Alive - Automatic server connection maintenance 📊 System Monitoring - Collect and report system information 🎯 Remote Command Execution - Execute server commands 🔄 Auto-update - Check and install updates automatically 🛡️ Stealth Mode - Minimal resource footprint 📝 Local Logging - Activity log for troubleshooting ⚙️ Configurable - Easy configuration via constants 🔐 Secure Communication - Authentication-based connection 🗂️ File Structure LabManager_Server.au3 - Management server application LabManager_Client.au3 - Silent monitoring agent update.ini - Update configuration file (optional) LabManager_Server.db - Client database (auto-created) LabManager_Client.log - Client log file (auto-created) 🔌 Protocol Documentation Message Format All commands use pipe-delimited format: COMMAND|param1|param2|... Client → Server Messages Command Format Description HELLO HELLO|computer|user|ip|os|version Client registration SYSINFO SYSINFO|cpu|ram|disk|uptime System information update PROCESSLIST PROCESSLIST|count|pid1:name1|... Running processes list SCREENSHOT SCREENSHOT|base64_data Screen capture (Base64 encoded) FILELIST FILELIST|count|file1|file2|... Directory listing FILEDATA FILEDATA|filename|base64_data File download data CMDRESULT CMDRESULT|output Command execution result ERROR ERROR|error_message Error notification PONG PONG Keep-alive response Server → Client Commands Command Format Description GETINFO GETINFO Request system information GETPROCESSES GETPROCESSES Request process list KILLPROCESS KILLPROCESS|pid Terminate process STARTPROCESS STARTPROCESS|path Start application SCREENSHOT SCREENSHOT Request screen capture LISTDIR LISTDIR|path List directory contents UPLOADFILE UPLOADFILE|path|base64_data Upload file to client DOWNLOADFILE DOWNLOADFILE|path Request file download DELETEFILE DELETEFILE|path Delete file RUNCMD RUNCMD|command Execute command LOCK LOCK Lock workstation UNLOCK UNLOCK Unlock workstation LOGOFF LOGOFF Log off user REBOOT REBOOT Restart computer SHUTDOWN SHUTDOWN Shut down computer MESSAGE MESSAGE|text Display message box PING PING Keep-alive request UPDATE UPDATE|url Download and install update 🚀 Getting Started Setting Up the Server Run the server application: ; Open LabManager_Server.au3 and run it ; or compile to LabManager_Server.exe Configure server settings (in source): Global Const $SERVER_PORT = 8888 ; Listening port Global Const $UPDATE_URL = "http://yourserver.com/update.ini" Server interface: Left panel: Connected clients list Right panel: Client details and controls Tabs: System Info, Processes, Files, Remote Control Status bar: Statistics and connection info Deploying the Client Configure client settings: Global Const $SERVER_IP = "192.168.1.100" ; Server address Global Const $SERVER_PORT = 8888 ; Server port Global Const $CLIENT_VERSION = "1.0.0" ; Version number Compile the client: Use AutoIt3Wrapper with these settings: x64 version for modern systems Optional: Set as administrator Recommended: Add custom icon Deploy to computers: Copy executable to client computers Run once - it will add itself to startup Client appears in system tray Auto-connects to server Auto-Startup Configuration The client automatically adds itself to Windows startup: ; Client adds registry entry for auto-start HKEY_CURRENT_USER\Software\Microsoft\Windows\CurrentVersion\Run Name: LabManagerClient Value: "C:\Path\To\LabManager_Client.exe" To disable auto-start: Run client and exit from tray icon, or Remove registry entry manually 📝 Usage Examples Basic Remote Administration 1. Client Connection: ; Client starts and connects [CLIENT] Client started - Version 1.0.0 [CLIENT] Connecting to 192.168.1.100:8888... [CLIENT] Connected successfully! ; Server receives connection [SERVER] New client connected [SERVER] DESKTOP-ABC123 (User: John) - 192.168.1.50 2. Process Management: ; Switch to Processes tab ; Server requests: GETPROCESSES ; Client sends process list PID Name Memory 1234 chrome.exe 450 MB 5678 notepad.exe 15 MB 9012 explorer.exe 120 MB ; Right-click process → Kill ; Server sends: KILLPROCESS|1234 ; Client terminates process 3. Remote Control: ; Remote Control tab ; Click "Lock Workstation" Server → Client: LOCK Client: Workstation locked ; Click "Shutdown Computer" Server → Client: SHUTDOWN Client: Computer shutting down... 🔧 Advanced Features Automatic Updates Setup update server: Create update.ini file: [UPDATE] version=1.0.1 url=http://yourserver.com/LabManager_Client_v1.0.1.exe changelog=Bug fixes and performance improvements Host on web server Configure client: Global Const $UPDATE_URL = "http://yourserver.com/update.ini" Global Const $UPDATE_CHECK_INTERVAL = 3600000 ; Check every hour Update process: Client Server | | +-- Check every hour --------->+ | GET update.ini | | | | Compare versions | | | +-- If newer version found --->+ | Download new executable | | | | Replace current file | | | | Restart with new version | Remote Command Execution ; Server sends command _TCP_Send($hClient, "RUNCMD|ipconfig /all") ; Client executes Local $sOutput = _RunDOS("ipconfig /all") ; Client sends result _TCP_Send($hServer, "CMDRESULT|" & $sOutput) ; Server displays output System Control Functions Lock Workstation: ; Uses Windows API DllCall("user32.dll", "bool", "LockWorkStation") Logoff User: ; Graceful user logoff Shutdown(0) ; AutoIt shutdown function Reboot Computer: ; System reboot Shutdown(2) ; Reboot flag Shutdown Computer: ; Power off Shutdown(1) ; Shutdown flag 📊 Key Functions & Techniques Server Functions _TCP_Server_Create($iPort) - Start management server _TCP_Server_OnNewClient() - Handle new client connections _TCP_Server_OnReceive() - Process client messages _TCP_Server_Broadcast() - Send to all clients Database functions for client persistence GUI functions for management interface Client Functions _TCP_Client_Create($sIP, $iPort) - Connect to server _TCP_Client_OnReceive() - Handle server commands GetSystemInfo() - Collect system information CaptureScreen() - Take screenshot GetProcessList() - Enumerate running processes CheckForUpdates() - Auto-update mechanism Tray icon functions for stealth mode Data Encoding _Base64Encode() / _Base64Decode() - File transfer _TCP_Send_Ex() / _TCP_Recv_Ex() - Binary data handling DllStructCreate() for system structures WinAPI calls for advanced features 🔐 Security Considerations Current Security Features ✅ Server authentication (clients must connect to known server) ✅ Input validation on all commands ✅ Error handling and logging ✅ Automatic reconnection limits Security Enhancements (Recommended for Production) Add Encryption: ; Use AES encryption for all communications ; Implement in _TCP_Send and _TCP_Recv wrappers Authentication: ; Add password/token authentication ; HELLO|computer|user|ip|os|version|AUTH_TOKEN Certificate Validation: ; Implement SSL/TLS layer ; Validate server certificates Access Control: ; Role-based permissions ; Audit logging for all actions Network Security: Use VPN for internet deployment Firewall rules to limit access IP whitelisting for server 🐛 Troubleshooting Client Issues Client won't connect: Check server IP and port Verify firewall settings Ensure server is running Check network connectivity Client not auto-starting: Check registry entry Verify executable path Check user permissions Review Windows startup settings High CPU/RAM usage: Check update interval settings Review logging configuration Verify no command loops Check for memory leaks Updates not working: Verify update URL is accessible Check update.ini format Ensure client has write permissions Review client log file Server Issues Can't see clients: Check if clients are connected Verify client configuration Review server logs Check network connectivity File transfer fails: Check file size limits Verify Base64 encoding Ensure adequate bandwidth Review error messages Screenshots not working: Check GDI+ initialization Verify screen capture permissions Review image encoding Check bandwidth for large images 📈 Performance Characteristics Benchmarks Connection overhead: ~1-2 KB/s per client (idle) System info update: ~500 bytes per update Process list: ~1-5 KB depending on number of processes Screenshot: ~50-200 KB (JPEG compressed) File transfer: Up to 10 MB/s on local network Max clients: Tested with 50+ simultaneous connections Resource Usage Server: RAM: 50-100 MB (depends on client count) CPU: <1% (idle), 5-10% (active management) Network: Scales with client count and activity Client: RAM: 10-20 MB CPU: <1% (background), 5-15% (when capturing screens) Network: Minimal when idle 🎯 Use Cases Educational Institutions Computer Lab Management - Monitor student computers Software Deployment - Push updates and applications Security Monitoring - Track computer usage Remote Assistance - Help students with issues Corporate IT Workstation Management - Monitor employee computers Patch Management - Deploy security updates Asset Tracking - Inventory of installed software Remote Support - Troubleshoot issues remotely Home & Small Office Family Computer Monitoring - Parental control Multi-PC Management - Manage home network Remote Access - Control computers remotely Backup Verification - Check backup status System Integrators Client Demonstration - Showcase WinSockUDF capabilities Template Application - Base for custom solutions Learning Tool - Study network programming Proof of Concept - Test remote control features 🔬 Advanced Customization Adding Custom Commands Server side: ; Add button to GUI $btnCustom = GUICtrlCreateButton("Custom Action", 10, 400, 150, 30) ; Handle button click Case $btnCustom _TCP_Send($hSelectedClient, "CUSTOM|parameter1|parameter2") Client side: ; Add command handler Case StringLeft($sData, 6) = "CUSTOM" Local $aParams = StringSplit($sData, "|", 2) ; Execute custom action Local $sResult = CustomFunction($aParams[1], $aParams[2]) ; Send result _TCP_Send($g_hSocket, "CMDRESULT|" & $sResult) Database Integration Add SQLite for persistent storage: #include <SQLite.au3> ; Server: Store client history _SQLite_Startup() _SQLite_Open("LabManager.db") _SQLite_Exec(-1, "CREATE TABLE IF NOT EXISTS clients (id, computer, user, last_seen)") ; Log client connections _SQLite_Exec(-1, "INSERT INTO clients VALUES (NULL, '" & $sComputer & "', '" & $sUser & "', datetime('now'))") Multi-Server Support Configure clients for failover: Global $aServers[3][2] = [["192.168.1.100", 8888], _ ["192.168.1.101", 8888], _ ["backup.domain.com", 8888]] Func ConnectToServer() For $i = 0 To UBound($aServers) - 1 $g_hSocket = _TCP_Client_Create($aServers[$i][0], $aServers[$i][1], "", 0, 5000) If Not @error Then LogAction("Connected to server " & $aServers[$i][0]) Return True EndIf Next Return False EndFunc 📚 Related Examples TCP Chat System - Full-featured chat room with authentication, private messaging, and user management UDP Chat Application - Lightweight UDP-based chat demonstrating connectionless communication 🎓 Learning Objectives This example demonstrates: Client-Server Architecture - Professional multi-tier design System Programming - Windows API integration Binary Data Handling - File transfer and screenshots State Management - Client tracking and persistence Remote Procedure Calls - Command execution pattern Auto-update Mechanisms - Software deployment Stealth Applications - Tray-based operation Production Patterns - Error handling, logging, recovery 🤝 Contributing Enhancement ideas: SSL/TLS Encryption - Secure communications Video Streaming - Real-time desktop streaming Chat Integration - Built-in messaging Scheduled Tasks - Automated command execution Reporting - Generate usage and activity reports Plugin System - Extensible command framework Mobile Client - Android/iOS monitoring apps Web Interface - Browser-based management ⚖️ Legal & Ethical Considerations IMPORTANT: This software is intended for legitimate system administration purposes only. Legal Use Cases ✅ Managing your own computers ✅ Systems you have permission to administer ✅ Educational purposes in controlled environments ✅ Corporate IT with proper authorization Illegal Use Cases ❌ Unauthorized access to computers ❌ Monitoring without consent ❌ Stealing data or credentials ❌ Installing on public computers Always obtain proper authorization before deploying monitoring software. 📄 License This example is provided as part of WinSockUDF for educational and commercial use. Users are responsible for ensuring compliance with all applicable laws and regulations. Note: This is a powerful administration tool. Use responsibly and ethically. Always obtain proper authorization before deploying to production environments. For enterprise deployment, consider adding encryption, authentication, and comprehensive audit logging. Server: expandcollapse popup#Region ;**** Directives created by AutoIt3Wrapper_GUI **** #AutoIt3Wrapper_UseX64=y #AutoIt3Wrapper_Res_requestedExecutionLevel=asInvoker #EndRegion ;**** Directives created by AutoIt3Wrapper_GUI **** #EndRegion ; ===== LAB MANAGER SERVER v1.0 by Dao Van Trong - TRONG.PRO ===== ; Comprehensive lab computer management system Opt("TrayMenuMode", 1) ;0=append, 1=no default menu, 2=no automatic check, 4=menuitemID not return #include "WinSockUDF.au3" ;~ #include "LabManager_RUDP.au3" #include <GUIConstantsEx.au3> #include <GuiListView.au3> #include <GuiTreeView.au3> #include <GuiTab.au3> #include <EditConstants.au3> #include <WindowsConstants.au3> #include <StaticConstants.au3> #include <ButtonConstants.au3> #include <ScrollBarsConstants.au3> #include <GuiEdit.au3> Global $oErrorHandler = ObjEvent("AutoIt.Error", "_COMErrFunc") Func _COMErrFunc() ; Do nothing special, just check @error after suspect functions. EndFunc ;==>_COMErrFunc ; Configuration Global Const $SERVER_PORT = 8888 Global Const $MAX_CLIENTS = 100 Global Const $SERVER_VERSION = "1.0.0" Global Const $LOG_FILE = @ScriptDir & "\LabManager_Server.log" FileDelete($LOG_FILE) ; Server state Global $g_hSocket = 0 Global $g_aClients[1][9] ; [count][socket, pcname, username, ip, osversion, winver, winversion, clientver, last_seen] $g_aClients[0][0] = 0 ; GUI controls Global $g_hGUI, $g_hListViewClients, $g_hTabControl, $g_hStatus, $g_hOperationStatus Global $g_hTabInfo, $g_hTabSoftware, $g_hTabProcess, $g_hTabWindow, $g_hTabFile, $g_hTabStartup, $g_hTabService, $g_hTabControl Global $g_hListSoftware, $g_hListProcess, $g_hListWindow, $g_hListFile, $g_hListStartup, $g_hListService Global $g_hBtnRefreshSoft, $g_hBtnUninstallSoft, $g_hBtnRefreshProc, $g_hBtnRefreshWin, $g_hBtnRefreshStartup, $g_hBtnDeleteStartup Global $g_hBtnRefreshService, $g_hBtnStartService, $g_hBtnStopService, $g_hBtnEnableService, $g_hBtnDisableService, $g_hBtnDeleteService Global $g_hBtnCloseProc, $g_hBtnCloseWin, $g_hBtnShutdown, $g_hBtnReboot, $g_hBtnMessage Global $g_hInputCmd, $g_hInputWorkDir, $g_hInputParams, $g_hComboShowFlag, $g_hInputTimeout, $g_hRadioRunWithOutput, $g_hRadioRunNoOutput, $g_hRadioRunDirect Global $g_hBtnRun, $g_hBtnShell Global $g_hBtnFileRefresh, $g_hBtnFileDelete, $g_hBtnFileRename, $g_hBtnFileRemoveAttrib Global $g_hComboDrive, $g_hInputPath, $g_hBtnGo Global $g_hEditLog, $g_iSelectedClient = 0 Global $g_sCurrentPath = "C:\" Global $g_aClientBuffers[1][2] ; [count][socket, buffer] $g_aClientBuffers[0][0] = 0 ; Sorting state for each ListView Global $g_iSortCol = -1, $g_bSortAsc = True ; Initialize _TCP_Startup() CreateGUI() AddToStartup() LogAction("Server starting - Version " & $SERVER_VERSION) StartServer() ; Main loop While True ; Process ALL GUI messages (including hidden async window) Local $aMsg = GUIGetMsg(1) If $aMsg[0] <> 0 Then Switch $aMsg[0] Case $GUI_EVENT_CLOSE If $aMsg[1] = $g_hGUI Then Cleanup() Exit EndIf Case $g_hBtnRefreshSoft RequestSoftwareList() Case $g_hBtnUninstallSoft UninstallSelectedSoftware() Case $g_hBtnRefreshProc RequestProcessList() Case $g_hBtnRefreshWin RequestWindowList() Case $g_hBtnCloseProc CloseSelectedProcess() Case $g_hBtnCloseWin CloseSelectedWindow() Case $g_hBtnShutdown ShutdownClient() Case $g_hBtnReboot RebootClient() Case $g_hBtnMessage ShowMessageToClient() Case $g_hBtnRun RunCommandOnClient() Case $g_hBtnShell ShellExecuteOnClient() Case $g_hBtnFileRefresh RequestFileList() Case $g_hBtnFileDelete DeleteSelectedFile() Case $g_hBtnFileRename RenameSelectedFile() Case $g_hBtnFileRemoveAttrib RemoveFileAttributes() Case $g_hBtnRefreshStartup RequestStartupList() Case $g_hBtnDeleteStartup DeleteSelectedStartup() Case $g_hBtnRefreshService RequestServiceList() Case $g_hBtnStartService StartSelectedService() Case $g_hBtnStopService StopSelectedService() Case $g_hBtnEnableService EnableSelectedService() Case $g_hBtnDisableService DisableSelectedService() Case $g_hBtnDeleteService DeleteSelectedService() Case $g_hBtnGo $g_sCurrentPath = _NormalizePath(GUICtrlRead($g_hInputPath)) RequestFileList() Case $g_hComboDrive ; Drive selection changed Local $sDrive = GUICtrlRead($g_hComboDrive) If $sDrive <> "" Then $g_sCurrentPath = $sDrive RequestFileList() EndIf EndSwitch EndIf ; Check for selected client change Local $iSelected = _GUICtrlListView_GetNextItem($g_hListViewClients) If $iSelected <> $g_iSelectedClient - 1 Then $g_iSelectedClient = $iSelected + 1 UpdateClientDetails() EndIf ; Update path input when current path changes If GUICtrlRead($g_hInputPath) <> $g_sCurrentPath Then GUICtrlSetData($g_hInputPath, $g_sCurrentPath) EndIf ; Process RUDP ;~ RUDP_CheckRetransmissions() Sleep(10) WEnd Func CreateGUI() $g_hGUI = GUICreate("Lab Manager Server", 1024, 700) ; Status bar $g_hStatus = GUICtrlCreateLabel("Status: Starting...", 10, 10, 1004, 20) GUICtrlSetColor(-1, 0x0000FF) ; Operation status bar $g_hOperationStatus = GUICtrlCreateLabel("", 10, 580, 1004, 20) GUICtrlSetColor(-1, 0x008800) GUICtrlSetFont(-1, 9, 600) ; Client list GUICtrlCreateLabel("Connected Clients:", 10, 40, 200, 20) Local $idListViewClients = GUICtrlCreateListView("#|Socket|PC Name|User|IP|OS|Build|WinVersion|ClientVer", 10, 60, 1004, 140, _ BitOR($LVS_REPORT, $LVS_SHOWSELALWAYS, $LVS_SINGLESEL), _ BitOR($WS_EX_CLIENTEDGE, $LVS_EX_FULLROWSELECT, $LVS_EX_GRIDLINES)) $g_hListViewClients = GUICtrlGetHandle($idListViewClients) _GUICtrlListView_SetColumnWidth($g_hListViewClients, 0, 35) _GUICtrlListView_SetColumnWidth($g_hListViewClients, 1, 60) _GUICtrlListView_SetColumnWidth($g_hListViewClients, 2, 110) _GUICtrlListView_SetColumnWidth($g_hListViewClients, 3, 90) _GUICtrlListView_SetColumnWidth($g_hListViewClients, 4, 105) _GUICtrlListView_SetColumnWidth($g_hListViewClients, 5, 170) _GUICtrlListView_SetColumnWidth($g_hListViewClients, 6, 70) _GUICtrlListView_SetColumnWidth($g_hListViewClients, 7, 90) _GUICtrlListView_SetColumnWidth($g_hListViewClients, 8, 65) ; Tab control for client details $g_hTabControl = GUICtrlCreateTab(10, 210, 1004, 360) ; Tab 1: Software $g_hTabSoftware = GUICtrlCreateTabItem("Installed Software") Local $idListSoftware = GUICtrlCreateListView("Software Name", 20, 240, 980, 260, _ BitOR($LVS_REPORT, $LVS_SHOWSELALWAYS), _ BitOR($WS_EX_CLIENTEDGE, $LVS_EX_FULLROWSELECT, $LVS_EX_GRIDLINES)) $g_hListSoftware = GUICtrlGetHandle($idListSoftware) _GUICtrlListView_SetColumnWidth($g_hListSoftware, 0, 950) $g_hBtnRefreshSoft = GUICtrlCreateButton("Refresh Software List", 20, 510, 150, 30) $g_hBtnUninstallSoft = GUICtrlCreateButton("Uninstall Selected", 180, 510, 130, 30) ; Tab 2: Processes $g_hTabProcess = GUICtrlCreateTabItem("Running Processes") Local $idListProcess = GUICtrlCreateListView("PID|Process Name|User Name", 20, 240, 980, 260, _ BitOR($LVS_REPORT, $LVS_SHOWSELALWAYS), _ BitOR($WS_EX_CLIENTEDGE, $LVS_EX_FULLROWSELECT, $LVS_EX_GRIDLINES)) $g_hListProcess = GUICtrlGetHandle($idListProcess) _GUICtrlListView_SetColumnWidth($g_hListProcess, 0, 80) _GUICtrlListView_SetColumnWidth($g_hListProcess, 1, 600) _GUICtrlListView_SetColumnWidth($g_hListProcess, 2, 250) $g_hBtnRefreshProc = GUICtrlCreateButton("Refresh Processes", 20, 510, 150, 30) $g_hBtnCloseProc = GUICtrlCreateButton("Close Selected Process", 180, 510, 150, 30) ; Tab 3: Windows $g_hTabWindow = GUICtrlCreateTabItem("Open Windows") Local $idListWindow = GUICtrlCreateListView("Window Title|Handle", 20, 240, 980, 260, _ BitOR($LVS_REPORT, $LVS_SHOWSELALWAYS), _ BitOR($WS_EX_CLIENTEDGE, $LVS_EX_FULLROWSELECT, $LVS_EX_GRIDLINES)) $g_hListWindow = GUICtrlGetHandle($idListWindow) _GUICtrlListView_SetColumnWidth($g_hListWindow, 0, 760) _GUICtrlListView_SetColumnWidth($g_hListWindow, 1, 170) $g_hBtnRefreshWin = GUICtrlCreateButton("Refresh Windows", 20, 510, 150, 30) $g_hBtnCloseWin = GUICtrlCreateButton("Close Selected Window", 180, 510, 150, 30) ; Tab 4: File Manager $g_hTabFile = GUICtrlCreateTabItem("File Manager") GUICtrlCreateLabel("Drive:", 30, 250, 40, 20) $g_hComboDrive = GUICtrlCreateCombo("", 70, 247, 60, 22, 0x0003) ; CBS_DROPDOWNLIST GUICtrlCreateLabel("Path:", 140, 250, 40, 20) $g_hInputPath = GUICtrlCreateInput($g_sCurrentPath, 180, 247, 620, 22) $g_hBtnGo = GUICtrlCreateButton("Go", 810, 247, 60, 22) Local $idListFile = GUICtrlCreateListView("Name|Type|Size|Modified|Attrib", 20, 275, 980, 225, _ BitOR($LVS_REPORT, $LVS_SHOWSELALWAYS), _ BitOR($WS_EX_CLIENTEDGE, $LVS_EX_FULLROWSELECT, $LVS_EX_GRIDLINES)) $g_hListFile = GUICtrlGetHandle($idListFile) _GUICtrlListView_SetColumnWidth($g_hListFile, 0, 450) _GUICtrlListView_SetColumnWidth($g_hListFile, 1, 70) _GUICtrlListView_SetColumnWidth($g_hListFile, 2, 100) _GUICtrlListView_SetColumnWidth($g_hListFile, 3, 180) _GUICtrlListView_SetColumnWidth($g_hListFile, 4, 70) $g_hBtnFileRefresh = GUICtrlCreateButton("Refresh", 20, 510, 80, 30) $g_hBtnFileDelete = GUICtrlCreateButton("Delete", 110, 510, 80, 30) $g_hBtnFileRename = GUICtrlCreateButton("Rename", 200, 510, 80, 30) $g_hBtnFileRemoveAttrib = GUICtrlCreateButton("Remove -RAHS", 290, 510, 100, 30) ; Tab 5: Startup Programs $g_hTabStartup = GUICtrlCreateTabItem("Startup Programs") Local $idListStartup = GUICtrlCreateListView("Name|Type|Location|Command", 20, 240, 980, 260, _ BitOR($LVS_REPORT, $LVS_SHOWSELALWAYS), _ BitOR($WS_EX_CLIENTEDGE, $LVS_EX_FULLROWSELECT, $LVS_EX_GRIDLINES)) $g_hListStartup = GUICtrlGetHandle($idListStartup) _GUICtrlListView_SetColumnWidth($g_hListStartup, 0, 200) _GUICtrlListView_SetColumnWidth($g_hListStartup, 1, 120) _GUICtrlListView_SetColumnWidth($g_hListStartup, 2, 180) _GUICtrlListView_SetColumnWidth($g_hListStartup, 3, 430) $g_hBtnRefreshStartup = GUICtrlCreateButton("Refresh Startup List", 20, 510, 150, 30) $g_hBtnDeleteStartup = GUICtrlCreateButton("Delete Selected Item", 180, 510, 150, 30) ; Tab 6: Services $g_hTabService = GUICtrlCreateTabItem("Windows Services") Local $idListService = GUICtrlCreateListView("Service Name|Display Name|Status|Startup Type", 20, 240, 980, 260, _ BitOR($LVS_REPORT, $LVS_SHOWSELALWAYS), _ BitOR($WS_EX_CLIENTEDGE, $LVS_EX_FULLROWSELECT, $LVS_EX_GRIDLINES)) $g_hListService = GUICtrlGetHandle($idListService) _GUICtrlListView_SetColumnWidth($g_hListService, 0, 200) _GUICtrlListView_SetColumnWidth($g_hListService, 1, 350) _GUICtrlListView_SetColumnWidth($g_hListService, 2, 100) _GUICtrlListView_SetColumnWidth($g_hListService, 3, 130) $g_hBtnRefreshService = GUICtrlCreateButton("Refresh Services", 20, 510, 120, 30) $g_hBtnStartService = GUICtrlCreateButton("Start", 150, 510, 70, 30) $g_hBtnStopService = GUICtrlCreateButton("Stop", 230, 510, 70, 30) $g_hBtnEnableService = GUICtrlCreateButton("Enable (Auto)", 310, 510, 100, 30) $g_hBtnDisableService = GUICtrlCreateButton("Disable", 420, 510, 70, 30) $g_hBtnDeleteService = GUICtrlCreateButton("Delete", 500, 510, 70, 30) ; Tab 7: Control $g_hTabControl = GUICtrlCreateTabItem("System Control") GUICtrlCreateLabel("System Control Commands:", 30, 250, 200, 20) $g_hBtnShutdown = GUICtrlCreateButton("Shutdown Computer", 30, 275, 150, 30) $g_hBtnReboot = GUICtrlCreateButton("Reboot Computer", 190, 275, 150, 30) $g_hBtnMessage = GUICtrlCreateButton("Send Message", 350, 275, 120, 30) ; Run Command Section (compact layout) GUICtrlCreateLabel("Run Command:", 30, 315, 200, 20) GUICtrlCreateLabel("Cmd/File:", 30, 340, 70, 20) $g_hInputCmd = GUICtrlCreateInput("", 100, 337, 400, 22) GUICtrlCreateLabel("Params:", 510, 340, 50, 20) $g_hInputParams = GUICtrlCreateInput("", 560, 337, 250, 22) GUICtrlCreateLabel("Work Dir:", 30, 367, 70, 20) $g_hInputWorkDir = GUICtrlCreateInput("", 100, 364, 400, 22) GUICtrlCreateLabel("Show:", 510, 367, 40, 20) $g_hComboShowFlag = GUICtrlCreateCombo("", 550, 364, 120, 22, 0x0003) GUICtrlSetData($g_hComboShowFlag, "@SW_HIDE|@SW_MINIMIZE|@SW_MAXIMIZE|@SW_SHOW|@SW_SHOWDEFAULT", "@SW_HIDE") GUICtrlCreateLabel("Timeout:", 680, 367, 55, 20) $g_hInputTimeout = GUICtrlCreateInput("60", 735, 364, 40, 22) GUICtrlCreateLabel("(0=inf)", 780, 367, 40, 20) ; Run type selection (horizontal) GUICtrlCreateLabel("Type:", 30, 394, 40, 20) $g_hRadioRunWithOutput = GUICtrlCreateRadio("Get Output", 70, 391, 100, 20) GUICtrlSetState($g_hRadioRunWithOutput, $GUI_CHECKED) $g_hRadioRunNoOutput = GUICtrlCreateRadio("No Output", 180, 391, 100, 20) $g_hRadioRunDirect = GUICtrlCreateRadio("Direct", 290, 391, 80, 20) ; Buttons $g_hBtnRun = GUICtrlCreateButton("RUN", 400, 387, 100, 28) $g_hBtnShell = GUICtrlCreateButton("ShellExecute", 510, 387, 100, 28) GUICtrlCreateTabItem("") ; Log GUICtrlCreateLabel("Server Log:", 10, 605, 100, 20) $g_hEditLog = GUICtrlCreateEdit("", 10, 625, 1004, 65, BitOR($ES_READONLY, $WS_VSCROLL, $ES_MULTILINE)) ; Register message handler for ListView sorting GUIRegisterMsg($WM_NOTIFY, "WM_NOTIFY_Events") GUISetState(@SW_SHOW) EndFunc ;==>CreateGUI Func WM_NOTIFY_Events($hWnd, $iMsg, $wParam, $lParam) #forceref $hWnd, $iMsg, $wParam Local $hWndFrom, $iCode, $tNMHDR $tNMHDR = DllStructCreate($tagNMHDR, $lParam) $hWndFrom = HWnd(DllStructGetData($tNMHDR, "hWndFrom")) $iCode = DllStructGetData($tNMHDR, "Code") ; Check if it's a ListView header click If $iCode = $LVN_COLUMNCLICK Then Local $tNMLISTVIEW = DllStructCreate($tagNMLISTVIEW, $lParam) Local $iColumn = DllStructGetData($tNMLISTVIEW, "SubItem") ; Determine which ListView was clicked Local $hListView = 0 Switch $hWndFrom Case $g_hListViewClients $hListView = $g_hListViewClients Case $g_hListSoftware $hListView = $g_hListSoftware Case $g_hListProcess $hListView = $g_hListProcess Case $g_hListWindow $hListView = $g_hListWindow Case $g_hListFile $hListView = $g_hListFile Case $g_hListStartup $hListView = $g_hListStartup Case $g_hListService $hListView = $g_hListService EndSwitch ; Sort the ListView If $hListView <> 0 Then ; Toggle sort direction if same column, otherwise ascending If $g_iSortCol = $iColumn Then $g_bSortAsc = Not $g_bSortAsc Else $g_bSortAsc = True $g_iSortCol = $iColumn EndIf _GUICtrlListView_SimpleSort($hListView, $g_bSortAsc, $iColumn) EndIf EndIf ; Check for double-click on file list If $iCode = $NM_DBLCLK And $hWndFrom = $g_hListFile Then Local $iItem = _GUICtrlListView_GetNextItem($g_hListFile) If $iItem >= 0 Then Local $sName = _GUICtrlListView_GetItemText($g_hListFile, $iItem, 0) Local $sType = _GUICtrlListView_GetItemText($g_hListFile, $iItem, 1) If $sType = "DIR" Then ; Browse directory If $sName = ".." Then ; Go to parent directory Local $sParent = StringRegExpReplace($g_sCurrentPath, "\\[^\\]*\\?$", "") If StringLen($sParent) < 3 Then $sParent = StringLeft($g_sCurrentPath, 3) $g_sCurrentPath = _NormalizePath($sParent) Else ; Enter directory $g_sCurrentPath = _NormalizePath($g_sCurrentPath & $sName) EndIf RequestFileList() Else ; ShellExecute file Local $sFilePath = $g_sCurrentPath If Not StringRight($sFilePath, 1) = "\" Then $sFilePath &= "\" $sFilePath &= $sName ShellExecuteFile($sFilePath) EndIf EndIf EndIf Return $GUI_RUNDEFMSG EndFunc ;==>WM_NOTIFY_Events Func StartServer() $g_hSocket = _TCP_Server_Create($SERVER_PORT) If $g_hSocket = 0 Then MsgBox(16, "Error", "Failed to start server on port " & $SERVER_PORT) Exit EndIf ; Register callbacks _TCP_Server_OnNewClient($g_hSocket, "OnNewClient") _TCP_Server_OnReceive($g_hSocket, "OnClientReceive") _TCP_Server_OnDisconnect($g_hSocket, "OnClientDisconnect") Local $sMsg = "Server started on port " & $SERVER_PORT AddLog($sMsg) LogAction($sMsg) GUICtrlSetData($g_hStatus, "Status: Running | Port: " & $SERVER_PORT & " | Clients: 0") GUICtrlSetColor($g_hStatus, 0x00AA00) EndFunc ;==>StartServer Func OnNewClient($hClient) Local $sMsg = "New client connected: Socket " & Int($hClient) AddLog($sMsg) LogAction($sMsg) EndFunc ;==>OnNewClient Func OnClientReceive($hClient, $sData, $iError) If $iError Then AddLog("OnClientReceive ERROR: " & $iError) Return EndIf If $sData = "" Then Return EndIf ; Debug: Log data size for large transfers Local $iDataLen = StringLen($sData) If $iDataLen > 1000 Then AddLog("Received data: " & Round($iDataLen / 1024, 1) & " KB") EndIf ; Add to buffer Local $sBuffer = GetClientBuffer($hClient) $sBuffer &= $sData ; Process complete messages (ending with @CRLF) While StringInStr($sBuffer, @CRLF) Local $iPos = StringInStr($sBuffer, @CRLF) Local $sMessage = StringLeft($sBuffer, $iPos - 1) $sBuffer = StringMid($sBuffer, $iPos + 2) ; Process this complete message ProcessClientMessage($hClient, $sMessage) WEnd ; Save remaining buffer SetClientBuffer($hClient, $sBuffer) EndFunc ;==>OnClientReceive Func GetClientBuffer($hClient) For $i = 1 To $g_aClientBuffers[0][0] If $g_aClientBuffers[$i][0] = $hClient Then Return $g_aClientBuffers[$i][1] EndIf Next ; Create new buffer $g_aClientBuffers[0][0] += 1 ReDim $g_aClientBuffers[$g_aClientBuffers[0][0] + 1][2] $g_aClientBuffers[$g_aClientBuffers[0][0]][0] = $hClient $g_aClientBuffers[$g_aClientBuffers[0][0]][1] = "" Return "" EndFunc ;==>GetClientBuffer Func SetClientBuffer($hClient, $sBuffer) For $i = 1 To $g_aClientBuffers[0][0] If $g_aClientBuffers[$i][0] = $hClient Then $g_aClientBuffers[$i][1] = $sBuffer Return EndIf Next EndFunc ;==>SetClientBuffer Func ClearClientBuffer($hClient) For $i = 1 To $g_aClientBuffers[0][0] If $g_aClientBuffers[$i][0] = $hClient Then ; Remove from array For $j = $i To $g_aClientBuffers[0][0] - 1 $g_aClientBuffers[$j][0] = $g_aClientBuffers[$j + 1][0] $g_aClientBuffers[$j][1] = $g_aClientBuffers[$j + 1][1] Next $g_aClientBuffers[0][0] -= 1 ReDim $g_aClientBuffers[$g_aClientBuffers[0][0] + 1][2] Return EndIf Next EndFunc ;==>ClearClientBuffer Func ProcessClientMessage($hClient, $sMessage) $sMessage = StringStripWS($sMessage, 3) If $sMessage = "" Then Return Local $aCmd = StringSplit($sMessage, "|", 2) If UBound($aCmd) = 0 Then Return Local $sCommand = $aCmd[0] ; Log important commands for debugging If $sCommand = "SOFTWARE_LIST" Or $sCommand = "PROCESS_LIST" Or $sCommand = "WINDOW_LIST" Or $sCommand = "FILE_LIST_RESULT" Or $sCommand = "FILE_DRIVE_LIST" Then AddLog("Processing: " & $sCommand) EndIf Switch $sCommand Case "CLIENT_REGISTER" If UBound($aCmd) >= 8 Then RegisterClient($hClient, $aCmd[1], $aCmd[2], $aCmd[3], $aCmd[4], $aCmd[5], $aCmd[6], $aCmd[7]) ElseIf UBound($aCmd) >= 7 Then RegisterClient($hClient, $aCmd[1], $aCmd[2], $aCmd[3], $aCmd[4], $aCmd[5], $aCmd[6], "0.0.0") ElseIf UBound($aCmd) >= 6 Then RegisterClient($hClient, $aCmd[1], $aCmd[2], $aCmd[3], $aCmd[4], $aCmd[5], "", "0.0.0") EndIf Case "SOFTWARE_LIST" DisplaySoftwareList($aCmd) Case "PROCESS_LIST" DisplayProcessList($aCmd) Case "WINDOW_LIST" DisplayWindowList($aCmd) Case "STARTUP_LIST" DisplayStartupList($aCmd) Case "STARTUP_DELETED" If UBound($aCmd) >= 2 Then AddLog("Startup item deleted: " & $aCmd[1]) RequestStartupList() ; Auto refresh EndIf Case "STARTUP_DELETE_ERROR" If UBound($aCmd) >= 2 Then AddLog("Error deleting startup item: " & $aCmd[1]) MsgBox(16, "Delete Error", "Failed to delete: " & $aCmd[1]) EndIf Case "SERVICE_LIST" DisplayServiceList($aCmd) Case "SERVICE_STARTED" If UBound($aCmd) >= 2 Then AddLog("Service started: " & $aCmd[1]) RequestServiceList() ; Auto refresh EndIf Case "SERVICE_START_ERROR" If UBound($aCmd) >= 2 Then AddLog("Error starting service: " & $aCmd[1]) MsgBox(16, "Service Error", "Failed to start: " & $aCmd[1]) EndIf Case "SERVICE_STOPPED" If UBound($aCmd) >= 2 Then AddLog("Service stopped: " & $aCmd[1]) RequestServiceList() ; Auto refresh EndIf Case "SERVICE_STOP_ERROR" If UBound($aCmd) >= 2 Then AddLog("Error stopping service: " & $aCmd[1]) MsgBox(16, "Service Error", "Failed to stop: " & $aCmd[1]) EndIf Case "SERVICE_ENABLED" If UBound($aCmd) >= 2 Then AddLog("Service enabled: " & $aCmd[1]) RequestServiceList() ; Auto refresh EndIf Case "SERVICE_ENABLE_ERROR" If UBound($aCmd) >= 2 Then AddLog("Error enabling service: " & $aCmd[1]) MsgBox(16, "Service Error", "Failed to enable: " & $aCmd[1]) EndIf Case "SERVICE_DISABLED" If UBound($aCmd) >= 2 Then AddLog("Service disabled: " & $aCmd[1]) RequestServiceList() ; Auto refresh EndIf Case "SERVICE_DISABLE_ERROR" If UBound($aCmd) >= 2 Then AddLog("Error disabling service: " & $aCmd[1]) MsgBox(16, "Service Error", "Failed to disable: " & $aCmd[1]) EndIf Case "SERVICE_DELETED" If UBound($aCmd) >= 2 Then AddLog("Service deleted: " & $aCmd[1]) RequestServiceList() ; Auto refresh EndIf Case "SERVICE_DELETE_ERROR" If UBound($aCmd) >= 2 Then AddLog("Error deleting service: " & $aCmd[1]) MsgBox(16, "Service Error", "Failed to delete: " & $aCmd[1]) EndIf Case "SOFTWARE_UNINSTALLED" If UBound($aCmd) >= 2 Then AddLog("Software uninstalled: " & $aCmd[1]) RequestSoftwareList() ; Auto refresh EndIf Case "SOFTWARE_UNINSTALL_ERROR" If UBound($aCmd) >= 2 Then AddLog("Error uninstalling software: " & $aCmd[1]) MsgBox(16, "Uninstall Error", "Failed to uninstall: " & $aCmd[1]) EndIf Case "FILE_LIST_RESULT" DisplayFileList($aCmd) Case "FILE_DRIVE_LIST" DisplayDriveList($aCmd) Case "FILE_LIST_ERROR" If UBound($aCmd) >= 2 Then AddLog("File list error: " & $aCmd[1]) EndIf Case "FILE_DELETED" If UBound($aCmd) >= 2 Then AddLog("File deleted: " & $aCmd[1]) RequestFileList() ; Auto refresh EndIf Case "FILE_DELETE_ERROR" If UBound($aCmd) >= 2 Then AddLog("Error deleting file: " & $aCmd[1]) MsgBox(16, "Delete Error", "Failed to delete: " & $aCmd[1]) EndIf Case "FILE_RENAMED" If UBound($aCmd) >= 3 Then AddLog("File renamed: " & $aCmd[1] & " -> " & $aCmd[2]) RequestFileList() ; Auto refresh EndIf Case "FILE_RENAME_ERROR" If UBound($aCmd) >= 2 Then AddLog("Error renaming file: " & $aCmd[1]) MsgBox(16, "Rename Error", "Failed to rename: " & $aCmd[1]) EndIf Case "FILE_ATTRIB_REMOVED" If UBound($aCmd) >= 2 Then AddLog("Attributes removed: " & $aCmd[1]) RequestFileList() ; Auto refresh EndIf Case "FILE_ATTRIB_ERROR" If UBound($aCmd) >= 2 Then AddLog("Error removing attributes: " & $aCmd[1]) MsgBox(16, "Attribute Error", "Failed to remove attributes: " & $aCmd[1]) EndIf Case "FILE_SHELLEXECUTE_DONE" If UBound($aCmd) >= 2 Then AddLog("File executed: " & $aCmd[1]) EndIf Case "COMMAND_EXECUTED" If UBound($aCmd) >= 2 Then AddLog("Command executed: " & $aCmd[1]) EndIf Case "COMMAND_OUTPUT" If UBound($aCmd) >= 2 Then Local $sOutput = $aCmd[1] ; Replace Chr(1) separator back to newlines for display $sOutput = StringReplace($sOutput, Chr(1), @CRLF) MsgBox(64, "Command Output", $sOutput, 0) AddLog("Command output received (" & StringLen($sOutput) & " chars)") EndIf Case "SHELLEXECUTE_DONE" If UBound($aCmd) >= 2 Then AddLog("ShellExecute done: " & $aCmd[1]) EndIf Case "PROCESS_CLOSED" If UBound($aCmd) >= 2 Then AddLog("Process closed: " & $aCmd[1]) RequestProcessList() ; Auto refresh EndIf Case "WINDOW_CLOSED" If UBound($aCmd) >= 2 Then AddLog("Window closed: " & $aCmd[1]) RequestWindowList() ; Auto refresh EndIf Case "CLIENT_DISCONNECT" LogAction("Client requested disconnect: Socket " & Int($hClient)) RemoveClient($hClient) EndSwitch EndFunc ;==>ProcessClientMessage Func OnClientDisconnect($hClient, $iError) Local $sMsg = "Client disconnected: Socket " & Int($hClient) AddLog($sMsg) LogAction($sMsg) ClearClientBuffer($hClient) RemoveClient($hClient) EndFunc ;==>OnClientDisconnect Func RegisterClient($hClient, $sPCName, $sUserName, $sIP, $sOS, $sWinVer, $sWinVersion, $sClientVer) ; Check if already registered Local $iIdx = FindClient($hClient) If $iIdx > 0 Then ; Update existing $g_aClients[$iIdx][1] = $sPCName $g_aClients[$iIdx][2] = $sUserName $g_aClients[$iIdx][3] = $sIP $g_aClients[$iIdx][4] = $sOS $g_aClients[$iIdx][5] = $sWinVer $g_aClients[$iIdx][6] = $sWinVersion $g_aClients[$iIdx][7] = $sClientVer $g_aClients[$iIdx][8] = TimerInit() Else ; Add new $g_aClients[0][0] += 1 ReDim $g_aClients[$g_aClients[0][0] + 1][9] $g_aClients[$g_aClients[0][0]][0] = $hClient $g_aClients[$g_aClients[0][0]][1] = $sPCName $g_aClients[$g_aClients[0][0]][2] = $sUserName $g_aClients[$g_aClients[0][0]][3] = $sIP $g_aClients[$g_aClients[0][0]][4] = $sOS $g_aClients[$g_aClients[0][0]][5] = $sWinVer $g_aClients[$g_aClients[0][0]][6] = $sWinVersion $g_aClients[$g_aClients[0][0]][7] = $sClientVer $g_aClients[$g_aClients[0][0]][8] = TimerInit() EndIf UpdateClientList() Local $sMsg = "Client registered: " & $sPCName & " (" & $sUserName & ") - " & $sIP & " - " & $sOS & " " & $sWinVersion & " - v" & $sClientVer AddLog($sMsg) LogAction($sMsg) EndFunc ;==>RegisterClient Func FindClient($hClient) For $i = 1 To $g_aClients[0][0] If $g_aClients[$i][0] = $hClient Then Return $i Next Return 0 EndFunc ;==>FindClient Func RemoveClient($hClient) Local $iIdx = FindClient($hClient) If $iIdx = 0 Then Return Local $sMsg = "Client removed: " & $g_aClients[$iIdx][1] & " (Socket " & Int($hClient) & ")" LogAction($sMsg) ; Shift array For $i = $iIdx To $g_aClients[0][0] - 1 For $j = 0 To 8 $g_aClients[$i][$j] = $g_aClients[$i + 1][$j] Next Next $g_aClients[0][0] -= 1 ReDim $g_aClients[$g_aClients[0][0] + 1][9] UpdateClientList() EndFunc ;==>RemoveClient Func UpdateClientList() _GUICtrlListView_DeleteAllItems($g_hListViewClients) For $i = 1 To $g_aClients[0][0] _GUICtrlListView_AddItem($g_hListViewClients, $i) _GUICtrlListView_AddSubItem($g_hListViewClients, $i - 1, Int($g_aClients[$i][0]), 1) _GUICtrlListView_AddSubItem($g_hListViewClients, $i - 1, $g_aClients[$i][1], 2) _GUICtrlListView_AddSubItem($g_hListViewClients, $i - 1, $g_aClients[$i][2], 3) _GUICtrlListView_AddSubItem($g_hListViewClients, $i - 1, $g_aClients[$i][3], 4) _GUICtrlListView_AddSubItem($g_hListViewClients, $i - 1, $g_aClients[$i][4], 5) _GUICtrlListView_AddSubItem($g_hListViewClients, $i - 1, $g_aClients[$i][5], 6) _GUICtrlListView_AddSubItem($g_hListViewClients, $i - 1, $g_aClients[$i][6], 7) _GUICtrlListView_AddSubItem($g_hListViewClients, $i - 1, $g_aClients[$i][7], 8) Next GUICtrlSetData($g_hStatus, "Status: Running | Port: " & $SERVER_PORT & " | Clients: " & $g_aClients[0][0]) EndFunc ;==>UpdateClientList Func UpdateClientDetails() ; Clear all lists _GUICtrlListView_DeleteAllItems($g_hListSoftware) _GUICtrlListView_DeleteAllItems($g_hListProcess) _GUICtrlListView_DeleteAllItems($g_hListWindow) _GUICtrlListView_DeleteAllItems($g_hListFile) _GUICtrlListView_DeleteAllItems($g_hListStartup) _GUICtrlListView_DeleteAllItems($g_hListService) ; Clear drive combo GUICtrlSetData($g_hComboDrive, "") EndFunc ;==>UpdateClientDetails Func RequestSoftwareList() If $g_iSelectedClient = 0 Then Return LogAction("Requesting software list from " & $g_aClients[$g_iSelectedClient][1]) UpdateOperationStatus("Sending command: Software list...", 0xFF8800) _TCP_Send($g_aClients[$g_iSelectedClient][0], "GET_SOFTWARE_LIST" & @CRLF) UpdateOperationStatus("Waiting for response: Software list...", 0x0088FF) EndFunc ;==>RequestSoftwareList Func RequestProcessList() If $g_iSelectedClient = 0 Then Return LogAction("Requesting process list from " & $g_aClients[$g_iSelectedClient][1]) UpdateOperationStatus("Sending command: Process list...", 0xFF8800) _TCP_Send($g_aClients[$g_iSelectedClient][0], "GET_PROCESS_LIST" & @CRLF) UpdateOperationStatus("Waiting for response: Process list...", 0x0088FF) EndFunc ;==>RequestProcessList Func RequestWindowList() If $g_iSelectedClient = 0 Then Return LogAction("Requesting window list from " & $g_aClients[$g_iSelectedClient][1]) UpdateOperationStatus("Sending command: Window list...", 0xFF8800) _TCP_Send($g_aClients[$g_iSelectedClient][0], "GET_WINDOW_LIST" & @CRLF) UpdateOperationStatus("Waiting for response: Window list...", 0x0088FF) EndFunc ;==>RequestWindowList Func CloseSelectedProcess() If $g_iSelectedClient = 0 Then Return Local $iSelected = _GUICtrlListView_GetNextItem($g_hListProcess) If $iSelected >= 0 Then Local $sPID = _GUICtrlListView_GetItemText($g_hListProcess, $iSelected, 0) ; PID is now column 0 Local $sMsg = "ADMIN: Close process on " & $g_aClients[$g_iSelectedClient][1] & ": PID " & $sPID LogAction($sMsg) _TCP_Send($g_aClients[$g_iSelectedClient][0], "CLOSE_PROCESS|" & $sPID & @CRLF) AddLog("Close process requested: PID " & $sPID) EndIf EndFunc ;==>CloseSelectedProcess Func CloseSelectedWindow() If $g_iSelectedClient = 0 Then Return Local $iSelected = _GUICtrlListView_GetNextItem($g_hListWindow) If $iSelected >= 0 Then Local $sHandle = _GUICtrlListView_GetItemText($g_hListWindow, $iSelected, 1) Local $sMsg = "ADMIN: Close window on " & $g_aClients[$g_iSelectedClient][1] & ": " & $sHandle LogAction($sMsg) _TCP_Send($g_aClients[$g_iSelectedClient][0], "CLOSE_WINDOW|" & $sHandle & @CRLF) AddLog("Close window requested: Handle " & $sHandle) EndIf EndFunc ;==>CloseSelectedWindow Func ShutdownClient() If $g_iSelectedClient = 0 Then Return If MsgBox(36, "Confirm", "Shutdown " & $g_aClients[$g_iSelectedClient][1] & "?") = 6 Then Local $sMsg = "ADMIN: Shutdown command sent to " & $g_aClients[$g_iSelectedClient][1] AddLog($sMsg) LogAction($sMsg) _TCP_Send($g_aClients[$g_iSelectedClient][0], "SHUTDOWN" & @CRLF) EndIf EndFunc ;==>ShutdownClient Func RebootClient() If $g_iSelectedClient = 0 Then Return If MsgBox(36, "Confirm", "Reboot " & $g_aClients[$g_iSelectedClient][1] & "?") = 6 Then Local $sMsg = "ADMIN: Reboot command sent to " & $g_aClients[$g_iSelectedClient][1] AddLog($sMsg) LogAction($sMsg) _TCP_Send($g_aClients[$g_iSelectedClient][0], "REBOOT" & @CRLF) EndIf EndFunc ;==>RebootClient Func ShowMessageToClient() If $g_iSelectedClient = 0 Then Return Local $sTitle = InputBox("Message Title", "Enter message title:", "Lab Manager") If @error Then Return Local $sMessage = InputBox("Message", "Enter message text:") If @error Then Return Local $iTimeout = InputBox("Timeout", "Enter timeout (seconds, 0 = no timeout):", "10") If @error Then $iTimeout = 0 Local $sMsg = "ADMIN: Message sent to " & $g_aClients[$g_iSelectedClient][1] LogAction($sMsg) _TCP_Send($g_aClients[$g_iSelectedClient][0], "SHOW_MESSAGE|" & $sTitle & "|" & $sMessage & "|" & $iTimeout & @CRLF) AddLog("Message sent to " & $g_aClients[$g_iSelectedClient][1]) EndFunc ;==>ShowMessageToClient Func RunCommandOnClient() If $g_iSelectedClient = 0 Then Return Local $sCommand = GUICtrlRead($g_hInputCmd) If $sCommand = "" Then Return Local $sWorkDir = GUICtrlRead($g_hInputWorkDir) Local $sShowFlag = GUICtrlRead($g_hComboShowFlag) Local $iTimeout = Int(GUICtrlRead($g_hInputTimeout)) If $iTimeout < 0 Then $iTimeout = 60 ; Default to 60s if invalid ; Determine run type Local $sRunType = "" If GUICtrlRead($g_hRadioRunWithOutput) = $GUI_CHECKED Then $sRunType = "WITH_OUTPUT" ElseIf GUICtrlRead($g_hRadioRunNoOutput) = $GUI_CHECKED Then $sRunType = "NO_OUTPUT" Else $sRunType = "DIRECT" EndIf ; Protocol: RUN_COMMAND|type|command|workdir|showflag|timeout Local $sData = "RUN_COMMAND|" & $sRunType & "|" & $sCommand & "|" & $sWorkDir & "|" & $sShowFlag & "|" & $iTimeout Local $sMsg = "ADMIN: Run command on " & $g_aClients[$g_iSelectedClient][1] & ": [" & $sRunType & "] " & $sCommand & " (timeout: " & $iTimeout & "s)" LogAction($sMsg) _TCP_Send($g_aClients[$g_iSelectedClient][0], $sData & @CRLF) AddLog("Command sent: [" & $sRunType & "] " & $sCommand & " (timeout: " & $iTimeout & "s)") EndFunc ;==>RunCommandOnClient Func ShellExecuteOnClient() If $g_iSelectedClient = 0 Then Return Local $sFile = GUICtrlRead($g_hInputCmd) If $sFile = "" Then Return Local $sParams = GUICtrlRead($g_hInputParams) Local $sWorkDir = GUICtrlRead($g_hInputWorkDir) Local $sShowFlag = GUICtrlRead($g_hComboShowFlag) ; Protocol: SHELLEXECUTE|filename|parameters|workdir|showflag Local $sData = "SHELLEXECUTE|" & $sFile & "|" & $sParams & "|" & $sWorkDir & "|" & $sShowFlag Local $sMsg = "ADMIN: ShellExecute on " & $g_aClients[$g_iSelectedClient][1] & ": " & $sFile & " " & $sParams LogAction($sMsg) _TCP_Send($g_aClients[$g_iSelectedClient][0], $sData & @CRLF) AddLog("ShellExecute sent: " & $sFile) EndFunc ;==>ShellExecuteOnClient Func DisplaySoftwareList($aCmd) _GUICtrlListView_DeleteAllItems($g_hListSoftware) For $i = 2 To UBound($aCmd) - 1 _GUICtrlListView_AddItem($g_hListSoftware, $aCmd[$i]) Next Local $iCount = UBound($aCmd) - 2 AddLog("Software list received: " & $iCount & " items") UpdateOperationStatus("Completed: Received " & $iCount & " software", 0x00AA00) EndFunc ;==>DisplaySoftwareList Func DisplayProcessList($aCmd) _GUICtrlListView_DeleteAllItems($g_hListProcess) For $i = 2 To UBound($aCmd) - 1 Local $aProc = StringSplit($aCmd[$i], ":", 2) If UBound($aProc) >= 2 Then Local $sPID = $aProc[0] Local $sName = $aProc[1] Local $sUser = UBound($aProc) >= 3 ? $aProc[2] : "" Local $iIdx = _GUICtrlListView_GetItemCount($g_hListProcess) _GUICtrlListView_AddItem($g_hListProcess, $sPID) _GUICtrlListView_AddSubItem($g_hListProcess, $iIdx, $sName, 1) _GUICtrlListView_AddSubItem($g_hListProcess, $iIdx, $sUser, 2) EndIf Next Local $iCount = UBound($aCmd) - 2 AddLog("Process list received: " & $iCount & " items") UpdateOperationStatus("Completed: Received " & $iCount & " processes", 0x00AA00) EndFunc ;==>DisplayProcessList Func DisplayWindowList($aCmd) _GUICtrlListView_DeleteAllItems($g_hListWindow) Local $iCount = 0 If UBound($aCmd) >= 2 Then $iCount = Int($aCmd[1]) EndIf For $i = 2 To UBound($aCmd) - 1 Local $aWin = StringSplit($aCmd[$i], ":", 2) If UBound($aWin) >= 2 Then _GUICtrlListView_AddItem($g_hListWindow, $aWin[0]) _GUICtrlListView_AddSubItem($g_hListWindow, _GUICtrlListView_GetItemCount($g_hListWindow) - 1, "0x" & $aWin[1], 1) EndIf Next AddLog("Window list received: " & $iCount & " items") UpdateOperationStatus("Completed: Received " & $iCount & " windows", 0x00AA00) EndFunc ;==>DisplayWindowList Func RequestStartupList() If $g_iSelectedClient = 0 Then Return LogAction("Requesting startup list from " & $g_aClients[$g_iSelectedClient][1]) UpdateOperationStatus("Sending command: Startup list...", 0xFF8800) _TCP_Send($g_aClients[$g_iSelectedClient][0], "GET_STARTUP_LIST" & @CRLF) UpdateOperationStatus("Waiting for response: Startup list...", 0x0088FF) EndFunc ;==>RequestStartupList Func DisplayStartupList($aCmd) _GUICtrlListView_DeleteAllItems($g_hListStartup) If UBound($aCmd) < 2 Then Return Local $iCount = Int($aCmd[1]) For $i = 2 To UBound($aCmd) - 1 Local $aItem = StringSplit($aCmd[$i], Chr(1), 2) ; Use Chr(1) as separator If UBound($aItem) >= 4 Then Local $sName = $aItem[0] Local $sType = $aItem[1] Local $sLocation = $aItem[2] Local $sCommand = $aItem[3] Local $iIdx = _GUICtrlListView_GetItemCount($g_hListStartup) _GUICtrlListView_AddItem($g_hListStartup, $sName) _GUICtrlListView_AddSubItem($g_hListStartup, $iIdx, $sType, 1) _GUICtrlListView_AddSubItem($g_hListStartup, $iIdx, $sLocation, 2) _GUICtrlListView_AddSubItem($g_hListStartup, $iIdx, $sCommand, 3) EndIf Next AddLog("Startup list received: " & $iCount & " items") UpdateOperationStatus("Completed: Received " & $iCount & " startup items", 0x00AA00) EndFunc ;==>DisplayStartupList Func DeleteSelectedStartup() If $g_iSelectedClient = 0 Then Return Local $iSelected = _GUICtrlListView_GetNextItem($g_hListStartup) If $iSelected < 0 Then Return Local $sName = _GUICtrlListView_GetItemText($g_hListStartup, $iSelected, 0) Local $sType = _GUICtrlListView_GetItemText($g_hListStartup, $iSelected, 1) Local $sLocation = _GUICtrlListView_GetItemText($g_hListStartup, $iSelected, 2) If MsgBox(36, "Xác nhận xóa", "Xóa mục khởi động:" & @CRLF & @CRLF & _ "Tên: " & $sName & @CRLF & _ "Loại: " & $sType & @CRLF & _ "Vị trí: " & $sLocation & @CRLF & @CRLF & _ "Bạn có chắc chắn?") <> 6 Then Return ; Send delete command with type and location Local $sDeleteCmd = "DELETE_STARTUP|" & $sName & Chr(1) & $sType & Chr(1) & $sLocation _TCP_Send($g_aClients[$g_iSelectedClient][0], $sDeleteCmd & @CRLF) LogAction("Deleting startup item: " & $sName & " (" & $sType & ")") AddLog("Delete startup requested: " & $sName) EndFunc ;==>DeleteSelectedStartup Func RequestServiceList() If $g_iSelectedClient = 0 Then Return LogAction("Requesting service list from " & $g_aClients[$g_iSelectedClient][1]) UpdateOperationStatus("Sending command: Service list...", 0xFF8800) _TCP_Send($g_aClients[$g_iSelectedClient][0], "GET_SERVICE_LIST" & @CRLF) UpdateOperationStatus("Waiting for response: Service list...", 0x0088FF) EndFunc ;==>RequestServiceList Func DisplayServiceList($aCmd) _GUICtrlListView_DeleteAllItems($g_hListService) If UBound($aCmd) < 2 Then Return Local $iCount = Int($aCmd[1]) For $i = 2 To UBound($aCmd) - 1 Local $aItem = StringSplit($aCmd[$i], Chr(1), 2) If UBound($aItem) >= 4 Then Local $sServiceName = $aItem[0] Local $sDisplayName = $aItem[1] Local $sStatus = $aItem[2] Local $sStartupType = $aItem[3] Local $iIdx = _GUICtrlListView_GetItemCount($g_hListService) _GUICtrlListView_AddItem($g_hListService, $sServiceName) _GUICtrlListView_AddSubItem($g_hListService, $iIdx, $sDisplayName, 1) _GUICtrlListView_AddSubItem($g_hListService, $iIdx, $sStatus, 2) _GUICtrlListView_AddSubItem($g_hListService, $iIdx, $sStartupType, 3) EndIf Next AddLog("Service list received: " & $iCount & " services") UpdateOperationStatus("Completed: Received " & $iCount & " services", 0x00AA00) EndFunc ;==>DisplayServiceList Func StartSelectedService() If $g_iSelectedClient = 0 Then Return Local $iSelected = _GUICtrlListView_GetNextItem($g_hListService) If $iSelected < 0 Then Return Local $sServiceName = _GUICtrlListView_GetItemText($g_hListService, $iSelected, 0) Local $sDisplayName = _GUICtrlListView_GetItemText($g_hListService, $iSelected, 1) _TCP_Send($g_aClients[$g_iSelectedClient][0], "START_SERVICE|" & $sServiceName & @CRLF) LogAction("Starting service: " & $sServiceName & " (" & $sDisplayName & ")") AddLog("Start service requested: " & $sDisplayName) EndFunc ;==>StartSelectedService Func StopSelectedService() If $g_iSelectedClient = 0 Then Return Local $iSelected = _GUICtrlListView_GetNextItem($g_hListService) If $iSelected < 0 Then Return Local $sServiceName = _GUICtrlListView_GetItemText($g_hListService, $iSelected, 0) Local $sDisplayName = _GUICtrlListView_GetItemText($g_hListService, $iSelected, 1) If MsgBox(36, "Xác nhận", "Dừng dịch vụ: " & $sDisplayName & "?") <> 6 Then Return _TCP_Send($g_aClients[$g_iSelectedClient][0], "STOP_SERVICE|" & $sServiceName & @CRLF) LogAction("Stopping service: " & $sServiceName & " (" & $sDisplayName & ")") AddLog("Stop service requested: " & $sDisplayName) EndFunc ;==>StopSelectedService Func EnableSelectedService() If $g_iSelectedClient = 0 Then Return Local $iSelected = _GUICtrlListView_GetNextItem($g_hListService) If $iSelected < 0 Then Return Local $sServiceName = _GUICtrlListView_GetItemText($g_hListService, $iSelected, 0) Local $sDisplayName = _GUICtrlListView_GetItemText($g_hListService, $iSelected, 1) _TCP_Send($g_aClients[$g_iSelectedClient][0], "ENABLE_SERVICE|" & $sServiceName & @CRLF) LogAction("Enabling service (Auto): " & $sServiceName & " (" & $sDisplayName & ")") AddLog("Enable service requested: " & $sDisplayName) EndFunc ;==>EnableSelectedService Func DisableSelectedService() If $g_iSelectedClient = 0 Then Return Local $iSelected = _GUICtrlListView_GetNextItem($g_hListService) If $iSelected < 0 Then Return Local $sServiceName = _GUICtrlListView_GetItemText($g_hListService, $iSelected, 0) Local $sDisplayName = _GUICtrlListView_GetItemText($g_hListService, $iSelected, 1) If MsgBox(36, "Xác nhận", "Vô hiệu hóa dịch vụ: " & $sDisplayName & "?") <> 6 Then Return _TCP_Send($g_aClients[$g_iSelectedClient][0], "DISABLE_SERVICE|" & $sServiceName & @CRLF) LogAction("Disabling service: " & $sServiceName & " (" & $sDisplayName & ")") AddLog("Disable service requested: " & $sDisplayName) EndFunc ;==>DisableSelectedService Func DeleteSelectedService() If $g_iSelectedClient = 0 Then Return Local $iSelected = _GUICtrlListView_GetNextItem($g_hListService) If $iSelected < 0 Then Return Local $sServiceName = _GUICtrlListView_GetItemText($g_hListService, $iSelected, 0) Local $sDisplayName = _GUICtrlListView_GetItemText($g_hListService, $iSelected, 1) If MsgBox(308, "Xác nhận", "XÓA VĨNH VIỄN dịch vụ: " & $sDisplayName & " (" & $sServiceName & ")" & @CRLF & @CRLF & _ "CẢNH BÁO: Hành động này không thể hoàn tác!" & @CRLF & @CRLF & _ "Bạn có chắc chắn muốn XÓA dịch vụ này?") <> 6 Then Return _TCP_Send($g_aClients[$g_iSelectedClient][0], "DELETE_SERVICE|" & $sServiceName & @CRLF) LogAction("Deleting service: " & $sServiceName & " (" & $sDisplayName & ")") AddLog("Delete service requested: " & $sDisplayName) EndFunc ;==>DeleteSelectedService Func UninstallSelectedSoftware() If $g_iSelectedClient = 0 Then Return Local $iSelected = _GUICtrlListView_GetNextItem($g_hListSoftware) If $iSelected < 0 Then Return Local $sSoftwareName = _GUICtrlListView_GetItemText($g_hListSoftware, $iSelected, 0) If MsgBox(36, "Xác nhận", "Gỡ cài đặt phần mềm: " & $sSoftwareName & "?" & @CRLF & @CRLF & _ "• MSI: Chạy uninstall tự động (silent)" & @CRLF & _ "• Non-MSI: Xóa shortcuts, thư mục, dữ liệu, registry" & @CRLF & @CRLF & _ "Quá trình có thể mất vài phút.") <> 6 Then Return _TCP_Send($g_aClients[$g_iSelectedClient][0], "UNINSTALL_SOFTWARE|" & $sSoftwareName & @CRLF) LogAction("Uninstalling software: " & $sSoftwareName) AddLog("Uninstall software requested: " & $sSoftwareName) EndFunc ;==>UninstallSelectedSoftware Func AddLog($sText) Local $sCurrent = GUICtrlRead($g_hEditLog) Local $sTime = @HOUR & ":" & @MIN & ":" & @SEC Local $sNewLog = "[" & $sTime & "] " & $sText & @CRLF ; Append to existing log $sCurrent = StringReplace($sNewLog, @CRLF & @CRLF, @CRLF) ; Keep only last 20 lines Local $aLines = StringSplit($sCurrent, @CRLF, 1) If $aLines[0] > 20 Then $sCurrent = "" For $i = $aLines[0] - 19 To $aLines[0] $sCurrent &= $aLines[$i] & @CRLF Next EndIf Local $iEnd = StringLen(GUICtrlRead($g_hEditLog)) _GUICtrlEdit_SetSel($g_hEditLog, $iEnd, $iEnd) _GUICtrlEdit_Scroll($g_hEditLog, $SB_SCROLLCARET) GUICtrlSetData($g_hEditLog, $sCurrent, 1) EndFunc ;==>AddLog Func UpdateOperationStatus($sText, $iColor = 0x008800) ; Update operation status bar with color GUICtrlSetData($g_hOperationStatus, $sText) GUICtrlSetColor($g_hOperationStatus, $iColor) EndFunc ;==>UpdateOperationStatus Func AddToStartup() Local $sStartupKey = "HKCU\Software\Microsoft\Windows\CurrentVersion\Run" Local $sAppName = "LabManagerServer" Local $sExePath = @ScriptFullPath ; Check if already in startup Local $sCurrentPath = RegRead($sStartupKey, $sAppName) If $sCurrentPath <> $sExePath Then RegWrite($sStartupKey, $sAppName, "REG_SZ", $sExePath) LogAction("Added to Windows startup") EndIf EndFunc ;==>AddToStartup Func LogAction($sMessage) Local $sTime = @YEAR & "-" & @MON & "-" & @MDAY & " " & @HOUR & ":" & @MIN & ":" & @SEC Local $sLog = "[" & $sTime & "] " & $sMessage & @CRLF ; Append to log file Local $hFile = FileOpen($LOG_FILE, 1) ; Append mode If $hFile <> -1 Then FileWrite($hFile, $sLog) FileClose($hFile) EndIf ; Keep log file size under 5MB If FileGetSize($LOG_FILE) > 5242880 Then ; Archive old log FileCopy($LOG_FILE, $LOG_FILE & ".old", 1) FileDelete($LOG_FILE) EndIf EndFunc ;==>LogAction Func Cleanup() LogAction("Server shutting down") If $g_hSocket Then _TCP_Server_Stop($g_hSocket) EndIf _TCP_Shutdown() EndFunc ;==>Cleanup ; ===== File Manager Functions ===== Func RequestFileList() If $g_iSelectedClient = 0 Then Return LogAction("Requesting file list from " & $g_aClients[$g_iSelectedClient][1] & ": " & $g_sCurrentPath) ; Request drive list first time (empty combo means no drives loaded yet) If GUICtrlRead($g_hComboDrive) = "" Then UpdateOperationStatus("Sending command: Drive list...", 0xFF8800) _TCP_Send($g_aClients[$g_iSelectedClient][0], "GET_DRIVE_LIST" & @CRLF) Sleep(100) ; Small delay to ensure drive list is received first EndIf UpdateOperationStatus("Sending command: File list...", 0xFF8800) _TCP_Send($g_aClients[$g_iSelectedClient][0], "FILE_LIST|" & $g_sCurrentPath & @CRLF) UpdateOperationStatus("Waiting for response: File list...", 0x0088FF) EndFunc ;==>RequestFileList Func DisplayDriveList($aCmd) ; Build drive list string with "|" delimiter, ensure all drives end with "\" Local $sDriveList = "" For $i = 1 To UBound($aCmd) - 1 If $aCmd[$i] <> "" Then Local $sDrive = _PathWithSlash($aCmd[$i]); Normalize: ensure drive ends with backslash (C:\) If $sDriveList <> "" Then $sDriveList &= "|" $sDriveList &= $sDrive EndIf Next ; Set all drives at once GUICtrlSetData($g_hComboDrive, $sDriveList) ; Select current drive (normalize to match combo format) Local $sCurrentDrive = _PathWithSlash(StringLeft($g_sCurrentPath, 2)) GUICtrlSetData($g_hComboDrive, $sCurrentDrive) Local $iCount = UBound($aCmd) - 1 AddLog("Drive list received: " & $iCount & " drives") UpdateOperationStatus("Completed: Received " & $iCount & " drives", 0x00AA00) EndFunc ;==>DisplayDriveList Func DisplayFileList($aCmd) _GUICtrlListView_DeleteAllItems($g_hListFile) If UBound($aCmd) < 3 Then Return Local $sPath = $aCmd[1] Local $iCount = Int($aCmd[2]) ; Add parent directory option If StringLen($sPath) > 3 Then ; Not root drive _GUICtrlListView_AddItem($g_hListFile, "..") _GUICtrlListView_AddSubItem($g_hListFile, 0, "DIR", 1) _GUICtrlListView_AddSubItem($g_hListFile, 0, "", 2) _GUICtrlListView_AddSubItem($g_hListFile, 0, "", 3) _GUICtrlListView_AddSubItem($g_hListFile, 0, "", 4) EndIf ; Add files and folders For $i = 3 To UBound($aCmd) - 1 ; Use Chr(1) as delimiter to avoid conflicts with colons in filenames Local $aItem = StringSplit($aCmd[$i], Chr(1), 2) If UBound($aItem) >= 3 Then Local $sName = $aItem[0] Local $sRawAttrib = $aItem[1] ; Determine type: DIR if has 'D' attribute, FILE otherwise (even if attrib is empty) Local $sType = "FILE" If $sRawAttrib <> "" And StringInStr($sRawAttrib, "D") Then $sType = "DIR" EndIf Local $iSize = Int($aItem[2]) Local $sSize = $sType = "DIR" ? "" : _FormatFileSize($iSize) Local $sModified = UBound($aItem) >= 4 ? _FormatFileTime($aItem[3]) : "" ; Format attributes: R (Read-only), S (System), H (Hidden), A (Archive) Local $sAttrib = "" If $sRawAttrib <> "" Then If StringInStr($sRawAttrib, "R") Then $sAttrib &= "R" If StringInStr($sRawAttrib, "S") Then $sAttrib &= "S" If StringInStr($sRawAttrib, "H") Then $sAttrib &= "H" If StringInStr($sRawAttrib, "A") Then $sAttrib &= "A" EndIf Local $iIdx = _GUICtrlListView_GetItemCount($g_hListFile) _GUICtrlListView_AddItem($g_hListFile, $sName) _GUICtrlListView_AddSubItem($g_hListFile, $iIdx, $sType, 1) _GUICtrlListView_AddSubItem($g_hListFile, $iIdx, $sSize, 2) _GUICtrlListView_AddSubItem($g_hListFile, $iIdx, $sModified, 3) _GUICtrlListView_AddSubItem($g_hListFile, $iIdx, $sAttrib, 4) EndIf Next ; Normalize path to ensure it ends with backslash $sPath = _NormalizePath($sPath) $g_sCurrentPath = $sPath GUICtrlSetData($g_hInputPath, $sPath) ; Update path input AddLog("File list received: " & $iCount & " items from " & $sPath) UpdateOperationStatus("Completed: Received " & $iCount & " files from " & $sPath, 0x00AA00) EndFunc ;==>DisplayFileList Func _NormalizePath($sPath) If $sPath = "" Then Return "C:\" Return _PathWithSlash($sPath) ; Ensure path ends with single backslash EndFunc ;==>_NormalizePath Func _FormatFileSize($iBytes) If $iBytes < 1024 Then Return $iBytes & " B" If $iBytes < 1048576 Then Return Round($iBytes / 1024, 2) & " KB" If $iBytes < 1073741824 Then Return Round($iBytes / 1048576, 2) & " MB" Return Round($iBytes / 1073741824, 2) & " GB" EndFunc ;==>_FormatFileSize Func _FormatFileTime($sTime) ; Convert YYYYMMDDHHMMSS to readable format: YYYY-MM-DD HH:MM:SS If StringLen($sTime) <> 14 Then Return $sTime Local $sYear = StringMid($sTime, 1, 4) Local $sMonth = StringMid($sTime, 5, 2) Local $sDay = StringMid($sTime, 7, 2) Local $sHour = StringMid($sTime, 9, 2) Local $sMin = StringMid($sTime, 11, 2) Local $sSec = StringMid($sTime, 13, 2) Return $sYear & "-" & $sMonth & "-" & $sDay & " " & $sHour & ":" & $sMin & ":" & $sSec EndFunc ;==>_FormatFileTime Func DeleteSelectedFile() If $g_iSelectedClient = 0 Then Return Local $iSelected = _GUICtrlListView_GetNextItem($g_hListFile) If $iSelected < 0 Then Return Local $sName = _GUICtrlListView_GetItemText($g_hListFile, $iSelected, 0) If $sName = ".." Then Return If MsgBox(36, "Confirm Delete", "Delete file/folder: " & $sName & "?") <> 6 Then Return Local $sRemotePath = $g_sCurrentPath If Not StringRight($sRemotePath, 1) = "\" Then $sRemotePath &= "\" $sRemotePath &= $sName LogAction("Deleting remote file: " & $sRemotePath) _TCP_Send($g_aClients[$g_iSelectedClient][0], "FILE_DELETE|" & $sRemotePath & @CRLF) EndFunc ;==>DeleteSelectedFile Func RenameSelectedFile() If $g_iSelectedClient = 0 Then Return Local $iSelected = _GUICtrlListView_GetNextItem($g_hListFile) If $iSelected < 0 Then Return Local $sOldName = _GUICtrlListView_GetItemText($g_hListFile, $iSelected, 0) If $sOldName = ".." Then Return Local $sNewName = InputBox("Rename", "Enter new name:", $sOldName) If @error Or $sNewName = "" Or $sNewName = $sOldName Then Return Local $sOldPath = $g_sCurrentPath If Not StringRight($sOldPath, 1) = "\" Then $sOldPath &= "\" $sOldPath &= $sOldName Local $sNewPath = $g_sCurrentPath If Not StringRight($sNewPath, 1) = "\" Then $sNewPath &= "\" $sNewPath &= $sNewName LogAction("Renaming remote file: " & $sOldPath & " -> " & $sNewPath) _TCP_Send($g_aClients[$g_iSelectedClient][0], "FILE_RENAME|" & $sOldPath & "|" & $sNewPath & @CRLF) EndFunc ;==>RenameSelectedFile Func ShellExecuteFile($sFilePath) If $g_iSelectedClient = 0 Then Return LogAction("ShellExecute file on " & $g_aClients[$g_iSelectedClient][1] & ": " & $sFilePath) _TCP_Send($g_aClients[$g_iSelectedClient][0], "FILE_SHELLEXECUTE|" & $sFilePath & @CRLF) AddLog("ShellExecute requested: " & $sFilePath) EndFunc ;==>ShellExecuteFile Func RemoveFileAttributes() If $g_iSelectedClient = 0 Then Return Local $iSelected = _GUICtrlListView_GetNextItem($g_hListFile) If $iSelected < 0 Then Return Local $sName = _GUICtrlListView_GetItemText($g_hListFile, $iSelected, 0) If $sName = ".." Then Return If MsgBox(36, "Remove Attributes", "Remove -RAHS attributes from: " & $sName & "?") <> 6 Then Return Local $sRemotePath = $g_sCurrentPath If Not StringRight($sRemotePath, 1) = "\" Then $sRemotePath &= "\" $sRemotePath &= $sName LogAction("Removing attributes from: " & $sRemotePath) _TCP_Send($g_aClients[$g_iSelectedClient][0], "FILE_REMOVE_ATTRIB|" & $sRemotePath & @CRLF) EndFunc ;==>RemoveFileAttributes Client: expandcollapse popup#RequireAdmin #NoTrayIcon #Region ;**** Directives created by AutoIt3Wrapper_GUI **** #AutoIt3Wrapper_Icon=shell32.dll,16 #AutoIt3Wrapper_UseX64=y #AutoIt3Wrapper_Res_requestedExecutionLevel=asInvoker #EndRegion ;**** Directives created by AutoIt3Wrapper_GUI **** ; ===== LAB MANAGER CLIENT v1.0 by Dao Van Trong - TRONG.PRO ===== ; Silent monitoring agent with tray icon Opt("TrayMenuMode", 1) ;0=append, 1=no default menu, 2=no automatic check, 4=menuitemID not return #include "WinSockUDF.au3" ;~ #include "LabManager_RUDP.au3" #include <GUIConstantsEx.au3> #include <Array.au3> #include <File.au3> #include <FileConstants.au3> #include <WinAPIProc.au3> #include <WinAPIConstants.au3> #include <WinAPISysWin.au3> #include <WinAPIGdi.au3> #include <TrayConstants.au3> #include <Inet.au3> #include <WindowsConstants.au3> #include <Security.au3> #include <SecurityConstants.au3> #include <WinAPISys.au3> ; Configuration Global Const $SERVER_IP = "127.0.0.1" Global Const $SERVER_PORT = 8888 Global Const $RECONNECT_INTERVAL = 10000 ; 10 seconds Global Const $UPDATE_CHECK_INTERVAL = 3600000 ; 1 hour in milliseconds Global Const $CLIENT_VERSION = "1.0.0" Global Const $UPDATE_URL = "http://yourserver.com/update.ini" ; URL to .ini file containing version info Global Const $LOG_FILE = @ScriptDir & "\LabManager_Client.log" FileDelete($LOG_FILE) ; Client state Global $g_hSocket = 0 Global $g_bConnected = False Global $g_iLastReconnect = 0 Global $g_iLastUpdateCheck = 0 Global $g_bUpdatePending = False Global $g_sUpdateFile = "" ; System info Global $g_sComputerName = @ComputerName Global $g_sUserName = @UserName Global $g_sIPAddress = @IPAddress1 Global $g_sOSVersion = @OSVersion Global $g_sWinVer = "" Global $g_sWinVersion = "" Global $oErrorHandler = ObjEvent("AutoIt.Error", "_COMErrFunc") Func _COMErrFunc() ; Do nothing special, just check @error after suspect functions. EndFunc ;==>_COMErrFunc ; Tray icon Opt("TrayMenuMode", 3) ; Default tray menu items will not be shown Opt("TrayOnEventMode", 1) TraySetIcon("shell32.dll", 16) ; Computer icon TraySetToolTip("Lab Manager Client" & @CRLF & "Computer: " & $g_sComputerName & @CRLF & "User: " & $g_sUserName & @CRLF & "Status: Connecting...") Global $g_idTrayStatus = TrayCreateItem("Status: Connecting...") TrayItemSetState($g_idTrayStatus, $TRAY_DISABLE) TrayCreateItem("") Global $g_idTrayExit = TrayCreateItem("Exit") TrayItemSetOnEvent($g_idTrayExit, "OnTrayExit") ; Initialize _TCP_Startup() GetSystemInfo() AddToStartup() LogAction("Client started - Version " & $CLIENT_VERSION) ConnectToServer() ; Check for updates on startup CheckForUpdates() ; Main loop While True ; Check connection If Not $g_bConnected And TimerDiff($g_iLastReconnect) > $RECONNECT_INTERVAL Then ConnectToServer() EndIf ; Check for updates periodically If TimerDiff($g_iLastUpdateCheck) > $UPDATE_CHECK_INTERVAL Then CheckForUpdates() EndIf ; Process RUDP retransmissions ;~ RUDP_CheckRetransmissions() Sleep(100) WEnd Func ConnectToServer() $g_iLastReconnect = TimerInit() If $g_hSocket <> 0 Then _TCP_Client_Stop($g_hSocket) $g_hSocket = 0 EndIf $g_hSocket = _TCP_Client_Create($SERVER_IP, $SERVER_PORT) If $g_hSocket = 0 Then _UpdateTrayStatus("Connection Failed") LogAction("Failed to connect to server: " & $SERVER_IP & ":" & $SERVER_PORT) Return EndIf ; Register callbacks _TCP_Client_OnConnect($g_hSocket, "OnConnect") _TCP_Client_OnReceive($g_hSocket, "OnReceive") _TCP_Client_OnDisconnect($g_hSocket, "OnDisconnect") _UpdateTrayStatus("Connecting...") EndFunc ;==>ConnectToServer Func OnConnect($hSocket, $iError) If $iError Then $g_bConnected = False _UpdateTrayStatus("Connection Failed") Return EndIf $g_bConnected = True _UpdateTrayStatus("Connected") LogAction("Connected to server: " & $SERVER_IP & ":" & $SERVER_PORT) ; Send registration with version Local $sRegister = "CLIENT_REGISTER|" & $g_sComputerName & "|" & $g_sUserName & "|" & $g_sIPAddress & "|" & $g_sOSVersion & "|" & $g_sWinVer & "|" & $g_sWinVersion & "|" & $CLIENT_VERSION _TCP_Send($hSocket, $sRegister & @CRLF) EndFunc ;==>OnConnect Func OnReceive($hSocket, $sData, $iError) If $iError Or $sData = "" Then Return $sData = StringStripWS($sData, 3) Local $aCmd = StringSplit($sData, "|", 2) Local $sCommand = $aCmd[0] Switch $sCommand Case "GET_SOFTWARE_LIST" LogAction("Software list requested") SendSoftwareList($hSocket) Case "GET_PROCESS_LIST" LogAction("Process list requested") SendProcessList($hSocket) Case "GET_WINDOW_LIST" LogAction("Window list requested") SendWindowList($hSocket) Case "GET_STARTUP_LIST" LogAction("Startup list requested") SendStartupList($hSocket) Case "DELETE_STARTUP" If UBound($aCmd) >= 2 Then DeleteStartupItem($hSocket, $aCmd[1]) EndIf Case "GET_SERVICE_LIST" LogAction("Service list requested") SendServiceList($hSocket) Case "START_SERVICE" If UBound($aCmd) >= 2 Then StartService($hSocket, $aCmd[1]) EndIf Case "STOP_SERVICE" If UBound($aCmd) >= 2 Then StopService($hSocket, $aCmd[1]) EndIf Case "ENABLE_SERVICE" If UBound($aCmd) >= 2 Then EnableService($hSocket, $aCmd[1]) EndIf Case "DISABLE_SERVICE" If UBound($aCmd) >= 2 Then DisableService($hSocket, $aCmd[1]) EndIf Case "DELETE_SERVICE" If UBound($aCmd) >= 2 Then DeleteService($hSocket, $aCmd[1]) EndIf Case "UNINSTALL_SOFTWARE" If UBound($aCmd) >= 2 Then UninstallSoftware($hSocket, $aCmd[1]) EndIf Case "GET_DRIVE_LIST" SendDriveList($hSocket) Case "FILE_LIST" If UBound($aCmd) >= 2 Then SendFileList($hSocket, $aCmd[1]) EndIf Case "FILE_SHELLEXECUTE" If UBound($aCmd) >= 2 Then ShellExecute($aCmd[1]) _TCP_Send($hSocket, "FILE_SHELLEXECUTE_DONE|" & $aCmd[1] & @CRLF) LogAction("ShellExecute: " & $aCmd[1]) EndIf Case "FILE_REMOVE_ATTRIB" If UBound($aCmd) >= 2 Then Local $sPath = $aCmd[1] Local $bSuccess = FileSetAttrib($sPath, "-RAHS") If $bSuccess Then _TCP_Send($hSocket, "FILE_ATTRIB_REMOVED|" & $sPath & @CRLF) LogAction("Attributes removed: " & $sPath) Else _TCP_Send($hSocket, "FILE_ATTRIB_ERROR|" & $sPath & @CRLF) LogAction("Error removing attributes: " & $sPath) EndIf EndIf Case "FILE_DELETE" If UBound($aCmd) >= 2 Then Local $sPath = $aCmd[1] Local $bSuccess = False ; Check if directory or file If FileGetAttrib($sPath) <> -1 Then If StringInStr(FileGetAttrib($sPath), "D") Then ; It's a directory $bSuccess = DirRemove($sPath, 1) ; 1 = recursive delete Else ; It's a file $bSuccess = FileDelete($sPath) EndIf EndIf If $bSuccess Then _TCP_Send($hSocket, "FILE_DELETED|" & $sPath & @CRLF) LogAction("File/Folder deleted: " & $sPath) Else _TCP_Send($hSocket, "FILE_DELETE_ERROR|" & $sPath & @CRLF) LogAction("Error deleting: " & $sPath) EndIf EndIf Case "FILE_RENAME" If UBound($aCmd) >= 3 Then Local $sOldPath = $aCmd[1] Local $sNewPath = $aCmd[2] Local $bSuccess = False ; Check if directory or file If FileGetAttrib($sOldPath) <> -1 Then If StringInStr(FileGetAttrib($sOldPath), "D") Then ; It's a directory $bSuccess = DirMove($sOldPath, $sNewPath, 1) ; 1 = overwrite Else ; It's a file $bSuccess = FileMove($sOldPath, $sNewPath, 1) EndIf EndIf If $bSuccess Then _TCP_Send($hSocket, "FILE_RENAMED|" & $sOldPath & "|" & $sNewPath & @CRLF) LogAction("File/Folder renamed: " & $sOldPath & " -> " & $sNewPath) Else _TCP_Send($hSocket, "FILE_RENAME_ERROR|" & $sOldPath & @CRLF) LogAction("Error renaming: " & $sOldPath) EndIf EndIf Case "SHUTDOWN" LogAction("ADMIN: Shutdown command received") Shutdown(1) ; Shutdown Case "REBOOT" LogAction("ADMIN: Reboot command received") Shutdown(2) ; Reboot Case "RUN_COMMAND" If UBound($aCmd) >= 6 Then ExecuteRunCommand($hSocket, $aCmd[1], $aCmd[2], $aCmd[3], $aCmd[4], Int($aCmd[5])) ElseIf UBound($aCmd) >= 5 Then ExecuteRunCommand($hSocket, $aCmd[1], $aCmd[2], $aCmd[3], $aCmd[4], 60) ; Default 60s EndIf Case "SHELLEXECUTE" If UBound($aCmd) >= 5 Then ExecuteShellCommand($hSocket, $aCmd[1], $aCmd[2], $aCmd[3], $aCmd[4]) EndIf Case "CLOSE_PROCESS" If UBound($aCmd) >= 2 Then LogAction("ADMIN: Close process: " & $aCmd[1]) ProcessClose($aCmd[1]) _TCP_Send($hSocket, "PROCESS_CLOSED|" & $aCmd[1] & @CRLF) EndIf Case "CLOSE_WINDOW" If UBound($aCmd) >= 2 Then LogAction("ADMIN: Close window: " & $aCmd[1]) ; Convert hex string to window handle properly Local $hWnd = HWnd(Number($aCmd[1])) If WinExists($hWnd) Then WinClose($hWnd) _TCP_Send($hSocket, "WINDOW_CLOSED|" & $aCmd[1] & @CRLF) Else LogAction("Error: Window not found: " & $aCmd[1]) EndIf EndIf Case "SHOW_MESSAGE" If UBound($aCmd) >= 3 Then Local $iTimeout = UBound($aCmd) >= 4 ? Int($aCmd[3]) : 0 LogAction("ADMIN: Show message: " & $aCmd[1] & " - " & $aCmd[2]) SplashTextOn($aCmd[1], $aCmd[2], 400, 100, -1, -1, 1, "", 12) If $iTimeout > 0 Then AdlibRegister("_CloseSplash", $iTimeout * 1000) EndIf EndIf EndSwitch EndFunc ;==>OnReceive Func OnDisconnect($hSocket, $iError) $g_bConnected = False _UpdateTrayStatus("Disconnected") LogAction("Disconnected from server") $g_hSocket = 0 ; Check if update pending If $g_bUpdatePending Then PerformUpdate() EndIf EndFunc ;==>OnDisconnect Func GetSystemInfo() ; Get IP address Local $aIPs = _TCP_GetIPs() If IsArray($aIPs) And $aIPs[0] > 0 Then $g_sIPAddress = $aIPs[1] EndIf ; Get OS version and edition Local $sProductName = RegRead('HKLM\SOFTWARE\Microsoft\Windows NT\CurrentVersion', 'ProductName') Local $sDisplayVersion = RegRead('HKLM\SOFTWARE\Microsoft\Windows NT\CurrentVersion', 'DisplayVersion') Local $sReleaseId = RegRead('HKLM\SOFTWARE\Microsoft\Windows NT\CurrentVersion', 'ReleaseId') Local $sBuild = @OSBuild ; Set OS name If $sProductName <> '' Then $g_sOSVersion = $sProductName Else Switch @OSVersion Case 'WIN_11' $g_sOSVersion = 'Windows 11' Case 'WIN_10', 'WIN_2016', 'WIN_2019' $g_sOSVersion = 'Windows 10' Case 'WIN_81', 'WIN_2012R2' $g_sOSVersion = 'Windows 8.1' Case 'WIN_8', 'WIN_2012' $g_sOSVersion = 'Windows 8' Case 'WIN_7', 'WIN_2008R2' $g_sOSVersion = 'Windows 7' Case Else $g_sOSVersion = @OSVersion EndSwitch EndIf ; Set Windows version (22H2, 21H2, etc.) If $sDisplayVersion <> '' Then $g_sWinVersion = $sDisplayVersion ElseIf $sReleaseId <> '' Then $g_sWinVersion = $sReleaseId Else $g_sWinVersion = 'Build ' & $sBuild EndIf ; Set WinVer (build number) $g_sWinVer = $sBuild EndFunc ;==>GetSystemInfo Func SendSoftwareList($hSocket) Local $aList = GetInstalledSoftware() Local $sData = "SOFTWARE_LIST|" & $aList[0] For $i = 1 To $aList[0] $sData &= "|" & $aList[$i] Next LogAction("Sending software list: " & $aList[0] & " items") _TCP_Send($hSocket, $sData & @CRLF) EndFunc ;==>SendSoftwareList Func GetInstalledSoftware() Local $aResult[1] $aResult[0] = 0 ; Read from registry (limit to 100 items to prevent overflow) Local $sKey = "HKLM\SOFTWARE\Microsoft\Windows\CurrentVersion\Uninstall" Local $i = 1 While $aResult[0] < 100 Local $sSubKey = RegEnumKey($sKey, $i) If @error Then ExitLoop Local $sName = RegRead($sKey & "\" & $sSubKey, "DisplayName") If $sName <> "" Then $aResult[0] += 1 ReDim $aResult[$aResult[0] + 1] $aResult[$aResult[0]] = StringReplace($sName, "|", "-") ; Remove pipe char EndIf $i += 1 WEnd ; Also check 64-bit registry on 64-bit systems If @OSArch = "X64" Then $sKey = "HKLM64\SOFTWARE\Microsoft\Windows\CurrentVersion\Uninstall" $i = 1 While $aResult[0] < 100 Local $sSubKey = RegEnumKey($sKey, $i) If @error Then ExitLoop Local $sName = RegRead($sKey & "\" & $sSubKey, "DisplayName") If $sName <> "" Then $aResult[0] += 1 ReDim $aResult[$aResult[0] + 1] $aResult[$aResult[0]] = StringReplace($sName, "|", "-") EndIf $i += 1 WEnd EndIf Return $aResult EndFunc ;==>GetInstalledSoftware Func SendProcessList($hSocket) ; Connect to WMI and get process objects $oWMI = ObjGet("winmgmts:{impersonationLevel=impersonate,authenticationLevel=pktPrivacy, (Debug)}!\\.\root\cimv2") If IsObj($oWMI) Then ; Get collection processes from Win32_Process ; Get all $colProcs = $oWMI.ExecQuery("select * from win32_process") ; Get by PID ;~ $colProcs = $oWMI.ExecQuery("select * from win32_process where ProcessId = " & $Process) ; Get by Name ;~ $colProcs = $oWMI.ExecQuery("select * from win32_process where Name = '" & $Process & "'") If IsObj($colProcs) Then ; Return for no matches If $colProcs.count = 0 Then Return "" Local $sUserName, $iPID, $sProcess, $iCount, $sData ; For each process... For $oProc In $colProcs $sProcess = $oProc.name $iPID = $oProc.ProcessId If $oProc.GetOwner($sUserName) = 0 Then $sData &= "|" & $iPID & ":" & $sProcess & ":" & $sUserName $iCount += 1 EndIf Next LogAction("Sending process list: " & $iCount & " items") _TCP_Send($hSocket, "PROCESS_LIST|" & $iCount & $sData & @CRLF) Return "PROCESS_LIST|" & $iCount & $sData Else LogAction("Get process list: Error getting process collection from WMI") Return SetError(2, 0, '') EndIf Else LogAction("Get process list: Error connecting to WMI") Return SetError(1, 0, '') EndIf EndFunc ;==>SendProcessList Func SendWindowList($hSocket) Local $aList = WinList() Local $sData = "WINDOW_LIST" Local $iCount = 0 ; First pass: count visible top-level windows with titles For $i = 1 To $aList[0][0] ; Check: has title AND is visible top-level window (not child, not tool window) If $aList[$i][0] <> "" And _IsVisibleWindow($aList[$i][1]) Then $iCount += 1 EndIf Next $sData &= "|" & $iCount ; Second pass: add window data For $i = 1 To $aList[0][0] ; Check: has title AND is visible top-level window (not child, not tool window) If $aList[$i][0] <> "" And _IsVisibleWindow($aList[$i][1]) Then Local $sTitle = StringReplace($aList[$i][0], "|", "-") $sTitle = StringReplace($sTitle, ":", "-") $sData &= "|" & $sTitle & ":" & Hex($aList[$i][1]) EndIf Next LogAction("Sending window list: " & $iCount & " items") _TCP_Send($hSocket, $sData & @CRLF) EndFunc ;==>SendWindowList Func SendDriveList($hSocket) Local $aDrives = DriveGetDrive("ALL") If @error Then LogAction("Error getting drive list") Return EndIf Local $sData = "FILE_DRIVE_LIST" For $i = 1 To $aDrives[0] ; DriveGetDrive returns "c:", we need "C:\" Local $sDrive = _PathWithSlash(StringUpper($aDrives[$i])) LogAction("Drive ["&$i&"]: " & $sDrive & "") $sData &= "|" & $sDrive Next _TCP_Send($hSocket, $sData & @CRLF) LogAction("Drive list sent: " & $aDrives[0] & " drives") EndFunc ;==>SendDriveList Func SendFileList($hSocket, $sPath) $sPath = _PathWithSlash($sPath) ; Normalize path - ensure ends with backslash Local $aFiles = _FileListToArray($sPath, "*", $FLTA_FILESFOLDERS) If @error Then Local $iError = @error _TCP_Send($hSocket, "FILE_LIST_ERROR|" & $sPath & @CRLF) LogAction("File list error: " & $sPath & " (@error=" & $iError & ")") Return EndIf Local $sData = "FILE_LIST_RESULT|" & $sPath & "|" & $aFiles[0] LogAction("Processing " & $aFiles[0] & " items from: " & $sPath) For $i = 1 To $aFiles[0] Local $sFullPath = $sPath & $aFiles[$i] ; Get file attributes with error checking Local $sAttrib = FileGetAttrib($sFullPath) Local $iAttribError = @error If $iAttribError Or $sAttrib = "" Then ; Log error for debugging If $i <= 3 Then LogAction("FileGetAttrib error for: " & $sFullPath & " (error: " & $iAttribError & ")") $sAttrib = "" EndIf ; Get file size (0 for directories or errors) Local $iSize = 0 If $sAttrib <> "" And Not StringInStr($sAttrib, 'D') Then $iSize = FileGetSize($sFullPath) If @error Or $iSize < 0 Then $iSize = 0 EndIf ; Get file modified time (format: YYYYMMDDHHMMSS) Local $sModified = "" If $sAttrib <> "" Then $sModified = FileGetTime($sFullPath, 0, 1) If @error Or $sModified = "" Then $sModified = "" EndIf ; Use Chr(1) as delimiter to avoid conflicts with colons in filenames $sData &= "|" & $aFiles[$i] & Chr(1) & $sAttrib & Chr(1) & $iSize & Chr(1) & $sModified Next _TCP_Send($hSocket, $sData & @CRLF) LogAction("File list sent: " & $aFiles[0] & " items from " & $sPath) EndFunc ;==>SendFileList Func SendStartupList($hSocket) Local $aStartupItems[1] $aStartupItems[0] = 0 ; 1. Registry - Current User _GetStartupFromRegistry("HKCU\Software\Microsoft\Windows\CurrentVersion\Run", "Registry (HKCU)", $aStartupItems) _GetStartupFromRegistry("HKCU\Software\Microsoft\Windows\CurrentVersion\RunOnce", "Registry (HKCU Once)", $aStartupItems) ; 2. Registry - Local Machine _GetStartupFromRegistry("HKLM\Software\Microsoft\Windows\CurrentVersion\Run", "Registry (HKLM)", $aStartupItems) _GetStartupFromRegistry("HKLM\Software\Microsoft\Windows\CurrentVersion\RunOnce", "Registry (HKLM Once)", $aStartupItems) ; 3. Startup Folders _GetStartupFromFolder(@StartupDir, "Startup Folder (User)", $aStartupItems) _GetStartupFromFolder(@StartupCommonDir, "Startup Folder (Common)", $aStartupItems) ; 4. Task Scheduler _GetStartupFromTaskScheduler($aStartupItems) ; Build message Local $sData = "STARTUP_LIST|" & $aStartupItems[0] For $i = 1 To $aStartupItems[0] $sData &= "|" & $aStartupItems[$i] Next LogAction("Sending startup list: " & $aStartupItems[0] & " items") _TCP_Send($hSocket, $sData & @CRLF) EndFunc ;==>SendStartupList Func _GetStartupFromRegistry($sRegKey, $sLocation, ByRef $aItems) Local $i = 1 While True Local $sValueName = RegEnumVal($sRegKey, $i) If @error Then ExitLoop Local $sCommand = RegRead($sRegKey, $sValueName) If $sCommand <> "" Then $aItems[0] += 1 ReDim $aItems[$aItems[0] + 1] ; Format: Name<Chr(1)>Type<Chr(1)>Location<Chr(1)>Command $aItems[$aItems[0]] = $sValueName & Chr(1) & "Registry" & Chr(1) & $sLocation & Chr(1) & $sCommand EndIf $i += 1 WEnd EndFunc ;==>_GetStartupFromRegistry Func _GetStartupFromFolder($sFolder, $sLocation, ByRef $aItems) Local $aFiles = _FileListToArray($sFolder, "*", $FLTA_FILES) If @error Or Not IsArray($aFiles) Then Return ; List of system files to exclude (only by name, not by attributes - viruses often hide) Local $aExclude[5] = ["desktop.ini", "thumbs.db", "Thumbs.db", "Desktop.ini", ".DS_Store"] For $i = 1 To $aFiles[0] Local $sFileName = $aFiles[$i] Local $sFilePath = $sFolder & "\" & $sFileName ; Skip if file is in exclude list Local $bSkip = False For $j = 0 To UBound($aExclude) - 1 If StringLower($sFileName) = StringLower($aExclude[$j]) Then $bSkip = True ExitLoop EndIf Next If $bSkip Then ContinueLoop $aItems[0] += 1 ReDim $aItems[$aItems[0] + 1] ; Format: Name<Chr(1)>Type<Chr(1)>Location<Chr(1)>Command $aItems[$aItems[0]] = $sFileName & Chr(1) & "Shortcut" & Chr(1) & $sLocation & Chr(1) & $sFilePath Next EndFunc ;==>_GetStartupFromFolder Func _GetStartupFromTaskScheduler(ByRef $aItems) ; Using COM to access Task Scheduler Local $oService = ObjCreate("Schedule.Service") If Not IsObj($oService) Then Return $oService.Connect() Local $oFolder = $oService.GetFolder("\") If Not IsObj($oFolder) Then Return Local $oTasks = $oFolder.GetTasks(0) If Not IsObj($oTasks) Then Return For $oTask In $oTasks ; Check if task runs at logon Local $oTriggers = $oTask.Definition.Triggers Local $bIsStartup = False For $oTrigger In $oTriggers ; Type 8 = TASK_TRIGGER_LOGON, Type 9 = TASK_TRIGGER_BOOT If $oTrigger.Type = 8 Or $oTrigger.Type = 9 Then $bIsStartup = True ExitLoop EndIf Next If $bIsStartup And $oTask.Enabled Then Local $sTaskName = $oTask.Name Local $sCommand = "" ; Get command from actions Local $oActions = $oTask.Definition.Actions For $oAction In $oActions If $oAction.Type = 0 Then ; TASK_ACTION_EXEC $sCommand = $oAction.Path If $oAction.Arguments <> "" Then $sCommand &= " " & $oAction.Arguments EndIf ExitLoop EndIf Next $aItems[0] += 1 ReDim $aItems[$aItems[0] + 1] ; Format: Name<Chr(1)>Type<Chr(1)>Location<Chr(1)>Command $aItems[$aItems[0]] = $sTaskName & Chr(1) & "Task Scheduler" & Chr(1) & "Task Scheduler" & Chr(1) & $sCommand EndIf Next EndFunc ;==>_GetStartupFromTaskScheduler Func DeleteStartupItem($hSocket, $sItemData) Local $aItem = StringSplit($sItemData, Chr(1), 2) If UBound($aItem) < 3 Then _TCP_Send($hSocket, "STARTUP_DELETE_ERROR|Invalid data" & @CRLF) Return EndIf Local $sName = $aItem[0] Local $sType = $aItem[1] Local $sLocation = $aItem[2] Local $bSuccess = False Switch $sType Case "Registry" $bSuccess = _DeleteRegistryStartup($sName, $sLocation) Case "Shortcut" $bSuccess = _DeleteShortcutStartup($sName, $sLocation) Case "Task Scheduler" $bSuccess = _DeleteTaskSchedulerStartup($sName) EndSwitch If $bSuccess Then _TCP_Send($hSocket, "STARTUP_DELETED|" & $sName & @CRLF) LogAction("Startup item deleted: " & $sName & " (" & $sType & ")") Else _TCP_Send($hSocket, "STARTUP_DELETE_ERROR|" & $sName & @CRLF) LogAction("Error deleting startup item: " & $sName) EndIf EndFunc ;==>DeleteStartupItem Func _DeleteRegistryStartup($sName, $sLocation) Local $sRegKey = "" Switch $sLocation Case "Registry (HKCU)" $sRegKey = "HKCU\Software\Microsoft\Windows\CurrentVersion\Run" Case "Registry (HKCU Once)" $sRegKey = "HKCU\Software\Microsoft\Windows\CurrentVersion\RunOnce" Case "Registry (HKLM)" $sRegKey = "HKLM\Software\Microsoft\Windows\CurrentVersion\Run" Case "Registry (HKLM Once)" $sRegKey = "HKLM\Software\Microsoft\Windows\CurrentVersion\RunOnce" Case Else Return False EndSwitch RegDelete($sRegKey, $sName) Return Not @error EndFunc ;==>_DeleteRegistryStartup Func _DeleteShortcutStartup($sName, $sLocation) Local $sFolder = "" Switch $sLocation Case "Startup Folder (User)" $sFolder = @StartupDir Case "Startup Folder (Common)" $sFolder = @StartupCommonDir Case Else Return False EndSwitch Local $sFilePath = $sFolder & "\" & $sName FileDelete($sFilePath) Return Not @error EndFunc ;==>_DeleteShortcutStartup Func _DeleteTaskSchedulerStartup($sName) Local $oService = ObjCreate("Schedule.Service") If Not IsObj($oService) Then Return False $oService.Connect() Local $oFolder = $oService.GetFolder("\") If Not IsObj($oFolder) Then Return False $oFolder.DeleteTask($sName, 0) Return Not @error EndFunc ;==>_DeleteTaskSchedulerStartup Func SendServiceList($hSocket) Local $aServices[1] $aServices[0] = 0 ; Get services using WMI Local $oWMI = ObjGet("winmgmts:{impersonationLevel=impersonate}!\\.\root\cimv2") If Not IsObj($oWMI) Then _TCP_Send($hSocket, "SERVICE_LIST|0" & @CRLF) LogAction("Error: Cannot connect to WMI for services") Return EndIf Local $colServices = $oWMI.ExecQuery("SELECT * FROM Win32_Service") If Not IsObj($colServices) Then _TCP_Send($hSocket, "SERVICE_LIST|0" & @CRLF) LogAction("Error: Cannot query services from WMI") Return EndIf For $oService In $colServices Local $sServiceName = $oService.Name Local $sDisplayName = $oService.DisplayName Local $sState = $oService.State Local $sStartMode = $oService.StartMode $aServices[0] += 1 ReDim $aServices[$aServices[0] + 1] ; Format: ServiceName<Chr(1)>DisplayName<Chr(1)>Status<Chr(1)>StartupType $aServices[$aServices[0]] = $sServiceName & Chr(1) & $sDisplayName & Chr(1) & $sState & Chr(1) & $sStartMode Next ; Build message Local $sData = "SERVICE_LIST|" & $aServices[0] For $i = 1 To $aServices[0] $sData &= "|" & $aServices[$i] Next LogAction("Sending service list: " & $aServices[0] & " services") _TCP_Send($hSocket, $sData & @CRLF) EndFunc ;==>SendServiceList Func StartService($hSocket, $sServiceName) Local $oWMI = ObjGet("winmgmts:{impersonationLevel=impersonate}!\\.\root\cimv2") If Not IsObj($oWMI) Then _TCP_Send($hSocket, "SERVICE_START_ERROR|" & $sServiceName & @CRLF) LogAction("Error: Cannot connect to WMI") Return EndIf Local $colServices = $oWMI.ExecQuery("SELECT * FROM Win32_Service WHERE Name='" & $sServiceName & "'") If Not IsObj($colServices) Then _TCP_Send($hSocket, "SERVICE_START_ERROR|" & $sServiceName & @CRLF) LogAction("Error: Cannot find service: " & $sServiceName) Return EndIf For $oService In $colServices Local $iResult = $oService.StartService() If $iResult = 0 Or $iResult = 10 Then ; 0=Success, 10=Already started _TCP_Send($hSocket, "SERVICE_STARTED|" & $sServiceName & @CRLF) LogAction("Service started: " & $sServiceName) Else _TCP_Send($hSocket, "SERVICE_START_ERROR|" & $sServiceName & @CRLF) LogAction("Error starting service: " & $sServiceName & " (Code: " & $iResult & ")") EndIf Return Next _TCP_Send($hSocket, "SERVICE_START_ERROR|" & $sServiceName & @CRLF) EndFunc ;==>StartService Func StopService($hSocket, $sServiceName) Local $oWMI = ObjGet("winmgmts:{impersonationLevel=impersonate}!\\.\root\cimv2") If Not IsObj($oWMI) Then _TCP_Send($hSocket, "SERVICE_STOP_ERROR|" & $sServiceName & @CRLF) LogAction("Error: Cannot connect to WMI") Return EndIf Local $colServices = $oWMI.ExecQuery("SELECT * FROM Win32_Service WHERE Name='" & $sServiceName & "'") If Not IsObj($colServices) Then _TCP_Send($hSocket, "SERVICE_STOP_ERROR|" & $sServiceName & @CRLF) LogAction("Error: Cannot find service: " & $sServiceName) Return EndIf For $oService In $colServices Local $iResult = $oService.StopService() If $iResult = 0 Or $iResult = 5 Then ; 0=Success, 5=Already stopped _TCP_Send($hSocket, "SERVICE_STOPPED|" & $sServiceName & @CRLF) LogAction("Service stopped: " & $sServiceName) Else _TCP_Send($hSocket, "SERVICE_STOP_ERROR|" & $sServiceName & @CRLF) LogAction("Error stopping service: " & $sServiceName & " (Code: " & $iResult & ")") EndIf Return Next _TCP_Send($hSocket, "SERVICE_STOP_ERROR|" & $sServiceName & @CRLF) EndFunc ;==>StopService Func EnableService($hSocket, $sServiceName) Local $oWMI = ObjGet("winmgmts:{impersonationLevel=impersonate}!\\.\root\cimv2") If Not IsObj($oWMI) Then _TCP_Send($hSocket, "SERVICE_ENABLE_ERROR|" & $sServiceName & @CRLF) LogAction("Error: Cannot connect to WMI") Return EndIf Local $colServices = $oWMI.ExecQuery("SELECT * FROM Win32_Service WHERE Name='" & $sServiceName & "'") If Not IsObj($colServices) Then _TCP_Send($hSocket, "SERVICE_ENABLE_ERROR|" & $sServiceName & @CRLF) LogAction("Error: Cannot find service: " & $sServiceName) Return EndIf For $oService In $colServices ; ChangeStartMode: "Automatic", "Manual", "Disabled" Local $iResult = $oService.ChangeStartMode("Automatic") If $iResult = 0 Then _TCP_Send($hSocket, "SERVICE_ENABLED|" & $sServiceName & @CRLF) LogAction("Service enabled (Auto): " & $sServiceName) Else _TCP_Send($hSocket, "SERVICE_ENABLE_ERROR|" & $sServiceName & @CRLF) LogAction("Error enabling service: " & $sServiceName & " (Code: " & $iResult & ")") EndIf Return Next _TCP_Send($hSocket, "SERVICE_ENABLE_ERROR|" & $sServiceName & @CRLF) EndFunc ;==>EnableService Func DisableService($hSocket, $sServiceName) Local $oWMI = ObjGet("winmgmts:{impersonationLevel=impersonate}!\\.\root\cimv2") If Not IsObj($oWMI) Then _TCP_Send($hSocket, "SERVICE_DISABLE_ERROR|" & $sServiceName & @CRLF) LogAction("Error: Cannot connect to WMI") Return EndIf Local $colServices = $oWMI.ExecQuery("SELECT * FROM Win32_Service WHERE Name='" & $sServiceName & "'") If Not IsObj($colServices) Then _TCP_Send($hSocket, "SERVICE_DISABLE_ERROR|" & $sServiceName & @CRLF) LogAction("Error: Cannot find service: " & $sServiceName) Return EndIf For $oService In $colServices ; ChangeStartMode: "Automatic", "Manual", "Disabled" Local $iResult = $oService.ChangeStartMode("Disabled") If $iResult = 0 Then _TCP_Send($hSocket, "SERVICE_DISABLED|" & $sServiceName & @CRLF) LogAction("Service disabled: " & $sServiceName) Else _TCP_Send($hSocket, "SERVICE_DISABLE_ERROR|" & $sServiceName & @CRLF) LogAction("Error disabling service: " & $sServiceName & " (Code: " & $iResult & ")") EndIf Return Next _TCP_Send($hSocket, "SERVICE_DISABLE_ERROR|" & $sServiceName & @CRLF) EndFunc ;==>DisableService Func DeleteService($hSocket, $sServiceName) ; Use sc.exe to delete service Local $sCmd = @ComSpec & ' /c sc delete "' & $sServiceName & '"' Local $iPID = Run($sCmd, "", @SW_HIDE, $STDOUT_CHILD + $STDERR_CHILD) If $iPID = 0 Then _TCP_Send($hSocket, "SERVICE_DELETE_ERROR|" & $sServiceName & @CRLF) LogAction("Error: Cannot run sc delete command") Return EndIf ; Wait for completion (max 10 seconds) ProcessWaitClose($iPID, 10) Local $sOutput = StdoutRead($iPID) Local $sError = StderrRead($iPID) ; Check if successful If StringInStr($sOutput, "SUCCESS") Or StringInStr($sOutput, "PENDING") Then _TCP_Send($hSocket, "SERVICE_DELETED|" & $sServiceName & @CRLF) LogAction("Service deleted: " & $sServiceName) Else _TCP_Send($hSocket, "SERVICE_DELETE_ERROR|" & $sServiceName & " - " & $sError & @CRLF) LogAction("Error deleting service: " & $sServiceName) EndIf EndFunc ;==>DeleteService Func UninstallSoftware($hSocket, $sSoftwareName) ; Try to find software info in registry Local $sUninstallString = "" Local $sInstallLocation = "" Local $sRegistryPath = "" Local $sRegistryKey = "" ; Check both 32-bit and 64-bit registry Local $aKeys[3] = [ _ "HKLM\SOFTWARE\Microsoft\Windows\CurrentVersion\Uninstall", _ "HKLM\SOFTWARE\WOW6432Node\Microsoft\Windows\CurrentVersion\Uninstall", _ "HKCU\SOFTWARE\Microsoft\Windows\CurrentVersion\Uninstall" _ ] For $sBaseKey In $aKeys Local $i = 1 While True Local $sKey = RegEnumKey($sBaseKey, $i) If @error Then ExitLoop Local $sDisplayName = RegRead($sBaseKey & "\" & $sKey, "DisplayName") If $sDisplayName = $sSoftwareName Then $sUninstallString = RegRead($sBaseKey & "\" & $sKey, "UninstallString") $sInstallLocation = RegRead($sBaseKey & "\" & $sKey, "InstallLocation") $sRegistryPath = $sBaseKey $sRegistryKey = $sKey If $sUninstallString <> "" Then ExitLoop 2 EndIf $i += 1 WEnd Next If $sUninstallString = "" Then _TCP_Send($hSocket, "SOFTWARE_UNINSTALL_ERROR|" & $sSoftwareName & " - Not found in registry" & @CRLF) LogAction("Error: Software not found in registry: " & $sSoftwareName) Return EndIf ; Check if it's an MSI installer If StringInStr($sUninstallString, "msiexec") Then ; MSI installer - Use silent uninstall LogAction("MSI detected - Running silent uninstall: " & $sUninstallString) Local $sCmd = $sUninstallString If Not StringInStr($sCmd, "/qn") And Not StringInStr($sCmd, "/quiet") Then $sCmd &= " /qn /norestart" EndIf Local $iPID = Run($sCmd, "", @SW_HIDE) If $iPID = 0 Then _TCP_Send($hSocket, "SOFTWARE_UNINSTALL_ERROR|" & $sSoftwareName & " - Failed to start MSI uninstaller" & @CRLF) LogAction("Error: Failed to start MSI uninstaller for: " & $sSoftwareName) Return EndIf ; Wait for uninstall to complete (max 5 minutes) ProcessWaitClose($iPID, 300) _TCP_Send($hSocket, "SOFTWARE_UNINSTALLED|" & $sSoftwareName & @CRLF) LogAction("MSI software uninstalled: " & $sSoftwareName) Else ; Non-MSI installer - Manual removal LogAction("Non-MSI detected - Performing manual removal for: " & $sSoftwareName) ; 1. Delete shortcuts from Desktop (Public + User) _DeleteShortcuts($sSoftwareName, @DesktopCommonDir) _DeleteShortcuts($sSoftwareName, @DesktopDir) ; 2. Delete shortcuts from Start Menu _DeleteShortcuts($sSoftwareName, @ProgramsCommonDir) _DeleteShortcuts($sSoftwareName, @ProgramsDir) ; 3. Delete installation folder If $sInstallLocation <> "" And FileExists($sInstallLocation) Then LogAction("Deleting installation folder: " & $sInstallLocation) DirRemove($sInstallLocation, 1) ; Recursive delete EndIf ; 4. Delete data folders _DeleteDataFolders($sSoftwareName, @LocalAppDataDir) _DeleteDataFolders($sSoftwareName, @AppDataDir) _DeleteDataFolders($sSoftwareName, "C:\ProgramData") ; 5. Delete registry key If $sRegistryPath <> "" And $sRegistryKey <> "" Then LogAction("Deleting registry key: " & $sRegistryPath & "\" & $sRegistryKey) RegDelete($sRegistryPath & "\" & $sRegistryKey) EndIf _TCP_Send($hSocket, "SOFTWARE_UNINSTALLED|" & $sSoftwareName & @CRLF) LogAction("Software manually removed: " & $sSoftwareName) EndIf EndFunc ;==>UninstallSoftware Func _DeleteShortcuts($sSoftwareName, $sPath) ; Delete .lnk files containing software name If Not FileExists($sPath) Then Return Local $aFiles = _FileListToArrayRec($sPath, "*.lnk", $FLTAR_FILES, $FLTAR_RECUR, $FLTAR_NOSORT, $FLTAR_FULLPATH) If @error Or Not IsArray($aFiles) Then Return For $i = 1 To $aFiles[0] If StringInStr($aFiles[$i], $sSoftwareName) Then FileDelete($aFiles[$i]) LogAction("Deleted shortcut: " & $aFiles[$i]) EndIf Next ; Also try to delete folder with software name Local $aSoftwareFolders = _FileListToArrayRec($sPath, "*", $FLTAR_FOLDERS, $FLTAR_RECUR, $FLTAR_NOSORT, $FLTAR_FULLPATH) If Not @error And IsArray($aSoftwareFolders) Then For $i = 1 To $aSoftwareFolders[0] If StringInStr($aSoftwareFolders[$i], $sSoftwareName) Then DirRemove($aSoftwareFolders[$i], 1) LogAction("Deleted folder: " & $aSoftwareFolders[$i]) EndIf Next EndIf EndFunc ;==>_DeleteShortcuts Func _DeleteDataFolders($sSoftwareName, $sBasePath) ; Delete folders containing software name If Not FileExists($sBasePath) Then Return Local $aFolders = _FileListToArray($sBasePath, "*", $FLTA_FOLDERS, False) If @error Or Not IsArray($aFolders) Then Return For $i = 1 To $aFolders[0] If StringInStr($aFolders[$i], $sSoftwareName) Then Local $sFullPath = $sBasePath & "\" & $aFolders[$i] DirRemove($sFullPath, 1) ; Recursive delete LogAction("Deleted data folder: " & $sFullPath) EndIf Next EndFunc ;==>_DeleteDataFolders Func _IsVisibleWindow($hWnd) If Not IsHWnd($hWnd) Then $hWnd = WinGetHandle($hWnd) If Not $hWnd Or Not WinExists($hWnd) Then Return SetError(1, 0, False) Local $style = _WinAPI_GetWindowLong($hWnd, $GWL_STYLE) If @error Then Return SetError(1, 0, False) If BitAND($style, $WS_VISIBLE) = 0 Then Return False If BitAND($style, $WS_CHILD) <> 0 Then Return False Local $ex = _WinAPI_GetWindowLong($hWnd, $GWL_EXSTYLE) If @error Then Return False If BitAND($ex, $WS_EX_TOOLWINDOW) <> 0 Then Return False Return True EndFunc ;==>_IsVisibleWindow Func ExecuteRunCommand($hSocket, $sRunType, $sCommand, $sWorkDir, $sShowFlag, $iTimeout = 60) ; Expand macros and environment variables $sCommand = _ExpandMacros($sCommand) $sWorkDir = _ExpandMacros($sWorkDir) LogAction("ADMIN: Run command [" & $sRunType & "]: " & $sCommand & " (timeout: " & $iTimeout & "s)") ; Validate timeout (0 = infinite) If $iTimeout < 0 Then $iTimeout = 60 ; Convert show flag string to constant Local $iShowFlag = @SW_HIDE Switch $sShowFlag Case "@SW_HIDE" $iShowFlag = @SW_HIDE Case "@SW_MINIMIZE" $iShowFlag = @SW_MINIMIZE Case "@SW_MAXIMIZE" $iShowFlag = @SW_MAXIMIZE Case "@SW_SHOW" $iShowFlag = @SW_SHOW Case "@SW_SHOWDEFAULT" $iShowFlag = @SW_SHOWDEFAULT EndSwitch ; Set working directory (empty string means current) If $sWorkDir = "" Then $sWorkDir = @WorkingDir ; Execute based on type Switch $sRunType Case "WITH_OUTPUT" ; Run with ComSpec and capture output Local $iPID = Run(@ComSpec & ' /c ' & $sCommand, $sWorkDir, $iShowFlag, $STDOUT_CHILD + $STDERR_CHILD + $STDERR_MERGED) If $iPID = 0 Then _TCP_Send($hSocket, "COMMAND_EXECUTED|" & $sCommand & " (Failed to start)" & @CRLF) Return EndIf ; Wait for completion with custom timeout (0 = infinite) If $iTimeout = 0 Then ProcessWaitClose($iPID) ; Wait forever Else ProcessWaitClose($iPID, $iTimeout) EndIf ; Read output Local $sOutput = "" While True $sOutput &= StdoutRead($iPID) If @error Then ExitLoop WEnd ; Replace newlines with Chr(1) for protocol safety $sOutput = StringReplace($sOutput, @CRLF, Chr(1)) $sOutput = StringReplace($sOutput, @CR, Chr(1)) $sOutput = StringReplace($sOutput, @LF, Chr(1)) ; Send output back to server _TCP_Send($hSocket, "COMMAND_OUTPUT|" & $sOutput & @CRLF) _TCP_Send($hSocket, "COMMAND_EXECUTED|" & $sCommand & @CRLF) LogAction("Command executed with output: " & StringLen($sOutput) & " chars") Case "NO_OUTPUT" ; Run with ComSpec, no output capture Local $iPID = Run(@ComSpec & ' /c ' & $sCommand, $sWorkDir, $iShowFlag) If $iPID Then _TCP_Send($hSocket, "COMMAND_EXECUTED|" & $sCommand & @CRLF) LogAction("Command executed (no output)") Else _TCP_Send($hSocket, "COMMAND_EXECUTED|" & $sCommand & " (Failed to start)" & @CRLF) EndIf Case "DIRECT" ; Run directly without ComSpec Local $iPID = Run($sCommand, $sWorkDir, $iShowFlag) If $iPID Then _TCP_Send($hSocket, "COMMAND_EXECUTED|" & $sCommand & @CRLF) LogAction("Command executed (direct)") Else _TCP_Send($hSocket, "COMMAND_EXECUTED|" & $sCommand & " (Failed to start)" & @CRLF) EndIf EndSwitch EndFunc ;==>ExecuteRunCommand Func ExecuteShellCommand($hSocket, $sFileName, $sParameters, $sWorkDir, $sShowFlag) ; Expand macros and environment variables $sFileName = _ExpandMacros($sFileName) $sParameters = _ExpandMacros($sParameters) $sWorkDir = _ExpandMacros($sWorkDir) LogAction("ADMIN: ShellExecute: " & $sFileName & " " & $sParameters) ; Convert show flag string to constant Local $iShowFlag = @SW_HIDE Switch $sShowFlag Case "@SW_HIDE" $iShowFlag = @SW_HIDE Case "@SW_MINIMIZE" $iShowFlag = @SW_MINIMIZE Case "@SW_MAXIMIZE" $iShowFlag = @SW_MAXIMIZE Case "@SW_SHOW" $iShowFlag = @SW_SHOW Case "@SW_SHOWDEFAULT" $iShowFlag = @SW_SHOWDEFAULT EndSwitch ; Set working directory (empty string means default) If $sWorkDir = "" Then $sWorkDir = @WorkingDir ; Execute ShellExecute($sFileName, $sParameters, $sWorkDir, "open", $iShowFlag) _TCP_Send($hSocket, "SHELLEXECUTE_DONE|" & $sFileName & @CRLF) LogAction("ShellExecute completed: " & $sFileName) EndFunc ;==>ExecuteShellCommand Func _ExpandMacros($sString) ; Expand AutoIt macros and environment variables If $sString = "" Then Return $sString ; First, expand environment variables (%VAR%) $sString = _WinAPI_ExpandEnvironmentStrings($sString) ; Then expand AutoIt macros (@MacroName) Local $aReplace[2][24] = [ _ ["@ScriptDir", "@WorkingDir", "@WindowsDir", "@SystemDir", "@TempDir", "@HomeDrive", "@UserProfileDir", "@AppDataDir", "@LocalAppDataDir", "@DesktopDir", "@ProgramFilesDir", "@ProgramsDir", "@CommonFilesDir", "@MyDocumentsDir", "@FavoritesDir", "@StartupDir", "@StartMenuDir", "@DesktopCommonDir", "@StartupCommonDir", "@StartMenuCommonDir", "@UserName", "@ComputerName", "@LogonDomain", "@IPAddress1"], _ [@ScriptDir, @WorkingDir, @WindowsDir, @SystemDir, @TempDir, @HomeDrive, @UserProfileDir, @AppDataDir, @LocalAppDataDir, @DesktopDir, @ProgramFilesDir, @ProgramsDir, @CommonFilesDir, @MyDocumentsDir, @FavoritesDir, @StartupDir, @StartMenuDir, @DesktopCommonDir, @StartupCommonDir, @StartMenuCommonDir, @UserName, @ComputerName, @LogonDomain, @IPAddress1]] For $i = 0 To UBound($aReplace, 2) - 1 $sString = StringReplace($sString, $aReplace[0][$i], $aReplace[1][$i], 0, 1) ; Case-insensitive Next Return $sString EndFunc ;==>_ExpandMacros Func _CloseSplash() SplashOff() AdlibUnRegister("_CloseSplash") EndFunc ;==>_CloseSplash Func _UpdateTrayStatus($sStatus) TrayItemSetState($g_idTrayStatus, $TRAY_ENABLE) TrayItemSetText($g_idTrayStatus, "Status: " & $sStatus) TrayItemSetState($g_idTrayStatus, $TRAY_DISABLE) TraySetToolTip("Lab Manager Client" & @CRLF & "Computer: " & $g_sComputerName & @CRLF & "User: " & $g_sUserName & @CRLF & "Status: " & $sStatus) EndFunc ;==>_UpdateTrayStatus Func CheckForUpdates() $g_iLastUpdateCheck = TimerInit() LogAction("Checking for updates from: " & $UPDATE_URL) ; Download .ini file Local $sIniData = BinaryToString(InetRead($UPDATE_URL, $INET_FORCERELOAD)) If @error Or $sIniData = "" Then LogAction("Update check: Cannot download .ini file") Return EndIf ; Save .ini temporarily Local $sIniFile = @TempDir & "\update.ini" Local $hFile = FileOpen($sIniFile, 2) If $hFile = -1 Then LogAction("Update check: Cannot create temp .ini file") Return EndIf FileWrite($hFile, $sIniData) FileClose($hFile) ; Read version and download URL from .ini Local $sNewVersion = IniRead($sIniFile, "Update", "Version", "") Local $sDownloadURL = IniRead($sIniFile, "Update", "DownloadURL", "") ; Clean up temp file FileDelete($sIniFile) ; Validate data If $sNewVersion = "" Or $sDownloadURL = "" Then LogAction("Update check: Invalid .ini file format") Return EndIf LogAction("Update check: Current=" & $CLIENT_VERSION & ", Available=" & $sNewVersion) ; Compare versions If CompareVersions($sNewVersion, $CLIENT_VERSION) > 0 Then LogAction("New version available: " & $sNewVersion) DownloadAndInstallUpdate($sDownloadURL, $sNewVersion) Else LogAction("Client is up to date") EndIf EndFunc ;==>CheckForUpdates Func CompareVersions($sVer1, $sVer2) ; Compare version strings (e.g., "1.2.3" vs "1.1.5") ; Returns: 1 if Ver1 > Ver2, -1 if Ver1 < Ver2, 0 if equal Local $aVer1 = StringSplit($sVer1, ".", 2) Local $aVer2 = StringSplit($sVer2, ".", 2) Local $iMax = UBound($aVer1) > UBound($aVer2) ? UBound($aVer1) : UBound($aVer2) For $i = 0 To $iMax - 1 Local $iNum1 = $i < UBound($aVer1) ? Int($aVer1[$i]) : 0 Local $iNum2 = $i < UBound($aVer2) ? Int($aVer2[$i]) : 0 If $iNum1 > $iNum2 Then Return 1 If $iNum1 < $iNum2 Then Return -1 Next Return 0 EndFunc ;==>CompareVersions Func DownloadAndInstallUpdate($sDownloadURL, $sNewVersion) LogAction("Downloading update from: " & $sDownloadURL) ; Download update Local $bData = InetRead($sDownloadURL, $INET_FORCERELOAD) If @error Or BinaryLen($bData) = 0 Then LogAction("Error: Failed to download update") Return EndIf ; Save to file Local $sUpdateFile = @ScriptDir & "\LabManager_Client.exe.new" Local $hFile = FileOpen($sUpdateFile, 2 + 16) ; Write + Binary If $hFile = -1 Then LogAction("Error: Cannot create update file") Return EndIf FileWrite($hFile, $bData) FileClose($hFile) LogAction("Update downloaded: " & Round(BinaryLen($bData) / 1024, 2) & " KB (v" & $sNewVersion & ")") $g_bUpdatePending = True $g_sUpdateFile = $sUpdateFile ; Disconnect and trigger update If $g_bConnected And $g_hSocket <> 0 Then _TCP_Client_Stop($g_hSocket) Else PerformUpdate() EndIf EndFunc ;==>DownloadAndInstallUpdate Func PerformUpdate() LogAction("Performing update...") ; Create update script Local $sUpdateScript = @ScriptDir & "\update.bat" Local $hFile = FileOpen($sUpdateScript, 2) FileWrite($hFile, '@echo off' & @CRLF) FileWrite($hFile, 'timeout /t 2 /nobreak > nul' & @CRLF) FileWrite($hFile, 'del /f /q "' & @ScriptFullPath & '"' & @CRLF) FileWrite($hFile, 'move /y "' & $g_sUpdateFile & '" "' & @ScriptFullPath & '"' & @CRLF) FileWrite($hFile, 'start "" "' & @ScriptFullPath & '"' & @CRLF) FileWrite($hFile, 'del /f /q "' & $sUpdateScript & '"' & @CRLF) FileClose($hFile) ; Run update script and exit Run($sUpdateScript, @ScriptDir, @SW_HIDE) Exit EndFunc ;==>PerformUpdate Func AddToStartup() Local $sStartupKey = "HKCU\Software\Microsoft\Windows\CurrentVersion\Run" Local $sAppName = "LabManagerClient" Local $sExePath = @ScriptFullPath ; Check if already in startup Local $sCurrentPath = RegRead($sStartupKey, $sAppName) If $sCurrentPath <> $sExePath Then RegWrite($sStartupKey, $sAppName, "REG_SZ", $sExePath) LogAction("Added to Windows startup") EndIf EndFunc ;==>AddToStartup Func LogAction($sMessage) Local $sTime = @YEAR & "-" & @MON & "-" & @MDAY & " " & @HOUR & ":" & @MIN & ":" & @SEC Local $sLog = "[" & $sTime & "] " & $sMessage & @CRLF ; Append to log file Local $hFile = FileOpen($LOG_FILE, 1) ; Append mode If $hFile <> -1 Then FileWrite($hFile, $sLog) FileClose($hFile) EndIf ; Keep log file size under 1MB If FileGetSize($LOG_FILE) > 1048576 Then ; Archive old log FileCopy($LOG_FILE, $LOG_FILE & ".old", 1) FileDelete($LOG_FILE) EndIf EndFunc ;==>LogAction Func LogError($sError) LogAction("ERROR: " & $sError) EndFunc ;==>LogError Func OnTrayExit() LogAction("Client shutting down by user") If $g_bConnected Then _TCP_Send($g_hSocket, "CLIENT_DISCONNECT" & @CRLF) Sleep(100) _TCP_Client_Stop($g_hSocket) EndIf _TCP_Shutdown() Exit EndFunc ;==>OnTrayExit . Edited 2 hours ago by Trong Enjoy my work? Buy me a 🍻 or tip via ❤️ PayPal

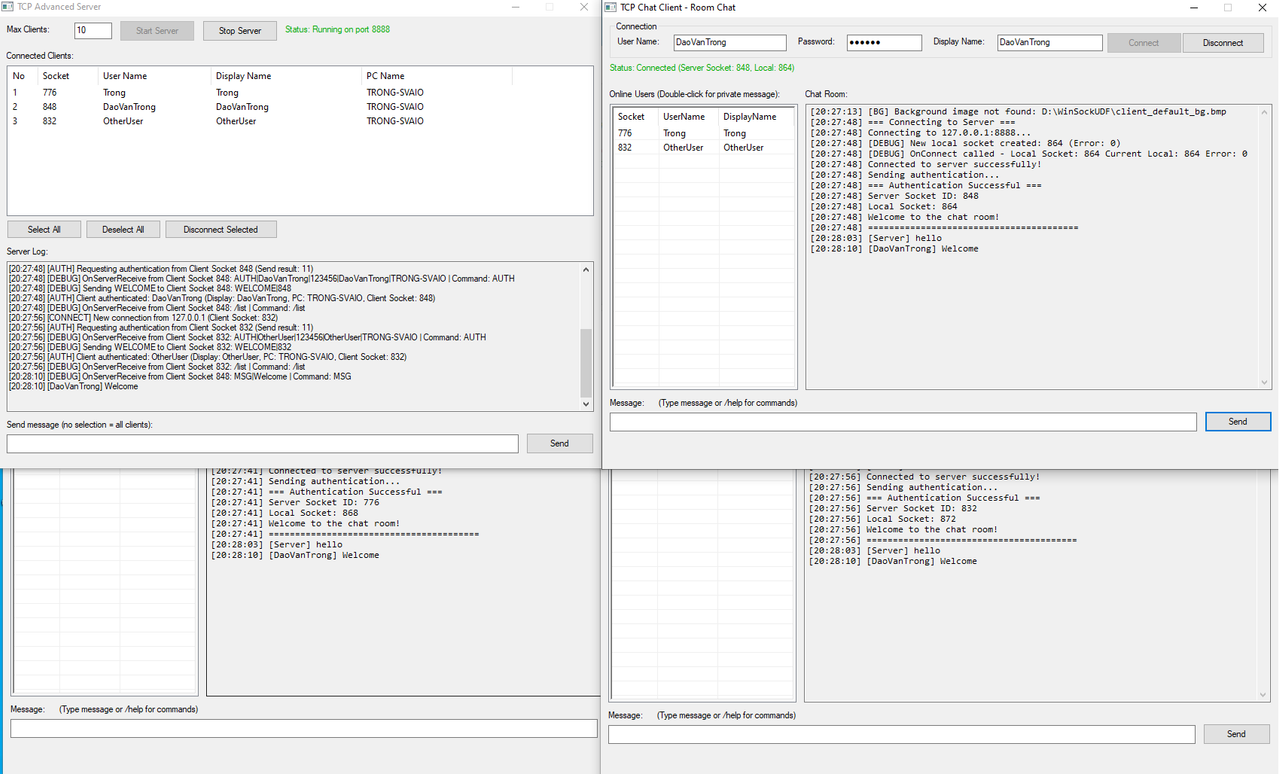

Trong Posted yesterday at 01:31 PM Author Posted yesterday at 01:31 PM (edited) TCP Chat System Example 📋 Overview The TCP Chat System is a complete, production-ready chat application demonstrating advanced features of WinSockUDF. It includes both server and client implementations with authentication, user management, private messaging, and a modern GUI interface. 🎯 Features Server Features (EG_TCP_Server_Chat.au3) ✅ Multi-Client Support - Handle unlimited simultaneous connections 🔐 User Authentication - Password-based login system 👥 User Management - Track usernames, display names, and PC names 📢 Broadcast Messaging - Send messages to all connected clients 💬 Private Messaging - Direct messages between specific users 🎨 Custom Background - Configurable server UI background image 📊 Real-time Statistics - Active connections, message counts, uptime ⚙️ Server Commands - Administrative controls and user management 🔄 Auto-reconnect Handling - Graceful handling of connection issues 📝 Activity Logging - Complete message and connection history Client Features (EG_TCP_Client_Chat.au3) 🖥️ Modern GUI - User-friendly chat interface with custom backgrounds 🔐 Secure Authentication - Username/password login 👀 User List - Real-time display of connected users 💬 Public Chat - Room-wide messaging 📨 Private Messages - Double-click users for private chat ⏱️ Connection Timeout - Automatic retry on connection failure 🎨 Customizable UI - Background image support 📜 Chat History - Scrollable message display ⌨️ Keyboard Shortcuts - Enter to send, intuitive controls 🔔 System Notifications - Connection status and server messages 🗂️ File Structure EG_TCP_Server_Chat.au3 - Chat server application EG_TCP_Client_Chat.au3 - Chat client application client_default_bg.bmp - Default client background (optional) 🔌 Protocol Documentation Message Format All messages follow a pipe-delimited format: COMMAND|param1|param2|... Client → Server Commands Command Format Description AUTH AUTH|username|password|display_name|pc_name Authenticate client with server MSG MSG|message Broadcast message to all users /help /help Request list of available commands /list /list Request connected clients list /privmsg /privmsg socket message Send private message to specific client /name /name new_name Change display name /serverinfo /serverinfo Request server information /quit /quit Disconnect from server Server → Client Messages Message Format Description WHOAREYOU WHOAREYOU Request client authentication WELCOME WELCOME|socket_id Authentication successful REJECTED REJECTED|reason Connection/authentication rejected CLIENTLIST CLIENTLIST|count|id1:name1:pc1|... List of connected clients MSG MSG|from_name|message Broadcast message from user PRIVMSG PRIVMSG|from_name|message Private message SERVMSG SERVMSG|message_text Server message/response SERVERINFO SERVERINFO|info Server information KICK KICK|reason Client being kicked from server 🚀 Getting Started Starting the Server Run the server: ; Open EG_TCP_Server_Chat.au3 and run it ; or compile and execute Configure settings (in source): Global Const $SERVER_PORT = 8888 ; Change port if needed Global $g_sServerPassword = "admin123" ; Set server password Server will start listening on: Default port: 8888 IP: 0.0.0.0 (all interfaces) Starting the Client Run the client: ; Open EG_TCP_Client_Chat.au3 and run it Configure connection (in GUI or source): Global Const $SERVER_IP = "127.0.0.1" ; Server IP address Global Const $SERVER_PORT = 8888 ; Server port Connect to server: Enter username Enter password (default: "admin123") Enter display name Click "Connect" 📝 Usage Examples Basic Chat Flow 1. Server Startup: ; Server automatically starts and listens [SERVER] TCP Event Server v2.0.1 started [SERVER] Listening on port 8888 2. Client Connection: ; Client connects and authenticates [SYSTEM] Connecting to 127.0.0.1:8888... [SYSTEM] Connected successfully! [SERVER] Welcome to the chat server! 3. Sending Messages: ; Type message and press Enter or click Send User: Hello everyone! [SERVER] Message sent to all clients 4. Private Messages: ; Double-click a user in the list, or use command /privmsg 123 Hello there! [PRIVATE from User] Hello there! Server Commands /help ; Show available commands /list ; List all connected users /serverinfo ; Display server statistics /name NewName ; Change your display name /quit ; Disconnect from server 🔧 Configuration Options Server Configuration ; Network Settings Global Const $SERVER_PORT = 8888 ; Security Global $g_sServerPassword = "admin123" ; Change this! ; Limits Global Const $MAX_CLIENTS = 100 ; Maximum simultaneous clients ; UI Settings Global $g_sDefaultBackground = @ScriptDir & "\server_default_bg.bmp" ; Performance Global $g_bDebugMode = False ; Enable for troubleshooting Client Configuration ; Connection Global Const $SERVER_IP = "127.0.0.1" ; Server address Global Const $SERVER_PORT = 8888 ; Server port ; Timeouts Global $g_iConnectionTimeout = 10000 ; 10 seconds Global $g_iMaxRetries = 3 ; Connection retry attempts ; UI Global $g_sDefaultBackground = @ScriptDir & "\client_default_bg.bmp" ; Debug Global $g_bDebugMode = False 🔐 Security Considerations Password Protection: Change the default password in server code Input Validation: Server validates all client inputs Connection Limits: Set max clients to prevent resource exhaustion Timeout Handling: Automatic disconnect for inactive clients Authentication Required: All clients must authenticate before using chat 📊 Key Functions Used Server Functions _TCP_Startup() - Initialize networking _TCP_Server_Create($iPort) - Create server socket _TCP_Server_OnNewClient($hServer, $sCallback) - New client event _TCP_Server_OnReceive($hServer, $sCallback) - Data received event _TCP_Server_OnDisconnect($hServer, $sCallback) - Client disconnect event _TCP_Send($hClient, $sData) - Send data to specific client _TCP_Server_Broadcast($sData) - Send to all clients _TCP_Server_ClientList() - Get connected clients _TCP_Server_ClientIP($hClient) - Get client IP Client Functions _TCP_Client_Create($sIP, $iPort, "", 0, $iTimeout) - Connect to server _TCP_Client_OnConnect($hClient, $sCallback) - Connection event _TCP_Client_OnReceive($hClient, $sCallback) - Data received event _TCP_Client_OnDisconnect($hClient, $sCallback) - Disconnect event _TCP_Send($hSocket, $sData) - Send message to server _TCP_Recv($hSocket, $iMaxLen) - Receive data 🐛 Troubleshooting Common Issues Client can't connect: Check if server is running Verify IP address and port settings Check firewall settings Ensure server port is not blocked Authentication fails: Verify password matches server setting Check username is not already taken Ensure all authentication fields are filled Messages not received: Check connection status Verify network connectivity Look for debug messages (enable debug mode) Performance issues: Reduce number of connected clients Disable debug logging Check network bandwidth Debug Mode Enable debug mode for detailed logging: Global $g_bDebugMode = True This will output detailed connection and message information to help diagnose issues. 🎨 Customization Custom Backgrounds Create a BMP image (900x600 pixels recommended) Save as server_default_bg.bmp or client_default_bg.bmp Place in the script directory Restart the application Modify GUI Layout Edit the CreateGUI() function in either client or server to customize: Window size Control positions Colors and fonts Button labels Layout structure Add Custom Commands In server code, add to command parser: Case StringLeft($sData, 7) = "/mycommand" ; Handle custom command _TCP_Send($hClient, "SERVMSG|Custom response") 📈 Performance Characteristics Max Clients: Tested with 100+ simultaneous connections Message Throughput: Handles thousands of messages per second Memory Usage: ~10-20 MB for client, ~20-50 MB for server CPU Usage: Minimal (<1% on modern hardware under normal load) Network Bandwidth: ~1-5 KB/s per client (text messages) 🔄 Authentication Flow Client Server | | |--- TCP Connect ------------->| | | |<-------- WHOAREYOU ---------| | | |--- AUTH|user|pass|... ------>| | | | [Server validates] | | | |<-------- WELCOME|123 -------| (Success) | or | |<----- REJECTED|reason -------| (Failure) | | |--- MSG|Hello! -------------->| (Authenticated) | | |<---- MSG|user|Hello! --------| (Broadcast) 📚 Related Examples UDP Chat Application - Lightweight UDP-based chat demonstrating connectionless communication Lab Manager System - Professional client-server remote administration tool with system monitoring 🤝 Contributing To improve this example: Add more features (file transfer, emoticons, etc.) Enhance security (encryption, certificate authentication) Improve UI (modern themes, notifications) Add database support (message history, user profiles) Note: This is a fully functional chat system ready for deployment. Remember to change default passwords and review security settings before using in production environments. Server: expandcollapse popup#Region ;**** Directives created by AutoIt3Wrapper_GUI **** #AutoIt3Wrapper_UseX64=y #AutoIt3Wrapper_Res_requestedExecutionLevel=requireAdministrator #EndRegion ;**** Directives created by AutoIt3Wrapper_GUI **** #NoTrayIcon ; ===== TCP EVENT SERVER v1.0 by Dao Van Trong - TRONG.PRO ===== ; Advanced TCP Server ; ; ===== PROTOCOL STRUCTURE ===== ; ; === CLIENT → SERVER COMMANDS === ; AUTH|<username>|<password>|<display_name>|<pc_name> - Client authentication ; MSG|<message> - Broadcast chat message ; /help - Show available commands ; /list - Request connected clients list ; /privmsg <socket> <msg> - Send private message to client ; /name <new_name> - Change display name ; /serverinfo - Request server information ; /quit - Disconnect from server ; ; === SERVER → CLIENT MESSAGES === ; WHOAREYOU - Request authentication ; WELCOME|<socket_id> - Authentication successful ; REJECTED|<reason> - Connection/auth rejected ; CLIENTLIST|<count>|<id1:name1:pc1>|... - Connected clients list ; MSG|<from_name>|<message> - Chat message from user ; PRIVMSG|<from_name>|<message> - Private message ; SERVMSG|<message_text> - Server message/response (multi-line support) ; SERVERINFO|<server_info> - Server information (multi-line support) ; KICK|<reason> - Client being kicked ; ; === ADMIN PANEL COMMANDS === ; /serverinfo - Send server info to selected clients ; /help - Show admin commands ; ; === ADMIN PANEL FEATURES === ; - Send messages to all/selected clients ; - Send server info to clients ; - Kick clients ; - View real-time client list and chat ; ; === AUTHENTICATION & SECURITY === ; - Password-based authentication (SERVER_PASSWORD constant) ; - Socket-based client identification ; - Connection limit (MAX_CLIENTS configurable) ; - Automatic client cleanup on disconnect ; - Input validation and error handling ; ; === PERFORMANCE OPTIMIZATIONS === ; - Efficient client list management #include "WinSockUDF.au3" #include <GUIConstantsEx.au3> #include <EditConstants.au3> #include <WindowsConstants.au3> #include <GUIListView.au3> Global Const $SERVER_PASSWORD = "123456" ; Change this password Global Const $SERVER_PORT = 8888 ; Main chat/command port Global $g_hServerSocket = 0 ; Main chat server socket Global $g_hGUI, $g_hListView, $g_hEdit, $g_hInput, $g_hBtnSend Global $g_hBtnStart, $g_hBtnStop, $g_hBtnSelectAll, $g_hBtnDeselectAll, $g_hBtnKick Global $g_hInputMaxClient, $g_hStatus Global $g_aClients[1][5] ; [Socket, UserName, DisplayName, PCName, Authenticated] $g_aClients[0][0] = 0 ; Count Global $g_iMaxClients = 10 Global $g_iServerStartTime = 0 ; Performance optimization Global $g_bDebugMode = True ; Set to True to enable debug logs CreateGUI() Func CreateGUI() $g_hGUI = GUICreate("TCP Advanced Server", 800, 600) ; Control Panel GUICtrlCreateLabel("Max Clients:", 10, 10, 80, 20) $g_hInputMaxClient = GUICtrlCreateInput($g_iMaxClients, 100, 8, 50, 22) $g_hBtnStart = GUICtrlCreateButton("Start Server", 160, 5, 100, 28) $g_hBtnStop = GUICtrlCreateButton("Stop Server", 270, 5, 100, 28) GUICtrlSetState($g_hBtnStop, $GUI_DISABLE) $g_hStatus = GUICtrlCreateLabel("Status: Stopped", 380, 10, 400, 20) GUICtrlSetColor(-1, 0xFF0000) ; Client List GUICtrlCreateLabel("Connected Clients:", 10, 45, 200, 20) $g_hListView = GUICtrlCreateListView("No|Socket|User Name|Display Name|PC Name", 10, 65, 780, 200, BitOR($LVS_REPORT, $LVS_SHOWSELALWAYS), BitOR($WS_EX_CLIENTEDGE, $LVS_EX_FULLROWSELECT)) _GUICtrlListView_SetColumnWidth($g_hListView, 0, 40) _GUICtrlListView_SetColumnWidth($g_hListView, 1, 80) _GUICtrlListView_SetColumnWidth($g_hListView, 2, 150) _GUICtrlListView_SetColumnWidth($g_hListView, 3, 200) _GUICtrlListView_SetColumnWidth($g_hListView, 4, 200) $g_hBtnSelectAll = GUICtrlCreateButton("Select All", 10, 270, 100, 25) $g_hBtnDeselectAll = GUICtrlCreateButton("Deselect All", 115, 270, 100, 25) $g_hBtnKick = GUICtrlCreateButton("Disconnect Selected", 220, 270, 150, 25) ; Messages Log GUICtrlCreateLabel("Server Log:", 10, 305, 200, 20) $g_hEdit = GUICtrlCreateEdit("", 10, 325, 780, 200, BitOR($ES_READONLY, $ES_MULTILINE, $WS_VSCROLL)) ; Message Input GUICtrlCreateLabel("Send message (no selection = all clients):", 10, 535, 250, 20) $g_hInput = GUICtrlCreateInput("", 10, 555, 680, 25) GUICtrlSetState($g_hInput, $GUI_DISABLE) $g_hBtnSend = GUICtrlCreateButton("Send", 700, 553, 90, 28) GUICtrlSetState($g_hBtnSend, $GUI_DISABLE) GUISetState(@SW_SHOW) StartServer() While 1 Local $nMsg = GUIGetMsg() Switch $nMsg Case $GUI_EVENT_CLOSE Cleanup() Exit Case $g_hBtnStart StopServer() StartServer() Case $g_hBtnStop StopServer() Case $g_hBtnSelectAll SelectAllClients() Case $g_hBtnDeselectAll DeselectAllClients() Case $g_hBtnKick KickSelectedClient() Case $g_hBtnSend SendMessageToClient() EndSwitch Sleep(10) WEnd EndFunc ;==>CreateGUI Func StartServer() $g_iMaxClients = Int(GUICtrlRead($g_hInputMaxClient)) If $g_iMaxClients < 1 Then $g_iMaxClients = 1 AddLog("=== Starting TCP Server ===") _TCP_Startup() If @error Then AddLog("ERROR: Cannot initialize TCP") Return EndIf ; Start main chat server $g_hServerSocket = _TCP_Server_Create($SERVER_PORT) If @error Then AddLog("ERROR: Cannot create chat server on port " & $SERVER_PORT) _TCP_Shutdown() Return EndIf _TCP_Server_OnNewClient($g_hServerSocket, "OnNewClient") _TCP_Server_OnReceive($g_hServerSocket, "OnServerReceive") _TCP_Server_OnDisconnect($g_hServerSocket, "OnClientDisconnect") AddLog("Chat server started on port " & $SERVER_PORT) AddLog("Max clients: " & $g_iMaxClients) AddLog("Password: " & $SERVER_PASSWORD) $g_iServerStartTime = TimerInit() ; Track server uptime GUICtrlSetData($g_hStatus, "Status: Running on port " & $SERVER_PORT) GUICtrlSetColor($g_hStatus, 0x00AA00) GUICtrlSetState($g_hBtnStart, $GUI_DISABLE) GUICtrlSetState($g_hBtnStop, $GUI_ENABLE) GUICtrlSetState($g_hInput, $GUI_ENABLE) GUICtrlSetState($g_hBtnSend, $GUI_ENABLE) EndFunc ;==>StartServer Func StopServer() AddLog("=== Stopping Server ===") ; Stop server If $g_hServerSocket Then _TCP_Server_Stop($g_hServerSocket) _TCP_Shutdown() ; Clear client array $g_aClients[0][0] = 0 ReDim $g_aClients[1][5] _GUICtrlListView_DeleteAllItems($g_hListView) GUICtrlSetData($g_hStatus, "Status: Stopped") GUICtrlSetColor($g_hStatus, 0xFF0000) GUICtrlSetState($g_hBtnStart, $GUI_ENABLE) GUICtrlSetState($g_hBtnStop, $GUI_DISABLE) GUICtrlSetState($g_hInput, $GUI_DISABLE) GUICtrlSetState($g_hBtnSend, $GUI_DISABLE) AddLog("Server stopped") EndFunc ;==>StopServer Func OnNewClient($hClient, $iError) If $iError Then AddLog("[ERROR] Accept error: " & $iError) Return EndIf ; Check max clients If $g_aClients[0][0] >= $g_iMaxClients Then AddLog("[REJECT] Max clients reached. Rejecting Client Socket: " & Int($hClient)) _TCP_Send($hClient, "REJECTED|Server full" & @CRLF) Sleep(100) _TCP_Server_DisconnectClient($hClient) Return EndIf Local $sIP = _TCP_Server_ClientIP($hClient) AddLog("[CONNECT] New connection from " & $sIP & " (Client Socket: " & Int($hClient) & ")") ; Request authentication Local $sResult = _TCP_Send($hClient, "WHOAREYOU" & @CRLF) AddLog("[AUTH] Requesting authentication from Client Socket " & Int($hClient) & " (Send result: " & $sResult & ")") ; Verify socket is still valid Local $sTestIP = _TCP_Server_ClientIP($hClient) If $sTestIP = "" Then AddLog("[ERROR] Client Socket " & Int($hClient) & " became invalid immediately after creation!") EndIf ; Add to pending list (not authenticated yet) $g_aClients[0][0] += 1 ReDim $g_aClients[$g_aClients[0][0] + 1][5] $g_aClients[$g_aClients[0][0]][0] = $hClient $g_aClients[$g_aClients[0][0]][1] = "" $g_aClients[$g_aClients[0][0]][2] = "" $g_aClients[$g_aClients[0][0]][3] = "" $g_aClients[$g_aClients[0][0]][4] = False ; Not authenticated EndFunc ;==>OnNewClient Func OnServerReceive($hClient, $sData, $iError) If $iError Or $sData = "" Then Return $sData = StringStripWS($sData, 3) ; Parse command properly - check if it starts with "/" Local $sCommand = "" Local $aCmd If StringLeft($sData, 1) = "/" Then ; It's a command - extract command name (first word) Local $iSpacePos = StringInStr($sData, " ") If $iSpacePos > 0 Then $sCommand = StringLeft($sData, $iSpacePos - 1) Else $sCommand = $sData EndIf $aCmd = StringSplit($sData, "|", 2) Else ; Regular message - split by pipe $aCmd = StringSplit($sData, "|", 2) $sCommand = $aCmd[0] EndIf ; Only show debug logs if debug mode is enabled If $g_bDebugMode Then AddLog("[DEBUG] OnServerReceive from Client Socket " & Int($hClient) & ": " & StringLeft($sData, 80) & " | Command: " & $sCommand) EndIf Local $iIdx = FindClient($hClient) If $iIdx < 0 Then AddLog("[ERROR] Client Socket " & Int($hClient) & " not found in client list!") Return EndIf ; Handle authentication If Not $g_aClients[$iIdx][4] Then If $aCmd[0] = "AUTH" And UBound($aCmd) >= 5 Then Local $sUserName = $aCmd[1] Local $sPassword = $aCmd[2] Local $sDisplayName = $aCmd[3] Local $sPCName = $aCmd[4] ; Validate password If $sPassword <> $SERVER_PASSWORD Then AddLog("[AUTH] Invalid password from Client Socket " & Int($hClient) & " (UserName: " & $sUserName & ")") _TCP_Send($hClient, "REJECTED|Invalid password" & @CRLF) Sleep(100) RemoveClient($hClient) _TCP_Server_DisconnectClient($hClient) Return EndIf ; Check for duplicate UserName Local $iDuplicateIdx = FindClientByUserName($sUserName) If $iDuplicateIdx > 0 And $iDuplicateIdx <> $iIdx Then AddLog("[AUTH] Duplicate UserName rejected: " & $sUserName & " from Client Socket " & Int($hClient)) _TCP_Send($hClient, "REJECTED|UserName already in use: " & $sUserName & @CRLF) Sleep(100) RemoveClient($hClient) _TCP_Server_DisconnectClient($hClient) Return EndIf ; Authentication successful $g_aClients[$iIdx][1] = $sUserName $g_aClients[$iIdx][2] = $sDisplayName $g_aClients[$iIdx][3] = $sPCName $g_aClients[$iIdx][4] = True Local $sWelcomeMsg = "WELCOME|" & Int($hClient) & @CRLF _TCP_Send($hClient, $sWelcomeMsg) AddLog("[DEBUG] Sending WELCOME to Client Socket " & Int($hClient) & ": " & StringReplace($sWelcomeMsg, @CRLF, "")) AddLog("[AUTH] Client authenticated: " & $sUserName & " (Display: " & $sDisplayName & ", PC: " & $sPCName & ", Client Socket: " & Int($hClient) & ")") UpdateClientList() BroadcastClientList() Else AddLog("[AUTH] Invalid auth format from Client Socket " & Int($hClient)) _TCP_Send($hClient, "REJECTED|Invalid authentication format" & @CRLF) Sleep(100) RemoveClient($hClient) _TCP_Server_DisconnectClient($hClient) EndIf Return EndIf ; Handle client commands Switch $sCommand Case "/list" SendClientList($hClient) Case "/privmsg" ; Parse /privmsg command: format is "/privmsg <socket> <message>" ; Note: Command uses space delimiter, not pipe Local $sCmdLine = StringTrimLeft($sData, 8) ; Remove "/privmsg" $sCmdLine = StringStripWS($sCmdLine, 1) ; Strip leading spaces If $g_bDebugMode Then AddLog("[DEBUG] /privmsg received. Raw: '" & $sData & "' | After trim: '" & $sCmdLine & "'") EndIf Local $iSpacePos = StringInStr($sCmdLine, " ", 0, 1) ; Find first space If $iSpacePos > 0 Then Local $sTargetSocket = StringLeft($sCmdLine, $iSpacePos - 1) Local $iTargetSocket = Int($sTargetSocket) Local $sMsg = StringTrimLeft($sCmdLine, $iSpacePos) ; Get message after socket $sMsg = StringStripWS($sMsg, 1) ; Strip leading spaces from message If $g_bDebugMode Then AddLog("[DEBUG] Parsed - Target socket string: '" & $sTargetSocket & "' | Int: " & $iTargetSocket & " | Message: '" & $sMsg & "'") EndIf If $iTargetSocket > 0 And $sMsg <> "" Then SendPrivateMessage($hClient, $iTargetSocket, $sMsg) Else _TCP_Send($hClient, "SERVMSG|Error: Invalid /privmsg format. Use: /privmsg <socket> <message>" & @CRLF) AddLog("[ERROR] Invalid privmsg - Socket: " & $iTargetSocket & " | Msg: '" & $sMsg & "'") EndIf Else _TCP_Send($hClient, "SERVMSG|Error: Invalid /privmsg format. Use: /privmsg <socket> <message>" & @CRLF) AddLog("[ERROR] Invalid privmsg format - no space found in: '" & $sCmdLine & "'") EndIf Case "/name" If UBound($aCmd) >= 2 Then Local $sNewName = $aCmd[1] $g_aClients[$iIdx][2] = $sNewName UpdateClientList() BroadcastClientList() AddLog("[INFO] Client Socket " & Int($hClient) & " changed name to: " & $sNewName) _TCP_Send($hClient, "SERVMSG|Name changed to: " & $sNewName & @CRLF) EndIf Case "/help" Local $sHelp = "SERVMSG|Available commands:" & @CRLF & _ " /list - Get client list" & @CRLF & _ " /privmsg <socket> <msg> - Private message" & @CRLF & _ " /name <new_name> - Change name" & @CRLF & _ " /serverinfo - Get server information" & @CRLF & _ " /quit - Disconnect" _TCP_Send($hClient, $sHelp) Case "/serverinfo" Local $sInfo = "Server Version: 2.0.1" & @CRLF & _ "AutoIt Version: " & @AutoItVersion & @CRLF & _ "Server OS: " & @OSVersion & @CRLF & _ "Server Computer: " & @ComputerName & @CRLF & _ "Max Clients: " & $g_iMaxClients & @CRLF & _ "Current Clients: " & $g_aClients[0][0] & @CRLF & _ "Uptime: " & Round(TimerDiff($g_iServerStartTime) / 1000, 2) & " seconds" & @CRLF & _ "Supported Commands: /help, /list, /privmsg, /name, /serverinfo, /quit" _TCP_Send($hClient, "SERVERINFO|" & $sInfo) AddLog("[INFO] Server info sent to " & $g_aClients[$iIdx][2]) Case "/quit" AddLog("[INFO] " & $g_aClients[$iIdx][2] & " requested disconnect") _TCP_Send($hClient, "SERVMSG|Goodbye!" & @CRLF) Sleep(100) RemoveClient($hClient) _TCP_Server_DisconnectClient($hClient) UpdateClientList() BroadcastClientList() Case "MSG" Local $sMsg = StringTrimLeft($sData, 4) Local $iIdx = FindClient($hClient) If $iIdx > 0 Then AddLog("[" & $g_aClients[$iIdx][2] & "] " & $sMsg) ; Log with DisplayName ; Broadcast to all clients (use DisplayName for display) For $j = 1 To $g_aClients[0][0] If $g_aClients[$j][4] And $g_aClients[$j][0] <> $hClient Then _TCP_Send($g_aClients[$j][0], "MSG|" & $g_aClients[$iIdx][2] & "|" & $sMsg & @CRLF) EndIf Next EndIf Case Else AddLog("[" & $g_aClients[$iIdx][2] & "] " & $sData) EndSwitch EndFunc ;==>OnServerReceive Func OnClientDisconnect($hClient, $iError) AddLog("[DEBUG] OnClientDisconnect called for Client Socket: " & Int($hClient) & " Error: " & $iError) Local $iIdx = FindClient($hClient) If $iIdx > 0 Then AddLog("[DISCONNECT] " & $g_aClients[$iIdx][2] & " (Client Socket: " & Int($hClient) & ")") RemoveClient($hClient) UpdateClientList() BroadcastClientList() Else AddLog("[WARNING] Disconnect for unknown Client Socket: " & Int($hClient)) EndIf EndFunc ;==>OnClientDisconnect Func SendClientList($hClient) Local $sList = "CLIENTLIST|" & $g_aClients[0][0] For $i = 1 To $g_aClients[0][0] If $g_aClients[$i][4] Then ; Format: Socket:UserName:DisplayName:PCName $sList &= "|" & $g_aClients[$i][0] & ":" & $g_aClients[$i][1] & ":" & $g_aClients[$i][2] & ":" & $g_aClients[$i][3] EndIf Next _TCP_Send($hClient, $sList & @CRLF) EndFunc ;==>SendClientList Func BroadcastClientList() For $i = 1 To $g_aClients[0][0] If $g_aClients[$i][4] Then SendClientList($g_aClients[$i][0]) EndIf Next EndFunc ;==>BroadcastClientList Func SendPrivateMessage($hFrom, $iToSocket, $sMsg) Local $iFromIdx = FindClient($hFrom) Local $iToIdx = FindClient($iToSocket) If $g_bDebugMode Then AddLog("[DEBUG] SendPrivateMessage - From socket: " & Int($hFrom) & " (idx: " & $iFromIdx & ") | To socket: " & Int($iToSocket) & " (idx: " & $iToIdx & ")") ; List all client sockets for comparison Local $sClientList = "Current client sockets: " For $k = 1 To $g_aClients[0][0] $sClientList &= Int($g_aClients[$k][0]) & " " Next AddLog("[DEBUG] " & $sClientList) EndIf If $iFromIdx > 0 And $iToIdx > 0 And $g_aClients[$iToIdx][4] Then If _TCP_Server_ClientIP($iToSocket) Then ; Verify socket still connected ; Use DisplayName for display in messages _TCP_Send($iToSocket, "PRIVMSG|" & $g_aClients[$iFromIdx][2] & "|" & $sMsg & @CRLF) _TCP_Send($hFrom, "SERVMSG|Private message sent to " & $g_aClients[$iToIdx][2] & @CRLF) AddLog("[PRIVMSG] " & $g_aClients[$iFromIdx][2] & " -> " & $g_aClients[$iToIdx][2] & ": " & $sMsg) Else _TCP_Send($hFrom, "SERVMSG|Error: Target client disconnected" & @CRLF) AddLog("[ERROR] Target client disconnected during send") RemoveClient($iToSocket) UpdateClientList() BroadcastClientList() EndIf Else _TCP_Send($hFrom, "SERVMSG|Error: Client not found (From idx: " & $iFromIdx & ", To idx: " & $iToIdx & ")" & @CRLF) AddLog("[ERROR] Client not found - From idx: " & $iFromIdx & " | To idx: " & $iToIdx & " | To socket: " & Int($iToSocket)) EndIf EndFunc ;==>SendPrivateMessage Func SendMessageToClient() Local $sMsg = GUICtrlRead($g_hInput) If $sMsg = "" Then Return ; Check for admin commands If StringLeft($sMsg, 1) = "/" Then HandleAdminCommand($sMsg) GUICtrlSetData($g_hInput, "") Return EndIf ; Get selected clients Local $aSelected = _GUICtrlListView_GetSelectedIndices($g_hListView, True) ; If no clients selected, send to all If $aSelected[0] = 0 Then For $i = 1 To $g_aClients[0][0] If $g_aClients[$i][4] Then _TCP_Send($g_aClients[$i][0], "SERVMSG|[Server] " & $sMsg & @CRLF) EndIf Next Else ; Send to selected clients For $i = 1 To $aSelected[0] Local $iIdx = $aSelected[$i] + 1 If $iIdx <= $g_aClients[0][0] And $g_aClients[$iIdx][4] Then _TCP_Send($g_aClients[$iIdx][0], "SERVMSG|[Server] " & $sMsg & @CRLF) AddLog("[SENT] Message to " & $g_aClients[$iIdx][2] & ": " & $sMsg) EndIf Next EndIf GUICtrlSetData($g_hInput, "") EndFunc ;==>SendMessageToClient Func HandleAdminCommand($sCommand) Local $aCmd = StringSplit($sCommand, " ", 2) Switch $aCmd[0] Case "/serverinfo" ; Send server info to selected clients Local $aSelected = _GUICtrlListView_GetSelectedIndices($g_hListView, True) If $aSelected[0] = 0 Then AddLog("[ADMIN] No clients selected for server info") Return EndIf Local $sInfo = "Server Version: 2.0.1|" & _ "AutoIt Version: " & @AutoItVersion & "|" & _ "Server OS: " & @OSVersion & "|" & _ "Server Computer: " & @ComputerName & "|" & _ "Max Clients: " & $g_iMaxClients & "|" & _ "Current Clients: " & $g_aClients[0][0] & "|" & _ "Uptime: " & Round(TimerDiff($g_iServerStartTime) / 1000, 1) & " seconds" For $i = 1 To $aSelected[0] Local $iIdx = $aSelected[$i] + 1 If $iIdx <= $g_aClients[0][0] And $g_aClients[$iIdx][4] Then _TCP_Send($g_aClients[$iIdx][0], "SERVERINFO|" & $sInfo & @CRLF) AddLog("[ADMIN] Server info sent to " & $g_aClients[$iIdx][2]) EndIf Next Case "/help" AddLog("[ADMIN] Available admin commands:") AddLog(" /serverinfo - Send server info to selected clients") AddLog(" /help - Show this help") Case Else AddLog("[ADMIN] Unknown command: " & $aCmd[0] & " (Use /help for available commands)") EndSwitch EndFunc ;==>HandleAdminCommand Func SelectAllClients() For $i = 0 To _GUICtrlListView_GetItemCount($g_hListView) - 1 _GUICtrlListView_SetItemSelected($g_hListView, $i, True) Next EndFunc ;==>SelectAllClients Func DeselectAllClients() _GUICtrlListView_SetItemSelected($g_hListView, -1, False) EndFunc ;==>DeselectAllClients Func KickSelectedClient() Local $iSelected = _GUICtrlListView_GetNextItem($g_hListView) If $iSelected < 0 Then Return Local $hClient = Int(_GUICtrlListView_GetItemText($g_hListView, $iSelected, 1)) Local $sUserName = _GUICtrlListView_GetItemText($g_hListView, $iSelected, 2) AddLog("[KICK] Disconnecting " & $sUserName) _TCP_Send($hClient, "KICK|Kicked by server" & @CRLF) Sleep(100) RemoveClient($hClient) _TCP_Server_DisconnectClient($hClient) UpdateClientList() BroadcastClientList() EndFunc ;==>KickSelectedClient Func FindClient($hSocket) For $i = 1 To $g_aClients[0][0] If $g_aClients[$i][0] = $hSocket Then Return $i Next Return -1 EndFunc ;==>FindClient Func FindClientByUserName($sUserName) For $i = 1 To $g_aClients[0][0] If $g_aClients[$i][4] And $g_aClients[$i][1] = $sUserName Then Return $i Next Return -1 EndFunc ;==>FindClientByUserName Func RemoveClient($hSocket) For $i = 1 To $g_aClients[0][0] If $g_aClients[$i][0] = $hSocket Then For $j = $i To $g_aClients[0][0] - 1 $g_aClients[$j][0] = $g_aClients[$j + 1][0] $g_aClients[$j][1] = $g_aClients[$j + 1][1] $g_aClients[$j][2] = $g_aClients[$j + 1][2] $g_aClients[$j][3] = $g_aClients[$j + 1][3] $g_aClients[$j][4] = $g_aClients[$j + 1][4] Next $g_aClients[0][0] -= 1 ReDim $g_aClients[$g_aClients[0][0] + 1][5] ; UpdateClientList() will be called by OnClientDisconnect Return EndIf Next EndFunc ;==>RemoveClient Func UpdateClientList() _GUICtrlListView_DeleteAllItems($g_hListView) For $i = 1 To $g_aClients[0][0] If $g_aClients[$i][4] Then _GUICtrlListView_AddItem($g_hListView, $i) _GUICtrlListView_AddSubItem($g_hListView, $i - 1, Int($g_aClients[$i][0]), 1) _GUICtrlListView_AddSubItem($g_hListView, $i - 1, $g_aClients[$i][1], 2) _GUICtrlListView_AddSubItem($g_hListView, $i - 1, $g_aClients[$i][2], 3) _GUICtrlListView_AddSubItem($g_hListView, $i - 1, $g_aClients[$i][3], 4) EndIf Next EndFunc ;==>UpdateClientList Func AddLog($sText) Local $sCurrent = GUICtrlRead($g_hEdit) Local $sTime = @HOUR & ":" & @MIN & ":" & @SEC GUICtrlSetData($g_hEdit, $sCurrent & "[" & $sTime & "] " & $sText & @CRLF) ; Auto-scroll to bottom (latest message) Local $hEdit = GUICtrlGetHandle($g_hEdit) DllCall("user32.dll", "lresult", "SendMessageW", "hwnd", $hEdit, "uint", 0x00B6, "wparam", 0, "lparam", -1) ; EM_SETSEL to end DllCall("user32.dll", "lresult", "SendMessageW", "hwnd", $hEdit, "uint", 0x00B7, "wparam", 0, "lparam", 0) ; EM_SCROLLCARET EndFunc ;==>AddLog Func Cleanup() If $g_hServerSocket Then StopServer() EndIf EndFunc ;==>Cleanup Func _GUICtrlEdit_Scroll($hWnd, $iDirection) DllCall("user32.dll", "lresult", "SendMessageW", "hwnd", GUICtrlGetHandle($hWnd), "uint", 0x00B5, "wparam", $iDirection, "lparam", 0) EndFunc ;==>_GUICtrlEdit_Scroll Client: expandcollapse popup#Region ;**** Directives created by AutoIt3Wrapper_GUI **** #AutoIt3Wrapper_UseX64=y #AutoIt3Wrapper_Res_requestedExecutionLevel=requireAdministrator #EndRegion ;**** Directives created by AutoIt3Wrapper_GUI **** #NoTrayIcon ; ===== TCP EVENT CLIENT v1.0 by Dao Van Trong - TRONG.PRO ===== ; Advanced TCP Client ; ; ===== PROTOCOL STRUCTURE ===== ; ; === CLIENT → SERVER COMMANDS === ; AUTH|<username>|<password>|<display_name>|<pc_name> - Client authentication ; MSG|<message> - Broadcast chat message ; /help - Show available commands ; /list - Get connected clients list ; /privmsg <socket> <msg> - Send private message to specific client ; /name <new_name> - Change display name ; /serverinfo - Get server information ; /quit - Disconnect from server ; ; === SERVER → CLIENT MESSAGES === ; WHOAREYOU - Request authentication ; WELCOME|<socket_id> - Authentication successful ; REJECTED|<reason> - Connection/auth rejected ; CLIENTLIST|<count>|<id1:name1:pc1>|... - Connected clients list ; MSG|<from_name>|<message> - Chat message from user ; PRIVMSG|<from_name>|<message> - Private message ; SERVMSG|<message_text> - Server message/response (multi-line support) ; SERVERINFO|<server_info> - Server information (multi-line support) ; KICK|<reason> - Client being kicked ; ; === AUTHENTICATION FLOW === ; 1. Client connects → Server sends "WHOAREYOU" ; 2. Client responds: "AUTH|<username>|<password>|<display_name>|<pc_name>" ; 3. Server validates (checks password and duplicate username) and sends "WELCOME|<socket>" or "REJECTED|<reason>" ; 4. Authenticated clients can send commands and receive broadcasts ; ; === ERROR HANDLING === ; - Connection timeout: 10 seconds ; - Max retries: 3 attempts ; - Debug mode can be enabled for troubleshooting #include "WinSockUDF.au3" #include <GUIConstantsEx.au3> #include <EditConstants.au3> #include <WindowsConstants.au3> #include <GUIListView.au3> #include <GDIPlus.au3> Global Const $SERVER_IP = "127.0.0.1" Global Const $SERVER_PORT = 8888 ; Main chat/command port ; ListView notification constants ;~ Global Const $NM_DBLCLK = -3 Global $g_hSocket = 0 Global $g_hGUI, $g_hListViewUsers, $g_hEditChat, $g_hInput, $g_hBtnSend, $g_hBtnConnect, $g_hBtnDisconnect Global $g_hInputUserName, $g_hInputPassword, $g_hInputDisplayName Global $g_hStatus, $g_bConnected = False Global $g_sMySocket = "" Global $g_sMyUserName = "" Global $g_aClientList[1][4] ; [Socket, UserName, DisplayName, PCName] $g_aClientList[0][0] = 0 ; Connection timeout and retry variables Global $g_iConnectionTimeout = 10000 ; 10 seconds Global $g_iMaxRetries = 3 Global $g_iCurrentRetry = 0 Global $g_iConnectionStartTime = 0 Global $g_bConnecting = False ; Background image configuration Global $g_sDefaultBackground = @ScriptDir & "\client_default_bg.bmp" ; Default client background Global $g_sCurrentBackground = "" ; Current background being used Global $g_hBackgroundPic = 0 ; Handle for background picture control ; Performance optimization Global $g_bDebugMode = False ; Set to False to disable debug logs ; Initialize GDI+ for background image support _GDIPlus_Startup() CreateGUI() Func CreateGUI() $g_hGUI = GUICreate("TCP Chat Client - Room Chat", 900, 600) ; Create background picture control first (behind all other controls) $g_hBackgroundPic = GUICtrlCreatePic("", 0, 0, 900, 600) GUICtrlSetState($g_hBackgroundPic, $GUI_DISABLE) ; Disable so it doesn't interfere with other controls ; Connection Panel GUICtrlCreateGroup("Connection", 10, 5, 880, 50) GUICtrlSetBkColor(-1, $GUI_BKCOLOR_TRANSPARENT) GUICtrlCreateLabel("User Name:", 20, 25, 70, 20) GUICtrlSetBkColor(-1, $GUI_BKCOLOR_TRANSPARENT) $g_hInputUserName = GUICtrlCreateInput(@UserName, 95, 23, 150, 22) GUICtrlSetBkColor(-1, $GUI_BKCOLOR_TRANSPARENT) GUICtrlCreateLabel("Password:", 260, 25, 60, 20) GUICtrlSetBkColor(-1, $GUI_BKCOLOR_TRANSPARENT) $g_hInputPassword = GUICtrlCreateInput("123456", 325, 23, 100, 22, $ES_PASSWORD) GUICtrlSetBkColor(-1, $GUI_BKCOLOR_TRANSPARENT) GUICtrlCreateLabel("Display Name:", 440, 25, 80, 20) GUICtrlSetBkColor(-1, $GUI_BKCOLOR_TRANSPARENT) $g_hInputDisplayName = GUICtrlCreateInput(@UserName, 525, 23, 140, 22) GUICtrlSetBkColor(-1, $GUI_BKCOLOR_TRANSPARENT) $g_hBtnConnect = GUICtrlCreateButton("Connect", 670, 20, 100, 28) GUICtrlSetBkColor(-1, $GUI_BKCOLOR_TRANSPARENT) $g_hBtnDisconnect = GUICtrlCreateButton("Disconnect", 770, 20, 110, 28) GUICtrlSetBkColor(-1, $GUI_BKCOLOR_TRANSPARENT) GUICtrlSetState($g_hBtnDisconnect, $GUI_DISABLE) GUICtrlCreateGroup("", -99, -99, 1, 1) ; Status $g_hStatus = GUICtrlCreateLabel("Status: Not Connected", 10, 60, 860, 30) GUICtrlSetBkColor(-1, $GUI_BKCOLOR_TRANSPARENT) GUICtrlSetColor(-1, 0xFF0000) ; Main Layout: Users List + Chat Area GUICtrlCreateLabel("Online Users (Double-click for private message):", 10, 95, 250, 20) GUICtrlSetBkColor(-1, $GUI_BKCOLOR_TRANSPARENT) $g_hListViewUsers = GUICtrlCreateListView("Socket|UserName|DisplayName", 10, 115, 250, 380, _ BitOR($LVS_REPORT, $LVS_SHOWSELALWAYS, $LVS_SINGLESEL), _ BitOR($WS_EX_CLIENTEDGE, $LVS_EX_FULLROWSELECT, $LVS_EX_GRIDLINES)) GUICtrlSetBkColor(-1, $GUI_BKCOLOR_TRANSPARENT) _GUICtrlListView_SetColumnWidth($g_hListViewUsers, 0, 60) _GUICtrlListView_SetColumnWidth($g_hListViewUsers, 1, 80) _GUICtrlListView_SetColumnWidth($g_hListViewUsers, 2, 100) GUICtrlCreateLabel("Chat Room:", 270, 95, 200, 20) GUICtrlSetBkColor(-1, $GUI_BKCOLOR_TRANSPARENT) $g_hEditChat = GUICtrlCreateEdit("", 270, 115, 620, 380, BitOR($ES_READONLY, $ES_MULTILINE, $WS_VSCROLL, $ES_AUTOVSCROLL)) GUICtrlSetFont($g_hEditChat, 9, 400, 0, "Consolas") GUICtrlSetBkColor(-1, $GUI_BKCOLOR_TRANSPARENT) ; Input Area GUICtrlCreateLabel("Message:", 10, 505, 60, 20) GUICtrlSetBkColor(-1, $GUI_BKCOLOR_TRANSPARENT) GUICtrlCreateLabel("(Type message or /help for commands)", 75, 505, 300, 20) GUICtrlSetBkColor(-1, $GUI_BKCOLOR_TRANSPARENT) $g_hInput = GUICtrlCreateInput("", 10, 525, 780, 25) GUICtrlSetState($g_hInput, $GUI_DISABLE) $g_hBtnSend = GUICtrlCreateButton("Send", 800, 523, 90, 28) GUICtrlSetBkColor(-1, $GUI_BKCOLOR_TRANSPARENT) GUICtrlSetState($g_hBtnSend, $GUI_DISABLE) ; Register WM_NOTIFY to detect ListView double-click GUIRegisterMsg($WM_NOTIFY, "WM_NOTIFY_EVENTS") GUISetState(@SW_SHOW) ; Apply default background if available ApplyBackground($g_sDefaultBackground) While 1 Local $nMsg = GUIGetMsg() Switch $nMsg Case $GUI_EVENT_CLOSE Cleanup() Exit Case $g_hBtnConnect ConnectToServer() Case $g_hBtnDisconnect DisconnectFromServer() Case $g_hBtnSend SendMessage() EndSwitch ; Check for connection timeout CheckConnectionTimeout() Sleep(10) WEnd EndFunc ;==>CreateGUI Func ConnectToServer() If $g_bConnecting Then Return ; Prevent multiple connection attempts $g_bConnecting = True $g_iCurrentRetry = 0 AttemptConnection() EndFunc ;==>ConnectToServer Func AttemptConnection() $g_iCurrentRetry += 1 ; Force cleanup any existing connection first If $g_hSocket Then AddChat("[DEBUG] Cleaning up old local socket: " & Int($g_hSocket)) _TCP_Client_Stop($g_hSocket) _TCP_Shutdown() $g_hSocket = 0 ; Reset all connection state $g_bConnected = False $g_bConnecting = False $g_sMySocket = "" $g_iConnectionStartTime = 0 Sleep(200) ; Give more time for complete cleanup EndIf If $g_iCurrentRetry > 1 Then AddChat("=== Retry " & ($g_iCurrentRetry - 1) & "/" & $g_iMaxRetries & " ===") Else AddChat("=== Connecting to Server ===") EndIf _TCP_Startup() If @error Then AddChat("ERROR: Cannot initialize TCP") HandleConnectionFailure() Return EndIf AddChat("Connecting to " & $SERVER_IP & ":" & $SERVER_PORT & "...") $g_hSocket = _TCP_Client_Create($SERVER_IP, $SERVER_PORT, "", 0, 0) Local $iCreateError = @error If $iCreateError Then AddChat("ERROR: Connection failed (Error: " & $iCreateError & ")") _TCP_Shutdown() HandleConnectionFailure() Return EndIf AddChat("[DEBUG] New local socket created: " & Int($g_hSocket) & " (Error: " & $iCreateError & ")") ; Verify socket handle is valid If $g_hSocket <= 0 Then AddChat("[ERROR] Invalid local socket handle: " & Int($g_hSocket)) HandleConnectionFailure() Return EndIf _TCP_OnConnect($g_hSocket, "OnConnect") _TCP_OnReceive($g_hSocket, "OnReceive") _TCP_OnDisconnect($g_hSocket, "OnDisconnect") $g_iConnectionStartTime = TimerInit() GUICtrlSetData($g_hStatus, "Status: Connecting... (Attempt " & $g_iCurrentRetry & "/" & ($g_iMaxRetries + 1) & ") Local Socket: " & Int($g_hSocket)) GUICtrlSetColor($g_hStatus, 0x0000FF) GUICtrlSetState($g_hBtnConnect, $GUI_DISABLE) EndFunc ;==>AttemptConnection Func HandleConnectionFailure() If $g_iCurrentRetry <= $g_iMaxRetries Then AddChat("Connection failed. Retrying in 3 seconds...") GUICtrlSetData($g_hStatus, "Status: Retrying in 3 seconds...") GUICtrlSetColor($g_hStatus, 0xFF8800) Sleep(3000) AttemptConnection() Else AddChat("=== Connection Failed ===") AddChat("Maximum retry attempts reached. Please check server status.") GUICtrlSetData($g_hStatus, "Status: Connection Failed - Max retries reached") GUICtrlSetColor($g_hStatus, 0xFF0000) GUICtrlSetState($g_hBtnConnect, $GUI_ENABLE) $g_bConnecting = False EndIf EndFunc ;==>HandleConnectionFailure Func CheckConnectionTimeout() If $g_bConnecting And $g_iConnectionStartTime > 0 And Not $g_bConnected Then Local $iElapsed = TimerDiff($g_iConnectionStartTime) If $iElapsed > $g_iConnectionTimeout Then AddChat("Connection timeout after " & Round($iElapsed / 1000, 1) & " seconds") If $g_hSocket Then _TCP_Client_Stop($g_hSocket) _TCP_Shutdown() $g_hSocket = 0 EndIf $g_iConnectionStartTime = 0 HandleConnectionFailure() EndIf EndIf EndFunc ;==>CheckConnectionTimeout Func DisconnectFromServer() If $g_hSocket Then _TCP_Send($g_hSocket, "/quit" & @CRLF) Sleep(200) _TCP_Client_Stop($g_hSocket) _TCP_Shutdown() $g_hSocket = 0 $g_bConnected = False EndIf ; Reset connection state $g_bConnecting = False $g_iConnectionStartTime = 0 $g_sMySocket = "" AddChat("=== Disconnected from server ===") GUICtrlSetData($g_hStatus, "Status: Disconnected") GUICtrlSetColor($g_hStatus, 0xFF0000) GUICtrlSetState($g_hBtnConnect, $GUI_ENABLE) GUICtrlSetState($g_hBtnDisconnect, $GUI_DISABLE) GUICtrlSetState($g_hInput, $GUI_DISABLE) GUICtrlSetState($g_hBtnSend, $GUI_DISABLE) ; Clear user list _GUICtrlListView_DeleteAllItems($g_hListViewUsers) EndFunc ;==>DisconnectFromServer Func OnConnect($hSocket, $iError) AddChat("[DEBUG] OnConnect called - Local Socket: " & Int($hSocket) & " Current Local: " & Int($g_hSocket) & " Error: " & $iError) ; Validate this is our current socket If $hSocket <> $g_hSocket Then AddChat("[DEBUG] Ignoring OnConnect for old local socket: " & Int($hSocket)) Return EndIf If $iError Then AddChat("Connection failed with error: " & $iError) GUICtrlSetData($g_hStatus, "Status: Connection Failed") GUICtrlSetColor($g_hStatus, 0xFF0000) HandleConnectionFailure() Return EndIf AddChat("Connected to server successfully!") $g_bConnected = True GUICtrlSetData($g_hStatus, "Status: Authenticating...") GUICtrlSetColor($g_hStatus, 0x0000FF) EndFunc ;==>OnConnect Func OnReceive($hSocket, $sData, $iError) If $iError Or $sData = "" Then Return ; Only show debug logs if debug mode is enabled If $g_bDebugMode Then AddChat("[DEBUG] OnReceive - Local Socket: " & Int($hSocket) & " Current Local: " & Int($g_hSocket) & " Data: " & StringLeft($sData, 80)) EndIf ; WORKAROUND: TCP Event UDF still has socket routing issues - disable validation ; If $hSocket <> $g_hSocket Then ; AddChat("[DEBUG] Ignoring OnReceive for old local socket: " & Int($hSocket)) ; Return ; EndIf $sData = StringStripWS($sData, 3) Local $aCmd = StringSplit($sData, "|", 2) Switch $aCmd[0] Case "WHOAREYOU" Local $sUserName = GUICtrlRead($g_hInputUserName) Local $sPassword = GUICtrlRead($g_hInputPassword) Local $sDisplayName = GUICtrlRead($g_hInputDisplayName) Local $sPCName = @ComputerName $g_sMyUserName = $sUserName Local $sAuth = "AUTH|" & $sUserName & "|" & $sPassword & "|" & $sDisplayName & "|" & $sPCName & @CRLF _TCP_Send($hSocket, $sAuth) AddChat("Sending authentication...") Case "WELCOME" If UBound($aCmd) >= 2 Then Local $sServerSocket = $aCmd[1] ; Note: In TCP, client and server have different socket handles for the same connection ; This is normal behavior - each side maintains its own socket handle ; Server's socket ID is used for identification in messages If $g_bDebugMode Then AddChat("[DEBUG] WELCOME received - Server Socket: " & Int($sServerSocket) & " (Local Socket: " & Int($hSocket) & ")") If String($sServerSocket) <> String($hSocket) Then AddChat("[DEBUG] Note: Different socket handles are normal in TCP - using server socket ID for identification") EndIf EndIf $g_sMySocket = $sServerSocket $g_bConnecting = False $g_iConnectionStartTime = 0 AddChat("=== Authentication Successful ===") AddChat("Server Socket ID: " & Int($g_sMySocket)) AddChat("Local Socket: " & Int($g_hSocket)) AddChat("Welcome to the chat room!") AddChat("========================================") GUICtrlSetData($g_hStatus, "Status: Connected (Server Socket: " & Int($g_sMySocket) & ", Local: " & Int($g_hSocket) & ")") GUICtrlSetColor($g_hStatus, 0x00AA00) GUICtrlSetState($g_hBtnDisconnect, $GUI_ENABLE) GUICtrlSetState($g_hInput, $GUI_ENABLE) GUICtrlSetState($g_hBtnSend, $GUI_ENABLE) _TCP_Send($hSocket, "/list" & @CRLF) EndIf Case "REJECTED" Local $sReason = UBound($aCmd) >= 2 ? $aCmd[1] : "Unknown" AddChat("=== Connection Rejected ===") AddChat("Reason: " & $sReason) GUICtrlSetData($g_hStatus, "Status: Rejected - " & $sReason) GUICtrlSetColor($g_hStatus, 0xFF0000) GUICtrlSetState($g_hBtnConnect, $GUI_ENABLE) Sleep(500) DisconnectFromServer() Case "CLIENTLIST" If UBound($aCmd) >= 2 Then If $g_sMySocket = "" Then Return EndIf Local $iCount = Int($aCmd[1]) _GUICtrlListView_DeleteAllItems($g_hListViewUsers) ReDim $g_aClientList[$iCount + 1][4] $g_aClientList[0][0] = $iCount For $i = 2 To UBound($aCmd) - 1 Local $aClient = StringSplit($aCmd[$i], ":", 2) If UBound($aClient) >= 4 Then Local $idx = $i - 1 $g_aClientList[$idx][0] = $aClient[0] ; Socket $g_aClientList[$idx][1] = $aClient[1] ; UserName $g_aClientList[$idx][2] = $aClient[2] ; DisplayName $g_aClientList[$idx][3] = $aClient[3] ; PCName ; Only show other clients (not self) with Socket|UserName|DisplayName format ; Use UserName comparison to identify self If $aClient[1] <> $g_sMyUserName Then _GUICtrlListView_AddItem($g_hListViewUsers, Int($aClient[0])) _GUICtrlListView_AddSubItem($g_hListViewUsers, _GUICtrlListView_GetItemCount($g_hListViewUsers) - 1, $aClient[1], 1) ; UserName _GUICtrlListView_AddSubItem($g_hListViewUsers, _GUICtrlListView_GetItemCount($g_hListViewUsers) - 1, $aClient[2], 2) ; DisplayName EndIf EndIf Next EndIf Case "MSG" Local $aParts = StringSplit($sData, "|", 2) If UBound($aParts) >= 3 Then Local $sFromName = $aParts[1] Local $sMsg = $aParts[2] AddChat("[" & $sFromName & "] " & $sMsg) EndIf Case "SERVMSG" If UBound($aCmd) >= 2 Then Local $sMsg = $aCmd[1] ; Split message by lines and display each line Local $aLines = StringSplit($sMsg, @CRLF, 1) For $i = 1 To $aLines[0] If StringStripWS($aLines[$i], 3) <> "" Then AddChat($aLines[$i]) EndIf Next EndIf Case "PRIVMSG" Local $aParts = StringSplit($sData, "|", 2) If UBound($aParts) >= 3 Then Local $sFromName = $aParts[1] Local $sMsg = $aParts[2] AddChat("[PRIVATE from " & $sFromName & "] " & $sMsg) EndIf Case "SERVERINFO" If UBound($aCmd) >= 2 Then Local $sInfo = $aCmd[1] AddChat("=== Server Information ===") ; Split info by lines and display each line Local $aLines = StringSplit($sInfo, @CRLF, 1) For $i = 1 To $aLines[0] If StringStripWS($aLines[$i], 3) <> "" Then AddChat($aLines[$i]) EndIf Next AddChat("=============================") EndIf Case "KICK" Local $sReason = UBound($aCmd) >= 2 ? $aCmd[1] : "No reason" AddChat("=== You have been kicked ===") AddChat("Reason: " & $sReason) AddChat("========================================") DisconnectFromServer() Case Else AddChat("[Server] " & $sData) EndSwitch EndFunc ;==>OnReceive Func OnDisconnect($hSocket, $iError) ; Validate this is our current socket If $hSocket <> $g_hSocket Then Return AddChat("=== Disconnected from server ===") If $iError Then AddChat("Disconnect error: " & $iError) $g_bConnected = False $g_bConnecting = False $g_iConnectionStartTime = 0 $g_sMySocket = "" GUICtrlSetData($g_hStatus, "Status: Disconnected") GUICtrlSetColor($g_hStatus, 0xFF0000) GUICtrlSetState($g_hBtnConnect, $GUI_ENABLE) GUICtrlSetState($g_hBtnDisconnect, $GUI_DISABLE) GUICtrlSetState($g_hInput, $GUI_DISABLE) GUICtrlSetState($g_hBtnSend, $GUI_DISABLE) _GUICtrlListView_DeleteAllItems($g_hListViewUsers) EndFunc ;==>OnDisconnect Func SendMessage() Local $sMsg = GUICtrlRead($g_hInput) If $sMsg = "" Then Return If StringLeft($sMsg, 1) = "/" Then _TCP_Send($g_hSocket, $sMsg & @CRLF) AddChat("[Command] " & $sMsg) Else _TCP_Send($g_hSocket, "MSG|" & $sMsg & @CRLF) AddChat("[" & $g_sMyUserName & "] " & $sMsg) EndIf GUICtrlSetData($g_hInput, "") EndFunc ;==>SendMessage Func AddChat($sText) Local $sCurrent = GUICtrlRead($g_hEditChat) Local $sTime = @HOUR & ":" & @MIN & ":" & @SEC GUICtrlSetData($g_hEditChat, $sCurrent & "[" & $sTime & "] " & $sText & @CRLF) ; Auto-scroll to bottom Local $hEdit = GUICtrlGetHandle($g_hEditChat) DllCall("user32.dll", "lresult", "SendMessageW", "hwnd", $hEdit, "uint", 0x00B6, "wparam", 0, "lparam", -1) ; EM_SETSEL to end DllCall("user32.dll", "lresult", "SendMessageW", "hwnd", $hEdit, "uint", 0x00B7, "wparam", 0, "lparam", 0) ; EM_SCROLLCARET EndFunc ;==>AddChat Func Cleanup() If $g_hSocket Then DisconnectFromServer() ; Shutdown GDI+ _GDIPlus_Shutdown() EndFunc ;==>Cleanup Func _GUICtrlEdit_Scroll($hWnd, $iDirection) DllCall("user32.dll", "lresult", "SendMessageW", "hwnd", GUICtrlGetHandle($hWnd), "uint", 0x00B5, "wparam", $iDirection, "lparam", 0) EndFunc ;==>_GUICtrlEdit_Scroll Func ApplyBackground($sImagePath) If $sImagePath = "" Or Not FileExists($sImagePath) Then AddChat("[BG] Background image not found: " & $sImagePath) Return False EndIf ; Simply set the image to the background picture control GUICtrlSetImage($g_hBackgroundPic, $sImagePath) $g_sCurrentBackground = $sImagePath AddChat("[BG] Background applied: " & StringRegExpReplace($sImagePath, ".*\\", "")) Return True EndFunc ;==>ApplyBackground Func WM_NOTIFY_EVENTS($hWnd, $iMsg, $wParam, $lParam) #forceref $hWnd, $iMsg, $wParam Local $tNMHDR = DllStructCreate("hwnd hWndFrom;uint_ptr IDFrom;int Code", $lParam) Local $hWndFrom = DllStructGetData($tNMHDR, "hWndFrom") Local $iCode = DllStructGetData($tNMHDR, "Code") ; Check if notification is from our ListView If $hWndFrom = GUICtrlGetHandle($g_hListViewUsers) Then ; Check for double-click event If $iCode = $NM_DBLCLK Then ; Get the selected item Local $iSelected = _GUICtrlListView_GetNextItem($g_hListViewUsers) If $iSelected >= 0 Then Local $sSocket = _GUICtrlListView_GetItemText($g_hListViewUsers, $iSelected, 0) Local $sDisplayName = _GUICtrlListView_GetItemText($g_hListViewUsers, $iSelected, 2) ; Pre-fill the input with private message command GUICtrlSetData($g_hInput, "/privmsg " & $sSocket & " ") GUICtrlSetState($g_hInput, $GUI_FOCUS) ; Show notification in chat AddChat("[System] Starting private message to: " & $sDisplayName & " (Socket: " & $sSocket & ")") EndIf EndIf EndIf Return $GUI_RUNDEFMSG EndFunc ;==>WM_NOTIFY_EVENTS Edited 2 hours ago by Trong Enjoy my work? Buy me a 🍻 or tip via ❤️ PayPal

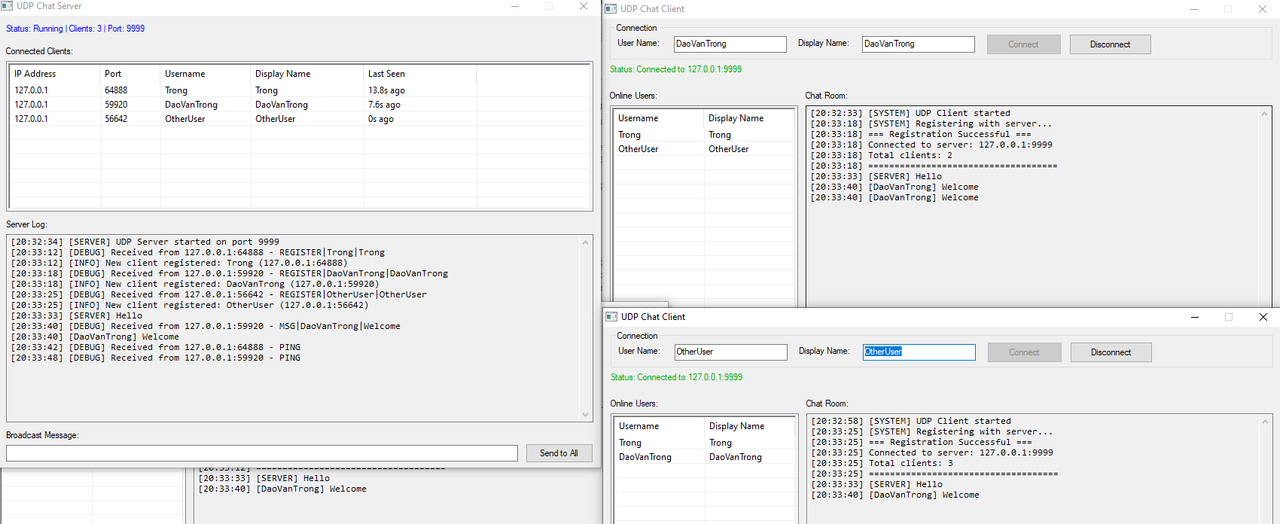

Trong Posted yesterday at 01:37 PM Author Posted yesterday at 01:37 PM (edited) UDP Chat Application Example 📋 Overview The UDP Chat Application demonstrates connectionless communication using the User Datagram Protocol (UDP). This lightweight example shows the fundamental differences between TCP and UDP, including the trade-offs between reliability and performance in real-time applications. 🎯 Features Server Features (EG_UDP_Server_Chat.au3) 📡 Connectionless Communication - No persistent connections required 👥 User Registration - Track active users via keep-alive mechanism 📢 Broadcast Messages - Relay messages to all registered users ⏱️ Automatic Timeout - Remove inactive users (60 seconds) 💓 Keep-Alive System - PING/PONG protocol for user tracking 📊 User List Management - Dynamic user list with timestamps 🔍 IP Tracking - Monitor user IP addresses and ports ⚡ High Performance - Minimal overhead, fast message delivery 📝 Activity Logging - Track registrations, messages, and timeouts Client Features (EG_UDP_Client_Chat.au3) 🖥️ Simple GUI - Lightweight chat interface 📝 User Registration - Register with username and display name 👀 Active User List - View currently registered users 💬 Public Chat - Send messages to all registered users 💓 Automatic Keep-Alive - Send PING every 30 seconds 🔄 No Connection Required - Start chatting immediately after registration ⚡ Low Latency - Instant message delivery 🎨 Minimal UI - Focus on functionality 🗂️ File Structure EG_UDP_Server_Chat.au3 - UDP chat server application EG_UDP_Client_Chat.au3 - UDP chat client application 🔌 Protocol Documentation Message Format All UDP messages use pipe-delimited format: COMMAND|param1|param2|... Client → Server Messages Command Format Description REGISTER REGISTER|username|display_name Register client with server MSG MSG|username|message Send broadcast message PING PING Keep-alive heartbeat Server → Client Messages Message Format Description WELCOME WELCOME|client_count Registration successful REJECTED REJECTED|reason Registration rejected (duplicate name) USERLIST USERLIST|count|user1|user2|... List of registered users MSG MSG|from_user|message Broadcast message from user PONG PONG Keep-alive response 🆚 TCP vs UDP Comparison UDP Characteristics Feature UDP TCP Connection Connectionless Connection-oriented Reliability No guarantee Guaranteed delivery Ordering No guarantee Ordered delivery Speed Faster Slower Overhead Lower Higher Use Case Real-time data Reliable data transfer When to Use UDP ✅ Good for: Real-time gaming Voice/video streaming Live sports scores Sensor data transmission Quick status updates Broadcast notifications ❌ Not suitable for: File transfers Financial transactions Email/messages requiring delivery Database operations Critical data synchronization 🚀 Getting Started Starting the Server Run the server: ; Open EG_UDP_Server_Chat.au3 and run it Configure settings (in source): Global Const $SERVER_PORT = 9999 ; Change port if needed Global Const $USER_TIMEOUT = 60000 ; User timeout (60 seconds) Server binds to: Default port: 9999 IP: 0.0.0.0 (all interfaces) Starting the Client Run the client: ; Open EG_UDP_Client_Chat.au3 and run it Configure connection (in source): Global Const $SERVER_IP = "127.0.0.1" ; Server IP Global Const $SERVER_PORT = 9999 ; Server port Global Const $PING_INTERVAL = 30000 ; Ping interval (30 sec) Register with server: Enter username (must be unique) Enter display name Click "Connect" Server responds with WELCOME or REJECTED 📝 Usage Examples Basic Chat Flow 1. Server Startup: ; Server starts and binds to UDP port [SERVER] UDP Event Server v1.0.0 started [SERVER] Listening on port 9999 2. Client Registration: ; Client sends REGISTER message Client → Server: REGISTER|john|John Doe ; Server responds Server → Client: WELCOME|1 [SYSTEM] Registered successfully! 1 user(s) online. 3. Sending Messages: ; Client sends message Client → Server: MSG|john|Hello everyone! ; Server broadcasts to all registered users Server → All Clients: MSG|John Doe|Hello everyone! [John Doe] Hello everyone! 4. Keep-Alive: ; Client automatically sends PING every 30 seconds Client → Server: PING ; Server responds Server → Client: PONG 5. User Timeout: ; If client doesn't send PING for 60 seconds [SERVER] User 'john' timed out (no activity for 60s) ; Server removes user from active list 🔧 Configuration Options Server Configuration ; Network Settings Global Const $SERVER_PORT = 9999 ; Timeout Settings Global Const $USER_TIMEOUT = 60000 ; 60 seconds of inactivity Global Const $CLEANUP_INTERVAL = 10000 ; Check every 10 seconds ; User Limits Global Const $MAX_USERS = 100 ; Maximum registered users ; Performance Global $g_bDebugMode = False ; Enable for troubleshooting Client Configuration ; Connection Global Const $SERVER_IP = "127.0.0.1" ; Server address Global Const $SERVER_PORT = 9999 ; Server port ; Keep-Alive Global Const $PING_INTERVAL = 30000 ; 30 seconds ; Debug Global $g_bDebugMode = False ; Troubleshooting mode 📊 Key Functions Used Server Functions _UDP_Startup() - Initialize UDP system _UDP_Bind($sIP, $iPort) - Bind to UDP port _UDP_RecvFrom($hSocket, $iMaxLen) - Receive UDP packet Returns: [data, source_ip, source_port] _UDP_SendTo($sIP, $iPort, $sData, $hSocket) - Send UDP packet _UDP_CloseSocket($hSocket) - Close UDP socket _UDP_Shutdown() - Cleanup UDP system Client Functions _UDP_Startup() - Initialize UDP system _UDP_Bind("0.0.0.0", 0) - Bind to any available port _UDP_SendTo($SERVER_IP, $SERVER_PORT, $sData, $hSocket) - Send to server _UDP_RecvFrom($hSocket, $iMaxLen) - Receive from server _UDP_CloseSocket($hSocket) - Close socket 🔄 Keep-Alive Mechanism The UDP chat uses a keep-alive system to track active users: Client Server | | |--- REGISTER|user|name ------>| | | |<-------- WELCOME|count ------| | | | | +-- Every 30 seconds --------->| | PING | | | |<-------- PONG ---------------| | | | | +-- Server checks every 10s -->+ | Remove users inactive | | for more than 60s | Why Keep-Alive is Necessary: UDP is connectionless, so the server has no way to know if a client is still active unless the client periodically sends messages. The keep-alive system: Client sends PING every 30 seconds - Proves it's still active Server timestamps each message - Tracks last activity Server checks every 10 seconds - Removes users with >60s inactivity Automatic cleanup - Maintains accurate user list 🐛 Troubleshooting Common Issues Messages not delivered: Expected behavior - UDP doesn't guarantee delivery Solution - Use TCP for critical messages Mitigation - Implement application-level acknowledgments Messages arrive out of order: Expected behavior - UDP doesn't guarantee ordering Solution - Use TCP for ordered communication Mitigation - Add sequence numbers to messages User list not updating: Check PING interval vs server timeout Ensure PING messages are being sent Verify network connectivity Check firewall settings Can't register with server: Verify server is running Check IP and port settings Ensure username is unique Look for REJECTED message High packet loss: Check network quality Reduce message frequency Use TCP for important data Consider smaller packet sizes Debug Mode Enable detailed logging: Global $g_bDebugMode = True This outputs all UDP packets sent and received for troubleshooting. 🎯 Performance Characteristics Benchmarks Latency: < 1ms on local network Throughput: 10,000+ messages/second possible Packet Size: Up to 65,507 bytes per datagram Typical Usage: 100-500 bytes per chat message Memory: ~5-10 MB for client/server CPU: Minimal (<1% under normal load) Scalability Max Users: Limited by network bandwidth Recommended: 50-100 simultaneous users Message Rate: 10-100 messages/second per server Network Load: ~1-2 KB/s per active user ⚠️ Limitations & Considerations UDP Limitations No Delivery Guarantee Messages may be lost No automatic retransmission Application must handle loss No Ordering Messages may arrive out of order Application must handle reordering if needed No Connection State Server doesn't know if client exists Must implement keep-alive mechanism Firewall Issues Some firewalls block UDP NAT traversal can be problematic Security Considerations No Built-in Encryption - UDP packets are plaintext Spoofing Risk - Source IP can be forged No Authentication - Only username-based identification Broadcast Nature - All users see all messages Recommendations for Production: Add message encryption Implement authentication tokens Use digital signatures Consider hybrid TCP/UDP approach 🔬 Advanced Topics Implementing Reliability Add application-level acknowledgments: ; Client sends with sequence number _UDP_SendTo($SERVER_IP, $SERVER_PORT, "MSG|" & $iSeqNum & "|" & $sMessage, $hSocket) ; Wait for ACK Local $hTimer = TimerInit() While TimerDiff($hTimer) < 1000 ; 1 second timeout $aRecv = _UDP_RecvFrom($hSocket, 4096) If Not @error And StringLeft($aRecv[0], 3) = "ACK" Then ; Message acknowledged ExitLoop EndIf Sleep(10) WEnd Message Ordering Add sequence numbers: ; Server side - add sequence number to broadcasts Global $g_iMessageSeq = 0 _UDP_SendTo($sIP, $iPort, "MSG|" & $g_iMessageSeq & "|" & $sFrom & "|" & $sMsg, $hSocket) $g_iMessageSeq += 1 ; Client side - sort by sequence number ; Store messages and display in order NAT Traversal For internet deployment: Use STUN servers to discover public IP Implement hole punching for peer-to-peer Use relay server when direct connection fails Consider WebRTC for browser compatibility 📚 Related Examples See TCP Chat Example for reliable, ordered communication See Lab Manager Example for TCP-based remote administration 🎓 Learning Objectives This example demonstrates: UDP fundamentals - Connectionless communication Datagram handling - Sending and receiving discrete packets Keep-alive systems - Tracking active clients without connections Trade-offs - Speed vs reliability decisions Real-time communication - Low-latency messaging State management - Maintaining state without connection 🤝 Contributing Potential improvements: Add reliability layer - Implement ACK/NACK system Message encryption - Add AES encryption Voice chat - Integrate audio streaming File transfer - Chunked file transmission Private rooms - Multiple chat rooms User status - Typing indicators, online status Note: This example is designed for educational purposes and low-stakes real-time communication. For mission-critical applications requiring guaranteed delivery, use the TCP Chat Example instead. UDP is excellent for scenarios where speed is more important than perfect reliability. Server: expandcollapse popup#Region ;**** Directives created by AutoIt3Wrapper_GUI **** #AutoIt3Wrapper_UseX64=y #AutoIt3Wrapper_Res_requestedExecutionLevel=requireAdministrator #EndRegion ;**** Directives created by AutoIt3Wrapper_GUI **** #NoTrayIcon ; ===== UDP EVENT SERVER v1.0 by Dao Van Trong - TRONG.PRO ===== ; Advanced UDP Server ; ; ===== PROTOCOL STRUCTURE ===== ; ; === CLIENT → SERVER MESSAGES === ; REGISTER|<username>|<display_name> - Register client with server ; MSG|<username>|<message> - Broadcast chat message ; PING - Keep-alive ping ; ; === SERVER → CLIENT MESSAGES === ; WELCOME|<client_count> - Registration successful ; REJECTED|<reason> - Registration rejected ; USERLIST|<count>|<user1>|<user2>... - List of registered users ; MSG|<from_user>|<message> - Broadcast message from user ; PONG - Ping response ; ; === UDP CHARACTERISTICS === ; - Connectionless: No persistent connection ; - No guaranteed delivery: Messages may be lost ; - No ordering: Messages may arrive out of order ; - Lightweight: Lower overhead than TCP ; - Stateless: Server tracks clients by IP:Port ; ; === CLIENT TRACKING === ; - Clients identified by IP:Port combination ; - Timeout after 60 seconds of inactivity ; - Automatic cleanup of inactive clients ; #include "WinSockUDF.au3" #include <GUIConstantsEx.au3> #include <GuiListView.au3> #include <EditConstants.au3> #include <WindowsConstants.au3> ; Configuration Global Const $SERVER_PORT = 9999 Global Const $CLIENT_TIMEOUT = 60000 ; 60 seconds ; Server state Global $g_hSocket = 0 Global $g_aClients[1][5] ; [count][ip, port, username, displayname, last_seen] $g_aClients[0][0] = 0 ; GUI controls Global $g_hGUI, $g_hListView, $g_hEditLog, $g_hInput, $g_hBtnSend, $g_hStatus Global $g_iServerStartTime = 0 ; Performance optimization Global $g_bDebugMode = True ; Set to False to disable debug logs _UDP_Startup() CreateGUI() ; Start UDP server $g_hSocket = _UDP_Bind("0.0.0.0", $SERVER_PORT) If $g_hSocket = -1 Then MsgBox(16, "Error", "Failed to bind UDP socket on port " & $SERVER_PORT) Exit EndIf $g_iServerStartTime = TimerInit() AddLog("[SERVER] UDP Server started on port " & $SERVER_PORT) GUICtrlSetData($g_hStatus, "Status: Running on port " & $SERVER_PORT) ; Main loop While True Switch GUIGetMsg() Case $GUI_EVENT_CLOSE Cleanup() Exit Case $g_hBtnSend SendBroadcastMessage() EndSwitch ; Receive UDP packets Local $aRecv = _UDP_RecvFrom($g_hSocket, 4096) If Not @error And IsArray($aRecv) Then HandleClientMessage($aRecv[1], $aRecv[2], $aRecv[0]) EndIf ; Cleanup inactive clients CleanupInactiveClients() Sleep(10) WEnd Func CreateGUI() $g_hGUI = GUICreate("UDP Chat Server", 800, 600) ; Status $g_hStatus = GUICtrlCreateLabel("Status: Starting...", 10, 10, 780, 20) GUICtrlSetColor(-1, 0x0000FF) ; Client list GUICtrlCreateLabel("Connected Clients:", 10, 40, 200, 20) $g_hListView = GUICtrlCreateListView("IP Address|Port|Username|Display Name|Last Seen", 10, 60, 780, 200, _ BitOR($LVS_REPORT, $LVS_SHOWSELALWAYS), _ BitOR($WS_EX_CLIENTEDGE, $LVS_EX_FULLROWSELECT, $LVS_EX_GRIDLINES)) _GUICtrlListView_SetColumnWidth($g_hListView, 0, 120) _GUICtrlListView_SetColumnWidth($g_hListView, 1, 80) _GUICtrlListView_SetColumnWidth($g_hListView, 2, 120) _GUICtrlListView_SetColumnWidth($g_hListView, 3, 150) _GUICtrlListView_SetColumnWidth($g_hListView, 4, 150) ; Server log GUICtrlCreateLabel("Server Log:", 10, 270, 200, 20) $g_hEditLog = GUICtrlCreateEdit("", 10, 290, 780, 250, BitOR($ES_READONLY, $ES_MULTILINE, $WS_VSCROLL, $ES_AUTOVSCROLL)) GUICtrlSetFont($g_hEditLog, 9, 400, 0, "Consolas") ; Broadcast message GUICtrlCreateLabel("Broadcast Message:", 10, 550, 150, 20) $g_hInput = GUICtrlCreateInput("", 10, 570, 680, 22) $g_hBtnSend = GUICtrlCreateButton("Send to All", 700, 568, 90, 26) GUISetState(@SW_SHOW) EndFunc ;==>CreateGUI Func HandleClientMessage($sIP, $iPort, $sData) $sData = StringStripWS($sData, 3) If $sData = "" Then Return Local $aCmd = StringSplit($sData, "|", 2) Local $sCommand = $aCmd[0] If $g_bDebugMode Then AddLog("[DEBUG] Received from " & $sIP & ":" & $iPort & " - " & StringLeft($sData, 80)) EndIf Switch $sCommand Case "REGISTER" If UBound($aCmd) >= 3 Then Local $sUserName = $aCmd[1] Local $sDisplayName = $aCmd[2] ; Check if already registered Local $iIdx = FindClient($sIP, $iPort) If $iIdx > 0 Then ; Update existing client $g_aClients[$iIdx][2] = $sUserName $g_aClients[$iIdx][3] = $sDisplayName $g_aClients[$iIdx][4] = TimerInit() AddLog("[INFO] Client updated: " & $sUserName & " (" & $sIP & ":" & $iPort & ")") Else ; Check for duplicate username If FindClientByUsername($sUserName) > 0 Then _UDP_SendTo($sIP, $iPort, "REJECTED|Username already in use", $g_hSocket) AddLog("[WARN] Registration rejected - duplicate username: " & $sUserName) Return EndIf ; Add new client $g_aClients[0][0] += 1 ReDim $g_aClients[$g_aClients[0][0] + 1][5] $g_aClients[$g_aClients[0][0]][0] = $sIP $g_aClients[$g_aClients[0][0]][1] = $iPort $g_aClients[$g_aClients[0][0]][2] = $sUserName $g_aClients[$g_aClients[0][0]][3] = $sDisplayName $g_aClients[$g_aClients[0][0]][4] = TimerInit() AddLog("[INFO] New client registered: " & $sUserName & " (" & $sIP & ":" & $iPort & ")") EndIf ; Send welcome message _UDP_SendTo($sIP, $iPort, "WELCOME|" & $g_aClients[0][0], $g_hSocket) ; Update GUI and broadcast user list UpdateClientList() BroadcastUserList() EndIf Case "MSG" If UBound($aCmd) >= 3 Then Local $sUserName = $aCmd[1] Local $sMessage = $aCmd[2] ; Verify sender Local $iIdx = FindClient($sIP, $iPort) If $iIdx > 0 Then $g_aClients[$iIdx][4] = TimerInit() ; Update last seen AddLog("[" & $sUserName & "] " & $sMessage) ; Broadcast to all clients Local $sBroadcast = "MSG|" & $sUserName & "|" & $sMessage For $i = 1 To $g_aClients[0][0] _UDP_SendTo($g_aClients[$i][0], $g_aClients[$i][1], $sBroadcast, $g_hSocket) Next EndIf EndIf Case "PING" ; Update last seen and respond Local $iIdx = FindClient($sIP, $iPort) If $iIdx > 0 Then $g_aClients[$iIdx][4] = TimerInit() _UDP_SendTo($sIP, $iPort, "PONG", $g_hSocket) EndIf Case Else AddLog("[WARN] Unknown command from " & $sIP & ":" & $iPort & " - " & $sCommand) EndSwitch EndFunc ;==>HandleClientMessage Func FindClient($sIP, $iPort) For $i = 1 To $g_aClients[0][0] If $g_aClients[$i][0] = $sIP And $g_aClients[$i][1] = $iPort Then Return $i EndIf Next Return 0 EndFunc ;==>FindClient Func FindClientByUsername($sUserName) For $i = 1 To $g_aClients[0][0] If $g_aClients[$i][2] = $sUserName Then Return $i EndIf Next Return 0 EndFunc ;==>FindClientByUsername Func CleanupInactiveClients() Local $iNow = TimerInit() For $i = $g_aClients[0][0] To 1 Step -1 If TimerDiff($g_aClients[$i][4]) > $CLIENT_TIMEOUT Then AddLog("[INFO] Client timeout: " & $g_aClients[$i][2] & " (" & $g_aClients[$i][0] & ":" & $g_aClients[$i][1] & ")") RemoveClient($i) EndIf Next EndFunc ;==>CleanupInactiveClients Func RemoveClient($iIdx) If $iIdx < 1 Or $iIdx > $g_aClients[0][0] Then Return ; Shift array For $i = $iIdx To $g_aClients[0][0] - 1 $g_aClients[$i][0] = $g_aClients[$i + 1][0] $g_aClients[$i][1] = $g_aClients[$i + 1][1] $g_aClients[$i][2] = $g_aClients[$i + 1][2] $g_aClients[$i][3] = $g_aClients[$i + 1][3] $g_aClients[$i][4] = $g_aClients[$i + 1][4] Next $g_aClients[0][0] -= 1 ReDim $g_aClients[$g_aClients[0][0] + 1][5] UpdateClientList() BroadcastUserList() EndFunc ;==>RemoveClient Func UpdateClientList() _GUICtrlListView_DeleteAllItems($g_hListView) For $i = 1 To $g_aClients[0][0] Local $sLastSeen = Round(TimerDiff($g_aClients[$i][4]) / 1000, 1) & "s ago" _GUICtrlListView_AddItem($g_hListView, $g_aClients[$i][0]) _GUICtrlListView_AddSubItem($g_hListView, $i - 1, $g_aClients[$i][1], 1) _GUICtrlListView_AddSubItem($g_hListView, $i - 1, $g_aClients[$i][2], 2) _GUICtrlListView_AddSubItem($g_hListView, $i - 1, $g_aClients[$i][3], 3) _GUICtrlListView_AddSubItem($g_hListView, $i - 1, $sLastSeen, 4) Next GUICtrlSetData($g_hStatus, "Status: Running | Clients: " & $g_aClients[0][0] & " | Port: " & $SERVER_PORT) EndFunc ;==>UpdateClientList Func BroadcastUserList() Local $sUserList = "USERLIST|" & $g_aClients[0][0] For $i = 1 To $g_aClients[0][0] $sUserList &= "|" & $g_aClients[$i][2] & ":" & $g_aClients[$i][3] Next For $i = 1 To $g_aClients[0][0] _UDP_SendTo($g_aClients[$i][0], $g_aClients[$i][1], $sUserList, $g_hSocket) Next EndFunc ;==>BroadcastUserList Func SendBroadcastMessage() Local $sMsg = GUICtrlRead($g_hInput) If $sMsg = "" Then Return AddLog("[SERVER] " & $sMsg) Local $sBroadcast = "MSG|SERVER|" & $sMsg For $i = 1 To $g_aClients[0][0] _UDP_SendTo($g_aClients[$i][0], $g_aClients[$i][1], $sBroadcast, $g_hSocket) Next GUICtrlSetData($g_hInput, "") EndFunc ;==>SendBroadcastMessage Func AddLog($sText) Local $sCurrent = GUICtrlRead($g_hEditLog) Local $sTime = @HOUR & ":" & @MIN & ":" & @SEC GUICtrlSetData($g_hEditLog, $sCurrent & "[" & $sTime & "] " & $sText & @CRLF) ; Auto-scroll to bottom Local $hEdit = GUICtrlGetHandle($g_hEditLog) DllCall("user32.dll", "lresult", "SendMessageW", "hwnd", $hEdit, "uint", 0x00B6, "wparam", 0, "lparam", -1) DllCall("user32.dll", "lresult", "SendMessageW", "hwnd", $hEdit, "uint", 0x00B7, "wparam", 0, "lparam", 0) EndFunc ;==>AddLog Func Cleanup() If $g_hSocket Then _UDP_CloseSocket($g_hSocket) $g_hSocket = 0 EndIf _UDP_Shutdown() AddLog("[SERVER] Server stopped") EndFunc ;==>Cleanup Client: expandcollapse popup#Region ;**** Directives created by AutoIt3Wrapper_GUI **** #AutoIt3Wrapper_UseX64=y #AutoIt3Wrapper_Res_requestedExecutionLevel=requireAdministrator #EndRegion ;**** Directives created by AutoIt3Wrapper_GUI **** #NoTrayIcon ; ===== UDP EVENT CLIENT v1.0 by Dao Van Trong - TRONG.PRO ===== ; Advanced UDP Client ; ; ===== PROTOCOL STRUCTURE ===== ; ; === CLIENT → SERVER MESSAGES === ; REGISTER|<username>|<display_name> - Register client with server ; MSG|<username>|<message> - Broadcast chat message ; PING - Keep-alive ping ; ; === SERVER → CLIENT MESSAGES === ; WELCOME|<client_count> - Registration successful ; REJECTED|<reason> - Registration rejected ; USERLIST|<count>|<user1>|<user2>... - List of registered users ; MSG|<from_user>|<message> - Broadcast message from user ; PONG - Ping response ; ; === UDP CHARACTERISTICS === ; - Connectionless: No persistent connection ; - No guaranteed delivery: Messages may be lost ; - No ordering: Messages may arrive out of order ; - Lightweight: Lower overhead than TCP ; - Best for: Real-time applications where speed > reliability ; ; === KEEP-ALIVE MECHANISM === ; - Client sends PING every 30 seconds ; - Server tracks last seen timestamp ; - Server removes clients after 60 seconds of inactivity ; #include "WinSockUDF.au3" #include <GUIConstantsEx.au3> #include <GuiListView.au3> #include <EditConstants.au3> #include <WindowsConstants.au3> ; Configuration Global Const $SERVER_IP = "127.0.0.1" Global Const $SERVER_PORT = 9999 Global Const $PING_INTERVAL = 30000 ; 30 seconds ; Client state Global $g_hSocket = 0 Global $g_sUserName = "" Global $g_sDisplayName = "" Global $g_bRegistered = False Global $g_iLastPing = 0 Global $g_aUserList[1][2] ; [count][username, displayname] $g_aUserList[0][0] = 0 ; GUI controls Global $g_hGUI, $g_hInputUserName, $g_hInputDisplayName, $g_hBtnConnect, $g_hBtnDisconnect Global $g_hListViewUsers, $g_hEditChat, $g_hInput, $g_hBtnSend, $g_hStatus ; Performance optimization Global $g_bDebugMode = False ; Set to True to enable debug logs _UDP_Startup() CreateGUI() ; Bind local UDP socket $g_hSocket = _UDP_Bind("0.0.0.0", 0) ; Bind to any available port If $g_hSocket = -1 Then MsgBox(16, "Error", "Failed to create UDP socket") Exit EndIf AddChat("[SYSTEM] UDP Client started") ; Main loop While True Switch GUIGetMsg() Case $GUI_EVENT_CLOSE Cleanup() Exit Case $g_hBtnConnect ConnectToServer() Case $g_hBtnDisconnect DisconnectFromServer() Case $g_hBtnSend SendMessage() EndSwitch ; Receive UDP packets If $g_bRegistered Then Local $aRecv = _UDP_RecvFrom($g_hSocket, 4096) If Not @error And IsArray($aRecv) Then HandleServerMessage($aRecv[0]) EndIf ; Send periodic ping If TimerDiff($g_iLastPing) > $PING_INTERVAL Then _UDP_SendTo($SERVER_IP, $SERVER_PORT, "PING", $g_hSocket) $g_iLastPing = TimerInit() EndIf EndIf Sleep(10) WEnd Func CreateGUI() $g_hGUI = GUICreate("UDP Chat Client", 900, 600) ; Connection Panel GUICtrlCreateGroup("Connection", 10, 5, 880, 50) GUICtrlCreateLabel("User Name:", 20, 25, 70, 20) $g_hInputUserName = GUICtrlCreateInput(@UserName, 95, 23, 150, 22) GUICtrlCreateLabel("Display Name:", 260, 25, 80, 20) $g_hInputDisplayName = GUICtrlCreateInput(@UserName, 345, 23, 150, 22) $g_hBtnConnect = GUICtrlCreateButton("Connect", 510, 20, 100, 28) $g_hBtnDisconnect = GUICtrlCreateButton("Disconnect", 620, 20, 110, 28) GUICtrlSetState($g_hBtnDisconnect, $GUI_DISABLE) GUICtrlCreateGroup("", -99, -99, 1, 1) ; Status $g_hStatus = GUICtrlCreateLabel("Status: Not Connected", 10, 60, 860, 30) GUICtrlSetColor(-1, 0xFF0000) ; Main Layout: Users List + Chat Area GUICtrlCreateLabel("Online Users:", 10, 95, 200, 20) $g_hListViewUsers = GUICtrlCreateListView("Username|Display Name", 10, 115, 250, 380, _ BitOR($LVS_REPORT, $LVS_SHOWSELALWAYS, $LVS_SINGLESEL), _ BitOR($WS_EX_CLIENTEDGE, $LVS_EX_FULLROWSELECT, $LVS_EX_GRIDLINES)) _GUICtrlListView_SetColumnWidth($g_hListViewUsers, 0, 120) _GUICtrlListView_SetColumnWidth($g_hListViewUsers, 1, 120) GUICtrlCreateLabel("Chat Room:", 270, 95, 200, 20) $g_hEditChat = GUICtrlCreateEdit("", 270, 115, 620, 380, BitOR($ES_READONLY, $ES_MULTILINE, $WS_VSCROLL, $ES_AUTOVSCROLL)) GUICtrlSetFont($g_hEditChat, 9, 400, 0, "Consolas") ; Input Area GUICtrlCreateLabel("Message:", 10, 505, 60, 20) $g_hInput = GUICtrlCreateInput("", 10, 525, 780, 25) GUICtrlSetState($g_hInput, $GUI_DISABLE) $g_hBtnSend = GUICtrlCreateButton("Send", 800, 523, 90, 28) GUICtrlSetState($g_hBtnSend, $GUI_DISABLE) GUISetState(@SW_SHOW) EndFunc ;==>CreateGUI Func ConnectToServer() $g_sUserName = GUICtrlRead($g_hInputUserName) $g_sDisplayName = GUICtrlRead($g_hInputDisplayName) If $g_sUserName = "" Or $g_sDisplayName = "" Then MsgBox(48, "Warning", "Please enter both username and display name") Return EndIf ; Send registration Local $sRegister = "REGISTER|" & $g_sUserName & "|" & $g_sDisplayName _UDP_SendTo($SERVER_IP, $SERVER_PORT, $sRegister, $g_hSocket) AddChat("[SYSTEM] Registering with server...") GUICtrlSetData($g_hStatus, "Status: Registering...") GUICtrlSetColor($g_hStatus, 0x0000FF) ; Wait for response (simple timeout) Local $iTimeout = TimerInit() While TimerDiff($iTimeout) < 5000 Local $aRecv = _UDP_RecvFrom($g_hSocket, 4096) If Not @error And IsArray($aRecv) Then HandleServerMessage($aRecv[0]) If $g_bRegistered Then ExitLoop EndIf Sleep(10) WEnd If Not $g_bRegistered Then AddChat("[ERROR] Registration timeout - server not responding") GUICtrlSetData($g_hStatus, "Status: Connection Failed") GUICtrlSetColor($g_hStatus, 0xFF0000) EndIf EndFunc ;==>ConnectToServer Func DisconnectFromServer() $g_bRegistered = False $g_sUserName = "" $g_sDisplayName = "" AddChat("[SYSTEM] Disconnected from server") GUICtrlSetData($g_hStatus, "Status: Disconnected") GUICtrlSetColor($g_hStatus, 0xFF0000) GUICtrlSetState($g_hBtnConnect, $GUI_ENABLE) GUICtrlSetState($g_hBtnDisconnect, $GUI_DISABLE) GUICtrlSetState($g_hInput, $GUI_DISABLE) GUICtrlSetState($g_hBtnSend, $GUI_DISABLE) _GUICtrlListView_DeleteAllItems($g_hListViewUsers) EndFunc ;==>DisconnectFromServer Func HandleServerMessage($sData) $sData = StringStripWS($sData, 3) If $sData = "" Then Return Local $aCmd = StringSplit($sData, "|", 2) Local $sCommand = $aCmd[0] If $g_bDebugMode Then AddChat("[DEBUG] Received: " & StringLeft($sData, 80)) EndIf Switch $sCommand Case "WELCOME" If UBound($aCmd) >= 2 Then Local $iClientCount = Int($aCmd[1]) $g_bRegistered = True $g_iLastPing = TimerInit() AddChat("=== Registration Successful ===") AddChat("Connected to server: " & $SERVER_IP & ":" & $SERVER_PORT) AddChat("Total clients: " & $iClientCount) AddChat("====================================") GUICtrlSetData($g_hStatus, "Status: Connected to " & $SERVER_IP & ":" & $SERVER_PORT) GUICtrlSetColor($g_hStatus, 0x00AA00) GUICtrlSetState($g_hBtnConnect, $GUI_DISABLE) GUICtrlSetState($g_hBtnDisconnect, $GUI_ENABLE) GUICtrlSetState($g_hInput, $GUI_ENABLE) GUICtrlSetState($g_hBtnSend, $GUI_ENABLE) EndIf Case "REJECTED" Local $sReason = UBound($aCmd) >= 2 ? $aCmd[1] : "Unknown" AddChat("=== Registration Rejected ===") AddChat("Reason: " & $sReason) GUICtrlSetData($g_hStatus, "Status: Rejected - " & $sReason) GUICtrlSetColor($g_hStatus, 0xFF0000) Case "USERLIST" If UBound($aCmd) >= 2 Then Local $iCount = Int($aCmd[1]) _GUICtrlListView_DeleteAllItems($g_hListViewUsers) ReDim $g_aUserList[$iCount + 1][2] $g_aUserList[0][0] = $iCount For $i = 2 To UBound($aCmd) - 1 Local $aUser = StringSplit($aCmd[$i], ":", 2) If UBound($aUser) >= 2 Then Local $idx = $i - 1 $g_aUserList[$idx][0] = $aUser[0] ; Username $g_aUserList[$idx][1] = $aUser[1] ; DisplayName ; Don't show self in list If $aUser[0] <> $g_sUserName Then _GUICtrlListView_AddItem($g_hListViewUsers, $aUser[0]) _GUICtrlListView_AddSubItem($g_hListViewUsers, _GUICtrlListView_GetItemCount($g_hListViewUsers) - 1, $aUser[1], 1) EndIf EndIf Next EndIf Case "MSG" If UBound($aCmd) >= 3 Then Local $sFromUser = $aCmd[1] Local $sMessage = $aCmd[2] AddChat("[" & $sFromUser & "] " & $sMessage) EndIf Case "PONG" ; Ping response received If $g_bDebugMode Then AddChat("[DEBUG] PONG received") EndIf Case Else AddChat("[Server] " & $sData) EndSwitch EndFunc ;==>HandleServerMessage Func SendMessage() Local $sMsg = GUICtrlRead($g_hInput) If $sMsg = "" Then Return If Not $g_bRegistered Then AddChat("[ERROR] Not connected to server") Return EndIf ; Send message to server Local $sData = "MSG|" & $g_sUserName & "|" & $sMsg _UDP_SendTo($SERVER_IP, $SERVER_PORT, $sData, $g_hSocket) AddChat("[" & $g_sUserName & "] " & $sMsg) GUICtrlSetData($g_hInput, "") EndFunc ;==>SendMessage Func AddChat($sText) Local $sCurrent = GUICtrlRead($g_hEditChat) Local $sTime = @HOUR & ":" & @MIN & ":" & @SEC GUICtrlSetData($g_hEditChat, $sCurrent & "[" & $sTime & "] " & $sText & @CRLF) ; Auto-scroll to bottom Local $hEdit = GUICtrlGetHandle($g_hEditChat) DllCall("user32.dll", "lresult", "SendMessageW", "hwnd", $hEdit, "uint", 0x00B6, "wparam", 0, "lparam", -1) DllCall("user32.dll", "lresult", "SendMessageW", "hwnd", $hEdit, "uint", 0x00B7, "wparam", 0, "lparam", 0) EndFunc ;==>AddChat Func Cleanup() If $g_bRegistered Then DisconnectFromServer() EndIf If $g_hSocket Then _UDP_CloseSocket($g_hSocket) $g_hSocket = 0 EndIf _UDP_Shutdown() EndFunc ;==>Cleanup Edited 2 hours ago by Trong Enjoy my work? Buy me a 🍻 or tip via ❤️ PayPal
Gianni Posted 16 hours ago Posted 16 hours ago (edited) where is the WinSockUDF.au3 file? Thanks ... found it ... sorry Edited 16 hours ago by Gianni Chimp small minds discuss people average minds discuss events great minds discuss ideas.... and use AutoIt....
WildByDesign Posted 3 hours ago Posted 3 hours ago @Trong None of the text in the first 4 posts of this thread are readable. The text is the same color as the forum background.
water Posted 2 hours ago Posted 2 hours ago Do you run the "AutoIt (Dark)" theme? The dark mode caused the unreadable text. WildByDesign 1 My UDFs and Tutorials: Spoiler UDFs: Active Directory (NEW 2024-07-28 - Version 1.6.3.0) - Download - General Help & Support - Example Scripts - Wiki ExcelChart (2017-07-21 - Version 0.4.0.1) - Download - General Help & Support - Example Scripts OutlookEX (2021-11-16 - Version 1.7.0.0) - Download - General Help & Support - Example Scripts - Wiki OutlookEX_GUI (2021-04-13 - Version 1.4.0.0) - Download Outlook Tools (2019-07-22 - Version 0.6.0.0) - Download - General Help & Support - Wiki PowerPoint (2021-08-31 - Version 1.5.0.0) - Download - General Help & Support - Example Scripts - Wiki Task Scheduler (2022-07-28 - Version 1.6.0.1) - Download - General Help & Support - Wiki Standard UDFs: Excel - Example Scripts - Wiki Word - Wiki Tutorials: ADO - Wiki WebDriver - Wiki
argumentum Posted 2 hours ago Posted 2 hours ago (edited) 4 minutes ago, water said: The dark mode caused the unreadable text. Poor coding does 10 minutes ago, WildByDesign said: None of the text in the first 4 posts of this thread are readable. Change what you need 🤯 Edited 2 hours ago by argumentum WildByDesign 1 Follow the link to my code contribution ( and other things too ). FAQ - Please Read Before Posting.
WildByDesign Posted 2 hours ago Posted 2 hours ago 2 minutes ago, water said: Do you run the "AutoIt (Dark)" theme? The dark mode caused the unreadable text. Yes, you're right it is the theme that I've chosen in the forum. But I think that using a custom text color in a forum post is probably not a good choice though. I don't want to have to change the forum theme just to read certain posts. And this is actually a first that I've ever seen this happen.

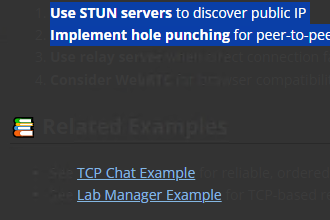

water Posted 2 hours ago Posted 2 hours ago (edited) Workaround: Use Ctrl+a to select all text of the page and make it readable Edited 2 hours ago by water WildByDesign 1 My UDFs and Tutorials: Spoiler UDFs: Active Directory (NEW 2024-07-28 - Version 1.6.3.0) - Download - General Help & Support - Example Scripts - Wiki ExcelChart (2017-07-21 - Version 0.4.0.1) - Download - General Help & Support - Example Scripts OutlookEX (2021-11-16 - Version 1.7.0.0) - Download - General Help & Support - Example Scripts - Wiki OutlookEX_GUI (2021-04-13 - Version 1.4.0.0) - Download Outlook Tools (2019-07-22 - Version 0.6.0.0) - Download - General Help & Support - Wiki PowerPoint (2021-08-31 - Version 1.5.0.0) - Download - General Help & Support - Example Scripts - Wiki Task Scheduler (2022-07-28 - Version 1.6.0.1) - Download - General Help & Support - Wiki Standard UDFs: Excel - Example Scripts - Wiki Word - Wiki Tutorials: ADO - Wiki WebDriver - Wiki
argumentum Posted 2 hours ago Posted 2 hours ago .... ok @WildByDesign, good luck ? If you're gonna go "hard core dark mode" you're gonna have to "fix" those on your own. Follow the link to my code contribution ( and other things too ). FAQ - Please Read Before Posting.
argumentum Posted 2 hours ago Posted 2 hours ago That is how I see it. Hence my previous posts. I use Dark Reader extension. WildByDesign 1 Follow the link to my code contribution ( and other things too ). FAQ - Please Read Before Posting.
WildByDesign Posted 2 hours ago Posted 2 hours ago 2 minutes ago, argumentum said: If you're gonna go "hard core dark mode" you're gonna have to "fix" those on your own. I understand what you mean. And of course, I did end up selecting all of the text to read it on the day that it was originally posted. It's great content and great contribution with this UDF. But it was difficult to read when highlighted like that. I wouldn't really say it's "hard core dark mode" though because it isn't anything that was manually modified on the OS or browser level. It was just one of several themes that come with the forum software itself. These are all defaults that should just work. Also, it is the only thread/post on here that I have ever seen that is done this way. I assume that the problem is it's using some sort of copy/pasted HTML colors or custom text color of some sort. Things should really just follow what the OS/browser/forum software is set to. I just wanted to apologize though because I do not want to take away from @Trong's post and contributions which I am very thankful for. From my perspective, it is just a suggestion the ensure that things are readable by default. I will check out the Dark Reader extension as well. But it's still jumping through extra hoops to read something that should be readable initially.
argumentum Posted 2 hours ago Posted 2 hours ago (edited) 16 minutes ago, WildByDesign said: But it's still jumping through extra hoops to read something that should be readable initially. If this forum had better themes and more formatting options I would agree but unfortunately none of that is there and a user is somewhat limited. On the other hand this post was formatted by AI and he just pasted it. Maybe pasting without formatting would do what you ask but would loose much of it's nice looking presentation. P.S.: It suck to come from the future @WildByDesign and having to wait for the past to catch up Edited 2 hours ago by argumentum WildByDesign 1 Follow the link to my code contribution ( and other things too ). FAQ - Please Read Before Posting.
Trong Posted 1 hour ago Author Posted 1 hour ago It was all my fault, I fixed it! I didn't know that the dark theme of the forum didn't invert the text colors (it seems unintelligent) Thank you all for your feedback argumentum and WildByDesign 2 Enjoy my work? Buy me a 🍻 or tip via ❤️ PayPal
WildByDesign Posted 1 hour ago Posted 1 hour ago 10 minutes ago, Trong said: It was all my fault, I fixed it! I didn't know that the dark theme of the forum didn't invert the text colors (it seems unintelligent) Everything looks great now and very well organized. Thank you so much.
argumentum Posted 1 hour ago Posted 1 hour ago Forum in dark theme: vs. Dark Reader extension: So yeah, I use the default forum theme with the DarkReader extension that does what @Trong say the forum should have done for it's dark theme. 🤷♂️ Follow the link to my code contribution ( and other things too ). FAQ - Please Read Before Posting.
