Yashied

Display (on the fly) a directory tree in a TreeView

11 posts in this topic

#1 ·  Posted (edited)

This is just an example. Note, library required.

:x

#Include <GUIConstantsEx.au3>
#Include <GUIImageList.au3>
#Include <GUITreeView.au3>
#Include <TreeViewConstants.au3>
#Include <WindowsConstants.au3>
#Include <WinAPIEx.au3>

Opt('MustDeclareVars', 1)

Global $hForm, $hTreeView, $hImageList, $hItem, $hNext, $hSelect = 0, $hInput, $Input, $Dummy1, $Dummy2
Global $X, $Y, $sPath, $sRoot = @HomeDrive

$hForm = GUICreate('MyGUI', 600, 600)
$Input = GUICtrlCreateInput('', 20, 20, 560, 19)
$hInput = GUICtrlGetHandle(-1)
GUICtrlSetState(-1, $GUI_DISABLE)
GUICtrlCreateTreeView(20, 50, 560, 530, -1, $WS_EX_CLIENTEDGE)
$hTreeView = GUICtrlGetHandle(-1)
$Dummy1 = GUICtrlCreateDummy()
$Dummy2 = GUICtrlCreateDummy()

If _WinAPI_GetVersion() >= '6.0' Then
    _WinAPI_SetWindowTheme($hTreeView, 'Explorer')
EndIf

$hImageList = _GUIImageList_Create(16, 16, 5, 1)
_GUIImageList_AddIcon($hImageList, @SystemDir & '\shell32.dll', 3)
_GUIImageList_AddIcon($hImageList, @SystemDir & '\shell32.dll', 4)
_GUICtrlTreeView_SetNormalImageList($hTreeView, $hImageList)
$sRoot = StringRegExpReplace($sRoot, '\\+\Z', '')
$sPath = StringRegExpReplace($sRoot, '^.*\\', '')
If StringInStr($sPath, ':') Then
    $sRoot &= '\'
    $sPath &= '\'
EndIf

;_GUICtrlTreeView_BeginUpdate($hTreeView)
_TVUpdate($hTreeView, _GUICtrlTreeView_AddChild($hTreeView, 0, $sPath, 0, 0))
;_GUICtrlTreeView_EndUpdate($hTreeView)

GUIRegisterMsg($WM_NOTIFY, 'WM_NOTIFY')
GUISetState()

_GUICtrlTreeView_Expand($hTreeView, _GUICtrlTreeView_GetFirstItem($hTreeView))

While 1
    Switch GUIGetMsg()
        Case $GUI_EVENT_CLOSE
            Exit
        Case $Dummy1 ; Update
            GUISetCursor(1, 1)
            $hItem = _GUICtrlTreeView_GetFirstChild($hTreeView, GUICtrlRead($Dummy1))
            If $hItem Then
                While $hItem
                    $hNext = _GUICtrlTreeView_GetNextSibling($hTreeView, $hItem)
                    If Not _TVUpdate($hTreeView, $hItem) Then
                        _GUICtrlTreeView_Delete($hTreeView, $hItem)
                    EndIf
                    $hItem = $hNext
                WEnd
                _WinAPI_RedrawWindow($hTreeView)
            EndIf
            GUISetCursor(2, 0)
        Case $Dummy2 ; Menu
            $hItem = GUICtrlRead($Dummy2)
            $sPath = _TVGetPath($hTreeView, $hItem, $sRoot)

            ConsoleWrite('-------------------------------' & @CR)
            ConsoleWrite('Handle: ' & $hItem & @CR)
            ConsoleWrite('Path:   ' & $sPath & @CR)
            If _WinAPI_PathIsDirectory($sPath) Then
                ConsoleWrite('Type:   ' & 'Directory' & @CR)
            Else
                ConsoleWrite('Type:   ' & 'File' & @CR)
            EndIf
            ConsoleWrite('X:      ' & MouseGetPos(0) & @CR)
            ConsoleWrite('Y:      ' & MouseGetPos(1) & @CR)
            ConsoleWrite('-------------------------------' & @CR)

    EndSwitch
WEnd

Func _TVGetPath($hTV, $hItem, $sRoot)

    Local $Path = StringRegExpReplace(_GUICtrlTreeView_GetTree($hTV, $hItem), '([|]+)|(\\[|])', '\\')

    If Not $Path Then
        Return ''
    EndIf
    If Not StringInStr($Path, ':') Then
        Return StringRegExpReplace($sRoot, '(\\[^\\]*(\\|)+)\Z', '\\') & $Path
    EndIf
    Return $Path
EndFunc   ;==>_TVGetPath

Func _TVSetPath($hTV, $hItem, $sRoot)
    GUICtrlSetData($Input, _WinAPI_PathCompactPath($hInput, _TVGetPath($hTV, $hItem, $sRoot), 554))
    $hSelect = $hItem
EndFunc   ;==>_TVSetPath

Func _TVUpdate($hTV, $hItem)

    Local $hImageList = _SendMessage($hTV, $TVM_GETIMAGELIST)
    Local $Path = StringRegExpReplace(_TVGetPath($hTV, $hItem, $sRoot), '\\+\Z', '')
    Local $hSearch, $hIcon, $Index, $File

    $hSearch = FileFindFirstFile($Path & '\*')
    If $hSearch = -1 Then
        If Not @error Then
            If FileExists($Path) Then
;               If _WinAPI_PathIsDirectory($Path) Then
;                   ; Access denied
;               EndIf
            Else
                Return 0
            EndIf
        EndIf
    Else
        While 1
            $File = FileFindNextFile($hSearch)
            If @error Then
                ExitLoop
            EndIf
            If @extended Then
                _GUICtrlTreeView_AddChild($hTV, $hItem, $File, 0, 0)
            EndIf
        WEnd
        FileClose($hSearch)
    EndIf
    $hSearch = FileFindFirstFile($Path & '\*')
    If $hSearch = -1 Then

    Else
        While 1
            $File = FileFindNextFile($hSearch)
            If @error Then
                ExitLoop
            EndIf
            If Not @extended Then
                $hIcon = _WinAPI_ShellExtractAssociatedIcon($Path & '\' & $File, 1)
                $Index = _GUIImageList_ReplaceIcon($hImageList, -1, $hIcon)
                _GUICtrlTreeView_AddChild($hTV, $hItem, $File, $Index, $Index)
                _WinAPI_DestroyIcon($hIcon)
            EndIf
        WEnd
        FileClose($hSearch)
    EndIf
    Return 1
EndFunc   ;==>_TVUpdate

Func WM_NOTIFY($hWnd, $iMsg, $wParam, $lParam)

    Local $tNMTREEVIEW = DllStructCreate($tagNMTREEVIEW, $lParam)
    Local $hItem = DllStructGetData($tNMTREEVIEW, 'NewhItem')
    Local $iState = DllStructGetData($tNMTREEVIEW, 'NewState')
    Local $hTV = DllStructGetData($tNMTREEVIEW, 'hWndFrom')
    Local $ID = DllStructGetData($tNMTREEVIEW, 'Code')
    Local $tTVHTI, $tPoint

    Switch $hTV
        Case $hTreeView
            Switch $ID
                Case $TVN_ITEMEXPANDEDW
                    If Not FileExists(_TVGetPath($hTV, $hItem, $sRoot)) Then
                        _GUICtrlTreeView_Delete($hTV, $hItem)
                        If BitAND($iState, $TVIS_SELECTED) Then
                            _TVSetPath($hTV, _GUICtrlTreeView_GetSelection($hTV), $sRoot)
                        EndIf
                    Else
                        If Not BitAND($iState, $TVIS_EXPANDED) Then
                            _GUICtrlTreeView_SetSelectedImageIndex($hTV, $hItem, 0)
                            _GUICtrlTreeView_SetImageIndex($hTV, $hItem, 0)
                        Else
                            _GUICtrlTreeView_SetSelectedImageIndex($hTV, $hItem, 1)
                            _GUICtrlTreeView_SetImageIndex($hTV, $hItem, 1)
                            If Not _GUICtrlTreeView_GetItemParam($hTV, $hItem) Then
                                _GUICtrlTreeView_SetItemParam($hTV, $hItem, 0x7FFFFFFF)
                                GUICtrlSendToDummy($Dummy1, $hItem)
                            EndIf
                        EndIf
                    EndIf
                Case $TVN_SELCHANGEDW
                    If BitAND($iState, $TVIS_SELECTED) Then
                        If Not FileExists(_TVGetPath($hTV, $hItem, $sRoot)) Then
                            _GUICtrlTreeView_Delete($hTV, $hItem)
                            $hItem = _GUICtrlTreeView_GetSelection($hTV)
                        EndIf
                        If $hItem <> $hSelect Then
                            _TVSetPath($hTV, $hItem, $sRoot)
                        EndIf
                    EndIf
                Case $NM_RCLICK
                        $tPoint = _WinAPI_GetMousePos(1, $hTV)
                        $tTVHTI = _GUICtrlTreeView_HitTestEx($hTV, DllStructGetData($tPoint, 1), DllStructGetData($tPoint, 2))
                        $hItem = DllStructGetData($tTVHTI, 'Item')
                        If BitAND(DllStructGetData($tTVHTI, 'Flags'), $TVHT_ONITEM) Then
                            _GUICtrlTreeView_SelectItem($hTreeView, $hItem)
                            If Not FileExists(_TVGetPath($hTV, $hItem, $sRoot)) Then
                                _GUICtrlTreeView_Delete($hTV, $hItem)
                                $hItem = _GUICtrlTreeView_GetSelection($hTV)
                            Else
                                GUICtrlSendToDummy($Dummy2, $hItem)
                            EndIf
                            If $hItem <> $hSelect Then
                                _TVSetPath($hTV, $hItem, $sRoot)
                            EndIf
                        EndIf
                EndSwitch
    EndSwitch
    Return $GUI_RUNDEFMSG
EndFunc   ;==>WM_NOTIFY

Posted Image

Edited by Yashied

Share this post


Link to post
Share on other sites



"On the fly" ?

You mean dynamically updated when a folder is changed? (add/del/rename) :x


"Straight_and_Crooked_Thinking" : A "classic guide to ferreting out untruths, half-truths, and other distortions of facts in political and social discussions."
"The Secrets of Quantum Physics" : New and excellent 2 part documentary on Quantum Physics by Jim Al-Khalili. (Dec 2014)

"Believing what you know ain't so" ...

Knock Knock ...


Share this post


Link to post
Share on other sites

#3 ·  Posted (edited)

Another algorithm.

#Include <GUIConstantsEx.au3>
#Include <GUIImageList.au3>
#Include <GUITreeView.au3>
#Include <TreeViewConstants.au3>
#Include <WindowsConstants.au3>
#Include <WinAPIEx.au3>

Opt('MustDeclareVars', 1)

Global $hForm, $hTreeView, $hImageList, $hItem = 0, $hSelect = 0, $hInput, $Input, $Dummy1, $Dummy2
Global $X, $Y, $sPath, $sRoot = @HomeDrive

$hForm = GUICreate('MyGUI', 600, 600)
$Input = GUICtrlCreateInput('', 20, 20, 560, 19)
$hInput = GUICtrlGetHandle(-1)
GUICtrlSetState(-1, $GUI_DISABLE)
;$hTreeView = _GUICtrlTreeView_Create($hForm, 20, 50, 560, 530, BitOR($TVS_HASBUTTONS, $TVS_HASLINES, $TVS_LINESATROOT, $TVS_DISABLEDRAGDROP, $TVS_SHOWSELALWAYS), $WS_EX_CLIENTEDGE)
;_GUICtrlTreeView_SetHeight($hTreeView, 18)
GUICtrlCreateTreeView(20, 50, 560, 530, -1, $WS_EX_CLIENTEDGE)
$hTreeView = GUICtrlGetHandle(-1)
$Dummy1 = GUICtrlCreateDummy()
$Dummy2 = GUICtrlCreateDummy()

If _WinAPI_GetVersion() >= '6.0' Then
    _WinAPI_SetWindowTheme($hTreeView, 'Explorer')
EndIf

$hImageList = _GUIImageList_Create(16, 16, 5, 1)
_GUIImageList_AddIcon($hImageList, @SystemDir & '\shell32.dll', 3)
_GUIImageList_AddIcon($hImageList, @SystemDir & '\shell32.dll', 4)
_GUIImageList_AddIcon($hImageList, @SystemDir & '\shell32.dll', 51)
_GUICtrlTreeView_SetNormalImageList($hTreeView, $hImageList)
$sRoot = StringRegExpReplace(FileGetLongName($sRoot), '\\+\Z', '')
$sPath = StringRegExpReplace($sRoot, '^.*\\', '')
If StringInStr($sPath, ':') Then
    $sRoot &= '\'
    $sPath &= '\'
EndIf

If _WinAPI_PathIsDirectory($sRoot) Then
    $hItem = _GUICtrlTreeView_AddChild($hTreeView, 0, $sPath, 0, 0)
    If FileClose(FileFindFirstFile($sRoot & '\*')) Then
        _GUICtrlTreeView_AddChild($hTreeView, $hItem, '', 2, 2)
    EndIf
EndIf

GUIRegisterMsg($WM_NOTIFY, 'WM_NOTIFY')
GUISetState()

If $hItem Then
    _GUICtrlTreeView_Expand($hTreeView, $hItem)
EndIf

While 1
    Switch GUIGetMsg()
        Case $GUI_EVENT_CLOSE
            Exit
        Case $Dummy1 ; Update
            GUISetCursor(1, 1)
            _TVUpdate($hTreeView, GUICtrlRead($Dummy1))
            GUISetCursor(2, 0)
        Case $Dummy2 ; Menu
            $hItem = GUICtrlRead($Dummy2)
            $sPath = _TVGetPath($hTreeView, $hItem, $sRoot)

            ConsoleWrite('-------------------------------' & @CR)
            ConsoleWrite('Handle: ' & $hItem & @CR)
            ConsoleWrite('Path:   ' & $sPath & @CR)
            If _WinAPI_PathIsDirectory($sPath) Then
                ConsoleWrite('Type:   ' & 'Directory' & @CR)
            Else
                ConsoleWrite('Type:   ' & 'File' & @CR)
            EndIf
            ConsoleWrite('X:      ' & MouseGetPos(0) & @CR)
            ConsoleWrite('Y:      ' & MouseGetPos(1) & @CR)
            ConsoleWrite('-------------------------------' & @CR)

    EndSwitch
WEnd

Func _TVGetPath($hTV, $hItem, $sRoot)

    Local $Path = StringRegExpReplace(_GUICtrlTreeView_GetTree($hTV, $hItem), '([|]+)|(\\[|])', '\\')

    If Not $Path Then
        Return ''
    EndIf
    If Not StringInStr($Path, ':') Then
        Return StringRegExpReplace($sRoot, '(\\[^\\]*(\\|)+)\Z', '\\') & $Path
    EndIf
    Return $Path
EndFunc   ;==>_TVGetPath

Func _TVSetPath($hTV, $hItem, $sRoot)
    GUICtrlSetData($Input, _WinAPI_PathCompactPath($hInput, _TVGetPath($hTV, $hItem, $sRoot), 554))
    $hSelect = $hItem
EndFunc   ;==>_TVSetPath

Func _TVUpdate($hTV, $hItem)

    Local $hImageList = _SendMessage($hTV, $TVM_GETIMAGELIST)
    Local $Path = StringRegExpReplace(_TVGetPath($hTV, $hItem, $sRoot), '\\+\Z', '')
    Local $hIcon, $hSearch, $hSubitem
    Local $Index, $File

    _WinAPI_LockWindowUpdate($hTV)
    _GUICtrlTreeView_Delete($hTV, _GUICtrlTreeView_GetFirstChild($hTV, $hItem))

    $hSearch = FileFindFirstFile($Path & '\*')
    If $hSearch = -1 Then
        If Not @error Then
            If FileExists($Path) Then
;               If _WinAPI_PathIsDirectory($Path) Then
;                   ; Access denied
;               EndIf
            Else
                _GUICtrlTreeView_Delete($hTV, $hItem)
                _WinAPI_LockWindowUpdate(0)
                Return 0
            EndIf
        EndIf
    Else
        While 1
            $File = FileFindNextFile($hSearch)
            If @error Then
                ExitLoop
            EndIf
            If @extended Then
                $hSubItem = _GUICtrlTreeView_AddChild($hTV, $hItem, $File, 0, 0)
                If FileClose(FileFindFirstFile($Path & '\' & $File & '\*')) Then
                    _GUICtrlTreeView_AddChild($hTV, $hSubItem, '', 2, 2)
                EndIf
            EndIf
        WEnd
        FileClose($hSearch)
    EndIf

    $hSearch = FileFindFirstFile($Path & '\*')
    If $hSearch = -1 Then

    Else
        While 1
            $File = FileFindNextFile($hSearch)
            If @error Then
                ExitLoop
            EndIf
            If Not @extended Then
                $hIcon = _WinAPI_ShellExtractAssociatedIcon($Path & '\' & $File, 1)
                $Index = _GUIImageList_ReplaceIcon($hImageList, -1, $hIcon)
                _GUICtrlTreeView_AddChild($hTV, $hItem, $File, $Index, $Index)
                _WinAPI_DestroyIcon($hIcon)
            EndIf
        WEnd
        FileClose($hSearch)
    EndIf

    _GUICtrlTreeView_SetItemParam($hTV, $hItem, 0x7FFFFFFF)
    _WinAPI_LockWindowUpdate(0)

    Return 1
EndFunc   ;==>_TVUpdate

Func _WinAPI_LockWindowUpdate($hWnd)

    Local $Ret = DllCall('user32.dll', 'int', 'LockWindowUpdate', 'hwnd', $hWnd)

    If (@error) Or (Not $Ret[0]) Then
        Return SetError(1, 0, 0)
    EndIf
    Return 1
EndFunc   ;==>_WinAPI_LockWindowUpdate

Func WM_NOTIFY($hWnd, $iMsg, $wParam, $lParam)

    Local $tNMTREEVIEW = DllStructCreate($tagNMTREEVIEW, $lParam)
    Local $hItem = DllStructGetData($tNMTREEVIEW, 'NewhItem')
    Local $iState = DllStructGetData($tNMTREEVIEW, 'NewState')
    Local $hTV = DllStructGetData($tNMTREEVIEW, 'hWndFrom')
    Local $ID = DllStructGetData($tNMTREEVIEW, 'Code')
    Local $tTVHTI, $tPoint

    Switch $hTV
        Case $hTreeView
            Switch $ID
                Case $TVN_ITEMEXPANDEDW
                    If Not FileExists(_TVGetPath($hTV, $hItem, $sRoot)) Then
                        _GUICtrlTreeView_Delete($hTV, $hItem)
                        If BitAND($iState, $TVIS_SELECTED) Then
                            _TVSetPath($hTV, _GUICtrlTreeView_GetSelection($hTV), $sRoot)
                        EndIf
                    Else
                        If Not BitAND($iState, $TVIS_EXPANDED) Then
                            _GUICtrlTreeView_SetSelectedImageIndex($hTV, $hItem, 0)
                            _GUICtrlTreeView_SetImageIndex($hTV, $hItem, 0)
                        Else
                            _GUICtrlTreeView_SetSelectedImageIndex($hTV, $hItem, 1)
                            _GUICtrlTreeView_SetImageIndex($hTV, $hItem, 1)
                            If Not _GUICtrlTreeView_GetItemParam($hTV, $hItem) Then
                                GUICtrlSendToDummy($Dummy1, $hItem)
                            EndIf
                        EndIf
                    EndIf
                Case $TVN_SELCHANGEDW
                    If BitAND($iState, $TVIS_SELECTED) Then
                        If Not FileExists(_TVGetPath($hTV, $hItem, $sRoot)) Then
                            _GUICtrlTreeView_Delete($hTV, $hItem)
                            $hItem = _GUICtrlTreeView_GetSelection($hTV)
                        EndIf
                        If $hItem <> $hSelect Then
                            _TVSetPath($hTV, $hItem, $sRoot)
                        EndIf
                    EndIf
                Case $NM_RCLICK
                        $tPoint = _WinAPI_GetMousePos(1, $hTV)
                        $tTVHTI = _GUICtrlTreeView_HitTestEx($hTV, DllStructGetData($tPoint, 1), DllStructGetData($tPoint, 2))
                        $hItem = DllStructGetData($tTVHTI, 'Item')
                        If BitAND(DllStructGetData($tTVHTI, 'Flags'), $TVHT_ONITEM) Then
                            _GUICtrlTreeView_SelectItem($hTreeView, $hItem)
                            If Not FileExists(_TVGetPath($hTV, $hItem, $sRoot)) Then
                                _GUICtrlTreeView_Delete($hTV, $hItem)
                                $hItem = _GUICtrlTreeView_GetSelection($hTV)
                            Else
                                GUICtrlSendToDummy($Dummy2, $hItem)
                            EndIf
                            If $hItem <> $hSelect Then
                                _TVSetPath($hTV, $hItem, $sRoot)
                            EndIf
                        EndIf
                EndSwitch
    EndSwitch
    Return $GUI_RUNDEFMSG
EndFunc   ;==>WM_NOTIFY

"On the fly" ?

You mean dynamically updated when a folder is changed? (add/del/rename) :x

Yes. Edited by Yashied

Share this post


Link to post
Share on other sites

Great example Yashied! Thanks for sharing.

Share this post


Link to post
Share on other sites

This looks like a great start to a special-purpose directory viewer that I've been thinking about. But I've never worked with Tree Views in au3 ... or anywhere else, for that matter ... so I have these questions:

Can someone point out where I would add a column for File Date? Also, what's a good method to get a File Name returned to the script if I double click on its entry?

Thanks for any help.

Share this post


Link to post
Share on other sites

qwert,

Yashied has released an updated version of this UDF here - you may want to use that in your project instead. :)

As to TreeViews in general, you cannot add columns - you could only add the date to the filename to display. ;)

And if you look at my version of a folder treeview here you will see how to get a doubleclick to return the selected name. :idiot:

M23


Any of my own code posted anywhere on the forum is available for use by others without any restriction of any kind._______My UDFs:

Spoiler

ArrayMultiColSort ---- Sort arrays on multiple columns
ChooseFileFolder ---- Single and multiple selections from specified path treeview listing
Date_Time_Convert -- Easily convert date/time formats, including the language used
ExtMsgBox --------- A highly customisable replacement for MsgBox
GUIExtender -------- Extend and retract multiple sections within a GUI
GUIFrame ---------- Subdivide GUIs into many adjustable frames
GUIListViewEx ------- Insert, delete, move, drag, sort, edit and colour ListView items
GUITreeViewEx ------ Check/clear parent and child checkboxes in a TreeView
Marquee ----------- Scrolling tickertape GUIs
NoFocusLines ------- Remove the dotted focus lines from buttons, sliders, radios and checkboxes
Notify ------------- Small notifications on the edge of the display
Scrollbars ----------Automatically sized scrollbars with a single command
StringSize ---------- Automatically size controls to fit text
Toast -------------- Small GUIs which pop out of the notification area



Share this post


Link to post
Share on other sites

Thanks for your reply.

Over the past day, I've explored the examples you pointed to and also explored the tree view examples in help. I quickly found that I was reading too much "directory tree" into the purpose and functions of tree views.

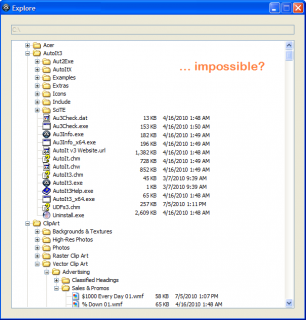

But before I abandon my idea, I wanted to show exactly what I was trying for and ask: is this impossible in a simple script? Yashied's examples just seemed so close.

Again, thanks for any help.

post-29172-0-64695400-1297868990_thumb.p

Share this post


Link to post
Share on other sites

qwert,

As I mentioned above, the only way I can see to produce a treeview like that is to concatenate the additional data to the filename and set the whole string as the item. However, I can imagine all sorts of problems getting the column spacing correct if you tried to do it that way - you would have to measure the length of the filename and then add just enough tabs to align everything. It is by no means impossible, but would add significantly to the time taken to fill the tree each time. ;)

I suggest asking Yashied in his other topic - I think he has abandoned this one - as he is far more knowledgeable about these things that I am. Sorry I cannot be of more help myself. :)

M23


Any of my own code posted anywhere on the forum is available for use by others without any restriction of any kind._______My UDFs:

Spoiler

ArrayMultiColSort ---- Sort arrays on multiple columns
ChooseFileFolder ---- Single and multiple selections from specified path treeview listing
Date_Time_Convert -- Easily convert date/time formats, including the language used
ExtMsgBox --------- A highly customisable replacement for MsgBox
GUIExtender -------- Extend and retract multiple sections within a GUI
GUIFrame ---------- Subdivide GUIs into many adjustable frames
GUIListViewEx ------- Insert, delete, move, drag, sort, edit and colour ListView items
GUITreeViewEx ------ Check/clear parent and child checkboxes in a TreeView
Marquee ----------- Scrolling tickertape GUIs
NoFocusLines ------- Remove the dotted focus lines from buttons, sliders, radios and checkboxes
Notify ------------- Small notifications on the edge of the display
Scrollbars ----------Automatically sized scrollbars with a single command
StringSize ---------- Automatically size controls to fit text
Toast -------------- Small GUIs which pop out of the notification area



Share this post


Link to post
Share on other sites

#10 ·  Posted (edited)

This is really awesome! is there a way to use checkbox instead of folder icons? i tried by giving the exStyle but not worked may be i am using it in wrong place :( and suggestion for me?

Edited by Syed23

Thank you,Regards,[font="Garamond"][size="4"]K.Syed Ibrahim.[/size][/font]

Share this post


Link to post
Share on other sites

qwert,

As I mentioned above, the only way I can see to produce a treeview like that is to concatenate the additional data to the filename and set the whole string as the item. However, I can imagine all sorts of problems getting the column spacing correct if you tried to do it that way - you would have to measure the length of the filename and then add just enough tabs to align everything. It is by no means impossible, but would add significantly to the time taken to fill the tree each time. ;)

I suggest asking Yashied in his other topic - I think he has abandoned this one - as he is far more knowledgeable about these things that I am. Sorry I cannot be of more help myself. :)

M23

Picking one of those even-spaced ascii-art fonts would make the spacing pretty easy I would think

Share this post


Link to post
Share on other sites

Create an account or sign in to comment

You need to be a member in order to leave a comment

Create an account

Sign up for a new account in our community. It's easy!


Register a new account

Sign in

Already have an account? Sign in here.


Sign In Now
Sign in to follow this
Followers 0
