goss34

RDP Session In AutoIT Gui

13 posts in this topic

Hi Guys,

I have been scouring the forums but cant find what i want so i am hoping someone can help me out by pointing me in the right direction or starting me off with how to build the script from scratch.

What i want to be able to achieve is:

  • Have the script hunt for a machine that is available from a group of say 4 (how it will know its available i dont know?)
  • When a free machine is found launch an RDP session within the autoit window (scaling the window to fit in the GUI)
First off is this possible?

Second, can someone help me get started?

Thanks

Dan

Share this post


Link to post
Share on other sites



Can anyone help with this? :graduated:

Share this post


Link to post
Share on other sites

#3 ·  Posted (edited)

Try this uncomplete version:

#include <GUIConstantsEx.au3>
#include <WinAPI.au3>
#include <WindowsConstants.au3>

$host = "" ;<<<<<<< enter here the host name or ip address
;Remote Desktop ActiveX Control Interfaces -> http://msdn.microsoft.com/en-us/library/aa383022(v=VS.85).aspx
$hGUI = GUICreate("RDP Embedded Sessions", 952, 675, -1, -1, $WS_OVERLAPPEDWINDOW + $WS_CLIPSIBLINGS + $WS_CLIPCHILDREN)
$oRDP = ObjCreate("MsTscAx.MsTscAx.2") ;http://msdn.microsoft.com/en-us/library/aa381344(v=VS.85).aspx
$oRDP_Ctrl = GUICtrlCreateObj($oRDP, 64, 44, 800, 600)
GUICtrlSetResizing(-1, $GUI_DOCKALL)
GUICtrlSetStyle($oRDP_Ctrl , $WS_VISIBLE)
$oRDP.DesktopWidth = 800
$oRDP.DesktopHeight = 600
$oRDP.Fullscreen = False
$oRDP.ColorDepth = 16
$oRDP.AdvancedSettings3.SmartSizing = True
$oRDP.Server = $host
$oRDP.UserName = "" ;<<<<<<< enter here the user name
$oRDP.Domain = ""
$oRDP.AdvancedSettings2.ClearTextPassword = ""
$oRDP.ConnectingText = "Connecting to " & $host
$oRDP.DisconnectedText = "Disconnected from " & $host
$oRDP.StartConnected = True
$oRDP.Connect()

GUISetState(@SW_SHOW, $hGUI)
;~ ConsoleWrite($oRDP.GetErrorDescription() & @CRLF)
While 1
    $nMsg = GUIGetMsg()
    Switch $nMsg
        Case $GUI_EVENT_CLOSE
            $oRDP.Disconnect()
            Exit
    EndSwitch
WEnd

It will open a RDP session embedded in the GUI.

Br,

UEZ

Edited by UEZ
3 people like this

Please don't send me any personal message and ask for support! I will not reply!

Selection of finest graphical examples at Codepen.io

The own fart smells best!
Her 'sikim hıyar' diyene bir avuç tuz alıp koşma!
¯\_(ツ)_/¯

Share this post


Link to post
Share on other sites

#4 ·  Posted (edited)

Thanks UEZ.

Exactly the one I'm searching for. The above script works as expected. But it only runs when I run this script from SciTE4AutoIt3 editor.

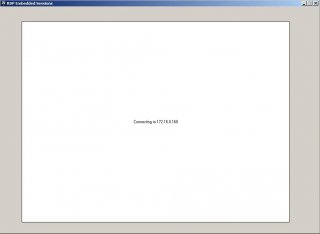

After I build this script as exe, that exe fails to connect that system. It just hangs and displays a message 'Connecting to 172.16.0.160'. I didn't modify this script expect the following lines.

$host = "172.16.0.160"

$oRDP.UserName = "administrator"

Exe should be perfectly same as the script. I'm just wondering how it works like a charm when I run from the editor but the exe hangs to connect.

Any Help is appreciated. If you need any more information to help me please let me know.

Thanks in advance for your help.

post-67499-0-51208500-1334415181_thumb.j

Edited by pilot

Share this post


Link to post
Share on other sites

Thankd UEZ

I've added some change to the original.

you need to create an ini file RDP_QC.ini in the same location as the au3 or exe file.

[serveurs]

Server1 = Server1

Server2 = Server2

Server3 = Server3

enjoy !

#include <GUIConstants.au3>

#include <GUIConstantsEx.au3>

#include <WinAPI.au3>

#include <WindowsConstants.au3>

#include <EditConstants.au3>

Opt("GUIOnEventMode", 1)

#Region ### START Koda GUI section ### Form=

$hGUI = GUICreate("Form1", 1401, 801, 193, 115)

GUISetOnEvent($GUI_EVENT_CLOSE, "hGUIClose")

$Connect = GUICtrlCreateButton("Connect", 1272, 16, 115, 33, 0)

GUICtrlSetOnEvent(-1, "ConnectClick")

$Password = GUICtrlCreateInput("", 1272, 200, 115, 23, $ES_PASSWORD)

GUICtrlSetOnEvent(-1, "ConnectClick")

$oRDP = ObjCreate("MsTscAx.MsTscAx.2") ;http://msdn.microsoft.com/en-us/library/aa381344(v=VS.85).aspx

$oRDP_Ctrl = GUICtrlCreateObj($oRDP, 4, 4, 1232, 792)

GUICtrlSetResizing(-1, $GUI_DOCKALL)

GUICtrlSetStyle($oRDP_Ctrl , $WS_VISIBLE)

GUICtrlSetStyle($oRDP_Ctrl , $WS_EX_STATICEDGE)

$oRDP.DesktopWidth = 1240

$oRDP.DesktopHeight = 800

$oRDP.Fullscreen = False

$oRDP.ColorDepth = 16

$oRDP.AdvancedSettings3.SmartSizing = True

$serveur = GUICtrlCreateCombo("", 1272, 50, 120, 23)

GUICtrlSetData(-1, "", "")

GUICtrlSetFont(-1, 9, 800, 0, "Courier new")

GUICtrlSetOnEvent(-1, "ConnectClick")

GUISetState(@SW_SHOW)

#EndRegion ### END Koda GUI section ###

Call("Load_srv")

While 1

Sleep(100)

WEnd

Func ConnectClick()

$host = GUICtrlRead($serveur,1) ;<<<<<<< enter here the host name or ip address

if $host <> "" Then

$oRDP.Server = $host

$oRDP.UserName = "" ;<<<<<<< enter here the user name

$oRDP.Domain = ""

$oRDP.AdvancedSettings2.ClearTextPassword = GUICtrlRead($Password)

$oRDP.ConnectingText = "Connecting to " & $host

$oRDP.DisconnectedText = "Disconnected from " & $host

$oRDP.StartConnected = True

$oRDP.connect()

endIf

EndFunc

func Load_srv()

$var = IniReadSection(@ScriptDir & "\RDP_QC.ini","Serveurs")

For $i = 1 To $var[0][0]

;~ MsgBox(4096, "", "Key: " & $var[$i][0] & @CRLF & "Value: " & $var[$i][1])

GUICtrlSetData($serveur,$var[$i][1])

Next

endFunc

Func hGUIClose()

exit

EndFunc

Share this post


Link to post
Share on other sites

Hi referring to the above scripts plss guide me how to execute tasks on the remote system for e.g. taking a basic task as running calc.exe...it would be of grrt help :rambo:

Share this post


Link to post
Share on other sites

Please don't resurrect old threads, especially when you just want to learn something that can be found via the help file. My suggestion, read the help file as this will be a great source of help.


_AdapterConnections()_AlwaysRun()_AppMon()_AppMonEx()_BinaryBin()_CheckMsgBox()_CmdLineRaw()_ContextMenu()_ConvertLHWebColor()/_ConvertSHWebColor()_DesktopDimensions()_DisplayPassword()_DotNet_Load()/_DotNet_Unload()_Fibonacci()_FileCompare()_FileCompareContents()_FileNameByHandle()_FilePrefix/SRE()_FindInFile()_GetBackgroundColor()/_SetBackgroundColor()_GetConrolID()_GetCtrlClass()_GetDirectoryFormat()_GetDriveMediaType()_GetFilename()/_GetFilenameExt()_GetHardwareID()_GetIP()_GetIP_Country()_GetOSLanguage()_GetSavedSource()_GetStringSize()_GetSystemPaths()_GetURLImage()_GIFImage()_GoogleWeather()_GUICtrlCreateGroup()_GUICtrlListBox_CreateArray()_GUICtrlListView_CreateArray()_GUICtrlListView_SaveCSV()_GUICtrlListView_SaveHTML()_GUICtrlListView_SaveTxt()_GUICtrlListView_SaveXML()_GUICtrlMenu_Recent()_GUICtrlMenu_SetItemImage()_GUICtrlTreeView_CreateArray()_GUIDisable()_GUIImageList_SetIconFromHandle()_GUIRegisterMsg()_GUISetIcon()_Icon_Clear()/_Icon_Set()_IdleTime()_InetGet()_InetGetGUI()_InetGetProgress()_IPDetails()_IsFileOlder()_IsGUID()_IsHex()_IsPalindrome()_IsRegKey()_IsStringRegExp()_IsSystemDrive()_IsUPX()_IsValidType()_IsWebColor()_Language()_Log()_MicrosoftInternetConnectivity()_MSDNDataType()_PathFull/GetRelative/Split()_PathSplitEx()_PrintFromArray()_ProgressSetMarquee()_ReDim()_RockPaperScissors()/_RockPaperScissorsLizardSpock()_ScrollingCredits_SelfDelete()_SelfRename()_SelfUpdate()_SendTo()_ShellAll()_ShellFile()_ShellFolder()_SingletonHWID()_SingletonPID()_Startup()_StringCompact()_StringIsValid()_StringRegExpMetaCharacters()_StringReplaceWholeWord()_StringStripChars()_Temperature()_TrialPeriod()_UKToUSDate()/_USToUKDate()_WinAPI_Create_CTL_CODE()_WinAPI_CreateGUID()_WMIDateStringToDate()/_DateToWMIDateString()Au3 script parsingAutoIt SearchAutoIt3 PortableAutoIt3WrapperToPragmaAutoItWinGetTitle()/AutoItWinSetTitle()CodingDirToHTML5FileInstallrFileReadLastChars()GeoIP databaseGUI - Only Close ButtonGUI ExamplesGUICtrlDeleteImage()GUICtrlGetBkColor()GUICtrlGetStyle()GUIEventsGUIGetBkColor()Int_Parse() & Int_TryParse()IsISBN()LockFile()Mapping CtrlIDsOOP in AutoItParseHeadersToSciTE()PasswordValidPasteBinPosts Per DayPreExpandProtect GlobalsQueue()Resource UpdateResourcesExSciTE JumpSettings INISHELLHOOKShunting-YardSignature CreatorStack()Stopwatch()StringAddLF()/StringStripLF()StringEOLToCRLF()VSCROLLWM_COPYDATAMore Examples...

Updated: 04/09/2015

Share this post


Link to post
Share on other sites

#8 ·  Posted (edited)

sorry : but i have timing constraint...i just wanted to have minimum guidance o:)

Edited by ravi88

Share this post


Link to post
Share on other sites

I can give you guidance, what I can't do is speed up the process of you learning it. The help file is a great place to start, trust me. If you have little time, then perhaps an alternative source would be an option?


_AdapterConnections()_AlwaysRun()_AppMon()_AppMonEx()_BinaryBin()_CheckMsgBox()_CmdLineRaw()_ContextMenu()_ConvertLHWebColor()/_ConvertSHWebColor()_DesktopDimensions()_DisplayPassword()_DotNet_Load()/_DotNet_Unload()_Fibonacci()_FileCompare()_FileCompareContents()_FileNameByHandle()_FilePrefix/SRE()_FindInFile()_GetBackgroundColor()/_SetBackgroundColor()_GetConrolID()_GetCtrlClass()_GetDirectoryFormat()_GetDriveMediaType()_GetFilename()/_GetFilenameExt()_GetHardwareID()_GetIP()_GetIP_Country()_GetOSLanguage()_GetSavedSource()_GetStringSize()_GetSystemPaths()_GetURLImage()_GIFImage()_GoogleWeather()_GUICtrlCreateGroup()_GUICtrlListBox_CreateArray()_GUICtrlListView_CreateArray()_GUICtrlListView_SaveCSV()_GUICtrlListView_SaveHTML()_GUICtrlListView_SaveTxt()_GUICtrlListView_SaveXML()_GUICtrlMenu_Recent()_GUICtrlMenu_SetItemImage()_GUICtrlTreeView_CreateArray()_GUIDisable()_GUIImageList_SetIconFromHandle()_GUIRegisterMsg()_GUISetIcon()_Icon_Clear()/_Icon_Set()_IdleTime()_InetGet()_InetGetGUI()_InetGetProgress()_IPDetails()_IsFileOlder()_IsGUID()_IsHex()_IsPalindrome()_IsRegKey()_IsStringRegExp()_IsSystemDrive()_IsUPX()_IsValidType()_IsWebColor()_Language()_Log()_MicrosoftInternetConnectivity()_MSDNDataType()_PathFull/GetRelative/Split()_PathSplitEx()_PrintFromArray()_ProgressSetMarquee()_ReDim()_RockPaperScissors()/_RockPaperScissorsLizardSpock()_ScrollingCredits_SelfDelete()_SelfRename()_SelfUpdate()_SendTo()_ShellAll()_ShellFile()_ShellFolder()_SingletonHWID()_SingletonPID()_Startup()_StringCompact()_StringIsValid()_StringRegExpMetaCharacters()_StringReplaceWholeWord()_StringStripChars()_Temperature()_TrialPeriod()_UKToUSDate()/_USToUKDate()_WinAPI_Create_CTL_CODE()_WinAPI_CreateGUID()_WMIDateStringToDate()/_DateToWMIDateString()Au3 script parsingAutoIt SearchAutoIt3 PortableAutoIt3WrapperToPragmaAutoItWinGetTitle()/AutoItWinSetTitle()CodingDirToHTML5FileInstallrFileReadLastChars()GeoIP databaseGUI - Only Close ButtonGUI ExamplesGUICtrlDeleteImage()GUICtrlGetBkColor()GUICtrlGetStyle()GUIEventsGUIGetBkColor()Int_Parse() & Int_TryParse()IsISBN()LockFile()Mapping CtrlIDsOOP in AutoItParseHeadersToSciTE()PasswordValidPasteBinPosts Per DayPreExpandProtect GlobalsQueue()Resource UpdateResourcesExSciTE JumpSettings INISHELLHOOKShunting-YardSignature CreatorStack()Stopwatch()StringAddLF()/StringStripLF()StringEOLToCRLF()VSCROLLWM_COPYDATAMore Examples...

Updated: 04/09/2015

Share this post


Link to post
Share on other sites

#10 ·  Posted

thnx :pirate:

Share this post


Link to post
Share on other sites

#11 ·  Posted

You're welcome. Good luck.


_AdapterConnections()_AlwaysRun()_AppMon()_AppMonEx()_BinaryBin()_CheckMsgBox()_CmdLineRaw()_ContextMenu()_ConvertLHWebColor()/_ConvertSHWebColor()_DesktopDimensions()_DisplayPassword()_DotNet_Load()/_DotNet_Unload()_Fibonacci()_FileCompare()_FileCompareContents()_FileNameByHandle()_FilePrefix/SRE()_FindInFile()_GetBackgroundColor()/_SetBackgroundColor()_GetConrolID()_GetCtrlClass()_GetDirectoryFormat()_GetDriveMediaType()_GetFilename()/_GetFilenameExt()_GetHardwareID()_GetIP()_GetIP_Country()_GetOSLanguage()_GetSavedSource()_GetStringSize()_GetSystemPaths()_GetURLImage()_GIFImage()_GoogleWeather()_GUICtrlCreateGroup()_GUICtrlListBox_CreateArray()_GUICtrlListView_CreateArray()_GUICtrlListView_SaveCSV()_GUICtrlListView_SaveHTML()_GUICtrlListView_SaveTxt()_GUICtrlListView_SaveXML()_GUICtrlMenu_Recent()_GUICtrlMenu_SetItemImage()_GUICtrlTreeView_CreateArray()_GUIDisable()_GUIImageList_SetIconFromHandle()_GUIRegisterMsg()_GUISetIcon()_Icon_Clear()/_Icon_Set()_IdleTime()_InetGet()_InetGetGUI()_InetGetProgress()_IPDetails()_IsFileOlder()_IsGUID()_IsHex()_IsPalindrome()_IsRegKey()_IsStringRegExp()_IsSystemDrive()_IsUPX()_IsValidType()_IsWebColor()_Language()_Log()_MicrosoftInternetConnectivity()_MSDNDataType()_PathFull/GetRelative/Split()_PathSplitEx()_PrintFromArray()_ProgressSetMarquee()_ReDim()_RockPaperScissors()/_RockPaperScissorsLizardSpock()_ScrollingCredits_SelfDelete()_SelfRename()_SelfUpdate()_SendTo()_ShellAll()_ShellFile()_ShellFolder()_SingletonHWID()_SingletonPID()_Startup()_StringCompact()_StringIsValid()_StringRegExpMetaCharacters()_StringReplaceWholeWord()_StringStripChars()_Temperature()_TrialPeriod()_UKToUSDate()/_USToUKDate()_WinAPI_Create_CTL_CODE()_WinAPI_CreateGUID()_WMIDateStringToDate()/_DateToWMIDateString()Au3 script parsingAutoIt SearchAutoIt3 PortableAutoIt3WrapperToPragmaAutoItWinGetTitle()/AutoItWinSetTitle()CodingDirToHTML5FileInstallrFileReadLastChars()GeoIP databaseGUI - Only Close ButtonGUI ExamplesGUICtrlDeleteImage()GUICtrlGetBkColor()GUICtrlGetStyle()GUIEventsGUIGetBkColor()Int_Parse() & Int_TryParse()IsISBN()LockFile()Mapping CtrlIDsOOP in AutoItParseHeadersToSciTE()PasswordValidPasteBinPosts Per DayPreExpandProtect GlobalsQueue()Resource UpdateResourcesExSciTE JumpSettings INISHELLHOOKShunting-YardSignature CreatorStack()Stopwatch()StringAddLF()/StringStripLF()StringEOLToCRLF()VSCROLLWM_COPYDATAMore Examples...

Updated: 04/09/2015

Share this post


Link to post
Share on other sites

#12 ·  Posted (edited)

Hi everybody,

I need to resize the "Rdp embedded sessions" in order to resize $oRDP in the same size without borders

Anybody can help me ?

Thanks

I have the following code :

#include <GUIConstantsEx.au3>
#include <WinAPI.au3>
#include <WindowsConstants.au3>

$host = "" ;<<<<<<< enter here the host name or ip address

$hGUI = GUICreate("Terminal server", 900, 700, -1, -1, BitOR($GUI_SS_DEFAULT_GUI,$WS_SIZEBOX,$WS_THICKFRAME))

$oRDP = ObjCreate("MsTscAx.MsTscAx.2")
$oRDP_Ctrl = GUICtrlCreateObj($oRDP, 0, 0, 900, 700)

GUICtrlSetResizing(-1, $GUI_DOCKLEFT+$GUI_DOCKRIGHT+$GUI_DOCKTOP+$GUI_DOCKBOTTOM+$GUI_DOCKWIDTH+$GUI_DOCKHEIGHT)
GUICtrlSetStyle($oRDP_Ctrl , $WS_VISIBLE)

s$oRDP.DesktopWidth = 900
$oRDP.DesktopHeight = 700
$oRDP.Fullscreen = False
$oRDP.ColorDepth = 16
$oRDP.AdvancedSettings3.SmartSizing = True
$oRDP.Server = $host
$oRDP.UserName = "" ;<<<<<<< enter here the user name
$oRDP.Domain = ""
$oRDP.AdvancedSettings2.ClearTextPassword = ""
$oRDP.ConnectingText = "Connecting to " & $host
$oRDP.DisconnectedText = "Disconnected from " & $host
$oRDP.StartConnected = True
$oRDP.Connect()

GUISetState(@SW_SHOW, $hGUI)

$oShel = ObjCreate("shell.application")
$oShel_Ctrl = GUICtrlCreateObj($oShel, 0, 0, 900, 700)
GUICtrlSetStyle($oShel_Ctrl , $WS_VISIBLE)



Send("#r")
Send ("C:\Program Files (x86)\scripts\PSTools\******.bat")
Send("{ENTER}")

While 1
    $nMsg = GUIGetMsg()
    Switch $nMsg
        Case $GUI_EVENT_CLOSE
            $oRDP.Disconnect()
            Exit
    EndSwitch
WEnd
Edited by Benchozer

Share this post


Link to post
Share on other sites

#13 ·  Posted

Benchozer, did you not see above where people were instructed to start a new thread, rather than resurrecting an old one?? The language has changed a lot since this thread began; what worked then might not be the same now. If you want assistance with your issue, start a new thread and explain in detail what you're trying to do, and what problems you're encountering.


When you're dead, you don't know you're dead - it's only difficult for those that know you. It's the same way when you're stupid...

My Scripts: SCCM UDFInclude Source with Compiled Script, Windows Firewall UDF

Share this post


Link to post
Share on other sites
