Messed up AutoIt GUI dimensions

4 posts in this topic

Hello, I just discovered a.... Bug? or Glitch... Here is it:



GUIs created with AutoIt are always larger than specified dimensions, i.e 16 pixels larger in width & 39 pixels in height, so If you want the exact dimensions, you need to subtract 16 from width & 39 from height... Here an example of a GUI with the same exact dimensions of command prompt:

#include <GUIConstantsEx.au3>

GUICreate("TEST", 677, 343)

GUISetState()

While 1
    $nMsg = GUIGetMsg()
    Switch $nMsg
        Case $GUI_EVENT_CLOSE
            Exit

    EndSwitch
WEnd

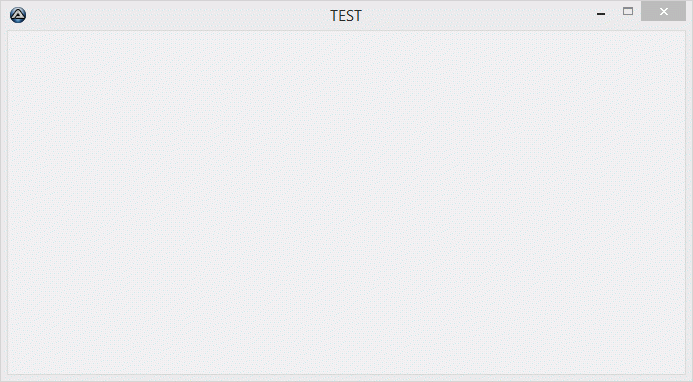

Now open command prompt & see if they are the same in the size, this is the result for me:

ezgif.com-maker.thumb.gif.e20958a5c7ae68

But if you modify the code to this:

#include <GUIConstantsEx.au3>

Global Const $eGUI_WIDTH_CORRECTION = 16
Global Const $eGUI_HEIGHT_CORRECTION = 39

GUICreate("TEST", 677 - $eGUI_WIDTH_CORRECTION, 343 - $eGUI_HEIGHT_CORRECTION)

GUISetState()

While 1
    $nMsg = GUIGetMsg()
    Switch $nMsg
        Case $GUI_EVENT_CLOSE
            Exit

    EndSwitch
WEnd

They match perfectly... I would like to know if this is a bug or if there is some strange reason behind this :-/



Thanks in Advance, TD :D


AutoIt.4.Life Clubrooms - Life is like a Donut (secret key)

Spoiler

My contributions to the AutoIt Community

Some messages & Apologizes:

If I hurt you, Please accept my apologies, I never (regardless of the situation) mean to hurt anybody!!!

Also, I am very busy with my project so I will appear in the last row of the online list, if you want to contact me: Email@TheDcoder.xyz

Or you can have a nice chat with me in freenode, I use the same nick on freenode too!


PLEASE JOIN ##AutoIt AND HELP THE IRC AUTOIT COMMUNITY!

Share this post


Link to post
Share on other sites



Those values are different system to system. Look at using _WinAPI_GetSystemMetrics() and one of the following indexes to obtain the correct value regardless of whether you're on 7/8/10 etc.

1 person likes this

_AdapterConnections()_AlwaysRun()_AppMon()_AppMonEx()_BinaryBin()_CheckMsgBox()_CmdLineRaw()_ContextMenu()_ConvertLHWebColor()/_ConvertSHWebColor()_DesktopDimensions()_DisplayPassword()_DotNet_Load()/_DotNet_Unload()_Fibonacci()_FileCompare()_FileCompareContents()_FileNameByHandle()_FilePrefix/SRE()_FindInFile()_GetBackgroundColor()/_SetBackgroundColor()_GetConrolID()_GetCtrlClass()_GetDirectoryFormat()_GetDriveMediaType()_GetFilename()/_GetFilenameExt()_GetHardwareID()_GetIP()_GetIP_Country()_GetOSLanguage()_GetSavedSource()_GetStringSize()_GetSystemPaths()_GetURLImage()_GIFImage()_GoogleWeather()_GUICtrlCreateGroup()_GUICtrlListBox_CreateArray()_GUICtrlListView_CreateArray()_GUICtrlListView_SaveCSV()_GUICtrlListView_SaveHTML()_GUICtrlListView_SaveTxt()_GUICtrlListView_SaveXML()_GUICtrlMenu_Recent()_GUICtrlMenu_SetItemImage()_GUICtrlTreeView_CreateArray()_GUIDisable()_GUIImageList_SetIconFromHandle()_GUIRegisterMsg()_GUISetIcon()_Icon_Clear()/_Icon_Set()_IdleTime()_InetGet()_InetGetGUI()_InetGetProgress()_IPDetails()_IsFileOlder()_IsGUID()_IsHex()_IsPalindrome()_IsRegKey()_IsStringRegExp()_IsSystemDrive()_IsUPX()_IsValidType()_IsWebColor()_Language()_Log()_MicrosoftInternetConnectivity()_MSDNDataType()_PathFull/GetRelative/Split()_PathSplitEx()_PrintFromArray()_ProgressSetMarquee()_ReDim()_RockPaperScissors()/_RockPaperScissorsLizardSpock()_ScrollingCredits_SelfDelete()_SelfRename()_SelfUpdate()_SendTo()_ShellAll()_ShellFile()_ShellFolder()_SingletonHWID()_SingletonPID()_Startup()_StringCompact()_StringIsValid()_StringRegExpMetaCharacters()_StringReplaceWholeWord()_StringStripChars()_Temperature()_TrialPeriod()_UKToUSDate()/_USToUKDate()_WinAPI_Create_CTL_CODE()_WinAPI_CreateGUID()_WMIDateStringToDate()/_DateToWMIDateString()Au3 script parsingAutoIt SearchAutoIt3 PortableAutoIt3WrapperToPragmaAutoItWinGetTitle()/AutoItWinSetTitle()CodingDirToHTML5FileInstallrFileReadLastChars()GeoIP databaseGUI - Only Close ButtonGUI ExamplesGUICtrlDeleteImage()GUICtrlGetBkColor()GUICtrlGetStyle()GUIEventsGUIGetBkColor()Int_Parse() & Int_TryParse()IsISBN()LockFile()Mapping CtrlIDsOOP in AutoItParseHeadersToSciTE()PasswordValidPasteBinPosts Per DayPreExpandProtect GlobalsQueue()Resource UpdateResourcesExSciTE JumpSettings INISHELLHOOKShunting-YardSignature CreatorStack()Stopwatch()StringAddLF()/StringStripLF()StringEOLToCRLF()VSCROLLWM_COPYDATAMore Examples...

Updated: 04/09/2015

Share this post


Link to post
Share on other sites

@Jon Oh, Thanks!

@guinness Thanks!
