BigDaddyO

Maps => Variable subscript badly formatted

Recommended Posts

I'm trying to use Maps for the first time (Never knew they were available until I read through the release notes) but Scite keeps throwing an error on run about Variable subscript badly formatted.

I tried to run the script directly from AutoIT and it also threw an error.

I've got the latest 3.3.14.5 and just re-installed Scite.

Below is a quick sample that I put together that throws the error in Scite as well as if I run it with the AutoIT Run a script.

#include <GUIConstantsEx.au3>

Local $mBug[] ;==> Variable subscript badly formatted
$mBug.Width = 1100
$mBug.Height = 700
$mBug.GUI = GUICreate("Defect Details", $mBug.Width, $mBug.Height)
GUISetState(@SW_SHOW, $mBug.GUI)

;~ $iW = 1100
;~ $iH = 700
;~ $hGUI = GUICreate("Defect Details", $iW, $iH)
;~ GUISetState(@SW_SHOW, $hGUI)

While 1
    Switch GUIGetMsg()

        Case $GUI_EVENT_CLOSE
            Exit

    EndSwitch
WEnd



I tried searching the forum for Maps and it's only talking about Beta which I don't have installed.



so, what am I doing wrong?



Thanks,

Mike

Edited by BigDaddyO

hmm... I guess I have to have a signature...

Share this post


Link to post
Share on other sites

The newest Beta release has this disclaimer:

Quote

Warning: This feature is experimental. It may not work, may contain bugs or may be changed or removed without notice.

DO NOT REPORT BUGS OR REQUEST NEW FEATURES FOR THIS FEATURE.

As this feature is very much a question mark right now, there will be no support for issues with it.


"Profanity is the last vestige of the feeble mind. For the man who cannot express himself forcibly through intellect must do so through shock and awe" - Spencer W. Kimball

How to get your question answered on this forum!

Share this post


Link to post
Share on other sites

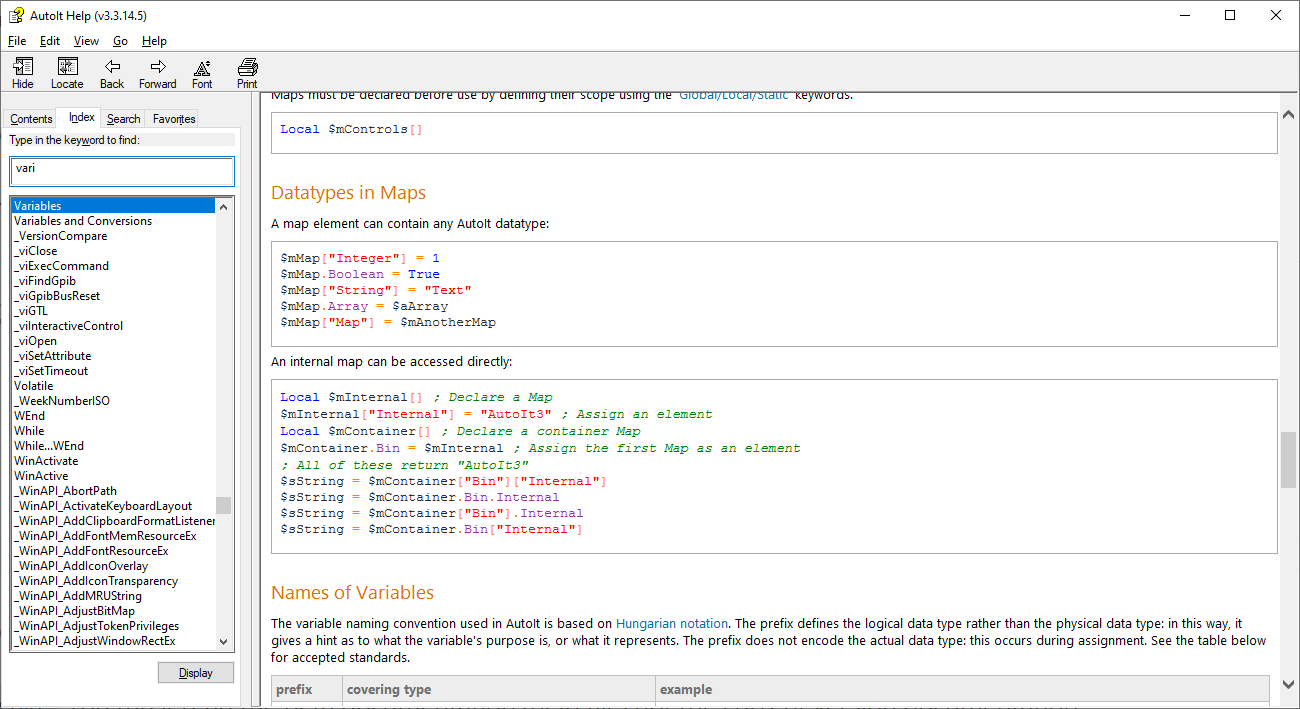

If that's the case, then the Help file needs to be fixed in the latest release since that's where I read about it.





hmm... I guess I have to have a signature...

Share this post


Link to post
Share on other sites

As mentioned, this disclaimer is in the latest release (15.1 IIRC). I have heard that an oversight cause it not to be in the previous release.


"Profanity is the last vestige of the feeble mind. For the man who cannot express himself forcibly through intellect must do so through shock and awe" - Spencer W. Kimball

How to get your question answered on this forum!

Share this post


Link to post
Share on other sites

Just guess: Try to dowmload latest beta au3check.exe from here:

https://www.autoitscript.com/site/autoit-script-editor/downloads/

https://www.autoitscript.com/autoit3/scite/download/beta_SciTE4AutoIt3/

It's probably only au3check syntax check error. If this new "Map" syntax isn't implemented in au3check yet then disable au3check in your script by directve

#AutoIt3Wrapper_Run_AU3Check=n



EDIT: Also look here (specially Melba's reply)



Edited by Zedna

Share this post


Link to post
Share on other sites

@Zedna It's not the au3check as I tried to run the script directly with AutoIT without Scite and it threw an error.  So, i'm sure it's just not available in the latest release and it just needs the Maps stuff removed from the help file.


hmm... I guess I have to have a signature...

Share this post


Link to post
Share on other sites

After an year same problem... I was mislead by documentation "Errors"..



Please look at these examples:

Spoiler

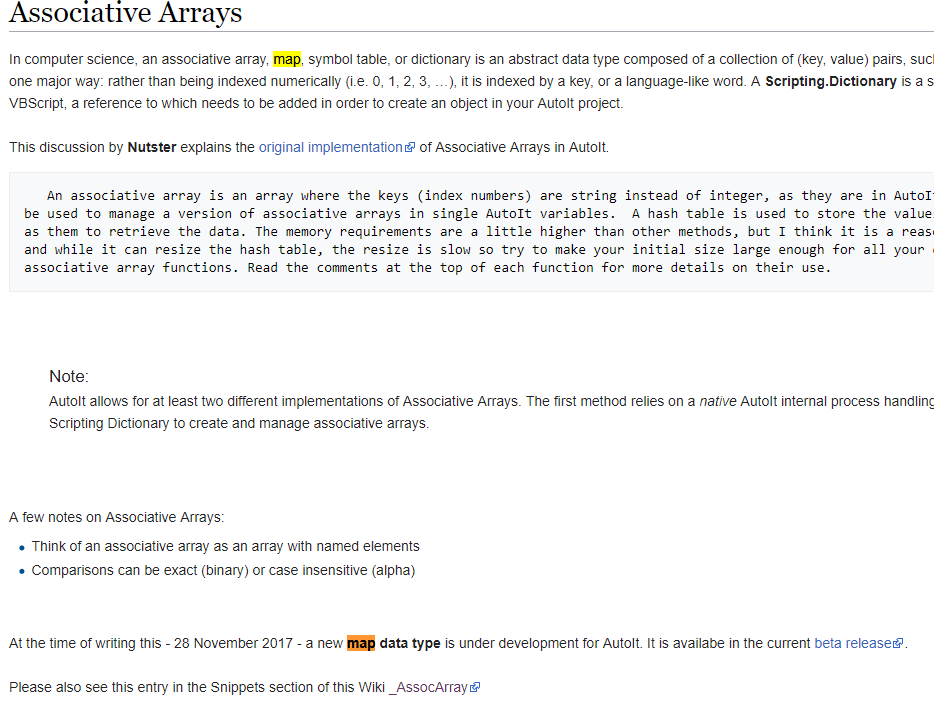

  • While on the wiki is said to be under development and that the correct implementation has to be made using Associative Arrays








My question here is the following:

Should we use the Wiki or the Documentation as "documentation" (sorry for the word pun 😄) since the first seems updated more recently?

Share this post


Link to post
Share on other sites
39 minutes ago, LukeSavefrogs said:

Should we use the Wiki or the Documentation as "documentation" (sorry for the word pun 😄) since the first seems updated more recently?

The wiki is more of a community effort as I see it. In any case, the documentation (help file) is the official support resource which comes packed in the installer. Use the help file for any solid references and the wiki for everything else.


A cross-platform implementation of the AutoIt language

My contributions to the AutoIt Community ##AutoIt at freenode, real-time chat


Spoiler

If I have hurt or offended you in anyway, Please accept my apologies, I never (regardless of the situation) intend to do that to anybody.

Share this post


Link to post
Share on other sites
