How to get the displayed value shown in "Button" box?

Recommended Posts

Mike2018

Hi. Greetings to all.

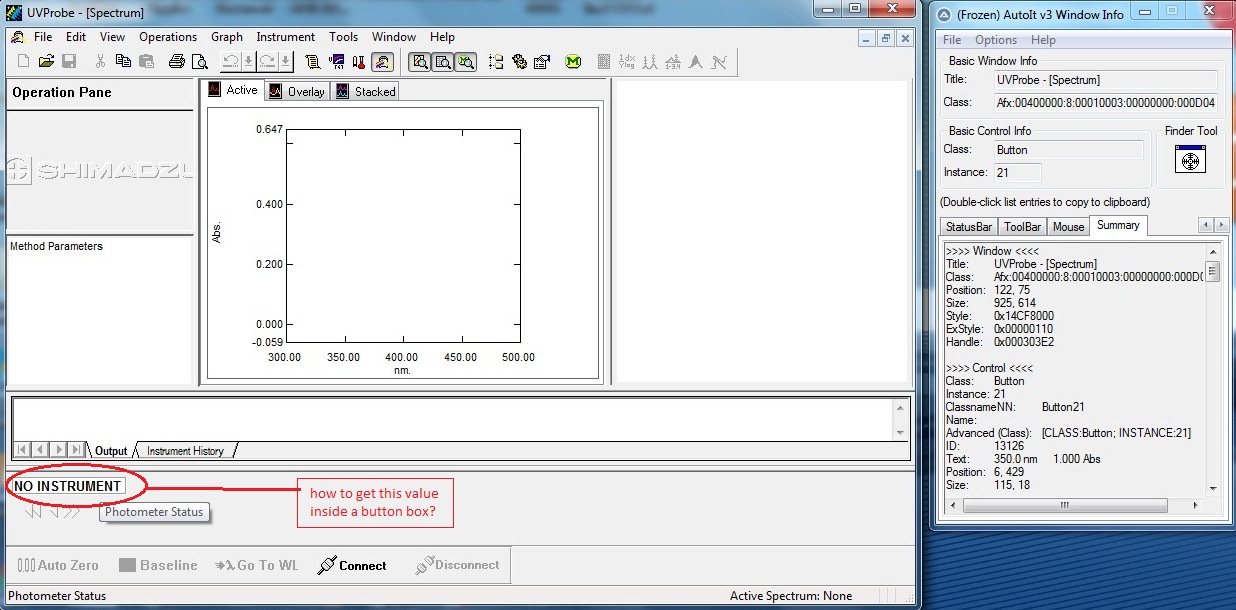

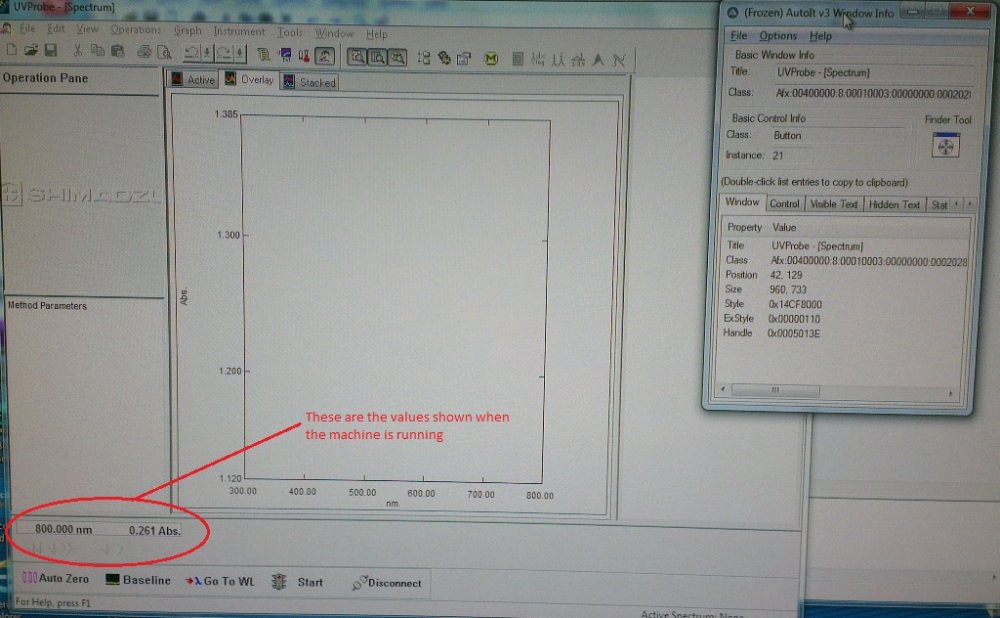

I bump into some problem when using Autoit to retrieve a value displayed in the button box. I am using UVProbe, a measuring software for Shimadzu UV-2600 spectrophotometer. Referring to pic1 and pic2, the circled part is the value that I want to get. Pic1 is when the machine is not connected to the PC and, Pic2 is when it is connected and showing the wavelength and absorbance value.

Below is a sample code that I tried.

#include <GuiToolbar.au3>
Example()

Func Example()
   Local $hwin = WinGetHandle("UVProbe - [Spectrum]")
   Local $text1 = ControlGetText($hwin,"","[CLASS:Button; INSTANCE:21]")

   Local $handle1=ControlGetHandle($hwin,"","[ID:13126]")
   Local $button1=GUICtrlRead($hwin)
   Local $wintext = WinGetTitle($hwin)

   ConsoleWrite($hwin & @LF & $text1 & @LF & $handle1 & @LF & $button1 & @LF & $wintext & @LF)

EndFunc

Here is the window info for the button.

>>>> Window <<<<
Title:  UVProbe - [Spectrum]
Class:  Afx:00400000:8:00010003:00000000:000D048F
Position:   122, 75
Size:   925, 614
Style:  0x14CF8000
ExStyle:    0x00000110
Handle: 0x000303E2

>>>> Control <<<<
Class:  Button
Instance:   21
ClassnameNN:    Button21
Name:
Advanced (Class):   [CLASS:Button; INSTANCE:21]
ID: 13126
Text:   350.0 nm     1.000 Abs
Position:   6, 429
Size:   115, 18
ControlClick Coords:    61, 9
Style:  0x5A00820B
ExStyle:    0x00000004
Handle: 0x000104F2

>>>> Mouse <<<<
Position:   197, 563
Cursor ID:  0
Color:  0x003A90

>>>> StatusBar <<<<
1:  For Help, press F1
2:  Active Spectrum: None
3:
4:

>>>> ToolsBar <<<<

>>>> Visible Text <<<<
Spectrum
Graph
Method
Method Parameters
For Help, press F1
Spectrum Toolbar
Main
Instrument Bar
Photometer Buttons
Photometer Status
<<
<
>>
<
>
350.0 nm     1.000 Abs
Output Window
Legend
Legend


>>>> Hidden Text <<<<
Peak Area
Index Tabs
Data Print
Peak Pick
Index Tabs
Point Pick
Index Tabs
Manipulation
Type:
Arithmetic
Calculate...
Data Set:
Operation:
Addition
Constant:
1
Sewing Box
Type:
Shear
Calculate...
Data Set:
Start:
0
End:
0
Region:
Inside
Outside
Interpolate:
Shift Time to Zero
Legend
Graph
Legend
Photometric
Standard Table
Method
Standard Curve
Legend
Sample Table
Standard Error Prediction Table
Sample Graph
Legend
Kinetics
Peak Area
Index Tabs
Data Print
Peak Pick
Index Tabs
Point Pick
Index Tabs
Manipulation
Type:
Arithmetic
Calculate...
Data Set:
Operation:
Addition
Constant:
1
Sewing Box
Type:
Shear
Calculate...
Data Set:
Start:
0
End:
0
Region:
Inside
Outside
Interpolate:
Shift Time to Zero
Kinetics Main Table
Activity Table
Graph
Legend
Graph
Legend
Enzyme Table
Method :
Lineweaver-Burk
Index Tabs
Method :
Lineweaver-Burk
[S] :
1
Apply
Index Tabs
Method :
Lineweaver-Burk
Index Tabs
Event List
Index Tabs
Method
Graph
Legend
Graph
Legend
Graph
Legend
Graph
Legend
Graph
Legend
Graph
Legend
Graph
Legend
Report
RepGenView
CRulerBarWnd
Photometric Toolbar
Kinetics Tool Bar
Report
Full Detail
Whole Page
Instrument Bar
Auto Scan Window
Spectrum
Legend
Photometer Buttons
Report Objects
Legend

The purpose of this is to dump the read data into a text file and have another program, Labview, to read from it. Cannot proceed to this step yet if above problem can not be solved.

Feel free to give any ideas on how to retrieve the displayed value in the button box.



Thanks and Regards,

Mike2018
