[SOLVED] How to perform a Subtotal in Excel using Autoit

Recommended Posts

I need to perform a subtotal in excel and I would like to automate this process using Autoit if possible like always any and all help will be greatly appreciated.

I can not find a good example but the two from Microsoft. Here is one of the two from msdn.microsoft.com/en-us/vba/excel-vba/articles/range-subtotal-method-excel

Quote

Worksheets("Sheet1").Activate Selection.Subtotal GroupBy:=1, Function:=xlSum, _ TotalList:=Array(2, 3)

I do not really understand how to translate this into AutoIt, but I gave it a try and here is what I have.

$OpenRange      = "A1:E200"
$xlSum          = -4157
$Added_Array[2] = [2, 3]
$OpenRange.Subtotal("B1", $xlSum, $Added_Array, True, False, True)

I just need to perform a subtotal on a range based on a header called department, and then perform a sum on the results.

Edited by nooneclose

Share this post


Link to post
Share on other sites

@nooneclose are you looking to enter the subtotal into the workbook, or just gather it for use elsewhere? If you are looking just to get the total, you could do something like this:

#include <Excel.au3>

Local $oExcel = _Excel_Open()
Local $oWorkbook = _Excel_BookOpen($oExcel, @DesktopDir & "\Test.xlsx")
Local $oRange = _Excel_RangeRead($oWorkbook, Default, $oWorkbook.ActiveSheet.Usedrange.Columns("B:B"))
Local $iTotal = 0

_Excel_BookClose($oWorkbook)
_Excel_Close($oExcel)

    For $a = 1 To UBound($oRange) - 1
        $iTotal += $oRange[$a]
    Next

    ConsoleWrite($iTotal & @CRLF)

If you need to write that subtotal into a cell in the spreadsheet you can use _Excel_RangeWrite to do so. Also, in the future, posting an example of the text file or spreadsheet you're working on helps immensely, so we don't have to recreate them :)


"Profanity is the last vestige of the feeble mind. For the man who cannot express himself forcibly through intellect must do so through shock and awe" - Spencer W. Kimball

How to get your question answered on this forum!

Share this post


Link to post
Share on other sites

As AutoIt does not support parameters by name you need to specify them in the sequence as documented here:
https://msdn.microsoft.com/en-us/vba/excel-vba/articles/range-subtotal-method-excel

$OpenRange      = "A1:E200"
$xlSum          = -4157
$Added_Array[2] = [2, 3]
$oExcel.Worksheets("Sheet1").Range($OpenRange).Subtotal("B1", $xlSum, $Added_Array, True, False, True)

BTW: I'm not sure "B1" is correct. I think it should be 2 (according to the docu I mentiond above). Can't test at the moment so everything I posted might be wrong ;)


My UDFs and Tutorials:

Spoiler

UDFs:
Active Directory (NEW 2020-09-05 - Version 1.5.1.1) - Download - General Help & Support - Example Scripts - Wiki
OutlookEX (NEW 2020-06-27 - Version 1.6.1.0) - Download - General Help & Support - Example Scripts - Wiki
OutlookEX_GUI (NEW 2020-06-27 - Version 1.3.2.0) - Download
Outlook Tools (2019-07-22 - Version 0.6.0.0) - Download - General Help & Support - Wiki
ExcelChart (2017-07-21 - Version 0.4.0.1) - Download - General Help & Support - Example Scripts
PowerPoint (2017-06-06 - Version 0.0.5.0) - Download - General Help & Support
Excel - Example Scripts - Wiki
Word - Wiki
Task Scheduler (2019-12-03 - Version 1.5.1.0) - Download - General Help & Support - Wiki

Tutorials:
ADO - Wiki, WebDriver - Wiki



Share this post


Link to post
Share on other sites

Thank you for your replies, but I sadly cannot test or use these until I can figure out how to delete certain names in a column first. my Program will not work as intended if I don't.

Share this post


Link to post
Share on other sites

I was able to Jerry-rig a way to find the cell locations and delete them though I do not like having to manually enter in all names that should be deleted I could not think of another way to do it. Here is how I did it:

Local $NameToDelete1  = _Excel_RangeFind($OpenWorkbook, "Smith, Bill")
Local $NameCell       = $NameToDelete1[0][2]
Local $CellNumber     = StringSplit($NameCell, "A, B, C, D, E")
Local $CellRange      = $NameCell & ":E" & $CellNumber[2]
_Excel_RangeDelete($OpenWorkbook.ActiveSheet, $CellRange, $xlShiftUp)

I can now focus on the subtotal. :)

Share this post


Link to post
Share on other sites

@JLogan3o13 I am trying to perform a subtotal on every used row in columns A-I and every change in the header at B1. I also want this subtotal to perform the "Sum" function.

Basically, this subtotal should take my roster (A1-I200, row 1 is the Headers so I must include them) break it down by the employee sub-departments and then add up how many are in each department.

I can manually do this in excel but I REALLY want to automate these last few processes.

Share this post


Link to post
Share on other sites

But what should get written to the Excel sheet? The formula (so it changes whenever you modify the sheet) or just the result as a numeric value?


My UDFs and Tutorials:

Spoiler

UDFs:
Active Directory (NEW 2020-09-05 - Version 1.5.1.1) - Download - General Help & Support - Example Scripts - Wiki
OutlookEX (NEW 2020-06-27 - Version 1.6.1.0) - Download - General Help & Support - Example Scripts - Wiki
OutlookEX_GUI (NEW 2020-06-27 - Version 1.3.2.0) - Download
Outlook Tools (2019-07-22 - Version 0.6.0.0) - Download - General Help & Support - Wiki
ExcelChart (2017-07-21 - Version 0.4.0.1) - Download - General Help & Support - Example Scripts
PowerPoint (2017-06-06 - Version 0.0.5.0) - Download - General Help & Support
Excel - Example Scripts - Wiki
Word - Wiki
Task Scheduler (2019-12-03 - Version 1.5.1.0) - Download - General Help & Support - Wiki

Tutorials:
ADO - Wiki, WebDriver - Wiki



Share this post


Link to post
Share on other sites

@waterThe results of the subtotal should be written to the excel sheet. I'll show you want I'm trying to automate. I changed the names on purpose.

EMP. TYPE SUB-DEPT NAME HOURS AS TIME HOURS AS GEN.
Staff Warehouse Smith, Bill Smith, Bill 40:00
Staff HVAC Smith, Bill Smith, Bill 42:45:00
Staff General Maint. Smith, Bill Smith, Bill 50:30:00
Staff Construction Smith, Bill Smith, Bill 64:30:00
Staff Plumber Smith, Bill Smith, Bill 25:00

 I need to go from the above example to the below example. A subtotal based on the sub-debt which is Colum B1

EMP. TYPE SUB-DEPT NAME HOURS AS TIME HOURS AS GEN.
  Appliance Total     103.25
  Construction Total     541
  Electrician Total     320.5
  General Maint. Total     591.25
  HVAC Total     377

Edited by nooneclose

Share this post


Link to post
Share on other sites

I'm on vacation right now. Will test, when I return :)


My UDFs and Tutorials:

Spoiler

UDFs:
Active Directory (NEW 2020-09-05 - Version 1.5.1.1) - Download - General Help & Support - Example Scripts - Wiki
OutlookEX (NEW 2020-06-27 - Version 1.6.1.0) - Download - General Help & Support - Example Scripts - Wiki
OutlookEX_GUI (NEW 2020-06-27 - Version 1.3.2.0) - Download
Outlook Tools (2019-07-22 - Version 0.6.0.0) - Download - General Help & Support - Wiki
ExcelChart (2017-07-21 - Version 0.4.0.1) - Download - General Help & Support - Example Scripts
PowerPoint (2017-06-06 - Version 0.0.5.0) - Download - General Help & Support
Excel - Example Scripts - Wiki
Word - Wiki
Task Scheduler (2019-12-03 - Version 1.5.1.0) - Download - General Help & Support - Wiki

Tutorials:
ADO - Wiki, WebDriver - Wiki



Share this post


Link to post
Share on other sites

Can you please post a real life example so we can check that our calculation is correct?

Example: You mention SUB-DEPT "Appliance Total" in your result matrix but it isn't mentioned in the source matrix.


My UDFs and Tutorials:

Spoiler

UDFs:
Active Directory (NEW 2020-09-05 - Version 1.5.1.1) - Download - General Help & Support - Example Scripts - Wiki
OutlookEX (NEW 2020-06-27 - Version 1.6.1.0) - Download - General Help & Support - Example Scripts - Wiki
OutlookEX_GUI (NEW 2020-06-27 - Version 1.3.2.0) - Download
Outlook Tools (2019-07-22 - Version 0.6.0.0) - Download - General Help & Support - Wiki
ExcelChart (2017-07-21 - Version 0.4.0.1) - Download - General Help & Support - Example Scripts
PowerPoint (2017-06-06 - Version 0.0.5.0) - Download - General Help & Support
Excel - Example Scripts - Wiki
Word - Wiki
Task Scheduler (2019-12-03 - Version 1.5.1.0) - Download - General Help & Support - Wiki

Tutorials:
ADO - Wiki, WebDriver - Wiki



Share this post


Link to post
Share on other sites

I think I understand what you're asking for.  @water

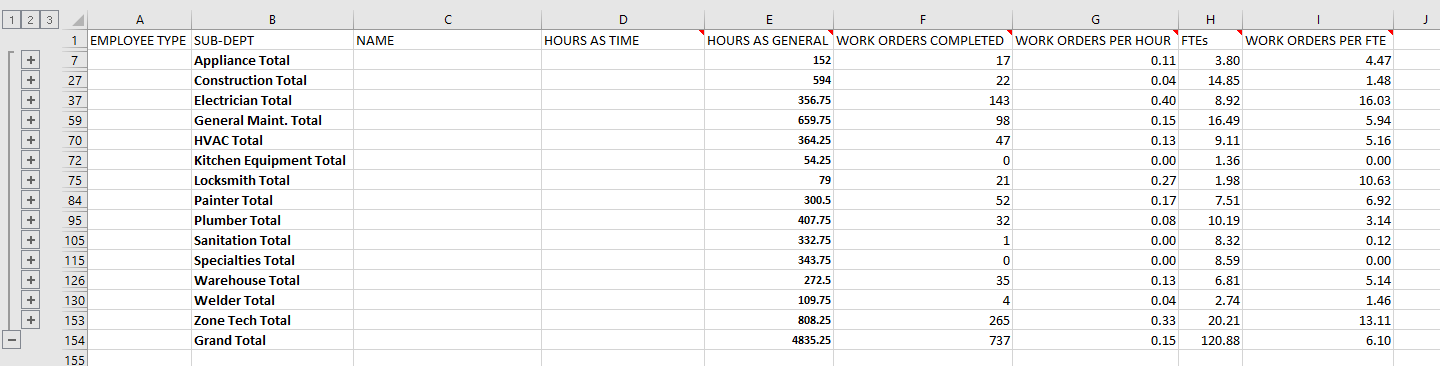

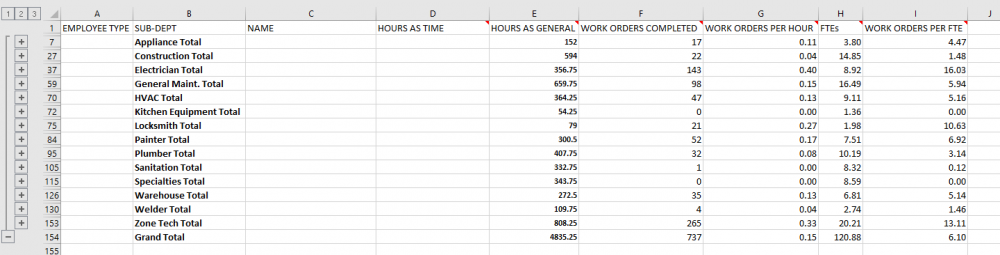

Here is what I get from a fresh report and I have to do a bunch of stuff and a subtotal to make it look like the below image.


I do some inserts and stuff and then I perform some sorts then I do a subtotal. I have mouse clicks doing the subtotal now but I want to automate that process.

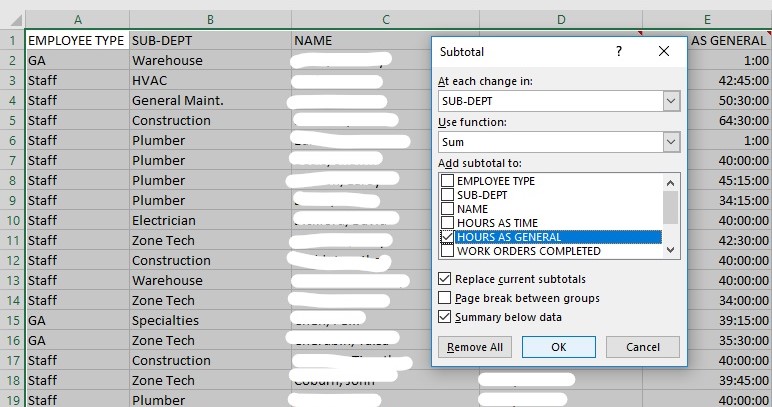

to see how I perform the subtotal see the image below.


Did these images answer your question? I do an FTE report.

Share this post


Link to post
Share on other sites

@nooneclose it would help immensely if you post an actual file, rather than pictures (redacting your company data of course). Otherwise we have to spend a lot of time recreating your spreadsheet.


"Profanity is the last vestige of the feeble mind. For the man who cannot express himself forcibly through intellect must do so through shock and awe" - Spencer W. Kimball

How to get your question answered on this forum!

Share this post


Link to post
Share on other sites
8 hours ago, junkew said:

Any reason to do it from AutoIt and not straight from VBA itself?

...should be the question of 90% of all the Excel-relating requests in this forum.



*OT-mode ON*

The only (for me) meaningful use of AutoIt with Excel is to extract or to put in/out Data from/to extern (3rd) Programs. Or control processes of other Programs from Excel/Word/any other VBA controllable software.

I cannot understand why people use a programming language like AutoIt (with whom they have no experience, otherwise they would not ask the simplest tasks here in the forum) instead of using the also "BASIC-like" build in programming language. Don´t they know what the "B "in VBA means?!

I think it would be a good idea to show how easy most of the here posted "Excel-related problems" could be solved with some lines of VBA-code. Some links to a friendly VBA forum anyone? :) Could be the start of a cooperation of two forums with mutual participation. (BIG smilie here ^^)

I bet that even experienced VBA-programmers would like AutoIt because of its wonderful possibilities!

*OT-mode OFF*

Edited by AndyG

Share this post


Link to post
Share on other sites

Anyway it would be something close to

$Added_Array[5] = [5,6,7,8,9] 'Totals added to these columns
'vba worksheets(1).Cells().Subtotal GroupBy:=2, Function:=$xlSum, TotalList:=Array(5,6,7,8,9), Replace:=True, PageBreaks:=False, SummaryBelowData:=True
$oWorkbook.worksheets(1).Cells().Subtotal 2, $xlSum, $added_Array, True, False, True

Advice: First record a vba macro and attach to your question it will be easier to translate

Deleting you can do more efficient by applying delete on a filteredrange

https://danwagner.co/how-to-delete-rows-with-range-autofilter/

Share this post


Link to post
Share on other sites

@AndyG if it is so easy then why don't you show me? There is no reason or need to be a puffed up nerd here. I came for help. And Yes, I do not know much about this language but I also did not know about VBA trust me if I knew an easier way I would have done it that way.

Here is the file you asked for you @JLogan3o13

Data.xlsx

Edited by nooneclose

Share this post


Link to post
Share on other sites

Based on your last answer vba is much easier to solve your problem.

  1. Alt F11 and record macro are your friends
  2. Start record
  3. Do your things
  4. Stop record
  5. Check your vba code and modify
  6. Save as xlsm file

In my previous post you see the vba one liner commented out to add your subtotals

Share this post


Link to post
Share on other sites

I downloaded your xlsx and its really a one liner recorded in VBA. Watch some instructions on youtube to get more instructed on vba and macro's

My advice is allways to record a VBA macro before transforming to another language like AutoIt

Details recorded

  1. menu view, macros, record macro
  2. menu data, subtotals, follow wizard
  3. menu view, macros, stop macro
  4. menu view, macros, edit macro to change

Recorded

Sub Macro1()
'
' Macro1 Macro
'

'
    Cells.Select
    Selection.Subtotal GroupBy:=2, Function:=xlSum, TotalList:=Array(4, 5), _
        Replace:=True, PageBreaks:=False, SummaryBelowData:=True
End Sub

Changed to

Worksheets(1).Cells.Subtotal GroupBy:=2, Function:=xlSum, TotalList:=Array(4, 5), Replace:=True, PageBreaks:=False, SummaryBelowData:=True

based on post 3 you should be able to transform to Autoit



Share this post


Link to post
Share on other sites

Create an account or sign in to comment

You need to be a member in order to leave a comment

Create an account

Sign up for a new account in our community. It's easy!

Register a new account

Sign in

Already have an account? Sign in here.

Sign In Now
Sign in to follow this

  • Recently Browsing   0 members

    No registered users viewing this page.

  • Similar Content

    • By learner123
      Hi All,

      I am new to this AUTO IT and I have created a script that will open an app,enter pin and copy the code generated to clipboard. My java code call this autoIT script and use the copied generated code from clipboard.
      This works fine when server  window is on focus. My server is an windows server.
      But when I minimize or disconnect the server, the script opens the app.exe but doesn't copy any value to clipboard.
      Can anyone help me on this 😐

      Run("C:\Program Files (x86)\RSA SecurID Software Token\SecurID.exe")
      Local $hWnd=WinWait("abc - RSA SecurID Token") ; waits until the window is the active window
      $hWin = WinGetHandle("abc - RSA SecurID Token");
      ControlSend($hWnd,"","","1111") ; simulates pressing the Home key
      ControlSend($hWnd,"","","{ENTER}");
      ControlSend($hWnd,"","","^c");
      Sleep(1000) ;
      ControlSend($hWnd,"","","^c");

    • By learner123
      Hi All,
      So I have created a small autoIT script to enter pin into a RSA token(app which generate new code every 30 second), and copy the generated code.
      I have a java application which requires this code so every time my java-code requires this RSA code, it runs the autoIT script and the copied generated code is then used in my java application.
      I have deployed this code on a windows server and it works fine when I am logged in and the window is on focus, But as soon as I schedule task and disconnect the server (not logged out only disconnect), or even minimize the server window, the autoIT scripts fails and its not able to copy the value.

      Please find below the code for AUTOIT.

      WinActivate("rsa - RSA SecurID Token") ; activates the window that has old in the tilte bar
      WinWaitActive("rsa - RSA SecurID Token") ; waits until the window is the active window
      Send("1111") ; simulates pressing the Home key, enters password to get the code
      Send("{ENTER}") ; simulates pressing the Enter key
      Sleep(1000) ;
      Send("^c") ; simulates pressing the CTRL+c keys (copy)

      Also I saw some post regarding that WINACTIVE only works when window is active. But my below AUTO IT script to handle windows pop up  works perfectly fine when the server is disconnected.

      Opt("WinTitleMatchMode", 1)
      WinWait("https://url","","10")
      WinWaitActive("https://url","","10")
      Sleep(2000)
      Send("userid")
      Sleep(1000)
      Send("{TAB}")
      Sleep(1000)
      Send("passwrd")
      Send("{TAB}")
      Sleep(500)
      Send("{ENTER}")


    • By JuanFelipe
      Hello gyus, I try to make a code to login in a web page in my job, buy i can’t understand why my form is blocked, this is my code:
      #include <ButtonConstants.au3> #include <EditConstants.au3> #include <GUIConstantsEx.au3> #include <StaticConstants.au3> #include <StringConstants.au3> #include <WindowsConstants.au3> #include <WinAPIFiles.au3> #include <FileConstants.au3> #include <File.au3> #include <Array.au3> #include <IE.au3> #include <Excel.au3> #include <GuiEdit.au3> #include <GuiStatusBar.au3> #include <DateTimeConstants.au3> #include <Date.au3> #Region ### START Koda GUI section ### Form=C:\noentry\koda_1.7.3.0\Forms\spoa.kxf $Form1 = GUICreate("Eva y Vehículos", 1200, 1000, 10, 10) $prueba = GUICtrlCreateButton("Prueba",10,990,50,20) ;VARIABLES ========================================================================================== $psi = "https://psi.policia.gov.co/PSI/Login.aspx?ReturnUrl=%2fPSI#no-back-button" $chequeVehiculos = "https://psi.policia.gov.co/PSI/frm_lista_chk.aspx" $evaluacionEva = "https://psi.policia.gov.co/PSI/eva_frmver.aspx" $oIE = ObjCreate("Shell.Explorer.2") $GUIActiveX = GUICtrlCreateObj ($oIE, 10, 10, 1180, 980) ;GUICtrlSetState(-1, $GUI_DISABLE) GUISetState(@SW_SHOW) $oIE.navigate($psi) ;_IELoadWait($oIE) _InicioSesion() #EndRegion ### END Koda GUI section ### While 1 $nMsg = GUIGetMsg() Switch $nMsg Case $GUI_EVENT_CLOSE Exit Case $prueba _InicioSesion() EndSwitch WEnd Func _InicioSesion() Local $username = _IEGetObjByName($oIE, "txtUsuario") Local $pass = _IEGetObjByName($oIE, "txtClave") Local $logina = _IEGetObjByName($oIE, "btnIngresar") $username.value="example" $pass.value="examplepass" _IEAction($logina, 'click') _IELoadWait($oIE) MsgBox(16,"","") EndFunc
    • By shelly
      Here is the below code for handling pop-up when window is  inactive ..but I don't know how to change sleep and when i run this script it runs sometimes and sometimes it stops .
      ControlSend("Policy Decisions -- Webpage Dialog","","Internet Explorer_Server1","{SPACE}")
      ControlSend("Policy Decisions -- Webpage Dialog","","Internet Explorer_Server1","{DOWN}")
      ControlSend("Policy Decisions -- Webpage Dialog","","Internet Explorer_Server1","{ENTER}")
      --- these 3 lines never worked while TAB lines works sometimes but not in accurate way
      I am new too AutoIt .. help me out why this script behaves in strange way
      ControlFocus("Policy Decisions -- Webpage Dialog","","Internet Explorer_Server1")
      Sleep(3000)
      ControlSend("Policy Decisions -- Webpage Dialog", "", "Internet Explorer_Server1","1")
      ControlSend("Policy Decisions -- Webpage Dialog","","Internet Explorer_Server1","{TAB}")
      ControlSend("Policy Decisions -- Webpage Dialog", "", "Internet Explorer_Server1","the request is send")
      Sleep(3000)
      ControlSend("Policy Decisions -- Webpage Dialog","","Internet Explorer_Server1","{TAB}")
      ControlSend("Policy Decisions -- Webpage Dialog","","Internet Explorer_Server1","{TAB}")
      ControlSend("Policy Decisions -- Webpage Dialog","","Internet Explorer_Server1","{TAB}")
      ControlSend("Policy Decisions -- Webpage Dialog","","Internet Explorer_Server1","{TAB}")
      ControlSend("Policy Decisions -- Webpage Dialog","","Internet Explorer_Server1","{TAB}")
      ControlSend("Policy Decisions -- Webpage Dialog","","Internet Explorer_Server1","{TAB}")
      ControlSend("Policy Decisions -- Webpage Dialog","","Internet Explorer_Server1","{TAB}")
      Sleep(3000)
      ControlSend("Policy Decisions -- Webpage Dialog","","Internet Explorer_Server1","{TAB}")
      ControlSend("Policy Decisions -- Webpage Dialog","","Internet Explorer_Server1","{TAB}")
      ControlSend("Policy Decisions -- Webpage Dialog","","Internet Explorer_Server1","{TAB}")
      ControlSend("Policy Decisions -- Webpage Dialog","","Internet Explorer_Server1","{TAB}")
      ControlSend("Policy Decisions -- Webpage Dialog","","Internet Explorer_Server1","{TAB}")
      ControlSend("Policy Decisions -- Webpage Dialog","","Internet Explorer_Server1","{TAB}")
      Sleep(3000)
      ControlSend("Policy Decisions -- Webpage Dialog","","Internet Explorer_Server1","{TAB}")
      ControlSend("Policy Decisions -- Webpage Dialog","","Internet Explorer_Server1","{TAB}")
      ControlSend("Policy Decisions -- Webpage Dialog","","Internet Explorer_Server1","{SPACE}")
      Sleep(3000)
      ControlSend("Policy Decisions -- Webpage Dialog","","Internet Explorer_Server1","{TAB}")
      ControlSend("Policy Decisions -- Webpage Dialog","","Internet Explorer_Server1","{TAB}")
      Sleep(3000)
      ControlSend("Policy Decisions -- Webpage Dialog","","Internet Explorer_Server1","{TAB}")
      ControlSend("Policy Decisions -- Webpage Dialog","","Internet Explorer_Server1","{TAB}")
      Sleep(3000)
      ControlSend("Policy Decisions -- Webpage Dialog","","Internet Explorer_Server1","{TAB}")
      ControlSend("Policy Decisions -- Webpage Dialog","","Internet Explorer_Server1","{DOWN}")
      ControlSend("Policy Decisions -- Webpage Dialog","","Internet Explorer_Server1","{TAB}")
      Sleep(3000)
      ControlSend("Policy Decisions -- Webpage Dialog","","Internet Explorer_Server1","{TAB}")
      ControlSend("Policy Decisions -- Webpage Dialog","","Internet Explorer_Server1","{ENTER}")

×
×
  • Create New...
