GillesMaisonneuve

button text vertical alignment au3 v3.3.14.5 on W7/64

Recommended Posts

Good morning,



I am trying to align a two-line text in a button so that it would be centered in the button but can't succeed to do it for the vertical part.

Can someone tell me what I do wrong ?

Here is my code:

$btn3 = GUICtrlCreateButton("Execute " & @LF & " file 1", 100, 65, 60, 50, _
                                BitOr($BS_CENTER,$BS_BOTTOM,$BS_MULTILINE))

and here is the resulting layout I get in my window.

I tried to follow the help, made a lot of different parameter combinations (here it's `$BS_BOTTOM`, but I tried `$BS_VCENTER` and `$BS_TOP`), still get the same result : vertical alignement is a no go for me.

Can someone help ?

TIA

Gilles


Edited by GillesMaisonneuve

Share this post


Link to post
Share on other sites
BitOR($BS_VCENTER,$BS_MULTILINE)

Works fine here. AutoIt 3.3.14.4 and 3.3.15.0, Windows 7.

Edited by water

My UDFs and Tutorials:

Spoiler

UDFs:
Active Directory (NEW 2019-10-24 - Version 1.4.14.0) - Download - General Help & Support - Example Scripts - Wiki
OutlookEX (NEW 2019-11-30 - Version 1.4.0.0) - Download - General Help & Support - Example Scripts - Wiki
Outlook Tools (2019-07-22 - Version 0.6.0.0) - Download - General Help & Support - Wiki
ExcelChart (2017-07-21 - Version 0.4.0.1) - Download - General Help & Support - Example Scripts
PowerPoint (2017-06-06 - Version 0.0.5.0) - Download - General Help & Support
Excel - Example Scripts - Wiki
Word - Wiki
Task Scheduler (NEW 2019-12-03 - Version 1.5.1.0) - Download - General Help & Support - Wiki

Tutorials:
ADO - Wiki



Share this post


Link to post
Share on other sites

GillesMaisonneuve,

Even better - just use the MULTILINE style on its own:

#include <GUIConstantsEx.au3>
#include <ButtonConstants.au3>

$hGUI = GUICreate("Test", 500, 500)

$cButton = GUICtrlCreateButton("Execute " & @CRLF & " file 1", 100, 65, 60, 50, $BS_MULTILINE)

GUISetState()

While 1

    Switch GUIGetMsg()
        Case $GUI_EVENT_CLOSE
            Exit
    EndSwitch

WEnd

But you appear to be using coloured buttons - which might be the root of your problem. There is a bug deep within AutoIt which means that colouring buttons leads to all sorts of problems, such as capturing the {ENTER} key and messing with the various styles. This bug is NOT going to be fixed so it is recommended NOT to use coloured buttons. Try removing the colour code and see if the vertical alignment works then - if so then you will have to choose which you want: colour or alignment.

M23


Public_Domain.png.2d871819fcb9957cf44f4514551a2935.png Any of my own code posted anywhere on the forum is available for use by others without any restriction of any kind

Open spoiler to see my UDFs:

Spoiler

ArrayMultiColSort ---- Sort arrays on multiple columns
ChooseFileFolder ---- Single and multiple selections from specified path treeview listing
Date_Time_Convert -- Easily convert date/time formats, including the language used
ExtMsgBox --------- A highly customisable replacement for MsgBox
GUIExtender -------- Extend and retract multiple sections within a GUI
GUIFrame ---------- Subdivide GUIs into many adjustable frames
GUIListViewEx ------- Insert, delete, move, drag, sort, edit and colour ListView items
GUITreeViewEx ------ Check/clear parent and child checkboxes in a TreeView
Marquee ----------- Scrolling tickertape GUIs
NoFocusLines ------- Remove the dotted focus lines from buttons, sliders, radios and checkboxes
Notify ------------- Small notifications on the edge of the display
Scrollbars ----------Automatically sized scrollbars with a single command
StringSize ---------- Automatically size controls to fit text
Toast -------------- Small GUIs which pop out of the notification area



Share this post


Link to post
Share on other sites

This leads us to the requirement to always post a full reproducer script ;)


My UDFs and Tutorials:

Spoiler

UDFs:
Active Directory (NEW 2019-10-24 - Version 1.4.14.0) - Download - General Help & Support - Example Scripts - Wiki
OutlookEX (NEW 2019-11-30 - Version 1.4.0.0) - Download - General Help & Support - Example Scripts - Wiki
Outlook Tools (2019-07-22 - Version 0.6.0.0) - Download - General Help & Support - Wiki
ExcelChart (2017-07-21 - Version 0.4.0.1) - Download - General Help & Support - Example Scripts
PowerPoint (2017-06-06 - Version 0.0.5.0) - Download - General Help & Support
Excel - Example Scripts - Wiki
Word - Wiki
Task Scheduler (NEW 2019-12-03 - Version 1.5.1.0) - Download - General Help & Support - Wiki

Tutorials:
ADO - Wiki



Share this post


Link to post
Share on other sites

Hello to all of you.

Thank you very much for you answers.

Actually you were right, the colouring was the problem.

Three kinds of instruction were causing the problem:

;~     GUICtrlSetDefColor(0x00004F)

;~     GUICtrlSetBkColor($btn3, 0XCFBFCF)
;~     GUICtrlSetColor($btn3, $COLOR_BLACK)

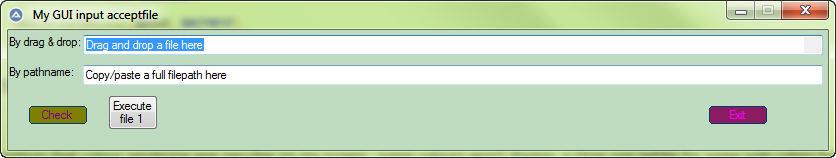

Now the text alignment is all right. (I kept the coloring for the other buttons and the window with no problem). (see image)

I already notices that colour rendering was peculiar on my screen : some colours won't display, a close one (white for some pale colors for instance) would be instead. I did not think that would be related to other bugs.

Too bad for me, I hoped to use colors in my GUIs. But it's not of deep matter.



@Watter: right I should have included more of my code. But then again the `GUICtrlSetDefColor(0x00004F)` instruction was many lines away from the buttons so that would have required a lot of ugly code to be provided to your reading... ;-)



@Melba23: when you say that this colour scheme is NOT going to be fixed, you mean never ever ?



Have a good day, all of you.

Gilles.


Share this post


Link to post
Share on other sites

GillesMaisonneuve,

See here - never ever, even if you say "pretty please".

M23


Public_Domain.png.2d871819fcb9957cf44f4514551a2935.png Any of my own code posted anywhere on the forum is available for use by others without any restriction of any kind

Open spoiler to see my UDFs:

Spoiler

ArrayMultiColSort ---- Sort arrays on multiple columns
ChooseFileFolder ---- Single and multiple selections from specified path treeview listing
Date_Time_Convert -- Easily convert date/time formats, including the language used
ExtMsgBox --------- A highly customisable replacement for MsgBox
GUIExtender -------- Extend and retract multiple sections within a GUI
GUIFrame ---------- Subdivide GUIs into many adjustable frames
GUIListViewEx ------- Insert, delete, move, drag, sort, edit and colour ListView items
GUITreeViewEx ------ Check/clear parent and child checkboxes in a TreeView
Marquee ----------- Scrolling tickertape GUIs
NoFocusLines ------- Remove the dotted focus lines from buttons, sliders, radios and checkboxes
Notify ------------- Small notifications on the edge of the display
Scrollbars ----------Automatically sized scrollbars with a single command
StringSize ---------- Automatically size controls to fit text
Toast -------------- Small GUIs which pop out of the notification area



Share this post


Link to post
Share on other sites

Instead of using colored buttons, you might want to try using one of the button skinning UDFs in the Example scripts forum here. You'll get much better looking buttons than just a flat colored one.


If I posted any code, assume that code was written using the latest release version unless stated otherwise. Also, if it doesn't work on XP I can't help with that because I don't have access to XP, and I'm not going to.
Give a programmer the correct code and he can do his work for a day. Teach a programmer to debug and he can do his work for a lifetime - by Chirag Gude
How to ask questions the smart way!

I hereby grant any person the right to use any code I post, that I am the original author of, on the autoitscript.com forums, unless I've specifically stated otherwise in the code or the thread post. If you do use my code all I ask, as a courtesy, is to make note of where you got it from.

Back up and restore Windows user files _Array.au3 - Modified array functions that include support for 2D arrays.  -  ColorChooser - An add-on for SciTE that pops up a color dialog so you can select and paste a color code into a script.  -  Customizable Splashscreen GUI w/Progress Bar - Create a custom "splash screen" GUI with a progress bar and custom label.  -  _FileGetProperty - Retrieve the properties of a file  -  SciTE Toolbar - A toolbar demo for use with the SciTE editor  -  GUIRegisterMsg demo - Demo script to show how to use the Windows messages to interact with controls and your GUI.  -   Latin Square password generator

Share this post


Link to post
Share on other sites
