DarkMode UDF for AutoIt's Win32GUIs

argumentum · February 11, 2024

Not confusing at all. Quite enlightening for me, even as an untested concept. It makes a lot of sense comparing the notes MSDN has.
Now, setting an error of 10 to a success, ..there is a lot of code from back in the day and from many different coders. In hopes to not bring "script braking" code, it got dragged along. My 2 cents.

Thanks for posting @SmOke_N

argumentum · February 12, 2024

..how to discern if the button class is a button a radio button or, something else.
So I shamelessly took the code from ControlViewer to use in your code.
You'd add:
ConsoleWrite(@CRLF & 'Class:' & _WinAPI_GetClassName($vCtrl) & ' Theme:' & $sThemeName & '::' & $sThemeList & @TAB & hWnd2Styles($vCtrl) )
This is just an idea. You can ~~cook~~ code it without the strings.

The 2 files are: GUIStyles.inc.au3

Spoiler

#include-once

Global Const $Style_Gui[32][2] = _
   [[0x80000000, 'WS_POPUP'], _
    [0x40000000, 'WS_CHILD'], _
    [0x20000000, 'WS_MINIMIZE'], _
    [0x10000000, 'WS_VISIBLE'], _
    [0x08000000, 'WS_DISABLED'], _
    [0x04000000, 'WS_CLIPSIBLINGS'], _
    [0x02000000, 'WS_CLIPCHILDREN'], _
    [0x01000000, 'WS_MAXIMIZE'], _
    [0x00CF0000, 'WS_OVERLAPPEDWINDOW'], _ ; (WS_CAPTION | WS_SYSMENU | WS_SIZEBOX | WS_MINIMIZEBOX | WS_MAXIMIZEBOX) aka 'WS_TILEDWINDOW'
    [0x00C00000, 'WS_CAPTION'], _          ; (WS_BORDER | WS_DLGFRAME)
    [0x00800000, 'WS_BORDER'], _
    [0x00400000, 'WS_DLGFRAME'], _
    [0x00200000, 'WS_VSCROLL'], _
    [0x00100000, 'WS_HSCROLL'], _
    [0x00080000, 'WS_SYSMENU'], _
    [0x00040000, 'WS_SIZEBOX'], _
    [0x00020000, '! WS_MINIMIZEBOX ! WS_GROUP'], _   ; ! GUI ! Control
    [0x00010000, '! WS_MAXIMIZEBOX ! WS_TABSTOP'], _ ; ! GUI ! Control
    [0x00002000, 'DS_CONTEXTHELP'], _
    [0x00001000, 'DS_CENTERMOUSE'], _
    [0x00000800, 'DS_CENTER'], _
    [0x00000400, 'DS_CONTROL'], _
    [0x00000200, 'DS_SETFOREGROUND'], _
    [0x00000100, 'DS_NOIDLEMSG'], _
    [0x00000080, 'DS_MODALFRAME'], _
    [0x00000040, 'DS_SETFONT'], _
    [0x00000020, 'DS_LOCALEDIT'], _
    [0x00000010, 'DS_NOFAILCREATE'], _
    [0x00000008, 'DS_FIXEDSYS'], _
    [0x00000004, 'DS_3DLOOK'], _
    [0x00000002, 'DS_SYSMODAL'], _
    [0x00000001, 'DS_ABSALIGN']]
    ;
    ; [0x80880000, 'WS_POPUPWINDOW']
    ; [0x20000000, 'WS_ICONIC']
    ; [0x00040000, 'WS_THICKFRAME']
    ;
    ; [0x00000000, 'WS_OVERLAPPED'] ; also named 'WS_TILED'


Global Const $Style_GuiExtended[21][2] = _
   [[0x08000000, 'WS_EX_NOACTIVATE'], _
    [0x02000000, 'WS_EX_COMPOSITED'], _
    [0x00400000, 'WS_EX_LAYOUTRTL'], _
    [0x00100000, '! WS_EX_NOINHERITLAYOUT ! GUI_WS_EX_PARENTDRAG'], _ ; ! GUI ! Control (label or pic, AutoIt "draggable" feature on 2 controls)
    [0x00080000, 'WS_EX_LAYERED'], _
    [0x00040000, 'WS_EX_APPWINDOW'], _
    [0x00020000, 'WS_EX_STATICEDGE'], _
    [0x00010000, 'WS_EX_CONTROLPARENT'], _ ; AutoIt adds a "draggable" feature to this GUI extended style behavior
    [0x00004000, 'WS_EX_LEFTSCROLLBAR'], _
    [0x00002000, 'WS_EX_RTLREADING'], _
    [0x00001000, 'WS_EX_RIGHT'], _
    [0x00000400, 'WS_EX_CONTEXTHELP'], _
    [0x00000200, 'WS_EX_CLIENTEDGE'], _
    [0x00000100, 'WS_EX_WINDOWEDGE'], _
    [0x00000080, 'WS_EX_TOOLWINDOW'], _
    [0x00000040, 'WS_EX_MDICHILD'], _
    [0x00000020, 'WS_EX_TRANSPARENT'], _
    [0x00000010, 'WS_EX_ACCEPTFILES'], _
    [0x00000008, 'WS_EX_TOPMOST'], _
    [0x00000004, 'WS_EX_NOPARENTNOTIFY'], _
    [0x00000001, 'WS_EX_DLGMODALFRAME']]
    ;
    ; [0x00000300, 'WS_EX_OVERLAPPEDWINDOW']
    ; [0x00000188, 'WS_EX_PALETTEWINDOW']
    ;
    ; [0x00000000, 'WS_EX_LEFT']
    ; [0x00000000, 'WS_EX_LTRREADING']
    ; [0x00000000, 'WS_EX_RIGHTSCROLLBAR']


Global Const $Style_Avi[5][2] = _
   [[0x0010, 'ACS_NONTRANSPARENT'], _
    [0x0008, 'ACS_TIMER'], _
    [0x0004, 'ACS_AUTOPLAY'], _
    [0x0002, 'ACS_TRANSPARENT'], _
    [0x0001, 'ACS_CENTER']]


Global Const $Style_Button[20][2] = _
   [[0x8000, 'BS_FLAT'], _
    [0x4000, 'BS_NOTIFY'], _
    [0x2000, 'BS_MULTILINE'], _
    [0x1000, 'BS_PUSHLIKE'], _
    [0x0C00, 'BS_VCENTER'], _
    [0x0800, 'BS_BOTTOM'], _
    [0x0400, 'BS_TOP'], _
    [0x0300, 'BS_CENTER'], _
    [0x0200, 'BS_RIGHT'], _
    [0x0100, 'BS_LEFT'], _
    [0x0080, 'BS_BITMAP'], _
    [0x0040, 'BS_ICON'], _
    [0x0020, 'BS_RIGHTBUTTON'], _
    [0x0009, 'BS_AUTORADIOBUTTON'] , _
    [0x0007, 'BS_GROUPBOX'], _
    [0x0006, 'BS_AUTO3STATE'], _
    [0x0005, 'BS_3STATE'], _
    [0x0003, 'BS_AUTOCHECKBOX'], _
    [0x0002, 'BS_CHECKBOX'], _
    [0x0001, 'BS_DEFPUSHBUTTON']]


Global Const $Style_Combo[13][2] = _
   [[0x4000, 'CBS_LOWERCASE'], _
    [0x2000, 'CBS_UPPERCASE'], _
    [0x0800, 'CBS_DISABLENOSCROLL'], _
    [0x0400, 'CBS_NOINTEGRALHEIGHT'], _
    [0x0200, 'CBS_HASSTRINGS'], _
    [0x0100, 'CBS_SORT'], _
    [0x0080, 'CBS_OEMCONVERT'], _
    [0x0040, 'CBS_AUTOHSCROLL'], _
    [0x0020, 'CBS_OWNERDRAWVARIABLE'], _
    [0x0010, 'CBS_OWNERDRAWFIXED'], _
    [0x0003, 'CBS_DROPDOWNLIST'], _
    [0x0002, 'CBS_DROPDOWN'], _
    [0x0001, 'CBS_SIMPLE']]


Global Const $Style_Common[12][2] = _ ; "for rebar controls, toolbar controls, and status windows (msdn)"
   [[0x0083, 'CCS_RIGHT'], _
    [0x0082, 'CCS_NOMOVEX'], _
    [0x0081, 'CCS_LEFT'], _
    [0x0080, 'CCS_VERT'], _
    [0x0040, 'CCS_NODIVIDER'], _
    [0x0020, 'CCS_ADJUSTABLE'], _
    [0x0010, 'CCS_NOHILITE'], _
    [0x0008, 'CCS_NOPARENTALIGN'], _
    [0x0004, 'CCS_NORESIZE'], _
    [0x0003, 'CCS_BOTTOM'], _
    [0x0002, 'CCS_NOMOVEY'], _
    [0x0001, 'CCS_TOP']]


Global Const $Style_DateTime[7][2] = _
   [[0x0020, 'DTS_RIGHTALIGN'], _
    [0x0010, 'DTS_APPCANPARSE'], _
    [0x000C, 'DTS_SHORTDATECENTURYFORMAT'], _
    [0x0009, 'DTS_TIMEFORMAT'], _
    [0x0004, 'DTS_LONGDATEFORMAT'], _
    [0x0002, 'DTS_SHOWNONE'], _
    [0x0001, 'DTS_UPDOWN']]
    ;
    ; [0x0000, 'DTS_SHORTDATEFORMAT']


Global Const $Style_Edit[13][2] = _
   [[0x2000, 'ES_NUMBER'], _
    [0x1000, 'ES_WANTRETURN'], _
    [0x0800, 'ES_READONLY'], _
    [0x0400, 'ES_OEMCONVERT'], _
    [0x0100, 'ES_NOHIDESEL'], _
    [0x0080, 'ES_AUTOHSCROLL'], _
    [0x0040, 'ES_AUTOVSCROLL'], _
    [0x0020, 'ES_PASSWORD'], _
    [0x0010, 'ES_LOWERCASE'], _
    [0x0008, 'ES_UPPERCASE'], _
    [0x0004, 'ES_MULTILINE'], _
    [0x0002, 'ES_RIGHT'], _
    [0x0001, 'ES_CENTER']]


Global Const $Style_Header[10][2] = _
   [[0x1000, 'HDS_OVERFLOW'], _
    [0x0800, 'HDS_NOSIZING'], _
    [0x0400, 'HDS_CHECKBOXES'], _
    [0x0200, 'HDS_FLAT'], _
    [0x0100, 'HDS_FILTERBAR'], _
    [0x0080, 'HDS_FULLDRAG'], _
    [0x0040, 'HDS_DRAGDROP'], _
    [0x0008, 'HDS_HIDDEN'], _
    [0x0004, 'HDS_HOTTRACK'], _
    [0x0002, 'HDS_BUTTONS']]
    ;
    ; [0x0000, '$HDS_HORZ']


Global Const $Style_ListBox[16][2] = _
   [[0x8000, 'LBS_COMBOBOX'], _
    [0x4000, 'LBS_NOSEL'], _
    [0x2000, 'LBS_NODATA'], _
    [0x1000, 'LBS_DISABLENOSCROLL'], _
    [0x0800, 'LBS_EXTENDEDSEL'], _
    [0x0400, 'LBS_WANTKEYBOARDINPUT'], _
    [0x0200, 'LBS_MULTICOLUMN'], _
    [0x0100, 'LBS_NOINTEGRALHEIGHT'], _
    [0x0080, 'LBS_USETABSTOPS'], _
    [0x0040, 'LBS_HASSTRINGS'], _
    [0x0020, 'LBS_OWNERDRAWVARIABLE'], _
    [0x0010, 'LBS_OWNERDRAWFIXED'], _
    [0x0008, 'LBS_MULTIPLESEL'], _
    [0x0004, 'LBS_NOREDRAW'], _
    [0x0002, 'LBS_SORT'], _
    [0x0001, 'LBS_NOTIFY']]
    ;
    ; [0xA00003, 'LBS_STANDARD'] ; i.e. (LBS_NOTIFY | LBS_SORT | WS_VSCROLL | WS_BORDER) help file correct, ListBoxConstants.au3 incorrect


Global Const $Style_ListView[17][2] = _
   [[0x8000, 'LVS_NOSORTHEADER'], _
    [0x4000, 'LVS_NOCOLUMNHEADER'], _
    [0x2000, 'LVS_NOSCROLL'], _
    [0x1000, 'LVS_OWNERDATA'], _
    [0x0800, 'LVS_ALIGNLEFT'], _
    [0x0400, 'LVS_OWNERDRAWFIXED'], _
    [0x0200, 'LVS_EDITLABELS'], _
    [0x0100, 'LVS_AUTOARRANGE'], _
    [0x0080, 'LVS_NOLABELWRAP'], _
    [0x0040, 'LVS_SHAREIMAGELISTS'], _
    [0x0020, 'LVS_SORTDESCENDING'], _
    [0x0010, 'LVS_SORTASCENDING'], _
    [0x0008, 'LVS_SHOWSELALWAYS'], _
    [0x0004, 'LVS_SINGLESEL'], _
    [0x0003, 'LVS_LIST'], _
    [0x0002, 'LVS_SMALLICON'], _
    [0x0001, 'LVS_REPORT']]
    ;
    ; [0x0000, 'LVS_ICON']
    ; [0x0000, 'LVS_ALIGNTOP']


Global Const $Style_ListViewExtended[20][2] = _
   [[0x00100000, 'LVS_EX_SIMPLESELECT'], _
    [0x00080000, 'LVS_EX_SNAPTOGRID'], _
    [0x00020000, 'LVS_EX_HIDELABELS'], _
    [0x00010000, 'LVS_EX_DOUBLEBUFFER'], _
    [0x00008000, 'LVS_EX_BORDERSELECT'], _
    [0x00004000, 'LVS_EX_LABELTIP'], _
    [0x00002000, 'LVS_EX_MULTIWORKAREAS'], _
    [0x00001000, 'LVS_EX_UNDERLINECOLD'], _
    [0x00000800, 'LVS_EX_UNDERLINEHOT'], _
    [0x00000400, 'LVS_EX_INFOTIP'], _
    [0x00000200, 'LVS_EX_REGIONAL'], _
    [0x00000100, 'LVS_EX_FLATSB'], _
    [0x00000080, 'LVS_EX_TWOCLICKACTIVATE'], _
    [0x00000040, 'LVS_EX_ONECLICKACTIVATE'], _
    [0x00000020, 'LVS_EX_FULLROWSELECT'], _
    [0x00000010, 'LVS_EX_HEADERDRAGDROP'], _
    [0x00000008, 'LVS_EX_TRACKSELECT'], _
    [0x00000004, 'LVS_EX_CHECKBOXES'], _
    [0x00000002, 'LVS_EX_SUBITEMIMAGES'], _
    [0x00000001, 'LVS_EX_GRIDLINES']]


Global Const $Style_MonthCal[8][2] = _
   [[0x0100, 'MCS_NOSELCHANGEONNAV'], _
    [0x0080, 'MCS_SHORTDAYSOFWEEK'], _
    [0x0040, 'MCS_NOTRAILINGDATES'], _
    [0x0010, 'MCS_NOTODAY'], _
    [0x0008, 'MCS_NOTODAYCIRCLE'], _
    [0x0004, 'MCS_WEEKNUMBERS'], _
    [0x0002, 'MCS_MULTISELECT'], _
    [0x0001, 'MCS_DAYSTATE']]


Global Const $Style_Pager[3][2] = _
   [[0x0004, 'PGS_DRAGNDROP'], _
    [0x0002, 'PGS_AUTOSCROLL'], _
    [0x0001, 'PGS_HORZ']]
    ;
    ; [0x0000, 'PGS_VERT']


Global Const $Style_Progress[4][2] = _
   [[0x0010, 'PBS_SMOOTHREVERSE'], _
    [0x0008, 'PBS_MARQUEE'], _
    [0x0004, 'PBS_VERTICAL'], _
    [0x0001, 'PBS_SMOOTH']]


Global Const $Style_Rebar[8][2] = _
   [[0x8000, 'RBS_DBLCLKTOGGLE'], _
    [0x4000, 'RBS_VERTICALGRIPPER'], _
    [0x2000, 'RBS_AUTOSIZE'], _
    [0x1000, 'RBS_REGISTERDROP'], _
    [0x0800, 'RBS_FIXEDORDER'], _
    [0x0400, 'RBS_BANDBORDERS'], _
    [0x0200, 'RBS_VARHEIGHT'], _
    [0x0100, 'RBS_TOOLTIPS']]


Global Const $Style_RichEdit[8][2] = _      ; will also use plenty (not all) of Edit styles
   [[0x01000000, 'ES_SELECTIONBAR'], _
    [0x00400000, 'ES_VERTICAL'], _          ; Asian-language support only (msdn)
    [0x00080000, 'ES_NOIME'], _             ; ditto
    [0x00040000, 'ES_SELFIME'], _           ; ditto
    [0x00008000, 'ES_SAVESEL'], _
    [0x00004000, 'ES_SUNKEN'], _
    [0x00002000, 'ES_DISABLENOSCROLL'], _   ; same value as 'ES_NUMBER' => issue ?
    [0x00000008, 'ES_NOOLEDRAGDROP']]       ; same value as 'ES_UPPERCASE' but RichRdit controls do not support 'ES_UPPERCASE' style (msdn)


Global Const $Style_Scrollbar[5][2] = _
   [[0x0010, 'SBS_SIZEGRIP'], _
    [0x0008, 'SBS_SIZEBOX'], _
    [0x0004, 'SBS_RIGHTALIGN or SBS_BOTTOMALIGN'], _ ; i.e. use SBS_RIGHTALIGN with SBS_VERT, use SBS_BOTTOMALIGN with SBS_HORZ (msdn)
    [0x0002, 'SBS_LEFTALIGN or SBS_TOPALIGN'], _     ; i.e. use SBS_LEFTALIGN  with SBS_VERT, use SBS_TOPALIGN    with SBS_HORZ (msdn)
    [0x0001, 'SBS_VERT']]
    ;
    ; [0x0000, 'SBS_HORZ']


Global Const $Style_Slider[13][2] = _ ; i.e. trackbar
   [[0x1000, 'TBS_TRANSPARENTBKGND'], _
    [0x0800, 'TBS_NOTIFYBEFOREMOVE'], _
    [0x0400, 'TBS_DOWNISLEFT'], _
    [0x0200, 'TBS_REVERSED'], _
    [0x0100, 'TBS_TOOLTIPS'], _
    [0x0080, 'TBS_NOTHUMB'], _
    [0x0040, 'TBS_FIXEDLENGTH'], _
    [0x0020, 'TBS_ENABLESELRANGE'], _
    [0x0010, 'TBS_NOTICKS'], _
    [0x0008, 'TBS_BOTH'], _
    [0x0004, 'TBS_LEFT or TBS_TOP'], _ ; i.e. TBS_LEFT tick marks when vertical slider, or TBS_TOP tick marks when horizontal slider
    [0x0002, 'TBS_VERT'], _
    [0x0001, 'TBS_AUTOTICKS']]
    ;
    ; [0x0000, 'TBS_RIGHT']
    ; [0x0000, 'TBS_BOTTOM']
    ; [0x0000, 'TBS_HORZ']


Global Const $Style_Static[18][2] = _
   [[0x1000, 'SS_SUNKEN'], _
    [0x0400, 'SS_RIGHTJUST'], _
    [0x0200, 'SS_CENTERIMAGE'], _
    [0x0100, 'SS_NOTIFY'], _
    [0x0080, 'SS_NOPREFIX'], _
    [0x0012, 'SS_ETCHEDFRAME'], _
    [0x0011, 'SS_ETCHEDVERT'], _
    [0x0010, 'SS_ETCHEDHORZ'], _
    [0x000C, 'SS_LEFTNOWORDWRAP'], _
    [0x000B, 'SS_SIMPLE'], _
    [0x0009, 'SS_WHITEFRAME'], _
    [0x0008, 'SS_GRAYFRAME'], _
    [0x0007, 'SS_BLACKFRAME'], _
    [0x0006, 'SS_WHITERECT'], _
    [0x0005, 'SS_GRAYRECT'], _
    [0x0004, 'SS_BLACKRECT'], _
    [0x0002, 'SS_RIGHT'], _
    [0x0001, 'SS_CENTER']]
    ;
    ; [0x0000, 'SS_LEFT']


Global Const $Style_StatusBar[2][2] = _
   [[0x0800, 'SBARS_TOOLTIPS'], _
    [0x0100, 'SBARS_SIZEGRIP']]
    ;
    ; [0x0800, 'SBT_TOOLTIPS']


Global Const $Style_Tab[17][2] = _
   [[0x8000, 'TCS_FOCUSNEVER'], _
    [0x4000, 'TCS_TOOLTIPS'], _
    [0x2000, 'TCS_OWNERDRAWFIXED'], _
    [0x1000, 'TCS_FOCUSONBUTTONDOWN'], _
    [0x0800, 'TCS_RAGGEDRIGHT'], _
    [0x0400, 'TCS_FIXEDWIDTH'], _
    [0x0200, 'TCS_MULTILINE'], _
    [0x0100, 'TCS_BUTTONS'], _
    [0x0080, 'TCS_VERTICAL'], _
    [0x0040, 'TCS_HOTTRACK'], _
    [0x0020, 'TCS_FORCELABELLEFT'], _
    [0x0010, 'TCS_FORCEICONLEFT'], _
    [0x0008, 'TCS_FLATBUTTONS'], _
    [0x0004, 'TCS_MULTISELECT'], _
    [0x0002, 'TCS_RIGHT'], _
    [0x0002, 'TCS_BOTTOM'], _
    [0x0001, 'TCS_SCROLLOPPOSITE']]
    ;
    ; [0x0000, 'TCS_TABS']
    ; [0x0000, 'TCS_SINGLELINE']
    ; [0x0000, 'TCS_RIGHTJUSTIFY']


Global Const $Style_Toolbar[8][2] = _
   [[0x8000, 'TBSTYLE_TRANSPARENT'], _
    [0x4000, 'TBSTYLE_REGISTERDROP'], _
    [0x2000, 'TBSTYLE_CUSTOMERASE'], _
    [0x1000, 'TBSTYLE_LIST'], _
    [0x0800, 'TBSTYLE_FLAT'], _
    [0x0400, 'TBSTYLE_ALTDRAG'], _
    [0x0200, 'TBSTYLE_WRAPABLE'], _
    [0x0100, 'TBSTYLE_TOOLTIPS']]


Global Const $Style_TreeView[16][2] = _
   [[0x8000, 'TVS_NOHSCROLL'], _
    [0x4000, 'TVS_NONEVENHEIGHT'], _
    [0x2000, 'TVS_NOSCROLL'], _
    [0x1000, 'TVS_FULLROWSELECT'], _
    [0x0800, 'TVS_INFOTIP'], _
    [0x0400, 'TVS_SINGLEEXPAND'], _
    [0x0200, 'TVS_TRACKSELECT'], _
    [0x0100, 'TVS_CHECKBOXES'], _
    [0x0080, 'TVS_NOTOOLTIPS'], _
    [0x0040, 'TVS_RTLREADING'], _
    [0x0020, 'TVS_SHOWSELALWAYS'], _
    [0x0010, 'TVS_DISABLEDRAGDROP'], _
    [0x0008, 'TVS_EDITLABELS'], _
    [0x0004, 'TVS_LINESATROOT'], _
    [0x0002, 'TVS_HASLINES'], _
    [0x0001, 'TVS_HASBUTTONS']]


Global Const $Style_UpDown[9][2] = _
   [[0x0100, 'UDS_HOTTRACK'], _
    [0x0080, 'UDS_NOTHOUSANDS'], _
    [0x0040, 'UDS_HORZ'], _
    [0x0020, 'UDS_ARROWKEYS'], _
    [0x0010, 'UDS_AUTOBUDDY'], _
    [0x0008, 'UDS_ALIGNLEFT'], _
    [0x0004, 'UDS_ALIGNRIGHT'], _
    [0x0002, 'UDS_SETBUDDYINT'], _
    [0x0001, 'UDS_WRAP']]

and GUIStyles.au3

Spoiler

#include-once
#include "GUIStyles.inc.au3"
#include <WindowsConstants.au3>
#include <WinAPISysWin.au3>

Func hWnd2Styles($hWnd)
    Return _GetCtrlStyleString(_WinAPI_GetWindowLong($hWnd, $GWL_STYLE), _WinAPI_GetWindowLong($hWnd, $GWL_EXSTYLE), _WinAPI_GetClassName($hWnd))
EndFunc

Func _GetStyleString($iStyle, $fExStyle)
    ConsoleWrite('+ Func _GetStyleString(' & $iStyle & ', ' & $fExStyle & ')' & @CRLF)
    Local $Text = '', $Data = $fExStyle ? $Style_GuiExtended : $Style_Gui

    For $i = 0 To UBound($Data) - 1
        If BitAND($iStyle, $Data[$i][0]) = $Data[$i][0] Then
            $iStyle = BitAND($iStyle, BitNOT($Data[$i][0]))
            If StringLeft($Data[$i][1], 1) <> "!" Then
                $Text &= $Data[$i][1] & ', '
            Else
                ; ex. '! WS_MINIMIZEBOX ! WS_GROUP'  =>  'WS_MINIMIZEBOX, '
                $Text &= StringMid($Data[$i][1], 3, StringInStr($Data[$i][1], "!", 2, 2) - 4) & ', '
            EndIf
        EndIf
    Next

    If $iStyle Then $Text = '0x' & Hex($iStyle, 8) & ', ' & $Text

    Return StringRegExpReplace($Text, ',\s\z', '')
EndFunc   ;==>_GetStyleString

Func _GetCtrlStyleString($iStyle, $fExStyle, $sClass, $iLVExStyle = 0)

    If $sClass = "AutoIt v3 GUI" Or $sClass = "#32770" Or $sClass = "MDIClient" Then ; control = child GUI, dialog box (msgbox) etc...
        Return _GetStyleString($iStyle, 0)
    EndIf

    If StringLeft($sClass, 8) = "RichEdit" Then $sClass = "RichEdit" ; RichEdit, RichEdit20A, RichEdit20W, RichEdit50A, RichEdit50W

    Local $Text = ''

    _GetCtrlStyleString2($iStyle, $Text, $sClass, $iLVExStyle) ; 4th param. in case $sClass = "Ex_SysListView32" (special treatment)

    If $sClass = "ReBarWindow32" Or $sClass = "ToolbarWindow32" Or $sClass = "msctls_statusbar32" Then
        $sClass = "Common" ; "for rebar controls, toolbar controls, and status windows" (msdn)
        _GetCtrlStyleString2($iStyle, $Text, $sClass)
    ElseIf $sClass = "RichEdit" Then
        $sClass = "Edit" ; "Richedit controls also support many edit control styles (not all)" (msdn)
        _GetCtrlStyleString2($iStyle, $Text, $sClass)
    EndIf

    Local $Data = $fExStyle ? $Style_GuiExtended : $Style_Gui

    For $i = 0 To UBound($Data) - 1
        If BitAND($iStyle, $Data[$i][0]) = $Data[$i][0] Then
            If (Not BitAND($Data[$i][0], 0xFFFF)) Or ($fExStyle) Then
                $iStyle = BitAND($iStyle, BitNOT($Data[$i][0]))
                If StringLeft($Data[$i][1], 1) <> "!" Then
                    $Text &= $Data[$i][1] & ', '
                Else
                    ; ex. '! WS_MINIMIZEBOX ! WS_GROUP'  =>  'WS_GROUP, '
                    $Text &= StringMid($Data[$i][1], StringInStr($Data[$i][1], "!", 2, 2) + 2) & ', '
                EndIf
            EndIf
        EndIf
    Next

    If $iStyle Then $Text = '0x' & Hex($iStyle, 8) & ', ' & $Text

    Return StringRegExpReplace($Text, ',\s\z', '')
EndFunc   ;==>_GetCtrlStyleString

;=====================================================================
Func _GetCtrlStyleString2(ByRef $iStyle, ByRef $Text, $sClass, $iLVExStyle = 0)

    Local $Data

    Switch $sClass  ; $Input[16]
        Case "Button"
            $Data = $Style_Button
        Case "ComboBox", "ComboBoxEx32"
            $Data = $Style_Combo
        Case "Common"
            $Data = $Style_Common ; "for rebar controls, toolbar controls, and status windows (msdn)"
        Case "Edit"
            $Data = $Style_Edit
        Case "ListBox"
            $Data = $Style_ListBox
        Case "msctls_progress32"
            $Data = $Style_Progress
        Case "msctls_statusbar32"
            $Data = $Style_StatusBar
        Case "msctls_trackbar32"
            $Data = $Style_Slider
        Case "msctls_updown32"
            $Data = $Style_UpDown
        Case "ReBarWindow32"
            $Data = $Style_Rebar
        Case "RichEdit"
            $Data = $Style_RichEdit
        Case "Scrollbar"
            $Data = $Style_Scrollbar
        Case "Static"
            $Data = $Style_Static
        Case "SysAnimate32"
            $Data = $Style_Avi
        Case "SysDateTimePick32"
            $Data = $Style_DateTime
        Case "SysHeader32"
            $Data = $Style_Header
        Case "SysListView32"
            $Data = $Style_ListView
        Case "Ex_SysListView32" ; special treatment below
            $Data = $Style_ListViewExtended
        Case "SysMonthCal32"
            $Data = $Style_MonthCal
        Case "SysPager"
            $Data = $Style_Pager
        Case "SysTabControl32", "SciTeTabCtrl"
            $Data = $Style_Tab
        Case "SysTreeView32"
            $Data = $Style_TreeView
        Case "ToolbarWindow32"
            $Data = $Style_Toolbar
        Case Else
            Return
    EndSwitch

    If $sClass <> "Ex_SysListView32" Then
        For $i = 0 To UBound($Data) - 1
            If BitAND($iStyle, $Data[$i][0]) = $Data[$i][0] Then
                $iStyle = BitAND($iStyle, BitNOT($Data[$i][0]))
                $Text = $Data[$i][1] & ', ' & $Text
            EndIf
        Next
    Else
        For $i = 0 To UBound($Data) - 1
            If BitAND($iLVExStyle, $Data[$i][0]) = $Data[$i][0] Then
                $iLVExStyle = BitAND($iLVExStyle, BitNOT($Data[$i][0]))
                $Text = $Data[$i][1] & ', ' & $Text
                If BitAND($iStyle, $Data[$i][0]) = $Data[$i][0] Then
                    $iStyle = BitAND($iStyle, BitNOT($Data[$i][0]))
                EndIf
            EndIf
        Next
        If $iLVExStyle Then $Text = 'LVex: 0x' & Hex($iLVExStyle, 8) & ', ' & $Text
        ; next test bc LVS_EX_FULLROWSELECT (default AutoIt LV ext style) and WS_EX_TRANSPARENT got both same value 0x20 (hard to solve in some cases)
        If BitAND($iStyle, $WS_EX_TRANSPARENT) = $WS_EX_TRANSPARENT Then ; note that $WS_EX_TRANSPARENT has nothing to do with listview
            $iStyle = BitAND($iStyle, BitNOT($WS_EX_TRANSPARENT))
        EndIf
    EndIf
EndFunc   ;==>_GetCtrlStyleString2

then you'll get something like:

Class:Static Theme:::   SS_CENTER, SS_RIGHT, SS_NOTIFY, WS_CHILD, WS_VISIBLE, WS_TABSTOP
Class:Static Theme:::   SS_NOTIFY, WS_CHILD, WS_VISIBLE
Class:Button Theme:::   BS_GROUPBOX, WS_CHILD, WS_VISIBLE, WS_GROUP
Class:Button Theme:::   BS_AUTORADIOBUTTON, WS_CHILD, WS_VISIBLE, WS_TABSTOP
Class:Button Theme:::   BS_AUTORADIOBUTTON, WS_CHILD, WS_VISIBLE
Class:Button Theme:::   BS_GROUPBOX, WS_CHILD, WS_VISIBLE, WS_GROUP
Class:Static Theme:::   SS_NOTIFY, WS_CHILD, WS_VISIBLE

Hope it helps

Edited February 12, 2024 by argumentum
fixed oops

SmOke_N · February 13, 2024

Geeze, I don't know why I did it, but I went on a tangent with the button type while I was eating my pop-tart.

I didn't research it much or do extensive testing but it seems to work.

Func _ctrl_Button_isType($hWnd, $iStyle = Default)

    If Not IsHWnd($hWnd) Then
        $hWnd = GUICtrlGetHandle($hWnd)
    EndIf

    Local Const $BS_PUSHBUTTON = 0x0008 ; hmm, why isn't this in the constants?

    If ($iStyle == Default) Then $iStyle = _WinAPI_GetWindowLong($hWnd, $GWL_STYLE)

    ; I'm probably missing some but I got lazy
    Local $iRetVal = BitAND($iStyle, BitOR( _
                                        $BS_BITMAP, _
                                        $BS_DEFPUSHBUTTON, _
                                        $BS_DEFSPLITBUTTON, _
                                        $BS_FLAT, _
                                        $BS_ICON, _
                                        $BS_NOTIFY, _
                                        $BS_OWNERDRAW, _
                                        $BS_PUSHBUTTON, _
                                        $BS_SPLITBUTTON))

    Switch $iRetVal
        Case $BS_BITMAP, $BS_DEFPUSHBUTTON, $BS_DEFSPLITBUTTON, _
                $BS_FLAT, $BS_ICON, $BS_NOTIFY, $BS_OWNERDRAW, _
                $BS_PUSHBUTTON, $BS_SPLITBUTTON
            Return SetExtended($iRetVal, "PUSHBUTTON")
    EndSwitch

    $iRetVal = BitAND($iStyle, BitOR( _
                                    $BS_3STATE, _
                                    $BS_AUTO3STATE, _
                                    $BS_AUTOCHECKBOX, _
                                    $BS_CHECKBOX))
    Switch $iRetVal
        Case $BS_3STATE, $BS_AUTO3STATE, $BS_AUTOCHECKBOX, $BS_CHECKBOX
            Return SetExtended($iRetVal, "CHECKBOX")
    EndSwitch

    $iRetVal = BitAND($iStyle, BitOR($BS_AUTORADIOBUTTON, $BS_RADIOBUTTON))
    If $iRetVal = $BS_AUTORADIOBUTTON Or $iRetVal = $BS_RADIOBUTTON Then
        Return SetExtended($iRetVal, "RADIOBUTTON")
    EndIf

    $iRetVal = BitAND($iStyle, $BS_GROUPBOX)
    If $iRetVal = $BS_GROUPBOX Then
        Return SetExtended($iRetVal, "GROUPBOX")
    EndIf

    $iRetVal = BitAND($iStyle, BitOR($BS_COMMANDLINK, $BS_DEFCOMMANDLINK))
    If $iRetVal = $BS_COMMANDLINK Or $iRetVal = $BS_DEFCOMMANDLINK Then
        Return SetExtended($iRetVal, "LINKBUTTON")
    EndIf

    Return SetError(1, $iRetVal, "")
EndFunc

argumentum · February 13, 2024

I have to apologize in regards to _WinAPI_SetWindowTheme()

I thought that ,0,0) removed the theme but it restores it.
Is ,"","") that removes it.

It has always been that way. RTFM, right?.

NoNameCode · February 14, 2024

17 hours ago, SmOke_N said:

Geeze, I don't know why I did it, but I went on a tangent with the button type while I was eating my pop-tart.

I didn't research it much or do extensive testing but it seems to work.

Func _ctrl_Button_isType($hWnd, $iStyle = Default)

    If Not IsHWnd($hWnd) Then
        $hWnd = GUICtrlGetHandle($hWnd)
    EndIf

    Local Const $BS_PUSHBUTTON = 0x0008 ; hmm, why isn't this in the constants?

    If ($iStyle == Default) Then $iStyle = _WinAPI_GetWindowLong($hWnd, $GWL_STYLE)

    ; I'm probably missing some but I got lazy
    Local $iRetVal = BitAND($iStyle, BitOR( _
                                        $BS_BITMAP, _
                                        $BS_DEFPUSHBUTTON, _
                                        $BS_DEFSPLITBUTTON, _
                                        $BS_FLAT, _
                                        $BS_ICON, _
                                        $BS_NOTIFY, _
                                        $BS_OWNERDRAW, _
                                        $BS_PUSHBUTTON, _
                                        $BS_SPLITBUTTON))

    Switch $iRetVal
        Case $BS_BITMAP, $BS_DEFPUSHBUTTON, $BS_DEFSPLITBUTTON, _
                $BS_FLAT, $BS_ICON, $BS_NOTIFY, $BS_OWNERDRAW, _
                $BS_PUSHBUTTON, $BS_SPLITBUTTON
            Return SetExtended($iRetVal, "PUSHBUTTON")
    EndSwitch

    $iRetVal = BitAND($iStyle, BitOR( _
                                    $BS_3STATE, _
                                    $BS_AUTO3STATE, _
                                    $BS_AUTOCHECKBOX, _
                                    $BS_CHECKBOX))
    Switch $iRetVal
        Case $BS_3STATE, $BS_AUTO3STATE, $BS_AUTOCHECKBOX, $BS_CHECKBOX
            Return SetExtended($iRetVal, "CHECKBOX")
    EndSwitch

    $iRetVal = BitAND($iStyle, BitOR($BS_AUTORADIOBUTTON, $BS_RADIOBUTTON))
    If $iRetVal = $BS_AUTORADIOBUTTON Or $iRetVal = $BS_RADIOBUTTON Then
        Return SetExtended($iRetVal, "RADIOBUTTON")
    EndIf

    $iRetVal = BitAND($iStyle, $BS_GROUPBOX)
    If $iRetVal = $BS_GROUPBOX Then
        Return SetExtended($iRetVal, "GROUPBOX")
    EndIf

    $iRetVal = BitAND($iStyle, BitOR($BS_COMMANDLINK, $BS_DEFCOMMANDLINK))
    If $iRetVal = $BS_COMMANDLINK Or $iRetVal = $BS_DEFCOMMANDLINK Then
        Return SetExtended($iRetVal, "LINKBUTTON")
    EndIf

    Return SetError(1, $iRetVal, "")
EndFunc

Hi @SmOke_N,

is it okay if i use ur Script for the UDF?

Regards
NoNameCode

SmOke_N · February 14, 2024

If I wrote it and posted it, it's free to use (unless there's real royalties, then thank you in advance 😂).

NoNameCode · February 14, 2024

Little update of what im doing right now, for those who are intrested.

Im working right now on writing a DLL in C++ to hoock the OpenNcThemeData to make the change that the Folowing code in the C++ FixDarkScrollBari func dose
(https://github.com/ysc3839/win32-darkmode/blob/master/win32-darkmode/DarkMode.h)

Ill use a differen method to realise the hoockup but it will make the same changes.

auto MyOpenThemeData = [](HWND hWnd, LPCWSTR classList) -> HTHEME {
	if (wcscmp(classList, L"ScrollBar") == 0)
	{
		hWnd = nullptr;
		classList = L"Explorer::ScrollBar";
	}
	return _OpenNcThemeData(hWnd, classList);
};

P.s. but since I'm doing this for the first time... it takes some time and nerves :3

Edited February 14, 2024 by NoNameCode

NoNameCode · February 14, 2024

Version 0.03 ist out with new HookOpenNcThemeData.dll als Replacement for the FixScrollbar Feature!!

Andreik · March 8, 2024

Any idea why my edit scroll bars are still white?

argumentum · March 9, 2024

Try the v2 code. See if that fixes it. I think @NoNameCode is working in a DLL solution ( v3 ) but may not be as complete as v2.
Otherwise we'll have to wait for v4.

Andreik · March 9, 2024

Edit control looks good in v2 but now the button doesn't display as expected.

argumentum · March 9, 2024

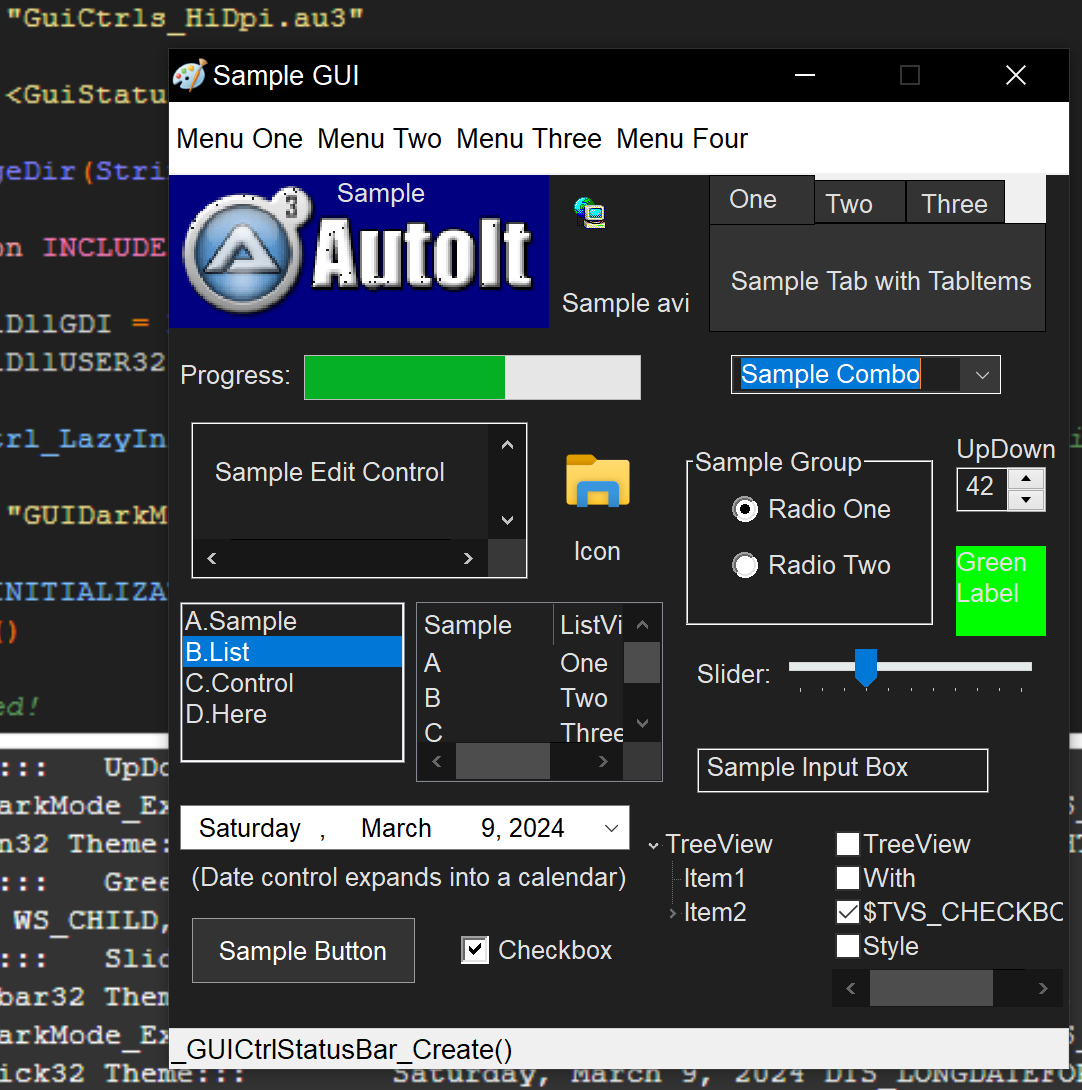

Ugly mod. but, it works

Click on the image, it'll look better

GuiCtrls_DarkMode_HiDpi.TryingStuff(v0.2024.3.9).zip

Edited March 9, 2024 by argumentum

LWC · May 13, 2024

On 2/9/2024 at 8:12 AM, NoNameCode said:

Todos / Challenges:

* Redrawing of the Menu to Black

Nice work, all of you!

Just 1 remark: menus (i.e. GUICtrlCreateMenu) aside, you did manage to make menuitems (i.e. GUICtrlCreateMenuItem) dark, but it seems all of you used code that affects the entire operating system to get it done:

$help = GUICtrlCreateMenu("Help")
GUICtrlCreateMenuItem("Command line syntax", $help)
local $PREFERREDAPPMODE = 2 ; or 1 which is FORCEDARK VS ALLOWDARK
local $fnSetPreferredAppMode = 135
DllCall('uxtheme.dll', 'int', $fnSetPreferredAppMode, 'int', $PREFERREDAPPMODE) ; via _WinAPI_SetPreferredAppMode($fnSetPreferredAppMode)
Local $fnRefreshImmersiveColorPolicyState = 104
DllCall('uxtheme.dll', 'none', $fnRefreshImmersiveColorPolicyState) ; via _WinAPI_RefreshImmersiveColorPolicyState()

Is there a way to utilize hwnd in those DLLCall commands so they'll affect just a specific GUICreate?
And what are actually the effects on other programs and on the OS itself?

Edited May 15, 2024 by LWC

jpm · May 20, 2024

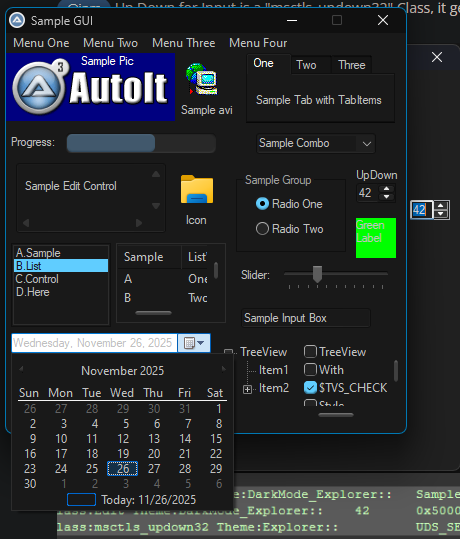

@argumentumI don't know how you can color the updown in black and also the left part of the Tab control

a coloring of the date control can be a good improvement too.

I implement a GUISetDarkTheme($hGui) which working the same , no need to use a callback

I hope somebody can help.


argumentum · May 21, 2024

4 hours ago, jpm said:

@argumentumI don't know how you can color the updown in black and also the left part of the Tab control

that file attached above has all that I scrapped from @NoNameCode's v0.02. Other than what is in that zip file, I have nothing more

jpm · May 21, 2024

Ok may be @NoNameCode have more ...

WildByDesign · January 11

On 5/20/2024 at 8:51 PM, argumentum said:

that file attached above has all that I scrapped from @NoNameCode's v0.02.

Thank you for sharing this. I have used your modded DarkMode UDF version in 3 different projects recently because it is the most thorough dark mode UDF and covers the most controls.

I only have one problem that I am wondering if you can help solve. All of the regular checkboxes change to dark mode which is good. ListView changes to dark mode which is quite beautiful. However, the checkboxes ($LVS_EX_CHECKBOXES) within the ListView are the only thing that remains in Light Mode.

So far I have tried a few code modifications:

If $sClass <> "Ex_SysListView32" Then
        For $i = 0 To UBound($Data) - 1
            If BitAND($iStyle, $Data[$i][0]) = $Data[$i][0] Then
                $iStyle = BitAND($iStyle, BitNOT($Data[$i][0]))
                $Text = $Data[$i][1] & ', ' & $Text
            EndIf
        Next
    Else
        For $i = 0 To UBound($Data) - 1
            If BitAND($iLVExStyle, $Data[$i][0]) = $Data[$i][0] Then
                $iLVExStyle = BitAND($iLVExStyle, BitNOT($Data[$i][0]))
                $Text = $Data[$i][1] & ', ' & $Text
                If BitAND($iStyle, $Data[$i][0]) = $Data[$i][0] Then
                    $iStyle = BitAND($iStyle, BitNOT($Data[$i][0]))
                EndIf
            EndIf
        Next
        If $iLVExStyle Then $Text = 'LVex: 0x' & Hex($iLVExStyle, 8) & ', ' & $Text
        ; next test bc LVS_EX_FULLROWSELECT (default AutoIt LV ext style) and WS_EX_TRANSPARENT got both same value 0x20 (hard to solve in some cases)
        If BitAND($iStyle, $WS_EX_TRANSPARENT) = $WS_EX_TRANSPARENT Then ; note that $WS_EX_TRANSPARENT has nothing to do with listview
            $iStyle = BitAND($iStyle, BitNOT($WS_EX_TRANSPARENT))
        EndIf
        ; $WS_EX_NOPARENTNOTIFY and LVS_EX_CHECKBOXES share the same value of 0x00000004
        If BitAND($iStyle, $WS_EX_NOPARENTNOTIFY) = $WS_EX_NOPARENTNOTIFY Then ; note that $WS_EX_NOPARENTNOTIFY has nothing to do with listview
            $iStyle = BitAND($iStyle, BitNOT($WS_EX_NOPARENTNOTIFY))
        EndIf
    EndIf

- Added the bottom section regarding $WS_EX_NOPARENTNOTIFY and LVS_EX_CHECKBOXES share the same value of 0x00000004

Case 'Button'
            If StringInStr($sStyles, "BS_AUTORADIOBUTTON") Or StringInStr($sStyles, "BS_GROUPBOX") Or StringInStr($sStyles, "BS_AUTOCHECKBOX") Or StringInStr($sStyles, "LVS_EX_CHECKBOXES") And $isDarkMode = True Then
                $sThemeName = "DarkMode_Explorer"
            ElseIf StringInStr($sStyles, "BS_AUTORADIOBUTTON") Or StringInStr($sStyles, "BS_GROUPBOX") Or StringInStr($sStyles, "BS_AUTOCHECKBOX") Or StringInStr($sStyles, "LVS_EX_CHECKBOXES") And $isDarkMode = False Then
                $sThemeName = "Explorer"
                ConsoleWrite('>' & $sStyles & '<' & @CRLF)
                If Not StringInStr($sStyles, "BS_PUSHLIKE") Then _WinAPI_SetWindowTheme($vCtrl, "", "")
;~              DllCall("UxTheme.dll", "int", "SetWindowTheme", "hwnd", $vCtrl, "wstr", 0, "wstr", 0)
                GUICtrlSetColor(_WinAPI_GetDlgCtrlID($vCtrl), $iGUI_Ctrl_Color)
                GUICtrlSetBkColor(_WinAPI_GetDlgCtrlID($vCtrl), $iGUI_Ctrl_BkColor)

- Added the: Or StringInStr($sStyles, "LVS_EX_CHECKBOXES")

I also added the And $isDarkMode = True and And $isDarkMode = False to fit my needs but that part is not relevant to this issue.

Do you know of any way to apply dark mode to the ListView checkboxes ($LVS_EX_CHECKBOXES)?

Thank you for your time.

argumentum · January 11

32 minutes ago, WildByDesign said:

I only have one problem that I am wondering if you can help solve.

..themes in windows are a pain.
I call myself a master of copy and paste because my brainstorming's are few and seldom. Most of my code are done scraping the site.
Am sure that @NoNameCode hit a wall and just quit the project. I personally use niivu's themes to have my dark and other modes/themes/skins.

Even made me a high contrast file patcher to solve my desire of a less bright desktop.
If I make something with "windows dark mode" is because those controls have a way to make it so. If I had to use a menu in AutoIt, I'd have to get creative because I haven't found a way to set a dark mode to it.

Therefore nope, I can't do more than there is. If you added some refinements to the code, share it in a zip and call it v0.02b to help the next soul.
Am truly sorry about the sate of dark mode in win32 controls and hope that Microsoft one day attend to it.

WildByDesign · January 11

1 hour ago, argumentum said:

..themes in windows are a pain.

I agree 100%. The deeper I get into it, I realize how messy theming in Windows can get.

1 hour ago, argumentum said:

I personally use niivu's themes to have my dark and other modes/themes/skins.

Those are nice themes. Personally, specifically for dark mode only, I use Rectify11 theme for Windows. Rectify11 actually fixes the problem with the ListView checkboxes. However, for the apps that I make, I end up having to target default Aero theme (dark and light) because that is what the majority of users would be using.

1 hour ago, argumentum said:

Therefore nope, I can't do more than there is. If you added some refinements to the code, share it in a zip and call it v0.02b to help the next soul.
Am truly sorry about the sate of dark mode in win32 controls and hope that Microsoft one day attend to it.

I had never thought about that but I think you are right. You built upon @NoNameCode's UDF and made it significantly better and it helped me tremendously. So if I make some noteworthy changes, you are right, I probably should post it as well here and note that it was based on yours.

For example, you had added the GuiDarkModeApply function at the bottom of the script which helped me get started when I didn't understand it at first. Eventually, I added onto that bottom part and added a GuiLightModeApply as well:

#Region Enable GUI LIGHTMODE

Func GuiLightmodeApply($hGUI)
    $bEnableDarkTheme = False
    _GUISetDarkTheme($hGUI, $bEnableDarkTheme)
    _GUICtrlAllSetDarkTheme($hGUI, $bEnableDarkTheme)
    ConsoleWrite(@CRLF & '+ _GUICtrlAllSetDarkTheme: ' & @error & ',' & @extended & @CRLF)
EndFunc

#EndRegion Enable GUI LIGHTMODE

This way when the app first starts, it determines whether or not the system is using dark mode and will call either GuiDarkModeApply () or GuiLightModeApply ().

The Light Mode that @NoNameCode built into this DarkMode UDF is actually very nice. It's much better than the default AutoIt light mode. Especially when working with ListViews because it formats it beautifully and easily.

Thank you for your time and for your response. I appreciate it. I still have some more changes to make with the UDF and likely clean up some of my changes before I can post it. But I will definitely look into that as soon as I am done with messing around with it. Cheers!

water · January 12

Added this UDF to the wiki

DarkMode UDF for AutoIt's Win32GUIs

Recommended Posts

Top Posters In This Topic

Top Posters In This Topic

Popular Posts

NoNameCode

argumentum

argumentum

Posted Images

Create an account or sign in to comment

Create an account

Sign in

Similar Content
