How to find last active window ?

Recommended Posts

kcvinu

Hi there,

I am planning to customize ALT TAB key combination. This is my pseudo code

 Get window list with WinList()

 If Mywindow1 and Mywindow2 is Exits Then

        Toggle that two windows.

 Else

        Find last active window and activate it.

So i need to know how to find the last active window.?


My Contributions

UDF Link Viewer   --- A tool to visit the links of some most important UDFs

 Includer_2  ----- A tool to type the #include statement automatically

 Digits To Date  ----- date from 3 integer values

PrintList ----- prints arrays into console for testing.

 Alert  ------ An alternative for MsgBox

 MousePosition ------- A simple tooltip display of mouse position

GRM Helper -------- A littile tool to help writing code with GUIRegisterMsg function

Access_UDF  -------- An UDF for working with access database files. (.*accdb only)



Share this post


Link to post
Share on other sites
MikahS

You would do something like so:

Local $myLastWin = WinActive("[ACTIVE]")
; your code goes after
Local $winList = WinList()
Local $Mywindow1 = "handle for window 1 here", $MyWindow2 = "handle for window 2 here"
If WinExists($Mywindow1) And WinExists($Mywindow2) Then
    ; toggle the windows
Else
    WinActivate($myLastWin)
EndIf

Does that help? :)

Edited by MikahS
  • Like 1

Snips & Scripts


My Snips: graphCPUTemp ~ getENVvars
My Scripts: Short-Order Encrypter - message and file encryption V1.6.1 ~ AuPad - Notepad written entirely in AutoIt V1.9.4

Feel free to use any of my code for your own use.                                                                                                                                                           Forum FAQ



Share this post


Link to post
Share on other sites
iamtheky

just send alt+tab as pressing alt+tab once takes you to the last active window.  But it would take more effort to find your script and run it than it would to just press alt+tab.

  • Like 1

,-. .--. ________ .-. .-. ,---. ,-. .-. .-. .-.
|(| / /\ \ |\ /| |__ __||| | | || .-' | |/ / \ \_/ )/
(_) / /__\ \ |(\ / | )| | | `-' | | `-. | | / __ \ (_)
| | | __ | (_)\/ | (_) | | .-. | | .-' | | \ |__| ) (
| | | | |)| | \ / | | | | | |)| | `--. | |) \ | |
`-' |_| (_) | |\/| | `-' /( (_)/( __.' |((_)-' /(_|
'-' '-' (__) (__) (_) (__)

Share this post


Link to post
Share on other sites
kcvinu

Hi MikahS,

I didn't get the first line of your code. What is "[Active]" ?


My Contributions

UDF Link Viewer   --- A tool to visit the links of some most important UDFs

 Includer_2  ----- A tool to type the #include statement automatically

 Digits To Date  ----- date from 3 integer values

PrintList ----- prints arrays into console for testing.

 Alert  ------ An alternative for MsgBox

 MousePosition ------- A simple tooltip display of mouse position

GRM Helper -------- A littile tool to help writing code with GUIRegisterMsg function

Access_UDF  -------- An UDF for working with access database files. (.*accdb only)



Share this post


Link to post
Share on other sites
kcvinu

Hi

boththose, Thanks but Send is not working

My Contributions

UDF Link Viewer   --- A tool to visit the links of some most important UDFs

 Includer_2  ----- A tool to type the #include statement automatically

 Digits To Date  ----- date from 3 integer values

PrintList ----- prints arrays into console for testing.

 Alert  ------ An alternative for MsgBox

 MousePosition ------- A simple tooltip display of mouse position

GRM Helper -------- A littile tool to help writing code with GUIRegisterMsg function

Access_UDF  -------- An UDF for working with access database files. (.*accdb only)



Share this post


Link to post
Share on other sites
MikahS

Hi MikahS,

I didn't get the first line of your code. What is "[Active]" ?

[ACTIVE] is the window that is active right now. Storing the returned result (which is the handle) in a variable will give you the ability to use WinActivate to re-activate the window that you want.

EDIT: see the title special definiton

Edited by MikahS
  • Like 1

Snips & Scripts


My Snips: graphCPUTemp ~ getENVvars
My Scripts: Short-Order Encrypter - message and file encryption V1.6.1 ~ AuPad - Notepad written entirely in AutoIt V1.9.4

Feel free to use any of my code for your own use.                                                                                                                                                           Forum FAQ



Share this post


Link to post
Share on other sites
kcvinu

Hi

MikahS

Thanks. Let me try


My Contributions

UDF Link Viewer   --- A tool to visit the links of some most important UDFs

 Includer_2  ----- A tool to type the #include statement automatically

 Digits To Date  ----- date from 3 integer values

PrintList ----- prints arrays into console for testing.

 Alert  ------ An alternative for MsgBox

 MousePosition ------- A simple tooltip display of mouse position

GRM Helper -------- A littile tool to help writing code with GUIRegisterMsg function

Access_UDF  -------- An UDF for working with access database files. (.*accdb only)



Share this post


Link to post
Share on other sites
kcvinu

Hi MikahS,

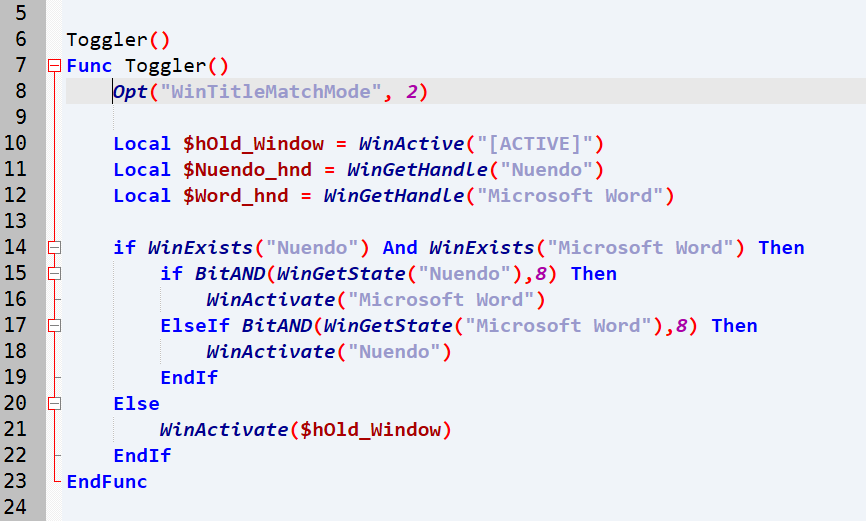

It is partially working now. See my code. (Attached image). Code in line number 21 is not working. Rest is ok.

post-89644-0-89174300-1421864011_thumb.p


My Contributions

UDF Link Viewer   --- A tool to visit the links of some most important UDFs

 Includer_2  ----- A tool to type the #include statement automatically

 Digits To Date  ----- date from 3 integer values

PrintList ----- prints arrays into console for testing.

 Alert  ------ An alternative for MsgBox

 MousePosition ------- A simple tooltip display of mouse position

GRM Helper -------- A littile tool to help writing code with GUIRegisterMsg function

Access_UDF  -------- An UDF for working with access database files. (.*accdb only)



Share this post


Link to post
Share on other sites
MikahS

The reason is probably due to if $Nuendo_hnd and $Word_hnd are both existing (or they are open windows), line 21 will never run. The only way you'll be able to get it to do line 21 is if Nuendo or MS word did not exist.

If you only had one window that exists like MS word then it would run, but not with both open.

EDIT: does that help clear it up?

Edited by MikahS

Snips & Scripts


My Snips: graphCPUTemp ~ getENVvars
My Scripts: Short-Order Encrypter - message and file encryption V1.6.1 ~ AuPad - Notepad written entirely in AutoIt V1.9.4

Feel free to use any of my code for your own use.                                                                                                                                                           Forum FAQ



Share this post


Link to post
Share on other sites
iamtheky

send works fine

If not winexists("Microsoft Word") AND not winexists("nuendo") Then send("!{TAB}")

,-. .--. ________ .-. .-. ,---. ,-. .-. .-. .-.
|(| / /\ \ |\ /| |__ __||| | | || .-' | |/ / \ \_/ )/
(_) / /__\ \ |(\ / | )| | | `-' | | `-. | | / __ \ (_)
| | | __ | (_)\/ | (_) | | .-. | | .-' | | \ |__| ) (
| | | | |)| | \ / | | | | | |)| | `--. | |) \ | |
`-' |_| (_) | |\/| | `-' /( (_)/( __.' |((_)-' /(_|
'-' '-' (__) (__) (_) (__)

Share this post


Link to post
Share on other sites
kcvinu

It is not working even when both "Nuendo" and "Word" is not running..


My Contributions

UDF Link Viewer   --- A tool to visit the links of some most important UDFs

 Includer_2  ----- A tool to type the #include statement automatically

 Digits To Date  ----- date from 3 integer values

PrintList ----- prints arrays into console for testing.

 Alert  ------ An alternative for MsgBox

 MousePosition ------- A simple tooltip display of mouse position

GRM Helper -------- A littile tool to help writing code with GUIRegisterMsg function

Access_UDF  -------- An UDF for working with access database files. (.*accdb only)



Share this post


Link to post
Share on other sites
MikahS

on line 10 use

WinGetTitle("[ACTIVE]")

instead of WinActive. I think it was a problem trying to use the handle instead of a title.

EDIT: Try that and post results. :)

Edited by MikahS
  • Like 1

Snips & Scripts


My Snips: graphCPUTemp ~ getENVvars
My Scripts: Short-Order Encrypter - message and file encryption V1.6.1 ~ AuPad - Notepad written entirely in AutoIt V1.9.4

Feel free to use any of my code for your own use.                                                                                                                                                           Forum FAQ



Share this post


Link to post
Share on other sites
iamtheky
It is not working even when both "Nuendo" and "Word" is not running..





Makes me think we are troubleshooting your If statement, not the line suggested.

Did you try running just the line I provided by itself?

Edited by boththose

,-. .--. ________ .-. .-. ,---. ,-. .-. .-. .-.
|(| / /\ \ |\ /| |__ __||| | | || .-' | |/ / \ \_/ )/
(_) / /__\ \ |(\ / | )| | | `-' | | `-. | | / __ \ (_)
| | | __ | (_)\/ | (_) | | .-. | | .-' | | \ |__| ) (
| | | | |)| | \ / | | | | | |)| | `--. | |) \ | |
`-' |_| (_) | |\/| | `-' /( (_)/( __.' |((_)-' /(_|
'-' '-' (__) (__) (_) (__)

Share this post


Link to post
Share on other sites
jguinch

Can you try this ?

$hPreviousWindow = _WinGetNextWindow("[ACTIVE]" , "", 2)
ConsoleWrite("Previous Window : " & @CRLF & "HWND = " & $hPreviousWindow &  @CRLF & "Title = " &  WinGetTitle($hPreviousWindow) & @CRLF)



; #FUNCTION# ====================================================================================================================
; Name ..........: _WinGetNextWindow
; Description ...: Retrieves a handle to the next or previous visible window in the Z-Order.
; Syntax ........: _WinGetNextWindow($vWindow[, $sText = ""[, $iCmd = 0]])
; Parameters ....: $vWindow             - The title/hWnd/class of the window. See Title special definition.
;                  $sText               - [optional] The text of the window to check. Default is an empty string. See Text special definition.
;                  $iOrder              - [optional] Indicates whether the function returns a handle to the next window or the previous window.
;                                         This parameter can be either of the following values :
;                                          $GW_HWNDNEXT (2) : Returns a handle to the window below the given window.
;                                          $GW_HWNDPREV (3) : Returns a handle to the window above the given window.
; Return values .: Success - Returns a window handle
;                  Failure - Returns 0  and sets @error flag to non-zero on error
; Author ........: jguinch
; Remarks .......: If the specified window is a topmost window, the function searches for a topmost window.
;                  If the specified window is a top-level window, the function searches for a top-level window.
;                  If the specified window is a child window, the function searches for a child window.
; Link ..........:
; ===============================================================================================================================
Func _WinGetNextWindow($vWindow, $sText = "", $iCmd = 2)
    Local $hWnd = $vWindow, $aGetWindow
    If NOT IsHWnd($vWindow) Then $hWnd = WinGetHandle($vWindow, $sText)
    If $hWnd = 0 Then Return SetError(2, 0, 0)

    If NOT IsDeclared("GW_HWNDNEXT") Then Local Const $GW_HWNDNEXT = 2
    If NOT IsDeclared("GW_HWNDPREV") Then Local Const $GW_HWNDPREV = 3

    If $iCmd <> $GW_HWNDNEXT AND $iCmd <> $GW_HWNDPREV Then Return SetError(3, 0, 0)

    While 1
        $aGetWindow = DllCall("User32.dll", "hwnd", "GetWindow", "hwnd", $hWnd, "uint", $iCmd)
        If @error Then Return SetError(4, 0, 0)
        If $aGetWindow[0] = 0 Then ExitLoop

        $hWnd = $aGetWindow[0]

        $aGetWindowLong = DllCall("User32.dll", "long", "GetWindowLong", "hwnd", $hWnd, "int", -16)
        If @error Then ExitLoop

        If NOT BitAND(WinGetState($hWnd), 2) OR $aGetWindowLong[0] < 0 Then ContinueLoop

        Return $hWnd
    WEnd

    Return SetError(1, 0, 0)
EndFunc
Edited by jguinch

Share this post


Link to post
Share on other sites
SmOke_N

Are you running your script from SciTe?  I imagine when you hit F5 from SciTe to test, that's the last active window?


Common sense plays a role in the basics of understanding AutoIt... If you're lacking in that, do us all a favor, and step away from the computer.

Share this post


Link to post
Share on other sites
jdelaney

Simplified with the Winapi UDF:

#include <WinAPI.au3>
 $hPriorActiveWindow = _WinAPI_GetWindow(WinGetHandle("[ACTIVE]"),$GW_HWNDNEXT)
 WinActivate($hPriorActiveWindow)
Edited by jdelaney
  • Like 1

IEbyXPATH-Grab IE DOM objects by XPATH IEscriptRecord-Makings of an IE script recorder ExcelFromXML-Create Excel docs without excel installed GetAllWindowControls-Output all control data on a given window.

Share this post


Link to post
Share on other sites
kcvinu

Makes me think we are troubleshooting your If statement, not the line suggested.

Did you try running just the line I provided by itself?

No, The code provided by you is not working.


My Contributions

UDF Link Viewer   --- A tool to visit the links of some most important UDFs

 Includer_2  ----- A tool to type the #include statement automatically

 Digits To Date  ----- date from 3 integer values

PrintList ----- prints arrays into console for testing.

 Alert  ------ An alternative for MsgBox

 MousePosition ------- A simple tooltip display of mouse position

GRM Helper -------- A littile tool to help writing code with GUIRegisterMsg function

Access_UDF  -------- An UDF for working with access database files. (.*accdb only)



Share this post


Link to post
Share on other sites
kcvinu



Simplified with the Winapi UDF:

#include <WinAPI.au3>
 $hPriorActiveWindow = _WinAPI_GetWindow(WinGetHandle("[ACTIVE]"),$GW_HWNDNEXT)
 WinActivate($hPriorActiveWindow)

Thank you, let me try


My Contributions

UDF Link Viewer   --- A tool to visit the links of some most important UDFs

 Includer_2  ----- A tool to type the #include statement automatically

 Digits To Date  ----- date from 3 integer values

PrintList ----- prints arrays into console for testing.

 Alert  ------ An alternative for MsgBox

 MousePosition ------- A simple tooltip display of mouse position

GRM Helper -------- A littile tool to help writing code with GUIRegisterMsg function

Access_UDF  -------- An UDF for working with access database files. (.*accdb only)



Share this post


Link to post
Share on other sites
MikahS

Did you try post #12?

Glad you found a solution! ;)

Edited by MikahS

Snips & Scripts


My Snips: graphCPUTemp ~ getENVvars
My Scripts: Short-Order Encrypter - message and file encryption V1.6.1 ~ AuPad - Notepad written entirely in AutoIt V1.9.4

Feel free to use any of my code for your own use.                                                                                                                                                           Forum FAQ



Share this post


Link to post
Share on other sites

Create an account or sign in to comment

You need to be a member in order to leave a comment

Create an account

Sign up for a new account in our community. It's easy!

Register a new account

Sign in

Already have an account? Sign in here.

Sign In Now
Sign in to follow this

  • Similar Content

    • rcmaehl
      By rcmaehl
      A UDF with Extended Functions for Window Management

      Notes:
      Fixes WinGetClassList's barbaric returning of a @LF separated string instead of an array.

      Potential Uses:
      Automating applications that change their controls' handles/classes on each launch (e.g. half of Cisco's programs)

      Functions:
      _WinGetClassList
      _WinGetClassNNList
      _WindowGetHandleList
      _WindowGetHandleListFromPos

      Download:
      WindowEx.zip  (v0.4)

      Changelog:
      10/04/2016 (v0.4): _WinGetClassNNList Fixed : Not Returning an Index when using $2D_ARRAY _WinGetClassNNList Fixed : Not Properly returning $aArray[x][1] on Classes with instances > 9 when using $2D_ARRAY 10/03/2016 (v0.3): _WinGetClassList Added : Exactly the same as WinGetClassList but returns a more civilized Array _WinGetClassNNList Added : Returns Classes and their instances in either a 1D or 2D array depending on Flags _WindowGetHandleList Renamed: _WinGetHandleList SCRIPT BREAKING! _WindowGetHandleListFromPos Renamed: _WinGetHandleListFromPos SCRIPT BREAKING! 10/01/2016 (v0.2): WindowsExConstants.au3 Added : Flags in _WindowGetHandleListFromPos _WindowGetHandleListFromPos Removed: ConsoleWrite left in during debug _WindowGetHandleListFromPos Added : Flag for if part of a Control is at $X, $Y return it as well. 10/01/2016 (v0.1): _WindowGetHandleList Added : Retrieves the handles of classes from a window. _WindowGetHandleListFromPos Added : Retrieves the handles of classes at a specific position from a window. Known and Reported Bugs:
      None reported To Do:
      To Be Decided. Opinions welcome! Upcoming Changes:
      To Be Decided.
    • FrancescoDiMuro
      By FrancescoDiMuro
      Good morning everyone

      I was playing a little bit with "Screen Capture" UDF, and I was trying to make a "Window" capture, but, since I made a GUI which through I fire the event "Capture", my GUI is captured as well, and I don't want to
      This is the line of code that makes the capture:

      _ScreenCapture_CaptureWnd($strScreenCaptureFileName, $objActiveWindow, 0, 0, -1, -1, False) And these are the lines of code which select the "active" window:

      Local $objCurrentWindow = 9999 If _IsPressed("01") Then $objCurrentWindow = WinGetHandle("[ACTIVE]") If $objCurrentWindow <> $objMyGUI Then $objActiveWindow = $objCurrentWindow EndIf EndIf Sorry If I made stupid mistakes
      Thanks in advance.

      Francesco
    • AdamUL
      By AdamUL
      Here is a function that will return a 2D array of visible windows.  You will notice that windows "Start" and "Program Manager"  windows will always be in the array.  The array returns the title of the window, the window handle, the PID of the process associated with the window, the process name associated with the window, the window's position, and the window's dimension,  Please see comments in the code about the numbers returned about the window's position.

      #include <Array.au3> #include <Process.au3> ;Get a list of visable windows with titles. $aWindows = _GetVisibleWindows() _ArrayDisplay($aWindows) Func _GetVisibleWindows() ;Retrieve a list of windows. Local $aWinList = WinList() If Not IsArray($aWinList) Then Return SetError(0, 0, 0) ;Loop through the array deleting no title or invisable windows. Local $sDeleteRows = "" For $i = 1 To $aWinList[0][0] If $aWinList[$i][0] = "" Or Not BitAND(WinGetState($aWinList[$i][1]), $WIN_STATE_VISIBLE) Then $sDeleteRows &= $i & ";" EndIf Next $sDeleteRows = StringTrimRight($sDeleteRows, 1) ;Remove last ";". _ArrayDelete($aWinList, $sDeleteRows) $aWinList[0][0] = UBound($aWinList) - 1 ;Get Window's Processor ID (PID), and add to the array. _ArrayColInsert($aWinList, UBound($aWinList, 2)) For $i = 1 To $aWinList[0][0] $aWinList[$i][2] = WinGetProcess($aWinList[$i][1]) Next ;Get Window's Process Name from PID, and add to the array. _ArrayColInsert($aWinList, UBound($aWinList, 2)) For $i = 1 To $aWinList[0][0] $aWinList[$i][3] = _ProcessGetName($aWinList[$i][2]) Next ;Get Windows's Position and Size, and add it to the array. ;For Position, -3200,-3200 is minimized window, -8,-8 is maximized window on 1st display, and ;x,-8 is maximized windown on the nth display were x is the nth display width plus -8 (W + -8). _ArrayColInsert($aWinList, UBound($aWinList, 2)) ;Position (X,Y). _ArrayColInsert($aWinList, UBound($aWinList, 2)) ;Dimension (WxH). Local $aWinPosSize For $i = 1 To $aWinList[0][0] $aWinPosSize = WinGetPos($aWinList[$i][1]) $aWinList[$i][4] = $aWinPosSize[0] & "," & $aWinPosSize[1] $aWinList[$i][5] = $aWinPosSize[2] & "x" & $aWinPosSize[3] Next Return $aWinList EndFunc ;==>_GetVisibleWindows
      Adam

    • Bilgus
      By Bilgus
      Literally just a list of listview styles / extended styles and WS / WSEX styles prints them in the console by their name
      ;Debug ;Debug_GetLvMStyles($g_hListView) ;Debug_GetHDStyles($g_hListView) ;Debug_GetWSStyles($g_hListView) ;Debug_GetWSStyles($g_hWnd) ;;#include <ListViewConstants.au3> Func Debug_GetLvMStyles($hListView) Local $LVStyle = _WinAPI_GetWindowLong($hListView, -16) Local $LVExStyle = _GUICtrlListView_GetExtendedListViewStyle($hListView) Local $sLVSTYLES Local $sLVExSTYLES If @error Then ConsoleWrite(" Error Debug_GetLvMStyles Couldn't retrieve Styles") Return EndIf If BitAND($LVStyle, $LVS_ALIGNLEFT) Then $sLVSTYLES &= "$LVS_ALIGNLEFT, " If BitAND($LVStyle, $LVS_ALIGNMASK) Then $sLVSTYLES &= "$LVS_ALIGNMASK, " If BitAND($LVStyle, $LVS_ALIGNTOP) Then $sLVSTYLES &= "$LVS_ALIGNTOP, " If BitAND($LVStyle, $LVS_AUTOARRANGE) Then $sLVSTYLES &= "$LVS_AUTOARRANGE, " If BitAND($LVStyle, $LVS_DEFAULT) Then $sLVSTYLES &= "LVS_DEFAULT," If BitAND($LVStyle, $LVS_EDITLABELS) Then $sLVSTYLES &= "LVS_EDITLABELS, " If BitAND($LVStyle, $LVS_ICON) Then $sLVSTYLES &= "LVS_ICON, " If BitAND($LVStyle, $LVS_LIST) Then $sLVSTYLES &= "LVS_LIST, " If BitAND($LVStyle, $LVS_NOCOLUMNHEADER) Then $sLVSTYLES &= "LVS_NOCOLUMNHEADER, " If BitAND($LVStyle, $LVS_NOLABELWRAP) Then $sLVSTYLES &= "LVS_NOLABELWRAP, " If BitAND($LVStyle, $LVS_NOSCROLL) Then $sLVSTYLES &= "LVS_NOSCROLL, " If BitAND($LVStyle, $LVS_NOSORTHEADER) Then $sLVSTYLES &= "LVS_NOSORTHEADER, " If BitAND($LVStyle, $LVS_OWNERDATA) Then $sLVSTYLES &= "LVS_OWNERDATA, " If BitAND($LVStyle, $LVS_OWNERDRAWFIXED) Then $sLVSTYLES &= "LVS_OWNERDRAWFIXED, " If BitAND($LVStyle, $LVS_REPORT) Then $sLVSTYLES &= "LVS_REPORT, " If BitAND($LVStyle, $LVS_SHAREIMAGELISTS) Then $sLVSTYLES &= "LVS_SHAREIMAGELISTS, " If BitAND($LVStyle, $LVS_SHOWSELALWAYS) Then $sLVSTYLES &= "LVS_SHOWSELALWAYS, " If BitAND($LVStyle, $LVS_SINGLESEL) Then $sLVSTYLES &= "LVS_SINGLESEL, " If BitAND($LVStyle, $LVS_SMALLICON) Then $sLVSTYLES &= "LVS_SMALLICON, " If BitAND($LVStyle, $LVS_SORTASCENDING) Then $sLVSTYLES &= "LVS_SORTASCENDING, " If BitAND($LVStyle, $LVS_SORTDESCENDING) Then $sLVSTYLES &= "LVS_SORTDESCENDING, " If BitAND($LVStyle, $LVS_TYPEMASK) Then $sLVSTYLES &= "LVS_TYPEMASK, " If BitAND($LVStyle, $LVS_TYPESTYLEMASK) Then $sLVSTYLES &= "LVS_TYPESTYLEMASK, " If BitAND($LVExStyle, $LVS_EX_AUTOAUTOARRANGE) Then $sLVExSTYLES &= "$LVS_EX_AUTOARRANGE, " If BitAND($LVExStyle, $LVS_EX_AUTOCHECKSELECT) Then $sLVExSTYLES &= "$LVS_EX_AUTOCHECKSELECT, " If BitAND($LVExStyle, $LVS_EX_AUTOSIZECOLUMNS) Then $sLVExSTYLES &= "$LVS_EX_AUTOSIZECOLUMNS, " If BitAND($LVExStyle, $LVS_EX_BORDERSELECT) Then $sLVExSTYLES &= "$LVS_EX_BORDERSELECT, " If BitAND($LVExStyle, $LVS_EX_CHECKBOXES) Then $sLVExSTYLES &= "$LVS_EX_CHECKBOXES, " If BitAND($LVExStyle, $LVS_EX_COLUMNOVERFLOW) Then $sLVExSTYLES &= "$LVS_EX_COLUMNOVERFLOW, " If BitAND($LVExStyle, $LVS_EX_COLUMNSNAPPOINTS) Then $sLVExSTYLES &= "$LVS_EX_COLUMNSNAPPOINTS, " If BitAND($LVExStyle, $LVS_EX_DOUBLEBUFFER) Then $sLVExSTYLES &= "$LVS_EX_DOUBLEBUFFER, " If BitAND($LVExStyle, $LVS_EX_FLATSB) Then $sLVExSTYLES &= "$LVS_EX_FLATSB, " If BitAND($LVExStyle, $LVS_EX_FULLROWSELECT) Then $sLVExSTYLES &= "$LVS_EX_FULLROWSELECT, " If BitAND($LVExStyle, $LVS_EX_GRIDLINES) Then $sLVExSTYLES &= "$LVS_EX_GRIDLINES, " If BitAND($LVExStyle, $LVS_EX_HEADERDRAGDROP) Then $sLVExSTYLES &= "$LVS_EX_HEADERDRAGDROP, " If BitAND($LVExStyle, $LVS_EX_HEADERINALLVIEWS) Then $sLVExSTYLES &= "$LVS_EX_HEADERINALLVIEWS, " If BitAND($LVExStyle, $LVS_EX_HIDELABELS) Then $sLVExSTYLES &= "$LVS_EX_HIDELABELS, " If BitAND($LVExStyle, $LVS_EX_INFOTIP) Then $sLVExSTYLES &= "$LVS_EX_INFOTIP, " If BitAND($LVExStyle, $LVS_EX_JUSTIFYCOLUMNS) Then $sLVExSTYLES &= "$LVS_EX_JUSTIFYCOLUMNS, " If BitAND($LVExStyle, $LVS_EX_LABELTIP) Then $sLVExSTYLES &= "$LVS_EX_LABELTIP, " If BitAND($LVExStyle, $LVS_EX_MULTIWORKAREAS) Then $sLVExSTYLES &= "$LVS_EX_MULTIWORKAREAS, " If BitAND($LVExStyle, $LVS_EX_ONECLICKACTIVATE) Then $sLVExSTYLES &= "$LVS_EX_ONECLICKACTIVATE, " If BitAND($LVExStyle, $LVS_EX_REGIONAL) Then $sLVExSTYLES &= "$LVS_EX_REGIONAL, " If BitAND($LVExStyle, $LVS_EX_SIMPLESELECT) Then $sLVExSTYLES &= "$LVS_EX_SIMPLESELECT, " If BitAND($LVExStyle, $LVS_EX_SNAPTOGRID) Then $sLVExSTYLES &= "$LVS_EX_SNAPTOGRID, " If BitAND($LVExStyle, $LVS_EX_SUBITEMIMAGES) Then $sLVExSTYLES &= "$LVS_EX_SUBITEMIMAGES, " If BitAND($LVExStyle, $LVS_EX_TRACKSELECT) Then $sLVExSTYLES &= "$LVS_EX_TRACKSELECT, " If BitAND($LVExStyle, $LVS_EX_TRANSPARENTBKGND) Then $sLVExSTYLES &= "$LVS_EX_TRANSPARENTBACKGROUND, " If BitAND($LVExStyle, $LVS_EX_TRANSPARENTSHADOWTEXT) Then $sLVExSTYLES &= "$LVS_EX_TRANSPARENTTEXTSHADOW, " If BitAND($LVExStyle, $LVS_EX_TWOCLICKACTIVATE) Then $sLVExSTYLES &= "$LVS_EX_TWOCLICKACTIVATE, " If BitAND($LVExStyle, $LVS_EX_UNDERLINECOLD) Then $sLVExSTYLES &= "$LVS_EX_UNDERLINECOLD, " If BitAND($LVExStyle, $LVS_EX_UNDERLINEHOT) Then $sLVExSTYLES &= "$LVS_EX_UNDERLINEHOT, " ConsoleWrite("Lv Styles= " & $sLVSTYLES & @CRLF) ConsoleWrite("Lv Ex Styles= " & $sLVExSTYLES & @CRLF) EndFunc ;==>Debug_GetLvMStyles ;;#include <HeaderConstants.au3> Func Debug_GetHDStyles($hListView) Local $hHeader = _GUICtrlListView_GetHeader($hListView) Local $HDStyle = _WinAPI_GetWindowLong($hHeader, -16) Local $sHDSTYLES If @error Then ConsoleWrite(" Error Debug_GetHDStyles Couldn't retrieve Styles") Return EndIf If BitAND($HDStyle, $HDS_BUTTONS) Then $sHDSTYLES &= "$HDS_STYLES, " ;0x00000002 ; Each item in the control looks and behaves like a push button If BitAND($HDStyle, $HDS_CHECKBOXES) Then $sHDSTYLES &= "$HDS_CHECKBOXES, " ;0x00000400 ; Allows the placing of checkbo ;es on header items on Vista If BitAND($HDStyle, $HDS_DRAGDROP) Then $sHDSTYLES &= "$HDS_DRAGDROP, " ;0x00000040 ; Allows drag-and-drop reordering of header items If BitAND($HDStyle, $HDS_FILTERBAR) Then $sHDSTYLES &= "$HDS_FILTERBAR, " ;0x00000100 ; Include a filter bar as part of the standard header control If BitAND($HDStyle, $HDS_FLAT) Then $sHDSTYLES &= "$HDS_FLAT, " ;0x00000200 ; Control is drawn flat when XP is running in classic mode If BitAND($HDStyle, $HDS_FULLDRAG) Then $sHDSTYLES &= "$HDS_FULLDRAG, " ;0x00000080 ; Column contents are displayed while the user resizes a column If BitAND($HDStyle, $HDS_HIDDEN) Then $sHDSTYLES &= "$HDS_HIDDEN, " ;0x00000008 ; Indicates a header control that is intended to be hidden If BitAND($HDStyle, $HDS_HORZ) Then $sHDSTYLES &= "$HDS_HORZ, " ;0x00000000 ; Creates a header control with a horizontal orientation If BitAND($HDStyle, $HDS_HOTTRACK) Then $sHDSTYLES &= "$HDS_HOTTRACK, " ;0x00000004 ; Enables hot tracking If BitAND($HDStyle, $HDS_NOSIZING) Then $sHDSTYLES &= "$HDS_NOSIZING, " ;0x0800 ; The user cannot drag the divider on the header control on Vista If BitAND($HDStyle, $HDS_OVERFLOW) Then $sHDSTYLES &= "$HDS_OVERFLOW, " ;0x1000 ; A button is displayed when not all items can be displayed within the header control's rectangle on Vista If BitAND($HDStyle, $HDS_DEFAULT) Then $sHDSTYLES &= "$HDS_DEFAULT, " ;0x00000046 ; Default header style $HDS_DRAGDROP + $HDS_HOTTRACK + $HDS_BUTTONS ConsoleWrite("Header Styles= " & $sHDSTYLES & @CRLF) EndFunc ;==>Debug_GetHDStyles Func Debug_GetWSStyles($hWnd) ;#include <WindowsConstants.au3> Local $WSStyle = _WinAPI_GetWindowLong($hWnd, -16) Local $sWSSTYLES Local $WSEXStyle = _WinAPI_GetWindowLong($hWnd, -20) ;_GUICtrlListView_GetExtendedListViewStyle($hListView); Local $sWSEXSTYLES If @error Then ConsoleWrite(" Error Debug_GetWSStyles Couldn't retrieve Styles") Return EndIf If BitAND($WSStyle, $WS_OVERLAPPED) Then $sWSSTYLES &= "$WS_OVERLAPPED, " If BitAND($WSStyle, $WS_TILED) Then $sWSSTYLES &= "$WS_TILED, " If BitAND($WSStyle, $WS_MAXIMIZEBOX) Then $sWSSTYLES &= "$WS_MAXIMIZEBOX, " ;0x00010000 If BitAND($WSStyle, $WS_MINIMIZEBOX) Then $sWSSTYLES &= "$WS_MINIMIZEBOX, " ;0x00020000 If BitAND($WSStyle, $WS_TABSTOP) Then $sWSSTYLES &= "$WS_TABSTOP, " ;0x00010000 If BitAND($WSStyle, $WS_GROUP) Then $sWSSTYLES &= "$WS_GROUP, " ;0x00020000 If BitAND($WSStyle, $WS_SIZEBOX) Then $sWSSTYLES &= "$WS_SIZEBOX, " ;0x00040000 If BitAND($WSStyle, $WS_THICKFRAME) Then $sWSSTYLES &= "$WS_THICKFRAME, " If BitAND($WSStyle, $WS_SYSMENU) Then $sWSSTYLES &= "$WS_SYSMENU, " ;0x00080000 If BitAND($WSStyle, $WS_HSCROLL) Then $sWSSTYLES &= "$WS_HSCROLL, " ;0x00100000 If BitAND($WSStyle, $WS_VSCROLL) Then $sWSSTYLES &= "$WS_VSCROLL, " ;0x00200000 If BitAND($WSStyle, $WS_DLGFRAME) Then $sWSSTYLES &= "$WS_DLGFRAME, " ;0x00400000 If BitAND($WSStyle, $WS_BORDER) Then $sWSSTYLES &= "$WS_BORDER, " ;0x00800000 If BitAND($WSStyle, $WS_CAPTION) Then $sWSSTYLES &= "$WS_CAPTION, " ;0x00C00000 If BitAND($WSStyle, $WS_OVERLAPPEDWINDOW) Then $sWSSTYLES &= "$WS_OVERLAPPEDWINDOW, " If BitAND($WSStyle, $WS_TILEDWINDOW) Then $sWSSTYLES &= "$WS_TILEDWINDOW, " If BitAND($WSStyle, $WS_MAXIMIZE) Then $sWSSTYLES &= "$WS_MAXIMIZE, " ;0x01000000 If BitAND($WSStyle, $WS_CLIPCHILDREN) Then $sWSSTYLES &= "$WS_CLIPCHILDREN, " ;0x02000000 If BitAND($WSStyle, $WS_CLIPSIBLINGS) Then $sWSSTYLES &= "$WS_CLIPSIBLINGS, " ;0x04000000 If BitAND($WSStyle, $WS_DISABLED) Then $sWSSTYLES &= "$WS_DISABLED, " ;0x08000000 If BitAND($WSStyle, $WS_VISIBLE) Then $sWSSTYLES &= "$WS_VISIBLE, " ;0x10000000 If BitAND($WSStyle, $WS_MINIMIZE) Then $sWSSTYLES &= "$WS_MINIMIZE, " ;0x20000000 If BitAND($WSStyle, $WS_ICONIC) Then $sWSSTYLES &= "$WS_ICONIC, " If BitAND($WSStyle, $WS_CHILD) Then $sWSSTYLES &= "$WS_CHILD, " ;0x40000000 If BitAND($WSStyle, $WS_CHILDWINDOW) Then $sWSSTYLES &= "$WS_CHILDWINDOW, " If BitAND($WSStyle, $WS_POPUP) Then $sWSSTYLES &= "$WS_POPUP, " ;0x80000000 If BitAND($WSStyle, $WS_POPUPWINDOW) Then $sWSSTYLES &= "$WS_POPUPWINDOW, " ;0x80880000 If BitAND($WSEXStyle, $WS_EX_ACCEPTFILES) Then $sWSEXSTYLES &= "$WS_EX_ACCEPTFILES, " ;0x00000010 If BitAND($WSEXStyle, $WS_EX_APPWINDOW) Then $sWSEXSTYLES &= "$WS_EX_APPWINDOW, " ;0x00040000 If BitAND($WSEXStyle, $WS_EX_COMPOSITED) Then $sWSEXSTYLES &= "$WS_EX_COMPOSITED, " ;0x02000000 If BitAND($WSEXStyle, $WS_EX_CONTROLPARENT) Then $sWSEXSTYLES &= "$WS_EX_CONTROLPARENT, " ;0x10000 If BitAND($WSEXStyle, $WS_EX_CLIENTEDGE) Then $sWSEXSTYLES &= "$WS_EX_CLIENTEDGE, " ;0x00000200 If BitAND($WSEXStyle, $WS_EX_CONTEXTHELP) Then $sWSEXSTYLES &= "$WS_EX_CONTEXTHELP, " ;0x00000400 If BitAND($WSEXStyle, $WS_EX_DLGMODALFRAME) Then $sWSEXSTYLES &= "$WS_EX_DLGMODALFRAME, " ;0x00000001 If BitAND($WSEXStyle, $WS_EX_LAYERED) Then $sWSEXSTYLES &= "$WS_EX_LAYERED, " ;0x00080000 If BitAND($WSEXStyle, $WS_EX_LAYOUTRTL) Then $sWSEXSTYLES &= "$WS_EX_LAYOUTRTL, " ;0x400000 If BitAND($WSEXStyle, $WS_EX_LEFT) Then $sWSEXSTYLES &= "$WS_EX_LEFT, " ;0x00000000 If BitAND($WSEXStyle, $WS_EX_LEFTSCROLLBAR) Then $sWSEXSTYLES &= "$WS_EX_LEFTSCROLLBAR, " ;0x00004000 If BitAND($WSEXStyle, $WS_EX_LTRREADING) Then $sWSEXSTYLES &= "$WS_EX_LTRREADING, " ;0x00000000 If BitAND($WSEXStyle, $WS_EX_MDICHILD) Then $sWSEXSTYLES &= "$WS_EX_MDICHILD, " ;0x00000040 If BitAND($WSEXStyle, $WS_EX_NOACTIVATE) Then $sWSEXSTYLES &= "$WS_EX_NOACTIVATE, " ;0x08000000 If BitAND($WSEXStyle, $WS_EX_NOINHERITLAYOUT) Then $sWSEXSTYLES &= "$WS_EX_NOINHERITLAYOUT, " ;0x00100000 If BitAND($WSEXStyle, $WS_EX_NOPARENTNOTIFY) Then $sWSEXSTYLES &= "$WS_EX_NOPARENTNOTIFY, " ;0x00000004 If BitAND($WSEXStyle, $WS_EX_RIGHT) Then $sWSEXSTYLES &= "$WS_EX_RIGHT, " ;0x00001000 If BitAND($WSEXStyle, $WS_EX_RIGHTSCROLLBAR) Then $sWSEXSTYLES &= "$WS_EX_RIGHTSCROLLBAR, " ;0x00000000 If BitAND($WSEXStyle, $WS_EX_RTLREADING) Then $sWSEXSTYLES &= "$WS_EX_RTLREADING, " ;0x2000 If BitAND($WSEXStyle, $WS_EX_STATICEDGE) Then $sWSEXSTYLES &= "$WS_EX_STATICEDGE, " ;0x00020000 If BitAND($WSEXStyle, $WS_EX_TOOLWINDOW) Then $sWSEXSTYLES &= "$WS_EX_TOOLWINDOW, " ;0x00000080 If BitAND($WSEXStyle, $WS_EX_TOPMOST) Then $sWSEXSTYLES &= "$WS_EX_TOPMOST, " ;0x00000008 If BitAND($WSEXStyle, $WS_EX_TRANSPARENT) Then $sWSEXSTYLES &= "$WS_EX_TRANSPARENT, " ;0x00000020 If BitAND($WSEXStyle, $WS_EX_WINDOWEDGE) Then $sWSEXSTYLES &= "$WS_EX_WINDOWEDGE, " ;0x00000100 If BitAND($WSEXStyle, $WS_EX_OVERLAPPEDWINDOW) Then $sWSEXSTYLES &= "$WS_EX_OVERLAPPEDWINDOW, " If BitAND($WSEXStyle, $WS_EX_PALETTEWINDOW) Then $sWSEXSTYLES &= "$WS_EX_PALETTEWINDOW, " ConsoleWrite("WS Styles= " & $sWSSTYLES & @CRLF) ConsoleWrite("WS EX Styles= " & $sWSEXSTYLES & @CRLF) EndFunc ;==>Debug_GetWSStyles
    • ur
      By ur
      I am trying to identify the window based on the window title and text.
      The title will be the "erwin DM - filename"

      It is working till date, but some operating systems our application is displaying window as "erwin DM - [filename]"

      I tried  "erwin DM - *filename*" But this regular expression is not working.
      Any suggestion?

      $sModelFile = "C:\Users\Administrator\Documents\My Models\eMovies.erwin" $wdModel = _WinWaitActivate1("erwin DM - "&FileNameOnly($sModelFile),"") Func _WinWaitActivate1($title,$text,$timeout=0);Will Return the window Handler Logging("Waiting for "&$title&":"&$text) $dHandle = WinWait($title,$text,$timeout) if not ($dHandle = 0) then If Not WinActive($title,$text) Then WinActivate($title,$text) return WinWaitActive($title,$text,$timeout) Else Logging("Timeout occured while waiting for the window...") Exit EndIf EndFunc Func FileNameOnly($sFilePath) Local $sDrive = "", $sDir = "", $sFileName = "", $sExtension = "" Local $aPathSplit = _PathSplit($sFilePath, $sDrive, $sDir, $sFileName, $sExtension) ;_ArrayDisplay($aPathSplit, "_PathSplit of " & @ScriptFullPath) return $sFileName EndFunc
×
