kcvinu

A little Tool for creating GUIRegisterMsg Function

Recommended Posts

  Hi all,

I know this is a crazy idea. But i think it might be a help for somebody. The name of this program is GRM Helper. i.e. GUIRegisterMsg Helper.

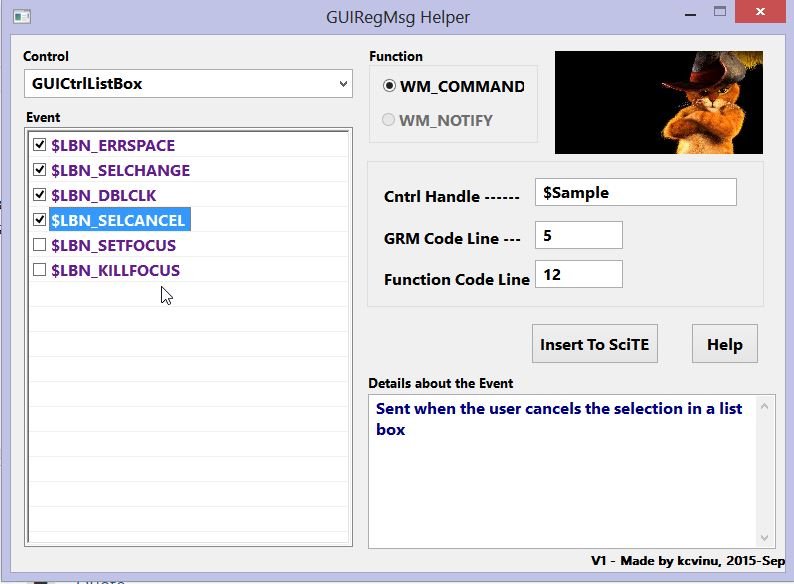

This program helps you to write the guiregistermsg function code automatically. You can choose a control from the combo box. Then all events of that control will be displayed in a list view. You can click on an event for it;s details. Then you can check the events which you want to include in your code. Then type some details like; 1) Your control's handle. 2) Line number for inserting GUIRegisterMsg code. 3) Line number for inserting main function.

And press the "Isert To SciTE" button. Your code is ready in scite.



Here is the program.

Updated Version 1.1

GRM Helper V1.1.zip






The code written by this program.

GUIRegisterMsg($WM_COMMAND, "WM_COMMAND")

Func WM_COMMAND($hWnd, $iMsg, $wParam, $lParam)
    #forceref $hWnd, $iMsg
    Local $hWndFrom, $iIDFrom, $iCode, $hWndListBox
    If Not IsHWnd($Sample) Then $hWndListBox = GUICtrlGetHandle($Sample)
    $hWndFrom = $lParam
    $iIDFrom = BitAND($wParam, 0xFFFF) ; Low Word
    $iCode = BitShift($wParam, 16) ; Hi Word

    Switch $hWndFrom
        Case  $Sample, $hWndListBox
            Switch $iCode
                Case $LBN_ERRSPACE
                    ; Insert your code here

                Case $LBN_SELCHANGE
                    ; Insert your code here

                Case $LBN_DBLCLK
                    ; Insert your code here

                Case $LBN_SELCANCEL
                    ; Insert your code here


            EndSwitch
    EndSwitch
    Return $GUI_RUNDEFMSG
EndFunc   ;==>WM_COMMAND





Edited by kcvinu
Adding Extra info

My Contributions

UDF Link Viewer   --- A tool to visit the links of some most important UDFs

 Includer_2  ----- A tool to type the #include statement automatically

 Digits To Date  ----- date from 3 integer values

PrintList ----- prints arrays into console for testing.

 Alert  ------ An alternative for MsgBox

 MousePosition ------- A simple tooltip display of mouse position

GRM Helper -------- A littile tool to help writing code with GUIRegisterMsg function

Access_UDF  -------- An UDF for working with access database files. (.*accdb only)



Share this post


Link to post
Share on other sites

Would you be able to provide a ZIP instead, as not everyone has WinRAR or 7-Zip. Thanks.


UDF List:


_AdapterConnections()_AlwaysRun()_AppMon()_AppMonEx()_ArrayFilter/_ArrayReduce_BinaryBin()_CheckMsgBox()_CmdLineRaw()_ContextMenu()_ConvertLHWebColor()/_ConvertSHWebColor()_DesktopDimensions()_DisplayPassword()_DotNet_Load()/_DotNet_Unload()_Fibonacci()_FileCompare()_FileCompareContents()_FileNameByHandle()_FilePrefix/SRE()_FindInFile()_GetBackgroundColor()/_SetBackgroundColor()_GetConrolID()_GetCtrlClass()_GetDirectoryFormat()_GetDriveMediaType()_GetFilename()/_GetFilenameExt()_GetHardwareID()_GetIP()_GetIP_Country()_GetOSLanguage()_GetSavedSource()_GetStringSize()_GetSystemPaths()_GetURLImage()_GIFImage()_GoogleWeather()_GUICtrlCreateGroup()_GUICtrlListBox_CreateArray()_GUICtrlListView_CreateArray()_GUICtrlListView_SaveCSV()_GUICtrlListView_SaveHTML()_GUICtrlListView_SaveTxt()_GUICtrlListView_SaveXML()_GUICtrlMenu_Recent()_GUICtrlMenu_SetItemImage()_GUICtrlTreeView_CreateArray()_GUIDisable()_GUIImageList_SetIconFromHandle()_GUIRegisterMsg()_GUISetIcon()_Icon_Clear()/_Icon_Set()_IdleTime()_InetGet()_InetGetGUI()_InetGetProgress()_IPDetails()_IsFileOlder()_IsGUID()_IsHex()_IsPalindrome()_IsRegKey()_IsStringRegExp()_IsSystemDrive()_IsUPX()_IsValidType()_IsWebColor()_Language()_Log()_MicrosoftInternetConnectivity()_MSDNDataType()_PathFull/GetRelative/Split()_PathSplitEx()_PrintFromArray()_ProgressSetMarquee()_ReDim()_RockPaperScissors()/_RockPaperScissorsLizardSpock()_ScrollingCredits_SelfDelete()_SelfRename()_SelfUpdate()_SendTo()_ShellAll()_ShellFile()_ShellFolder()_SingletonHWID()_SingletonPID()_Startup()_StringCompact()_StringIsValid()_StringRegExpMetaCharacters()_StringReplaceWholeWord()_StringStripChars()_Temperature()_TrialPeriod()_UKToUSDate()/_USToUKDate()_WinAPI_Create_CTL_CODE()_WinAPI_CreateGUID()_WMIDateStringToDate()/_DateToWMIDateString()Au3 script parsingAutoIt SearchAutoIt3 PortableAutoIt3WrapperToPragmaAutoItWinGetTitle()/AutoItWinSetTitle()CodingDirToHTML5FileInstallrFileReadLastChars()GeoIP databaseGUI - Only Close ButtonGUI ExamplesGUICtrlDeleteImage()GUICtrlGetBkColor()GUICtrlGetStyle()GUIEventsGUIGetBkColor()Int_Parse() & Int_TryParse()IsISBN()LockFile()Mapping CtrlIDsOOP in AutoItParseHeadersToSciTE()PasswordValidPasteBinPosts Per DayPreExpandProtect GlobalsQueue()Resource UpdateResourcesExSciTE JumpSettings INISHELLHOOKShunting-YardSignature CreatorStack()Stopwatch()StringAddLF()/StringStripLF()StringEOLToCRLF()VSCROLLWM_COPYDATAMore Examples...

Updated: 22/04/2018

Share this post


Link to post
Share on other sites

@guinness Sure. :)




My Contributions

UDF Link Viewer   --- A tool to visit the links of some most important UDFs

 Includer_2  ----- A tool to type the #include statement automatically

 Digits To Date  ----- date from 3 integer values

PrintList ----- prints arrays into console for testing.

 Alert  ------ An alternative for MsgBox

 MousePosition ------- A simple tooltip display of mouse position

GRM Helper -------- A littile tool to help writing code with GUIRegisterMsg function

Access_UDF  -------- An UDF for working with access database files. (.*accdb only)



Share this post


Link to post
Share on other sites

@argumentum Thanks for the comment. It is possible but the problem is, there is no descrption for all events in contsant files. I have made an array to put events and descriptions. And i made that arry not by typing. I did that with the help of an autoit script. So if that script didn't found any description in constant file, it will add "No descriptions available." to the array. Unfortunately almost half of the events have no descriptions. And i think it should create manually.Anyway, i will look into it.


My Contributions

UDF Link Viewer   --- A tool to visit the links of some most important UDFs

 Includer_2  ----- A tool to type the #include statement automatically

 Digits To Date  ----- date from 3 integer values

PrintList ----- prints arrays into console for testing.

 Alert  ------ An alternative for MsgBox

 MousePosition ------- A simple tooltip display of mouse position

GRM Helper -------- A littile tool to help writing code with GUIRegisterMsg function

Access_UDF  -------- An UDF for working with access database files. (.*accdb only)



Share this post


Link to post
Share on other sites

@argumentum Thanks for the comment. It is possible but the problem is, there is no descrption for all events in contsant files. I have made an array to put events and descriptions. And i made that arry not by typing. I did that with the help of an autoit script. So if that script didn't found any description in constant file, it will add "No descriptions available." to the array. Unfortunately almost half of the events have no descriptions. And i think it should create manually.Anyway, i will look into it.

...maybe the array can be loaded from an external file holding the descriptions. The descriptions can be added by collaboration of all those wising to participate. The info can be found in MSDN ( https://msdn.microsoft.com/en-us/library/windows/desktop/ff485968(v=vs.85).aspx for List Box Notifications, etc. ) and added to the structure of the descriptions file that you'd create. In my take at Script-o-matic you can see an example of how helpful can be to have the info. right there.
It would be of great aid, to have the code generator, supply a guide for the casual coder ( like me ), that don't have a good grasp on these.
In any case thanks for sharing this tool @kcvinu .

Share this post


Link to post
Share on other sites

@argumentum Thanks for the link. I think i can manually type missing descriptions from the MSDN page.


My Contributions

UDF Link Viewer   --- A tool to visit the links of some most important UDFs

 Includer_2  ----- A tool to type the #include statement automatically

 Digits To Date  ----- date from 3 integer values

PrintList ----- prints arrays into console for testing.

 Alert  ------ An alternative for MsgBox

 MousePosition ------- A simple tooltip display of mouse position

GRM Helper -------- A littile tool to help writing code with GUIRegisterMsg function

Access_UDF  -------- An UDF for working with access database files. (.*accdb only)



Share this post


Link to post
Share on other sites

GRM helper is updated to version 1.1  Check for the link in Post 1

Changes.

1. Addedd as much event details. But still some are missing. I couldn't find details of Menu events. yet.

2. Corrects some minor code intedation problems.

3. Addedd events for GUICtrlInput. This was not in version 1

4. Help file changed. An image replaced old msg box.

That's all for now.

Edited by kcvinu

My Contributions

UDF Link Viewer   --- A tool to visit the links of some most important UDFs

 Includer_2  ----- A tool to type the #include statement automatically

 Digits To Date  ----- date from 3 integer values

PrintList ----- prints arrays into console for testing.

 Alert  ------ An alternative for MsgBox

 MousePosition ------- A simple tooltip display of mouse position

GRM Helper -------- A littile tool to help writing code with GUIRegisterMsg function

Access_UDF  -------- An UDF for working with access database files. (.*accdb only)



Share this post


Link to post
Share on other sites

@spudw2k Thank you :)


My Contributions

UDF Link Viewer   --- A tool to visit the links of some most important UDFs

 Includer_2  ----- A tool to type the #include statement automatically

 Digits To Date  ----- date from 3 integer values

PrintList ----- prints arrays into console for testing.

 Alert  ------ An alternative for MsgBox

 MousePosition ------- A simple tooltip display of mouse position

GRM Helper -------- A littile tool to help writing code with GUIRegisterMsg function

Access_UDF  -------- An UDF for working with access database files. (.*accdb only)



Share this post


Link to post
Share on other sites
