Hi All,

I am looking for some advice regarding an AutoIt script I have downloaded.

In work we use a piece of software called Radmin to remotely connect to our site-PC's at various locations around the UK. I am trying to import a list of IP's into this software and the providers have advised using an AutoIt script as per link's below

http://support.radmin.com/index.php?/Knowledgebase/Article/View/47/35/How-to-automatically-add-PCs-to-Radmin-Viewer-Phonebook-

http://www.radmin.com/support/forum/index.php?PAGE_NAME=read&FID=30&TID=15954&TITLE_SEO=15954

The script that has been provided is below

; get file name
$saFile = FileOpenDialog( "Select file with computer names", @WorkingDir & "\", "All (*.*)", 1 )
If @error Then
    MsgBox( 0, "Error","No file selected" )
    Exit
EndIf

; open file with list of computer names
$oFile = FileOpen( $saFile, 0 )

; Check if file opened for reading OK
If $oFile = -1 Then
    MsgBox( 0, "Error", "Unable to open specified file" )
    Exit
EndIf

; Read in lines of text until the EOF is reached
While 1
    $saLine = FileReadLine( $oFile )
    If @error = -1 Then
        ExitLoop
    EndIf

    ; Activate Radmin Viewer window
    WinActivate( "Radmin Viewer" )

    ; send 'Insert' key ( 'Add new connection' ) to Radmin Viewer
    Send( "{INSERT}" )

    ; wait for the 'New Connection' window
    WinWait( "New Connection" );

    ; add computer name / IP address
    ControlSetText( "New Connection", "", "Edit2", $saLine )

    ; send 'Enter' key to add computer
    Send( "{ENTER}" )
Wend

; close file
FileClose( $ofile )

What I am trying to do is get the IP address under "IP", and the Connection Name under "Connection Name" however with this script when i try to import from Excel it just puts the text inside the IP text box as "NAME,IP" (e.g. connection1,10.1.1.1).

As you can see from the links above the providers have said "just edit it" however I have zero scripting experience and wouldnt know what to change! (I have tried fiddling about with it however been unsuccessful).

The excel file i have is not complicated, it is a list of connection names and IP's as per the below.


Any help at all with this would be much appreciated!!!  :thumbsup:

Thanks!

Share this post


Link to post
Share on other sites



Welcome to AutoIt and the forum!

You should use the Excel UDF that comes with AutoIt to read the Excel file into an array.

Check the examples in the help file for _Excel_RangeRead (when you run AutoIt 3.3.12.0)


My UDFs and Tutorials:

Spoiler

UDFs:
Active Directory (NEW 2017-04-18 - Version 1.4.8.0) - Download - General Help & Support - Example Scripts - Wiki
OutlookEX (NEW 2017-02-27 - Version 1.3.1.0) - Download - General Help & Support - Example Scripts - Wiki
ExcelChart (2015-04-01 - Version 0.4.0.0) - Download - General Help & Support - Example Scripts
Excel - Example Scripts - Wiki
Word - Wiki
PowerPoint (2015-06-06 - Version 0.0.5.0) - Download - General Help & Support

Tutorials:
ADO - Wiki



Share this post


Link to post
Share on other sites

#3 ·  Posted (edited)

Easiest way (leaving most of that crappy code in tact)...

; get file name
$saFile = FileOpenDialog("Select file with computer names", @WorkingDir & "\", "All (*.*)", 1)
If @error Then
    MsgBox(0, "Error", "No file selected")
    Exit
EndIf

; open file with list of computer names
$oFile = FileOpen($saFile, 0)

; Check if file opened for reading OK
If $oFile = -1 Then
    MsgBox(0, "Error", "Unable to open specified file")
    Exit
EndIf

; Read in lines of text until the EOF is reached
While 1
    $saLine = FileReadLine($oFile)
    If @error = -1 Then
        ExitLoop
    EndIf

    ; Activate Radmin Viewer window
    WinActivate("Radmin Viewer")

    ; send 'Insert' key ( 'Add new connection' ) to Radmin Viewer
    Send("{INSERT}")

    ; Split string
    $aID_IP = StringSplit($saLine, ",", 2)
    If Not IsArray($aID_IP) Then
        MsgBox(0, "Error", "Splitting line")
        Exit
    EndIf

    ; wait for the 'New Connection' window
    WinWait("New Connection");

    ; add computer name
    ControlSetText("New Connection", "", "Edit2", $aID_IP[0])

    ; add computer IP address
    ControlSetText("New Connection", "", "whatever the control is.", $aID_IP[1])

    ; send 'Enter' key to add computer
    Send("{ENTER}")
WEnd

; close file
FileClose($oFile)
Edited by JohnOne

AutoIt Absolute Beginners    Require a serial    Pause Script    Video Tutorials by Morthawt   ipify

Monkey's are, like, natures humans.

Share this post


Link to post
Share on other sites

Hi John,

Many thanks for your reply and help!!

The script you have modified is unfortunately only giving me the IP/Connection Name depending which is first in the spreadsheet.

Is there any way for the script (below) to do the following:

Open New Connection, Copy Cell A1, Paste into Radmin THEN Alt-Tab, Copy Cell B1, then paste into Radmin, then save connection.

Then repeat for A2/B2 so on and so forth.

The script currently does up until the Alt-Tab stage.

; get file name
$saFile = FileOpenDialog("Select file with computer names", @WorkingDir & "\", "All (*.*)", 1)
If @error Then
    MsgBox(0, "Error", "No file selected")
    Exit
EndIf

; open file with list of computer names
$oFile = FileOpen($saFile, 0)

; Check if file opened for reading OK
If $oFile = -1 Then
    MsgBox(0, "Error", "Unable to open specified file")
    Exit
EndIf

; Read in lines of text until the EOF is reached
While 1
    $saLine = FileReadLine($oFile)
    If @error = -1 Then
        ExitLoop
    EndIf

    ; Activate Radmin Viewer window
    WinActivate("Radmin Viewer")

    ; send 'Insert' key ( 'Add new connection' ) to Radmin Viewer
    Send("{INSERT}")

    ; Split string
    $aID_IP = StringSplit($saLine, ",", 2)
    If Not IsArray($aID_IP) Then
        MsgBox(0, "Error", "Splitting line")
        Exit
    EndIf

    ; wait for the 'New Connection' window
    WinWait("New Connection");

    ; add computer name
    ControlSetText("New Connection", "", "Edit2", $aID_IP[0])

    ; add computer IP address
    ControlSetText("New Connection", "", "whatever the control is.", $aID_IP[1])

    ; send 'Enter' key to add computer
    Send("{ENTER}")
WEnd

; close file
FileClose($oFile)

Any help appreciated

Thanks!!

Share this post


Link to post
Share on other sites

#6 ·  Posted (edited)

Here is my solution,

I installed RAdmin Viewer to test it and it works fine also with IP containing custom port :-)

  so you can use: connection1,10.1.2.3 or connection1,10.1.2.3:8000

Note: As input file use TXT file saved from Excel using File/SaveAs (TXT delimited with comma)

; get file name
$saFile = FileOpenDialog( "Select file with computer names", @WorkingDir & "\", "All (*.*)", 1 )
If @error Then
    MsgBox( 0, "Error","No file selected" )
    Exit
EndIf

; open file with list of computer names
$oFile = FileOpen( $saFile, 0 )

; Check if file opened for reading OK
If $oFile = -1 Then
    MsgBox( 0, "Error", "Unable to open specified file" )
    Exit
EndIf

; Read in lines of text until the EOF is reached
While 1
    $saLine = FileReadLine( $oFile )
    If @error = -1 Then
        ExitLoop
    EndIf

    $Line = StringSplit( $saLine , ',' ) ; name,ip on each line for example: connection1,10.1.1.1 or connection1,10.1.1.1:8000
    ; beware: here is no checking of correct syntax on each line! each line must be: name,ip or name,ip:port
    $name = $Line[1]
    $ip = $Line[2]
    $port = ''
    If StringInStr($ip,':') Then ; IP contains also port
        $ip_port = StringSplit( $ip , ':' ) ; ip:port for example: 10.1.1.1:8000
        $ip = $ip_port[1] ; no checking here!
        $port = $ip_port[2]
    EndIf

    ; Activate Radmin Viewer window
    WinActivate( "Radmin Viewer" )

    ; send 'Insert' key ( 'Add new connection' ) to Radmin Viewer
    Send( "{INSERT}" )

    ; wait for the 'New Connection' window
    WinWait( "New Connection" );

    ; add computer name / IP address
    ControlSetText( "New Connection", "", "Edit1", $name )
    ControlSetText( "New Connection", "", "Edit2", $ip )

    If $port <> '' Then ; IP contains also port
        ControlCommand( "New Connection", "", "Button3", "UnCheck", "" ) ; uncheck checkbox of default port
        ControlSetText( "New Connection", "", "Edit3", $port ) ; Port
    EndIf

    ; send 'Enter' key to add computer
    Send( "{ENTER}" )
Wend

; close file
FileClose( $ofile )

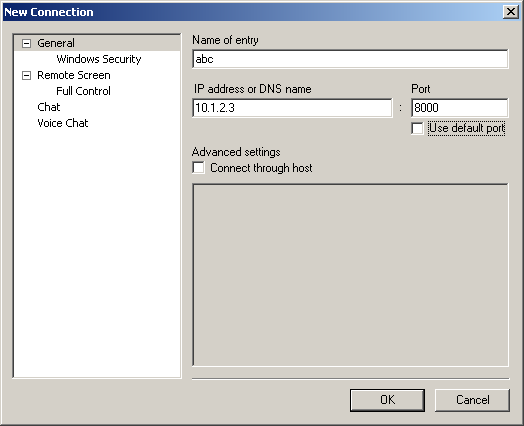

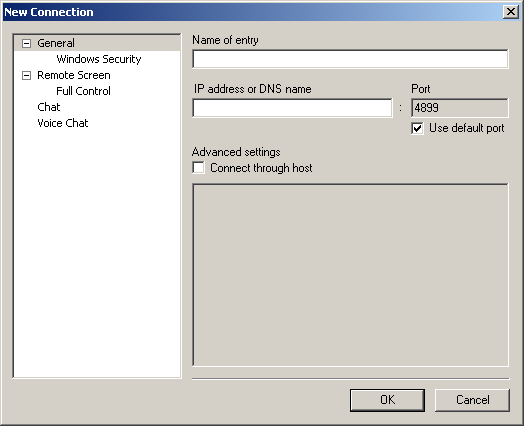

post-6483-0-47582200-1425841270_thumb.pn

post-6483-0-00574100-1425841477_thumb.pn

Edited by Zedna
1 person likes this

Share this post


Link to post
Share on other sites

Thank you VERY much Zedna!!

I have tested too and this works a treat :)

I was beginning to lose hope and thought I would have to enter all these entries manually (over 1000 of them!)

I can't thank you enough for the amount of time you have saved me  :thumbsup:

Share this post


Link to post
Share on other sites

#9 ·  Posted

This thread has been great. I'm also not experienced in scripting and trying to import Name, IP and port number from separate excel cells into Radmin





Test.xlsx

Share this post


Link to post
Share on other sites

#10 ·  Posted

lilpenny10,

Did you have a question/issue?
