Is this a memory leak or am i doing something wrong?

[kendama]

I'm running some GDI+ code inside a loop and it seems to be leaking memory.  Am I simply doing something wrong?  Below I've reduced my code to the bare minimum.  If I run the below script it slowly grows in memory consumption until stopped ( witnessed via Task Manager ).  It feels like I'm not disposing something or doing something wrong but I can't seem to figure it out.  Does anyone have any suggestions?

Thanks,
 Kendema

expandcollapse popup

#include <GUIConstantsEx.au3>
#include <GDIPlus.au3>

$hGUI = GUICreate("Form",300,300)
GUISetState(@SW_SHOW)

TestFont()

Func TestFont()
    _GDIPlus_Startup()
    Local $hGraphic, $hFamily, $hFont, $tLayout, $aInfo, $hFormat
    Local $FontSize = 11
    Local $sString = "12345678901234567890123456789012345678901234567890123456789012345678901234567890"

    Do
        $FontSize = 11
        $hGraphic = _GDIPlus_GraphicsCreateFromHWND($hGUI)
        $hFamily = _GDIPlus_FontFamilyCreate("Arial")
        $hFormat = _GDIPlus_StringFormatCreate()
        $hFont = _GDIPlus_FontCreate($hFamily, $FontSize, 0)
        $tLayout = _GDIPlus_RectFCreate(140, 110, 100, 20)

        Do
            $FontSize = $FontSize +1
            $hFont = _GDIPlus_FontCreate($hFamily, $FontSize, 0)
            $aInfo = _GDIPlus_GraphicsMeasureString($hGraphic, $sString, $hFont, $tLayout, $hFormat)
        Until $aInfo[2] = 1

        _GDIPlus_FontDispose($hFont)
        _GDIPlus_FontFamilyDispose($hFamily)
        _GDIPlus_StringFormatDispose($hFormat)
        _GDIPlus_GraphicsDispose($hGraphic)
    Until GUIGetMsg() = $GUI_EVENT_CLOSE

    ; Clean up resources
    _GDIPlus_Shutdown()
EndFunc



[jchd]

Running your code I don't notice any memory leak: consumption is stable.



[caramen]

This is for me.

Please notice how my pen Paint is so biutifull.

[Nine]

What version of autoit are you running @kendama.  I remember some time ago that GDI+ had memory leaks...

[kendama]

SCiTE is 3.6.0, Autoit is 3.3.14.2.  I am running the 32bit version, so will try under the 64bit version to see if makes a difference.   Below is a screen capture with about 5 minutes difference.



[trancexx]

Shouldn't you dispose font object before creating new?

[Nine]

I think @trancexx nailed it !



[jchd]

This was my first idea and I tried this variant before answering but didn't observe any difference, but maybe I didn't wait long enough to notice something.

[kendama]

Thanks @trancexx, really good insight.  I tired the below and it still seem to be leaking memory.  Were you thinking of needing to dispose this somewhere else, if so can you suggest on what I might be overlooking?    Does anyone know if  you have to dispose of the RectFCreate?  I see no function to dispose of that object but all other 'create' statements have a dispose.

Thanks,
 kendama



expandcollapse popup

#include <GUIConstantsEx.au3>
#include <GDIPlus.au3>

$hGUI = GUICreate("Form",300,300)
GUISetState(@SW_SHOW)

TestFont()

Func TestFont()
    _GDIPlus_Startup()
    Local $hGraphic, $hFamily, $hFont, $tLayout, $aInfo, $hFormat
    Local $FontSize = 11
    Local $sString = "12345678901234567890123456789012345678901234567890123456789012345678901234567890"

    Do
        $FontSize = 11

        Do
            $hGraphic = _GDIPlus_GraphicsCreateFromHWND($hGUI)
            $hFamily = _GDIPlus_FontFamilyCreate("Arial")
            $hFormat = _GDIPlus_StringFormatCreate()
            $hFont = _GDIPlus_FontCreate($hFamily, $FontSize, 0)
            $tLayout = _GDIPlus_RectFCreate(140, 110, 100, 20)
            $FontSize = $FontSize +1
            $hFont = _GDIPlus_FontCreate($hFamily, $FontSize, 0)
            $aInfo = _GDIPlus_GraphicsMeasureString($hGraphic, $sString, $hFont, $tLayout, $hFormat)
            _GDIPlus_FontDispose($hFont)
            _GDIPlus_FontFamilyDispose($hFamily)
            _GDIPlus_StringFormatDispose($hFormat)
            _GDIPlus_GraphicsDispose($hGraphic)
        Until $aInfo[2] = 1

        ;_GDIPlus_FontDispose($hFont)
    Until GUIGetMsg() = $GUI_EVENT_CLOSE

    ; Clean up resources
    _GDIPlus_Shutdown()
EndFunc



[jchd]

Here you still dreate two fonts but dispose of only one.

I believe @trancexx is thinking about this:

#include <GUIConstantsEx.au3>
#include <GDIPlus.au3>

$hGUI = GUICreate("Form",300,300)
GUISetState(@SW_SHOW)

TestFont()

Func TestFont()
    _GDIPlus_Startup()
    Local $hGraphic, $hFamily, $hFont, $tLayout, $aInfo, $hFormat
    Local $FontSize
    Local $sString = "12345678901234567890123456789012345678901234567890123456789012345678901234567890"

    Do
        $FontSize = 11
        $hGraphic = _GDIPlus_GraphicsCreateFromHWND($hGUI)
        $hFamily = _GDIPlus_FontFamilyCreate("Arial")
        $hFormat = _GDIPlus_StringFormatCreate()
        $tLayout = _GDIPlus_RectFCreate(140, 110, 100, 20)

        Do
            $FontSize = $FontSize +1
            $hFont = _GDIPlus_FontCreate($hFamily, $FontSize, 0)
            $aInfo = _GDIPlus_GraphicsMeasureString($hGraphic, $sString, $hFont, $tLayout, $hFormat)
            _GDIPlus_FontDispose($hFont)
        Until $aInfo[2] = 1

        _GDIPlus_StringFormatDispose($hFormat)
        _GDIPlus_FontFamilyDispose($hFamily)
        _GDIPlus_GraphicsDispose($hGraphic)
    Until GUIGetMsg() = $GUI_EVENT_CLOSE

    ; Clean up resources
    _GDIPlus_Shutdown()
EndFunc



[kendama]

HI JCHD. I tried that variant also.  I was convinced that it would solve the problem, it did not.  With my example above your reply I both create and dispose within the tighter Do loop and the script still leaks memory.  Any thoughts on how to dispose the RectFCreate of if that's not necessary?

Thanks,

[Malkey]

In the remarks of DllStructCreate function in AutoIt help file, there is, "To release allocated memory just set the returned variable to 0."
So in _GDIPlus_GraphicsMeasureString and in _GDIPlus_RectFCreate, where the returned variable from DllStructCreate() is set to zero, the memory leaking seems to have stopped.

I hope I'm wrong because there are a few functions in GDIPlus.au3 that don't set the DllStructCreate() returned variable to 0.
Of course a memory leak becomes more apparent when offending functions are in a loop.

expandcollapse popup

#include <GUIConstantsEx.au3>
#include <GDIPlus.au3>

$hGUI = GUICreate("Form", 300, 300)
GUISetState(@SW_SHOW)

TestFont()

Func TestFont()
    _GDIPlus_Startup()
    Local $hGraphic, $hFamily, $hFont, $tLayout, $aInfo, $hFormat
    Local $FontSize
    Local $sString = "12345678901234567890123456789012345678901234567890123456789012345678901234567890"

    Do
        $FontSize = 11
        $hGraphic = _GDIPlus_GraphicsCreateFromHWND($hGUI)
        $hFamily = _GDIPlus_FontFamilyCreate("Arial")
        $hFormat = _GDIPlus_StringFormatCreate()
        $tLayout = _GDIPlus_RectFCreate(140, 110, 100, 20)

        Do
            $FontSize = $FontSize + 1
            $hFont = _GDIPlus_FontCreate($hFamily, $FontSize, 0)
            $aInfo = _GDIPlus_GraphicsMeasureStringEx($hGraphic, $sString, $hFont, $tLayout, $hFormat)
            _GDIPlus_FontDispose($hFont)
        Until $aInfo[2] = 1

        $tLayout = 0 ; This is the returned variable in the creation of the $tagGDIPRECTF Dll structure. (To release allocated memory just set the returned variable to 0)
        _GDIPlus_StringFormatDispose($hFormat)
        _GDIPlus_FontFamilyDispose($hFamily)
        _GDIPlus_GraphicsDispose($hGraphic)
    Until GUIGetMsg() = $GUI_EVENT_CLOSE

    ; Clean up resources
    _GDIPlus_Shutdown()
EndFunc   ;==>TestFont

; This function is a copied version of _GDIPlus_GraphicsMeasureString from the GDIPlus.au3 include file with "$tRECTF = 0" added.
Func _GDIPlus_GraphicsMeasureStringEx($hGraphics, $sString, $hFont, $tLayout, $hFormat)
    Local $tRECTF = DllStructCreate($tagGDIPRECTF)
    Local $aResult = DllCall($__g_hGDIPDll, "int", "GdipMeasureString", "handle", $hGraphics, "wstr", $sString, "int", -1, "handle", $hFont, _
            "struct*", $tLayout, "handle", $hFormat, "struct*", $tRECTF, "int*", 0, "int*", 0)
    If @error Then Return SetError(@error, @extended, 0)
    If $aResult[0] Then Return SetError(10, $aResult[0], 0)

    Local $aInfo[3]
    $aInfo[0] = $tRECTF
    $aInfo[1] = $aResult[8]
    $aInfo[2] = $aResult[9]
    $tRECTF = 0 ; Release the resources used by the structure. See remarks of DllStructCreate function in AutoIt help file.

    Return $aInfo
EndFunc   ;==>_GDIPlus_GraphicsMeasureStringEx



[jchd]

I find that surprising because the reassignment should do the sameand free previous memory. Assigning to 0 or anything else should cause the same behavior, isn't it? Zero is just as effective as any other value assigned.

I tried a simplified script to check that my view is correct. Adapt figures to what your computer can handle and have Process Explorer running in the backgroud to notice any increase in working set:

Local $t = DllStructCreate("double[10000000]")
For $i = 1 To 10000
;~  $t = 0
    $t = DllStructCreate("double[10000000]")
Next

10 million doubles is 80Mb at every allocation, so if there was a mem leak by not reassigning $t to 0 it should be very noticeable.

The line $t = 0 may be commented or not there is no change in memory consumption.

[kendama]

OK, I figured it out.  This issue was that I declared it first near to top of the script:

    Local $hGraphic, $hFamily, $hFont, $tLayout, $aInfo, $hFormat

than assigned a value in the loop:

            $hFont = _GDIPlus_FontCreate($hFamily, $FontSize, 0)
even though I disposed of it directly after it was still not disposing of the object or something else.

When I removed the reference at the top of the script to $hFont and declared in the loop as:

            Local $hFont = _GDIPlus_FontCreate($hFamily, $FontSize, 0)

then disposed after use, everything works as expected.

Thanks everyone for the help and pointing me in the right direction.

Best,

kendama.

[jchd]

This is even more cryptic to me. I'm glad that fixed your issue but I don't get why. Or did you not test the amended versions posted?

[Nine]

4 hours ago, jchd said:

This is even more cryptic to me. I'm glad that fixed your issue but I don't get why. Or did you not test the amended versions posted?

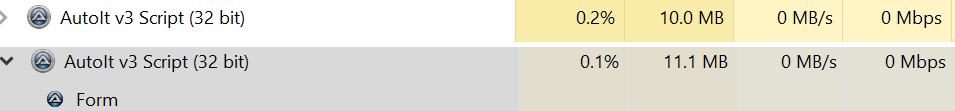

Tested with your code x86 and x64.  Both stand a little over 10k of memory without any lost even after 50,000 loops...

expandcollapse popup

#include <GUIConstantsEx.au3>
#include <GDIPlus.au3>

Opt ("MustDeclareVars", 1)

Global $hGUI = GUICreate("Form",300,300)
Global $idLabel = GUICtrlCreateLabel ("0", 50, 50, 100, 20)
GUISetState(@SW_SHOW)

TestFont()

Func TestFont()
    _GDIPlus_Startup()
    Local $hGraphic, $hFamily, $hFont, $tLayout, $aInfo, $hFormat
    Local $FontSize, $Count = 0
    Local $sString = "12345678901234567890123456789012345678901234567890123456789012345678901234567890"

    Do
        $FontSize = 11
        $hGraphic = _GDIPlus_GraphicsCreateFromHWND($hGUI)
        $hFamily = _GDIPlus_FontFamilyCreate("Arial")
        $hFormat = _GDIPlus_StringFormatCreate()
        $tLayout = _GDIPlus_RectFCreate(140, 110, 100, 20)

        $Count += 1
        ControlSetText ($hGUI, "", $idLabel, $Count)

        Do
            $FontSize = $FontSize +1
            $hFont = _GDIPlus_FontCreate($hFamily, $FontSize, 0)
            $aInfo = _GDIPlus_GraphicsMeasureString($hGraphic, $sString, $hFont, $tLayout, $hFormat)
            _GDIPlus_FontDispose($hFont)
        Until $aInfo[2] = 1

        _GDIPlus_StringFormatDispose($hFormat)
        _GDIPlus_FontFamilyDispose($hFamily)
        _GDIPlus_GraphicsDispose($hGraphic)
    Until GUIGetMsg() = $GUI_EVENT_CLOSE

    ; Clean up resources
    _GDIPlus_Shutdown()
EndFunc



[jchd]

This explains that.
