I try to make an automation script for my SolidEdge Drafts, But I have a problem when I try to get objects.

Explaining in basic,

The code at below returns as an Object and It creates a draft.

$de = ObjCreate("SolidEdge.DraftDocument")
MsgBox(0,"",VarGetType($de))

But in this, it's a string, so I cant do anything on existing and opened draft.

$de = ObjGet("","SolidEdge.DraftDocument")
MsgBox(0,"",VarGetType($de))

Whats the problem about the ObjGet?

On the other hand, the VB6 codes in Excel works healthy, and I can get info from Table in exist Draft

Set objApp = GetObject(, "SolidEdge.Application")
Set objDoc = objApp.ActiveDocument
Set objTables = objDoc.Tables
Set objTable = objTables.Item(1)
Set objTitles = objTable.Titles
Set objTitle = objTitles.Item(1)
Set objColumns = objTable.Columns
Set objColumn = objColumns.Item(1)

Could you help me about that, what the problem or where do I do wrong?



Thank you,

Link to post
Share on other sites

Thank you Ahmet,

I tried also "SolidEdge.Application" it is same. and the error value is also same and it is "-2147352570" I dont know what does it mean

If you have an experience about the solidedge could you give me help?

Link to post
Share on other sites

0x80020006 stands for DISP_E_UNKNOWNNAME - unknown name as described here: https://www.hresult.info/FACILITY_DISPATCH/0x80020006

My UDFs and Tutorials:

Spoiler

UDFs:
Active Directory (NEW 2021-06-05 - Version 1.5.4.0) - Download - General Help & Support - Example Scripts - Wiki
OutlookEX (NEW 2021-06-14 - Version 1.6.5.0) - Download - General Help & Support - Example Scripts - Wiki
OutlookEX_GUI (2021-04-13 - Version 1.4.0.0) - Download
Outlook Tools (2019-07-22 - Version 0.6.0.0) - Download - General Help & Support - Wiki
ExcelChart (2017-07-21 - Version 0.4.0.1) - Download - General Help & Support - Example Scripts
PowerPoint (2017-06-06 - Version 0.0.5.0) - Download - General Help & Support
Excel - Example Scripts - Wiki
Word - Wiki
Task Scheduler (2019-12-03 - Version 1.5.1.0) - Download - General Help & Support - Wiki

Tutorials:
ADO - Wiki, WebDriver - Wiki



Link to post
Share on other sites

Seems as this document provides some neeeded information: https://www.plm.automation.siemens.com/zh_cn/Images/Solid_Edge_API_tcm78-125829.pdf (starting with pge 27).

I think the first statements should be:

#include <MsgBoxConstants.au3>
Global $oApp = ObjGet("", "SolidEdgeFramework.Application") ; Connects to an already running instance of the framework
If @error Then
    $oApp = ObjCreate(""SolidEdgeFramework.Application") ; Starts up the framework
    If @error Or Not IsObj($oApp) Then Exit MsgBox($MB_ICONERROR, "Could not start the SolidEdgeFramework!" & @CRLF & _
      "@error=" & @error & "@extended=" & @extended)
 EndIf



My UDFs and Tutorials:

Spoiler

UDFs:
Active Directory (NEW 2021-06-05 - Version 1.5.4.0) - Download - General Help & Support - Example Scripts - Wiki
OutlookEX (NEW 2021-06-14 - Version 1.6.5.0) - Download - General Help & Support - Example Scripts - Wiki
OutlookEX_GUI (2021-04-13 - Version 1.4.0.0) - Download
Outlook Tools (2019-07-22 - Version 0.6.0.0) - Download - General Help & Support - Wiki
ExcelChart (2017-07-21 - Version 0.4.0.1) - Download - General Help & Support - Example Scripts
PowerPoint (2017-06-06 - Version 0.0.5.0) - Download - General Help & Support
Excel - Example Scripts - Wiki
Word - Wiki
Task Scheduler (2019-12-03 - Version 1.5.1.0) - Download - General Help & Support - Wiki

Tutorials:
ADO - Wiki, WebDriver - Wiki



Link to post
Share on other sites

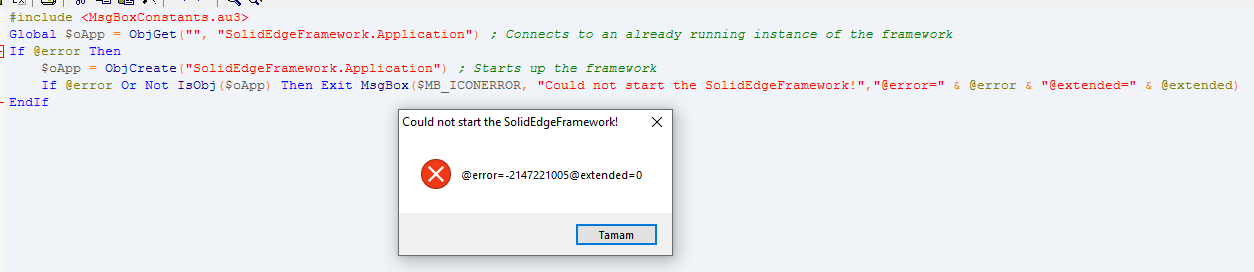

Actually, I think It's not right, but I tried your script. Its same error message. It's not right because I use OleView.Net and in RO Table I can see the SolidEdge.DraftDocument and SolidEdge.Application but there is no SolidEdgeFramework.Application.
