Hi Forum,

I am struggling to select an IP address from "Server Interface" dropdown (ComboBox2) of tftpd32 client.

tftpd32 is a TFTP server - TFTPD32 : an opensource IPv6 ready TFTP server/service for windows : TFTP server (pagesperso-orange.fr)

The IP addresses (and the associated interfaces) are dynamic in ComboBox2.

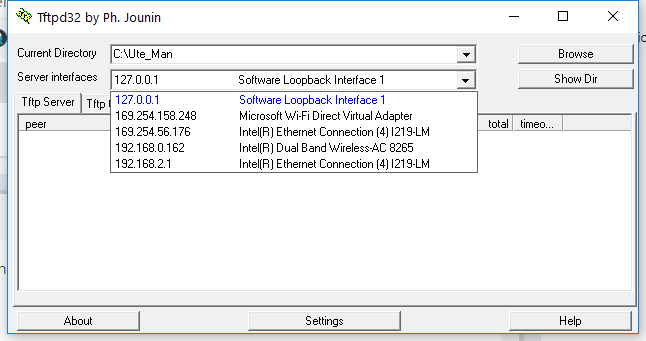

What I want to do is to select an item from ComboBox2 which contains a given IP address (eg. 192.168.2.1) - (which is hidden in the picture as it is at the bottom of the list) and fill the edit field with the selection. (Note : the ComboBox items contain the IP address and the Interface name, therefore IP address is just a part of the item)

I am not sure whether functions such as _GUICtrlComboBox_SelectString() are only to be used with Autoit generated ComboBoxes.

Please help !!!!

My code below, it does not select the ComboBox2 item with my IP address 192.168.2.1.

Local $hWnd=ControlGetHandle("Tftpd32 by Ph. Jounin", "", 4008)
    Sleep(100)
    ControlFocus("Tftpd32 by Ph. Jounin", "", $hWnd)
    Sleep(100)
    Local $IP = "192.168.2.1"
    _GUICtrlComboBox_SelectString($HWnd, $IP)

ComboBox2 ID = 4008

[Zedna 358]

Instead of

$hWnd=ControlGetHandle("Tftpd32 by Ph. Jounin", "", 4008)

use this

$hWnd=ControlGetHandle("Tftpd32 by Ph. Jounin", "", "ComboBox2")

[Zedna 358]

Also try to test return value and @error after ControlGetHandle() to be sure it was called without problems and $hwnd is valid handle ...



EDIT:

In general _GUICtrlComboBox_SelectString() should work also with non-AutoIt Combo boxes in external appliactions,

but it must be standard Windows Combo boxes and some applications resist to such automatize.



EDIT2:

Try _GUICtrlComboBox_FindString() instead of _GUICtrlComboBox_SelectString() to see if it finds corresponding index of item in ComboBox

Edited April 27, 2021 by Zedna

[ute_man 1]

Thank you so much Zedna. I tried both of your suggestions, but no luck.

Are these functions such as  _GUICtrlComboBox_SelectString() only for Autoit generated ComboBoxes or can they be used for third part applications too ?

[Zedna 358]

39 minutes ago, ute_man said:

Are these functions such as  _GUICtrlComboBox_SelectString() only for Autoit generated ComboBoxes or can they be used for third part applications too ?





Read my previous post.

[Zedna 358]

43 minutes ago, ute_man said:

Thank you so much Zedna. I tried both of your suggestions, but no luck.





Try _GUICtrlComboBox_GetList() or _GUICtrlComboBox_GetListArray() and check exact string in desired item.

Edited April 27, 2021 by Zedna

[ute_man 1]

Thank you again Zedna,

I tried all your advices and the outputs are captured in MsgBoxes as shown below.

;-----------------------------
    Local $title = "Tftpd32 by Ph. Jounin"
    Local $IP = "192.168.2.1"
    Local $hWnd=ControlGetHandle($title, "", "ComboBox2")
    MsgBox(0, "", "Error = " & @error & " - hWnd = " & $hWnd)
    ;-----------------------------
    ControlFocus($title, "", $hWnd)
    Sleep(100)
    Local $Select_String = _GUICtrlComboBox_SelectString($hWnd, $IP)
    MsgBox(0, "SelectString", $Select_String)
    Local $Find_String = _GUICtrlComboBox_FindString($hWnd, $IP)
    MsgBox(0, "FindString", $Find_String)
    ;-----------------------------
    Global $g_idMemo = GUICtrlCreateEdit("", 2, 32, 396, 266, 0)
    ; Get List
     ;$aList = _GUICtrlComboBox_GetListArray($hWnd)
    $aList = StringSplit(_GUICtrlComboBox_GetList($hWnd), ",")
    For $x = 1 To $aList[0]
        MemoWrite($aList[$x])
    Next
    ;-----------------------------

; Write a line to the memo control
Func MemoWrite($sMessage)
    GUICtrlSetData($g_idMemo, $sMessage & @CRLF, 1)
EndFunc   ;==>MemoWrite

It appears that no error returned and the hWnd is returned correctly.

The index returned when _GUICtrlComboBox_SelectString($hWnd, $IP) is used look incorrect.

And _GUICtrlComboBox_FindString($hWnd, $IP) returns the following.

It is exactly the same as above.

Below is the output of _GUICtrlComboBox_GetListArray($hWnd).

There are 6 lines which correspond to the 6 items in ComboBox2, but with weird characters.

And the output generated by _GUICtrlComboBox_GetList($hWnd) is below.

Similar to above but this time displayed horizontally.

I am completely lost. Hope you can assist me further please.

Thank you.

Edited April 27, 2021 by ute_man

[Zedna 358]

1) Value 4294967295 returned by FindString corresponds to  $CB_ERR = -1, i.e. failure to find desired item in ListBox inside ComboBox

2) Texts got by _GUICtrlComboBox_GetListArray() seems to be some Unicode stuff, maybe some ListBoxs trick similar to _GUICtrlListView_GetUnicodeFormat() in ListViews will be needed ... ?

EDIT:

3) Try to force 32bit compilation of your EXE by

#AutoIt3Wrapper_UseX64=n

or

#pragma compile(x64, False)



Edited April 27, 2021 by Zedna

[Nine 1,521]

Maybe you could try to ControlSend the value you want into the ComboBox and then {ENTER}.  If you only want to select this value, that could work...

[ute_man 1]

Thank you both @Zedna and @Nine

@Zedna

I changed to

#AutoIt3Wrapper_UseX64=n

Now both _GUICtrlComboBox_SelectString($hWnd, $IP) and _GUICtrlComboBox_FindString($hWnd, $IP) return -1 indicating a failure.

Looks like we are getting somewhere ????

I also tried making

_GUICtrlListView_SetUnicodeFormat($hWnd, True)

as previously it returned "False" with _GUICtrlListView_GetUnicodeFormat ($hWnd)

However, no change in character displays but same output as before.

@Nine

ControlFocus($title, "", $hWnd)
    Sleep(100)
    ControlSend($title, "", $hWnd, $IP)

I tried this but doesn't do anything unfortunately.

It may be because the ComboBox2 entries are dynamic and it is not only the IP address in a given line but also the adapter details too.

Therefore sending IP address alone will not select that line.

Edited April 28, 2021 by ute_man

[Zedna 358]

Instead of

 ControlSend($title, "", $hWnd, $IP)

try

 ControlSend($title, "", "ComboBox2", $IP)

[ute_man 1]

Thanks @Zedna, tried that again - nothing happens.

ControlFocus($title, "", $hWnd)
ControlSend($title, "", "ComboBox2", $IP)



[Zedna 358]

ControlFocus($title, "", "ComboBox2")
ControlSend($title, "", "ComboBox2", $IP)

[ute_man 1]

Sorry,

ControlFocus($title, "", "ComboBox2")
ControlSend($title, "", "ComboBox2", $IP)

I forgot to mention, I tried that too, but no luck.



[Zedna 358]

Also try this:  with {Enter} or {Tab}

ControlFocus($title, "", "ComboBox2")
ControlSend($title, "", "ComboBox2", $IP & "{Enter}")

[ute_man 1]

Same result, nothing happens at all...

[Nine 1,521]

You will have to resort using Send and MouseClick, unless UIAutomation can read properly this control (you can confirm this by running UIASpy.au3).

[ute_man 1]

Thanks @Nine, much appreciated.

I tried using controlclick() on the ComboBox2 and then sending  {UP} or {DOWN}, but the issue is that I don't know how to locate the desired line containing my IP address as both _GUICtrlComboBox_SelectString($hWnd, $IP) and _GUICtrlComboBox_FindString($hWnd, $IP) don't seem to "work".

Any tips will be appreciated.

Thanks again @Nine

[Nine 1,521]

1. You could take a screenshot of the combo box and use OCR to read the content. (e.g. ObjCreate("MODI.Document") is quite easy to use)

2. Use UIAutomation

[Nine 1,521]

   Here the result of reading your combo-box with modi
