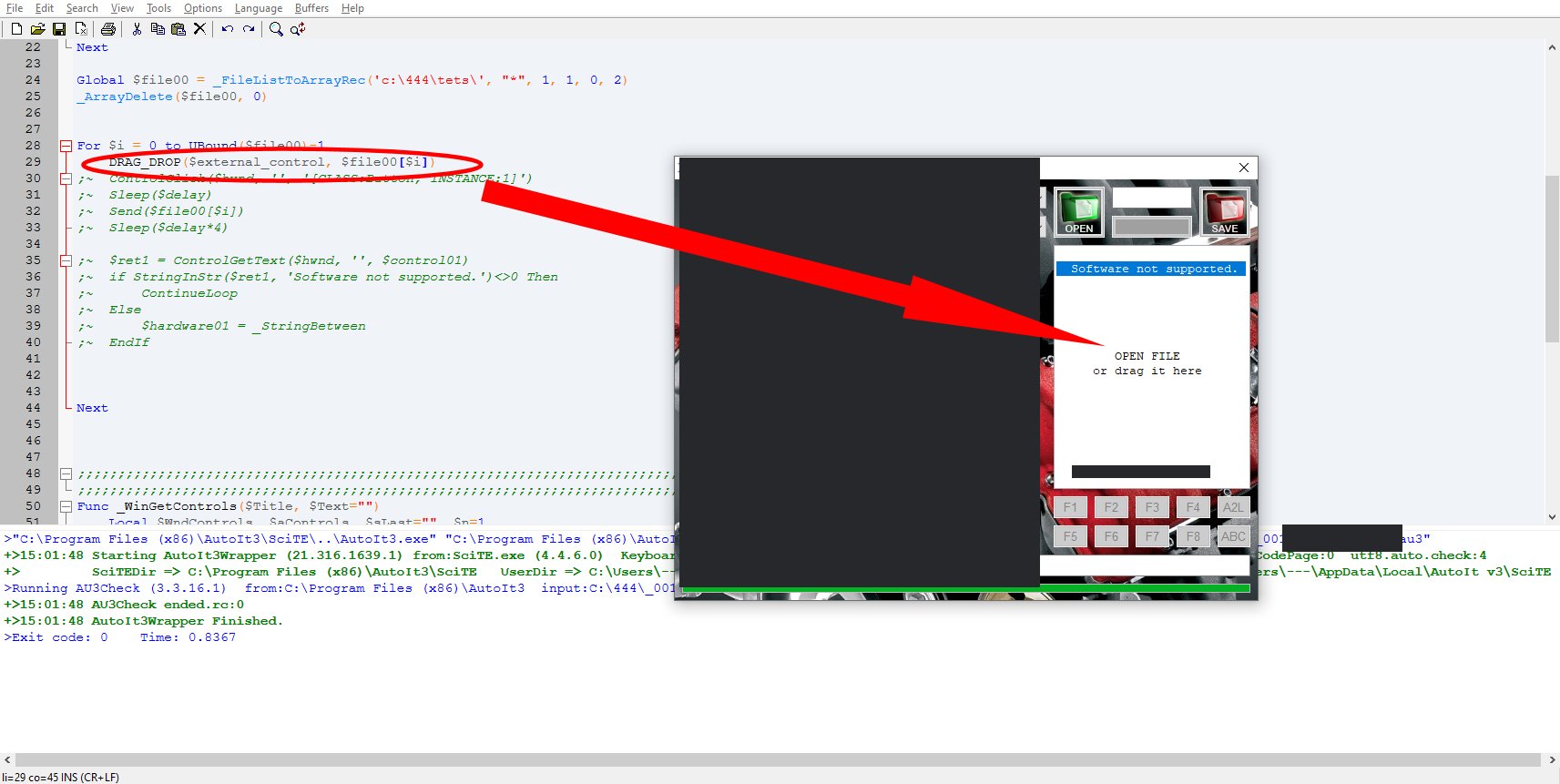

queensoft Posted November 9, 2023 Share Posted November 9, 2023 I have my autoit script, working just fine. I have an external program (basically any other program), that accepts drag&drop of files - either entire windows or a particular control is the target of drop operation. I can read, using both my autoit script and Au3Info.exe, all handles of the external program window and controls. I need to initiate / simulate drag&drop of a file, from my autoit script to that external program. In this particular case, only one single control will accept drag&drop operation, NOT entire window - see attached image. Like I said, I have the handle of the control, it is a handle indeed (IsHWnd = True) I have tried this: It is NOT working. I get NO errors, NO warnings, no problems, but just not working. Then I tried this: Same thing: NOT working, but also NO errors, NO warnings, no problems, simply not working. Then I tried to use ProgAndy's http://www.autoitscript.com/forum/topic/90831-drag-and-drop-with-explorer/ - but I cannot understand the code - parameters (ByRef $objIDataSource, ByRef $objIDropSource, $dwDropEffects, ByRef $dwPerformedEffect) Manual drag&drop works perfectly. Drag&drop from autoit to notepad also works. Link to comment Share on other sites More sharing options...
Andreik Posted November 9, 2023 Share Posted November 9, 2023 I'm not convinced about no errors, no warnings, no problems. Show us some code. When the words fail... music speaks. Link to comment Share on other sites More sharing options...

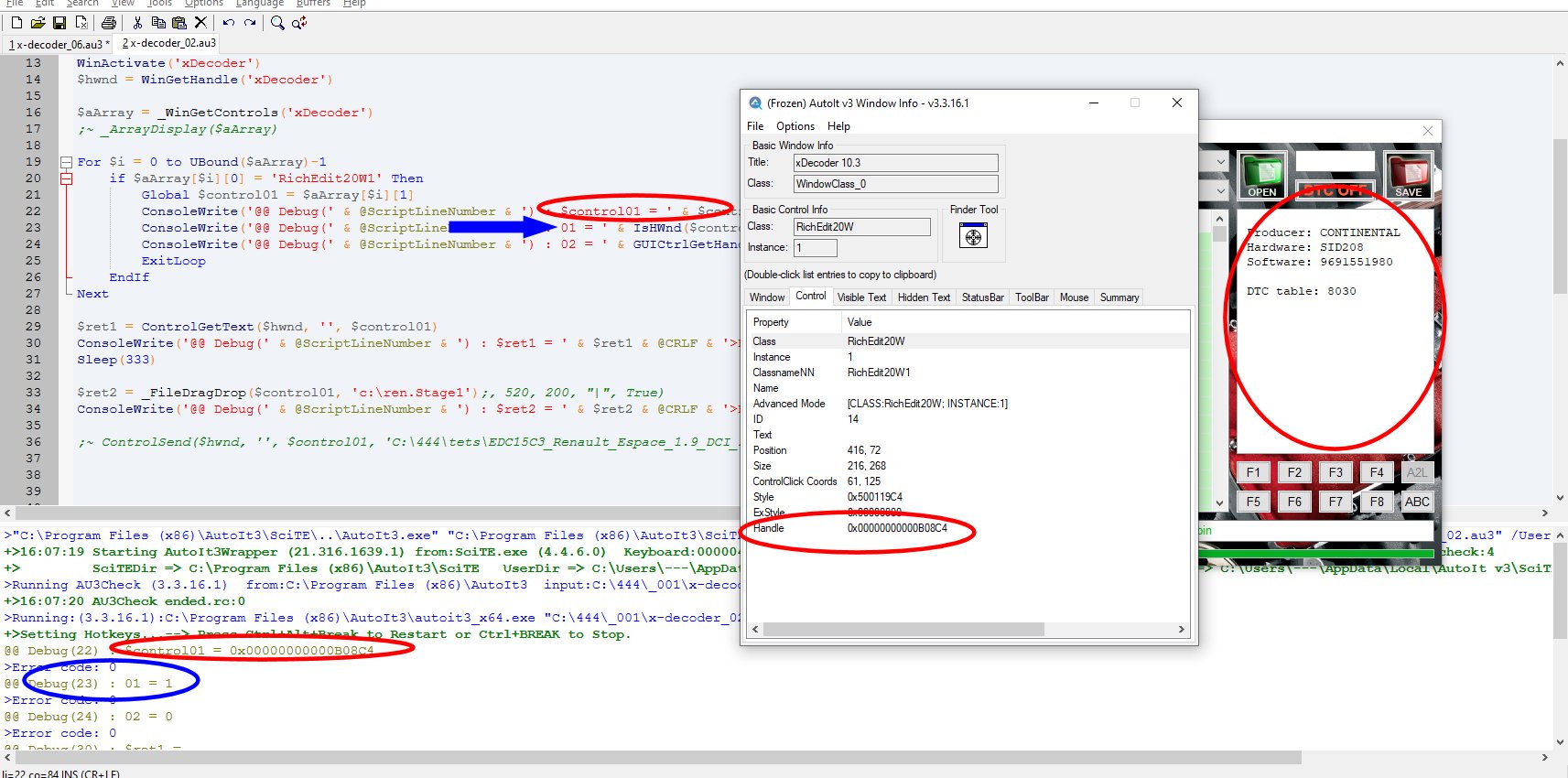

queensoft Posted November 9, 2023 Author Share Posted November 9, 2023 Sure, no problem, this is the script for this function: _FileDragDrop.au3 expandcollapse popup#Region ;**** Directives created by AutoIt3Wrapper_GUI **** #AutoIt3Wrapper_UseX64=y #EndRegion ;**** Directives created by AutoIt3Wrapper_GUI **** #include '_FileDragDrop.au3' #include "Array.au3" Opt('WinTitleMatchMode', 2) Global $control01 = -1 ; variable to hold control handle WinActivate('xDecoder') ; activate external window $hwnd = WinGetHandle('xDecoder') ; get handle of external window $aArray = _WinGetControls('xDecoder') ; function to get all control from external window ;~ _ArrayDisplay($aArray) For $i = 0 to UBound($aArray)-1 ; parse all controls if $aArray[$i][0] = 'RichEdit20W1' Then ; extract control I need Global $control01 = $aArray[$i][1] ; get handle ConsoleWrite('@@ Debug(' & @ScriptLineNumber & ') : $control01 = ' & $control01 & @CRLF & '>Error code: ' & @error & @CRLF) ; display handle value ConsoleWrite('@@ Debug(' & @ScriptLineNumber & ') : 01 = ' & IsHWnd($control01) & @CRLF & '>Error code: ' & @error & @CRLF) ; verify handle IsHWnd ExitLoop EndIf Next $ret1 = ControlGetText($hwnd, '', $control01) ; get text of control ConsoleWrite('@@ Debug(' & @ScriptLineNumber & ') : $ret1 = ' & $ret1 & @CRLF & '>Error code: ' & @error & @CRLF) ;### Debug Console Sleep(333) $ret2 = _FileDragDrop($control01, 'c:\ren.Stage1');, 520, 200, "|", True) ConsoleWrite('@@ Debug(' & @ScriptLineNumber & ') : $ret2 = ' & $ret2 & @CRLF & '>Error code: ' & @error & @CRLF) ;### Debug Console ;~ ControlSend($hwnd, '', $control01, 'C:\444\tets\EDC15C3_Renault_Espace_1.9_DCI_2001_Turbodiesel___88.3KWKW_Bosch_0281011324__369847_06FC.Stage1') ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;; ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;; Func _WinGetControls($Title, $Text="") Local $WndControls, $aControls, $sLast="", $n=1 $WndControls = WinGetClassList($Title) $aControls = StringSplit($WndControls, @CRLF) Dim $aResult[$aControls[0]+1][2] For $i = 1 To $aControls[0] If $aControls[$i] <> "" Then If $sLast = $aControls[$i] Then $n+=1 Else $n=1 EndIf $aControls[$i] &= $n $sLast = StringTrimRight($aControls[$i],1) EndIf If $i < $aControls[0] Then $aResult[$i][0] = $aControls[$i] Else ; last item in array $aResult[$i][0] = WinGetTitle($Title) ; return WinTitle EndIf $aResult[$i][1] = ControlGetHandle($Title, $Text, $aControls[$i]) Next ;~ $aResult[0][0] = "ClassnameNN" ;~ $aResult[0][1] = "Handle" Return $aResult EndFunc ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;; ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;; ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;; ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;; This is the output: >"C:\Program Files (x86)\AutoIt3\SciTE\..\AutoIt3.exe" "C:\Program Files (x86)\AutoIt3\SciTE\AutoIt3Wrapper\AutoIt3Wrapper.au3" /run /prod /ErrorStdOut /in "C:\444\_001\x-decoder_02.au3" /UserParams +>16:13:09 Starting AutoIt3Wrapper (21.316.1639.1) from:SciTE.exe (4.4.6.0) Keyboard:00000409 OS:WIN_10/2009 CPU:X64 OS:X64 Environment(Language:0409) CodePage:0 utf8.auto.check:4 +> SciTEDir => C:\Program Files (x86)\AutoIt3\SciTE UserDir => C:\Users\---\AppData\Local\AutoIt v3\SciTE\AutoIt3Wrapper SCITE_USERHOME => C:\Users\---\AppData\Local\AutoIt v3\SciTE >Running AU3Check (3.3.16.1) from:C:\Program Files (x86)\AutoIt3 input:C:\444\_001\x-decoder_02.au3 +>16:13:10 AU3Check ended.rc:0 >Running:(3.3.16.1):C:\Program Files (x86)\AutoIt3\autoit3_x64.exe "C:\444\_001\x-decoder_02.au3" +>Setting Hotkeys...--> Press Ctrl+Alt+Break to Restart or Ctrl+BREAK to Stop. @@ Debug(21) : $control01 = 0x00000000000B08C4 >Error code: 0 @@ Debug(22) : 01 = 1 >Error code: 0 @@ Debug(28) : $ret1 = Producer: CONTINENTAL Hardware: SID208 Software: 9691551980 DTC table: 8030 >Error code: 0 @@ Debug(32) : $ret2 = True >Error code: 0 +>16:13:12 AutoIt3.exe ended.rc:0 +>16:13:12 AutoIt3Wrapper Finished. >Exit code: 0 Time: 2.845 And this is a screenshot with proper control handles. Results are similar for the other function. Link to comment Share on other sites More sharing options...
Andreik Posted November 9, 2023 Share Posted November 9, 2023 Have you tried to call _FileDragDrop with specific coordinates? You can get pretty easy the position of your control and calculate and drop the files in the middle of the control. $ret2 = _FileDragDrop($control01, 'c:\ren.Stage1');, 520, 200, "|", True) Also be aware of fNC member of DROP_FILES structure. If this member is TRUE, iX and iY specifies the screen coordinates of a point in a window's nonclient area. If it is FALSE, iX and iY specifies the client coordinates of a point in the client area. When the words fail... music speaks. Link to comment Share on other sites More sharing options...
queensoft Posted November 9, 2023 Author Share Posted November 9, 2023 Yes, tried with coordinates, both with control handle and window handle, as you can see from the comment. I haven't messed with fNC value, all positions tested were client area related. Link to comment Share on other sites More sharing options...
Andreik Posted November 9, 2023 Share Posted November 9, 2023 In the comment I see hard coded coordinates, I'm not sure this is reliable. Do the calculation of the coordinates from position and size of the control and try with both fNC true and false. When the words fail... music speaks. Link to comment Share on other sites More sharing options...
queensoft Posted November 9, 2023 Author Share Posted November 9, 2023 As is my script right now, those coordinates should be client area related, right? X*Y pixels from top left corner - of the window / control, based on handle used. I tried 520x200 - window / 100x100 - control handle Then again - Parameter is often ignored I will try with calculation. Link to comment Share on other sites More sharing options...
queensoft Posted November 9, 2023 Author Share Posted November 9, 2023 No, not working. $pos = WinGetPos($hwnd) $x = $pos[0] + 550 $y = $pos[1] + 200 MouseMove($x, $y) $ret2 = _FileDragDrop($hwnd, 'c:\ren.Stage1', $x, $y, "|", True) And this: DllStructSetData($stDropFiles, "fNC", 1) Link to comment Share on other sites More sharing options...

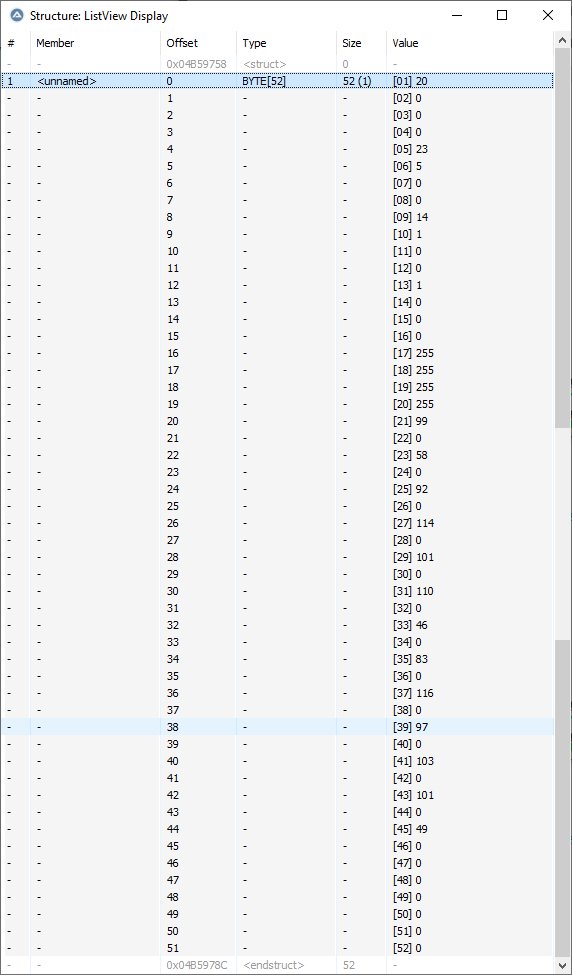

Andreik Posted November 9, 2023 Share Posted November 9, 2023 You can check also if the structures in the _FileDragDrop() are created without any issues and if the members of $stDropFiles structure are set correctly. You can use _WinAPI_DisplayStruct() to display the entire structure. When the words fail... music speaks. Link to comment Share on other sites More sharing options...
queensoft Posted November 9, 2023 Author Share Posted November 9, 2023 If it works with notepad, can't we assume it's correct?! Is this correct? I think it's too advanced for me. Is there another method / UDF for drag&drop operations? Link to comment Share on other sites More sharing options...
Andreik Posted November 9, 2023 Share Posted November 9, 2023 10 minutes ago, queensoft said: If it works with notepad, can't we assume it's correct?! It might be correct but these cases when it doesn't work are always a good indication that something might not work as intended. 12 minutes ago, queensoft said: Is this correct? I think it's too advanced for me. Passing as second parameter the definition of the structure ($tagDROP_FILES) would make it more clear. When the words fail... music speaks. Link to comment Share on other sites More sharing options...

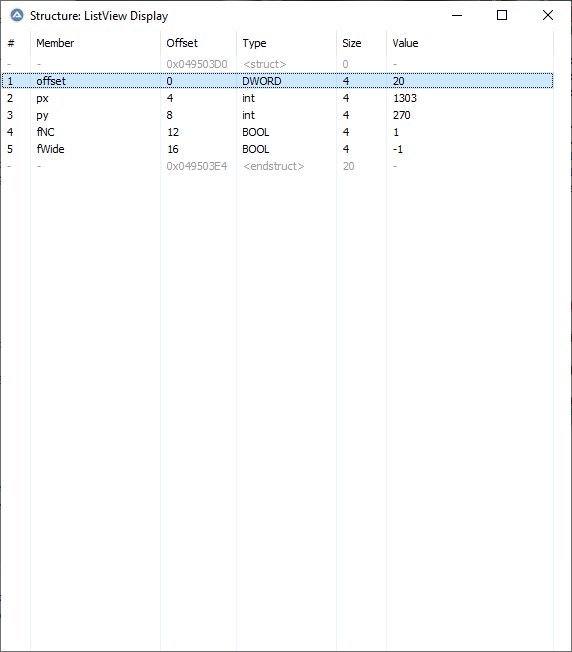

queensoft Posted November 9, 2023 Author Share Posted November 9, 2023 23 minutes ago, Andreik said: Passing as second parameter the definition of the structure ($tagDROP_FILES) would make it more clear. Likeeeee.... this?! Link to comment Share on other sites More sharing options...
Andreik Posted November 9, 2023 Share Posted November 9, 2023 It looks right but in your case it's better to keep fNC as false so the coordinates would be right according to the picture previously attached. Since we excluded a misbehavior of _FileDragDrop(), I suspect the application doesn't process WM_DROPFILES message. This would be consistent with your observation that no errors appears (since the UDF works fine) but also nothing happens (since the application doesn't care about WM_DROPFILES message). When the words fail... music speaks. Link to comment Share on other sites More sharing options...
queensoft Posted November 9, 2023 Author Share Posted November 9, 2023 Alrighty Then! So what's the solution in this case ?! Manual drag&drop works fine. Right now I'm using activate window > control click button > standard Open dialog.... I'd like to process faster and keep window minimised / hidden (works OK for the rest of the operations). Is there another method / UDF for drag&drop operations? I have tried both SendMessage and _WinAPI_PostMessage. Link to comment Share on other sites More sharing options...
Andreik Posted November 9, 2023 Share Posted November 9, 2023 8 minutes ago, queensoft said: So what's the solution in this case ?! Manual drag&drop works fine. Not sure. What application is this? When the words fail... music speaks. Link to comment Share on other sites More sharing options...
queensoft Posted November 10, 2023 Author Share Posted November 10, 2023 xdecoder - can't send it to you, I don't know website But I had this problem and need solution for other programs too. Link to comment Share on other sites More sharing options...
Nine Posted November 10, 2023 Share Posted November 10, 2023 A few comments. 1- I never was able to make WM_DROPFILES work with control handle. It only works with window handle (at least for me). 2- Taking source from from c:\ root directory may be a problem (it should work, but who knows in your context) 3- I simplified the drop file function to the strict minimum (using ASCII instead of Unicode) 4- Now, example 3 need to be adjusted to your situation. expandcollapse popup#include <WinAPIDiag.au3> #include <WinAPI.au3> #include <GUIConstants.au3> #include <Array.au3> Opt("MustDeclareVars", True) Opt("WinTitleMatchMode", -2) Example1() ; multiple control accepting drops Example2() ; external program accepting content of a drop file Example3() ; this would need to be adjusted to your situation Func Example1() Local $hGUI = GUICreate("Test drop", 300, 300, -1, -1, -1, $WS_EX_ACCEPTFILES) Local $idEdit1 = GUICtrlCreateEdit("", 10, 10, 250, 50, $ES_WANTRETURN) GUICtrlSetState(-1, $GUI_DROPACCEPTED) Local $idEdit2 = GUICtrlCreateEdit("", 10, 100, 250, 50, $ES_WANTRETURN) GUICtrlSetState(-1, $GUI_DROPACCEPTED) GUISetState() Local $aPos = ControlGetPos($hGUI, "", $idEdit2) _ArrayDisplay($aPos) _FileDragDropEx($hGUI, "Test.txt|Test2.doc", $aPos[0]+ 5, $aPos[1] + 5) Do Until GUIGetMsg() = -3 EndFunc ;==>example Func Example2() FileDelete("Test.txt") FileWriteLine("Test.txt", "This is a test") Run("Notepad") Local $hWnd = WinWait("[CLASS:Notepad]") _FileDragDropEx($hWnd, "Test.txt", 5, 5) EndFunc Func Example3() Local $hWnd = WinGetHandle('xDecoder') ; get handle of external window ConsoleWrite($hWnd & @CRLF) Local $aPos = ControlGetPos($hwnd, "", "RichEdit20W11") ; <<<<<<<<<<<<<<<<<< Ajust to the control CLASSNN found with Au3info.exe _ArrayDisplay($aPos) _FileDragDropEx($hWnd, "Test.txt", $aPos[0]+ 5, $aPos[1] + 5) ; taking the content of Test.txt from previous example EndFunc Func _FileDragDropEx($hWnd, $sFile, $iXPos = 0, $iYPos = 0) Local $iStrLen = StringLen($sFile) + 2 $sFile = StringReplace($sFile, "|", Chr(0)) Local $tagDROP_FILES = "dword offset;int px;int py;bool fNC;bool fWide;int;char string[" & $iStrLen & "]" Local $tDROP_FILES = DllStructCreate($tagDROP_FILES) With $tDROP_FILES .offset = 24 .px = $iXPos .py = $iYPos .fNC = False .fWide = 0 .string = $sFile EndWith _WinAPI_DisplayStruct($tDROP_FILES, $tagDROP_FILES) _WinAPI_PostMessage($hWnd, $WM_DROPFILES, DllStructGetPtr($tDROP_FILES), 0) EndFunc “They did not know it was impossible, so they did it” ― Mark Twain Spoiler Block all input without UAC Save/Retrieve Images to/from Text Monitor Management (VCP commands) Tool to search in text (au3) files Date Range Picker Virtual Desktop Manager Sudoku Game 2020 Overlapped Named Pipe IPC HotString 2.0 - Hot keys with string x64 Bitwise Operations Multi-keyboards HotKeySet Recursive Array Display Fast and simple WCD IPC Multiple Folders Selector Printer Manager GIF Animation (cached) Screen Scraping Multi-Threading Made Easy Link to comment Share on other sites More sharing options...
argumentum Posted November 10, 2023 Share Posted November 10, 2023 (edited) ..thinking here. In "_ArrayDisplay($aPos)" would be better for testing to use MouseMove() to see where it lands. Also, is display scaling other than 100% ?, it may need to account for that. Edited November 10, 2023 by argumentum Follow the link to my code contribution ( and other things too ). FAQ - Please Read Before Posting. Link to comment Share on other sites More sharing options...
queensoft Posted November 10, 2023 Author Share Posted November 10, 2023 2 hours ago, Nine said: A few comments. 1- I never was able to make WM_DROPFILES work with control handle. It only works with window handle (at least for me). 2- Taking source from from c:\ root directory may be a problem (it should work, but who knows in your context) 3- I simplified the drop file function to the strict minimum (using ASCII instead of Unicode) 4- Now, example 3 need to be adjusted to your situation. 1. I think I never tried with control, only with windows. But I think I got it working.... somehow.... probably with window handle, way back some time ago. 2. Also tried with folder script. Also added #RequireAdmin (which fixed problems in client's computer, on mine almost everything is launched elevated). 3 & 4. Will try, probably this evening. Link to comment Share on other sites More sharing options...
queensoft Posted November 10, 2023 Author Share Posted November 10, 2023 1 hour ago, argumentum said: ..thinking here. In "_ArrayDisplay($aPos)" would be better for testing to use MouseMove() to see where it lands. Also, is display scaling other than 100% ?, it may need to account for that. Is _ArrayDisplay($aPos) different than MouseMove sometimes? Isn't MouseMove good enough of a test? Display scaling - no problems here, 100%. I'm working inside VMWare (possible virus suspicion), but I don't think that's a problem. Link to comment Share on other sites More sharing options...
