Event based new message box opening detection

VAN0 · March 25

I'm trying detect when a new message box opened (a modal window) by a specific application. (example the type that shows when you try close notepad with modified but not saved file in it on Windows 10)

I'm currently using something like this:

Local $hwndPrev
While 1
  local $hwnd = WinGetHandle("[CLASS:#32770; TITLE:Notepad]") ; file not saved dialog promt
  If $hwnd And $hwnd <> $hwndPrev Then
    $hwndPrev = $hwnd
    ; process popup
    WinClose($hwnd)
  EndIf
  sleep(10)
WEnd

It works fine, however my script uses 1-2% CPU at all times. I can increase sleep time, but I need to detect new window as soon as possible so it can be closed before appearing on screen for too long.

I've tried SHELLHOOK, but it doesn't trigger on this type of windows (modal windows?)

#include <WinAPISysWin.au3>

OnAutoItExitRegister(OnAutoItExit)

Global $hGUI = GUICreate('')
GUIRegisterMsg(_WinAPI_RegisterWindowMessage('SHELLHOOK'), WM_SHELLHOOK)
_WinAPI_RegisterShellHookWindow($hGUI)

While 1
  Sleep(1000)
WEnd

Func WM_SHELLHOOK($hWnd, $iMsg, $wParam, $lParam)
  #forceref $iMsg
  if WinGetTitle($lParam) = "Notepad" Then
    ; process popup
    WinClose($lParam)
  EndIf
EndFunc   ;==>WM_SHELLHOOK

Func OnAutoItExit()
        _WinAPI_DeregisterShellHookWindow($hGUI)
EndFunc   ;==>OnAutoItExit

Is there an event based method to detect modal windows?

Thank you.

Edited March 25 by VAN0

Andreik · March 25

4 minutes ago, VAN0 said:

I've tried SHELLHOOK, but it doesn't trigger on this type of windows (modal windows?)

Can you say exactly what type of windows are you talking about?

VAN0 · March 25

Open notepad, type something and without saving try close it - that type of popup.

Andreik · March 25

In Windows 11 that's not even a window so I don't wonder why WM_SHELLHOOK doesn't work.

Nine · March 25

#include <WinAPISys.au3>

Global $hEventProc = DllCallbackRegister(_EventProc, 'none', 'ptr;dword;hwnd;long;long;dword;dword')
OnAutoItExitRegister(OnAutoItExit)
HotKeySet("{ESC}", Terminate)
Local $iPID = Run("Notepad")
Global $hEventHook = _WinAPI_SetWinEventHook($EVENT_SYSTEM_DIALOGSTART, $EVENT_SYSTEM_DIALOGSTART, DllCallbackGetPtr($hEventProc), $iPID)

Local $hWnd = WinWaitActive("[CLASS:Notepad]")
ControlSend($hWnd, "", "Edit1", "Test")
ControlSend($hWnd, "", "", "!{F4}")   ; simulate a msgbox

While 1
  Sleep(1000)
WEnd

Func Terminate()
  Exit
EndFunc   ;==>Terminate

Func OnAutoItExit()
  _WinAPI_UnhookWinEvent($hEventHook)
  DllCallbackFree($hEventProc)
EndFunc   ;==>OnAutoItExit

Func _EventProc($hEventHook, $iEvent, $hWnd, $iObjectID, $iChildID, $iThreadId, $iEventTime)
  WinMove($hWnd, "", @DesktopWidth, @DesktopHeight)
  WinKill($hWnd)
  ConsoleWrite("Closed" & @CRLF)
EndFunc   ;==>_EventProc

Edited March 25 by Nine

Andreik · March 25

@Nine Doesn't work on windows 11. If it works on lower versions then CBTProc might work as well so you can close the window before even being displayed.

Nine · March 25

Don't think so. If I remember correctly you cannot set a CBT hook globally unless you provide a valid DLL to manage the callback. OP wants to intercept popups from external process. Not his.

Edited March 25 by Nine

Andreik · March 25

You can get the thread id but probably notepad use multiple threads (at least on win 11).

Andreik · March 25

Because I am on windows 11 and I can't test how notepad works on other versions of windows. As far as I can see your solution doesn't work also. Anyway, what's your problem with my posts? Get a life. :bonk:

argumentum · March 26

"Windows Notepad 11.2401.26.0
© 2023 Microsoft. All rights reserved"

This version works with tabs and is a different beast altogether. Even if "Open in a new window" is set instead of "Open in a new tab".

Am giving away Hyper-V use right to anyone with Windows Pro and above.
Today only. Hurry. :frantics:

Y'all should start using VMs. Just to see if it works. Welcome to the future ?

Andreik · March 26

I have VirtualBox but I don't test all scripts on each version of windows, I leave a chance for the noobie to do his show otherwise he will bark around because he cannot post. :frantics:

VAN0 · March 26

@Nine Your example works great on W10, even when notepad started manually, I just changed it to this:

Local $hWnd = WinWaitActive("[CLASS:Notepad]")
Local $iPID = WinGetProcess($hWnd)

However, it doesn't work with VCarve Pro application. I made sure it gets proper pid (it's the same as in task manager shown), but popups don't trigger the event handler.

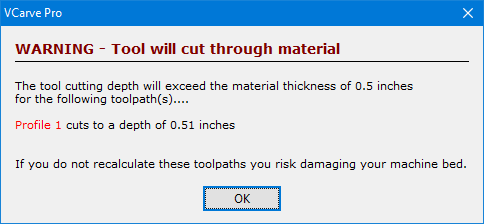

The popup it opens:

image.png.8659ac659ba45ce5e5f0bfa2a29332e7.png image.png.ea13668943b9635c1240a34e2d2cc49b.png

Quote

>>>> Window <<<<
Title:   VCarve Pro
Class:   #32770
Position:   4236, -830
Size:   488, 226
Style:   0x94C80884
ExStyle:   0x00010101
Handle:   0x050E230A

>>>> Control <<<<
Class:
Instance:
ClassnameNN:
Name:
Advanced (Class):
ID:
Text:
Position:
Size:
ControlClick Coords:
Style:
ExStyle:
Handle:

>>>> Mouse <<<<
Position:   4441, -811
Cursor ID:   0
Color:   0xFFFFFF

>>>> StatusBar <<<<

>>>> ToolsBar <<<<

>>>> Visible Text <<<<
OK

>>>> Hidden Text <<<<

Edited March 26 by VAN0

JLogan3o13 · March 26

Both of you need to either learn to scroll or walk away from the thread; the bickering is tiresome already.

argumentum · March 26

36 minutes ago, VAN0 said:

doesn't work with VCarve Pro

Just thinking. If UI Automation don't work either, then maybe OCR the screen ?

Werty · March 26

That's an interesting monitor setup you have, looking at "Position: 4236, -830" you must have a multimonitor setup where the primary monitor is bottom monitor and the secondary on top, and you either have a huge 49" monitor with a smaller on top or a triple/quad monitor setup.

That might interfere with something, have you tried with notepad starting at the same position/monitor as VCarve and see if that still work?.

VAN0 · March 26

29 minutes ago, argumentum said:

Just thinking. If UI Automation don't work either, then maybe OCR the screen ?

UI Automation didn't reveal anything new; it is definitely a dialog, not a window. I'm not sure how OCR could help in this case...

Spoiler

Treeview Element Window: VCarve Pro

Element Properties (identification)
$UIA_ClassNamePropertyId #32770
$UIA_ControlTypePropertyId $UIA_WindowControlTypeId
$UIA_NamePropertyId VCarve Pro

Element Properties (session unique)
$UIA_NativeWindowHandlePropertyId 0x00072FA0
$UIA_ProcessIdPropertyId 42896
$UIA_RuntimeIdPropertyId 42,470944

Element Properties (information)
$UIA_BoundingRectanglePropertyId l=4355,t=-771,w=250,h=109
$UIA_FrameworkIdPropertyId Win32
$UIA_LocalizedControlTypePropertyId dialog
$UIA_ProviderDescriptionPropertyId [pid:32424,providerId:0x72FA0 Main:Microsoft: Container Proxy (unmanaged:uiautomationcore.dll); Nonclient:Microsoft: Non-Client Proxy (unmanaged:uiautomationcore.dll); Hwnd(parent link):Microsoft: HWND Proxy (unmanaged:uiautomationcore.dll)]

Element Properties (has/is info)
$UIA_HasKeyboardFocusPropertyId False
$UIA_IsContentElementPropertyId True
$UIA_IsControlElementPropertyId True
$UIA_IsDataValidForFormPropertyId False
$UIA_IsEnabledPropertyId True
$UIA_IsKeyboardFocusablePropertyId True
$UIA_IsOffscreenPropertyId False
$UIA_IsPasswordPropertyId False
$UIA_IsRequiredForFormPropertyId False

Control Patterns (element actions)
$UIA_IsLegacyIAccessiblePatternAvailablePropertyId True (LegacyIAccessiblePattern)
$UIA_IsTransformPatternAvailablePropertyId True (TransformPattern)
$UIA_IsWindowPatternAvailablePropertyId True (WindowPattern)

Control Pattern Properties
$UIA_LegacyIAccessibleChildIdPropertyId 0
$UIA_LegacyIAccessibleDefaultActionPropertyId OK
$UIA_LegacyIAccessibleDescriptionPropertyId
$UIA_LegacyIAccessibleHelpPropertyId
$UIA_LegacyIAccessibleKeyboardShortcutPropertyId
$UIA_LegacyIAccessibleNamePropertyId VCarve Pro
$UIA_LegacyIAccessibleRolePropertyId 18 = $ROLE_SYSTEM_DIALOG
$UIA_LegacyIAccessibleStatePropertyId 1048576 = $STATE_SYSTEM_FOCUSABLE
$UIA_LegacyIAccessibleValuePropertyId
$UIA_TransformCanMovePropertyId True
$UIA_TransformCanResizePropertyId False
$UIA_TransformCanRotatePropertyId False
$UIA_WindowCanMaximizePropertyId False
$UIA_WindowCanMinimizePropertyId False
$UIA_WindowIsModalPropertyId True
$UIA_WindowIsTopmostPropertyId False
$UIA_WindowWindowInteractionStatePropertyId $WindowInteractionState_ReadyForUserInteraction
$UIA_WindowWindowVisualStatePropertyId $WindowVisualState_Normal

Control Pattern Methods
LegacyIAccessible Pattern Methods
DoDefaultAction()
Select(long)
SetValue(wstr)
GetIAccessible(idispatch*)
CurrentChildId(int*)
CurrentDefaultAction(bstr*)
CurrentDescription(bstr*)
CurrentHelp(bstr*)
CurrentKeyboardShortcut(bstr*)
CurrentName(bstr*)
CurrentRole(uint*)
CurrentState(uint*)
CurrentValue(bstr*)
GetCurrentSelection(ptr*)
Transform Pattern Methods
Move($fXPos,$fYPos)
Resize($fWidth,$fHeight)
Rotate($fDegrees)
CurrentCanMove($bCanMove*)
CurrentCanResize($bCanResize*)
CurrentCanRotate($bCanRotate*)
Window Pattern Methods
Close()
SetWindowVisualState($iWindowVisualState)
WaitForInputIdle($iMilliSeconds,$bSuccess*)
CurrentCanMaximize($bCanMaximize*)
CurrentCanMinimize($bCanMinimize*)
CurrentIsModal($bIsModal*)
CurrentIsTopmost($bIsTopmost*)
CurrentWindowVisualState($iWindowVisualState*)
CurrentWindowInteractionState($iWindowInteractionState*)

Parents from Desktop Pane: Desktop 1
Window: VCarve Pro 10.514 - {Zamueco[TPC]} - [New]

Parent to child index 0

28 minutes ago, Werty said:

That's an interesting monitor setup you have, looking at "Position: 4236, -830" you must have a multimonitor setup where the primary monitor is bottom monitor and the secondary on top, and you either have a huge 49" monitor with a smaller on top or a triple/quad monitor setup.

That might interfere with something, have you tried with notepad starting at the same position/monitor as VCarve and see if that still work?.

It's triple monitor setup, 2 side-by-side and one on top. I've tried move it to primary monitor, nothing changed.

Nine · March 26

Try to use $EVENT_MIN / $EVENT_MAX to see if something is triggered with VCarve when a popup is shown.

VAN0 · March 26

Yes, some events are going through, such as mouse movement, mouse over highlight, switching panels, showing/hiding tooltips:

Spoiler

07:38:25.469 PID: 1600

07:38:26.870 $EVENT_OBJECT_LOCATIONCHANGE | -9 | 0 | 20300 | 29530531 <--- mouse started moving over window

...

07:38:26.926 $EVENT_OBJECT_LOCATIONCHANGE | -9 | 0 | 20300 | 29530593

07:38:26.926 $EVENT_OBJECT_REORDER | -4 | 0 | 20300 | 29530593

07:38:26.937 $EVENT_OBJECT_LOCATIONCHANGE | -9 | 0 | 20300 | 29530593

07:38:26.937 $EVENT_OBJECT_NAMECHANGE | -9 | 0 | 20300 | 29530593

07:38:26.991 $EVENT_OBJECT_LOCATIONCHANGE | -9 | 0 | 20300 | 29530640

...

07:38:27.110 $EVENT_OBJECT_LOCATIONCHANGE | -9 | 0 | 20300 | 29530765

07:38:27.440 $EVENT_OBJECT_LOCATIONCHANGE | 0 | 0 | 20300 | 29531093

07:38:27.440 $EVENT_OBJECT_REORDER | -4 | 0 | 20300 | 29531093

07:38:27.440 $EVENT_OBJECT_LOCATIONCHANGE | 0 | 0 | 20300 | 29531093

07:38:27.440 $EVENT_OBJECT_SHOW | 0 | 0 | 20300 | 29531093 <--- tooltip shown

07:38:27.440 $EVENT_OBJECT_CREATE | 0 | 0 | 20300 | 29531093

07:38:27.440 $EVENT_OBJECT_LOCATIONCHANGE | 0 | 0 | 20300 | 29531093

07:38:27.440 $EVENT_OBJECT_SHOW | 0 | 0 | 20300 | 29531093

07:38:27.440 $EVENT_OBJECT_REORDER | -4 | 0 | 20300 | 29531093

07:38:27.451 $EVENT_OBJECT_LOCATIONCHANGE | -9 | 0 | 20300 | 29531093

...

07:38:27.643 $EVENT_OBJECT_LOCATIONCHANGE | 0 | 0 | 20300 | 29531312

07:38:32.430 $EVENT_OBJECT_HIDE | 0 | 0 | 20300 | 29536093

07:38:32.430 $EVENT_OBJECT_DESTROY | 0 | 0 | 20300 | 29536093 <--- tooltip removed

07:38:37.600 $EVENT_SYSTEM_CAPTURESTART | 0 | 0 | 20300 | 29541250 <--- icon to open popup pressed

07:38:43.750 $EVENT_SYSTEM_CAPTUREEND | 0 | 0 | 20300 | 29547406 <--- icon released

07:38:43.762 $EVENT_OBJECT_STATECHANGE | 0 | 0 | 20300 | 29547406

...

07:38:43.762 $EVENT_OBJECT_STATECHANGE | 0 | 0 | 20300 | 29547421

07:38:43.762 $EVENT_OBJECT_CREATE | 0 | 0 | 20300 | 29547421

07:38:43.762 $EVENT_OBJECT_SHOW | 0 | 0 | 20300 | 29547421

07:38:43.774 $EVENT_OBJECT_CREATE | 0 | 0 | 20300 | 29547421

07:38:43.774 $EVENT_OBJECT_SHOW | 0 | 0 | 20300 | 29547421

07:38:43.774 $EVENT_OBJECT_LOCATIONCHANGE | 0 | 0 | 20300 | 29547421

07:38:43.774 $EVENT_OBJECT_NAMECHANGE | -4 | 1 | 20300 | 29547421

07:38:43.774 $EVENT_OBJECT_NAMECHANGE | -9 | 0 | 20300 | 29547421

07:38:43.786 $EVENT_OBJECT_NAMECHANGE | -4 | 280 | 20300 | 29547437

07:38:43.786 $EVENT_OBJECT_NAMECHANGE | 0 | 0 | 20300 | 29547437

07:38:43.786 $EVENT_OBJECT_DESTROY | -4 | 0 | 20300 | 29547437

07:38:43.786 $EVENT_OBJECT_DESTROY | -4 | 280 | 20300 | 29547437

07:38:43.786 $EVENT_OBJECT_DESTROY | -4 | 281 | 20300 | 29547437

07:38:43.786 $EVENT_OBJECT_CREATE | -4 | 282 | 20300 | 29547437

07:38:43.786 $EVENT_OBJECT_STATECHANGE | -4 | 282 | 20300 | 29547437

07:38:43.786 $EVENT_OBJECT_CREATE | -4 | 283 | 20300 | 29547437

07:38:43.786 $EVENT_OBJECT_STATECHANGE | -4 | 283 | 20300 | 29547437

07:38:43.798 $EVENT_OBJECT_DESTROY | -4 | 0 | 20300 | 29547437

07:38:43.798 $EVENT_OBJECT_DESTROY | -4 | 282 | 20300 | 29547437

07:38:43.798 $EVENT_OBJECT_DESTROY | -4 | 283 | 20300 | 29547437

07:38:43.798 $EVENT_OBJECT_CREATE | -4 | 284 | 20300 | 29547437

07:38:43.798 $EVENT_OBJECT_STATECHANGE | -4 | 284 | 20300 | 29547437

07:38:43.798 $EVENT_OBJECT_CREATE | -4 | 285 | 20300 | 29547437

07:38:43.798 $EVENT_OBJECT_STATECHANGE | -4 | 285 | 20300 | 29547437

07:38:43.798 $EVENT_OBJECT_NAMECHANGE | 0 | 0 | 20300 | 29547437

07:38:43.809 $EVENT_OBJECT_NAMECHANGE | -4 | 285 | 20300 | 29547453

07:38:43.809 $EVENT_OBJECT_NAMECHANGE | 0 | 0 | 20300 | 29547453

07:38:43.809 $EVENT_OBJECT_DESTROY | -4 | 0 | 20300 | 29547468

07:38:43.809 $EVENT_OBJECT_DESTROY | -4 | 284 | 20300 | 29547468

07:38:43.809 $EVENT_OBJECT_DESTROY | -4 | 285 | 20300 | 29547468

07:38:43.809 $EVENT_OBJECT_CREATE | -4 | 286 | 20300 | 29547468

07:38:43.809 $EVENT_OBJECT_STATECHANGE | -4 | 286 | 20300 | 29547468

07:38:43.809 $EVENT_OBJECT_CREATE | -4 | 287 | 20300 | 29547468

07:38:43.809 $EVENT_OBJECT_STATECHANGE | -4 | 287 | 20300 | 29547468

07:38:43.809 $EVENT_OBJECT_DESTROY | -4 | 0 | 20300 | 29547468

07:38:43.809 $EVENT_OBJECT_DESTROY | -4 | 286 | 20300 | 29547468

07:38:43.809 $EVENT_OBJECT_DESTROY | -4 | 287 | 20300 | 29547468

07:38:43.809 $EVENT_OBJECT_CREATE | -4 | 288 | 20300 | 29547468

07:38:43.809 $EVENT_OBJECT_STATECHANGE | -4 | 288 | 20300 | 29547468

07:38:43.809 $EVENT_OBJECT_CREATE | -4 | 289 | 20300 | 29547468

07:38:43.809 $EVENT_OBJECT_STATECHANGE | -4 | 289 | 20300 | 29547468

07:38:43.809 $EVENT_OBJECT_NAMECHANGE | 0 | 0 | 20300 | 29547468

07:38:43.821 $EVENT_OBJECT_DESTROY | 0 | 0 | 20300 | 29547468

07:38:43.821 $EVENT_OBJECT_NAMECHANGE | -4 | 1 | 20300 | 29547468

07:38:43.821 $EVENT_OBJECT_HIDE | 0 | 0 | 20300 | 29547468

07:38:43.821 $EVENT_OBJECT_DESTROY | 0 | 0 | 20300 | 29547468

07:38:43.821 $EVENT_OBJECT_STATECHANGE | 0 | 0 | 20300 | 29547468

...

07:38:43.821 $EVENT_OBJECT_STATECHANGE | 0 | 0 | 20300 | 29547468

07:38:43.821 $EVENT_OBJECT_NAMECHANGE | -9 | 0 | 20300 | 29547468

07:38:43.821 $EVENT_OBJECT_CREATE | 0 | 0 | 20300 | 29547484

07:38:43.831 $EVENT_OBJECT_CREATE | 0 | 0 | 20300 | 29547484

07:38:43.831 $EVENT_SYSTEM_FOREGROUND | 0 | 0 | 20300 | 29547484

07:38:43.831 $EVENT_OBJECT_REORDER | -4 | 0 | 20300 | 29547484

07:38:43.831 $EVENT_OBJECT_FOCUS | -4 | 0 | 20300 | 29547484

07:38:43.831 0x7FFFFF30 | 3 | 1073758216 | 20300 | 29547484 <--- this shows every time a panel switched, or a popup opened

07:38:43.831 $EVENT_OBJECT_NAMECHANGE | 0 | 0 | 20300 | 29547484

07:38:43.831 $EVENT_OBJECT_LOCATIONCHANGE | 0 | 0 | 20300 | 29547484

07:38:43.831 $EVENT_OBJECT_SHOW | 0 | 0 | 20300 | 29547484

07:38:43.843 $EVENT_OBJECT_NAMECHANGE | -9 | 0 | 20300 | 29547500

There is one event I might be able work with is: 0x7FFFFF30 It seems to only be triggered when something major happened, such as panel switched, or popup opened.

Spoiler

#include <WinAPISys.au3>

Global $hEventProc = DllCallbackRegister(_EventProc, 'none', 'ptr;dword;hwnd;long;long;dword;dword')
OnAutoItExitRegister(OnAutoItExit)
HotKeySet("{ESC}", Terminate)
Local $hWnd = WinWaitActive("[TITLE:VCarve Pro]")
Local $iPID = WinGetProcess($hWnd)
ConsoleWrite("PID: " & $iPID & @CRLF)
Global $hEventHook = _WinAPI_SetWinEventHook( $EVENT_MIN, $EVENT_MAX, DllCallbackGetPtr($hEventProc), $iPID)
Global $map[]
$map[0x00000001] = "$EVENT_MIN"
$map[0x00000001] = "$EVENT_SYSTEM_SOUND"
$map[0x00000002] = "$EVENT_SYSTEM_ALERT"
$map[0x00000003] = "$EVENT_SYSTEM_FOREGROUND"
$map[0x00000004] = "$EVENT_SYSTEM_MENUSTART"
$map[0x00000005] = "$EVENT_SYSTEM_MENUEND"
$map[0x00000006] = "$EVENT_SYSTEM_MENUPOPUPSTART"
$map[0x00000007] = "$EVENT_SYSTEM_MENUPOPUPEND"
$map[0x00000008] = "$EVENT_SYSTEM_CAPTURESTART"
$map[0x00000009] = "$EVENT_SYSTEM_CAPTUREEND"
$map[0x0000000A] = "$EVENT_SYSTEM_MOVESIZESTART"
$map[0x0000000B] = "$EVENT_SYSTEM_MOVESIZEEND"
$map[0x0000000C] = "$EVENT_SYSTEM_CONTEXTHELPSTART"
$map[0x0000000D] = "$EVENT_SYSTEM_CONTEXTHELPEND"
$map[0x0000000E] = "$EVENT_SYSTEM_DRAGDROPSTART"
$map[0x0000000F] = "$EVENT_SYSTEM_DRAGDROPEND"
$map[0x00000010] = "$EVENT_SYSTEM_DIALOGSTART"
$map[0x00000011] = "$EVENT_SYSTEM_DIALOGEND"
$map[0x00000012] = "$EVENT_SYSTEM_SCROLLINGSTART"
$map[0x00000013] = "$EVENT_SYSTEM_SCROLLINGEND"
$map[0x00000014] = "$EVENT_SYSTEM_SWITCHSTART"
$map[0x00000015] = "$EVENT_SYSTEM_SWITCHEND"
$map[0x00000016] = "$EVENT_SYSTEM_MINIMIZESTART"
$map[0x00000017] = "$EVENT_SYSTEM_MINIMIZEEND"
$map[0x00000020] = "$EVENT_SYSTEM_DESKTOPSWITCH"
$map[0x00008000] = "$EVENT_OBJECT_CREATE"
$map[0x00008001] = "$EVENT_OBJECT_DESTROY"
$map[0x00008002] = "$EVENT_OBJECT_SHOW"
$map[0x00008003] = "$EVENT_OBJECT_HIDE"
$map[0x00008004] = "$EVENT_OBJECT_REORDER"
$map[0x00008005] = "$EVENT_OBJECT_FOCUS"
$map[0x00008006] = "$EVENT_OBJECT_SELECTION"
$map[0x00008007] = "$EVENT_OBJECT_SELECTIONADD"
$map[0x00008008] = "$EVENT_OBJECT_SELECTIONREMOVE"
$map[0x00008009] = "$EVENT_OBJECT_SELECTIONWITHIN"
$map[0x0000800A] = "$EVENT_OBJECT_STATECHANGE"
$map[0x0000800B] = "$EVENT_OBJECT_LOCATIONCHANGE"
$map[0x0000800C] = "$EVENT_OBJECT_NAMECHANGE"
$map[0x0000800D] = "$EVENT_OBJECT_DESCRIPTIONCHANGE"
$map[0x0000800E] = "$EVENT_OBJECT_VALUECHANGE"
$map[0x0000800F] = "$EVENT_OBJECT_PARENTCHANGE"
$map[0x00008010] = "$EVENT_OBJECT_HELPCHANGE"
$map[0x00008011] = "$EVENT_OBJECT_DEFACTIONCHANGE"
$map[0x00008012] = "$EVENT_OBJECT_ACCELERATORCHANGE"
$map[0x00008013] = "$EVENT_OBJECT_INVOKED"
$map[0x00008014] = "$EVENT_OBJECT_TEXTSELECTIONCHANGED"
$map[0x00008015] = "$EVENT_OBJECT_CONTENTSCROLLED"
$map[0x7FFFFFFF] = "$EVENT_MAX"

While 1
  Sleep(1000)
WEnd

Func Terminate()
  Exit
EndFunc   ;==>Terminate

Func OnAutoItExit()
  _WinAPI_UnhookWinEvent($hEventHook)
  DllCallbackFree($hEventProc)
EndFunc   ;==>OnAutoItExit

Func _EventProc($hEventHook, $iEvent, $hWnd, $iObjectID, $iChildID, $iThreadId, $iEventTime)
    ConsoleWrite(($map[$iEvent] ? $map[$iEvent] : "0x" & hex($iEvent, 8)) & " | " & $iObjectID & " | " & $iChildID & " | " & $iThreadId & " | " & $iEventTime & @CRLF)
EndFunc   ;==>_EventProc

Edited March 26 by VAN0

Danyfirex · March 26

This should work.

#include <WinAPI.au3>
#include <WinAPISys.au3>
#include <WindowsConstants.au3>
#include <WinAPI.au3>
#include <ScreenCapture.au3>

HotKeySet("{ESC}", "_Exit") ; Exit


Global $hHookFunc = DllCallbackRegister('_WinEventProc', 'none', 'ptr;uint;hwnd;int;int;uint;uint')
Global $hWinHook = _WinAPI_SetWinEventHook($EVENT_OBJECT_CREATE, $EVENT_OBJECT_CREATE, DllCallbackGetPtr($hHookFunc))


While Sleep(30)

WEnd


Func _Exit()
    _Free()
    Exit
EndFunc   ;==>_Exit

Func _Free()
    If $hWinHook Then _WinAPI_UnhookWinEvent($hWinHook)
    If $hHookFunc Then DllCallbackFree($hHookFunc)
EndFunc   ;==>_Free


Func _WinEventProc($hHook, $iEvent, $hWnd, $iObjectID, $iChildID, $iEventThread, $imsEventTime)

    If WinGetTitle($hWnd) = "VCarve Pro" Then
        ConsoleWrite(WinGetTitle($hWnd) & @CRLF)
        ConsoleWrite(_WinAPI_GetWindowFileName($hWnd) & @CRLF)
    EndIf

EndFunc   ;==>_WinEventProc

Saludos

Nine · March 26

1 hour ago, VAN0 said:

0x7FFFFF30 It seems to only be triggered when something major happened

Interesting. And the value of $hWnd, does it correspond to the popup windows ? If so, you got yourself a winner.

Block all input without UAC	Save/Retrieve Images to/from Text	Monitor Management (VCP commands)
Tool to search in text (au3) files	Date Range Picker	Virtual Desktop Manager
Sudoku Game 2020	Overlapped Named Pipe IPC	HotString 2.0 - Hot keys with string
x64 Bitwise Operations	Multi-keyboards HotKeySet	Recursive Array Display
Fast and simple WCD IPC	Multiple Folders Selector	Printer Manager
GIF Animation (cached)	Screen Scraping	Multi-Threading Made Easy

Block all input without UAC	Save/Retrieve Images to/from Text	Monitor Management (VCP commands)
Tool to search in text (au3) files	Date Range Picker	Virtual Desktop Manager
Sudoku Game 2020	Overlapped Named Pipe IPC	HotString 2.0 - Hot keys with string
x64 Bitwise Operations	Multi-keyboards HotKeySet	Recursive Array Display
Fast and simple WCD IPC	Multiple Folders Selector	Printer Manager
GIF Animation (cached)	Screen Scraping	Multi-Threading Made Easy

Block all input without UAC	Save/Retrieve Images to/from Text	Monitor Management (VCP commands)
Tool to search in text (au3) files	Date Range Picker	Virtual Desktop Manager
Sudoku Game 2020	Overlapped Named Pipe IPC	HotString 2.0 - Hot keys with string
x64 Bitwise Operations	Multi-keyboards HotKeySet	Recursive Array Display
Fast and simple WCD IPC	Multiple Folders Selector	Printer Manager
GIF Animation (cached)	Screen Scraping	Multi-Threading Made Easy

Block all input without UAC	Save/Retrieve Images to/from Text	Monitor Management (VCP commands)
Tool to search in text (au3) files	Date Range Picker	Virtual Desktop Manager
Sudoku Game 2020	Overlapped Named Pipe IPC	HotString 2.0 - Hot keys with string
x64 Bitwise Operations	Multi-keyboards HotKeySet	Recursive Array Display
Fast and simple WCD IPC	Multiple Folders Selector	Printer Manager
GIF Animation (cached)	Screen Scraping	Multi-Threading Made Easy

Event based new message box opening detection

Recommended Posts

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Create an account or sign in to comment

Create an account

Sign in

Recently Browsing 0 members
