_AD_ErrorNotify(2)
$success = _AD_CreateGroup("OU=Lokale Administratoren,DC=my,DC=domain,DC=de", "_TEST121")
MsgBox(64, $ScriptName, "success: " & $success & @CRLF & "Error: " & @error & @CRLF & "extended: " & @extended)

My UDFs and Tutorials:

Spoiler

UDFs:
Active Directory (NEW 2022-02-19 - Version 1.6.1.0) - Download - General Help & Support - Example Scripts - Wiki
ExcelChart (2017-07-21 - Version 0.4.0.1) - Download - General Help & Support - Example Scripts
OutlookEX (2021-11-16 - Version 1.7.0.0) - Download - General Help & Support - Example Scripts - Wiki
OutlookEX_GUI (2021-04-13 - Version 1.4.0.0) - Download
Outlook Tools (2019-07-22 - Version 0.6.0.0) - Download - General Help & Support - Wiki
PowerPoint (2021-08-31 - Version 1.5.0.0) - Download - General Help & Support - Example Scripts - Wiki
Task Scheduler (2019-12-03 - Version 1.5.1.0) - Download - General Help & Support - Wiki

Standard UDFs:
Excel - Example Scripts - Wiki
Word - Wiki

Tutorials:
ADO - Wiki
WebDriver - Wiki



Link to post
Share on other sites
  • Replies 830
  • Created
  • Last Reply

Top Posters In This Topic

Top Posters In This Topic

Popular Posts

Could you please add the following function to your script and call _AD_ListDomainControllersEX instead of _AD_ListDomainControllers? The error should be gone. ; #FUNCTION# ==================

Fixed in the 1.5.0.1 version of the UDF which I uploaded today.

& stands for AND | stands for OR You are looking for groups whose name start with APZ_ OR APPL_ OR CPZ_PRD_. The syntax gets a bit more complex now: "(&(objectcategory=group)(|(na

Posted Images

Line 845 is the

$oGroup.SetInfo

in function _AD_GroupCreate.
So there seems to be a problem when creating the group.
Maybe a permission problem (use other credentials for _AD_Open ...), a problem with the server you connected to (maybe you need to connect to the Global Catalog ...) etc. etc.
Google returns a long list of results.

As I have just read access to our AD I can't test myself.

My UDFs and Tutorials:

Spoiler

UDFs:
Active Directory (NEW 2022-02-19 - Version 1.6.1.0) - Download - General Help & Support - Example Scripts - Wiki
ExcelChart (2017-07-21 - Version 0.4.0.1) - Download - General Help & Support - Example Scripts
OutlookEX (2021-11-16 - Version 1.7.0.0) - Download - General Help & Support - Example Scripts - Wiki
OutlookEX_GUI (2021-04-13 - Version 1.4.0.0) - Download
Outlook Tools (2019-07-22 - Version 0.6.0.0) - Download - General Help & Support - Wiki
PowerPoint (2021-08-31 - Version 1.5.0.0) - Download - General Help & Support - Example Scripts - Wiki
Task Scheduler (2019-12-03 - Version 1.5.1.0) - Download - General Help & Support - Wiki

Standard UDFs:
Excel - Example Scripts - Wiki
Word - Wiki

Tutorials:
ADO - Wiki
WebDriver - Wiki



Link to post
Share on other sites
  • 2 months later...

Hi author(s),

Many thanks for your great effort!

I have a couple of question in regards to 2 functions.

1)_AD_IsPasswordExpired function tells, that the password has expired for John Smith (username: JSmith). I ran "net user  JSmith /domain" and found out, that "Password expires" is set to "Never". Is that a bug or intended?

2)_AD_GetObjectAttribute function is capable of returning AD computer description: _AD_GetObjectAttribute($sMachineName & "$","description"). When I try to feed it a computer name with empty description field I get an error (exception).

Thank you

Link to post
Share on other sites
  1. Which version of the AD UDF do you run? Run _AD_VersionInfo.au3 to get this information.
    Do you use the Fine grained Password Policy (FGPP)?
    What is the return value of _AD_IsPasswordExpired, @error and @extended?
  2. You should get @error = 2 when $sAttribute does not exist for $sObject.
    Which version of AutoIt do you run? For versions < 3.3.9.2 and > 3.3.12.0 the AD COM error handler should handle the situation.
    Else add _AD_ErrorNotify(4) at the top of your script.

My UDFs and Tutorials:

Spoiler

UDFs:
Active Directory (NEW 2022-02-19 - Version 1.6.1.0) - Download - General Help & Support - Example Scripts - Wiki
ExcelChart (2017-07-21 - Version 0.4.0.1) - Download - General Help & Support - Example Scripts
OutlookEX (2021-11-16 - Version 1.7.0.0) - Download - General Help & Support - Example Scripts - Wiki
OutlookEX_GUI (2021-04-13 - Version 1.4.0.0) - Download
Outlook Tools (2019-07-22 - Version 0.6.0.0) - Download - General Help & Support - Wiki
PowerPoint (2021-08-31 - Version 1.5.0.0) - Download - General Help & Support - Example Scripts - Wiki
Task Scheduler (2019-12-03 - Version 1.5.1.0) - Download - General Help & Support - Wiki

Standard UDFs:
Excel - Example Scripts - Wiki
Word - Wiki

Tutorials:
ADO - Wiki
WebDriver - Wiki



Link to post
Share on other sites

Hi water,

1)Release type  V (production), Major version 1, Minor version 5, Sub version 4.1.

I think our domain uses Fine grained password policy, but I'm not sure I have access rights to tell for sure. Return value of _AD_IsPasswordExpired is 1. @error is 0 and @extended is also 0;

2) The attribute exists and Attribute editor shows "description" attribute as "not set". AutoIt version: 3.3.14.5. See exception attached. Correct, after it I get @error=2.


Link to post
Share on other sites
  1. _AD_IsPasswordExpired mainly uses _AD_GetPasswordInfo.
    Could you please run _AD_GetPasswordInfo.au3 and post the result (at least rows 9, 11 and 13?

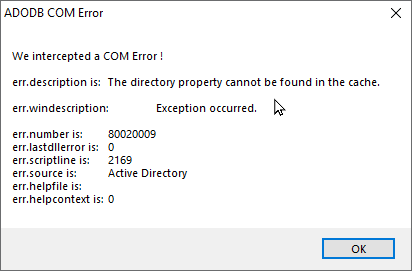

  2. Seems you use a different COM error handler (provided by the ADODB UDF).
    Could you please deactivate the ADODB COM error handler so the AD COM error handler can handle the COM error?

My UDFs and Tutorials:

Spoiler

UDFs:
Active Directory (NEW 2022-02-19 - Version 1.6.1.0) - Download - General Help & Support - Example Scripts - Wiki
ExcelChart (2017-07-21 - Version 0.4.0.1) - Download - General Help & Support - Example Scripts
OutlookEX (2021-11-16 - Version 1.7.0.0) - Download - General Help & Support - Example Scripts - Wiki
OutlookEX_GUI (2021-04-13 - Version 1.4.0.0) - Download
Outlook Tools (2019-07-22 - Version 0.6.0.0) - Download - General Help & Support - Wiki
PowerPoint (2021-08-31 - Version 1.5.0.0) - Download - General Help & Support - Example Scripts - Wiki
Task Scheduler (2019-12-03 - Version 1.5.1.0) - Download - General Help & Support - Wiki

Standard UDFs:
Excel - Example Scripts - Wiki
Word - Wiki

Tutorials:
ADO - Wiki
WebDriver - Wiki



Link to post
Share on other sites
  1. Strange, your column 0 (description) is missing. My output looks like this:
    Did you run _AD_GetPasswordInfo.au3 or did you create your own script to extract the information?

    What is the value of Row 1 "Maximum Password Age (days)"?

  2. _AD_Open uses its own COM error handler when none is active. If you want to get all error messages you could call _AD_ErrorNotify(2) before _AD_Open.

My UDFs and Tutorials:

Spoiler

UDFs:
Active Directory (NEW 2022-02-19 - Version 1.6.1.0) - Download - General Help & Support - Example Scripts - Wiki
ExcelChart (2017-07-21 - Version 0.4.0.1) - Download - General Help & Support - Example Scripts
OutlookEX (2021-11-16 - Version 1.7.0.0) - Download - General Help & Support - Example Scripts - Wiki
OutlookEX_GUI (2021-04-13 - Version 1.4.0.0) - Download
Outlook Tools (2019-07-22 - Version 0.6.0.0) - Download - General Help & Support - Wiki
PowerPoint (2021-08-31 - Version 1.5.0.0) - Download - General Help & Support - Example Scripts - Wiki
Task Scheduler (2019-12-03 - Version 1.5.1.0) - Download - General Help & Support - Wiki

Standard UDFs:
Excel - Example Scripts - Wiki
Word - Wiki

Tutorials:
ADO - Wiki
WebDriver - Wiki



Link to post
Share on other sites
  • 1 month later...



Version 1.6.0.0 of the UDF has been released.

Now you get a help file that looks like the AutoIt help.

Please test before using in production!

For download please see my signature.



My UDFs and Tutorials:

Spoiler

UDFs:
Active Directory (NEW 2022-02-19 - Version 1.6.1.0) - Download - General Help & Support - Example Scripts - Wiki
ExcelChart (2017-07-21 - Version 0.4.0.1) - Download - General Help & Support - Example Scripts
OutlookEX (2021-11-16 - Version 1.7.0.0) - Download - General Help & Support - Example Scripts - Wiki
OutlookEX_GUI (2021-04-13 - Version 1.4.0.0) - Download
Outlook Tools (2019-07-22 - Version 0.6.0.0) - Download - General Help & Support - Wiki
PowerPoint (2021-08-31 - Version 1.5.0.0) - Download - General Help & Support - Example Scripts - Wiki
Task Scheduler (2019-12-03 - Version 1.5.1.0) - Download - General Help & Support - Wiki

Standard UDFs:
Excel - Example Scripts - Wiki
Word - Wiki

Tutorials:
ADO - Wiki
WebDriver - Wiki



Link to post
Share on other sites
  • 3 months later...

Version 1.6.1.0 of the UDF has been released.

Please test before using in production!

For download please see my signature.

My UDFs and Tutorials:

Spoiler

UDFs:
Active Directory (NEW 2022-02-19 - Version 1.6.1.0) - Download - General Help & Support - Example Scripts - Wiki
ExcelChart (2017-07-21 - Version 0.4.0.1) - Download - General Help & Support - Example Scripts
OutlookEX (2021-11-16 - Version 1.7.0.0) - Download - General Help & Support - Example Scripts - Wiki
OutlookEX_GUI (2021-04-13 - Version 1.4.0.0) - Download
Outlook Tools (2019-07-22 - Version 0.6.0.0) - Download - General Help & Support - Wiki
PowerPoint (2021-08-31 - Version 1.5.0.0) - Download - General Help & Support - Example Scripts - Wiki
Task Scheduler (2019-12-03 - Version 1.5.1.0) - Download - General Help & Support - Wiki

Standard UDFs:
Excel - Example Scripts - Wiki
Word - Wiki

Tutorials:
ADO - Wiki
WebDriver - Wiki



Link to post
Share on other sites
  • 1 month later...

is there a way to filter AD groups based off a wildcard?

for instance - can _AD_GetObjectsInOU("", "(objectcategory=group)", 2, "sAMAccountName") be used along with a wildcard to include only groups that start with "APPL_" and "APZ_" or is there another way to easily get a listing of those groups other than a for loop through all the ad groups?

thank you for the amazing UDF!

thanks in advance :)

Link to post
Share on other sites

Sure. The wiki describes how to use _AD_GetObjectsInOU and links you to a site where they explain how to create LDAP queries.
So it should be something like: "(&(objectcategory=group)(name=APPL_*))"

My UDFs and Tutorials:

Spoiler

UDFs:
Active Directory (NEW 2022-02-19 - Version 1.6.1.0) - Download - General Help & Support - Example Scripts - Wiki
ExcelChart (2017-07-21 - Version 0.4.0.1) - Download - General Help & Support - Example Scripts
OutlookEX (2021-11-16 - Version 1.7.0.0) - Download - General Help & Support - Example Scripts - Wiki
OutlookEX_GUI (2021-04-13 - Version 1.4.0.0) - Download
Outlook Tools (2019-07-22 - Version 0.6.0.0) - Download - General Help & Support - Wiki
PowerPoint (2021-08-31 - Version 1.5.0.0) - Download - General Help & Support - Example Scripts - Wiki
Task Scheduler (2019-12-03 - Version 1.5.1.0) - Download - General Help & Support - Wiki

Standard UDFs:
Excel - Example Scripts - Wiki
Word - Wiki

Tutorials:
ADO - Wiki
WebDriver - Wiki



Link to post
Share on other sites

thank you!  i was able to search for one of the wildcard but couldnt figure out the syntax for 2

tried but neither worked

"(&(objectcategory=group)(name=APPL_* AND name=APZ_*))"

"(&(objectcategory=group)(name=APPL_*)(name=APZ_*))"

"(&(&(objectcategory=group)(name=APPL_*)(name=CPZ_PRD_*)))" (from wiki example)



Edited by gcue
Link to post
Share on other sites
Posted (edited)

& stands for AND
| stands for OR
You are looking for groups whose name start with APZ_ OR APPL_ OR CPZ_PRD_. The syntax gets a bit more complex now:

"(&(objectcategory=group)(|(name=APPL_*)(name=APZ_*)(name=CPZ_PRD_*)))"

See "Nested Operation" on the SelfADSI page.



Edited by water

My UDFs and Tutorials:

Spoiler

UDFs:
Active Directory (NEW 2022-02-19 - Version 1.6.1.0) - Download - General Help & Support - Example Scripts - Wiki
ExcelChart (2017-07-21 - Version 0.4.0.1) - Download - General Help & Support - Example Scripts
OutlookEX (2021-11-16 - Version 1.7.0.0) - Download - General Help & Support - Example Scripts - Wiki
OutlookEX_GUI (2021-04-13 - Version 1.4.0.0) - Download
Outlook Tools (2019-07-22 - Version 0.6.0.0) - Download - General Help & Support - Wiki
PowerPoint (2021-08-31 - Version 1.5.0.0) - Download - General Help & Support - Example Scripts - Wiki
Task Scheduler (2019-12-03 - Version 1.5.1.0) - Download - General Help & Support - Wiki

Standard UDFs:
Excel - Example Scripts - Wiki
Word - Wiki

Tutorials:
ADO - Wiki
WebDriver - Wiki



Link to post
Share on other sites

:)

My UDFs and Tutorials:

Spoiler

UDFs:
Active Directory (NEW 2022-02-19 - Version 1.6.1.0) - Download - General Help & Support - Example Scripts - Wiki
ExcelChart (2017-07-21 - Version 0.4.0.1) - Download - General Help & Support - Example Scripts
OutlookEX (2021-11-16 - Version 1.7.0.0) - Download - General Help & Support - Example Scripts - Wiki
OutlookEX_GUI (2021-04-13 - Version 1.4.0.0) - Download
Outlook Tools (2019-07-22 - Version 0.6.0.0) - Download - General Help & Support - Wiki
PowerPoint (2021-08-31 - Version 1.5.0.0) - Download - General Help & Support - Example Scripts - Wiki
Task Scheduler (2019-12-03 - Version 1.5.1.0) - Download - General Help & Support - Wiki

Standard UDFs:
Excel - Example Scripts - Wiki
Word - Wiki

Tutorials:
ADO - Wiki
WebDriver - Wiki



Link to post
Share on other sites

Hi I'm trying to detect the existence of a computer object but _AD_ObjectExists is only returning 0.

My code:

_AD_Open()
    If @error Then
        Local $sError = @error, $sExtended = @extended
        Local $sAD_Hive = "HKLM", $sErrorMsg
        If @OSArch = "IA64" Or @OSArch = "X64" Then $sAD_Hive = "HKLM64"
        Local $sAD_OSVersion = RegRead($sAD_Hive & "\SOFTWARE\Microsoft\Windows NT\CurrentVersion", "CurrentVersion")
        $sAD_OSVersion = StringSplit($sAD_OSVersion, ".")
        If Int($sAD_OSVersion[1]) >= 6 Then ; Delivers detailed error information for Windows Vista and later if debugging is activated
            Local $aAD_Errors = _AD_GetLastADSIError()
            If $aAD_Errors[4] <> 0 Then $sErrorMsg = $aAD_Errors[5]
        EndIf
        LogMe("Error accessing the Active Directory. @Error: " & $sError & ", @extended: " & $sExtended & @CRLF & $sErrorMsg)
    Else
        LogMe('Connected to AD')
    EndIf

    Local $iResult = _AD_ObjectExists($sComputerName)
    LogMe("RESULT! [" & $iResult & "]")
    _AD_Close()

$iResult is always 0.

I've tried _AD_ObjectExists("$" & $sComputerName) as well.

I'm sure it's something incredibly obvious but I just can't see it. Any help appreciated!

Link to post
Share on other sites
3 hours ago, nikink said:

Hi I'm trying to detect the existence of a computer object but _AD_ObjectExists is only returning 0.

$iResult is always 0.

I've tried _AD_ObjectExists("$" & $sComputerName) as well.

I'm sure it's something incredibly obvious but I just can't see it. Any help appreciated!

What is the result if you try @ComputerName instead of $sComputerName?

Link to post
Share on other sites

Create an account or sign in to comment

You need to be a member in order to leave a comment

Create an account

Sign up for a new account in our community. It's easy!

Register a new account

Sign in

Already have an account? Sign in here.

Sign In Now
  • Recently Browsing   0 members

    No registered users viewing this page.

  • Similar Content

    • By kurtykurtyboy
      GuiFlatButton is a UDF to easily create regular buttons with different colors for background, foreground, border, hover, focus, etc..
      This started as an effort to change the background color of a button and eventually grew into a full UDF.
      If you've looked around forums for changing button background colors, you have probably noticed that each proposed workaround has its own set of issues/side-effects. The answers usually circle back to 'use ownerdrawn buttons' and 'not worth it'. Well, now it is possible for anyone to easily create ownerdrawn buttons - totally worth it!
      Some issues with other workarounds such as drawing with GDI+ or using a colored label as a 'button':
      Not 'real' buttons so you lose built-in functionality that windows gives to buttons Messy / inefficient code in the main while loop to check for mouse position Slow to respond to click, paint, etc... Having to deal with GUIRegisterMsg messages Not straight-forward to implement GuiFlatButton is not a workaround; it is a technique to respond to Windows' built-in owner-drawn button events.
      With minimal effort, we can now create true simple colored buttons.
      The idea is to create an owner-drawn button using GUICtrlCreateButton then subclass the GUI and controls to handle the button-specific events to paint it however we want.
      This UDF magically does all of this for us! No need to worry about event handling or main while loop logic.

      How to use
      It couldn't be any easier! Simply create a new button using the familiar syntax. This creates an ownerdrawn button with default colors.
      $mybutton1 = GuiFlatButton_Create("Button 1", 78, 20, 120, 40) If you want to change the background and text colors:
      GuiFlatButton_SetBkColor(-1, 0x5555FF) GuiFlatButton_SetColor(-1, 0xFFFFFF) Advanced Usage
      Set background/text/border all at once
      GuiFlatButton_SetColors(-1, 0x0000FF, 0xFFFFFF, 0x9999FF) Set ALL colors for ALL button states! (normal, focus, hover, selected)
      Local $aColorsEx = [0x0000FF, 0xFFFFFF, -2, 0x4444FF, 0xFFFFFF, 0xAAAAFF, 0x6666FF, 0xFFFFFF, 0xCCCCFF, 0x0000EE, 0xFFFFFF, 0x7777EE] GuiFlatButton_SetColorsEx(-1, $aColorsEx) Set default colors to apply to any future buttons
      ;set colors GuiFlatButton_SetDefaultColors(0x0000FF, 0xFFFFFF, 0x9999FF) ;create buttons $mybutton1 = GuiFlatButton_Create("Button 1", 12, 20, 120, 40) $mybutton2 = GuiFlatButton_Create("Button 2", 143, 20, 120, 40) Set ALL color defaults
      ;set colors Local $aColorsEx = [0x0000FF, 0xFFFFFF, -2, 0x4444FF, 0xFFFFFF, 0xAAAAFF, 0x6666FF, 0xFFFFFF, 0xCCCCFF, 0x0000EE, 0xFFFFFF, 0x7777EE] GuiFlatButton_SetDefaultColorsEx($aColorsEx) ;create buttons $mybutton1 = GuiFlatButton_Create("Button 1", 12, 20, 120, 40) $mybutton2 = GuiFlatButton_Create("Button 2", 143, 20, 120, 40)
      Available Functions

      Simple Example

      #include <GUIConstantsEx.au3> #include <MsgBoxConstants.au3> #include "GuiFlatButton.au3" Example() ;GUI with one button Func Example() Local $hGUI, $mybutton1 $hGUI = GUICreate("GuiFlatButton Ex0", 275, 120) GUISetBkColor(0x333333) $idLabel = GUICtrlCreateLabel("Click the button", 10, 100, 150, 30) GUICtrlSetColor(-1, 0xFFFFFF) ;create new button then set the background and foreground colors $mybutton1 = GuiFlatButton_Create("Button 1", 78, 20, 120, 40) GuiFlatButton_SetBkColor(-1, 0x5555FF) GuiFlatButton_SetColor(-1, 0xFFFFFF) GUISetState(@SW_SHOW, $hGUI) Local $i = 0 Local $iMsg While 1 $iMsg = GUIGetMsg() Switch $iMsg Case $GUI_EVENT_CLOSE ExitLoop Case $mybutton1 $i += 1 GUICtrlSetData($idLabel, $i) ConsoleWrite($i & @CRLF) EndSwitch Sleep(10) WEnd GUIDelete() EndFunc ;==>Example
      Menu/Toolbar Example

      #include <GUIConstantsEx.au3> #include <MsgBoxConstants.au3> #include "GuiFlatButton.au3" Example() ;Example GUI with toolbar Func Example() Local $hGUI, $idLabel, $aButtons, $iTbSize $hGUI = GUICreate("GuiFlatButton Ex2", 300, 200) GUISetBkColor(0x444444) $idLabel = GUICtrlCreateLabel("Click a button", 10, 180, 150, 30) GUICtrlSetColor(-1, 0xFFFFFF) $aButtons = createToolbar() $iTbSize = UBound($aButtons) GUISetState(@SW_SHOW, $hGUI) Local $i = 0 Local $iMsg While 1 $iMsg = GUIGetMsg() Switch $iMsg Case $GUI_EVENT_CLOSE ExitLoop Case $aButtons[0] To $aButtons[$iTbSize - 1] ConsoleWrite("1") GUICtrlSetData($idLabel, GuiFlatButton_Read($iMsg)) EndSwitch Sleep(10) WEnd GUIDelete() EndFunc ;==>Example Func createToolbar() Local $aButtons[6] Local $bkColor = 0x777777 Local $textColor = 0xFFFFFF Local $borderColor = 0x999999 Local $aBtnClrs[12] = [0x777777, 0xFFFFFF, $GUI_BKCOLOR_TRANSPARENT, 0x888888, 0xFFFFFF, $GUI_BKCOLOR_TRANSPARENT, 0x999999, 0xFFFFFF, $GUI_BKCOLOR_TRANSPARENT, 0x666666, 0xFFFFFF, $GUI_BKCOLOR_TRANSPARENT] For $i = 0 To UBound($aButtons) - 1 $aButtons[$i] = GuiFlatButton_Create("B" & $i, $i * 50, 0, 50, 17) GuiFlatButton_SetColorsEx($aButtons[$i], $aBtnClrs) Next Return $aButtons EndFunc ;==>createToolbar
      Icon Example
      You can even easily add icons to your buttons -- just create a new button and send it an icon!

      #include <GDIPlus.au3> #include "GuiFlatButton.au3" Example() ;buttons with Icon images Func Example() ;get images for demonstration _GDIPlus_Startup() ;initialize GDI+ Local $hIcon = _WinAPI_ShellExtractIcon(@SystemDir & '\shell32.dll', 258, 24, 24) ;extract the 'Save' icon Local $hBitmap = _GDIPlus_BitmapCreateFromHICON($hIcon) ;Create Bitmap from Icon (for demonstration) Local $hHBitmap = _GDIPlus_BitmapCreateHBITMAPFromBitmap($hBitmap) ;Create HBitmap from Bitmap _GDIPlus_BitmapDispose($hBitmap) ;dispose the bitmap _GDIPlus_Shutdown() ;done with GDI+ Local $hGUI = GUICreate("GuiFlatButton Ex5", 255, 400) GUISetBkColor(0xEEEEEE) ;set default colors of future buttons Local $aColorsEx = _ [0xE2E5E8, 0X000000, 0x888888, _ ; normal : Background, Text, Border 0xE2E5E8, 0X000000, 0x333333, _ ; focus : Background, Text, Border 0xE8E8E8, 0X000000, 0x666666, _ ; hover : Background, Text, Border 0xDDDDDD, 0X000000, 0xAAAAAA] ; selected : Background, Text, Border GuiFlatButton_SetDefaultColorsEx($aColorsEx) ;normal button with icon $label1 = GUICtrlCreateLabel( "$BS_TOOLBUTTON -->", 5, 10) GUICtrlSetBkColor(-1, $GUI_BKCOLOR_TRANSPARENT) Local $mybutton1 = GuiFlatButton_Create("Save", 130, 5, 50, 48, $BS_TOOLBUTTON) _WinAPI_DeleteObject(_SendMessage(GUICtrlGetHandle($mybutton1), $BM_SETIMAGE, $IMAGE_ICON, $hIcon)) ;align top Local $mybuttonT = GuiFlatButton_Create("Top", 5, 65, 120, 55, $BS_TOP) _WinAPI_DeleteObject(_SendMessage(GUICtrlGetHandle($mybuttonT), $BM_SETIMAGE, $IMAGE_ICON, $hIcon)) ;align top-left Local $mybuttonTL = GuiFlatButton_Create("Top-Left", 5, 125, 120, 55, BITOR($BS_TOP, $BS_LEFT)) _WinAPI_DeleteObject(_SendMessage(GUICtrlGetHandle($mybuttonTL), $BM_SETIMAGE, $IMAGE_ICON, $hIcon)) ;align top-right Local $mybuttonTR = GuiFlatButton_Create("Top-Right", 5, 185, 120, 55, BITOR($BS_TOP, $BS_RIGHT)) _WinAPI_DeleteObject(_SendMessage(GUICtrlGetHandle($mybuttonTR), $BM_SETIMAGE, $IMAGE_ICON, $hIcon)) ;align left Local $mybuttonL = GuiFlatButton_Create("Left", 5, 245, 120, 55, $BS_LEFT) _WinAPI_DeleteObject(_SendMessage(GUICtrlGetHandle($mybuttonL), $BM_SETIMAGE, $IMAGE_ICON, $hIcon)) ;align bottom Local $mybuttonB = GuiFlatButton_Create("Bottom", 130, 65, 120, 55, $BS_BOTTOM) _WinAPI_DeleteObject(_SendMessage(GUICtrlGetHandle($mybuttonB), $BM_SETIMAGE, $IMAGE_ICON, $hIcon)) ;align bottom-left Local $mybuttonBL = GuiFlatButton_Create("Bottom-Left", 130, 125, 120, 55, BITOR($BS_BOTTOM, $BS_LEFT)) _WinAPI_DeleteObject(_SendMessage(GUICtrlGetHandle($mybuttonBL), $BM_SETIMAGE, $IMAGE_ICON, $hIcon)) ;align bottom-right Local $mybuttonBR = GuiFlatButton_Create("Bottom-Right", 130, 185, 120, 55, BITOR($BS_BOTTOM, $BS_RIGHT)) _WinAPI_DeleteObject(_SendMessage(GUICtrlGetHandle($mybuttonBR), $BM_SETIMAGE, $IMAGE_ICON, $hIcon)) ;align right Local $mybuttonR = GuiFlatButton_Create("Right", 130, 245, 120, 55, $BS_RIGHT) _WinAPI_DeleteObject(_SendMessage(GUICtrlGetHandle($mybuttonR), $BM_SETIMAGE, $IMAGE_ICON, $hIcon)) GuiFlatButton_SetState($mybuttonR, $GUI_DISABLE ) ;disabled Local $mybuttonDisable = GuiFlatButton_Create("Disabled", 130, 310, 120, 55, $BS_TOOLBUTTON) _WinAPI_DeleteObject(_SendMessage(GUICtrlGetHandle($mybuttonDisable), $BM_SETIMAGE, $IMAGE_BITMAP, $hHBitmap)) GuiFlatButton_SetState($mybuttonDisable, $GUI_DISABLE ) ;clean up! _WinAPI_DestroyIcon( $hIcon ) _WinAPI_DeleteObject( $hHBitmap ) GUISetState(@SW_SHOW, $hGUI) Local $iMsg While 1 $iMsg = GUIGetMsg() Switch $iMsg Case $GUI_EVENT_CLOSE ExitLoop EndSwitch Sleep(10) WEnd GUIDelete() EndFunc ;==>Example
      I'm sure there are some use-cases I've forgotten, so feedback is welcome!

      Download the latest UDF and several more examples:
      Update 2022-05-25
      GuiFlatButton_20220525.zip
      Fixed issue, buttons disappear when a GUI containing a child window with WS_EX_MDICHILD extended style is moved
      Update 2022-05-24
      Fixed issue releasing subclassing when GUI is deleted but program is not closed
      Fixed occasional white background flicker
      Added function GuiFlatButton_GetPos
      Update 2021-01-02
      Fixed bug, not drawing correctly after deleting GUI with GUIDelete()
      Fixed bug, changing default colors changed all buttons, even previously created buttons
      Made some internal functions more efficient
      Update 2019-04-14
      Fixed bug, not showing pressed down state when clicking rapidly
      Added Icon/Bitmap support!
      Added function GuiFlatButton_SetPos to change the position and/or size of a button
      Update 2019-02-09
      Added 2 new functions to set the button colors globally for all future buttons.
      GuiFlatButton_SetDefaultColors
      GuiFlatButton_SetDefaultColorsEx

      Credits to:
      Melba23 (UDF template)
      LarsJ (general subclassing code)
      4ggr35510n (TrackMouseEvent example)
      binhnx (disable dragging with $WS_EX_CONTROLPARENT)
      GUIRegisterMsg in AutoIt Help (owner-draw button example)
      funkey (_WinAPI_DrawState example)
      GuiFlatButton_20190414.zip GuiFlatButton20210102.zip
      GuiFlatButton_20220524.zip
    • By Hermes
      Hi, I am struggling in setting the value of a textarea based on the value of clipboard (that contains a long web page source codes). If I use _WD_SetElementValue, it freezes after some time, or appears to be pressing tab and goes out of focus. I can also use send keys but i need the script to run in the background.
      Here is the full script:
      #Include "Chrome.au3" #Include "wd_core.au3" #Include "wd_helper.au3" #Include "WinHttp.au3" #include <MsgBoxConstants.au3> #include <WinAPIFiles.au3> #include <Array.au3> #include <AutoItConstants.au3> #include <WinAPIFiles.au3> #include <GDIPlus.au3> #include <Excel.au3> Local $sDesiredCapabilities, $sSession SetupChrome() _WD_Startup() $sSession = _WD_CreateSession($sDesiredCapabilities) _WD_LoadWait($sSession) _WD_Navigate($sSession, "http://demo.borland.com/testsite/stadyn_largepagewithimages.html") _WD_LoadWait($sSession) Global $sSource = _WD_GetSource($sSession) Local $Paste = ClipPut($sSource) Local $sData = ClipGet() Local $aArray = 0, _ $iOffset = 1 While 1 $aArray = StringRegExp($sData, '(?s)<p>.*</p>', $STR_REGEXPARRAYMATCH, $iOffset) If @error Then ExitLoop $iOffset = @extended For $i = 0 To UBound($aArray) - 1 Local $Paste = ClipPut($aArray[$i]) Local $sRegExData = ClipGet() ;MsgBox(0, "", "$sRegExData = " & $sRegExData) Next WEnd _WD_Navigate($sSession, "https://www.w3schools.com/tags/tryit.asp?filename=tryhtml5_textarea_placeholder") _WD_WaitElement($sSession, $_WD_LOCATOR_ByCSSSelector, "iframe#iframeResult") Local $sElement1 = _WD_FindElement($sSession, $_WD_LOCATOR_ByCSSSelector, "iframe#iframeResult") _WD_FrameEnter($sSession, $sElement1) _WD_WaitElement($sSession, $_WD_LOCATOR_ByXPath, "//html/body/textarea") $textarea = _WD_FindElement($sSession, $_WD_LOCATOR_ByXPath, "//html/body/textarea") _WD_ElementAction($sSession, $textarea, 'click') ;WD SetElementValue(SsSession, Stextarea, $sRegExData) <-- I can do this but the focus goes out, or the browser freezes _WD_FrameLeave($sSession) sleep(2000) Send("^v") _WD_LoadWait($sSession) _WD_Shutdown() Func SetupChrome() _WD_Option('Driver', 'chromedriver.exe') _WD_Option('Port', 9515) _WD_Option('DriverParams', '--log-path="' & @ScriptDir & '\chrome.log"') $sDesiredCapabilities = '{"capabilities": {"alwaysMatch": {"goog:chromeOptions": {"w3c": true, "args":["start-maximized","disable-infobars"]}}}}' EndFunc ;==>SetupChrome Can someone help me please, or re-direct me to the right path? TIA!
    • By Hermes
      Hi, I am trying to select elements in print page (dialog window) for a specific web page. But when trying to do so, it looks like it does not allow me to do it.
      So far, this is what I have:
      _WD_WaitElement($sSession, $_WD_LOCATOR_ByCSSSelector, "body") Local $mainpagebody = _WD_FindElement($sSession, $_WD_LOCATOR_ByCSSSelector, "body") _WD_HighlightElement($sSession, $mainpagebody, 2) _WD_WaitElement($sSession, $_WD_LOCATOR_ByCSSSelector, "img.print-button") Local $printbutton = _WD_FindElement($sSession, $_WD_LOCATOR_ByCSSSelector, "img.print-button") _WD_ElementAction($sSession, $printbutton, 'click') _WD_LoadWait($sSession) Sleep(3000) _WD_WaitElement($sSession, $_WD_LOCATOR_ByCSSSelector, "body") Local $printpagebody = _WD_FindElement($sSession, $_WD_LOCATOR_ByCSSSelector, "body") _WD_HighlightElement($sSession, $printpagebody, 2) The script above highlights the main web page "body" element, then clicks a tag to print a specific part of the page, then it will open a print page window where i am trying to highlight the body of that print page - but it looks like it is dropping from the session because it opens up another chrome page chrome://print.

      Below is the output log:
      __WD_Post: URL=HTTP://127.0.0.1:9515/session/cd08704233a965ccbaf9292e8692c3e4/element; $sData={"using":"css selector","value":"body"} __WD_Post: StatusCode=200; ResponseText={"value":{"element-6066-11e4-a52e-4f735466cecf":"91a394f0-004c-480d-aedf-52e2b30233c6"}}... _WD_FindElement: {"value":{"element-6066-11e4-a52e-4f735466cecf":"91a394f0-004c-480d-aedf-52e2b30233c6"}} _WD_WaitElement ==> Success __WD_Post: URL=HTTP://127.0.0.1:9515/session/cd08704233a965ccbaf9292e8692c3e4/element; $sData={"using":"css selector","value":"body"} __WD_Post: StatusCode=200; ResponseText={"value":{"element-6066-11e4-a52e-4f735466cecf":"91a394f0-004c-480d-aedf-52e2b30233c6"}}... _WD_FindElement: {"value":{"element-6066-11e4-a52e-4f735466cecf":"91a394f0-004c-480d-aedf-52e2b30233c6"}} __WD_Post: URL=HTTP://127.0.0.1:9515/session/cd08704233a965ccbaf9292e8692c3e4/execute/sync; $sData={"script":"arguments[0].style='background: #FFFF66; border-radius: 5px; padding-left: 3px;'; return true;", "args":[{"element-6066-11e4-a52e-4f735466cecf":"91a394f0-004c-480d-aedf-52e2b30233c6"}]} __WD_Post: StatusCode=200; ResponseText={"value":true}... _WD_ExecuteScript: {"value":true}... __WD_Post: URL=HTTP://127.0.0.1:9515/session/cd08704233a965ccbaf9292e8692c3e4/element; $sData={"using":"css selector","value":"img.print-link"} __WD_Post: StatusCode=200; ResponseText={"value":{"element-6066-11e4-a52e-4f735466cecf":"eb9e4673-4dec-4d4c-be6a-b7967743394b"}}... _WD_FindElement: {"value":{"element-6066-11e4-a52e-4f735466cecf":"eb9e4673-4dec-4d4c-be6a-b7967743394b"}} _WD_WaitElement ==> Success __WD_Post: URL=HTTP://127.0.0.1:9515/session/cd08704233a965ccbaf9292e8692c3e4/element; $sData={"using":"css selector","value":"img.print-link"} __WD_Post: StatusCode=200; ResponseText={"value":{"element-6066-11e4-a52e-4f735466cecf":"eb9e4673-4dec-4d4c-be6a-b7967743394b"}}... _WD_FindElement: {"value":{"element-6066-11e4-a52e-4f735466cecf":"eb9e4673-4dec-4d4c-be6a-b7967743394b"}} __WD_Post: URL=HTTP://127.0.0.1:9515/session/cd08704233a965ccbaf9292e8692c3e4/element/eb9e4673-4dec-4d4c-be6a-b7967743394b/click; $sData={"id":"eb9e4673-4dec-4d4c-be6a-b7967743394b"} __WD_Post: StatusCode=200; ResponseText={"value":null}... _WD_ElementAction: {"value":null}... __WD_Post: URL=HTTP://127.0.0.1:9515/session/cd08704233a965ccbaf9292e8692c3e4/execute/sync; $sData={"script":"arguments[0].style='background: #FFFF66; border-radius: 5px; padding-left: 3px;'; return true;", "args":[{"element-6066-11e4-a52e-4f735466cecf":"eb9e4673-4dec-4d4c-be6a-b7967743394b"}]} __WD_Post: StatusCode=200; ResponseText={"value":true}... _WD_ExecuteScript: {"value":true}... __WD_Post: URL=HTTP://127.0.0.1:9515/session/cd08704233a965ccbaf9292e8692c3e4/execute/sync; $sData={"script":"return document.readyState", "args":[]} __WD_Post: StatusCode=500; ResponseText={"value":{"error":"script timeout","message":"script timeout\n (Session info: chrome=92.0.4515.107)... __WD_Post ==> Webdriver Exception: {"value":{"error":"script timeout","message":"script timeout\n (Session info: chrome=92.0.4515.107)","stacktrace":"Backtrace:\n\tOrdinal0 [0x00C63733+2504499]\n\tOrdinal0 [0x00BFC401+2081793]\n\tOrdinal0 [0x00B024F0+1058032]\n\tOrdinal0 [0x00B55685+1398405]\n\tOrdinal0 [0x00B45E83+1334915]\n\tOrdinal0 [0x00B54CDB+1395931]\n\tOrdinal0 [0x00B45D4B+1334603]\n\tOrdinal0 [0x00B222B4+1188532]\n\tOrdinal0 [0x00B23149+1192265]\n\tGetHandleVerifier [0x00DDFB8C+1512252]\n\tGetHandleVerifier [0x00E8B0DF+2214031]\n\tGetHandleVerifier [0x00CE4BC3+484211]\n\tGetHandleVerifier [0x00CE3E69+480793]\n\tOrdinal0 [0x00C0218D+2105741]\n\tOrdinal0 [0x00C066E8+2123496]\n\tOrdinal0 [0x00C06827+2123815]\n\tOrdinal0 [0x00C0FB73+2161523]\n\tBaseThreadInitThunk [0x75EB62C4+36]\n\tRtlSubscribeWnfStateChangeNotification [0x77C11B69+1081]\n\tRtlSubscribeWnfStateChangeNotification [0x77C11B34+1028]\n"}} _WD_ExecuteScript: {"value":{"error":"script timeout","message":"script timeout\n (Session info: chrome=92.0.4515.107)... _WD_ExecuteScript ==> Webdriver Exception: HTTP status = 500 _WD_LoadWait ==> Webdriver Exception __WD_Post: URL=HTTP://127.0.0.1:9515/session/cd08704233a965ccbaf9292e8692c3e4/element; $sData={"using":"css selector","value":"body"} __WD_Post: StatusCode=200; ResponseText={"value":{"element-6066-11e4-a52e-4f735466cecf":"91a394f0-004c-480d-aedf-52e2b30233c6"}}... _WD_FindElement: {"value":{"element-6066-11e4-a52e-4f735466cecf":"91a394f0-004c-480d-aedf-52e2b30233c6"}} _WD_WaitElement ==> Success __WD_Post: URL=HTTP://127.0.0.1:9515/session/cd08704233a965ccbaf9292e8692c3e4/element; $sData={"using":"css selector","value":"body"} __WD_Post: StatusCode=200; ResponseText={"value":{"element-6066-11e4-a52e-4f735466cecf":"91a394f0-004c-480d-aedf-52e2b30233c6"}}... _WD_FindElement: {"value":{"element-6066-11e4-a52e-4f735466cecf":"91a394f0-004c-480d-aedf-52e2b30233c6"}} __WD_Post: URL=HTTP://127.0.0.1:9515/session/cd08704233a965ccbaf9292e8692c3e4/execute/sync; $sData={"script":"arguments[0].style='background: #FFFF66; border-radius: 5px; padding-left: 3px;'; return true;", "args":[{"element-6066-11e4-a52e-4f735466cecf":"91a394f0-004c-480d-aedf-52e2b30233c6"}]} __WD_Post: StatusCode=200; ResponseText={"value":true}... _WD_ExecuteScript: {"value":true}...
      Is it even possible to select elements in print page?

    • By walec
      Hello
      How can I export a sheet to pdf using the OOoCalc.au3 UDF?
      Thank you for any hints or possibly other solutions / functions.
    • By p4sCh
      Hello everyone,
      I've created a UDF for basic communication with SSH servers. I know there is already such a UDF, but I wasn't satisfied with it for my purpose, so I created a new one.
      This UDF also acts as a wrapper for the plink executable. Its essential functions are _SSHConnect, _SSHSend, _SSHRecv and _SSHCloseSocket.
      It does support multiple simultaneous connections and aims to be pretty robust. Feel free to share your opinions
      Two of the included examples use a slightly modified version of Vintage Terminal by @Chimp
      Download
      The download includes ssh.au3 (UDF), plink.exe (necessary), vintage terminal and code examples:
      Version 1.0.1
      - fixed rare _SSHConnect bug where "ssh-host-key prompt" was not answered
      SSH UDF 1.0.1.zip

×
×
  • Create New...
