Servant

What are the GUI functions that can be used to create a message log and a local pane?

13 posts in this topic




Search TreeView and Edit.


_AdapterConnections()_AlwaysRun()_AppMon()_AppMonEx()_BinaryBin()_CheckMsgBox()_CmdLineRaw()_ContextMenu()_ConvertLHWebColor()/_ConvertSHWebColor()_DesktopDimensions()_DisplayPassword()_DotNet_Load()/_DotNet_Unload()_Fibonacci()_FileCompare()_FileCompareContents()_FileNameByHandle()_FilePrefix/SRE()_FindInFile()_GetBackgroundColor()/_SetBackgroundColor()_GetConrolID()_GetCtrlClass()_GetDirectoryFormat()_GetDriveMediaType()_GetFilename()/_GetFilenameExt()_GetHardwareID()_GetIP()_GetIP_Country()_GetOSLanguage()_GetSavedSource()_GetStringSize()_GetSystemPaths()_GetURLImage()_GIFImage()_GoogleWeather()_GUICtrlCreateGroup()_GUICtrlListBox_CreateArray()_GUICtrlListView_CreateArray()_GUICtrlListView_SaveCSV()_GUICtrlListView_SaveHTML()_GUICtrlListView_SaveTxt()_GUICtrlListView_SaveXML()_GUICtrlMenu_Recent()_GUICtrlMenu_SetItemImage()_GUICtrlTreeView_CreateArray()_GUIDisable()_GUIImageList_SetIconFromHandle()_GUIRegisterMsg()_GUISetIcon()_Icon_Clear()/_Icon_Set()_IdleTime()_InetGet()_InetGetGUI()_InetGetProgress()_IPDetails()_IsFileOlder()_IsGUID()_IsHex()_IsPalindrome()_IsRegKey()_IsStringRegExp()_IsSystemDrive()_IsUPX()_IsValidType()_IsWebColor()_Language()_Log()_MicrosoftInternetConnectivity()_MSDNDataType()_PathFull/GetRelative/Split()_PathSplitEx()_PrintFromArray()_ProgressSetMarquee()_ReDim()_RockPaperScissors()/_RockPaperScissorsLizardSpock()_ScrollingCredits_SelfDelete()_SelfRename()_SelfUpdate()_SendTo()_ShellAll()_ShellFile()_ShellFolder()_SingletonHWID()_SingletonPID()_Startup()_StringCompact()_StringIsValid()_StringRegExpMetaCharacters()_StringReplaceWholeWord()_StringStripChars()_Temperature()_TrialPeriod()_UKToUSDate()/_USToUKDate()_WinAPI_Create_CTL_CODE()_WinAPI_CreateGUID()_WMIDateStringToDate()/_DateToWMIDateString()Au3 script parsingAutoIt SearchAutoIt3 PortableAutoIt3WrapperToPragmaAutoItWinGetTitle()/AutoItWinSetTitle()CodingDirToHTML5FileInstallrFileReadLastChars()GeoIP databaseGUI - Only Close ButtonGUI ExamplesGUICtrlDeleteImage()GUICtrlGetBkColor()GUICtrlGetStyle()GUIEventsGUIGetBkColor()Int_Parse() & Int_TryParse()IsISBN()LockFile()Mapping CtrlIDsOOP in AutoItParseHeadersToSciTE()PasswordValidPasteBinPosts Per DayPreExpandProtect GlobalsQueue()Resource UpdateResourcesExSciTE JumpSettings INISHELLHOOKShunting-YardSignature CreatorStack()Stopwatch()StringAddLF()/StringStripLF()StringEOLToCRLF()VSCROLLWM_COPYDATAMore Examples...

Updated: 04/09/2015

Share this post


Link to post
Share on other sites

What are the GUI functions that can be used to create such as a message log (3) and a local pane (4)?

Kindly visit Navigating and window layout referring to the numbers above if you don't know what I mean..

And the picture is defiantly required as those are just generic names with no meaning as to watch control type they are.


_AdapterConnections()_AlwaysRun()_AppMon()_AppMonEx()_BinaryBin()_CheckMsgBox()_CmdLineRaw()_ContextMenu()_ConvertLHWebColor()/_ConvertSHWebColor()_DesktopDimensions()_DisplayPassword()_DotNet_Load()/_DotNet_Unload()_Fibonacci()_FileCompare()_FileCompareContents()_FileNameByHandle()_FilePrefix/SRE()_FindInFile()_GetBackgroundColor()/_SetBackgroundColor()_GetConrolID()_GetCtrlClass()_GetDirectoryFormat()_GetDriveMediaType()_GetFilename()/_GetFilenameExt()_GetHardwareID()_GetIP()_GetIP_Country()_GetOSLanguage()_GetSavedSource()_GetStringSize()_GetSystemPaths()_GetURLImage()_GIFImage()_GoogleWeather()_GUICtrlCreateGroup()_GUICtrlListBox_CreateArray()_GUICtrlListView_CreateArray()_GUICtrlListView_SaveCSV()_GUICtrlListView_SaveHTML()_GUICtrlListView_SaveTxt()_GUICtrlListView_SaveXML()_GUICtrlMenu_Recent()_GUICtrlMenu_SetItemImage()_GUICtrlTreeView_CreateArray()_GUIDisable()_GUIImageList_SetIconFromHandle()_GUIRegisterMsg()_GUISetIcon()_Icon_Clear()/_Icon_Set()_IdleTime()_InetGet()_InetGetGUI()_InetGetProgress()_IPDetails()_IsFileOlder()_IsGUID()_IsHex()_IsPalindrome()_IsRegKey()_IsStringRegExp()_IsSystemDrive()_IsUPX()_IsValidType()_IsWebColor()_Language()_Log()_MicrosoftInternetConnectivity()_MSDNDataType()_PathFull/GetRelative/Split()_PathSplitEx()_PrintFromArray()_ProgressSetMarquee()_ReDim()_RockPaperScissors()/_RockPaperScissorsLizardSpock()_ScrollingCredits_SelfDelete()_SelfRename()_SelfUpdate()_SendTo()_ShellAll()_ShellFile()_ShellFolder()_SingletonHWID()_SingletonPID()_Startup()_StringCompact()_StringIsValid()_StringRegExpMetaCharacters()_StringReplaceWholeWord()_StringStripChars()_Temperature()_TrialPeriod()_UKToUSDate()/_USToUKDate()_WinAPI_Create_CTL_CODE()_WinAPI_CreateGUID()_WMIDateStringToDate()/_DateToWMIDateString()Au3 script parsingAutoIt SearchAutoIt3 PortableAutoIt3WrapperToPragmaAutoItWinGetTitle()/AutoItWinSetTitle()CodingDirToHTML5FileInstallrFileReadLastChars()GeoIP databaseGUI - Only Close ButtonGUI ExamplesGUICtrlDeleteImage()GUICtrlGetBkColor()GUICtrlGetStyle()GUIEventsGUIGetBkColor()Int_Parse() & Int_TryParse()IsISBN()LockFile()Mapping CtrlIDsOOP in AutoItParseHeadersToSciTE()PasswordValidPasteBinPosts Per DayPreExpandProtect GlobalsQueue()Resource UpdateResourcesExSciTE JumpSettings INISHELLHOOKShunting-YardSignature CreatorStack()Stopwatch()StringAddLF()/StringStripLF()StringEOLToCRLF()VSCROLLWM_COPYDATAMore Examples...

Updated: 04/09/2015

Share this post


Link to post
Share on other sites

You said create not read. Explain what you want to do please.


_AdapterConnections()_AlwaysRun()_AppMon()_AppMonEx()_BinaryBin()_CheckMsgBox()_CmdLineRaw()_ContextMenu()_ConvertLHWebColor()/_ConvertSHWebColor()_DesktopDimensions()_DisplayPassword()_DotNet_Load()/_DotNet_Unload()_Fibonacci()_FileCompare()_FileCompareContents()_FileNameByHandle()_FilePrefix/SRE()_FindInFile()_GetBackgroundColor()/_SetBackgroundColor()_GetConrolID()_GetCtrlClass()_GetDirectoryFormat()_GetDriveMediaType()_GetFilename()/_GetFilenameExt()_GetHardwareID()_GetIP()_GetIP_Country()_GetOSLanguage()_GetSavedSource()_GetStringSize()_GetSystemPaths()_GetURLImage()_GIFImage()_GoogleWeather()_GUICtrlCreateGroup()_GUICtrlListBox_CreateArray()_GUICtrlListView_CreateArray()_GUICtrlListView_SaveCSV()_GUICtrlListView_SaveHTML()_GUICtrlListView_SaveTxt()_GUICtrlListView_SaveXML()_GUICtrlMenu_Recent()_GUICtrlMenu_SetItemImage()_GUICtrlTreeView_CreateArray()_GUIDisable()_GUIImageList_SetIconFromHandle()_GUIRegisterMsg()_GUISetIcon()_Icon_Clear()/_Icon_Set()_IdleTime()_InetGet()_InetGetGUI()_InetGetProgress()_IPDetails()_IsFileOlder()_IsGUID()_IsHex()_IsPalindrome()_IsRegKey()_IsStringRegExp()_IsSystemDrive()_IsUPX()_IsValidType()_IsWebColor()_Language()_Log()_MicrosoftInternetConnectivity()_MSDNDataType()_PathFull/GetRelative/Split()_PathSplitEx()_PrintFromArray()_ProgressSetMarquee()_ReDim()_RockPaperScissors()/_RockPaperScissorsLizardSpock()_ScrollingCredits_SelfDelete()_SelfRename()_SelfUpdate()_SendTo()_ShellAll()_ShellFile()_ShellFolder()_SingletonHWID()_SingletonPID()_Startup()_StringCompact()_StringIsValid()_StringRegExpMetaCharacters()_StringReplaceWholeWord()_StringStripChars()_Temperature()_TrialPeriod()_UKToUSDate()/_USToUKDate()_WinAPI_Create_CTL_CODE()_WinAPI_CreateGUID()_WMIDateStringToDate()/_DateToWMIDateString()Au3 script parsingAutoIt SearchAutoIt3 PortableAutoIt3WrapperToPragmaAutoItWinGetTitle()/AutoItWinSetTitle()CodingDirToHTML5FileInstallrFileReadLastChars()GeoIP databaseGUI - Only Close ButtonGUI ExamplesGUICtrlDeleteImage()GUICtrlGetBkColor()GUICtrlGetStyle()GUIEventsGUIGetBkColor()Int_Parse() & Int_TryParse()IsISBN()LockFile()Mapping CtrlIDsOOP in AutoItParseHeadersToSciTE()PasswordValidPasteBinPosts Per DayPreExpandProtect GlobalsQueue()Resource UpdateResourcesExSciTE JumpSettings INISHELLHOOKShunting-YardSignature CreatorStack()Stopwatch()StringAddLF()/StringStripLF()StringEOLToCRLF()VSCROLLWM_COPYDATAMore Examples...

Updated: 04/09/2015

Share this post


Link to post
Share on other sites

You said create not read. Explain what you want to do please.

Sorry, I mean the Example in that page can help me for my whole project, not just the function..

But okay lets focus on a message log (3) first..

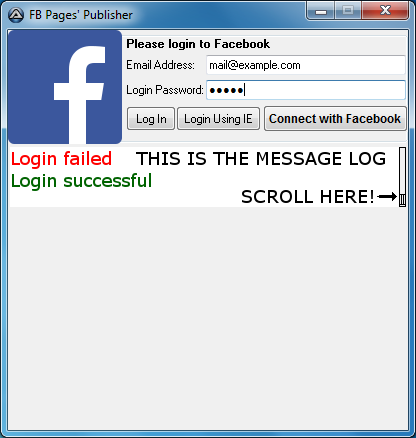

Please see this attachment:

post-81409-0-39982700-1389333887_thumb.p

  • The message log may tell if the login attempt fails.
  • Or may tell if the login attempt succeed.
  • And may tell if you are successfully connected with Facebook.
  • And many other more about its user log..

Do I need a Function GUICtrlCreateEdit for that or the other function which I do not know yet?

Share this post


Link to post
Share on other sites

Servant,

Personally I would use a List control for something like this, but an Edit control could also serve. Look at GUICtrlCreateList for more details on List controls. :)

M23

1 person likes this

Any of my own code posted anywhere on the forum is available for use by others without any restriction of any kind._______My UDFs:

Spoiler

ArrayMultiColSort ---- Sort arrays on multiple columns
ChooseFileFolder ---- Single and multiple selections from specified path treeview listing
Date_Time_Convert -- Easily convert date/time formats, including the language used
ExtMsgBox --------- A highly customisable replacement for MsgBox
GUIExtender -------- Extend and retract multiple sections within a GUI
GUIFrame ---------- Subdivide GUIs into many adjustable frames
GUIListViewEx ------- Insert, delete, move, drag, sort, edit and colour ListView items
GUITreeViewEx ------ Check/clear parent and child checkboxes in a TreeView
Marquee ----------- Scrolling tickertape GUIs
NoFocusLines ------- Remove the dotted focus lines from buttons, sliders, radios and checkboxes
Notify ------------- Small notifications on the edge of the display
Scrollbars ----------Automatically sized scrollbars with a single command
StringSize ---------- Automatically size controls to fit text
Toast -------------- Small GUIs which pop out of the notification area



Share this post


Link to post
Share on other sites

#8 ·  Posted (edited)

Servant,

Personally I would use a List control for something like this, but an Edit control could also serve. Look at GUICtrlCreateList for more details on List controls. :)

M23

When I try to use a GUICtrlCreateList, it can add a data below the list but you need to scroll down to see the new data.

What I want is when I add a new message, the scroll will automatically be placed in the lower area of the list if it's in the lower area..

And also, are there exact functions that can show the whole message log in TXT File format as a GUI list?

  • But when the log in TXT File format have added a new message, the GUI list will going to add that new message also, but the scroll is in the lower area if it's in the lower area..
  • When a user scroll it a little bit of higher, it will not scroll down even the list have added a new message.
  • It will automatically scroll down only if the scroll is in the lower area..

Is there any solution for this?

Edited by Servant

Share this post


Link to post
Share on other sites

Servant,



Is there any solution for this?

Yes. Did you try searching the forum (the search box is at top right)? This has been answered many times - and often by me). ;)

An example of one way to do it:

#include <GUIConstantsEx.au3>
#include <WindowsConstants.au3>
#include <GuiListBox.au3>

Local $iCount = 0

$hGUI = GUICreate("Test", 500, 500)

$cList = GUICtrlCreateList("", 10, 10, 400, 100, BitOR($WS_VSCROLL, $WS_BORDER))

$cButton = GUICtrlCreateButton("Add", 10, 200, 80, 30)

GUISetState(@SW_SHOW)

While 1
    Switch GUIGetMsg()
        Case $GUI_EVENT_CLOSE
            Exit
        Case $cButton
            $iCount += 1
            ; Get current top index
            $iIndex = _GUICtrlListBox_GetTopIndex($cList)
            ; Add a line
            GUICtrlSetData($cList, "Line " & $iCount)
            ; Set new top index
            _GUICtrlListBox_SetTopIndex($cList, $iIndex + 1)
    EndSwitch
WEnd
all clear? :)

M23

1 person likes this

Any of my own code posted anywhere on the forum is available for use by others without any restriction of any kind._______My UDFs:

Spoiler

ArrayMultiColSort ---- Sort arrays on multiple columns
ChooseFileFolder ---- Single and multiple selections from specified path treeview listing
Date_Time_Convert -- Easily convert date/time formats, including the language used
ExtMsgBox --------- A highly customisable replacement for MsgBox
GUIExtender -------- Extend and retract multiple sections within a GUI
GUIFrame ---------- Subdivide GUIs into many adjustable frames
GUIListViewEx ------- Insert, delete, move, drag, sort, edit and colour ListView items
GUITreeViewEx ------ Check/clear parent and child checkboxes in a TreeView
Marquee ----------- Scrolling tickertape GUIs
NoFocusLines ------- Remove the dotted focus lines from buttons, sliders, radios and checkboxes
Notify ------------- Small notifications on the edge of the display
Scrollbars ----------Automatically sized scrollbars with a single command
StringSize ---------- Automatically size controls to fit text
Toast -------------- Small GUIs which pop out of the notification area



Share this post


Link to post
Share on other sites

#10 ·  Posted (edited)

Servant,



Yes. Did you try searching the forum (the search box is at top right)? This has been answered many times - and often by me). ;)

An example of one way to do it:

#include <GUIConstantsEx.au3>
#include <WindowsConstants.au3>
#include <GuiListBox.au3>

Local $iCount = 0

$hGUI = GUICreate("Test", 500, 500)

$cList = GUICtrlCreateList("", 10, 10, 400, 100, BitOR($WS_VSCROLL, $WS_BORDER))

$cButton = GUICtrlCreateButton("Add", 10, 200, 80, 30)

GUISetState(@SW_SHOW)

While 1
    Switch GUIGetMsg()
        Case $GUI_EVENT_CLOSE
            Exit
        Case $cButton
            $iCount += 1
            ; Get current top index
            $iIndex = _GUICtrlListBox_GetTopIndex($cList)
            ; Add a line
            GUICtrlSetData($cList, "Line " & $iCount)
            ; Set new top index
            _GUICtrlListBox_SetTopIndex($cList, $iIndex + 1)
    EndSwitch
WEnd
all clear? :)

M23



Not bad..

Can you convert that code from using GUICtrlCreateList() to UICtrlCreateEdit() ?

So, I could try to compare them which is much better..

And it is possible to make a UICtrlCreateEdit() non-editable?

Edited by Servant

Share this post


Link to post
Share on other sites

Servant,



Not bad

I try my best... :whistle:



Can you convert that code from using GUICtrlCreateList() to UICtrlCreateEdit() ?

What is UICtrlCreateEdit? :huh:

M23


Any of my own code posted anywhere on the forum is available for use by others without any restriction of any kind._______My UDFs:

Spoiler

ArrayMultiColSort ---- Sort arrays on multiple columns
ChooseFileFolder ---- Single and multiple selections from specified path treeview listing
Date_Time_Convert -- Easily convert date/time formats, including the language used
ExtMsgBox --------- A highly customisable replacement for MsgBox
GUIExtender -------- Extend and retract multiple sections within a GUI
GUIFrame ---------- Subdivide GUIs into many adjustable frames
GUIListViewEx ------- Insert, delete, move, drag, sort, edit and colour ListView items
GUITreeViewEx ------ Check/clear parent and child checkboxes in a TreeView
Marquee ----------- Scrolling tickertape GUIs
NoFocusLines ------- Remove the dotted focus lines from buttons, sliders, radios and checkboxes
Notify ------------- Small notifications on the edge of the display
Scrollbars ----------Automatically sized scrollbars with a single command
StringSize ---------- Automatically size controls to fit text
Toast -------------- Small GUIs which pop out of the notification area



Share this post


Link to post
Share on other sites

Servant,

In this case things are rather easier as Windows does a lot of the work for you: ;)

#include <GUIConstantsEx.au3>
#include <WindowsConstants.au3>
#include <GuiEdit.au3>

Local $iCount = 0

$hGUI = GUICreate("Test", 500, 500)

$cEdit = GUICtrlCreateEdit("", 10, 10, 400, 100, BitOR($WS_VSCROLL, $WS_BORDER, $ES_READONLY))

$cButton = GUICtrlCreateButton("Add", 10, 200, 80, 30)

GUISetState(@SW_SHOW)

While 1
    Switch GUIGetMsg()
        Case $GUI_EVENT_CLOSE
            Exit
        Case $cButton
            $iCount += 1
            ; Add a line
            _GUICtrlEdit_AppendText($cEdit, "Line " & $iCount & @CRLF)
    EndSwitch
WEnd
M23

Any of my own code posted anywhere on the forum is available for use by others without any restriction of any kind._______My UDFs:

Spoiler

ArrayMultiColSort ---- Sort arrays on multiple columns
ChooseFileFolder ---- Single and multiple selections from specified path treeview listing
Date_Time_Convert -- Easily convert date/time formats, including the language used
ExtMsgBox --------- A highly customisable replacement for MsgBox
GUIExtender -------- Extend and retract multiple sections within a GUI
GUIFrame ---------- Subdivide GUIs into many adjustable frames
GUIListViewEx ------- Insert, delete, move, drag, sort, edit and colour ListView items
GUITreeViewEx ------ Check/clear parent and child checkboxes in a TreeView
Marquee ----------- Scrolling tickertape GUIs
NoFocusLines ------- Remove the dotted focus lines from buttons, sliders, radios and checkboxes
Notify ------------- Small notifications on the edge of the display
Scrollbars ----------Automatically sized scrollbars with a single command
StringSize ---------- Automatically size controls to fit text
Toast -------------- Small GUIs which pop out of the notification area



Share this post


Link to post
Share on other sites

Create an account or sign in to comment

You need to be a member in order to leave a comment

Create an account

Sign up for a new account in our community. It's easy!


Register a new account

Sign in

Already have an account? Sign in here.


Sign In Now
Sign in to follow this
Followers 0

  • Similar Content

    • tcurran
      By tcurran
      Here are two functions to provide pixel-accurate height and width dimensions for a given string.
      The more commonly-used _GDIPlus_GraphicsMeasureString built-in UDF is problematic because it returns the width padded by roughly one en-space (for reasons related to the various ways Windows produces anti-aliased fonts).
      These are AutoIt translations of Pierre Arnaud's C# functions, described in his CodeProject article "Bypass Graphics.MeasureString limitations"
      The first is an all-purpose version that takes a window handle, string, font family, font size (in points), style, and (optionally) width of the layout column (in pixels) as parameters.
      The second, more efficient version is intended for applications where GDI+ fonts are already in use, and takes handles to the existing graphics context, string, font, layout and format as parameters.
      Both functions return a two-row array with the exact width [0] and height [1] of the string (in pixels).
      EDIT: (Note that some of the same anti-aliasing measurement issues still apply. I did my best to work around them, but the output of the function may still be off by a pixel or two. Buyer beware.)
      #include <GDIPlus.au3> #include <GUIConstantsEx.au3> ; #FUNCTION# ==================================================================================================================== ; Name ..........: _StringInPixels ; Description ...: Returns a pixel-accurate height and width for a given string using a given font, style and size. ; Syntax ........: _StringInPixels($hGUI, $sString, $sFontFamily, $fSize, $iStyle[, $iColWidth = 0]) ; Parameters ....: $hGUI - Handle to the window. ; $sString - The string to be measured. ; $sFontFamily - Full name of the font to use. ; $fSize - Font size in points (half-point increments). ; $iStyle - Combination of 0-normal, 1-bold, 2-italic, 4-underline, 8-strikethrough ; $iColWidth - [optional] If word-wrap is desired, column width in pixels ; Return values .: 2-row array. [0] is width in pixels; [1] is height in pixels. ; Author ........: Tim Curran; adapted from Pierre Arnaud's C# function ; Modified ......: ; Remarks .......: This version is longer and less efficient but works for all purposes. ; Related .......: <https://www.codeproject.com/Articles/2118/Bypass-Graphics-MeasureString-limitations> ; Link ..........: ; Example .......: Example-StringInPixels.au3 ; =============================================================================================================================== #include <GDIPlus.au3> #include <GUIConstantsEx.au3> Func _StringInPixels($hGUI, $sString, $sFontFamily, $fSize, $iStyle, $iColWidth = 0) _GDIPlus_Startup() Local $hGraphic = _GDIPlus_GraphicsCreateFromHWND($hGUI) ;Create a graphics object from a window handle Local $aRanges[2][2] = [[1]] $aRanges[1][0] = 0 ;Measure first char (0-based) $aRanges[1][1] = StringLen($sString) ;Region = String length Local $hFormat = _GDIPlus_StringFormatCreate() Local $hFamily = _GDIPlus_FontFamilyCreate($sFontFamily) Local $hFont = _GDIPlus_FontCreate($hFamily, $fSize, $iStyle) _GDIPlus_GraphicsSetTextRenderingHint($hGraphic, $GDIP_TEXTRENDERINGHINT_ANTIALIASGRIDFIT) _GDIPlus_StringFormatSetMeasurableCharacterRanges($hFormat, $aRanges) ;Set ranges Local $aWinClient = WinGetClientSize($hGUI) If $iColWidth = 0 Then $iColWidth = $aWinClient[0] Local $tLayout = _GDIPlus_RectFCreate(10, 10, $iColWidth, $aWinClient[1]) Local $aRegions = _GDIPlus_GraphicsMeasureCharacterRanges($hGraphic, $sString, $hFont, $tLayout, $hFormat) ;get array of regions Local $aBounds = _GDIPlus_RegionGetBounds($aRegions[1], $hGraphic) Local $aWidthHeight[2] = [$aBounds[2], $aBounds[3]] ; Clean up resources _GDIPlus_FontDispose($hFont) _GDIPlus_RegionDispose($aRegions[1]) _GDIPlus_FontFamilyDispose($hFamily) _GDIPlus_StringFormatDispose($hFormat) _GDIPlus_GraphicsDispose($hGraphic) _GDIPlus_Shutdown() Return $aWidthHeight EndFunc ;==>_StringInPixels ; #FUNCTION# ==================================================================================================================== ; Name ..........: _StringInPixels_gdip ; Description ...: Returns a pixel-accurate height and width for a given string using a GDI+ font, layout and format ; Syntax ........: _StringInPixels_gdip($hGraphic, $sString, $hFont, $tLayout, $hFormat) ; Parameters ....: $hGraphic - Handle to a GDI+ graphics object. ; $sString - The string to be measured. ; $hFont - Handle to a GDI+ font. ; $tLayout - A $tagGDIPRECTF structure that bounds the string. ; $hFormat - Handle to a GDI+ string format. ; Return values .: 2-row array. [0] is width in pixels; [1] is height in pixels. ; Author ........: Tim Curran; adapted from Pierre Arnaud's C# function ; Modified ......: ; Remarks .......: This much more efficient version is for use with GDI+ fonts ; Related .......: ; Link ..........: <https://www.codeproject.com/Articles/2118/Bypass-Graphics-MeasureString-limitations> ; Example .......: Example-StringInPixels.au3 ; =============================================================================================================================== #include <GDIPlus.au3> #include <GUIConstantsEx.au3> Func _StringInPixels_gdip($hGraphic, $sString, $hFont, $tLayout, $hFormat) Local $aRanges[2][2] = [[1]] $aRanges[1][0] = 0 ;Measure first char (0-based) $aRanges[1][1] = StringLen($sString) ;Region = String length _GDIPlus_GraphicsSetTextRenderingHint($hGraphic, $GDIP_TEXTRENDERINGHINT_CLEARTYPEGRIDFIT) _GDIPlus_StringFormatSetMeasurableCharacterRanges($hFormat, $aRanges) ;Set ranges Local $aRegions = _GDIPlus_GraphicsMeasureCharacterRanges($hGraphic, $sString, $hFont, $tLayout, $hFormat) ;get array of regions Local $aBounds = _GDIPlus_RegionGetBounds($aRegions[1], $hGraphic) Local $aWidthHeight[2] = [$aBounds[2], $aBounds[3]] _GDIPlus_RegionDispose($aRegions[1]) Return $aWidthHeight EndFunc ;==>_StringInPixels_gdip
      _StringInPixels.au3
      Example-StringInPixels.au3
    • anusha
      By anusha
      Hi I have jus started using auto-it . Please correct me if I'm wrong.
      I need to read data from an input in text box and search in excel file and return value in next column of matched cell on GUI.
      I have written below code but i cannot use variable which has data stored. it works only when search string is hard coded.
      Please help out.

      Example()
      Func Example()
      Local $GuiMain = GUICreate("EXCEL TEST", 399, 180) ;creates main GUI
      ;~ Local $idOK = GUISetOnEvent($GUI_EVENT_CLOSE, "Close")
      Local $iWidthCell = 70
      Local $idLabel = GUICtrlCreateLabel("PART NUMBER", 10, 30, $iWidthCell,50)
      Local $RUN_1 = GUICtrlCreateButton("OK", 70, 70, 85, 25)
      Local $Input_1 = GUICtrlCreateInput("PART NUMBER", 100, 20, 120, 20)
      Local $sMenutext = GUICtrlRead($Input_1, 1)
      GUISetState(@SW_SHOW, $GuiMain)

          While 1
          $MSG = GUIGetMsg()
          Select
              Case $MSG = $GUI_EVENT_CLOSE
                  Exit
              Case $MSG = $RUN_1
                  Local $oAppl = _Excel_Open()

      Local $sFilePath1 = "D:\Anu_WorkFolder\Components.xlsx"
      Local $oWorkbook = _Excel_BookOpen($oAppl, $sFilePath1, Default, Default, True)
      Local $aResult = _Excel_RangeFind($oWorkbook, $sMenutext , Default, Default, $xlWhole)
    • wakillon
      By wakillon
      SciTE Hopper : Jump to Any line by one click and many other helpfull functions !


      As Ashalshaikh suggested me after leaving me the task to continue >SciTE Hopper, i open a new Topic about it.
      It will be more easy for futures updates.

      Many helpfull functions in contextual menu.
      SciTE Hopper is now multipurpose.
      • Color Catcher added
      • BinaryToAu3Kompressor added
      • TinyAu3Search replaced by StringFinder
      • RegJumper added
      • Edit With SciTE added (available in Options)
      • SpecialCharactersViewer added (available in Tray menu)
      New Contextual Menu :

      For a right Click on a function :

      • Copy function name
      • Insert a function header
      • Cut function
      • Copy function
      • Delete function
      • Create a variables List
      • Remove usseless Blank lines
      • Remove Debug lines ( all lines starting with ConsoleWrite or _ArrayDisplay )
      • Set AutoIt Code Layout
      • Remove Comments

      For entire script :

      • Create a functions List
      • Create a variables List
      • Remove usseless Blank lines
      • Remove Debug lines ( all lines starting with ConsoleWrite or _ArrayDisplay )
      • Set AutoIt Code Layout
      • Remove Comments
      • ( Open in SciTE a ) Duplicate of current Script in Temp Dir
      • ( Open in SciTE a ) Duplicate of current Script in Same Dir
      • Explore Parent Script Folder
      • Copy Script name
      • Copy Script path
      • Find Unused Functions
      • Find Unused Variables
      • Set all functions in alphabetic order.( func headers and regions ( in fact, all lines between functions ) are not supported.)

      SciTE Editor New Contextual Menu if SciTE Hopper is added ( in Options ) to SciTE Editor :
      when you made a selection in SciTE Editor you can :

      • Open a Reg Key in Regedit using RegJumper
      • Open a Url in your default Browser
      • Search on google in your default Browser
      • Search on AutoIt Website in your default Browser
      Now Can be added to windows start (minimized)
      Options are available by Tray Menu.
      A double click on tray icon will open clipboard content to SciTE Editor ( Handy when you have copied some code from your browser )

      How to proceed for add SciTE Hopper to SciTE Editor :
      Run Scite Editor, run Scite Hopper ( compiled! ) go to Options and select Add/Remove to SciTE Tab. then click on Add button and it's done !
      Right click on SciTE Editor and choose SciTE Hopper in Contextual Menu for run it when you need it !
      Update of 07 Dec 2017
      TinyAu3Search is replaced by StringFinder

      Previous downloads : 1287
      Script and compiled version are available in the download section

      Thanks to Ashalshaikh, Melba23, Th3 MMA, Alzri2, taitel, Manadar, taz742, Yashield, Authenticity, Xenobiologist for their help
      and asdf8 for his >Includes Helper and azjio for his >FileSearch.

      Hope it help you and happy Scripting !


    • Miliardsto
      By Miliardsto
      Hello.
      Drag option works only on parent window but as we can see on the parent gui is showed up child gui (on the right side with the color).
      Desired action is when we want to drag whole program we can also drag child gui and child gui will drag with parent gui.
      How to do this?

      #include <GUIConstantsEx.au3> #include <WindowsConstants.au3> #include <Array.au3> GUIRegisterMsg($WM_NCHITTEST, "_NCHITTEST") $hGUI = GUICreate("Test", 500, 500, -1, -1) $cButton_0 = GUICtrlCreateButton("Child 0", 10, 10, 80, 30) $cButton_1 = GUICtrlCreateButton("Child 1", 10, 50, 80, 30) $cButton_2 = GUICtrlCreateButton("Child 2", 10, 90, 80, 30) GUISetState(@SW_SHOW, $hGUI) ; guis Global $hChild_[3] Global $countGUI = UBound($hChild_) - 1 ;MsgBox("","",$countGUI) ; licznik dla GUI Global $gui = 0 $hChild_[0] = GUICreate("Child 0", 350, 300, 150, 0, $WS_POPUP, $WS_EX_MDICHILD, $hGUI) GUISetBkColor(0xFF0000) GUISetState(@SW_SHOW, $hChild_[0]) $hChild_[1] = GUICreate("Child 1", 350, 300, 150, 0, $WS_POPUP, $WS_EX_MDICHILD, $hGUI) GUISetBkColor(0x00FF00) GUISetState(@SW_HIDE, $hChild_[1]) $hChild_[2] = GUICreate("Child 2", 350, 300, 150, 0, $WS_POPUP, $WS_EX_MDICHILD, $hGUI) GUISetBkColor(0x0000FF) GUISetState(@SW_HIDE, $hChild_[2]) While 1 Switch GUIGetMsg() Case $GUI_EVENT_CLOSE Exit Case $cButton_0 _All_Hide() GUISetState(@SW_SHOW, $hChild_[0]) $gui = 0 Case $cButton_1 _All_Hide() GUISetState(@SW_SHOW, $hChild_[1]) $gui = 1 Case $cButton_2 _All_Hide() GUISetState(@SW_SHOW, $hChild_[2]) $gui = 2 EndSwitch WEnd Func _All_Hide() GUISetState(@SW_HIDE, $hChild_[0]) GUISetState(@SW_HIDE, $hChild_[1]) GUISetState(@SW_HIDE, $hChild_[2]) EndFunc Func _NCHITTEST($hWnd, $uMsg, $wParam, $lParam) If $hWnd = $hGUI Then Local $aPos = WinGetPos($hWnd) If Abs(BitAND(BitShift($lParam, 16),0xFFFF)- $aPos[1]) < 500 Then Return $HTCAPTION EndIf Return $GUI_RUNDEFMSG EndFunc
    • IAMK
      By IAMK
      Hello,

      I have a script which uses a GUI with two buttons. It gets shown and hidden., and pressing the buttons (including their hotkeys) highlights the button, making you able to press enter the next time.
      However, I don't want that.

      I've tried using WinActivate() to make enter do things on another program, but the enter is still tied to the AutoIT GUI (which still has the button highlighted).

      Here's the important part of my code:
      $MY_GUI = GUICreate("Check.exe", 400, 300, ((@DesktopWidth / 2) - 200), -500) WinSetOnTop($MY_GUI, "", 1) ;Keeps the window on the top. $Button1 = GUICtrlCreateButton("Pass (Ctrl+P)", 40, 250, 120, 40, $WS_GROUP) GUICtrlSetFont(-1, 12, 400, 0, "MS Sans Serif") $Button2 = GUICtrlCreateButton("Fail (Ctrl+F)", 240, 250, 120, 40, $WS_GROUP) GUICtrlSetFont(-1, 12, 400, 0, "MS Sans Serif") $GUIText = GUICtrlCreateLabel("", 20, 10, 360, 230) GUICtrlSetFont(-1, 13, 400, 0, "MS Sans Serif") GUICtrlSetData($GUIText, Execute($stepMessage[$step])) $showGUI = "True" GUISetState(@SW_SHOW) While($showGUI = "True") $buttonPressed = GUIGetMsg() Switch $buttonPressed Case $Button1 ;Pass $pass = "True" $buttonPressed = 0 $showGUI = "False" GUISetState(@SW_HIDE) Case $Button2 ;Fail $buttonPressed = 0 $showGUI = "False" GUISetState(@SW_HIDE) While($message = "") $message = InputBox("Check.exe", "Please enter the reason the step failed." & @CRLF, "", "", 300, 200, ((@DesktopWidth / 2) - 150), -400) WEnd Return $message EndSwitch WEnd Local $pass = "False" ;Whether "Pass" or "Fail" was pressed. Local $failLog = xxxfunc($pass) ;Returns a message to log if the step failed. ##THIS CALLS THE CODE SNIPPET ABOVE## FileWrite($file, _Now() & ": Step " & $step & getStatus($pass) & "and took " & Ceiling(TimerDiff($timer) / 1000) & " seconds." & @CRLF) If($failLog <> "") Then FileWrite($file, "Logged comment: " & $failLog & @CRLF) EndIf WinActivate("[TITLE:ProgramName]") ;Hotkeys: HotKeySet("^{p}", "pressPass") HotKeySet("^{f}", "pressFail") Func pressPass() $buttonPressed = $Button1 EndFunc Func pressFail() $buttonPressed = $Button2 EndFunc
      The GUI's button/hotkey pressing works correctly.
      The same WinActivate code works in another script of mine.
      Together, WinActivate is not take "Active" away from the GUI's last-pressed button. How do I fix this?

      Thank you in advance.
