OutlookEX UDF - Help & Support (III)


Recommended Posts

The possible error codes are documented in the header of the respective function in the UDF - or in the help file that comes with the download.

My UDFs and Tutorials:

Spoiler

UDFs:
Active Directory (NEW 2022-02-19 - Version 1.6.1.0) - Download - General Help & Support - Example Scripts - Wiki
ExcelChart (2017-07-21 - Version 0.4.0.1) - Download - General Help & Support - Example Scripts
OutlookEX (2021-11-16 - Version 1.7.0.0) - Download - General Help & Support - Example Scripts - Wiki
OutlookEX_GUI (2021-04-13 - Version 1.4.0.0) - Download
Outlook Tools (2019-07-22 - Version 0.6.0.0) - Download - General Help & Support - Wiki
PowerPoint (2021-08-31 - Version 1.5.0.0) - Download - General Help & Support - Example Scripts - Wiki
Task Scheduler (2019-12-03 - Version 1.5.1.0) - Download - General Help & Support - Wiki

Standard UDFs:
Excel - Example Scripts - Wiki
Word - Wiki

Tutorials:
ADO - Wiki
WebDriver - Wiki



Link to post
Share on other sites
  • Replies 817
  • Created
  • Last Reply

Top Posters In This Topic

Top Posters In This Topic

Popular Posts

Maybe this sheds some light onto the subject: https://support.mozilla.org/t5/Basics/What-is-the-winmail-dat-attachment/ta-p/15886 Edit: Or even better: https://www.lifewire.com/prevent-sending-wi

I think I found the bug! Please change line Local $aFolder = _OL_FolderAccess($oOL, "", $olFolderOutbox) in function _OL_Wrapper_SendMail Local $aFolder = _OL_FolderAccess($oOL, "", $olFolderDra

IIRC we discussed this issue some time ago:

Posted Images

RTF mail format: Works as Text or HTML format. I prefer HTML because it is much easier to format the mail body.

My UDFs and Tutorials:

Spoiler

UDFs:
Active Directory (NEW 2022-02-19 - Version 1.6.1.0) - Download - General Help & Support - Example Scripts - Wiki
ExcelChart (2017-07-21 - Version 0.4.0.1) - Download - General Help & Support - Example Scripts
OutlookEX (2021-11-16 - Version 1.7.0.0) - Download - General Help & Support - Example Scripts - Wiki
OutlookEX_GUI (2021-04-13 - Version 1.4.0.0) - Download
Outlook Tools (2019-07-22 - Version 0.6.0.0) - Download - General Help & Support - Wiki
PowerPoint (2021-08-31 - Version 1.5.0.0) - Download - General Help & Support - Example Scripts - Wiki
Task Scheduler (2019-12-03 - Version 1.5.1.0) - Download - General Help & Support - Wiki

Standard UDFs:
Excel - Example Scripts - Wiki
Word - Wiki

Tutorials:
ADO - Wiki
WebDriver - Wiki



Link to post
Share on other sites

Is it possible to provide an example of using an RTF body?

I do this for HTML and it works.  RTF does not work.

$hFileOpen = FileOpen("C:\wwweb\backgroundColors\Background_Text_Colors.rtf")
    $HTMLBody = FileRead($hFileOpen)
    FileClose($hFileOpen)
$olFormatRichText

So I read the file content and place that into the email request.  $olFormatHTML for HTML file works as expected.  $olFormatRichText for RTF does not.  I see the raw RTF tags.

Suggestions?

Skysnake

Skysnake

Why is the snake in the sky?

Link to post
Share on other sites

I have never used RTF. What I found on the web makes me think that it is quite complex - to say the least.

The thread is quite old but I think RTF is not supported and was introduced by "accident".

I tried and did not get a useful result:

#include <OutlookEX.au3>
Global $oOL = _OL_Open()
_OL_ErrorNotify(2)
$oItem = _OL_ItemCreate($oOL, $olMailItem, "*", "", "Subject=TestMail", "BodyFormat=" & $olFormatRichText)
$oItem.Body = "{\rtf1\ansi\deff0{\fonttbl{\f0 Arial;}}{\colortbl ;\red0\green0\blue255;}\pard\cf1\f0\fs24 Test}"
$oItem.Display()



My UDFs and Tutorials:

Spoiler

UDFs:
Active Directory (NEW 2022-02-19 - Version 1.6.1.0) - Download - General Help & Support - Example Scripts - Wiki
ExcelChart (2017-07-21 - Version 0.4.0.1) - Download - General Help & Support - Example Scripts
OutlookEX (2021-11-16 - Version 1.7.0.0) - Download - General Help & Support - Example Scripts - Wiki
OutlookEX_GUI (2021-04-13 - Version 1.4.0.0) - Download
Outlook Tools (2019-07-22 - Version 0.6.0.0) - Download - General Help & Support - Wiki
PowerPoint (2021-08-31 - Version 1.5.0.0) - Download - General Help & Support - Example Scripts - Wiki
Task Scheduler (2019-12-03 - Version 1.5.1.0) - Download - General Help & Support - Wiki

Standard UDFs:
Excel - Example Scripts - Wiki
Word - Wiki

Tutorials:
ADO - Wiki
WebDriver - Wiki



Link to post
Share on other sites

gmail is a problem.

When I send with my Outlook client I can attach a PDF attachment is which displayed correctly in gmail.



However, when I attach the same PDF with the Outlook UDF the attachment gets renamed to "noname" with no extension.  When I download and open with Acrobat it works, it is obviously the correct attachment in the correct format, just the file.name gets stripped off. A formatting issue maybe?

Skysnake

Skysnake

Why is the snake in the sky?

Link to post
Share on other sites

Function _OL_ItemAttachmentAdd allows to specify the Displayname for an attachment. Does this help?

My UDFs and Tutorials:

Spoiler

UDFs:
Active Directory (NEW 2022-02-19 - Version 1.6.1.0) - Download - General Help & Support - Example Scripts - Wiki
ExcelChart (2017-07-21 - Version 0.4.0.1) - Download - General Help & Support - Example Scripts
OutlookEX (2021-11-16 - Version 1.7.0.0) - Download - General Help & Support - Example Scripts - Wiki
OutlookEX_GUI (2021-04-13 - Version 1.4.0.0) - Download
Outlook Tools (2019-07-22 - Version 0.6.0.0) - Download - General Help & Support - Wiki
PowerPoint (2021-08-31 - Version 1.5.0.0) - Download - General Help & Support - Example Scripts - Wiki
Task Scheduler (2019-12-03 - Version 1.5.1.0) - Download - General Help & Support - Wiki

Standard UDFs:
Excel - Example Scripts - Wiki
Word - Wiki

Tutorials:
ADO - Wiki
WebDriver - Wiki



Link to post
Share on other sites

When you search the web for "gmail attachment noname" you get a lot of hits. Seems it is a problem with gmail :(

My UDFs and Tutorials:

Spoiler

UDFs:
Active Directory (NEW 2022-02-19 - Version 1.6.1.0) - Download - General Help & Support - Example Scripts - Wiki
ExcelChart (2017-07-21 - Version 0.4.0.1) - Download - General Help & Support - Example Scripts
OutlookEX (2021-11-16 - Version 1.7.0.0) - Download - General Help & Support - Example Scripts - Wiki
OutlookEX_GUI (2021-04-13 - Version 1.4.0.0) - Download
Outlook Tools (2019-07-22 - Version 0.6.0.0) - Download - General Help & Support - Wiki
PowerPoint (2021-08-31 - Version 1.5.0.0) - Download - General Help & Support - Example Scripts - Wiki
Task Scheduler (2019-12-03 - Version 1.5.1.0) - Download - General Help & Support - Wiki

Standard UDFs:
Excel - Example Scripts - Wiki
Word - Wiki

Tutorials:
ADO - Wiki
WebDriver - Wiki



Link to post
Share on other sites

Section has been added to the wiki :)

My UDFs and Tutorials:

Spoiler

UDFs:
Active Directory (NEW 2022-02-19 - Version 1.6.1.0) - Download - General Help & Support - Example Scripts - Wiki
ExcelChart (2017-07-21 - Version 0.4.0.1) - Download - General Help & Support - Example Scripts
OutlookEX (2021-11-16 - Version 1.7.0.0) - Download - General Help & Support - Example Scripts - Wiki
OutlookEX_GUI (2021-04-13 - Version 1.4.0.0) - Download
Outlook Tools (2019-07-22 - Version 0.6.0.0) - Download - General Help & Support - Wiki
PowerPoint (2021-08-31 - Version 1.5.0.0) - Download - General Help & Support - Example Scripts - Wiki
Task Scheduler (2019-12-03 - Version 1.5.1.0) - Download - General Help & Support - Wiki

Standard UDFs:
Excel - Example Scripts - Wiki
Word - Wiki

Tutorials:
ADO - Wiki
WebDriver - Wiki



Link to post
Share on other sites
On 12.9.2017 at 9:31 AM, Skysnake said:

Your documentation is good.  I do however have this suggestion: Make a __Example.au3 file to run first, with the basics?  Yes, I found all the examples, but the problem is, Where to start? :)

I know the OutlookEX UDF has a lot of functions covering most of what Outllok is capable.
I tried to explain the concepts of the UDF in the wiki.

Where to start depends on what you try to achieve.

When I coded the UDF I created a kind of cross reference. Would this be helpful for newbies?


My UDFs and Tutorials:

Spoiler

UDFs:
Active Directory (NEW 2022-02-19 - Version 1.6.1.0) - Download - General Help & Support - Example Scripts - Wiki
ExcelChart (2017-07-21 - Version 0.4.0.1) - Download - General Help & Support - Example Scripts
OutlookEX (2021-11-16 - Version 1.7.0.0) - Download - General Help & Support - Example Scripts - Wiki
OutlookEX_GUI (2021-04-13 - Version 1.4.0.0) - Download
Outlook Tools (2019-07-22 - Version 0.6.0.0) - Download - General Help & Support - Wiki
PowerPoint (2021-08-31 - Version 1.5.0.0) - Download - General Help & Support - Example Scripts - Wiki
Task Scheduler (2019-12-03 - Version 1.5.1.0) - Download - General Help & Support - Wiki

Standard UDFs:
Excel - Example Scripts - Wiki
Word - Wiki

Tutorials:
ADO - Wiki
WebDriver - Wiki



Link to post
Share on other sites

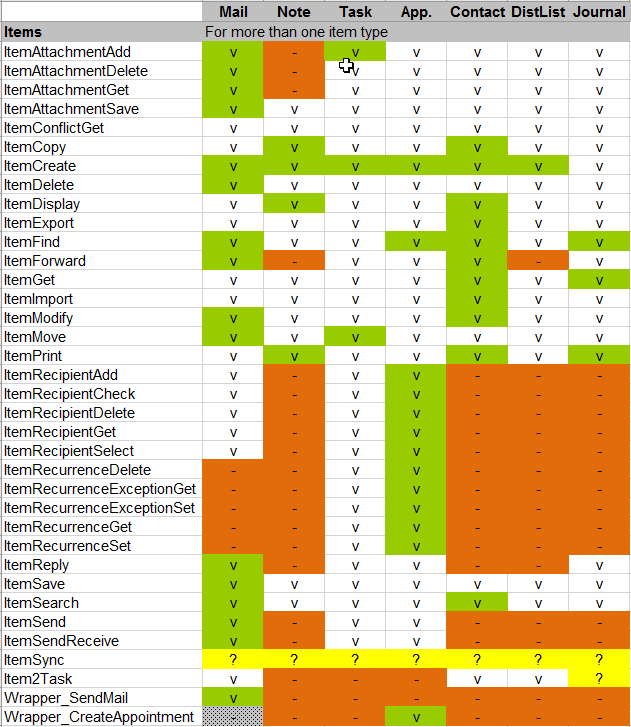

Green: The function on the left (e.g. ItemAttachmentAdd) can be used with the item type in the marked column (e.g. mail and task).

My UDFs and Tutorials:

Spoiler

UDFs:
Active Directory (NEW 2022-02-19 - Version 1.6.1.0) - Download - General Help & Support - Example Scripts - Wiki
ExcelChart (2017-07-21 - Version 0.4.0.1) - Download - General Help & Support - Example Scripts
OutlookEX (2021-11-16 - Version 1.7.0.0) - Download - General Help & Support - Example Scripts - Wiki
OutlookEX_GUI (2021-04-13 - Version 1.4.0.0) - Download
Outlook Tools (2019-07-22 - Version 0.6.0.0) - Download - General Help & Support - Wiki
PowerPoint (2021-08-31 - Version 1.5.0.0) - Download - General Help & Support - Example Scripts - Wiki
Task Scheduler (2019-12-03 - Version 1.5.1.0) - Download - General Help & Support - Wiki

Standard UDFs:
Excel - Example Scripts - Wiki
Word - Wiki

Tutorials:
ADO - Wiki
WebDriver - Wiki



Link to post
Share on other sites
  • 4 weeks later...

Hi,

I'm trying to access (all) items (emails) that are stored in the root of a separate pst opened in outlook.

I get a refernce to that pst by using _OL_PSTAccess() with no errors
but then I fail on trying to get items from the above pst by using _OL_ItemFind()

here is my failing attempt:

$oOL = _OL_Open() ; Connect or start up Outlook
ConsoleWrite("Debug: Outlook Open:  " & @error & @CRLF) ; no errors

$oOtherPST = _OL_PSTAccess($oOL, 'c:\temp\Another.pst') ; Access the other pst
ConsoleWrite("Debug: Access PST:    " & @error & @TAB & @extended & @CRLF) ; no errors

$aItems = _OL_ItemFind($oOL, $oOtherPST, $olMail, "", "", "", "EntryID,Subject", "", 1) ; <-- ??? how to reference $oOtherPST ??
ConsoleWrite("Debug: Item Find:     " & @error & @TAB & @extended & @CRLF) ; --> @error=4   @extended=1

please, could you show me the right way to use _OL_ItemFind() in this case?

Thanks

Edited by Chimp



image.jpeg.9f1a974c98e9f77d824b358729b089b0.jpeg Chimp

small minds discuss people average minds discuss events great minds discuss ideas.... and use AutoIt....

Link to post
Share on other sites

Will have a look tomorrow when I return to my office.

My UDFs and Tutorials:

Spoiler

UDFs:
Active Directory (NEW 2022-02-19 - Version 1.6.1.0) - Download - General Help & Support - Example Scripts - Wiki
ExcelChart (2017-07-21 - Version 0.4.0.1) - Download - General Help & Support - Example Scripts
OutlookEX (2021-11-16 - Version 1.7.0.0) - Download - General Help & Support - Example Scripts - Wiki
OutlookEX_GUI (2021-04-13 - Version 1.4.0.0) - Download
Outlook Tools (2019-07-22 - Version 0.6.0.0) - Download - General Help & Support - Wiki
PowerPoint (2021-08-31 - Version 1.5.0.0) - Download - General Help & Support - Example Scripts - Wiki
Task Scheduler (2019-12-03 - Version 1.5.1.0) - Download - General Help & Support - Wiki

Standard UDFs:
Excel - Example Scripts - Wiki
Word - Wiki

Tutorials:
ADO - Wiki
WebDriver - Wiki



Link to post
Share on other sites

Just tested your script here and it works as expected.
Could you please modify the _OL_ItemFind statement?

$aItems = _OL_ItemFind($oOL, $oOtherPST, $olMail, "", "", "", "EntryID", "", 1)



My UDFs and Tutorials:

Spoiler

UDFs:
Active Directory (NEW 2022-02-19 - Version 1.6.1.0) - Download - General Help & Support - Example Scripts - Wiki
ExcelChart (2017-07-21 - Version 0.4.0.1) - Download - General Help & Support - Example Scripts
OutlookEX (2021-11-16 - Version 1.7.0.0) - Download - General Help & Support - Example Scripts - Wiki
OutlookEX_GUI (2021-04-13 - Version 1.4.0.0) - Download
Outlook Tools (2019-07-22 - Version 0.6.0.0) - Download - General Help & Support - Wiki
PowerPoint (2021-08-31 - Version 1.5.0.0) - Download - General Help & Support - Example Scripts - Wiki
Task Scheduler (2019-12-03 - Version 1.5.1.0) - Download - General Help & Support - Wiki

Standard UDFs:
Excel - Example Scripts - Wiki
Word - Wiki

Tutorials:
ADO - Wiki
WebDriver - Wiki



Link to post
Share on other sites

Hi water, Thanks for you reply

I've used the line as you posted here above (removed the "Subject" field) but I get still the same error.
P.S.
BTW If I use instead the _OL_ItemFind() function on the "main" pst recalling emails from a folder of the main folder tree on the left pane of outlook (example using something like "*\foldername" in the second parameter of the _OL_ItemFind function) , then I get items correctly.



image.jpeg.9f1a974c98e9f77d824b358729b089b0.jpeg Chimp

small minds discuss people average minds discuss events great minds discuss ideas.... and use AutoIt....

Link to post
Share on other sites

@water

... wait a moment...
I've found where is the problem
If there is an opened "reminder" popup window, the _OL_ItemFind function doesn't works on other pst, while it works instead on the main pst.
.. strange Behaviour, but seems that is like this. Well, thanks a lot anyway water for your help,


I have now though a new question:
How can I select subfolders from the external pst?
If I use the $oOtherPST variable in the second parameter, how can I add the string of the subfolder path??

Thanks in advance for any tips



image.jpeg.9f1a974c98e9f77d824b358729b089b0.jpeg Chimp

small minds discuss people average minds discuss events great minds discuss ideas.... and use AutoIt....

Link to post
Share on other sites

Something like this:

#include <OutlookEX.au3>

$oOL = _OL_Open() ; Connect or start up Outlook
ConsoleWrite("Debug: Outlook Open:  " & @error & @CRLF) ; no errors

$oOtherPST = _OL_PSTAccess($oOL, 'c:\temp\Test.pst') ; Access the other pst
ConsoleWrite("Debug: Access PST:    " & @error & @TAB & @extended & @CRLF)

$aFolder = _OL_FolderAccess($oOL, StringMid($oOtherPST.FolderPath, 3) & "\Gelöschte Objekte", Default, $olMailItem)
ConsoleWrite("Debug: Folder Access:     " & @error & @TAB & @extended & @CRLF)

$aItems = _OL_ItemFind($oOL, $aFolder[1], $olMail, "", "", "", "EntryID,Subject", "", 1)
ConsoleWrite("Debug: Item Find:     " & @error & @TAB & @extended & @CRLF)

_arraydisplay($aItems)

_OL_PSTClose($oOL, $oOtherPST)



My UDFs and Tutorials:

Spoiler

UDFs:
Active Directory (NEW 2022-02-19 - Version 1.6.1.0) - Download - General Help & Support - Example Scripts - Wiki
ExcelChart (2017-07-21 - Version 0.4.0.1) - Download - General Help & Support - Example Scripts
OutlookEX (2021-11-16 - Version 1.7.0.0) - Download - General Help & Support - Example Scripts - Wiki
OutlookEX_GUI (2021-04-13 - Version 1.4.0.0) - Download
Outlook Tools (2019-07-22 - Version 0.6.0.0) - Download - General Help & Support - Wiki
PowerPoint (2021-08-31 - Version 1.5.0.0) - Download - General Help & Support - Example Scripts - Wiki
Task Scheduler (2019-12-03 - Version 1.5.1.0) - Download - General Help & Support - Wiki

Standard UDFs:
Excel - Example Scripts - Wiki
Word - Wiki

Tutorials:
ADO - Wiki
WebDriver - Wiki



Link to post
Share on other sites
Guest
This topic is now closed to further replies.
  • Recently Browsing   0 members

    No registered users viewing this page.

  • Similar Content

    • By kurtykurtyboy
      GuiFlatButton is a UDF to easily create regular buttons with different colors for background, foreground, border, hover, focus, etc..
      This started as an effort to change the background color of a button and eventually grew into a full UDF.
      If you've looked around forums for changing button background colors, you have probably noticed that each proposed workaround has its own set of issues/side-effects. The answers usually circle back to 'use ownerdrawn buttons' and 'not worth it'. Well, now it is possible for anyone to easily create ownerdrawn buttons - totally worth it!
      Some issues with other workarounds such as drawing with GDI+ or using a colored label as a 'button':
      Not 'real' buttons so you lose built-in functionality that windows gives to buttons Messy / inefficient code in the main while loop to check for mouse position Slow to respond to click, paint, etc... Having to deal with GUIRegisterMsg messages Not straight-forward to implement GuiFlatButton is not a workaround; it is a technique to respond to Windows' built-in owner-drawn button events.
      With minimal effort, we can now create true simple colored buttons.
      The idea is to create an owner-drawn button using GUICtrlCreateButton then subclass the GUI and controls to handle the button-specific events to paint it however we want.
      This UDF magically does all of this for us! No need to worry about event handling or main while loop logic.

      How to use
      It couldn't be any easier! Simply create a new button using the familiar syntax. This creates an ownerdrawn button with default colors.
      $mybutton1 = GuiFlatButton_Create("Button 1", 78, 20, 120, 40) If you want to change the background and text colors:
      GuiFlatButton_SetBkColor(-1, 0x5555FF) GuiFlatButton_SetColor(-1, 0xFFFFFF) Advanced Usage
      Set background/text/border all at once
      GuiFlatButton_SetColors(-1, 0x0000FF, 0xFFFFFF, 0x9999FF) Set ALL colors for ALL button states! (normal, focus, hover, selected)
      Local $aColorsEx = [0x0000FF, 0xFFFFFF, -2, 0x4444FF, 0xFFFFFF, 0xAAAAFF, 0x6666FF, 0xFFFFFF, 0xCCCCFF, 0x0000EE, 0xFFFFFF, 0x7777EE] GuiFlatButton_SetColorsEx(-1, $aColorsEx) Set default colors to apply to any future buttons
      ;set colors GuiFlatButton_SetDefaultColors(0x0000FF, 0xFFFFFF, 0x9999FF) ;create buttons $mybutton1 = GuiFlatButton_Create("Button 1", 12, 20, 120, 40) $mybutton2 = GuiFlatButton_Create("Button 2", 143, 20, 120, 40) Set ALL color defaults
      ;set colors Local $aColorsEx = [0x0000FF, 0xFFFFFF, -2, 0x4444FF, 0xFFFFFF, 0xAAAAFF, 0x6666FF, 0xFFFFFF, 0xCCCCFF, 0x0000EE, 0xFFFFFF, 0x7777EE] GuiFlatButton_SetDefaultColorsEx($aColorsEx) ;create buttons $mybutton1 = GuiFlatButton_Create("Button 1", 12, 20, 120, 40) $mybutton2 = GuiFlatButton_Create("Button 2", 143, 20, 120, 40)
      Available Functions

      Simple Example

      #include <GUIConstantsEx.au3> #include <MsgBoxConstants.au3> #include "GuiFlatButton.au3" Example() ;GUI with one button Func Example() Local $hGUI, $mybutton1 $hGUI = GUICreate("GuiFlatButton Ex0", 275, 120) GUISetBkColor(0x333333) $idLabel = GUICtrlCreateLabel("Click the button", 10, 100, 150, 30) GUICtrlSetColor(-1, 0xFFFFFF) ;create new button then set the background and foreground colors $mybutton1 = GuiFlatButton_Create("Button 1", 78, 20, 120, 40) GuiFlatButton_SetBkColor(-1, 0x5555FF) GuiFlatButton_SetColor(-1, 0xFFFFFF) GUISetState(@SW_SHOW, $hGUI) Local $i = 0 Local $iMsg While 1 $iMsg = GUIGetMsg() Switch $iMsg Case $GUI_EVENT_CLOSE ExitLoop Case $mybutton1 $i += 1 GUICtrlSetData($idLabel, $i) ConsoleWrite($i & @CRLF) EndSwitch Sleep(10) WEnd GUIDelete() EndFunc ;==>Example
      Menu/Toolbar Example

      #include <GUIConstantsEx.au3> #include <MsgBoxConstants.au3> #include "GuiFlatButton.au3" Example() ;Example GUI with toolbar Func Example() Local $hGUI, $idLabel, $aButtons, $iTbSize $hGUI = GUICreate("GuiFlatButton Ex2", 300, 200) GUISetBkColor(0x444444) $idLabel = GUICtrlCreateLabel("Click a button", 10, 180, 150, 30) GUICtrlSetColor(-1, 0xFFFFFF) $aButtons = createToolbar() $iTbSize = UBound($aButtons) GUISetState(@SW_SHOW, $hGUI) Local $i = 0 Local $iMsg While 1 $iMsg = GUIGetMsg() Switch $iMsg Case $GUI_EVENT_CLOSE ExitLoop Case $aButtons[0] To $aButtons[$iTbSize - 1] ConsoleWrite("1") GUICtrlSetData($idLabel, GuiFlatButton_Read($iMsg)) EndSwitch Sleep(10) WEnd GUIDelete() EndFunc ;==>Example Func createToolbar() Local $aButtons[6] Local $bkColor = 0x777777 Local $textColor = 0xFFFFFF Local $borderColor = 0x999999 Local $aBtnClrs[12] = [0x777777, 0xFFFFFF, $GUI_BKCOLOR_TRANSPARENT, 0x888888, 0xFFFFFF, $GUI_BKCOLOR_TRANSPARENT, 0x999999, 0xFFFFFF, $GUI_BKCOLOR_TRANSPARENT, 0x666666, 0xFFFFFF, $GUI_BKCOLOR_TRANSPARENT] For $i = 0 To UBound($aButtons) - 1 $aButtons[$i] = GuiFlatButton_Create("B" & $i, $i * 50, 0, 50, 17) GuiFlatButton_SetColorsEx($aButtons[$i], $aBtnClrs) Next Return $aButtons EndFunc ;==>createToolbar
      Icon Example
      You can even easily add icons to your buttons -- just create a new button and send it an icon!

      #include <GDIPlus.au3> #include "GuiFlatButton.au3" Example() ;buttons with Icon images Func Example() ;get images for demonstration _GDIPlus_Startup() ;initialize GDI+ Local $hIcon = _WinAPI_ShellExtractIcon(@SystemDir & '\shell32.dll', 258, 24, 24) ;extract the 'Save' icon Local $hBitmap = _GDIPlus_BitmapCreateFromHICON($hIcon) ;Create Bitmap from Icon (for demonstration) Local $hHBitmap = _GDIPlus_BitmapCreateHBITMAPFromBitmap($hBitmap) ;Create HBitmap from Bitmap _GDIPlus_BitmapDispose($hBitmap) ;dispose the bitmap _GDIPlus_Shutdown() ;done with GDI+ Local $hGUI = GUICreate("GuiFlatButton Ex5", 255, 400) GUISetBkColor(0xEEEEEE) ;set default colors of future buttons Local $aColorsEx = _ [0xE2E5E8, 0X000000, 0x888888, _ ; normal : Background, Text, Border 0xE2E5E8, 0X000000, 0x333333, _ ; focus : Background, Text, Border 0xE8E8E8, 0X000000, 0x666666, _ ; hover : Background, Text, Border 0xDDDDDD, 0X000000, 0xAAAAAA] ; selected : Background, Text, Border GuiFlatButton_SetDefaultColorsEx($aColorsEx) ;normal button with icon $label1 = GUICtrlCreateLabel( "$BS_TOOLBUTTON -->", 5, 10) GUICtrlSetBkColor(-1, $GUI_BKCOLOR_TRANSPARENT) Local $mybutton1 = GuiFlatButton_Create("Save", 130, 5, 50, 48, $BS_TOOLBUTTON) _WinAPI_DeleteObject(_SendMessage(GUICtrlGetHandle($mybutton1), $BM_SETIMAGE, $IMAGE_ICON, $hIcon)) ;align top Local $mybuttonT = GuiFlatButton_Create("Top", 5, 65, 120, 55, $BS_TOP) _WinAPI_DeleteObject(_SendMessage(GUICtrlGetHandle($mybuttonT), $BM_SETIMAGE, $IMAGE_ICON, $hIcon)) ;align top-left Local $mybuttonTL = GuiFlatButton_Create("Top-Left", 5, 125, 120, 55, BITOR($BS_TOP, $BS_LEFT)) _WinAPI_DeleteObject(_SendMessage(GUICtrlGetHandle($mybuttonTL), $BM_SETIMAGE, $IMAGE_ICON, $hIcon)) ;align top-right Local $mybuttonTR = GuiFlatButton_Create("Top-Right", 5, 185, 120, 55, BITOR($BS_TOP, $BS_RIGHT)) _WinAPI_DeleteObject(_SendMessage(GUICtrlGetHandle($mybuttonTR), $BM_SETIMAGE, $IMAGE_ICON, $hIcon)) ;align left Local $mybuttonL = GuiFlatButton_Create("Left", 5, 245, 120, 55, $BS_LEFT) _WinAPI_DeleteObject(_SendMessage(GUICtrlGetHandle($mybuttonL), $BM_SETIMAGE, $IMAGE_ICON, $hIcon)) ;align bottom Local $mybuttonB = GuiFlatButton_Create("Bottom", 130, 65, 120, 55, $BS_BOTTOM) _WinAPI_DeleteObject(_SendMessage(GUICtrlGetHandle($mybuttonB), $BM_SETIMAGE, $IMAGE_ICON, $hIcon)) ;align bottom-left Local $mybuttonBL = GuiFlatButton_Create("Bottom-Left", 130, 125, 120, 55, BITOR($BS_BOTTOM, $BS_LEFT)) _WinAPI_DeleteObject(_SendMessage(GUICtrlGetHandle($mybuttonBL), $BM_SETIMAGE, $IMAGE_ICON, $hIcon)) ;align bottom-right Local $mybuttonBR = GuiFlatButton_Create("Bottom-Right", 130, 185, 120, 55, BITOR($BS_BOTTOM, $BS_RIGHT)) _WinAPI_DeleteObject(_SendMessage(GUICtrlGetHandle($mybuttonBR), $BM_SETIMAGE, $IMAGE_ICON, $hIcon)) ;align right Local $mybuttonR = GuiFlatButton_Create("Right", 130, 245, 120, 55, $BS_RIGHT) _WinAPI_DeleteObject(_SendMessage(GUICtrlGetHandle($mybuttonR), $BM_SETIMAGE, $IMAGE_ICON, $hIcon)) GuiFlatButton_SetState($mybuttonR, $GUI_DISABLE ) ;disabled Local $mybuttonDisable = GuiFlatButton_Create("Disabled", 130, 310, 120, 55, $BS_TOOLBUTTON) _WinAPI_DeleteObject(_SendMessage(GUICtrlGetHandle($mybuttonDisable), $BM_SETIMAGE, $IMAGE_BITMAP, $hHBitmap)) GuiFlatButton_SetState($mybuttonDisable, $GUI_DISABLE ) ;clean up! _WinAPI_DestroyIcon( $hIcon ) _WinAPI_DeleteObject( $hHBitmap ) GUISetState(@SW_SHOW, $hGUI) Local $iMsg While 1 $iMsg = GUIGetMsg() Switch $iMsg Case $GUI_EVENT_CLOSE ExitLoop EndSwitch Sleep(10) WEnd GUIDelete() EndFunc ;==>Example
      I'm sure there are some use-cases I've forgotten, so feedback is welcome!

      Download the latest UDF and several more examples:
      Update 2022-05-25
      GuiFlatButton_20220525.zip
      Fixed issue, buttons disappear when a GUI containing a child window with WS_EX_MDICHILD extended style is moved
      Update 2022-05-24
      Fixed issue releasing subclassing when GUI is deleted but program is not closed
      Fixed occasional white background flicker
      Added function GuiFlatButton_GetPos
      Update 2021-01-02
      Fixed bug, not drawing correctly after deleting GUI with GUIDelete()
      Fixed bug, changing default colors changed all buttons, even previously created buttons
      Made some internal functions more efficient
      Update 2019-04-14
      Fixed bug, not showing pressed down state when clicking rapidly
      Added Icon/Bitmap support!
      Added function GuiFlatButton_SetPos to change the position and/or size of a button
      Update 2019-02-09
      Added 2 new functions to set the button colors globally for all future buttons.
      GuiFlatButton_SetDefaultColors
      GuiFlatButton_SetDefaultColorsEx

      Credits to:
      Melba23 (UDF template)
      LarsJ (general subclassing code)
      4ggr35510n (TrackMouseEvent example)
      binhnx (disable dragging with $WS_EX_CONTROLPARENT)
      GUIRegisterMsg in AutoIt Help (owner-draw button example)
      funkey (_WinAPI_DrawState example)
      GuiFlatButton_20190414.zip GuiFlatButton20210102.zip
      GuiFlatButton_20220524.zip
    • By Hermes
      Hi, I am struggling in setting the value of a textarea based on the value of clipboard (that contains a long web page source codes). If I use _WD_SetElementValue, it freezes after some time, or appears to be pressing tab and goes out of focus. I can also use send keys but i need the script to run in the background.
      Here is the full script:
      #Include "Chrome.au3" #Include "wd_core.au3" #Include "wd_helper.au3" #Include "WinHttp.au3" #include <MsgBoxConstants.au3> #include <WinAPIFiles.au3> #include <Array.au3> #include <AutoItConstants.au3> #include <WinAPIFiles.au3> #include <GDIPlus.au3> #include <Excel.au3> Local $sDesiredCapabilities, $sSession SetupChrome() _WD_Startup() $sSession = _WD_CreateSession($sDesiredCapabilities) _WD_LoadWait($sSession) _WD_Navigate($sSession, "http://demo.borland.com/testsite/stadyn_largepagewithimages.html") _WD_LoadWait($sSession) Global $sSource = _WD_GetSource($sSession) Local $Paste = ClipPut($sSource) Local $sData = ClipGet() Local $aArray = 0, _ $iOffset = 1 While 1 $aArray = StringRegExp($sData, '(?s)<p>.*</p>', $STR_REGEXPARRAYMATCH, $iOffset) If @error Then ExitLoop $iOffset = @extended For $i = 0 To UBound($aArray) - 1 Local $Paste = ClipPut($aArray[$i]) Local $sRegExData = ClipGet() ;MsgBox(0, "", "$sRegExData = " & $sRegExData) Next WEnd _WD_Navigate($sSession, "https://www.w3schools.com/tags/tryit.asp?filename=tryhtml5_textarea_placeholder") _WD_WaitElement($sSession, $_WD_LOCATOR_ByCSSSelector, "iframe#iframeResult") Local $sElement1 = _WD_FindElement($sSession, $_WD_LOCATOR_ByCSSSelector, "iframe#iframeResult") _WD_FrameEnter($sSession, $sElement1) _WD_WaitElement($sSession, $_WD_LOCATOR_ByXPath, "//html/body/textarea") $textarea = _WD_FindElement($sSession, $_WD_LOCATOR_ByXPath, "//html/body/textarea") _WD_ElementAction($sSession, $textarea, 'click') ;WD SetElementValue(SsSession, Stextarea, $sRegExData) <-- I can do this but the focus goes out, or the browser freezes _WD_FrameLeave($sSession) sleep(2000) Send("^v") _WD_LoadWait($sSession) _WD_Shutdown() Func SetupChrome() _WD_Option('Driver', 'chromedriver.exe') _WD_Option('Port', 9515) _WD_Option('DriverParams', '--log-path="' & @ScriptDir & '\chrome.log"') $sDesiredCapabilities = '{"capabilities": {"alwaysMatch": {"goog:chromeOptions": {"w3c": true, "args":["start-maximized","disable-infobars"]}}}}' EndFunc ;==>SetupChrome Can someone help me please, or re-direct me to the right path? TIA!
    • By Hermes
      Hi, I am trying to select elements in print page (dialog window) for a specific web page. But when trying to do so, it looks like it does not allow me to do it.
      So far, this is what I have:
      _WD_WaitElement($sSession, $_WD_LOCATOR_ByCSSSelector, "body") Local $mainpagebody = _WD_FindElement($sSession, $_WD_LOCATOR_ByCSSSelector, "body") _WD_HighlightElement($sSession, $mainpagebody, 2) _WD_WaitElement($sSession, $_WD_LOCATOR_ByCSSSelector, "img.print-button") Local $printbutton = _WD_FindElement($sSession, $_WD_LOCATOR_ByCSSSelector, "img.print-button") _WD_ElementAction($sSession, $printbutton, 'click') _WD_LoadWait($sSession) Sleep(3000) _WD_WaitElement($sSession, $_WD_LOCATOR_ByCSSSelector, "body") Local $printpagebody = _WD_FindElement($sSession, $_WD_LOCATOR_ByCSSSelector, "body") _WD_HighlightElement($sSession, $printpagebody, 2) The script above highlights the main web page "body" element, then clicks a tag to print a specific part of the page, then it will open a print page window where i am trying to highlight the body of that print page - but it looks like it is dropping from the session because it opens up another chrome page chrome://print.

      Below is the output log:
      __WD_Post: URL=HTTP://127.0.0.1:9515/session/cd08704233a965ccbaf9292e8692c3e4/element; $sData={"using":"css selector","value":"body"} __WD_Post: StatusCode=200; ResponseText={"value":{"element-6066-11e4-a52e-4f735466cecf":"91a394f0-004c-480d-aedf-52e2b30233c6"}}... _WD_FindElement: {"value":{"element-6066-11e4-a52e-4f735466cecf":"91a394f0-004c-480d-aedf-52e2b30233c6"}} _WD_WaitElement ==> Success __WD_Post: URL=HTTP://127.0.0.1:9515/session/cd08704233a965ccbaf9292e8692c3e4/element; $sData={"using":"css selector","value":"body"} __WD_Post: StatusCode=200; ResponseText={"value":{"element-6066-11e4-a52e-4f735466cecf":"91a394f0-004c-480d-aedf-52e2b30233c6"}}... _WD_FindElement: {"value":{"element-6066-11e4-a52e-4f735466cecf":"91a394f0-004c-480d-aedf-52e2b30233c6"}} __WD_Post: URL=HTTP://127.0.0.1:9515/session/cd08704233a965ccbaf9292e8692c3e4/execute/sync; $sData={"script":"arguments[0].style='background: #FFFF66; border-radius: 5px; padding-left: 3px;'; return true;", "args":[{"element-6066-11e4-a52e-4f735466cecf":"91a394f0-004c-480d-aedf-52e2b30233c6"}]} __WD_Post: StatusCode=200; ResponseText={"value":true}... _WD_ExecuteScript: {"value":true}... __WD_Post: URL=HTTP://127.0.0.1:9515/session/cd08704233a965ccbaf9292e8692c3e4/element; $sData={"using":"css selector","value":"img.print-link"} __WD_Post: StatusCode=200; ResponseText={"value":{"element-6066-11e4-a52e-4f735466cecf":"eb9e4673-4dec-4d4c-be6a-b7967743394b"}}... _WD_FindElement: {"value":{"element-6066-11e4-a52e-4f735466cecf":"eb9e4673-4dec-4d4c-be6a-b7967743394b"}} _WD_WaitElement ==> Success __WD_Post: URL=HTTP://127.0.0.1:9515/session/cd08704233a965ccbaf9292e8692c3e4/element; $sData={"using":"css selector","value":"img.print-link"} __WD_Post: StatusCode=200; ResponseText={"value":{"element-6066-11e4-a52e-4f735466cecf":"eb9e4673-4dec-4d4c-be6a-b7967743394b"}}... _WD_FindElement: {"value":{"element-6066-11e4-a52e-4f735466cecf":"eb9e4673-4dec-4d4c-be6a-b7967743394b"}} __WD_Post: URL=HTTP://127.0.0.1:9515/session/cd08704233a965ccbaf9292e8692c3e4/element/eb9e4673-4dec-4d4c-be6a-b7967743394b/click; $sData={"id":"eb9e4673-4dec-4d4c-be6a-b7967743394b"} __WD_Post: StatusCode=200; ResponseText={"value":null}... _WD_ElementAction: {"value":null}... __WD_Post: URL=HTTP://127.0.0.1:9515/session/cd08704233a965ccbaf9292e8692c3e4/execute/sync; $sData={"script":"arguments[0].style='background: #FFFF66; border-radius: 5px; padding-left: 3px;'; return true;", "args":[{"element-6066-11e4-a52e-4f735466cecf":"eb9e4673-4dec-4d4c-be6a-b7967743394b"}]} __WD_Post: StatusCode=200; ResponseText={"value":true}... _WD_ExecuteScript: {"value":true}... __WD_Post: URL=HTTP://127.0.0.1:9515/session/cd08704233a965ccbaf9292e8692c3e4/execute/sync; $sData={"script":"return document.readyState", "args":[]} __WD_Post: StatusCode=500; ResponseText={"value":{"error":"script timeout","message":"script timeout\n (Session info: chrome=92.0.4515.107)... __WD_Post ==> Webdriver Exception: {"value":{"error":"script timeout","message":"script timeout\n (Session info: chrome=92.0.4515.107)","stacktrace":"Backtrace:\n\tOrdinal0 [0x00C63733+2504499]\n\tOrdinal0 [0x00BFC401+2081793]\n\tOrdinal0 [0x00B024F0+1058032]\n\tOrdinal0 [0x00B55685+1398405]\n\tOrdinal0 [0x00B45E83+1334915]\n\tOrdinal0 [0x00B54CDB+1395931]\n\tOrdinal0 [0x00B45D4B+1334603]\n\tOrdinal0 [0x00B222B4+1188532]\n\tOrdinal0 [0x00B23149+1192265]\n\tGetHandleVerifier [0x00DDFB8C+1512252]\n\tGetHandleVerifier [0x00E8B0DF+2214031]\n\tGetHandleVerifier [0x00CE4BC3+484211]\n\tGetHandleVerifier [0x00CE3E69+480793]\n\tOrdinal0 [0x00C0218D+2105741]\n\tOrdinal0 [0x00C066E8+2123496]\n\tOrdinal0 [0x00C06827+2123815]\n\tOrdinal0 [0x00C0FB73+2161523]\n\tBaseThreadInitThunk [0x75EB62C4+36]\n\tRtlSubscribeWnfStateChangeNotification [0x77C11B69+1081]\n\tRtlSubscribeWnfStateChangeNotification [0x77C11B34+1028]\n"}} _WD_ExecuteScript: {"value":{"error":"script timeout","message":"script timeout\n (Session info: chrome=92.0.4515.107)... _WD_ExecuteScript ==> Webdriver Exception: HTTP status = 500 _WD_LoadWait ==> Webdriver Exception __WD_Post: URL=HTTP://127.0.0.1:9515/session/cd08704233a965ccbaf9292e8692c3e4/element; $sData={"using":"css selector","value":"body"} __WD_Post: StatusCode=200; ResponseText={"value":{"element-6066-11e4-a52e-4f735466cecf":"91a394f0-004c-480d-aedf-52e2b30233c6"}}... _WD_FindElement: {"value":{"element-6066-11e4-a52e-4f735466cecf":"91a394f0-004c-480d-aedf-52e2b30233c6"}} _WD_WaitElement ==> Success __WD_Post: URL=HTTP://127.0.0.1:9515/session/cd08704233a965ccbaf9292e8692c3e4/element; $sData={"using":"css selector","value":"body"} __WD_Post: StatusCode=200; ResponseText={"value":{"element-6066-11e4-a52e-4f735466cecf":"91a394f0-004c-480d-aedf-52e2b30233c6"}}... _WD_FindElement: {"value":{"element-6066-11e4-a52e-4f735466cecf":"91a394f0-004c-480d-aedf-52e2b30233c6"}} __WD_Post: URL=HTTP://127.0.0.1:9515/session/cd08704233a965ccbaf9292e8692c3e4/execute/sync; $sData={"script":"arguments[0].style='background: #FFFF66; border-radius: 5px; padding-left: 3px;'; return true;", "args":[{"element-6066-11e4-a52e-4f735466cecf":"91a394f0-004c-480d-aedf-52e2b30233c6"}]} __WD_Post: StatusCode=200; ResponseText={"value":true}... _WD_ExecuteScript: {"value":true}...
      Is it even possible to select elements in print page?

    • By walec
      Hello
      How can I export a sheet to pdf using the OOoCalc.au3 UDF?
      Thank you for any hints or possibly other solutions / functions.
    • By p4sCh
      Hello everyone,
      I've created a UDF for basic communication with SSH servers. I know there is already such a UDF, but I wasn't satisfied with it for my purpose, so I created a new one.
      This UDF also acts as a wrapper for the plink executable. Its essential functions are _SSHConnect, _SSHSend, _SSHRecv and _SSHCloseSocket.
      It does support multiple simultaneous connections and aims to be pretty robust. Feel free to share your opinions
      Two of the included examples use a slightly modified version of Vintage Terminal by @Chimp
      Download
      The download includes ssh.au3 (UDF), plink.exe (necessary), vintage terminal and code examples:
      Version 1.0.1
      - fixed rare _SSHConnect bug where "ssh-host-key prompt" was not answered
      SSH UDF 1.0.1.zip

×
×
  • Create New...
