Hello,

I'm having trouble getting information from Win32_Processor:
https://docs.microsoft.com/en-us/windows/desktop/CIMWin32Prov/win32-processor

How does this WMI Query work? Let's say I need to query VMMonitorModeExtensions, Level, ProcessorId, and ProcessorType.

How would this work?

Thanks.

Share this post


Link to post
Share on other sites

@leomoon

An example of how to use WMI Object in AutoIt could be found here :)

Edited by FrancescoDiMuro

Click here to see my signature:

Spoiler

Thoughts:

  • I will always thank you for the time you spent for me.
    I'm here to ask, and from your response, I'd like to learn.
    By my knowledge, I can help someone else, and "that someone" could help in turn another, and so on.

/*--------------------------------------------------------------------------------------------------------------------------------------------------------------------------*/

ALWAYS GOOD TO READ:



Share this post


Link to post
Share on other sites

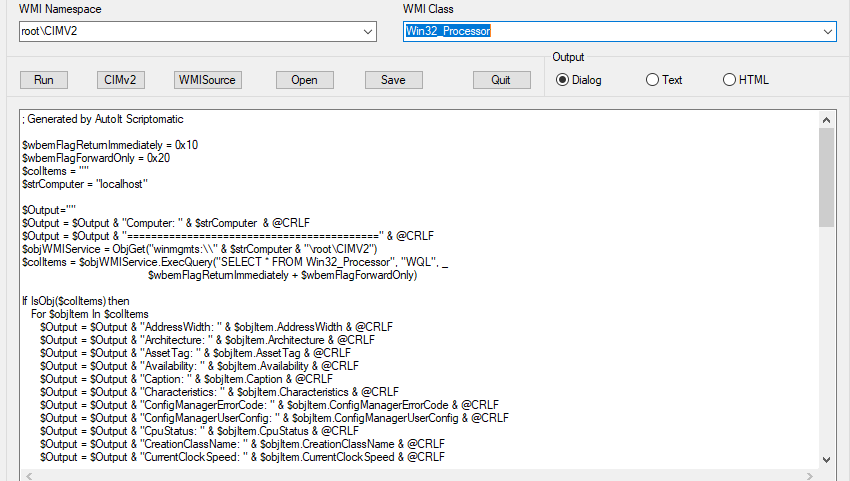

@leomoon Whenever you are dealing with WMI classes, the AutoIt Script-O-Matic tool is invaluable

Not only does it give you a nice GUI for browsing through the different classes, it shows you example AutoIt code for interacting with that class:


Share this post


Link to post
Share on other sites

This is another option:

#include <Constants.au3>
$DSK = Run('cmd', '', @SW_HIDE, $STDIN_CHILD + $STDOUT_CHILD)
    Do
        $Read = StdoutRead($DSK, True, False)
        $Str = StringInStr($Read, 'Microsoft Windows')
    Until $Str <> 0
    StdinWrite($DSK, "wmic cpu get name" & @CRLF)
    Do
        $Read = StdoutRead($DSK, True, False)
        $Str1 = StringInStr($Read, 'Name', 0, 1)
    Until $Str1 <> 0
    Sleep(500)
    $Read = StdoutRead($DSK, True, False)
    $Spl = StringSplit($Read, 'Name', 1)
    If $Spl <> @error Then
        $SplR2 = StringLeft($Spl[2], StringInStr($Spl[2], @CRLF, 0, -1))
        $SplR2 = StringStripWS($SplR2, 7)
    Else
        $SplR2 = 'NULL'
    EndIf
    StdioClose($DSK)
    MsgBox(64, 'Information',  $SplR2 )




Spoiler

Renamer - Rename files and folders, remove portions of text from the filename etc.

GPO Tool - Export/Import Group policy settings.

MirrorDir - Synchronize/Backup/Mirror Folders

BeatsPlayer - Music player.

Params Tool - Right click an exe to see it's parameters or execute them.

String Trigger - Triggers pasting text or applications or internet links on specific strings.

Inconspicuous - Hide files in plain sight, not fully encrypted.

Regedit Control - Registry browsing history, quickly jump into any saved key.

Time4Shutdown - Write the time for shutdown in minutes.

Power Profiles Tool - Set a profile as active, delete, duplicate, export and import.

Finished Task Shutdown - Shuts down pc when specified window/Wndl/process closes.

NetworkSpeedShutdown - Shuts down pc if download speed goes under "X" Kb/s.

IUIAutomation - Topic with framework and examples

Au3Record.exe
