Delylej

Detecting Checkbox state

Recommended Posts

Delylej

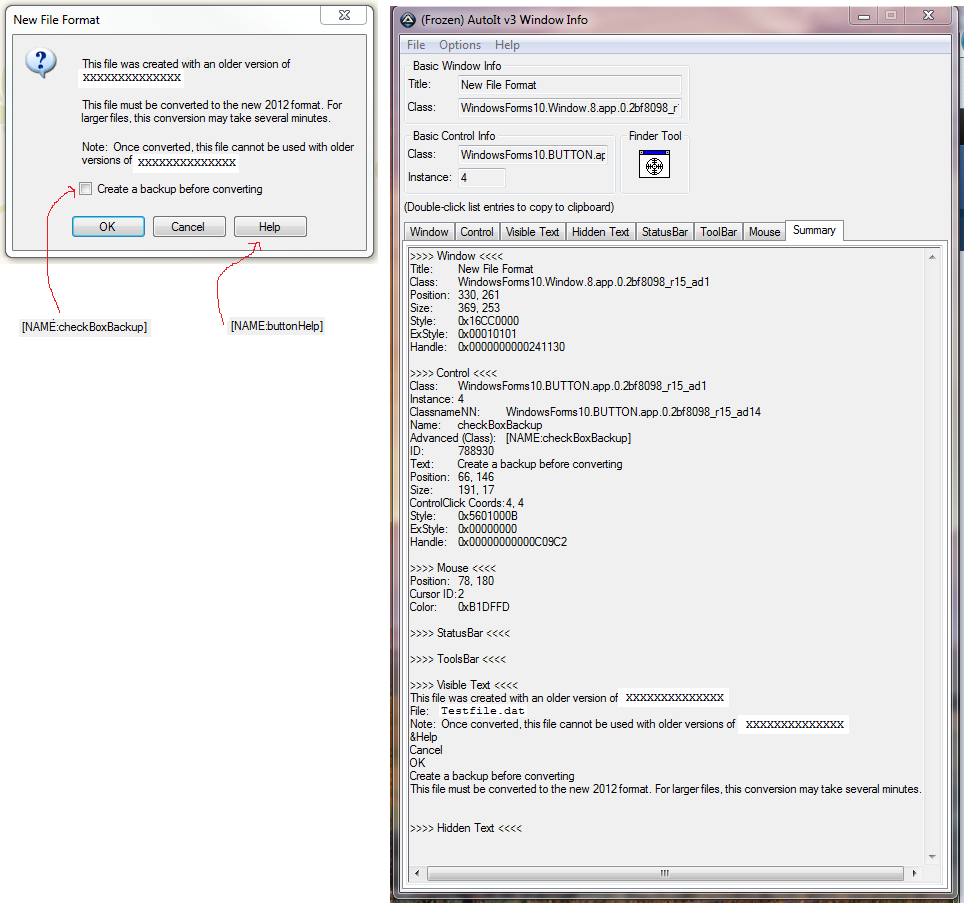

I am testing software and am having trouble detecting the state of a checkbox. I have included an attachment of the dialog and Window Info data.

I have tried various calls (ControlClick, ControlSend, ControlCommand) and get various results.

My test code:

#include <WindowsConstants.au3>

#include <GUIConstantsEx.au3>

Opt("MustDeclareVars" , 1)

Opt("WinTitleMatchMode" , -2) ; 1=start, 2=subStr, 3=exact, 4=advanced, -1 to -4=Nocase

Opt("WinDetectHiddenText" , 1) ; 0=don't detect, 1=do detect

WinActivate("New File Format", "Create a backup before converting")

WinWaitActive("New File Format", "Create a backup before converting")

Sleep(3000)

; Fails: ControlClick("New File Format", "Create a backup before converting", "[NAME:checkBoxBackup]")

; Works: ControlClick("New File Format", "Create a backup before converting", "[NAME:buttonhelp]")

; Works but toggles: ControlSend("New File Format", "Create a backup before converting", "[NAME:checkBoxBackup]", "{SPACE}")

; Works: Local $return = ControlCommand ("New File Format", "Create a backup before converting", "[NAME:checkBoxBackup]", "IsVisible", "")

; MsgBox(0, "$return", $return)

; Works: Local $return = ControlCommand ("New File Format", "Create a backup before converting", "[NAME:checkBoxBackup]", "IsEnabled", "")

; MsgBox(0, "$return", $return)

; Fails: Local $return = ControlCommand ("New File Format", "Create a backup before converting", "[NAME:checkBoxBackup]", "IsChecked", "")

; MsgBox(0, "$return", $return)

; Fails: Local $return = ControlCommand ("New File Format", "Create a backup before converting", "[NAME:checkBoxBackup]", "Check", "")

; Fails: Local $return = ControlCommand ("New File Format", "Create a backup before converting", "[NAME:checkBoxBackup]", "UnCheck", "")

; Works but toggles: Local $return = ControlCommand("New File Format", "Create a backup before converting", "[NAME:checkBoxBackup]", "Check", "")

Any ideas as to why?

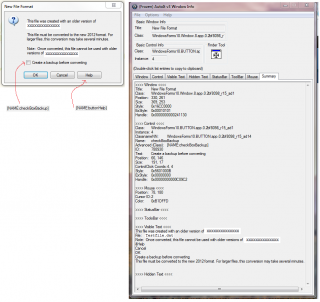

post-69665-0-74132800-1353085614_thumb.p

Share this post


Link to post
Share on other sites
water

Try:

$iStatus = ControlCommand("New File Format", "", 788930, "IsChecked", "")
Edited by water

My UDFs and Tutorials:

Spoiler

UDFs:
Active Directory (NEW 2018-06-01 - Version 1.4.9.0) - Download - General Help & Support - Example Scripts - Wiki
OutlookEX (2018-01-27 - Version 1.3.3.1) - Download - General Help & Support - Example Scripts - Wiki
ExcelChart (2015-04-01 - Version 0.4.0.0) - Download - General Help & Support - Example Scripts
Excel - Example Scripts - Wiki
Word - Wiki
PowerPoint (2015-06-06 - Version 0.0.5.0) - Download - General Help & Support

Tutorials:
ADO - Wiki



Share this post


Link to post
Share on other sites
Delylej

Is using the ID better than using the Advanced Class?

Share this post


Link to post
Share on other sites
water

No. You can use what you like ...


My UDFs and Tutorials:

Spoiler

UDFs:
Active Directory (NEW 2018-06-01 - Version 1.4.9.0) - Download - General Help & Support - Example Scripts - Wiki
OutlookEX (2018-01-27 - Version 1.3.3.1) - Download - General Help & Support - Example Scripts - Wiki
ExcelChart (2015-04-01 - Version 0.4.0.0) - Download - General Help & Support - Example Scripts
Excel - Example Scripts - Wiki
Word - Wiki
PowerPoint (2015-06-06 - Version 0.0.5.0) - Download - General Help & Support

Tutorials:
ADO - Wiki



Share this post


Link to post
Share on other sites
water

Which program do you try to automate? You made the program name unreadable in the screenshot :huh:


My UDFs and Tutorials:

Spoiler

UDFs:
Active Directory (NEW 2018-06-01 - Version 1.4.9.0) - Download - General Help & Support - Example Scripts - Wiki
OutlookEX (2018-01-27 - Version 1.3.3.1) - Download - General Help & Support - Example Scripts - Wiki
ExcelChart (2015-04-01 - Version 0.4.0.0) - Download - General Help & Support - Example Scripts
Excel - Example Scripts - Wiki
Word - Wiki
PowerPoint (2015-06-06 - Version 0.0.5.0) - Download - General Help & Support

Tutorials:
ADO - Wiki



Share this post


Link to post
Share on other sites
Delylej

I still get a '0' when the checkbox is checked

Share this post


Link to post
Share on other sites
Delylej

Family Tree Maker. I have written 100,000+ lines of AutoIt code to automate testing of this product, but a few calls are failing for me.

Share this post


Link to post
Share on other sites
water

I never had the need to do it myself but I remember that Windows Forms is hard to automate.

Search the forum for "Windows Forms" in the thread title and you might find an answer.


My UDFs and Tutorials:

Spoiler

UDFs:
Active Directory (NEW 2018-06-01 - Version 1.4.9.0) - Download - General Help & Support - Example Scripts - Wiki
OutlookEX (2018-01-27 - Version 1.3.3.1) - Download - General Help & Support - Example Scripts - Wiki
ExcelChart (2015-04-01 - Version 0.4.0.0) - Download - General Help & Support - Example Scripts
Excel - Example Scripts - Wiki
Word - Wiki
PowerPoint (2015-06-06 - Version 0.0.5.0) - Download - General Help & Support

Tutorials:
ADO - Wiki



Share this post


Link to post
Share on other sites
Delylej

After an extensive search of the forums, I found the following:

.NET apps (WinForms) only work with some calls. The ControlCommand for 'IsChecked' and 'UnCheck' do not work.

There were over a hundred forum topics on this exact issue.

Thanks for all your help.

Share this post


Link to post
Share on other sites
jdelaney

is that also true of ControlRead and ControlGetState?

Edited by jdelaney

IEbyXPATH-Grab IE DOM objects by XPATH IEscriptRecord-Makings of an IE script recorder ExcelFromXML-Create Excel docs without excel installed GetAllWindowControls-Output all control data on a given window.

Share this post


Link to post
Share on other sites
water

ControlRead and ControlGetState? AutoIt doesn't have such functions.


My UDFs and Tutorials:

Spoiler

UDFs:
Active Directory (NEW 2018-06-01 - Version 1.4.9.0) - Download - General Help & Support - Example Scripts - Wiki
OutlookEX (2018-01-27 - Version 1.3.3.1) - Download - General Help & Support - Example Scripts - Wiki
ExcelChart (2015-04-01 - Version 0.4.0.0) - Download - General Help & Support - Example Scripts
Excel - Example Scripts - Wiki
Word - Wiki
PowerPoint (2015-06-06 - Version 0.0.5.0) - Download - General Help & Support

Tutorials:
ADO - Wiki



Share this post


Link to post
Share on other sites
jdelaney

whoops, was going off of flawed memory

ControlGetText, disregard the second option.

maybe even try: _GUICtrlButton_GetCheck

Edited by jdelaney

IEbyXPATH-Grab IE DOM objects by XPATH IEscriptRecord-Makings of an IE script recorder ExcelFromXML-Create Excel docs without excel installed GetAllWindowControls-Output all control data on a given window.

Share this post


Link to post
Share on other sites
Delylej

That was something I hadn't tried. But no.

ControlGetText just returns the text to the side of the 'CheckBox'. Not the state of the checkbox.

Thanks for the suggestion.

Share this post


Link to post
Share on other sites
jdelaney

horrible workaround...you can do a pixel search within the box :)


IEbyXPATH-Grab IE DOM objects by XPATH IEscriptRecord-Makings of an IE script recorder ExcelFromXML-Create Excel docs without excel installed GetAllWindowControls-Output all control data on a given window.

Share this post


Link to post
Share on other sites
Delylej

That is exactly the work around I was going to try next.

Thanks.

Share this post


Link to post
Share on other sites
BrewManNH

Is there by any chance a hot key for the check box, in other words, when you hit ALT does one of the characters in the text next to it get underlined? If you can activate it by a hot key, then you might be able to check/uncheck the box with a ControlSend to the window instead of trying to click the checkbox.


If I posted any code, assume that code was written using the latest release version unless stated otherwise. Also, if it doesn't work on XP I can't help with that because I don't have access to XP, and I'm not going to.
Give a programmer the correct code and he can do his work for a day. Teach a programmer to debug and he can do his work for a lifetime - by Chirag Gude
How to ask questions the smart way!

I hereby grant any person the right to use any code I post, that I am the original author of, on the autoitscript.com forums, unless I've specifically stated otherwise in the code or the thread post. If you do use my code all I ask, as a courtesy, is to make note of where you got it from.

Back up and restore Windows user files _Array.au3 - Modified array functions that include support for 2D arrays.  -  ColorChooser - An add-on for SciTE that pops up a color dialog so you can select and paste a color code into a script.  -  Customizable Splashscreen GUI w/Progress Bar - Create a custom "splash screen" GUI with a progress bar and custom label.  -  _FileGetProperty - Retrieve the properties of a file  -  SciTE Toolbar - A toolbar demo for use with the SciTE editor  -  GUIRegisterMsg demo - Demo script to show how to use the Windows messages to interact with controls and your GUI.  -   Latin Square password generator

Share this post


Link to post
Share on other sites
Delylej

No, there is no HotKey. I wish it did.

ControlSend("New File Format", "Create a backup before converting", "[NAME:checkBoxBackup]", "{SPACE}")

does toggle the checkbox, but I was looking for the state (Checked/Unchecked) to determine my next action in the script.

So I'll do the pixel thing then the above send command if it is nessesary.

Thanks all.

Share this post


Link to post
Share on other sites
PapaSan

And in real life one should be able to detect the " checked, unchecked or disabled " state of a checkbox.

I'm not too sure about the pixel detection solution since the gui can be colored/styled in various ways.

I'm very interested in the outcome of this.

Please do post your finding for this.

Thanks.

Share this post


Link to post
Share on other sites
careca

$var = GUICtrlGetState ( [controlID] )

If $var = $GUI_CHECKED blah blah...

tried that?
