Guiding me with object event

[nightwatcher]

I'm trying to use the COM interface to create an object .

Here is the reference url：https://msdn.microsoft.com/zh-tw/library/windows/desktop/aa384106.aspx

I failed to use the event ，actually I have no idea about how to.



I take the example in objectevent. apparently I do not get the key point.

here is my  code.



Global $oErrorHandler = ObjEvent("AutoIt.Error", "_ErrFunc")

Global $oHttp = ObjCreate('WinHttp.WinHttpRequest.5.1')

Global $ohttpevent= ObjEvent($oHttp, 'IWinEvents_','IWinHttpRequestEvents')

$oHttp.SetTimeouts(60000, 60000, 60000, 5000);

$oHttp.open('GET', $reqauth, False)

$oHttp.send()

$oHttp.waitforresponse()

$sBody = BinaryToString($oHttp.responsebody(), 4)
 ConsoleWrite('$sBody1=' & $sBody & @CRLF)



Func IWinEvents_OnError($lerrnum,$wserrdes)
    ConsoleWrite('Error! error code='&Hex($lerrnum)&@TAB&'description='&$wserrdes)
EndFunc

Func IWinEvents_OnResponseDataAvailable($punchar)
    ConsoleWrite('stringlen='&StringLen($punchar)&@TAB&'content='&$punchar&@CRLF)
EndFunc

Func IWinEvents_OnResponseFinished()
    ConsoleWrite('ResponseFinished!'&@CRLF)
EndFunc

Func IWinEvents_OnResponseStart($long,$wscontent)
    ConsoleWrite('status='&$long&@TAB&'ContentType='&$wscontent&@CRLF)
EndFunc

Func _ErrFunc($oError)
    ; Do anything here.
    ConsoleWrite("err.number is: " & @TAB &  Hex($oError.number, 8)& @CRLF & _
            "err.windescription:" & @TAB & $oError.windescription & @CRLF & _
            "err.description is: " & @TAB & $oError.description & @CRLF & _
            "err.source is: " & @TAB & $oError.source & @CRLF & _
            "err.helpfile is: " & @TAB & $oError.helpfile & @CRLF & _
            "err.helpcontext is: " & @TAB & $oError.helpcontext & @CRLF & _
            "err.lastdllerror is: " & @TAB & $oError.lastdllerror & @CRLF & _
            "err.scriptline is: " & @TAB & $oError.scriptline & @CRLF & _
            "err.retcode is: " & @TAB & $oError.retcode & @CRLF & @CRLF)
EndFunc   ;==>_ErrFunc

[TheXman]

What is your goal?  Are you trying to figure out how to send an http request using COM or are you trying to learn how to implement COM event handlers?  If it is how to send an http request, then there are numerous posts on that subject.  Just do a search on "winhttp.winhttprequest.5.1".  If you are trying to learn how to implement COM event handlers, start with the example in the help file for the ObjEvent function.

Here's a very minimal example of sending an http request using COM (with minimal error handling):

http_get_request_using_com()

Func http_get_request_using_com()
    Local $oHttp, $oComError

    $oComError = ObjEvent ("AutoIt.Error", "com_error_handler")
    $oHttp     = ObjCreate("winhttp.winhttprequest.5.1")
    $oHttp.Open("GET", "https://www.google.com", False)
    $oHttp.Send()
    If @error Then Exit @error

    ConsoleWrite("HTTP Status  : " & $oHttp.Status & @CRLF)
    ConsoleWrite("HTTP Response: " & StringLeft($oHttp.ResponseText, 50) & @CRLF) ; First 50 bytes of response
EndFunc

Func com_error_handler($oError)
    ConsoleWrite("Error Desc: " & $oError.Description & @CRLF)
    Return
EndFunc



[nightwatcher]

  On 4/26/2018 at 5:03 PM, TheXman said:

What is your goal?  Are you trying to figure out how to send an http request using COM or are you trying to learn how to implement COM event handlers?  If it is how to send an http request, then there are numerous posts on that subject.  Just do a search on "winhttp.winhttprequest.5.1".  If you are trying to learn how to implement COM event handlers, start with the example in the help file for the ObjEvent function.

Here's a very minimal example of sending an http request using COM (with minimal error handling):

http_get_request_using_com()

Func http_get_request_using_com()
    Local $oHttp, $oComError

    $oComError = ObjEvent ("AutoIt.Error", "com_error_handler")
    $oHttp     = ObjCreate("winhttp.winhttprequest.5.1")
    $oHttp.Open("GET", "https://www.google.com", False)
    $oHttp.Send()
    If @error Then Exit @error

    ConsoleWrite("HTTP Status  : " & $oHttp.Status & @CRLF)
    ConsoleWrite("HTTP Response: " & StringLeft($oHttp.ResponseText, 50) & @CRLF) ; First 50 bytes of response
EndFunc

Func com_error_handler($oError)
    ConsoleWrite("Error Desc: " & $oError.Description & @CRLF)
    Return
EndFunc



Expand

I am trying  to  implement COM event handlers……

I want to kown why I failed to use the event  of winhttprequest

I have tried  to imitate the  example of  objevent as much as possible

[TheXman]

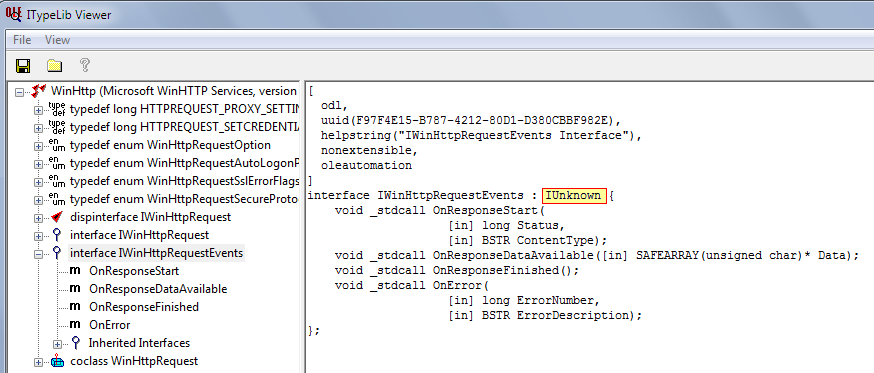

It failed because according to the help file for COM Events, AutoIt can only receive 'dispatch' type events.  The WinHttp.WinHttpRequest.5.1 events are not 'dispatch' type events. They don't have an IDispatch interface they have an interface of IUknown.



Edited April 27, 2018 by TheXman
Removed duplicate image

[nightwatcher]

  On 4/27/2018 at 4:40 AM, TheXman said:

It failed because according to the help file for COM Events, AutoIt can only receive 'dispatch' type events.  The WinHttp.WinHttpRequest.5.1 events are not 'dispatch' type events. They don't have an IDispatch interface they have an interface of IUknown.



Expand

uh, thks so much . this has confused me a long time …… I do not kown the  limitation of the COM interface in Autoit.

thks again!

[mLipok]

Choosing a WinHTTP Interface
https://docs.microsoft.com/pl-pl/windows/desktop/WinHttp/choosing-a-winhttp-interface
