Thank you for sharing your revisions, mLipok.  I just wanted to ask is it best preactices to not use Global variables? Why did you have to have most of them removed?



I very long time was using Smtp Mailer That Supports Html And Attachments.

In the end, I found that at present my needs I need to modify it. And here it is:

Creating this modification, I had to:

1. Object Error Handler used only for the duration of the function of Use,
2. Automatic ErrorHandler CleanUp so that previous ErrorHandler took the job.
3. Ability to get ErrorNumber and ErrorDescription ErrorScriptLine information even after the end of the function
4. Elimination of most global variables

Share this post


Link to post
Share on other sites

I say you why I use _INetSmtpMailCom_ErrDescription()

If this be a Global Variable then you must remember how this variable are named.

When this is a function then using CallTips or tools like SciTeJump you can easy develope you app. Simply, you do not need to have everything in your head.

Besides I think (IMHO) Au3Check and even AutoIt much better take care about unique Function Names then unique Variables Names, and you must remember about eventually problems with Variable Scopes and posibility to mistake with using Local and Global vars.

It is possible that other members have a different opinion, it is possible that they have other arguments to prove the validity of my coding style.

I'd love to seeing the Opinion, but in the thread on best coding practices.

Edited by mLipok

Signature beginning:   Wondering who uses AutoIt and what it can be used for ?
* GHAPI UDF - modest beginning - communication with GitHub REST API Forum Rules *
Include Dependency Tree (Tool for analyzing script relations)
ADO.au3 UDF     POP3.au3 UDF     XML.au3 UDF    How to use IE.au3  UDF with  AutoIt v3.3.14.x  for other useful stuff click the following button

Spoiler

Any of my own code posted anywhere on the forum is available for use by others without any restriction of any kind.

My contribution (my own projects): * Debenu Quick PDF Library - UDF * Debenu PDF Viewer SDK - UDF * Acrobat Reader - ActiveX Viewer * UDF for PDFCreator v1.x.x * XZip - UDF * AppCompatFlags UDF * CrowdinAPI UDF * _WinMergeCompare2Files() * _JavaExceptionAdd() * _IsBeta() * Writing DPI Awareness App - workaround * _AutoIt_RequiredVersion() * Chilkatsoft.au3 UDF * TeamViewer.au3 UDF * JavaManagement UDF * VIES over SOAP * WinSCP UDF * GHAPI UDF - modest begining - comunication with GitHub REST APIErrorLog.au3 UDF - A logging Library *

My contribution to others projects or UDF based on  others projects: * _sql.au3 UDF  * POP3.au3 UDF *  RTF Printer - UDF * XML.au3 UDF * ADO.au3 UDF SMTP Mailer UDF * Dual Monitor resolution detection * * 2GUI on Dual Monitor System * _SciLexer.au3 UDF * SciTE - Lexer for console pane

Useful links: * Forum Rules * Forum etiquette *  Forum Information and FAQs * How to post code on the forum * AutoIt Online Documentation * AutoIt Online Beta Documentation * SciTE4AutoIt3 getting started * Convert text blocks to AutoIt code * Games made in Autoit * Programming related sites * Polish AutoIt Tutorial * DllCall Code Generator *

Wiki: Expand your knowledge - AutoIt Wiki * Collection of User Defined Functions * How to use HelpFile * Good coding practices in AutoIt *

OpenOffice/LibreOffice/XLS Related: WriterDemo.au3 * XLS/MDB from scratch with ADOX

IE Related:  * How to use IE.au3  UDF with  AutoIt v3.3.14.x * Why isn't Autoit able to click a Javascript Dialog? * Clicking javascript button with no ID * IE document >> save as MHT file * IETab Switcher (by LarsJ ) * HTML Entities * _IEquerySelectorAll() (by uncommon) * IE in TaskSchedulerIE Embedded Control Versioning (use IE9+ and HTML5 in a GUI) *

PDF Related:How to get reference to PDF object embeded in IE *

I encourage you to read: * Global Vars * Best Coding Practices * Please explain code used in Help file for several File functions * OOP-like approach in AutoIt * UDF-Spec Questions *  EXAMPLE: How To Catch ConsoleWrite() output to a file or to CMD *

I also encourage you to check awesome @trancexx code:  * Create COM objects from modules without any demand on user to register anything. * Another COM object registering stuffOnHungApp handlerAvoid "AutoIt Error" message box in unknown errors  * HTML editor

"Homo sum; humani nil a me alienum puto" - Publius Terentius Afer
"Program are meant to be read by humans and only incidentally for computers and execute" - Donald Knuth, "The Art of Computer Programming"
:naughty:  :ranting:, be  :) and       \\//_.

Anticipating Errors :  "Any program that accepts data from a user must include code to validate that data before sending it to the data store. You cannot rely on the data store, ...., or even your programming language to notify you of problems. You must check every byte entered by your users, making sure that data is the correct type for its field and that required fields are not empty."

Signature last update: 2021-01-03

Share this post


Link to post
Share on other sites

do you think about this:

Saving Messages into ADO Stream Objects

VBScript
' Note: It is recommended that all input parameters be validated when they are
' first obtained from the user or user interface.
Sub SaveMessageToFile(iMsg, Filepath)
    Dim Stm
    Set Stm = CreateObject("ADODB.Stream")
    Stm.Open
    Stm.Type = adTypeText ' 2
    Stm.Charset = "US-ASCII"

    Dim iDsrc
    Set iDsrc = iMsg.DataSource
    iDsrc.SaveToObject Stm, "_Stream"

    Stm.SaveToFile Filepath, adSaveCreateOverWrite

End Sub

Signature beginning:   Wondering who uses AutoIt and what it can be used for ?
* GHAPI UDF - modest beginning - communication with GitHub REST API Forum Rules *
Include Dependency Tree (Tool for analyzing script relations)
ADO.au3 UDF     POP3.au3 UDF     XML.au3 UDF    How to use IE.au3  UDF with  AutoIt v3.3.14.x  for other useful stuff click the following button

Spoiler

Any of my own code posted anywhere on the forum is available for use by others without any restriction of any kind.

My contribution (my own projects): * Debenu Quick PDF Library - UDF * Debenu PDF Viewer SDK - UDF * Acrobat Reader - ActiveX Viewer * UDF for PDFCreator v1.x.x * XZip - UDF * AppCompatFlags UDF * CrowdinAPI UDF * _WinMergeCompare2Files() * _JavaExceptionAdd() * _IsBeta() * Writing DPI Awareness App - workaround * _AutoIt_RequiredVersion() * Chilkatsoft.au3 UDF * TeamViewer.au3 UDF * JavaManagement UDF * VIES over SOAP * WinSCP UDF * GHAPI UDF - modest begining - comunication with GitHub REST APIErrorLog.au3 UDF - A logging Library *

My contribution to others projects or UDF based on  others projects: * _sql.au3 UDF  * POP3.au3 UDF *  RTF Printer - UDF * XML.au3 UDF * ADO.au3 UDF SMTP Mailer UDF * Dual Monitor resolution detection * * 2GUI on Dual Monitor System * _SciLexer.au3 UDF * SciTE - Lexer for console pane

Useful links: * Forum Rules * Forum etiquette *  Forum Information and FAQs * How to post code on the forum * AutoIt Online Documentation * AutoIt Online Beta Documentation * SciTE4AutoIt3 getting started * Convert text blocks to AutoIt code * Games made in Autoit * Programming related sites * Polish AutoIt Tutorial * DllCall Code Generator *

Wiki: Expand your knowledge - AutoIt Wiki * Collection of User Defined Functions * How to use HelpFile * Good coding practices in AutoIt *

OpenOffice/LibreOffice/XLS Related: WriterDemo.au3 * XLS/MDB from scratch with ADOX

IE Related:  * How to use IE.au3  UDF with  AutoIt v3.3.14.x * Why isn't Autoit able to click a Javascript Dialog? * Clicking javascript button with no ID * IE document >> save as MHT file * IETab Switcher (by LarsJ ) * HTML Entities * _IEquerySelectorAll() (by uncommon) * IE in TaskSchedulerIE Embedded Control Versioning (use IE9+ and HTML5 in a GUI) *

PDF Related:How to get reference to PDF object embeded in IE *

I encourage you to read: * Global Vars * Best Coding Practices * Please explain code used in Help file for several File functions * OOP-like approach in AutoIt * UDF-Spec Questions *  EXAMPLE: How To Catch ConsoleWrite() output to a file or to CMD *

I also encourage you to check awesome @trancexx code:  * Create COM objects from modules without any demand on user to register anything. * Another COM object registering stuffOnHungApp handlerAvoid "AutoIt Error" message box in unknown errors  * HTML editor

"Homo sum; humani nil a me alienum puto" - Publius Terentius Afer
"Program are meant to be read by humans and only incidentally for computers and execute" - Donald Knuth, "The Art of Computer Programming"
:naughty:  :ranting:, be  :) and       \\//_.

Anticipating Errors :  "Any program that accepts data from a user must include code to validate that data before sending it to the data store. You cannot rely on the data store, ...., or even your programming language to notify you of problems. You must check every byte entered by your users, making sure that data is the correct type for its field and that required fields are not empty."

Signature last update: 2021-01-03

Share this post


Link to post
Share on other sites

you can try this one:



inside

Func _INetSmtpMailCom(....

change this:

$objEmail.Send

to this:

_SaveMessageToFile($objEmail,@ScriptFullPath & '_BeforeSend.eml')
    $objEmail.Send
    _SaveMessageToFile($objEmail,@ScriptFullPath & '_AfterSend.eml')

and of course here is _SaveMessageToFile

; #FUNCTION# ====================================================================================================================
; Name ..........: _SaveMessageToFile
; Description ...:
; Syntax ........: _SaveMessageToFile($oMsg, $sFileFullPath)
; Parameters ....: $oMsg                - An unknown value.
;                  $sFileFullPath       - A string value.
; Return values .: None
; Author ........: mLipok
; Modified ......:
; Remarks .......:
; Related .......:
; Link ..........: https://msdn.microsoft.com/en-us/library/aa488396(v=exchg.65).aspx
; Example .......: No
; ===============================================================================================================================
Func _SaveMessageToFile($oMsg, $sFileFullPath)
    Local $oStm = ObjCreate("ADODB.Stream")
    $oStm.Open
    $oStm.Type = 2 ; adTypeText
    $oStm.Charset = "US-ASCII"

    $oMsg.DataSource.SaveToObject($oStm, "_Stream")

    ; https://msdn.microsoft.com/en-us/library/windows/desktop/ms676152(v=vs.85).aspx
    ; adSaveCreateOverWrite = 2
    $oStm.SaveToFile($sFileFullPath, 2)

    ; CleanUp
    $oDsrc =''
    $oStm =''

EndFunc

If this is exactly what you want then I will submit new version of this UDF.


Signature beginning:   Wondering who uses AutoIt and what it can be used for ?
* GHAPI UDF - modest beginning - communication with GitHub REST API Forum Rules *
Include Dependency Tree (Tool for analyzing script relations)
ADO.au3 UDF     POP3.au3 UDF     XML.au3 UDF    How to use IE.au3  UDF with  AutoIt v3.3.14.x  for other useful stuff click the following button

Spoiler

Any of my own code posted anywhere on the forum is available for use by others without any restriction of any kind.

My contribution (my own projects): * Debenu Quick PDF Library - UDF * Debenu PDF Viewer SDK - UDF * Acrobat Reader - ActiveX Viewer * UDF for PDFCreator v1.x.x * XZip - UDF * AppCompatFlags UDF * CrowdinAPI UDF * _WinMergeCompare2Files() * _JavaExceptionAdd() * _IsBeta() * Writing DPI Awareness App - workaround * _AutoIt_RequiredVersion() * Chilkatsoft.au3 UDF * TeamViewer.au3 UDF * JavaManagement UDF * VIES over SOAP * WinSCP UDF * GHAPI UDF - modest begining - comunication with GitHub REST APIErrorLog.au3 UDF - A logging Library *

My contribution to others projects or UDF based on  others projects: * _sql.au3 UDF  * POP3.au3 UDF *  RTF Printer - UDF * XML.au3 UDF * ADO.au3 UDF SMTP Mailer UDF * Dual Monitor resolution detection * * 2GUI on Dual Monitor System * _SciLexer.au3 UDF * SciTE - Lexer for console pane

Useful links: * Forum Rules * Forum etiquette *  Forum Information and FAQs * How to post code on the forum * AutoIt Online Documentation * AutoIt Online Beta Documentation * SciTE4AutoIt3 getting started * Convert text blocks to AutoIt code * Games made in Autoit * Programming related sites * Polish AutoIt Tutorial * DllCall Code Generator *

Wiki: Expand your knowledge - AutoIt Wiki * Collection of User Defined Functions * How to use HelpFile * Good coding practices in AutoIt *

OpenOffice/LibreOffice/XLS Related: WriterDemo.au3 * XLS/MDB from scratch with ADOX

IE Related:  * How to use IE.au3  UDF with  AutoIt v3.3.14.x * Why isn't Autoit able to click a Javascript Dialog? * Clicking javascript button with no ID * IE document >> save as MHT file * IETab Switcher (by LarsJ ) * HTML Entities * _IEquerySelectorAll() (by uncommon) * IE in TaskSchedulerIE Embedded Control Versioning (use IE9+ and HTML5 in a GUI) *

PDF Related:How to get reference to PDF object embeded in IE *

I encourage you to read: * Global Vars * Best Coding Practices * Please explain code used in Help file for several File functions * OOP-like approach in AutoIt * UDF-Spec Questions *  EXAMPLE: How To Catch ConsoleWrite() output to a file or to CMD *

I also encourage you to check awesome @trancexx code:  * Create COM objects from modules without any demand on user to register anything. * Another COM object registering stuffOnHungApp handlerAvoid "AutoIt Error" message box in unknown errors  * HTML editor

"Homo sum; humani nil a me alienum puto" - Publius Terentius Afer
"Program are meant to be read by humans and only incidentally for computers and execute" - Donald Knuth, "The Art of Computer Programming"
:naughty:  :ranting:, be  :) and       \\//_.

Anticipating Errors :  "Any program that accepts data from a user must include code to validate that data before sending it to the data store. You cannot rely on the data store, ...., or even your programming language to notify you of problems. You must check every byte entered by your users, making sure that data is the correct type for its field and that required fields are not empty."

Signature last update: 2021-01-03

Share this post


Link to post
Share on other sites

Thank you very much for the function & the link, I tried to find in MSDN, but I was not able to find anything related. Thanks again :)


73 108 111 118 101 65 117 116 111 105 116

Share this post


Link to post
Share on other sites

Do this function fit to yours need?


Signature beginning:   Wondering who uses AutoIt and what it can be used for ?
* GHAPI UDF - modest beginning - communication with GitHub REST API Forum Rules *
Include Dependency Tree (Tool for analyzing script relations)
ADO.au3 UDF     POP3.au3 UDF     XML.au3 UDF    How to use IE.au3  UDF with  AutoIt v3.3.14.x  for other useful stuff click the following button

Spoiler

Any of my own code posted anywhere on the forum is available for use by others without any restriction of any kind.

My contribution (my own projects): * Debenu Quick PDF Library - UDF * Debenu PDF Viewer SDK - UDF * Acrobat Reader - ActiveX Viewer * UDF for PDFCreator v1.x.x * XZip - UDF * AppCompatFlags UDF * CrowdinAPI UDF * _WinMergeCompare2Files() * _JavaExceptionAdd() * _IsBeta() * Writing DPI Awareness App - workaround * _AutoIt_RequiredVersion() * Chilkatsoft.au3 UDF * TeamViewer.au3 UDF * JavaManagement UDF * VIES over SOAP * WinSCP UDF * GHAPI UDF - modest begining - comunication with GitHub REST APIErrorLog.au3 UDF - A logging Library *

My contribution to others projects or UDF based on  others projects: * _sql.au3 UDF  * POP3.au3 UDF *  RTF Printer - UDF * XML.au3 UDF * ADO.au3 UDF SMTP Mailer UDF * Dual Monitor resolution detection * * 2GUI on Dual Monitor System * _SciLexer.au3 UDF * SciTE - Lexer for console pane

Useful links: * Forum Rules * Forum etiquette *  Forum Information and FAQs * How to post code on the forum * AutoIt Online Documentation * AutoIt Online Beta Documentation * SciTE4AutoIt3 getting started * Convert text blocks to AutoIt code * Games made in Autoit * Programming related sites * Polish AutoIt Tutorial * DllCall Code Generator *

Wiki: Expand your knowledge - AutoIt Wiki * Collection of User Defined Functions * How to use HelpFile * Good coding practices in AutoIt *

OpenOffice/LibreOffice/XLS Related: WriterDemo.au3 * XLS/MDB from scratch with ADOX

IE Related:  * How to use IE.au3  UDF with  AutoIt v3.3.14.x * Why isn't Autoit able to click a Javascript Dialog? * Clicking javascript button with no ID * IE document >> save as MHT file * IETab Switcher (by LarsJ ) * HTML Entities * _IEquerySelectorAll() (by uncommon) * IE in TaskSchedulerIE Embedded Control Versioning (use IE9+ and HTML5 in a GUI) *

PDF Related:How to get reference to PDF object embeded in IE *

I encourage you to read: * Global Vars * Best Coding Practices * Please explain code used in Help file for several File functions * OOP-like approach in AutoIt * UDF-Spec Questions *  EXAMPLE: How To Catch ConsoleWrite() output to a file or to CMD *

I also encourage you to check awesome @trancexx code:  * Create COM objects from modules without any demand on user to register anything. * Another COM object registering stuffOnHungApp handlerAvoid "AutoIt Error" message box in unknown errors  * HTML editor

"Homo sum; humani nil a me alienum puto" - Publius Terentius Afer
"Program are meant to be read by humans and only incidentally for computers and execute" - Donald Knuth, "The Art of Computer Programming"
:naughty:  :ranting:, be  :) and       \\//_.

Anticipating Errors :  "Any program that accepts data from a user must include code to validate that data before sending it to the data store. You cannot rely on the data store, ...., or even your programming language to notify you of problems. You must check every byte entered by your users, making sure that data is the correct type for its field and that required fields are not empty."

Signature last update: 2021-01-03

Share this post


Link to post
Share on other sites

Do you compare results from:

_SaveMessageToFile($objEmail,@ScriptFullPath & '_BeforeSend.eml')
    $objEmail.Send
    _SaveMessageToFile($objEmail,@ScriptFullPath & '_AfterSend.eml')

Can you say something more about this two eml file ?


Signature beginning:   Wondering who uses AutoIt and what it can be used for ?
* GHAPI UDF - modest beginning - communication with GitHub REST API Forum Rules *
Include Dependency Tree (Tool for analyzing script relations)
ADO.au3 UDF     POP3.au3 UDF     XML.au3 UDF    How to use IE.au3  UDF with  AutoIt v3.3.14.x  for other useful stuff click the following button

Spoiler

Any of my own code posted anywhere on the forum is available for use by others without any restriction of any kind.

My contribution (my own projects): * Debenu Quick PDF Library - UDF * Debenu PDF Viewer SDK - UDF * Acrobat Reader - ActiveX Viewer * UDF for PDFCreator v1.x.x * XZip - UDF * AppCompatFlags UDF * CrowdinAPI UDF * _WinMergeCompare2Files() * _JavaExceptionAdd() * _IsBeta() * Writing DPI Awareness App - workaround * _AutoIt_RequiredVersion() * Chilkatsoft.au3 UDF * TeamViewer.au3 UDF * JavaManagement UDF * VIES over SOAP * WinSCP UDF * GHAPI UDF - modest begining - comunication with GitHub REST APIErrorLog.au3 UDF - A logging Library *

My contribution to others projects or UDF based on  others projects: * _sql.au3 UDF  * POP3.au3 UDF *  RTF Printer - UDF * XML.au3 UDF * ADO.au3 UDF SMTP Mailer UDF * Dual Monitor resolution detection * * 2GUI on Dual Monitor System * _SciLexer.au3 UDF * SciTE - Lexer for console pane

Useful links: * Forum Rules * Forum etiquette *  Forum Information and FAQs * How to post code on the forum * AutoIt Online Documentation * AutoIt Online Beta Documentation * SciTE4AutoIt3 getting started * Convert text blocks to AutoIt code * Games made in Autoit * Programming related sites * Polish AutoIt Tutorial * DllCall Code Generator *

Wiki: Expand your knowledge - AutoIt Wiki * Collection of User Defined Functions * How to use HelpFile * Good coding practices in AutoIt *

OpenOffice/LibreOffice/XLS Related: WriterDemo.au3 * XLS/MDB from scratch with ADOX

IE Related:  * How to use IE.au3  UDF with  AutoIt v3.3.14.x * Why isn't Autoit able to click a Javascript Dialog? * Clicking javascript button with no ID * IE document >> save as MHT file * IETab Switcher (by LarsJ ) * HTML Entities * _IEquerySelectorAll() (by uncommon) * IE in TaskSchedulerIE Embedded Control Versioning (use IE9+ and HTML5 in a GUI) *

PDF Related:How to get reference to PDF object embeded in IE *

I encourage you to read: * Global Vars * Best Coding Practices * Please explain code used in Help file for several File functions * OOP-like approach in AutoIt * UDF-Spec Questions *  EXAMPLE: How To Catch ConsoleWrite() output to a file or to CMD *

I also encourage you to check awesome @trancexx code:  * Create COM objects from modules without any demand on user to register anything. * Another COM object registering stuffOnHungApp handlerAvoid "AutoIt Error" message box in unknown errors  * HTML editor

"Homo sum; humani nil a me alienum puto" - Publius Terentius Afer
"Program are meant to be read by humans and only incidentally for computers and execute" - Donald Knuth, "The Art of Computer Programming"
:naughty:  :ranting:, be  :) and       \\//_.

Anticipating Errors :  "Any program that accepts data from a user must include code to validate that data before sending it to the data store. You cannot rely on the data store, ...., or even your programming language to notify you of problems. You must check every byte entered by your users, making sure that data is the correct type for its field and that required fields are not empty."

Signature last update: 2021-01-03

Share this post


Link to post
Share on other sites

Error code: 2

Error Hex Number: 80020009

Description: The transport failed to connect to the server

Description (rc): The transport failed to connect to the server

ScriptLine: 190 ($objEmail.Send)

P.S. i dont see any difference in Jos' script



Share this post


Link to post
Share on other sites

Error code: 2

Error Hex Number: 80020009

Description: The transport failed to connect to the server

Description (rc): The transport failed to connect to the server

ScriptLine: 190 ($objEmail.Send)

P.S. i dont see any difference in Jos' script



Nomally this means you didn't provide the correct server and/or port as it is unable to connect.... and correct ...there difference is the "wrapping". :)


SciTE4AutoIt3 Full installer Download page   - Beta files       Read before posting     How to post scriptsource   Forum etiquette  Forum Rules

Live for the present,
Dream of the future,
Learn from the past.
  :)

Share this post


Link to post
Share on other sites

there's still an error in the UDF, when using the latest version of autoit, 3.8.1 there's no error, but i'm using the latest version. see the picture here:


Edited by legend

Share this post


Link to post
Share on other sites

This problem is related to Au3Check not to AutoIt or this UDF.

Please download newer version from here:

https://www.autoitscript.com/autoit3/scite/download/beta_SciTE4AutoIt3/Au3Check.exe


Signature beginning:   Wondering who uses AutoIt and what it can be used for ?
* GHAPI UDF - modest beginning - communication with GitHub REST API Forum Rules *
Include Dependency Tree (Tool for analyzing script relations)
ADO.au3 UDF     POP3.au3 UDF     XML.au3 UDF    How to use IE.au3  UDF with  AutoIt v3.3.14.x  for other useful stuff click the following button

Spoiler

Any of my own code posted anywhere on the forum is available for use by others without any restriction of any kind.

My contribution (my own projects): * Debenu Quick PDF Library - UDF * Debenu PDF Viewer SDK - UDF * Acrobat Reader - ActiveX Viewer * UDF for PDFCreator v1.x.x * XZip - UDF * AppCompatFlags UDF * CrowdinAPI UDF * _WinMergeCompare2Files() * _JavaExceptionAdd() * _IsBeta() * Writing DPI Awareness App - workaround * _AutoIt_RequiredVersion() * Chilkatsoft.au3 UDF * TeamViewer.au3 UDF * JavaManagement UDF * VIES over SOAP * WinSCP UDF * GHAPI UDF - modest begining - comunication with GitHub REST APIErrorLog.au3 UDF - A logging Library *

My contribution to others projects or UDF based on  others projects: * _sql.au3 UDF  * POP3.au3 UDF *  RTF Printer - UDF * XML.au3 UDF * ADO.au3 UDF SMTP Mailer UDF * Dual Monitor resolution detection * * 2GUI on Dual Monitor System * _SciLexer.au3 UDF * SciTE - Lexer for console pane

Useful links: * Forum Rules * Forum etiquette *  Forum Information and FAQs * How to post code on the forum * AutoIt Online Documentation * AutoIt Online Beta Documentation * SciTE4AutoIt3 getting started * Convert text blocks to AutoIt code * Games made in Autoit * Programming related sites * Polish AutoIt Tutorial * DllCall Code Generator *

Wiki: Expand your knowledge - AutoIt Wiki * Collection of User Defined Functions * How to use HelpFile * Good coding practices in AutoIt *

OpenOffice/LibreOffice/XLS Related: WriterDemo.au3 * XLS/MDB from scratch with ADOX

IE Related:  * How to use IE.au3  UDF with  AutoIt v3.3.14.x * Why isn't Autoit able to click a Javascript Dialog? * Clicking javascript button with no ID * IE document >> save as MHT file * IETab Switcher (by LarsJ ) * HTML Entities * _IEquerySelectorAll() (by uncommon) * IE in TaskSchedulerIE Embedded Control Versioning (use IE9+ and HTML5 in a GUI) *

PDF Related:How to get reference to PDF object embeded in IE *

I encourage you to read: * Global Vars * Best Coding Practices * Please explain code used in Help file for several File functions * OOP-like approach in AutoIt * UDF-Spec Questions *  EXAMPLE: How To Catch ConsoleWrite() output to a file or to CMD *

I also encourage you to check awesome @trancexx code:  * Create COM objects from modules without any demand on user to register anything. * Another COM object registering stuffOnHungApp handlerAvoid "AutoIt Error" message box in unknown errors  * HTML editor

"Homo sum; humani nil a me alienum puto" - Publius Terentius Afer
"Program are meant to be read by humans and only incidentally for computers and execute" - Donald Knuth, "The Art of Computer Programming"
:naughty:  :ranting:, be  :) and       \\//_.

Anticipating Errors :  "Any program that accepts data from a user must include code to validate that data before sending it to the data store. You cannot rely on the data store, ...., or even your programming language to notify you of problems. You must check every byte entered by your users, making sure that data is the correct type for its field and that required fields are not empty."

Signature last update: 2021-01-03

Share this post


Link to post
Share on other sites

Thank you for the contribution, @mLipok.  When I try compiling it the errors shown below occur.  A few minutes before finding yours I successfully compiled and used the "original" from @JOS.  Any suggestions?  Also, have you written anything at noob level about how yours differs from the original and why you wrote it?



mLipok_udf_error.thumb.png.18c9b3a0da138

Share this post


Link to post
Share on other sites

I will check when I back ... edit: home ,(now I'm at client office)





Edited by mLipok

Signature beginning:   Wondering who uses AutoIt and what it can be used for ?
* GHAPI UDF - modest beginning - communication with GitHub REST API Forum Rules *
Include Dependency Tree (Tool for analyzing script relations)
ADO.au3 UDF     POP3.au3 UDF     XML.au3 UDF    How to use IE.au3  UDF with  AutoIt v3.3.14.x  for other useful stuff click the following button

Spoiler

Any of my own code posted anywhere on the forum is available for use by others without any restriction of any kind.

My contribution (my own projects): * Debenu Quick PDF Library - UDF * Debenu PDF Viewer SDK - UDF * Acrobat Reader - ActiveX Viewer * UDF for PDFCreator v1.x.x * XZip - UDF * AppCompatFlags UDF * CrowdinAPI UDF * _WinMergeCompare2Files() * _JavaExceptionAdd() * _IsBeta() * Writing DPI Awareness App - workaround * _AutoIt_RequiredVersion() * Chilkatsoft.au3 UDF * TeamViewer.au3 UDF * JavaManagement UDF * VIES over SOAP * WinSCP UDF * GHAPI UDF - modest begining - comunication with GitHub REST APIErrorLog.au3 UDF - A logging Library *

My contribution to others projects or UDF based on  others projects: * _sql.au3 UDF  * POP3.au3 UDF *  RTF Printer - UDF * XML.au3 UDF * ADO.au3 UDF SMTP Mailer UDF * Dual Monitor resolution detection * * 2GUI on Dual Monitor System * _SciLexer.au3 UDF * SciTE - Lexer for console pane

Useful links: * Forum Rules * Forum etiquette *  Forum Information and FAQs * How to post code on the forum * AutoIt Online Documentation * AutoIt Online Beta Documentation * SciTE4AutoIt3 getting started * Convert text blocks to AutoIt code * Games made in Autoit * Programming related sites * Polish AutoIt Tutorial * DllCall Code Generator *

Wiki: Expand your knowledge - AutoIt Wiki * Collection of User Defined Functions * How to use HelpFile * Good coding practices in AutoIt *

OpenOffice/LibreOffice/XLS Related: WriterDemo.au3 * XLS/MDB from scratch with ADOX

IE Related:  * How to use IE.au3  UDF with  AutoIt v3.3.14.x * Why isn't Autoit able to click a Javascript Dialog? * Clicking javascript button with no ID * IE document >> save as MHT file * IETab Switcher (by LarsJ ) * HTML Entities * _IEquerySelectorAll() (by uncommon) * IE in TaskSchedulerIE Embedded Control Versioning (use IE9+ and HTML5 in a GUI) *

PDF Related:How to get reference to PDF object embeded in IE *

I encourage you to read: * Global Vars * Best Coding Practices * Please explain code used in Help file for several File functions * OOP-like approach in AutoIt * UDF-Spec Questions *  EXAMPLE: How To Catch ConsoleWrite() output to a file or to CMD *

I also encourage you to check awesome @trancexx code:  * Create COM objects from modules without any demand on user to register anything. * Another COM object registering stuffOnHungApp handlerAvoid "AutoIt Error" message box in unknown errors  * HTML editor

"Homo sum; humani nil a me alienum puto" - Publius Terentius Afer
"Program are meant to be read by humans and only incidentally for computers and execute" - Donald Knuth, "The Art of Computer Programming"
:naughty:  :ranting:, be  :) and       \\//_.

Anticipating Errors :  "Any program that accepts data from a user must include code to validate that data before sending it to the data store. You cannot rely on the data store, ...., or even your programming language to notify you of problems. You must check every byte entered by your users, making sure that data is the correct type for its field and that required fields are not empty."

Signature last update: 2021-01-03

Share this post


Link to post
Share on other sites

Thank you for the contribution, @mLipok.  When I try compiling it the errors shown below occur.  A few minutes before finding yours I successfully compiled and used the "original" from @JOS.  Any suggestions?  Also, have you written anything at noob level about how yours differs from the original and why you wrote it?



mLipok_udf_error.thumb.png.18c9b3a0da138

Small imp crept into my code :)
Thanks for revealing it.

I see now in the following snippet you are comment first two line and uncomennt two last line:

Local $iIPPort = 25 ; port used for sending the mail
    Local $bSSL = False ; enables/disables secure socket layer sending - set to True if using httpS
    ; Local $IPPort = 465  ; GMAIL port used for sending the mail
    ; Local $bSSL = True   ; GMAIL enables/disables secure socket layer sending - set to True if using httpS

but it:

Local $IPPort = 465

should be:

Local $iIPPort = 465

how you see there is small imp ;)
       $iIPPort <> $IPPort



mLipok



EDIT:

Also, have you written anything at noob level about how yours differs from the original and why you wrote it?

Reason 1.
Post #1

Creating this modification, I had to:

1. Object Error Handler used only for the duration of the function of Use,
2. Automatic ErrorHandler CleanUp so that previous ErrorHandler took the job.
3. Ability to get ErrorNumber and ErrorDescription ErrorScriptLine information even after the end of the function
4. Elimination of most global variables

Reason 2:

Entire Post #3:


Reason 3:



Edited by mLipok

Signature beginning:   Wondering who uses AutoIt and what it can be used for ?
* GHAPI UDF - modest beginning - communication with GitHub REST API Forum Rules *
Include Dependency Tree (Tool for analyzing script relations)
ADO.au3 UDF     POP3.au3 UDF     XML.au3 UDF    How to use IE.au3  UDF with  AutoIt v3.3.14.x  for other useful stuff click the following button

Spoiler

Any of my own code posted anywhere on the forum is available for use by others without any restriction of any kind.

My contribution (my own projects): * Debenu Quick PDF Library - UDF * Debenu PDF Viewer SDK - UDF * Acrobat Reader - ActiveX Viewer * UDF for PDFCreator v1.x.x * XZip - UDF * AppCompatFlags UDF * CrowdinAPI UDF * _WinMergeCompare2Files() * _JavaExceptionAdd() * _IsBeta() * Writing DPI Awareness App - workaround * _AutoIt_RequiredVersion() * Chilkatsoft.au3 UDF * TeamViewer.au3 UDF * JavaManagement UDF * VIES over SOAP * WinSCP UDF * GHAPI UDF - modest begining - comunication with GitHub REST APIErrorLog.au3 UDF - A logging Library *

My contribution to others projects or UDF based on  others projects: * _sql.au3 UDF  * POP3.au3 UDF *  RTF Printer - UDF * XML.au3 UDF * ADO.au3 UDF SMTP Mailer UDF * Dual Monitor resolution detection * * 2GUI on Dual Monitor System * _SciLexer.au3 UDF * SciTE - Lexer for console pane

Useful links: * Forum Rules * Forum etiquette *  Forum Information and FAQs * How to post code on the forum * AutoIt Online Documentation * AutoIt Online Beta Documentation * SciTE4AutoIt3 getting started * Convert text blocks to AutoIt code * Games made in Autoit * Programming related sites * Polish AutoIt Tutorial * DllCall Code Generator *

Wiki: Expand your knowledge - AutoIt Wiki * Collection of User Defined Functions * How to use HelpFile * Good coding practices in AutoIt *

OpenOffice/LibreOffice/XLS Related: WriterDemo.au3 * XLS/MDB from scratch with ADOX

IE Related:  * How to use IE.au3  UDF with  AutoIt v3.3.14.x * Why isn't Autoit able to click a Javascript Dialog? * Clicking javascript button with no ID * IE document >> save as MHT file * IETab Switcher (by LarsJ ) * HTML Entities * _IEquerySelectorAll() (by uncommon) * IE in TaskSchedulerIE Embedded Control Versioning (use IE9+ and HTML5 in a GUI) *

PDF Related:How to get reference to PDF object embeded in IE *

I encourage you to read: * Global Vars * Best Coding Practices * Please explain code used in Help file for several File functions * OOP-like approach in AutoIt * UDF-Spec Questions *  EXAMPLE: How To Catch ConsoleWrite() output to a file or to CMD *

I also encourage you to check awesome @trancexx code:  * Create COM objects from modules without any demand on user to register anything. * Another COM object registering stuffOnHungApp handlerAvoid "AutoIt Error" message box in unknown errors  * HTML editor

"Homo sum; humani nil a me alienum puto" - Publius Terentius Afer
"Program are meant to be read by humans and only incidentally for computers and execute" - Donald Knuth, "The Art of Computer Programming"
:naughty:  :ranting:, be  :) and       \\//_.

Anticipating Errors :  "Any program that accepts data from a user must include code to validate that data before sending it to the data store. You cannot rely on the data store, ...., or even your programming language to notify you of problems. You must check every byte entered by your users, making sure that data is the correct type for its field and that required fields are not empty."

Signature last update: 2021-01-03

Share this post


Link to post
Share on other sites

Thank you mLipok!  Works great.

For morons like me I suggest you edit the Example Script comment to read:

;##################################
; Example Script  - TO USE THE EXAMPLE you must remove the semicolon before _Example() below.
;##################################

Also, please update the downloadable version in your OP as it does not contain the imp fix.

Edited by timmy2
suggestions

Share this post


Link to post
Share on other sites

@mLipok,  would you please describe the meanings of the error values reported in the message box at the end of your Example?

@error
_INetSmtpMailCom_ErrHexNumber()
_INetSmtpMailCom_ErrDescription()
$rc

I wonder if there is any way to determine from the above info problems like "the recipient address wasn't found" or "the sender's password is invalid" -- just the basic stuff that can go wrong.  It would be nice have a hint as to the cause.

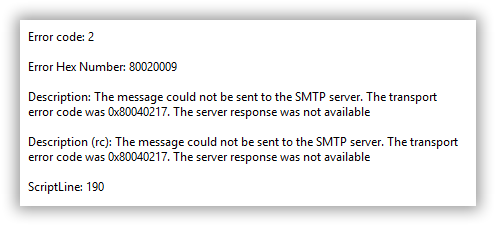

When I corrupt the password or recipient address and run the example I get roughly the same uninformative message.

gmailsend_error.thumb.png.1a9218e2abd742

Share this post


Link to post
Share on other sites

@mLipok,  would you please describe the meanings of the error values reported in the message box at the end of your Example?

@error
_INetSmtpMailCom_ErrHexNumber()
_INetSmtpMailCom_ErrDescription()
$rc

I wonder if there is any way to determine from the above info problems like "the recipient address wasn't found" or "the sender's password is invalid" -- just the basic stuff that can go wrong.  It would be nice have a hint as to the cause.

When I corrupt the password or recipient address and run the example I get roughly the same uninformative message.

gmailsend_error.thumb.png.1a9218e2abd742

Share this post


Link to post
Share on other sites

Create an account or sign in to comment

You need to be a member in order to leave a comment

Create an account

Sign up for a new account in our community. It's easy!

Register a new account

Sign in

Already have an account? Sign in here.

Sign In Now

  • Recently Browsing   0 members

    No registered users viewing this page.

  • Similar Content

    • By mLipok
      A new quick/small UDF.
      #include-once #include <AutoItConstants.au3> #include <MsgBoxConstants.au3> Global $RUN_WRAPPER_PID Global Enum _ $RUNWRAPPER_ERR_SUCCESS, _ $RUNWRAPPER_ERR_GENERAL, _ $RUNWRAPPER_ERR_COUNTER Global Enum _ $RUNWRAPPER_EXT_DEFAULT, _ $RUNWRAPPER_EXT_NOT_FINISHED_YET, _ $RUNWRAPPER_EXT_COUNTER If Not @Compiled And @ScriptName = 'Run_Wrapper.au3' Then _Example_for_Run_Wrapper() Func _Example_for_Run_Wrapper() _Run_Wrapper('ping 8.8.8.8') If @error then Return SetError(@error, @extended, 0) While $RUN_WRAPPER_PID Sleep(10) _Run_Wrapper_GetStdout() If @error Then _Run_Wrapper_GetStderr() If @error Then ExitLoop EndIf WEnd MsgBox($MB_OK + $MB_TOPMOST + $MB_ICONINFORMATION, 'Information #' & @ScriptLineNumber, _ _Run_Wrapper_GetStdout() & @CRLF & _ _Run_Wrapper_GetStderr() _ ) EndFunc ;==>_Example_for_Run_Wrapper Func _Run_Wrapper($sCommand) _Run_Wrapper_GetStdout(Null) _Run_Wrapper_GetStderr(Null) $RUN_WRAPPER_PID = Run(@ComSpec & " /c " & $sCommand, @SystemDir, @SW_HIDE, $STDERR_CHILD + $STDOUT_CHILD) If @error Then Return SetError($RUNWRAPPER_ERR_GENERAL, $RUNWRAPPER_EXT_DEFAULT, 0) Return $RUN_WRAPPER_PID EndFunc ;==>_Run_Wrapper Func _Run_Wrapper_GetStdout($v_Reset = Default) Local Static $s_StdOut = "" If IsKeyword($v_Reset) And $v_Reset = Null Then $s_StdOut = '' $s_StdOut &= StdoutRead($RUN_WRAPPER_PID) If @error Then Return SetError(@error, $RUNWRAPPER_EXT_DEFAULT, $s_StdOut) Return SetExtended($RUNWRAPPER_EXT_NOT_FINISHED_YET, $s_StdOut) EndFunc ;==>_Run_Wrapper_GetStdout Func _Run_Wrapper_GetStderr($v_Reset = Default) Local Static $s_StdErr = '' If IsKeyword($v_Reset) And $v_Reset = Null Then $s_StdErr = '' $s_StdErr &= StderrRead($RUN_WRAPPER_PID) If @error Then Return SetError(@error, $RUNWRAPPER_EXT_DEFAULT, $s_StdErr) Return SetExtended($RUNWRAPPER_EXT_NOT_FINISHED_YET, $s_StdErr) EndFunc ;==>_Run_Wrapper_GetStderr

    • By mLipok
      Yeasterday I found this:
      https://stackoverflow.com/questions/496751/base64-encode-string-in-vbscript
      https://www.motobit.com/tips/detpg_quoted-printable-encode/
      https://www.motobit.com/tips/detpg_quoted-printable-decode/
      Here is AutoIt Version:
      #Region - QuotedPrintableEncode_Binary ;~ https://www.motobit.com/tips/detpg_quoted-printable-encode/ ; This article contains a short function for quoted printable encoding, using CDO.Message object. ; You can use this function in ASP or .VBS files (wsh - windows scripting host files), or directly in VBA (visual basic 5, 6, Word, Excel, Access and Outlook scripting). ; A source data of this function is a String variable and charset parameter of destination data. ; The source string (16bit VBScript BSTR variable) is first converted to a destination charset, using ADODB.Stream (GetDecodedContentStream). ; If the destination charset is not specified, the ADODB.Stream uses "iso-8859-1" by default. ; The EncodedContentStream then converts the binary data to a Quoted-Printable output string. ; VBScript QuotedPrintable encoding ; 2005 Antonin Foller http://www.motobit.com ; $s_SourceString - string variable with source data, BSTR type ; $s_CharSet - $s_CharSet of the destination data Func _QuotedPrintable_Encode($s_SourceString, $s_CharSet) ;Create CDO.$oCDOMessage object For the encoding. Local $oCDOMessage = ObjCreate("CDO.Message") ; Set the encoding $oCDOMessage.BodyPart.ContentTransferEncoding = "quoted-printable" ; Get the data $oStream To write source string data ; As ADODB.$oStream Local $oStream = $oCDOMessage.BodyPart.GetDecodedContentStream ; Set the $s_CharSet For the destination data, If required If StringLen($s_CharSet) > 0 Then $oStream.CharSet = $s_CharSet ; Write the VBScript string To the $oStream. $oStream.WriteText($s_SourceString) ; Store the data To the $oCDOMessage BodyPart $oStream.Flush ; Get an encoded $oStream $oStream = $oCDOMessage.BodyPart.GetEncodedContentStream ; read the encoded data As a string Return $oStream.ReadText ; You can use Read method To get a binary data. ; $oStream.Type = 1 ; Return $oStream.Read EndFunc ;==>QuotedPrintableEncode ; Next is a binary variant of the function, with bytearray (VT_UI1 VT_ARRAY) as input and output. ; You can simply modify these two functions for combination of binary and string input and output parameters. ; This Func is used on Quoted-printable encoder online sample page. ; VBScript QuotedPrintableEncode_Binary encoding ; 2005 Antonin Foller http://www.motobit.com Func _QuotedPrintable_Encode_Binary($dSourceBinary) ; Create CDO.$oCDOMessage object For the encoding. Local $oCDOMessage = ObjCreate("CDO.Message") ; Set the encoding $oCDOMessage.BodyPart.ContentTransferEncoding = "quoted-printable" ; Get the data $oStream To write source string data ; As ADODB.$oStream Local $oStream = $oCDOMessage.BodyPart.GetDecodedContentStream ; Set the type of the $oStream To adTypeBinary. $oStream.Type = 1 ; Write the VBScript string To the $oStream. $oStream.Write($dSourceBinary) ; Store the data To the $oCDOMessage BodyPart $oStream.Flush ; Get an encoded $oStream $oStream = $oCDOMessage.BodyPart.GetEncodedContentStream ; Set the type of the $oStream To adTypeBinary. $oStream.Type = 1 ; You can use Read method To get a binary data. Return $oStream.Read EndFunc ;==>QuotedPrintableEncode_Binary #EndRegion - _QuotedPrintable_Encode_Binary #Region - _QuotedPrintable_Decode_Binary ;~ https://www.motobit.com/tips/detpg_quoted-printable-decode/ ; This article contains a short Func for quoted printable decoding, using CDO.Message object. ; You can use this Func in ASP or .VBS files (wsh - windows scripting host files), or directly in VBA (visual basic 5, 6, Word, Excel, Access and Outlook scripting). ; VBScript QuotedPrintableDecode decoding Function ; 2005 Antonin Foller http://www.motobit.com Func _QuotedPrintable_Decode($s_SourceData, $s_CharSet) ; Create CDO.Message object For the encoding. Local $oCDO_Message = ObjCreate("CDO.Message") ; Set the encoding $oCDO_Message.BodyPart.ContentTransferEncoding = "quoted-printable" ; Get the data $oStream To write source string data ; As ADODB.$oStream Local $oStream = $oCDO_Message.BodyPart.GetEncodedContentStream If VarGetType($s_SourceData) = 'String' Then ; Set $s_CharSet To base windows $s_CharSet $oStream.CharSet = "windows-1250" ; Write the VBScript string To the $oStream. $oStream.WriteText($s_SourceData) Else ; Set the type of the $oStream To adTypeBinary. $oStream.Type = 1 ; Write the source binary data To the $oStream. $oStream.Write($s_SourceData) EndIf ; Store the data To the $oCDO_Message BodyPart $oStream.Flush ; Get an encoded $oStream $oStream = $oCDO_Message.BodyPart.GetDecodedContentStream ; Set the type of the $oStream To adTypeBinary. $oStream.CharSet = $s_CharSet ; You can use Read method To get a binary data. Return $oStream.ReadText EndFunc ;==>_QuotedPrintable_Decode ; Next is a binary variant of the function, with bytearray (VT_UI1 VT_ARRAY) as output. ; The _QuotedPrintable_Decode_Binary then converts the binary data to a Quoted-Printable output string. ; Output of this Func are binary decoded data (you can use it, for example, as a data parameter of Response. ; BinaryWrite method) You can simply modify these two functions for combination of binary and string input and output parameters. ; This Func is used on Quoted-printable decoder online sample page. ; VBScript _QuotedPrintable_Decode_Binary decoding Function ; 2005 Antonin Foller http://www.motobit.com Func _QuotedPrintable_Decode_Binary($s_SourceData) ; Create CDO.Message object For the encoding. Local $oCDO_Message = ObjCreate("CDO.Message") ; Set the encoding $oCDO_Message.BodyPart.ContentTransferEncoding = "quoted-printable" ; Get the data $oStream To write source string data ; As ADODB.$oStream Local $oStream = $oCDO_Message.BodyPart.GetEncodedContentStream If VarGetType($s_SourceData) = 'String' Then ; Write the VBScript string To the $oStream. $oStream.Write($s_SourceData) Else ; Set the type of the $oStream To adTypeBinary. $oStream.Type = 1 ; Write the source binary data To the $oStream. $oStream.Write($s_SourceData) EndIf ; Store the data To the $oCDO_Message BodyPart $oStream.Flush ; Get an encoded $oStream $oStream = $oCDO_Message.BodyPart.GetDecodedContentStream ; Set the type of the $oStream To adTypeBinary. $oStream.Type = 1 ; You can use Read method To get a binary data. Return $oStream.Read EndFunc ;==>_QuotedPrintable_Decode_Binary #EndRegion - _QuotedPrintable_Decode_Binary
      REMARK: License note from: https://www.motobit.com/tips/detpg_quoted-printable-decode/ and https://www.motobit.com/tips/detpg_quoted-printable-encode/:

    • By kurtykurtyboy
      GuiFlatButton is a UDF to easily create regular buttons with different colors for background, foreground, border, hover, focus, etc..
      This started as an effort to change the background color of a button and eventually grew into a full UDF.
      If you've looked around forums for changing button background colors, you have probably noticed that each proposed workaround has its own set of issues/side-effects. The answers usually circle back to 'use ownerdrawn buttons' and 'not worth it'. Well, now it is possible for anyone to easily create ownerdrawn buttons - totally worth it!
      Some issues with other workarounds such as drawing with GDI+ or using a colored label as a 'button':
      Not 'real' buttons so you lose built-in functionality that windows gives to buttons Messy / inefficient code in the main while loop to check for mouse position Slow to respond to click, paint, etc... Having to deal with GUIRegisterMsg messages Not straight-forward to implement GuiFlatButton is not a workaround; it is a technique to respond to Windows' built-in owner-drawn button events.
      With minimal effort, we can now create true simple colored buttons.
      The idea is to create an owner-drawn button using GUICtrlCreateButton then subclass the GUI and controls to handle the button-specific events to paint it however we want.
      This UDF magically does all of this for us! No need to worry about event handling or main while loop logic.

      How to use
      It couldn't be any easier! Simply create a new button using the familiar syntax. This creates an ownerdrawn button with default colors.
      $mybutton1 = GuiFlatButton_Create("Button 1", 78, 20, 120, 40) If you want to change the background and text colors:
      GuiFlatButton_SetBkColor(-1, 0x5555FF) GuiFlatButton_SetColor(-1, 0xFFFFFF) Advanced Usage
      Set background/text/border all at once
      GuiFlatButton_SetColors(-1, 0x0000FF, 0xFFFFFF, 0x9999FF) Set ALL colors for ALL button states! (normal, focus, hover, selected)
      Local $aColorsEx = [0x0000FF, 0xFFFFFF, -2, 0x4444FF, 0xFFFFFF, 0xAAAAFF, 0x6666FF, 0xFFFFFF, 0xCCCCFF, 0x0000EE, 0xFFFFFF, 0x7777EE] GuiFlatButton_SetColorsEx(-1, $aColorsEx) Set default colors to apply to any future buttons
      ;set colors GuiFlatButton_SetDefaultColors(0x0000FF, 0xFFFFFF, 0x9999FF) ;create buttons $mybutton1 = GuiFlatButton_Create("Button 1", 12, 20, 120, 40) $mybutton2 = GuiFlatButton_Create("Button 2", 143, 20, 120, 40) Set ALL color defaults
      ;set colors Local $aColorsEx = [0x0000FF, 0xFFFFFF, -2, 0x4444FF, 0xFFFFFF, 0xAAAAFF, 0x6666FF, 0xFFFFFF, 0xCCCCFF, 0x0000EE, 0xFFFFFF, 0x7777EE] GuiFlatButton_SetDefaultColorsEx($aColorsEx) ;create buttons $mybutton1 = GuiFlatButton_Create("Button 1", 12, 20, 120, 40) $mybutton2 = GuiFlatButton_Create("Button 2", 143, 20, 120, 40)
      Available Functions

      Simple Example

      #include <GUIConstantsEx.au3> #include <MsgBoxConstants.au3> #include "GuiFlatButton.au3" Example() ;GUI with one button Func Example() Local $hGUI, $mybutton1 $hGUI = GUICreate("GuiFlatButton Ex0", 275, 120) GUISetBkColor(0x333333) $idLabel = GUICtrlCreateLabel("Click the button", 10, 100, 150, 30) GUICtrlSetColor(-1, 0xFFFFFF) ;create new button then set the background and foreground colors $mybutton1 = GuiFlatButton_Create("Button 1", 78, 20, 120, 40) GuiFlatButton_SetBkColor(-1, 0x5555FF) GuiFlatButton_SetColor(-1, 0xFFFFFF) GUISetState(@SW_SHOW, $hGUI) Local $i = 0 Local $iMsg While 1 $iMsg = GUIGetMsg() Switch $iMsg Case $GUI_EVENT_CLOSE ExitLoop Case $mybutton1 $i += 1 GUICtrlSetData($idLabel, $i) ConsoleWrite($i & @CRLF) EndSwitch Sleep(10) WEnd GUIDelete() EndFunc ;==>Example
      Menu/Toolbar Example

      #include <GUIConstantsEx.au3> #include <MsgBoxConstants.au3> #include "GuiFlatButton.au3" Example() ;Example GUI with toolbar Func Example() Local $hGUI, $idLabel, $aButtons, $iTbSize $hGUI = GUICreate("GuiFlatButton Ex2", 300, 200) GUISetBkColor(0x444444) $idLabel = GUICtrlCreateLabel("Click a button", 10, 180, 150, 30) GUICtrlSetColor(-1, 0xFFFFFF) $aButtons = createToolbar() $iTbSize = UBound($aButtons) GUISetState(@SW_SHOW, $hGUI) Local $i = 0 Local $iMsg While 1 $iMsg = GUIGetMsg() Switch $iMsg Case $GUI_EVENT_CLOSE ExitLoop Case $aButtons[0] To $aButtons[$iTbSize - 1] ConsoleWrite("1") GUICtrlSetData($idLabel, GuiFlatButton_Read($iMsg)) EndSwitch Sleep(10) WEnd GUIDelete() EndFunc ;==>Example Func createToolbar() Local $aButtons[6] Local $bkColor = 0x777777 Local $textColor = 0xFFFFFF Local $borderColor = 0x999999 Local $aBtnClrs[12] = [0x777777, 0xFFFFFF, $GUI_BKCOLOR_TRANSPARENT, 0x888888, 0xFFFFFF, $GUI_BKCOLOR_TRANSPARENT, 0x999999, 0xFFFFFF, $GUI_BKCOLOR_TRANSPARENT, 0x666666, 0xFFFFFF, $GUI_BKCOLOR_TRANSPARENT] For $i = 0 To UBound($aButtons) - 1 $aButtons[$i] = GuiFlatButton_Create("B" & $i, $i * 50, 0, 50, 17) GuiFlatButton_SetColorsEx($aButtons[$i], $aBtnClrs) Next Return $aButtons EndFunc ;==>createToolbar
      Icon Example
      You can even easily add icons to your buttons -- just create a new button and send it an icon!

      #include <GDIPlus.au3> #include "GuiFlatButton.au3" Example() ;buttons with Icon images Func Example() ;get images for demonstration _GDIPlus_Startup() ;initialize GDI+ Local $hIcon = _WinAPI_ShellExtractIcon(@SystemDir & '\shell32.dll', 258, 24, 24) ;extract the 'Save' icon Local $hBitmap = _GDIPlus_BitmapCreateFromHICON($hIcon) ;Create Bitmap from Icon (for demonstration) Local $hHBitmap = _GDIPlus_BitmapCreateHBITMAPFromBitmap($hBitmap) ;Create HBitmap from Bitmap _GDIPlus_BitmapDispose($hBitmap) ;dispose the bitmap _GDIPlus_Shutdown() ;done with GDI+ Local $hGUI = GUICreate("GuiFlatButton Ex5", 255, 400) GUISetBkColor(0xEEEEEE) ;set default colors of future buttons Local $aColorsEx = _ [0xE2E5E8, 0X000000, 0x888888, _ ; normal : Background, Text, Border 0xE2E5E8, 0X000000, 0x333333, _ ; focus : Background, Text, Border 0xE8E8E8, 0X000000, 0x666666, _ ; hover : Background, Text, Border 0xDDDDDD, 0X000000, 0xAAAAAA] ; selected : Background, Text, Border GuiFlatButton_SetDefaultColorsEx($aColorsEx) ;normal button with icon $label1 = GUICtrlCreateLabel( "$BS_TOOLBUTTON -->", 5, 10) GUICtrlSetBkColor(-1, $GUI_BKCOLOR_TRANSPARENT) Local $mybutton1 = GuiFlatButton_Create("Save", 130, 5, 50, 48, $BS_TOOLBUTTON) _WinAPI_DeleteObject(_SendMessage(GUICtrlGetHandle($mybutton1), $BM_SETIMAGE, $IMAGE_ICON, $hIcon)) ;align top Local $mybuttonT = GuiFlatButton_Create("Top", 5, 65, 120, 55, $BS_TOP) _WinAPI_DeleteObject(_SendMessage(GUICtrlGetHandle($mybuttonT), $BM_SETIMAGE, $IMAGE_ICON, $hIcon)) ;align top-left Local $mybuttonTL = GuiFlatButton_Create("Top-Left", 5, 125, 120, 55, BITOR($BS_TOP, $BS_LEFT)) _WinAPI_DeleteObject(_SendMessage(GUICtrlGetHandle($mybuttonTL), $BM_SETIMAGE, $IMAGE_ICON, $hIcon)) ;align top-right Local $mybuttonTR = GuiFlatButton_Create("Top-Right", 5, 185, 120, 55, BITOR($BS_TOP, $BS_RIGHT)) _WinAPI_DeleteObject(_SendMessage(GUICtrlGetHandle($mybuttonTR), $BM_SETIMAGE, $IMAGE_ICON, $hIcon)) ;align left Local $mybuttonL = GuiFlatButton_Create("Left", 5, 245, 120, 55, $BS_LEFT) _WinAPI_DeleteObject(_SendMessage(GUICtrlGetHandle($mybuttonL), $BM_SETIMAGE, $IMAGE_ICON, $hIcon)) ;align bottom Local $mybuttonB = GuiFlatButton_Create("Bottom", 130, 65, 120, 55, $BS_BOTTOM) _WinAPI_DeleteObject(_SendMessage(GUICtrlGetHandle($mybuttonB), $BM_SETIMAGE, $IMAGE_ICON, $hIcon)) ;align bottom-left Local $mybuttonBL = GuiFlatButton_Create("Bottom-Left", 130, 125, 120, 55, BITOR($BS_BOTTOM, $BS_LEFT)) _WinAPI_DeleteObject(_SendMessage(GUICtrlGetHandle($mybuttonBL), $BM_SETIMAGE, $IMAGE_ICON, $hIcon)) ;align bottom-right Local $mybuttonBR = GuiFlatButton_Create("Bottom-Right", 130, 185, 120, 55, BITOR($BS_BOTTOM, $BS_RIGHT)) _WinAPI_DeleteObject(_SendMessage(GUICtrlGetHandle($mybuttonBR), $BM_SETIMAGE, $IMAGE_ICON, $hIcon)) ;align right Local $mybuttonR = GuiFlatButton_Create("Right", 130, 245, 120, 55, $BS_RIGHT) _WinAPI_DeleteObject(_SendMessage(GUICtrlGetHandle($mybuttonR), $BM_SETIMAGE, $IMAGE_ICON, $hIcon)) GuiFlatButton_SetState($mybuttonR, $GUI_DISABLE ) ;disabled Local $mybuttonDisable = GuiFlatButton_Create("Disabled", 130, 310, 120, 55, $BS_TOOLBUTTON) _WinAPI_DeleteObject(_SendMessage(GUICtrlGetHandle($mybuttonDisable), $BM_SETIMAGE, $IMAGE_BITMAP, $hHBitmap)) GuiFlatButton_SetState($mybuttonDisable, $GUI_DISABLE ) ;clean up! _WinAPI_DestroyIcon( $hIcon ) _WinAPI_DeleteObject( $hHBitmap ) GUISetState(@SW_SHOW, $hGUI) Local $iMsg While 1 $iMsg = GUIGetMsg() Switch $iMsg Case $GUI_EVENT_CLOSE ExitLoop EndSwitch Sleep(10) WEnd GUIDelete() EndFunc ;==>Example
      I'm sure there are some use-cases I've forgotten, so feedback is welcome!

      Download the latest UDF and several more examples: GuiFlatButton20210102.zip
      Update 2021-01-02
      Fixed bug, not drawing correctly after deleting GUI with GUIDelete()
      Fixed bug, changing default colors changed all buttons, even previously created buttons
      Made some internal functions more efficient
      Update 2019-04-14 GuiFlatButton_20190414.zip
      Fixed bug, not showing pressed down state when clicking rapidly
      Added Icon/Bitmap support!
      Added function GuiFlatButton_SetPos to change the position and/or size of a button
      Update 2019-02-09
      Added 2 new functions to set the button colors globally for all future buttons.
      GuiFlatButton_SetDefaultColors
      GuiFlatButton_SetDefaultColorsEx

      Credits to:
      Melba23 (UDF template)
      LarsJ (general subclassing code)
      4ggr35510n (TrackMouseEvent example)
      binhnx (disable dragging with $WS_EX_CONTROLPARENT)
      GUIRegisterMsg in AutoIt Help (owner-draw button example)
      funkey (_WinAPI_DrawState example)
    • By mLipok
      This UDF was created for give any/some kind of support for GDPR solutions in AutoIt.
      This is a modest attempt at implementation.

      More details in support topic:

    • By mLipok
      This UDF was created for give any kind of support for GDPR solutions in AutoIt.

      #include "GDPR.au3" #AutoIt3Wrapper_Run_AU3Check=Y #AutoIt3Wrapper_Au3Check_Parameters=-d -w 1 -w 2 -w 3 -w 4 -w 5 -w 6 -w 7 #Tidy_Parameters=/sort_funcs /reel ; #AutoIt3Wrapper_Run_Debug_Mode=Y _Example() Func _Example() _GDPR_Crypter_Wrapper(_Example_Crypter) Local $sText = 'AutoIt v3 is a freeware BASIC-like scripting language designed for automating the Windows GUI and general scripting.' MsgBox(0, @ScriptLineNumber, _GDPR_Anonymize_String($sText)) Local $dCrypted = _GDPR_Crypt_String($sText) MsgBox(0, @ScriptLineNumber, $dCrypted & @CRLF & @error & @CRLF & @extended) Local $sDecrypted = _GDPR_DeCrypt_AsString($dCrypted) MsgBox(0, @ScriptLineNumber, $sDecrypted & @CRLF & @error & @CRLF & @extended) _GDPR_Crypt_File(@ScriptFullPath, @ScriptFullPath & '.CRYPTED') If @error Then ConsoleWrite('! ---> @error=' & @error & ' @extended=' & @extended & ' : _GDPR_Crypt_File' & @CRLF) _GDPR_DeCrypt_File(@ScriptFullPath & '.CRYPTED', @ScriptFullPath & '.DECRYPTED.au3') If @error Then ConsoleWrite('! ---> @error=' & @error & ' @extended=' & @extended & ' : _GDPR_DeCrypt_File' & @CRLF) EndFunc ;==>_Example Func _Example_Crypter($dBinaryData, $bDataAlreadyEncrypted) _Crypt_Startup() ; Start the Crypt library. Local $dResult If $bDataAlreadyEncrypted Then $dResult = _Crypt_DecryptData($dBinaryData, 'securepassword', $CALG_3DES) ; Decrypt the data using the generic password string. The return value is a binary string. Else $dResult = _Crypt_EncryptData($dBinaryData, 'securepassword', $CALG_3DES) ; Encrypt the text with the new cryptographic key. EndIf _Crypt_Shutdown() ; Shutdown the Crypt library. Return $dResult EndFunc ;==>_Example_Crypter
      Download link:

      WIKI:
      This UDF was added here:  https://www.autoitscript.com/wiki/User_Defined_Functions


×
×
  • Create New...
