WordPad is messing the RTF file or bug in Autoit UDF?

Recommended Posts

Hello,

I'm trying to work with RTF files and I started with a very simple test, I got the example from the _GUICtrlRichEdit_StreamFromFile(), which is:

#include <GUIConstantsEx.au3>
#include <GuiRichEdit.au3>
#include <WindowsConstants.au3>

Example()

Func Example()
    Local $hGui, $iMsg, $idBtnNext, $iStep = 0, $idLblMsg, $hRichEdit
    $hGui = GUICreate("Example (" & StringTrimRight(@ScriptName, StringLen(".exe")) & ")", 320, 350, -1, -1)
    $hRichEdit = _GUICtrlRichEdit_Create($hGui, "This is a test.", 10, 10, 300, 220, _
            BitOR($ES_MULTILINE, $WS_VSCROLL, $ES_AUTOVSCROLL))
    $idLblMsg = GUICtrlCreateLabel("", 10, 235, 300, 60)
    $idBtnNext = GUICtrlCreateButton("Next", 270, 310, 40, 30)
    GUISetState(@SW_SHOW)

    _GUICtrlRichEdit_SetText($hRichEdit, "First paragraph")
    While True
        $iMsg = GUIGetMsg()
        Select
            Case $iMsg = $GUI_EVENT_CLOSE
                _GUICtrlRichEdit_Destroy($hRichEdit) ; needed unless script crashes
                ; GUIDelete()   ; is OK too
                Exit
            Case $iMsg = $idBtnNext
                $iStep += 1
                Switch $iStep
                    Case 1
                        _GUICtrlRichEdit_StreamToFile($hRichEdit, @DesktopDir & "\gcre.rtf")
                        GUICtrlSetData($idLblMsg, "Streamed to gcre.rtf")
                    Case 2
                        _GUICtrlRichEdit_SetText($hRichEdit, "")
                        _GUICtrlRichEdit_StreamFromFile($hRichEdit, @DesktopDir & "\gcre.rtf")
                        GUICtrlSetData($idLblMsg, "Streamed from gcre.rtf")
                    Case 3
                        _GUICtrlRichEdit_SetSel($hRichEdit, 2, 6)
                        _GUICtrlRichEdit_StreamFromFile($hRichEdit, @DesktopDir & "\gcre.rtf")
                        GUICtrlSetData($idLblMsg, "Replaced selection: an intentional mess!")
                        GUICtrlSetState($idBtnNext, $GUI_DISABLE)
                EndSwitch
        EndSelect
    WEnd
EndFunc   ;==>Example

So, on the first click on the "Next" button the scrip creates the file "gcre.rtf" in the Desktop. This is the content got from Notepad++:


So far so good.



At this point I opened the file in WordPad, no changes, and just saved it. And in the Notepad I got:


Note the NUL char added to end of the file, this mess up the file and the script can not read the file anymore. This problem happens in all files I tried to create using WordPad. If I use Word, its ok, but the file increase from 1kB to 43kB!
I'm using Windows and WordPad 10 version 1903 (OS Build 18362.1139).

Someone knows what is happening here?



Edited by Chuckero

Share this post


Link to post
Share on other sites

You could do something like this (untested) by replacing :

_GUICtrlRichEdit_StreamToFile($hRichEdit, @DesktopDir & "\gcre.rtf")

with

Local $sTxt = FileRead(@DesktopDir & "\gcre.rtf")
If StringRight($sTxt,1) = chr(0) Then $sTxt = StringTrimRight($sTxt,1)
_GUICtrlRichEdit_StreamFromVar ($hRichEdit, $sTxt)



Share this post


Link to post
Share on other sites

Or simply use Word ;) (if possible). Size doesn't matter nowadays.


My UDFs and Tutorials:

Spoiler

UDFs:
Active Directory (NEW 2020-10-10 - Version 1.5.2.1) - Download - General Help & Support - Example Scripts - Wiki
OutlookEX (NEW 2020-06-30 - Version 1.6.2.0) - Download - General Help & Support - Example Scripts - Wiki
OutlookEX_GUI (NEW 2020-06-27 - Version 1.3.2.0) - Download
Outlook Tools (2019-07-22 - Version 0.6.0.0) - Download - General Help & Support - Wiki
ExcelChart (2017-07-21 - Version 0.4.0.1) - Download - General Help & Support - Example Scripts
PowerPoint (2017-06-06 - Version 0.0.5.0) - Download - General Help & Support
Excel - Example Scripts - Wiki
Word - Wiki
Task Scheduler (2019-12-03 - Version 1.5.1.0) - Download - General Help & Support - Wiki

Tutorials:
ADO - Wiki, WebDriver - Wiki



Share this post


Link to post
Share on other sites
5 hours ago, Chuckero said:

At this point I opened the file in WordPad, no changes, and just saved it

Notepad has the "save" option greyed out. You cannot save it with no changes. You must have done something to it in Notepad in order for it to "save".

If I do a "Save As" in Notepad I get an identical file;-







Phil Seakins

Share this post


Link to post
Share on other sites
On 11/12/2020 at 9:25 AM, Nine said:

You could do something like this (untested) by replacing :

_GUICtrlRichEdit_StreamToFile($hRichEdit, @DesktopDir & "\gcre.rtf")

with

Local $sTxt = FileRead(@DesktopDir & "\gcre.rtf")
If StringRight($sTxt,1) = chr(0) Then $sTxt = StringTrimRight($sTxt,1)
_GUICtrlRichEdit_StreamFromVar ($hRichEdit, $sTxt)



Good idea, but I tried and it doesn't work. Very weird.

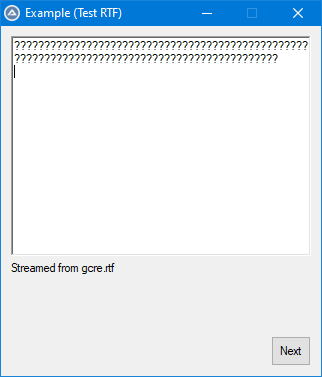

This is what I got in the GUICtrlRichEdit:


Share this post


Link to post
Share on other sites
On 11/12/2020 at 3:24 PM, pseakins said:

Notepad has the "save" option greyed out. You cannot save it with no changes. You must have done something to it in Notepad in order for it to "save".

If I do a "Save As" in Notepad I get an identical file;-



I'm not using NotePad I'm using WordPad. Even that, for me both software have the save option enabled, I can save the files directly with no changes in the content. And I can see the NUL char in NotePad++ and also in WinMerge.

This is another interesting situation: I used Notepad to test what you said, and in really NotePad can read the file and it has corrected the error created by WordPad when I saved the file.

Edited by Chuckero

Share this post


Link to post
Share on other sites
3 hours ago, Chuckero said:

I'm not using NotePad I'm using WordPad

My mistake. Well, anything can happen with Microsux products, I have gotten into a world of pain when my colleagues have used editors which have changed plain text Ascii files by adding headers and or trailers rendering them incompatible with my tools. It looks like your setup with Wordpad has it injecting it's own personality into your files.


Phil Seakins

Share this post


Link to post
Share on other sites

Ok found a way to work it out :

$hFile = FileOpen("gcre.rtf", $FO_BINARY)
            $dTxt = FileRead($hFile)
            FileClose($hFile)
            $sTxt = BinaryToString($dTxt)
            ConsoleWrite($sTxt & @CRLF)
            If StringRight($sTxt, 1) = Chr(0) Then
              ConsoleWrite("found char 0" & @CRLF)
              $sTxt = StringTrimRight($sTxt, 1)
            EndIf
            _GUICtrlRichEdit_StreamFromVar($hRichEdit, $sTxt)

Replace _GUICtrlRichEdit_StreamFromFile($hRichEdit, @DesktopDir & "\gcre.rtf") with the above code.  :) Tested and working

Edited by Nine

Share this post


Link to post
Share on other sites
On 11/14/2020 at 8:20 AM, Nine said:

Replace _GUICtrlRichEdit_StreamFromFile($hRichEdit, @DesktopDir & "\gcre.rtf") with the above code.  :) Tested and working

YES!! Now it's working perfectly! Thanks!

What a workaround to be able to make this work 😉

Share this post


Link to post
Share on other sites

Glad you found a solution.

The problem is that RTF does have versions, and not all parsers are up to date or equally powerful. You will find that WordPad is really primitive and clumsy when it comes to editing RTF.



Skysnake


Skysnake

Why is the snake in the sky?

Share this post


Link to post
Share on other sites
