Follow-up question regarding _WinAPI PrintWindow()

[mLipok]

In relation to:





 @argumentum and @Nine could you be so nice and check mine modification from:

https://github.com/ioa747/NetWebView2Lib/pull/104/changes

expandcollapse popup

Func __NetWebView2_freezer($oWebV2M, ByRef $idPic)
    Local $hWindow_WebView2 = WinGetHandle($oWebV2M.BrowserWindowHandle)
    #Region ; if $idPic is given then it means you already have it and want to delete it - unfreeze - show WebView2 content
    If $idPic Then
        WinSetState($hWindow_WebView2, '', @SW_SHOW)
        GUICtrlDelete($idPic)
        $idPic = 0
        Return
    EndIf
    #EndRegion ; if $idPic is given then it means you already have it and want to delete it - unfreeze - show WebView2 content

    #Region ; freeze $hWindow_WebView2

    #Region ; add PIC to parent window
    Local $hWindow_Parent = WinGetHandle($oWebV2M.ParentWindowHandle)
    Local $aPos = WinGetPos($hWindow_WebView2)
    Local $hPrev = GUISwitch($hWindow_Parent)
    $idPic = GUICtrlCreatePic('', 0, 0, $aPos[2], $aPos[3])
    Local $hPic = GUICtrlGetHandle($idPic)
    GUISwitch($hPrev)
    #EndRegion ; add PIC to parent window

    Local $hPictureDC = _WinAPI_GetDC($hPic)

    ; Create Dest bitmap
    Local $hDestination_DC = _WinAPI_CreateCompatibleDC($hPictureDC) ; Creates a memory device context compatible with the specified device
    Local $hDestination_Bitmap = _WinAPI_CreateCompatibleBitmap($hPictureDC, $aPos[2], $aPos[3]) ; Creates a bitmap compatible with the specified device context
    Local $hDestination_Sv = _WinAPI_SelectObject($hDestination_DC, $hDestination_Bitmap) ; Selects an object into the specified device context
    _WinAPI_PrintWindow($hWindow_WebView2, $hDestination_DC, 2)

    _WinAPI_ReleaseDC($hPic, $hPictureDC)
    _WinAPI_SelectObject($hDestination_DC, $hDestination_Sv)
    _WinAPI_DeleteDC($hDestination_DC)

    ; Set bitmap to control
    _SendMessage($hPic, $STM_SETIMAGE, 0, $hDestination_Bitmap)
    _WinAPI_DeleteObject($hDestination_Bitmap)

    WinSetState($hWindow_WebView2, '', @SW_HIDE)
    Return $idPic
    #EndRegion ; freeze $hWindow_WebView2
EndFunc   ;==>__NetWebView2_freezer

I reduced the code by 11 lines.

I wonder why the earlier version uses two bitmaps?
Can someone enlighten me?

EDIT:

Earlier version:

expandcollapse popup

#include <GUIConstantsEx.au3>
#include <SendMessage.au3>
#include <StaticConstants.au3>
#include <WinAPIGdi.au3>
#include <WinAPIGdiDC.au3>
#include <WinAPIHObj.au3>
#include <WindowsConstants.au3>

_Example()

Func _Example()
    ShellExecute(@SystemDir & '\calc.exe')
    Local $hWnd = WinWaitActive("[REGEXPCLASS:CalcFrame|ApplicationFrameWindow]", '', 3)
    If Not $hWnd Then
        Exit
    EndIf
    Sleep(500) ; give it time to draw - let the window draw completely - skip the window animation

    ; Create GUI
    Local $aSize = WinGetPos($hWnd)
    GUICreate('Test ' & StringReplace(@ScriptName, '.au3', '()'), $aSize[2] + 80, $aSize[3] + 80)
    Local $idPic = GUICtrlCreatePic('', 40, 40, $aSize[2], $aSize[3])
    Local $hPic = GUICtrlGetHandle($idPic)

    ; Create bitmap
    Local $hDC = _WinAPI_GetDC($hPic)
    Local $hDestDC = _WinAPI_CreateCompatibleDC($hDC)
    Local $hBitmap = _WinAPI_CreateCompatibleBitmap($hDC, $aSize[2], $aSize[3])
    Local $hDestSv = _WinAPI_SelectObject($hDestDC, $hBitmap)
    Local $hSrcDC = _WinAPI_CreateCompatibleDC($hDC)
    Local $hBmp = _WinAPI_CreateCompatibleBitmap($hDC, $aSize[2], $aSize[3])
    Local $hSrcSv = _WinAPI_SelectObject($hSrcDC, $hBmp)
    Local Const $PW_RENDERFULLCONTENT = 0x2 ; this will go to where it should  =)
    _WinAPI_PrintWindow($hWnd, $hSrcDC, $PW_RENDERFULLCONTENT)
    _WinAPI_BitBlt($hDestDC, 0, 0, $aSize[2], $aSize[3], $hSrcDC, 0, 0, $MERGECOPY)

    _WinAPI_ReleaseDC($hPic, $hDC)
    _WinAPI_SelectObject($hDestDC, $hDestSv)
    _WinAPI_SelectObject($hSrcDC, $hSrcSv)
    _WinAPI_DeleteDC($hDestDC)
    _WinAPI_DeleteDC($hSrcDC)
    _WinAPI_DeleteObject($hBmp)

    ; Set bitmap to control
    _SendMessage($hPic, $STM_SETIMAGE, 0, $hBitmap)
    Local $hObj = _SendMessage($hPic, $STM_GETIMAGE)
    If $hObj <> $hBitmap Then
        _WinAPI_DeleteObject($hBitmap)
    EndIf

    GUISetState(@SW_SHOW)

    Do
    Until GUIGetMsg() = $GUI_EVENT_CLOSE

    WinClose($hWnd, "")
EndFunc   ;==>_Example



Edited 18 hours ago by mLipok

[argumentum]

Did run 014-pdfJS-Static_PDF_Viewer.au3 with your mods and it all woks as it should.

[mLipok]

2 minutes ago, argumentum said:

Did run 014-pdfJS-Static_PDF_Viewer.au3 with your mods and it all woks as it should.

yeap



btw.
Why _WinAPI_BitBlt() was used - and in my scenario it is not needed ?

[argumentum]

Just now, mLipok said:

Why _WinAPI_BitBlt() was used - and in my scenario it is not needed ?

I can copy and paste, but reasoning is not my forte
I don't know anything about GDI 🤷‍♂️

[mLipok]

4 minutes ago, argumentum said:

I can copy and paste, but reasoning is not my forte
I don't know anything about GDI 🤷‍♂️

It's almost like me

Maybe the GDI master could answer... let's see if @UEZ knows the answers ?



[mLipok]

btw.
Here is modified _WinAPI_PrintWindow.au3 example:

expandcollapse popup

#include <GUIConstantsEx.au3>
#include <SendMessage.au3>
#include <StaticConstants.au3>
#include <WinAPIGdi.au3>
#include <WinAPIGdiDC.au3>
#include <WinAPIHObj.au3>
#include <WindowsConstants.au3>

_Example()

Func _Example()
    ShellExecute(@SystemDir & '\calc.exe')
    Local $hWnd = WinWaitActive("[REGEXPCLASS:CalcFrame|ApplicationFrameWindow]", '', 3)
    If Not $hWnd Then
        Exit
    EndIf
    Sleep(500) ; give it time to draw - let the window draw completely - skip the window animation

    ; Create GUI
    Local $aSize = WinGetPos($hWnd)
    GUICreate('Test ' & StringReplace(@ScriptName, '.au3', '()'), $aSize[2] + 80, $aSize[3] + 80)
    Local $idPic = GUICtrlCreatePic('', 40, 40, $aSize[2], $aSize[3])
    Local $hPicture_Control = GUICtrlGetHandle($idPic)

    Local $hPicture_DC = _WinAPI_GetDC($hPicture_Control)

    ; Create destination bitmap
    Local $hDestination_Bitmap = _WinAPI_CreateCompatibleBitmap($hPicture_DC, $aSize[2], $aSize[3])
    Local $hDestination_DC = _WinAPI_CreateCompatibleDC($hPicture_DC)
    Local $hDestination_Sv = _WinAPI_SelectObject($hDestination_DC, $hDestination_Bitmap)

    ; Create source bitmap
    Local $hSource_Bitmap = _WinAPI_CreateCompatibleBitmap($hPicture_DC, $aSize[2], $aSize[3])
    Local $hSource_DC = _WinAPI_CreateCompatibleDC($hPicture_DC)
    Local $hSource_Sv = _WinAPI_SelectObject($hSource_DC, $hSource_Bitmap)

    Local Const $PW_RENDERFULLCONTENT = 0x2 ; this will go to where it should  =)
    _WinAPI_PrintWindow($hWnd, $hSource_DC, $PW_RENDERFULLCONTENT)
    _WinAPI_BitBlt($hDestination_DC, 0, 0, $aSize[2], $aSize[3], $hSource_DC, 0, 0, $MERGECOPY)

    _WinAPI_ReleaseDC($hPicture_Control, $hPicture_DC)

    #Region ; CleanUp
    _WinAPI_SelectObject($hDestination_DC, $hDestination_Sv)
    _WinAPI_DeleteDC($hDestination_DC)

    _WinAPI_SelectObject($hSource_DC, $hSource_Sv)
    _WinAPI_DeleteDC($hSource_DC)

    _WinAPI_DeleteObject($hSource_Bitmap)
    #EndRegion ; CleanUp

    ; Set bitmap to control
    _SendMessage($hPicture_Control, $STM_SETIMAGE, 0, $hDestination_Bitmap)
    Local $hObj = _SendMessage($hPicture_Control, $STM_GETIMAGE)
    If $hObj <> $hDestination_Bitmap Then
        _WinAPI_DeleteObject($hDestination_Bitmap)
    EndIf

    GUISetState(@SW_SHOW)

    Do
    Until GUIGetMsg() = $GUI_EVENT_CLOSE

    WinClose($hWnd, "")
EndFunc   ;==>_Example



Edited 18 hours ago by mLipok

[argumentum]

...themes and no, DPI 😒
Maybe adding a DPI awareness snippet  to it ? ( I won't be able to contribute now, as I have work to attend to  )
That'll be good to have in an example given todays monitors.

[mLipok]

7 minutes ago, mLipok said:

Here is modified _WinAPI_PrintWindow.au3 example:

@UEZ

Would you be so kind as to take a look at this code, perhaps improve it or add comments?

Perhaps this will allow us to create a better example or improve the HelpFile.
Anyway, thanks.

[WildByDesign]

2 minutes ago, argumentum said:

That'll be good to have in an example given todays monitors

Speaking of this, it would be better to have some sort of DPI enablement script in with the official UDFs that are supplied with the AutoIt installer.

When we search the forum, there are many options for DPI with varying results. Some easy, some complex. Having something built-in or at least supplied with installer would be necessary these days.

[UEZ]

Here my suggestion:

expandcollapse popup

#include <GUIConstantsEx.au3>
#include <GDIPlus.au3>
#include <StaticConstants.au3>
#include <WinAPIGdi.au3>
#include <WindowsConstants.au3>

Const $PW_RENDERFULLCONTENT = 2

_Example()

Func _Example()
    ; Launch Calculator and wait for it to finish opening
    ShellExecuteWait(@SystemDir & "\calc.exe")
    Local $hWnd = WinWaitActive("[REGEXPCLASS:CalcFrame|ApplicationFrameWindow]", "", 3)
    If Not $hWnd Then Exit ; Abort if the window didn't appear in time

    Sleep(500) ; Wait for the window to fully render and skip the open animation

    ; Create a GUI slightly larger than the Calculator window
    Local $aSize = WinGetPos($hWnd)
    Local $hGUI = GUICreate("Test " & StringReplace(@ScriptName, ".au3", "()"), $aSize[2] + 80, $aSize[3] + 80)
    GUISetBkColor(0x404040, $hGUI) ; Dark gray background
    Local $idPic = GUICtrlCreatePic("", 48, 48, $aSize[2], $aSize[3]) ; Placeholder for the captured bitmap
    GUISetState(@SW_SHOW)

   ; Capture the Calculator window as a GDI bitmap (cropped, client area, GDI-compatible)
    Local $hGDIBitmap = _WinAPI_CreateBitmapFromPrintWindow($hWnd, True, $PW_RENDERFULLCONTENT, True)

    ; Assign the bitmap to the picture control, delete any previously set bitmap
    Local $hHBmp = GUICtrlSendMsg($idPic, $STM_SETIMAGE, $IMAGE_BITMAP, $hGDIBitmap)
    If $hHBmp Then _WinAPI_DeleteObject($hHBmp)

    Do
    Until GUIGetMsg() = $GUI_EVENT_CLOSE

    ; Cleanup
    _WinAPI_DeleteObject($hGDIBitmap)
    WinClose($hWnd, "")
    GUIDelete($hGUI)
EndFunc   ;==>_Example

; Captures a window's content using PrintWindow and returns a GDI+ or GDI bitmap.
; $bCrop        - Crop the bitmap to the visible frame using DWM (removes window shadow/frame margins)
; $iClientMode  - PrintWindow flags passed directly to PrintWindow (1 = PW_CLIENTONLY). PW_RENDERFULLCONTENT (required for UWP/DX windows)
; $bBmpGDI      - Return a GDI HBITMAP instead of a GDI+ bitmap handle
Func _WinAPI_CreateBitmapFromPrintWindow($hWnd, $bCrop = True, $iClientMode = 1, $bBmpGDI = False)
    Local $aWinSize = WinGetPos($hWnd)
    If @error Then Return SetError(1, 0, 0)

    ; Set up a memory DC with a compatible bitmap to draw into
    Local Const $hDC_Capture = _WinAPI_GetDC($hWnd)
    If @error Then Return SetError(2, 0, 0)
    Local Const $hMemDC = _WinAPI_CreateCompatibleDC($hDC_Capture)
    Local Const $hHBmp = _WinAPI_CreateCompatibleBitmap($hDC_Capture, $aWinSize[2], $aWinSize[3])
    Local Const $hObjectOld = _WinAPI_SelectObject($hMemDC, $hHBmp)

    ; Use HALFTONE for better quality when stretching/scaling during capture
    _WinAPI_SetStretchBltMode($hDC_Capture, $HALFTONE)

    ; Capture the window content using the specified PrintWindow flags
    _WinAPI_PrintWindow($hWnd, $hMemDC, $iClientMode)

    ; Restore and release DC resources
    _WinAPI_SelectObject($hMemDC, $hObjectOld)
    _WinAPI_DeleteDC($hMemDC)
    _WinAPI_ReleaseDC($hWnd, $hDC_Capture)

    ; Skip GDI+ conversion if no cropping is needed and a raw HBITMAP (GDI) was requested
    If $bCrop = False And $bBmpGDI = True Then Return $hHBmp

     _GDIPlus_Startup()
    ; Convert the HBITMAP to a GDI+ bitmap
    Local $hBitmap = _GDIPlus_BitmapCreateFromHBITMAP($hHBmp)
    _WinAPI_DeleteObject($hHBmp)

    ; Optionally crop the bitmap to the visible window area, excluding shadow/frame margins
    If $bCrop Then
        Local $iLeft, $iTop, $iRight, $iBottom, $pX, $pY
        ; Query the actual visible frame bounds via DWM to get the exact shadow margins
        Local $tRECT = _WinAPI_DwmGetWindowAttribute($hWnd, $DWMWA_EXTENDED_FRAME_BOUNDS)
        ; Calculate the margin on each side
        $iLeft   = $tRECT.left - $aWinSize[0]
        $iTop    = $tRECT.top  - $aWinSize[1]
        $iRight  = $aWinSize[0] + $aWinSize[2] - $tRECT.right
        $iBottom = $aWinSize[1] + $aWinSize[3] - $tRECT.bottom
        Local $hBitmap_Cropped = _GDIPlus_BitmapCloneArea($hBitmap, $iLeft, $iTop, $aWinSize[2] - $iLeft - $iRight, $aWinSize[3] - $iTop - $iBottom)
        _GDIPlus_BitmapDispose($hBitmap)
        $hBitmap = $hBitmap_Cropped
    EndIf

    ; Optionally convert to a GDI HBITMAP (needed for use with STM_SETIMAGE etc.)
    If $bBmpGDI Then
        Local $hBitmap_GDI = _GDIPlus_BitmapCreateHBITMAPFromBitmap($hBitmap)
        _GDIPlus_BitmapDispose($hBitmap)
        _GDIPlus_Shutdown()
        Return $hBitmap_GDI
    EndIf
    _GDIPlus_Shutdown()
    Return $hBitmap
EndFunc   ;==>_WinAPI_CreateBitmapFromPrintWindow



_WinAPI_CreateBitmapFromPrintWindow is from here:



Edited 5 hours ago by UEZ

[mLipok]

Thank you very much.
I will have few questions.

1.

Is this following part not required when the source and destination size will be the same ?

; Use HALFTONE for better quality when stretching/scaling during capture
    _WinAPI_SetStretchBltMode($hDC_Capture, $HALFTONE)



2.
Why after using:

Local Const $hObjectOld = _WinAPI_SelectObject($hMemDC, $hHBmp)

there is a need to use it as a kind of revert

_WinAPI_SelectObject($hMemDC, $hObjectOld)

I understand it's about restoring/freeing/wiping, but reverting seems a bit odd to me.



3.
about the cropping feature

; Optionally crop the bitmap to the visible window area, excluding shadow/frame margins
    If $bCrop Then
        Local $iLeft, $iTop, $iRight, $iBottom, $pX, $pY
        #forceref $pX, $pY
        ; Query the actual visible frame bounds via DWM to get the exact shadow margins
        Local $tRECT = _WinAPI_DwmGetWindowAttribute($hWnd, $DWMWA_EXTENDED_FRAME_BOUNDS)
        ; Calculate the margin on each side
        $iLeft   = $tRECT.left - $aWinSize[0]
        $iTop    = $tRECT.top  - $aWinSize[1]
        $iRight  = $aWinSize[0] + $aWinSize[2] - $tRECT.right
        $iBottom = $aWinSize[1] + $aWinSize[3] - $tRECT.bottom
        Local $hBitmap_Cropped = _GDIPlus_BitmapCloneArea($hBitmap, $iLeft, $iTop, $aWinSize[2] - $iLeft - $iRight, $aWinSize[3] - $iTop - $iBottom)
        _GDIPlus_BitmapDispose($hBitmap)
        $hBitmap = $hBitmap_Cropped
    EndIf

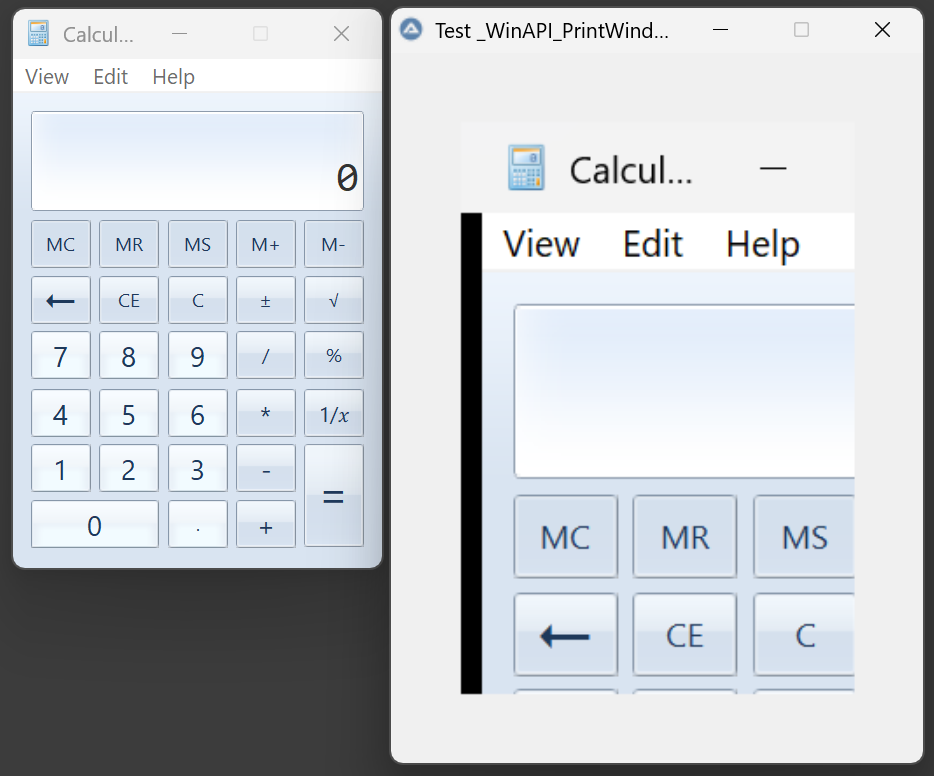

If I have a window that contains an embedded IE control, WebView, DebenuViewer, or even simpler _WinAPI_CreateWindowEx(),
that is, not the window created using GuiCreate()

Then ... was it a case that the cropping is not needed ? I mean when will this be the case when user should to crop entire window ?



btw.
Question 1 and 3 are quite similar or even the same case.

Edited 2 hours ago by mLipok

[UEZ]

1) This is not necessary, as it is only relevant for scaling purposes

2) This is a Windows GDI requirement. SelectObject always returns the previously selected object, and you must restore it before deleting the DC. If you don't, you're deleting a DC that still "owns" your bitmap, which can cause resource leaks or undefined behavior.

3) The shadow margins from DWM only apply to top-level windows with a drop shadow (the typical WS_OVERLAPPEDWINDOW style). In these cases:

• Cropping needed: Standard top-level windows (GUICreate, CreateWindowEx with default styles) — they have DWM shadow margins, so the captured bitmap is slightly larger than the visible content.
• Cropping not needed / potentially harmful: Borderless windows, child windows, embedded controls (WebView, IE, DebenuViewer), or windows with WS_POPUP and no shadow. Here DWMWA_EXTENDED_FRAME_BOUNDS equals the window rect, so all margins would be 0 anyway — but it's worth checking, since forcing a crop on such windows could cut off actual content.

So your observation is correct: questions 1 and 3 are essentially the same issue — both assume scaling or size differences that may not actually exist.
