stenioc1

Problem using the _IEGetObjByName

Recommended Posts

stenioc1

Hello, I'm trying to use the  _IEGetObjByName, but in a code the website, the function not working when find a word on the line below (I was using Firebug to view this line):

<area alt="GRAFICS (NAME):40" href="javascript:__doPostBack('dbbTopGraphic$_ctl0$ccTopGraphic','GRAFICS (NAME)')" coords="372,72,402,72,402,160,372,160" shape="poly">
My code that I'm trying to use is this:

#include <IE.au3>

Call ("LoginSite")
Sleep (5000)
Call ("ClickGrafic")

Func LoginSite ()

Global $oIE = _IECreate ("www.sitetest.com")

Local $username = _IEGetObjByName ($oIE,"txtUSer")
Local $password = _IEGetObjByName ($oIE,"txtPassword")
Local $button = _IEGetObjByName ($oIE,"btnSingIn")

_IEFormElementSetValue ($username, "my_login")
_IEFormElementSetValue ($password, "my_password")

_IEAction ($button, "click")

EndFunc

func ClickGrafic ()

Local $poly = _IEGetObjByName ($oIE,"poly")

Local $poly = _IEGetObjByName ($oIE,"poly")

_IEGetObjByName

_IELinkClickByText($oIE, "poly")

_IEAction ($button, "click")

EndFunc

Thanks & Regards

Edited by stenioc1

Share this post


Link to post
Share on other sites
Palestinian

To start with, please use the code tags to make it easier for everyone to read your code, regarding the issue you are facing, you have "_IEGetObjByName" after $poly without any parameters.

Share this post


Link to post
Share on other sites
mLipok

@stenioc1

Welcome to the AutoIt Forum.

Can you edit your Opening Post, and do what @Palestinian say ? (Look in my singature "How to post code on the forum")



btw.

"poly" is shape not name.


Signature beginning:   Wondering who uses AutoIT and what it can be used for ?
* GHAPI UDF - modest begining - comunication with GitHub REST API Forum Rules *
ADO.au3 UDF     POP3.au3 UDF     XML.au3 UDF    How to use IE.au3  UDF with  AutoIt v3.3.14.x  for other useful stuff click the following button

Spoiler

Any of my own code posted anywhere on the forum is available for use by others without any restriction of any kind.

My contribution (my own projects): * Debenu Quick PDF Library - UDF * Debenu PDF Viewer SDK - UDF * Acrobat Reader - ActiveX Viewer * UDF for PDFCreator v1.x.x * XZip - UDF * AppCompatFlags UDF * CrowdinAPI UDF * _WinMergeCompare2Files() * _JavaExceptionAdd() * _IsBeta() * Writing DPI Awareness App - workaround * _AutoIt_RequiredVersion() * Chilkatsoft.au3 UDF * TeamViewer.au3 UDF * JavaManagement UDF * VIES over SOAP * WinSCP UDF * GHAPI UDF - modest begining - comunication with GitHub REST APIErrorLog.au3 UDF - A logging Library


My contribution to others projects or UDF based on  others projects: * _sql.au3 UDF  * POP3.au3 UDF *  RTF Printer - UDF * XML.au3 UDF * ADO.au3 UDF SMTP Mailer UDF * Dual Monitor resolution detection * * 2GUI on Dual Monitor System * _SciLexer.au3 UDF *

Useful links: * Forum Rules * Forum etiquette *  Forum Information and FAQs * How to post code on the forum * AutoIt Online Documentation * AutoIt Online Beta Documentation * SciTE4AutoIt3 getting started * Convert text blocks to AutoIt code * Games made in Autoit * Programming related sites * Polish AutoIt Tutorial * DllCall Code Generator *

Wiki: Expand your knowledge - AutoIt Wiki * Collection of User Defined Functions * How to use HelpFile * Good coding practices in AutoIt *

IE Related:  * How to use IE.au3  UDF with  AutoIt v3.3.14.x * Why isn't Autoit able to click a Javascript Dialog? * Clicking javascript button with no ID * IE document >> save as MHT file * IETab Switcher (by LarsJ ) * HTML Entities * _IEquerySelectorAll() (by uncommon) * IE in TaskScheduler

I encourage you to read: * Global Vars * Best Coding Practices * Please explain code used in Help file for several File functions * OOP-like approach in AutoIt * UDF-Spec Questions *  EXAMPLE: How To Catch ConsoleWrite() output to a file or to CMD *

"Homo sum; humani nil a me alienum puto" - Publius Terentius Afer
"Program are meant to be read by humans and only incidentally for computers and execute" - Donald Knuth, "The Art of Computer Programming"
:naughty:  :ranting:, be  :) and       \\//_.

Anticipating Errors :  "Any program that accepts data from a user must include code to validate that data before sending it to the data store. You cannot rely on the data store, ...., or even your programming language to notify you of problems. You must check every byte entered by your users, making sure that data is the correct type for its field and that required fields are not empty."

Signature last update: 2018-10-31

Share this post


Link to post
Share on other sites
mLipok

Did you try to use _IETagNameGetCollection() ?

something like this ?

Local $oAlts= _IETagNameGetCollection($oIE, "alt")
For $oAlt In $oAlts
    if StringInStr($oAlt.outerhtml,'GRAFICS (NAME)') <> 0 Then
        _IEAction ($oAlt, "click")
        ExitLoop
    EndIf
EndIf

Signature beginning:   Wondering who uses AutoIT and what it can be used for ?
* GHAPI UDF - modest begining - comunication with GitHub REST API Forum Rules *
ADO.au3 UDF     POP3.au3 UDF     XML.au3 UDF    How to use IE.au3  UDF with  AutoIt v3.3.14.x  for other useful stuff click the following button

Spoiler

Any of my own code posted anywhere on the forum is available for use by others without any restriction of any kind.

My contribution (my own projects): * Debenu Quick PDF Library - UDF * Debenu PDF Viewer SDK - UDF * Acrobat Reader - ActiveX Viewer * UDF for PDFCreator v1.x.x * XZip - UDF * AppCompatFlags UDF * CrowdinAPI UDF * _WinMergeCompare2Files() * _JavaExceptionAdd() * _IsBeta() * Writing DPI Awareness App - workaround * _AutoIt_RequiredVersion() * Chilkatsoft.au3 UDF * TeamViewer.au3 UDF * JavaManagement UDF * VIES over SOAP * WinSCP UDF * GHAPI UDF - modest begining - comunication with GitHub REST APIErrorLog.au3 UDF - A logging Library


My contribution to others projects or UDF based on  others projects: * _sql.au3 UDF  * POP3.au3 UDF *  RTF Printer - UDF * XML.au3 UDF * ADO.au3 UDF SMTP Mailer UDF * Dual Monitor resolution detection * * 2GUI on Dual Monitor System * _SciLexer.au3 UDF *

Useful links: * Forum Rules * Forum etiquette *  Forum Information and FAQs * How to post code on the forum * AutoIt Online Documentation * AutoIt Online Beta Documentation * SciTE4AutoIt3 getting started * Convert text blocks to AutoIt code * Games made in Autoit * Programming related sites * Polish AutoIt Tutorial * DllCall Code Generator *

Wiki: Expand your knowledge - AutoIt Wiki * Collection of User Defined Functions * How to use HelpFile * Good coding practices in AutoIt *

IE Related:  * How to use IE.au3  UDF with  AutoIt v3.3.14.x * Why isn't Autoit able to click a Javascript Dialog? * Clicking javascript button with no ID * IE document >> save as MHT file * IETab Switcher (by LarsJ ) * HTML Entities * _IEquerySelectorAll() (by uncommon) * IE in TaskScheduler

I encourage you to read: * Global Vars * Best Coding Practices * Please explain code used in Help file for several File functions * OOP-like approach in AutoIt * UDF-Spec Questions *  EXAMPLE: How To Catch ConsoleWrite() output to a file or to CMD *

"Homo sum; humani nil a me alienum puto" - Publius Terentius Afer
"Program are meant to be read by humans and only incidentally for computers and execute" - Donald Knuth, "The Art of Computer Programming"
:naughty:  :ranting:, be  :) and       \\//_.

Anticipating Errors :  "Any program that accepts data from a user must include code to validate that data before sending it to the data store. You cannot rely on the data store, ...., or even your programming language to notify you of problems. You must check every byte entered by your users, making sure that data is the correct type for its field and that required fields are not empty."

Signature last update: 2018-10-31

Share this post


Link to post
Share on other sites
mLipok

Of course you're right.
Which means that the time for me to sleep.
I'll see you when I wake up.

Cheers.

mLipok


Signature beginning:   Wondering who uses AutoIT and what it can be used for ?
* GHAPI UDF - modest begining - comunication with GitHub REST API Forum Rules *
ADO.au3 UDF     POP3.au3 UDF     XML.au3 UDF    How to use IE.au3  UDF with  AutoIt v3.3.14.x  for other useful stuff click the following button

Spoiler

Any of my own code posted anywhere on the forum is available for use by others without any restriction of any kind.

My contribution (my own projects): * Debenu Quick PDF Library - UDF * Debenu PDF Viewer SDK - UDF * Acrobat Reader - ActiveX Viewer * UDF for PDFCreator v1.x.x * XZip - UDF * AppCompatFlags UDF * CrowdinAPI UDF * _WinMergeCompare2Files() * _JavaExceptionAdd() * _IsBeta() * Writing DPI Awareness App - workaround * _AutoIt_RequiredVersion() * Chilkatsoft.au3 UDF * TeamViewer.au3 UDF * JavaManagement UDF * VIES over SOAP * WinSCP UDF * GHAPI UDF - modest begining - comunication with GitHub REST APIErrorLog.au3 UDF - A logging Library


My contribution to others projects or UDF based on  others projects: * _sql.au3 UDF  * POP3.au3 UDF *  RTF Printer - UDF * XML.au3 UDF * ADO.au3 UDF SMTP Mailer UDF * Dual Monitor resolution detection * * 2GUI on Dual Monitor System * _SciLexer.au3 UDF *

Useful links: * Forum Rules * Forum etiquette *  Forum Information and FAQs * How to post code on the forum * AutoIt Online Documentation * AutoIt Online Beta Documentation * SciTE4AutoIt3 getting started * Convert text blocks to AutoIt code * Games made in Autoit * Programming related sites * Polish AutoIt Tutorial * DllCall Code Generator *

Wiki: Expand your knowledge - AutoIt Wiki * Collection of User Defined Functions * How to use HelpFile * Good coding practices in AutoIt *

IE Related:  * How to use IE.au3  UDF with  AutoIt v3.3.14.x * Why isn't Autoit able to click a Javascript Dialog? * Clicking javascript button with no ID * IE document >> save as MHT file * IETab Switcher (by LarsJ ) * HTML Entities * _IEquerySelectorAll() (by uncommon) * IE in TaskScheduler

I encourage you to read: * Global Vars * Best Coding Practices * Please explain code used in Help file for several File functions * OOP-like approach in AutoIt * UDF-Spec Questions *  EXAMPLE: How To Catch ConsoleWrite() output to a file or to CMD *

"Homo sum; humani nil a me alienum puto" - Publius Terentius Afer
"Program are meant to be read by humans and only incidentally for computers and execute" - Donald Knuth, "The Art of Computer Programming"
:naughty:  :ranting:, be  :) and       \\//_.

Anticipating Errors :  "Any program that accepts data from a user must include code to validate that data before sending it to the data store. You cannot rely on the data store, ...., or even your programming language to notify you of problems. You must check every byte entered by your users, making sure that data is the correct type for its field and that required fields are not empty."

Signature last update: 2018-10-31

Share this post


Link to post
Share on other sites
stenioc1

Thanks mLipok (thanks this usage information in the site), Danp2 and Palestinian this tips, but my code still does not work (I'm newbie in the AutoIT), but I do not understand the error:

#include <IE.au3>

Call ("LoginSite")
Sleep (5000)
Call ("ClickGrafic")

Func LoginSite ()

Global $oIE = _IECreate ("www.sitetest.com")

    Local $oUsername = _IEGetObjByName ($oIE,"txtUSer")
    Local $oPassword = _IEGetObjByName ($oIE,"txtPassword")
    Local $oButton = _IEGetObjByName ($oIE,"btnSingIn")

    _IEFormElementSetValue ($oUsername, "my_login")
    _IEFormElementSetValue ($oPassword, "my_password")

_IEAction ($oButton, "click")

EndFunc

Func ClickGrafic ()

Local $oAreas= _IETagNameGetCollection($oIE, "area")
For $oArea In $oAreas
    If StringInStr($oArea.outerhtml,'GRAFICS (NAME)') <> 0 Then
        _IEAction ($oArea, "click")
        ExitLoop
    EndIf
Next
EndFunc

The _IEAction ($oArea, "click") not working, what can be?

Sorry by the poor english.

Thanks & Regards

Edited by stenioc1

Share this post


Link to post
Share on other sites
mLipok

Not related with your question.

But:

Local $oButton = _IEGetObjByName ($oIE,"btnSingIn")

do you mean:

Local $oButton = _IEGetObjByName ($oIE,"btnSignIn")

Signature beginning:   Wondering who uses AutoIT and what it can be used for ?
* GHAPI UDF - modest begining - comunication with GitHub REST API Forum Rules *
ADO.au3 UDF     POP3.au3 UDF     XML.au3 UDF    How to use IE.au3  UDF with  AutoIt v3.3.14.x  for other useful stuff click the following button

Spoiler

Any of my own code posted anywhere on the forum is available for use by others without any restriction of any kind.

My contribution (my own projects): * Debenu Quick PDF Library - UDF * Debenu PDF Viewer SDK - UDF * Acrobat Reader - ActiveX Viewer * UDF for PDFCreator v1.x.x * XZip - UDF * AppCompatFlags UDF * CrowdinAPI UDF * _WinMergeCompare2Files() * _JavaExceptionAdd() * _IsBeta() * Writing DPI Awareness App - workaround * _AutoIt_RequiredVersion() * Chilkatsoft.au3 UDF * TeamViewer.au3 UDF * JavaManagement UDF * VIES over SOAP * WinSCP UDF * GHAPI UDF - modest begining - comunication with GitHub REST APIErrorLog.au3 UDF - A logging Library


My contribution to others projects or UDF based on  others projects: * _sql.au3 UDF  * POP3.au3 UDF *  RTF Printer - UDF * XML.au3 UDF * ADO.au3 UDF SMTP Mailer UDF * Dual Monitor resolution detection * * 2GUI on Dual Monitor System * _SciLexer.au3 UDF *

Useful links: * Forum Rules * Forum etiquette *  Forum Information and FAQs * How to post code on the forum * AutoIt Online Documentation * AutoIt Online Beta Documentation * SciTE4AutoIt3 getting started * Convert text blocks to AutoIt code * Games made in Autoit * Programming related sites * Polish AutoIt Tutorial * DllCall Code Generator *

Wiki: Expand your knowledge - AutoIt Wiki * Collection of User Defined Functions * How to use HelpFile * Good coding practices in AutoIt *

IE Related:  * How to use IE.au3  UDF with  AutoIt v3.3.14.x * Why isn't Autoit able to click a Javascript Dialog? * Clicking javascript button with no ID * IE document >> save as MHT file * IETab Switcher (by LarsJ ) * HTML Entities * _IEquerySelectorAll() (by uncommon) * IE in TaskScheduler

I encourage you to read: * Global Vars * Best Coding Practices * Please explain code used in Help file for several File functions * OOP-like approach in AutoIt * UDF-Spec Questions *  EXAMPLE: How To Catch ConsoleWrite() output to a file or to CMD *

"Homo sum; humani nil a me alienum puto" - Publius Terentius Afer
"Program are meant to be read by humans and only incidentally for computers and execute" - Donald Knuth, "The Art of Computer Programming"
:naughty:  :ranting:, be  :) and       \\//_.

Anticipating Errors :  "Any program that accepts data from a user must include code to validate that data before sending it to the data store. You cannot rely on the data store, ...., or even your programming language to notify you of problems. You must check every byte entered by your users, making sure that data is the correct type for its field and that required fields are not empty."

Signature last update: 2018-10-31

Share this post


Link to post
Share on other sites
stenioc1

The first part is working (Func LoginSite), my problem is that the mouse don't click in the grafic, could use the MouseMove function or another for example?

Edited by stenioc1

Share this post


Link to post
Share on other sites
mLipok

first use Tidy

second you are using/calling fuctions in a weired way

third, try this:

#include <MsgBoxConstants.au3>
#include <IE.au3>

LoginSite()
Sleep(5000)
ClickGrafic()

Func LoginSite()
    Global $oIE = _IECreate("www.sitetest.com")

    Local $oUsername = _IEGetObjByName($oIE, "txtUSer")
    Local $oPassword = _IEGetObjByName($oIE, "txtPassword")
    Local $oButton = _IEGetObjByName($oIE, "btnSignIn")

    _IEFormElementSetValue($oUsername, "my_login")
    _IEFormElementSetValue($oPassword, "my_password")

    _IEAction($oButton, "click")
EndFunc   ;==>LoginSite

Func ClickGrafic()
    Local $oAreas = _IETagNameGetCollection($oIE, "area")
    For $oArea In $oAreas
        If StringInStr($oArea.outerhtml, 'GRAFICS (NAME)') <> 0 Then
            ConsoleWrite("!TEST: area found" & @CRLF)
            _IEAction($oArea, "click")
            ExitLoop
        EndIf
    Next
EndFunc   ;==>ClickGrafic

and say: is this:

ConsoleWrite("!TEST: area found" & @CRLF)

taking any effect in SciTE Console ?


Signature beginning:   Wondering who uses AutoIT and what it can be used for ?
* GHAPI UDF - modest begining - comunication with GitHub REST API Forum Rules *
ADO.au3 UDF     POP3.au3 UDF     XML.au3 UDF    How to use IE.au3  UDF with  AutoIt v3.3.14.x  for other useful stuff click the following button

Spoiler

Any of my own code posted anywhere on the forum is available for use by others without any restriction of any kind.

My contribution (my own projects): * Debenu Quick PDF Library - UDF * Debenu PDF Viewer SDK - UDF * Acrobat Reader - ActiveX Viewer * UDF for PDFCreator v1.x.x * XZip - UDF * AppCompatFlags UDF * CrowdinAPI UDF * _WinMergeCompare2Files() * _JavaExceptionAdd() * _IsBeta() * Writing DPI Awareness App - workaround * _AutoIt_RequiredVersion() * Chilkatsoft.au3 UDF * TeamViewer.au3 UDF * JavaManagement UDF * VIES over SOAP * WinSCP UDF * GHAPI UDF - modest begining - comunication with GitHub REST APIErrorLog.au3 UDF - A logging Library


My contribution to others projects or UDF based on  others projects: * _sql.au3 UDF  * POP3.au3 UDF *  RTF Printer - UDF * XML.au3 UDF * ADO.au3 UDF SMTP Mailer UDF * Dual Monitor resolution detection * * 2GUI on Dual Monitor System * _SciLexer.au3 UDF *

Useful links: * Forum Rules * Forum etiquette *  Forum Information and FAQs * How to post code on the forum * AutoIt Online Documentation * AutoIt Online Beta Documentation * SciTE4AutoIt3 getting started * Convert text blocks to AutoIt code * Games made in Autoit * Programming related sites * Polish AutoIt Tutorial * DllCall Code Generator *

Wiki: Expand your knowledge - AutoIt Wiki * Collection of User Defined Functions * How to use HelpFile * Good coding practices in AutoIt *

IE Related:  * How to use IE.au3  UDF with  AutoIt v3.3.14.x * Why isn't Autoit able to click a Javascript Dialog? * Clicking javascript button with no ID * IE document >> save as MHT file * IETab Switcher (by LarsJ ) * HTML Entities * _IEquerySelectorAll() (by uncommon) * IE in TaskScheduler

I encourage you to read: * Global Vars * Best Coding Practices * Please explain code used in Help file for several File functions * OOP-like approach in AutoIt * UDF-Spec Questions *  EXAMPLE: How To Catch ConsoleWrite() output to a file or to CMD *

"Homo sum; humani nil a me alienum puto" - Publius Terentius Afer
"Program are meant to be read by humans and only incidentally for computers and execute" - Donald Knuth, "The Art of Computer Programming"
:naughty:  :ranting:, be  :) and       \\//_.

Anticipating Errors :  "Any program that accepts data from a user must include code to validate that data before sending it to the data store. You cannot rely on the data store, ...., or even your programming language to notify you of problems. You must check every byte entered by your users, making sure that data is the correct type for its field and that required fields are not empty."

Signature last update: 2018-10-31

Share this post


Link to post
Share on other sites
stenioc1

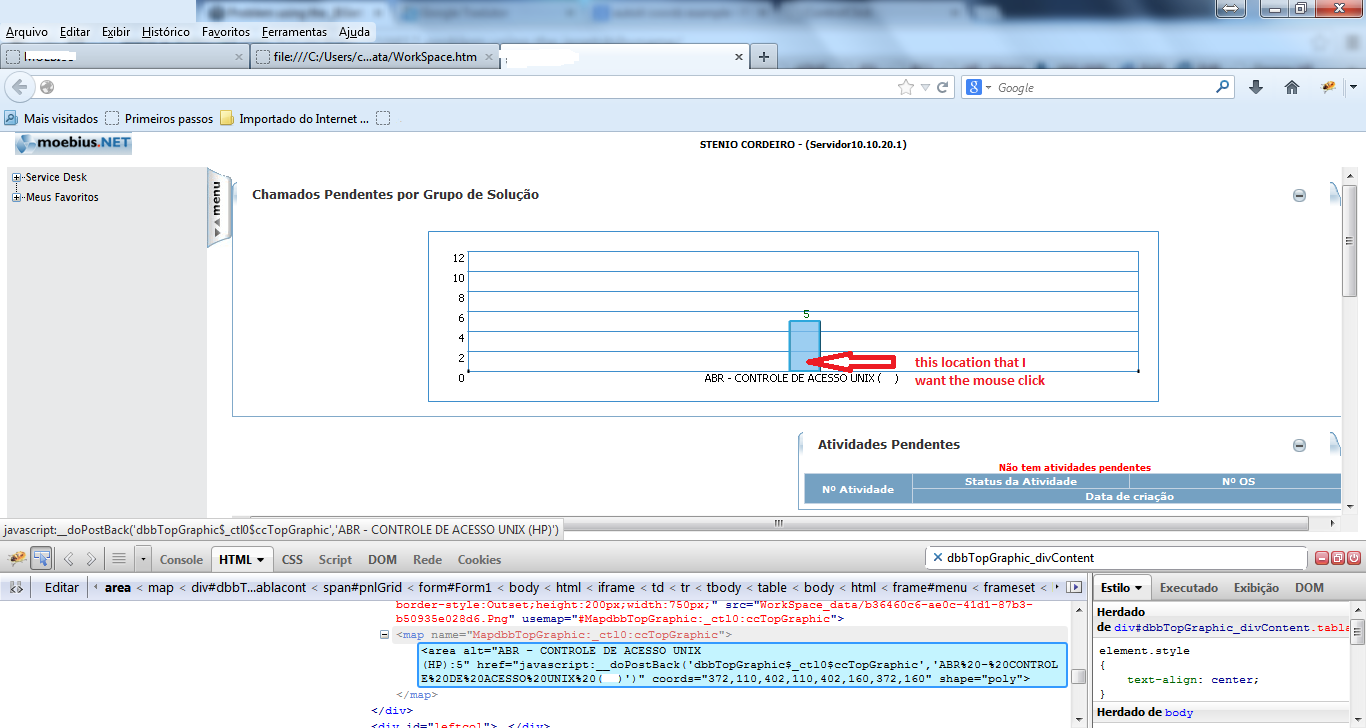

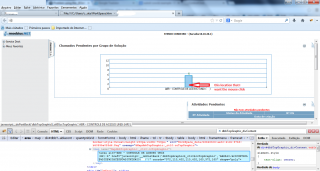

mLipok, I better send a print to the page you visualize and understand what I want to do:

post-85212-0-65825100-1395016944_thumb.p

Share this post


Link to post
Share on other sites
stenioc1

Don't appear error in the Scite output window, but the code not working, below the results:

>"C:\Program Files (x86)\AutoIt3\SciTE\AutoIt3Wrapper\AutoIt3Wrapper.exe" /run /prod /ErrorStdOut /in "C:\Users\cordeirs\Desktop\Projetos\AutoIT\new2.au3" /UserParams
+>22:31:07 Starting AutoIt3Wrapper v.2.1.4.4 SciTE v.3.3.7.0 ;  Keyboard:00000416  OS:WIN_7/Service Pack 1  CPU:X64 OS:X64    Environment(Language:0409  Keyboard:00000416  OS:WIN_7/Service Pack 1  CPU:X64 OS:X64)
>Running AU3Check (3.3.10.2)  from:C:\Program Files (x86)\AutoIt3
+>22:31:07 AU3Check ended.rc:0
>Running:(3.3.10.2):C:\Program Files (x86)\AutoIt3\autoit3.exe "C:\Users\cordeirs\Desktop\Projetos\AutoIT\new2.au3"
--> Press Ctrl+Alt+F5 to Restart or Ctrl+Break to Stop
+>22:31:16 AutoIt3.exe ended.rc:0
+>22:31:16 AutoIt3Wrapper Finished..
>Exit code: 0    Time: 8.880

Thanks & Regards

Share this post


Link to post
Share on other sites
Danp2

You will need to adjust the code for it to work because the image you posted doesn't contain the string ('GRAFICS (NAME)') that you posted in the original message.

Share this post


Link to post
Share on other sites
stenioc1

I put the string ('GRAFICS (NAME)' as an example, but the execution of the script is correct.

Share this post


Link to post
Share on other sites
mLipok

@stenioc1

did you try this:

$oIE_Graphic = _IEGetObjByName($oIE, 'MapdbbTopGraphic:_ct10:ccTopGraphic')
_IEAction($oIE_Graphic,'click')
  • Like 1

Signature beginning:   Wondering who uses AutoIT and what it can be used for ?
* GHAPI UDF - modest begining - comunication with GitHub REST API Forum Rules *
ADO.au3 UDF     POP3.au3 UDF     XML.au3 UDF    How to use IE.au3  UDF with  AutoIt v3.3.14.x  for other useful stuff click the following button

Spoiler

Any of my own code posted anywhere on the forum is available for use by others without any restriction of any kind.

My contribution (my own projects): * Debenu Quick PDF Library - UDF * Debenu PDF Viewer SDK - UDF * Acrobat Reader - ActiveX Viewer * UDF for PDFCreator v1.x.x * XZip - UDF * AppCompatFlags UDF * CrowdinAPI UDF * _WinMergeCompare2Files() * _JavaExceptionAdd() * _IsBeta() * Writing DPI Awareness App - workaround * _AutoIt_RequiredVersion() * Chilkatsoft.au3 UDF * TeamViewer.au3 UDF * JavaManagement UDF * VIES over SOAP * WinSCP UDF * GHAPI UDF - modest begining - comunication with GitHub REST APIErrorLog.au3 UDF - A logging Library


My contribution to others projects or UDF based on  others projects: * _sql.au3 UDF  * POP3.au3 UDF *  RTF Printer - UDF * XML.au3 UDF * ADO.au3 UDF SMTP Mailer UDF * Dual Monitor resolution detection * * 2GUI on Dual Monitor System * _SciLexer.au3 UDF *

Useful links: * Forum Rules * Forum etiquette *  Forum Information and FAQs * How to post code on the forum * AutoIt Online Documentation * AutoIt Online Beta Documentation * SciTE4AutoIt3 getting started * Convert text blocks to AutoIt code * Games made in Autoit * Programming related sites * Polish AutoIt Tutorial * DllCall Code Generator *

Wiki: Expand your knowledge - AutoIt Wiki * Collection of User Defined Functions * How to use HelpFile * Good coding practices in AutoIt *

IE Related:  * How to use IE.au3  UDF with  AutoIt v3.3.14.x * Why isn't Autoit able to click a Javascript Dialog? * Clicking javascript button with no ID * IE document >> save as MHT file * IETab Switcher (by LarsJ ) * HTML Entities * _IEquerySelectorAll() (by uncommon) * IE in TaskScheduler

I encourage you to read: * Global Vars * Best Coding Practices * Please explain code used in Help file for several File functions * OOP-like approach in AutoIt * UDF-Spec Questions *  EXAMPLE: How To Catch ConsoleWrite() output to a file or to CMD *

"Homo sum; humani nil a me alienum puto" - Publius Terentius Afer
"Program are meant to be read by humans and only incidentally for computers and execute" - Donald Knuth, "The Art of Computer Programming"
:naughty:  :ranting:, be  :) and       \\//_.

Anticipating Errors :  "Any program that accepts data from a user must include code to validate that data before sending it to the data store. You cannot rely on the data store, ...., or even your programming language to notify you of problems. You must check every byte entered by your users, making sure that data is the correct type for its field and that required fields are not empty."

Signature last update: 2018-10-31

Share this post


Link to post
Share on other sites
Palestinian



@stenioc1

did you try this:

$oIE_Graphic = _IEGetObjByName($oIE, 'MapdbbTopGraphic:_ct10:ccTopGraphic')
_IEAction($oIE_Graphic,'click')



That one should do it, if it doesn't try setting focus to $oIE_Graphic 1st then use _IEAction click

Share this post


Link to post
Share on other sites
mLipok

I put the string ('GRAFICS (NAME)' as an example, but the execution of the script is correct.



"the execution of the script is correct" ?

Correct became at the moment when it start to works exactly how you want.

Now it is not correct.


Signature beginning:   Wondering who uses AutoIT and what it can be used for ?
* GHAPI UDF - modest begining - comunication with GitHub REST API Forum Rules *
ADO.au3 UDF     POP3.au3 UDF     XML.au3 UDF    How to use IE.au3  UDF with  AutoIt v3.3.14.x  for other useful stuff click the following button

Spoiler

Any of my own code posted anywhere on the forum is available for use by others without any restriction of any kind.

My contribution (my own projects): * Debenu Quick PDF Library - UDF * Debenu PDF Viewer SDK - UDF * Acrobat Reader - ActiveX Viewer * UDF for PDFCreator v1.x.x * XZip - UDF * AppCompatFlags UDF * CrowdinAPI UDF * _WinMergeCompare2Files() * _JavaExceptionAdd() * _IsBeta() * Writing DPI Awareness App - workaround * _AutoIt_RequiredVersion() * Chilkatsoft.au3 UDF * TeamViewer.au3 UDF * JavaManagement UDF * VIES over SOAP * WinSCP UDF * GHAPI UDF - modest begining - comunication with GitHub REST APIErrorLog.au3 UDF - A logging Library


My contribution to others projects or UDF based on  others projects: * _sql.au3 UDF  * POP3.au3 UDF *  RTF Printer - UDF * XML.au3 UDF * ADO.au3 UDF SMTP Mailer UDF * Dual Monitor resolution detection * * 2GUI on Dual Monitor System * _SciLexer.au3 UDF *

Useful links: * Forum Rules * Forum etiquette *  Forum Information and FAQs * How to post code on the forum * AutoIt Online Documentation * AutoIt Online Beta Documentation * SciTE4AutoIt3 getting started * Convert text blocks to AutoIt code * Games made in Autoit * Programming related sites * Polish AutoIt Tutorial * DllCall Code Generator *

Wiki: Expand your knowledge - AutoIt Wiki * Collection of User Defined Functions * How to use HelpFile * Good coding practices in AutoIt *

IE Related:  * How to use IE.au3  UDF with  AutoIt v3.3.14.x * Why isn't Autoit able to click a Javascript Dialog? * Clicking javascript button with no ID * IE document >> save as MHT file * IETab Switcher (by LarsJ ) * HTML Entities * _IEquerySelectorAll() (by uncommon) * IE in TaskScheduler

I encourage you to read: * Global Vars * Best Coding Practices * Please explain code used in Help file for several File functions * OOP-like approach in AutoIt * UDF-Spec Questions *  EXAMPLE: How To Catch ConsoleWrite() output to a file or to CMD *

"Homo sum; humani nil a me alienum puto" - Publius Terentius Afer
"Program are meant to be read by humans and only incidentally for computers and execute" - Donald Knuth, "The Art of Computer Programming"
:naughty:  :ranting:, be  :) and       \\//_.

Anticipating Errors :  "Any program that accepts data from a user must include code to validate that data before sending it to the data store. You cannot rely on the data store, ...., or even your programming language to notify you of problems. You must check every byte entered by your users, making sure that data is the correct type for its field and that required fields are not empty."

Signature last update: 2018-10-31

Share this post


Link to post
Share on other sites
stenioc1

Sorry, wanted facilitate the reading of the code  :( , below my code:

#include <MsgBoxConstants.au3>
#include <IE.au3>

LoginSite()
Sleep(5000)
ClickGrafic()

Func LoginSite()
Global $oIE = _IECreate("https://moebius.sondaprocwork.com.br/Moebius/login.aspx")

Local $oUsername = _IEGetObjByName($oIE, "txtUsuario")
Local $oPassword = _IEGetObjByName($oIE, "txtSenha")
Local $OButton = _IEGetObjByName($oIE, "btnEntrar")

_IEFormElementSetValue($oUsername, "my_login")
_IEFormElementSetValue($oPassword, "my_pass")

_IEAction($OButton, "click")
EndFunc   ;==>LoginSite

Func ClickGrafic()

Local $oClickGrafic = _IEGetObjByName($oIE, "MapdbbTopGraphic:_ct10:ccTopGraphic")

_IEAction($oClickGrafic, "click")

EndFunc   ;==>ClickGrafic





And logs:

>"C:\Program Files (x86)\AutoIt3\SciTE\AutoIt3Wrapper\AutoIt3Wrapper.exe" /run /prod /ErrorStdOut /in "C:\Users\cordeirs\Desktop\Projetos\AutoIT\new2.au3" /UserParams
+>00:57:14 Starting AutoIt3Wrapper v.2.1.4.4 SciTE v.3.3.7.0 ;  Keyboard:00000416  OS:WIN_7/Service Pack 1  CPU:X64 OS:X64    Environment(Language:0409  Keyboard:00000416  OS:WIN_7/Service Pack 1  CPU:X64 OS:X64)
>Running AU3Check (3.3.10.2)  from:C:\Program Files (x86)\AutoIt3
+>00:57:14 AU3Check ended.rc:0
>Running:(3.3.10.2):C:\Program Files (x86)\AutoIt3\autoit3.exe "C:\Users\cordeirs\Desktop\Projetos\AutoIT\new2.au3"
--> Press Ctrl+Alt+F5 to Restart or Ctrl+Break to Stop
--> IE.au3 T3.0-1 Warning from function _IEGetObjByName, $_IEStatus_NoMatch (Name: MapdbbTopGraphic:_ct10:ccTopGraphic, Index: 0)
--> IE.au3 T3.0-1 Error from function _IEAction(click), $_IEStatus_InvalidDataType
+>00:57:20 AutoIt3.exe ended.rc:0
+>00:57:20 AutoIt3Wrapper Finished..
>Exit code: 0    Time: 6.409

Thanks

Edited by stenioc1

Share this post


Link to post
Share on other sites
mLipok

ok

now try this:

Local $oMaps= _IETagNameGetCollection($oIE, "map")
For $oMap In $oMaps
    if StringInStr($oMap.outerhtml,'MapdbbTopGraphic:_ct10:ccTopGraphic') <> 0 Then
        _IEAction ($oMap, "click")
        ExitLoop
    EndIf
EndIf
  • Like 1

Signature beginning:   Wondering who uses AutoIT and what it can be used for ?
* GHAPI UDF - modest begining - comunication with GitHub REST API Forum Rules *
ADO.au3 UDF     POP3.au3 UDF     XML.au3 UDF    How to use IE.au3  UDF with  AutoIt v3.3.14.x  for other useful stuff click the following button

Spoiler

Any of my own code posted anywhere on the forum is available for use by others without any restriction of any kind.

My contribution (my own projects): * Debenu Quick PDF Library - UDF * Debenu PDF Viewer SDK - UDF * Acrobat Reader - ActiveX Viewer * UDF for PDFCreator v1.x.x * XZip - UDF * AppCompatFlags UDF * CrowdinAPI UDF * _WinMergeCompare2Files() * _JavaExceptionAdd() * _IsBeta() * Writing DPI Awareness App - workaround * _AutoIt_RequiredVersion() * Chilkatsoft.au3 UDF * TeamViewer.au3 UDF * JavaManagement UDF * VIES over SOAP * WinSCP UDF * GHAPI UDF - modest begining - comunication with GitHub REST APIErrorLog.au3 UDF - A logging Library


My contribution to others projects or UDF based on  others projects: * _sql.au3 UDF  * POP3.au3 UDF *  RTF Printer - UDF * XML.au3 UDF * ADO.au3 UDF SMTP Mailer UDF * Dual Monitor resolution detection * * 2GUI on Dual Monitor System * _SciLexer.au3 UDF *

Useful links: * Forum Rules * Forum etiquette *  Forum Information and FAQs * How to post code on the forum * AutoIt Online Documentation * AutoIt Online Beta Documentation * SciTE4AutoIt3 getting started * Convert text blocks to AutoIt code * Games made in Autoit * Programming related sites * Polish AutoIt Tutorial * DllCall Code Generator *

Wiki: Expand your knowledge - AutoIt Wiki * Collection of User Defined Functions * How to use HelpFile * Good coding practices in AutoIt *

IE Related:  * How to use IE.au3  UDF with  AutoIt v3.3.14.x * Why isn't Autoit able to click a Javascript Dialog? * Clicking javascript button with no ID * IE document >> save as MHT file * IETab Switcher (by LarsJ ) * HTML Entities * _IEquerySelectorAll() (by uncommon) * IE in TaskScheduler

I encourage you to read: * Global Vars * Best Coding Practices * Please explain code used in Help file for several File functions * OOP-like approach in AutoIt * UDF-Spec Questions *  EXAMPLE: How To Catch ConsoleWrite() output to a file or to CMD *

"Homo sum; humani nil a me alienum puto" - Publius Terentius Afer
"Program are meant to be read by humans and only incidentally for computers and execute" - Donald Knuth, "The Art of Computer Programming"
:naughty:  :ranting:, be  :) and       \\//_.

Anticipating Errors :  "Any program that accepts data from a user must include code to validate that data before sending it to the data store. You cannot rely on the data store, ...., or even your programming language to notify you of problems. You must check every byte entered by your users, making sure that data is the correct type for its field and that required fields are not empty."

Signature last update: 2018-10-31

Share this post


Link to post
Share on other sites

Create an account or sign in to comment

You need to be a member in order to leave a comment

Create an account

Sign up for a new account in our community. It's easy!

Register a new account

Sign in

Already have an account? Sign in here.

Sign In Now
Sign in to follow this

×
