How to send SOAP Envelope request and receive response

5 posts in this topic

How to process SOAP Envelope request by sending it to webservice and receive response? I know there is some build in function called "new SoapClient()" in PHP language which doesn't require to build full envelope as it do it by itself with only some required params. Unfortunatelly there is no such a function "SoapClient" in Autoit. I decided to first understand how does request and response works with full xml envelopes.

I have example of SOAP Request

<soapenv:Envelope xmlns:soapenv="http://schemas.xmlsoap.org/soap/envelope/" xmlns:even="http://events.dpdinfoservices.dpd.com.pl/">
   <soapenv:Header/>
   <soapenv:Body>
      <even:getEventsForCustomerV1>
         <limit>10</limit>
         <authDataV1>
            <channel>clientChannel</channel>
            <login>user</login>
            <password>userPassword</password>
         </authDataV1>
      </even:getEventsForCustomerV1>
   </soapenv:Body>
</soapenv:Envelope>

with example of SOAP Response

<S:Envelope xmlns:S="http://schemas.xmlsoap.org/soap/envelope/">
   <S:Body>
      <ns2:getEventsForCustomerV1Response xmlns:ns2="http://events.dpdinfoservices.dpd.com.pl/">
         <return>
            <confirmId>6/YZj7qK8rzMimm3VRYyjQ==</confirmId>
            <eventsList>
               <businessCode>170101</businessCode>
               <country>PL</country>
               <depot>BIA</depot>
               <description>Wydanie przesyłki do doręczenia</description>
               <eventData1>eventData1</eventData1>
               <eventData2>eventData2</eventData2>
               <eventData3>eventData3</eventData3>
               <eventTime>2011-11-16T12:43:41</eventTime>
               <id>14123075</id>
               <objectId>46181630</objectId>
               <operationType>INSERT</operationType>
               <packageReference/>
               <parcelReference>TEL000069708012</parcelReference>
               <waybill>NG148497H090</waybill>
            </eventsList>
            <eventsList>
               <businessCode>170101</businessCode>
               <country>PL</country>
               <depot>KTW</depot>
               <description>Wydanie przesyłki do doręczenia</description>
               <eventData1>eventData1</eventData1>
               <eventData2>eventData2</eventData2>
               <eventData3>eventData3</eventData3>
               <eventTime>2011-11-16T12:48:25</eventTime>
               <id>14123116</id>
               <objectId>46183717</objectId>
               <operationType>INSERT</operationType>
               <packageReference/>
               <parcelReference>MATERIAŁY FIRMOWE</parcelReference>
               <waybill>01765003987175</waybill>
            </eventsList>
         </return>
      </ns2:getEventsForCustomerV1Response>
   </S:Body>
</S:Envelope>

How to send this kind of request via AutoIT and how to receive response as string/table ?

I want to notice that I have study this post:

"Simple SOAP Example" by MVPs from:

'?do=embed' frameborder='0' data-embedContent>>

I have made some changes and in results I have receive this code:

; Initialize COM error handler
$oMyError = ObjEvent("AutoIt.Error","MyErrFunc")

$objHTTP = ObjCreate("Microsoft.XMLHTTP")
$objReturn = ObjCreate("Msxml2.DOMdocument.3.0")

; Create the SOAP Envelope
$strEnvelope = "" & _
'<soapenv:Envelope xmlns:soapenv="http://schemas.xmlsoap.org/soap/envelope/" xmlns:even="http://events.dpdinfoservices.dpd.com.pl/">' & _
'   <soapenv:Header/>' & _
'   <soapenv:Body>' & _
'      <even:getEventsForCustomerV1>' & _
'         <limit>10</limit>' & _
'         <authDataV1>' & _
'            <channel>clientChannel</channel>' & _
'            <login>user</login>' & _
'            <password>userPassword</password>' & _
'         </authDataV1>' & _
'      </even:getEventsForCustomerV1>' & _
'   </soapenv:Body>' & _
'</soapenv:Envelope>'

; Make the SOAP call
$objHTTP.send ($strEnvelope)

; Get the return envelope
$strReturn = $objHTTP.responseText

ConsoleWrite("Return : " & @CR & $strReturn & @CR & @CR)

Func MyErrFunc()
$HexNumber=hex($oMyError.number,8)
Msgbox(0,"COM Test","We intercepted a COM Error !" & @CRLF & @CRLF & _
             "err.description is: " & @TAB & $oMyError.description & @CRLF & _
             "err.windescription:" & @TAB & $oMyError.windescription & @CRLF & _
             "err.number is: " & @TAB & $HexNumber & @CRLF & _
             "err.lastdllerror is: " & @TAB & $oMyError.lastdllerror & @CRLF & _
             "err.scriptline is: " & @TAB & $oMyError.scriptline & @CRLF & _
             "err.source is: " & @TAB & $oMyError.source & @CRLF & _
             "err.helpfile is: " & @TAB & $oMyError.helpfile & @CRLF & _
             "err.helpcontext is: " & @TAB & $oMyError.helpcontext _
            )
SetError(1) ; to check for after this function returns
Endfunc

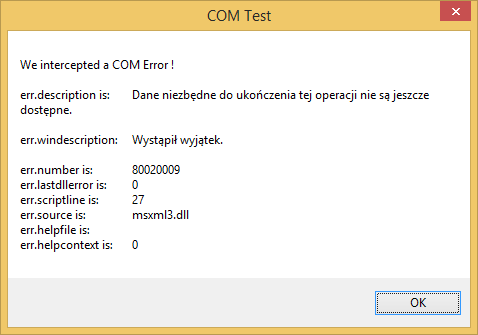

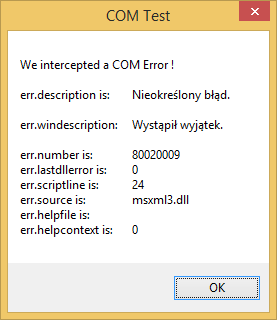

I have edited required values in envelope such a <limit></limit> and <authDataV1></authDataV1> but in results I have received 2 errors (attached)

Any idea what could be wrong?

All help will be much apprieciated.


post-51823-0-94753600-1427455859_thumb.p

Share this post


Link to post
Share on other sites



#2 ·  Posted (edited)


Signature beginning:   Wondering who uses AutoIT and what it can be used for ?
* GHAPI UDF - modest begining - comunication with GitHub REST API *
ADO.au3 UDF     POP3.au3 UDF     XML.au3 UDF    How to use IE.au3  UDF with  AutoIt v3.3.14.x  for other useful stuff click the following button

Spoiler

Any of my own code posted anywhere on the forum is available for use by others without any restriction of any kind.

My contribution (my own projects): * Debenu Quick PDF Library - UDF * Debenu PDF Viewer SDK - UDF * Acrobat Reader - ActiveX Viewer * UDF for PDFCreator v1.x.x * XZip - UDF * AppCompatFlags UDF * CrowdinAPI UDF * _WinMergeCompare2Files() * _JavaExceptionAdd() * _IsBeta() * Writing DPI Awareness App - workaround * _AutoIt_RequiredVersion() * Chilkatsoft.au3 UDF * TeamViewer.au3 UDF * JavaManagement UDF * VIES over SOAP * WinSCP UDF * GHAPI UDF - modest begining - comunication with GitHub REST API *

My contribution to others projects or UDF based on  others projects: * _sql.au3 UDF  * POP3.au3 UDF *  RTF Printer - UDF * XML.au3 - BETA * ADO.au3 UDF SMTP Mailer UDF *

Useful links: * Forum Rules * Forum etiquette *  Forum Information and FAQs * How to post code on the forum * AutoIt Online Documentation * AutoIt Online Beta Documentation * SciTE4AutoIt3 getting started * Convert text blocks to AutoIt code * Games made in Autoit * Programming related sites * Polish AutoIt Tutorial * DllCall Code Generator *

Wiki: Expand your knowledge - AutoIt Wiki * Collection of User Defined Functions * How to use HelpFile * Best coding practices *

IE Related:  * How to use IE.au3  UDF with  AutoIt v3.3.14.x * Why isn't Autoit able to click a Javascript Dialog? * Clicking javascript button with no ID * IE document >> save as MHT file * IETab Switcher (by LarsJ ) * HTML Entities * _IEquerySelectorAll() (by uncommon) *

I encourage you to read: * Global Vars * Best Coding Practices * Please explain code used in Help file for several File functions * OOP-like approach in AutoIt * UDF-Spec Questions *  EXAMPLE: How To Catch ConsoleWrite() output to a file or to CMD *

"Homo sum; humani nil a me alienum puto" - Publius Terentius Afer
"Program are meant to be read by humans and only incidentally for computers and execute" - Donald Knuth, "The Art of Computer Programming"
:naughty:  :ranting:, be  :) and       \\//_.

Anticipating Errors :  "Any program that accepts data from a user must include code to validate that data before sending it to the data store. You cannot rely on the data store, ...., or even your programming language to notify you of problems. You must check every byte entered by your users, making sure that data is the correct type for its field and that required fields are not empty."

Signature last update: 2017-06-04

Share this post


Link to post
Share on other sites

working example:

; Initialize COM error handler
$oMyError = ObjEvent("AutoIt.Error","MyErrFunc")

$objHTTP = ObjCreate("Microsoft.XMLHTTP")
$objReturn = ObjCreate("Msxml2.DOMdocument.3.0")

; Create the SOAP Envelope
$strEnvelope = "" & _
'<soapenv:Envelope xmlns:soapenv="http://schemas.xmlsoap.org/soap/envelope/" xmlns:even="http://events.dpdinfoservices.dpd.com.pl/">' & _
'   <soapenv:Header/>' & _
'   <soapenv:Body>' & _
'      <even:getEventsForCustomerV1>' & _
'         <limit>10</limit>' & _
'         <authDataV1>' & _
'            <channel>clientChannel</channel>' & _
'            <login>user</login>' & _
'            <password>userPassword</password>' & _
'         </authDataV1>' & _
'      </even:getEventsForCustomerV1>' & _
'   </soapenv:Body>' & _
'</soapenv:Envelope>'

$objHTTP.Open('POST', 'http://dpd.com.pl/common/service/LoginService/2.0/getAuth', False)
; Make the SOAP call
$objHTTP.send ()

; Get the return envelope
$strReturn = $objHTTP.responseText

ConsoleWrite("Return : " & @CR & $strReturn & @CR & @CR)

Func MyErrFunc()
$HexNumber=hex($oMyError.number,8)
ConsoleWrite("We intercepted a COM Error !" & @CRLF & @CRLF & _
             "err.description is: " & @TAB & $oMyError.description & @CRLF & _
             "err.windescription:" & @TAB & $oMyError.windescription & @CRLF & _
             "err.number is: " & @TAB & $HexNumber & @CRLF & _
             "err.lastdllerror is: " & @TAB & $oMyError.lastdllerror & @CRLF & _
             "err.scriptline is: " & @TAB & $oMyError.scriptline & @CRLF & _
             "err.source is: " & @TAB & $oMyError.source & @CRLF & _
             "err.helpfile is: " & @TAB & $oMyError.helpfile & @CRLF & _
             "err.helpcontext is: " & @TAB & $oMyError.helpcontext & @CRLF & _
            "" _
            )
SetError(1) ; to check for after this function returns
Endfunc
1 person likes this

Signature beginning:   Wondering who uses AutoIT and what it can be used for ?
* GHAPI UDF - modest begining - comunication with GitHub REST API *
ADO.au3 UDF     POP3.au3 UDF     XML.au3 UDF    How to use IE.au3  UDF with  AutoIt v3.3.14.x  for other useful stuff click the following button

Spoiler

Any of my own code posted anywhere on the forum is available for use by others without any restriction of any kind.

My contribution (my own projects): * Debenu Quick PDF Library - UDF * Debenu PDF Viewer SDK - UDF * Acrobat Reader - ActiveX Viewer * UDF for PDFCreator v1.x.x * XZip - UDF * AppCompatFlags UDF * CrowdinAPI UDF * _WinMergeCompare2Files() * _JavaExceptionAdd() * _IsBeta() * Writing DPI Awareness App - workaround * _AutoIt_RequiredVersion() * Chilkatsoft.au3 UDF * TeamViewer.au3 UDF * JavaManagement UDF * VIES over SOAP * WinSCP UDF * GHAPI UDF - modest begining - comunication with GitHub REST API *

My contribution to others projects or UDF based on  others projects: * _sql.au3 UDF  * POP3.au3 UDF *  RTF Printer - UDF * XML.au3 - BETA * ADO.au3 UDF SMTP Mailer UDF *

Useful links: * Forum Rules * Forum etiquette *  Forum Information and FAQs * How to post code on the forum * AutoIt Online Documentation * AutoIt Online Beta Documentation * SciTE4AutoIt3 getting started * Convert text blocks to AutoIt code * Games made in Autoit * Programming related sites * Polish AutoIt Tutorial * DllCall Code Generator *

Wiki: Expand your knowledge - AutoIt Wiki * Collection of User Defined Functions * How to use HelpFile * Best coding practices *

IE Related:  * How to use IE.au3  UDF with  AutoIt v3.3.14.x * Why isn't Autoit able to click a Javascript Dialog? * Clicking javascript button with no ID * IE document >> save as MHT file * IETab Switcher (by LarsJ ) * HTML Entities * _IEquerySelectorAll() (by uncommon) *

I encourage you to read: * Global Vars * Best Coding Practices * Please explain code used in Help file for several File functions * OOP-like approach in AutoIt * UDF-Spec Questions *  EXAMPLE: How To Catch ConsoleWrite() output to a file or to CMD *

"Homo sum; humani nil a me alienum puto" - Publius Terentius Afer
"Program are meant to be read by humans and only incidentally for computers and execute" - Donald Knuth, "The Art of Computer Programming"
:naughty:  :ranting:, be  :) and       \\//_.

Anticipating Errors :  "Any program that accepts data from a user must include code to validate that data before sending it to the data store. You cannot rely on the data store, ...., or even your programming language to notify you of problems. You must check every byte entered by your users, making sure that data is the correct type for its field and that required fields are not empty."

Signature last update: 2017-06-04

Share this post


Link to post
Share on other sites

Can you talk is it works for you ?


Signature beginning:   Wondering who uses AutoIT and what it can be used for ?
* GHAPI UDF - modest begining - comunication with GitHub REST API *
ADO.au3 UDF     POP3.au3 UDF     XML.au3 UDF    How to use IE.au3  UDF with  AutoIt v3.3.14.x  for other useful stuff click the following button

Spoiler

Any of my own code posted anywhere on the forum is available for use by others without any restriction of any kind.

My contribution (my own projects): * Debenu Quick PDF Library - UDF * Debenu PDF Viewer SDK - UDF * Acrobat Reader - ActiveX Viewer * UDF for PDFCreator v1.x.x * XZip - UDF * AppCompatFlags UDF * CrowdinAPI UDF * _WinMergeCompare2Files() * _JavaExceptionAdd() * _IsBeta() * Writing DPI Awareness App - workaround * _AutoIt_RequiredVersion() * Chilkatsoft.au3 UDF * TeamViewer.au3 UDF * JavaManagement UDF * VIES over SOAP * WinSCP UDF * GHAPI UDF - modest begining - comunication with GitHub REST API *

My contribution to others projects or UDF based on  others projects: * _sql.au3 UDF  * POP3.au3 UDF *  RTF Printer - UDF * XML.au3 - BETA * ADO.au3 UDF SMTP Mailer UDF *

Useful links: * Forum Rules * Forum etiquette *  Forum Information and FAQs * How to post code on the forum * AutoIt Online Documentation * AutoIt Online Beta Documentation * SciTE4AutoIt3 getting started * Convert text blocks to AutoIt code * Games made in Autoit * Programming related sites * Polish AutoIt Tutorial * DllCall Code Generator *

Wiki: Expand your knowledge - AutoIt Wiki * Collection of User Defined Functions * How to use HelpFile * Best coding practices *

IE Related:  * How to use IE.au3  UDF with  AutoIt v3.3.14.x * Why isn't Autoit able to click a Javascript Dialog? * Clicking javascript button with no ID * IE document >> save as MHT file * IETab Switcher (by LarsJ ) * HTML Entities * _IEquerySelectorAll() (by uncommon) *

I encourage you to read: * Global Vars * Best Coding Practices * Please explain code used in Help file for several File functions * OOP-like approach in AutoIt * UDF-Spec Questions *  EXAMPLE: How To Catch ConsoleWrite() output to a file or to CMD *

"Homo sum; humani nil a me alienum puto" - Publius Terentius Afer
"Program are meant to be read by humans and only incidentally for computers and execute" - Donald Knuth, "The Art of Computer Programming"
:naughty:  :ranting:, be  :) and       \\//_.

Anticipating Errors :  "Any program that accepts data from a user must include code to validate that data before sending it to the data store. You cannot rely on the data store, ...., or even your programming language to notify you of problems. You must check every byte entered by your users, making sure that data is the correct type for its field and that required fields are not empty."

Signature last update: 2017-06-04

Share this post


Link to post
Share on other sites

Yes it is! Thanks a milion!
