How to click button in a DIV?

10 posts in this topic

I need help to click the DRAW button.  See attached.  The first few lines inserts the 1 in the mi box.  Now I need to click the DRAW button.

$oIE = _IEAttach ("http://paragonmls.sandicor.com/ParagonLS/Default.mvc", "URL")

 Local $oFrame = _IEFrameGetCollection($oIE, 0)
 Local $hWnd = _IEPropertyGet($oIE, "hwnd")
 Local $oQuery = _IEGetObjById($oFrame, "jqMpCntlTopMenuDrawRadius")
 $oQuery.value = "1" ; Works and replaces mi with 1

 ;*****************Trying to click the Draw button*************************
 Local $oQuery = _IEGetObjById($oFrame, "jqMpCntlTopMenuActionDrawRadius" )

 _IEAction($oQuery, "click")  ; Doesn't Work I only use one of these lines at a time but neither work.
 ControlSend($hWnd, "", "[CLASS:Internet Explorer_Server; INSTANCE:8]", "{Enter}") ;Doesn't Work

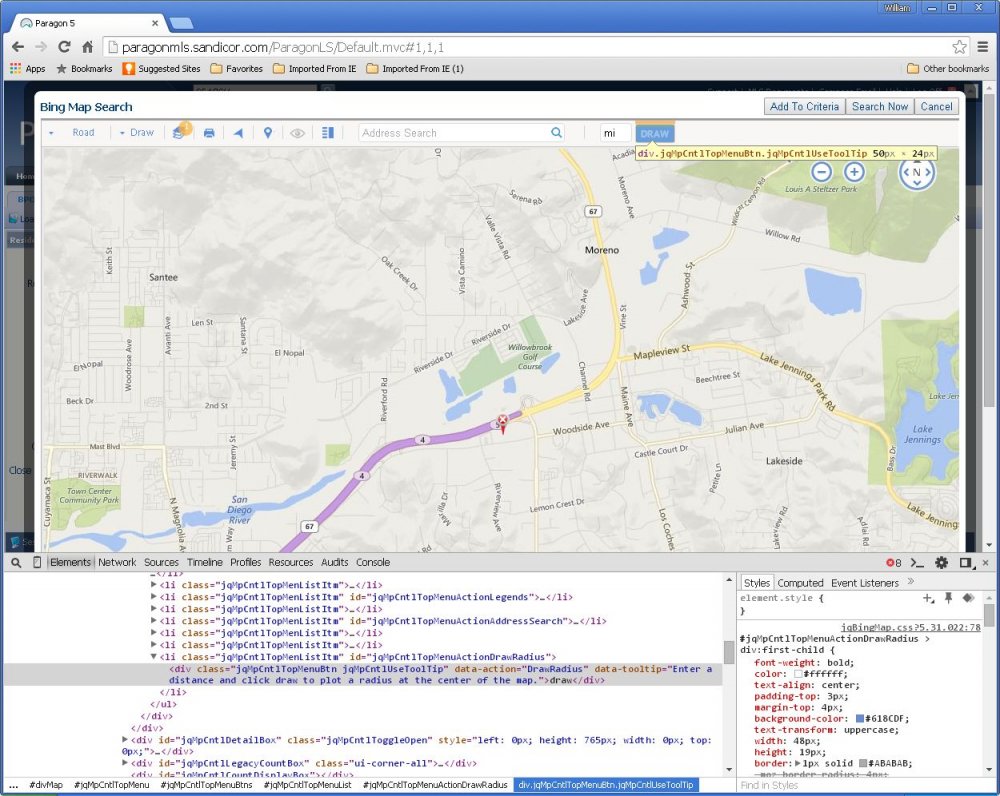

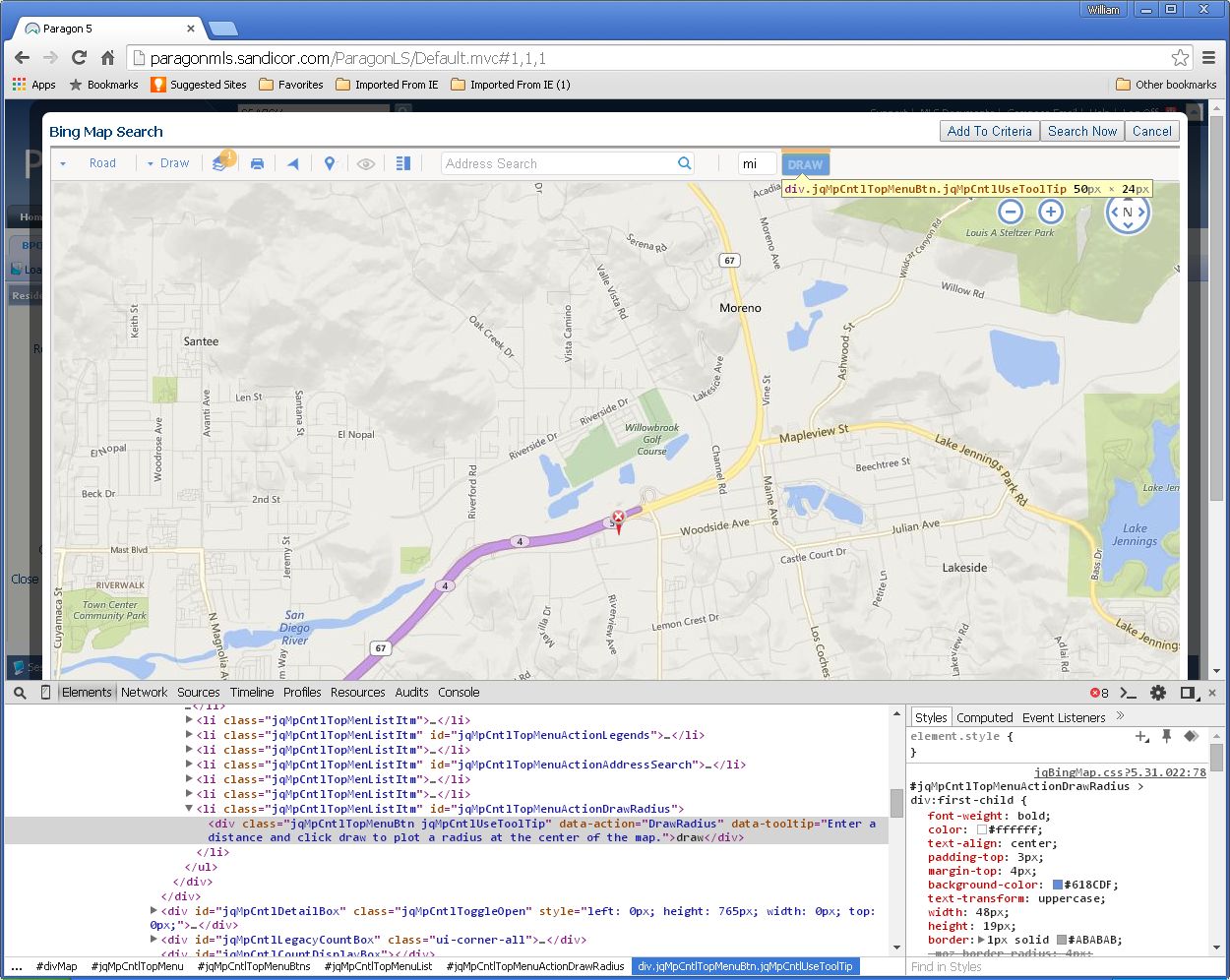

I used chome to show the content since it does better than IE11.Draw_Button.thumb.jpg.02a81cffb6f493e57b

Share this post


Link to post
Share on other sites



You could try to list div objects using _IETagNameGetCollection, then loop to check .innertext for "draw", and click the found one

Share this post


Link to post
Share on other sites

You can use my signature to grab it.  Your xpath would be:

$xpath = "//li/div[.='draw']"

; if the above returns multiple objects, you can get more specific like
$xpath = '//li/div[@data-action="DrawRadius" and .="draw"]'




IEbyXPATH-Grab IE DOM objects by XPATH IEscriptRecord-Makings of an IE script recorder ExcelFromXML-Create Excel docs without excel installed GetAllWindowControls-Output all control data on a given window.

Share this post


Link to post
Share on other sites

Mikell, using your suggestion I did:

$oIE = _IEAttach ("http://paragonmls.sandicor.com/ParagonLS/Default.mvc", "URL")

Local $oFrame = _IEFrameGetCollection($oIE, 0)

$oElements = _IETagNameGetCollection($oFrame, "li")
  For $oElement In $oElements
  If $oElement.id = "jqMpCntlTopMenuActionDrawRadius" Then
      If $oElement.id Then ConsoleWrite("Tagname: " & $oElement.tagname & @CRLF & "id: " & $oElement.id & @CRLF & "innerText: " & $oElement.innerText  & @CRLF & "Attribute: " & $oElement.GetAttribute & @CRLF)
   EndIf
I get:

Tagname: LI
id: jqMpCntlTopMenuActionDrawRadius
innerText: draw
Attribute:

Now how do I click on it?  $oElement.click does not work.

Junkew: I am filling in information and now I need to click the draw button.

Jdelaney: I will have to studying xpath since I have not heard of it before now.  If you grab it, how do you click it?



Share this post


Link to post
Share on other sites

Hmm you didn't read my post closely enough, I mentioned the div (the one inside the li)
Look at the classnames :
li => jqMpCntlTopMenListItm = list item
div => jqMpCntlTopMenuBtn = button
Not sure it will work of course but it's worth a try   :)

$oDivs = _IETagNameGetCollection($oFrame, "div")
For $oDiv In $oDivs
  If StringInStr(oDiv.classname, "jqMpCntlTopMenuBtn") and $oDiv.innertext = "draw" Then
     _IEAction($oDiv, "click")
  EndIf
Next



1 person likes this

Share this post


Link to post
Share on other sites

@whanenbu

Please use code tags when you post your code.

You can also edit your old post , you can read about here.


Signature beginning:   Wondering who uses AutoIT and what it can be used for ?
* GHAPI UDF - modest begining - comunication with GitHub REST API *
ADO.au3 UDF     POP3.au3 UDF     XML.au3 UDF    How to use IE.au3  UDF with  AutoIt v3.3.14.x  for other useful stuff click the following button

Spoiler

Any of my own code posted anywhere on the forum is available for use by others without any restriction of any kind.

My contribution (my own projects): * Debenu Quick PDF Library - UDF * Debenu PDF Viewer SDK - UDF * Acrobat Reader - ActiveX Viewer * UDF for PDFCreator v1.x.x * XZip - UDF * AppCompatFlags UDF * CrowdinAPI UDF * _WinMergeCompare2Files() * _JavaExceptionAdd() * _IsBeta() * Writing DPI Awareness App - workaround * _AutoIt_RequiredVersion() * Chilkatsoft.au3 UDF * TeamViewer.au3 UDF * JavaManagement UDF * VIES over SOAP * WinSCP UDF * GHAPI UDF - modest begining - comunication with GitHub REST API *

My contribution to others projects or UDF based on  others projects: * _sql.au3 UDF  * POP3.au3 UDF *  RTF Printer - UDF * XML.au3 - BETA * ADO.au3 UDF SMTP Mailer UDF *

Useful links: * Forum Rules * Forum etiquette *  Forum Information and FAQs * How to post code on the forum * AutoIt Online Documentation * AutoIt Online Beta Documentation * SciTE4AutoIt3 getting started * Convert text blocks to AutoIt code * Games made in Autoit * Programming related sites * Polish AutoIt Tutorial * DllCall Code Generator *

Wiki: Expand your knowledge - AutoIt Wiki * Collection of User Defined Functions * How to use HelpFile * Best coding practices *

IE Related:  * How to use IE.au3  UDF with  AutoIt v3.3.14.x * Why isn't Autoit able to click a Javascript Dialog? * Clicking javascript button with no ID * IE document >> save as MHT file * IETab Switcher (by LarsJ ) * HTML Entities * _IEquerySelectorAll() (by uncommon) *

I encourage you to read: * Global Vars * Best Coding Practices * Please explain code used in Help file for several File functions * OOP-like approach in AutoIt * UDF-Spec Questions *  EXAMPLE: How To Catch ConsoleWrite() output to a file or to CMD *

"Homo sum; humani nil a me alienum puto" - Publius Terentius Afer
"Program are meant to be read by humans and only incidentally for computers and execute" - Donald Knuth, "The Art of Computer Programming"
:naughty:  :ranting:, be  :) and       \\//_.

Anticipating Errors :  "Any program that accepts data from a user must include code to validate that data before sending it to the data store. You cannot rely on the data store, ...., or even your programming language to notify you of problems. You must check every byte entered by your users, making sure that data is the correct type for its field and that required fields are not empty."

Signature last update: 2017-06-04

Share this post


Link to post
Share on other sites

Click on the link in my signature and view the example.  It shows how to navigate with _IEAction.


IEbyXPATH-Grab IE DOM objects by XPATH IEscriptRecord-Makings of an IE script recorder ExcelFromXML-Create Excel docs without excel installed GetAllWindowControls-Output all control data on a given window.

Share this post


Link to post
Share on other sites

Mikell, it works.  Thank you very much.  I did need to fix the syntax error of the missing $ but that was no issue.  You figuring this out is amazing.  Again thanks.

Share this post


Link to post
Share on other sites

#10 ·  Posted (edited)

Just an FYI, my sig does all the loops for you.  The xpath for what mikell provided would be:

$aForumLink = BGe_IEGetDOMObjByXPathWithAttributes($oIE,"//div[@class='jqMpCntlTopMenuBtn' and .='draw']")
If IsArray($aForumLink) Then _IEAction($aForumLink[0],"click")

Of course, the call is only really needed for nested, or difficult to grab objects.

Edited by jdelaney

IEbyXPATH-Grab IE DOM objects by XPATH IEscriptRecord-Makings of an IE script recorder ExcelFromXML-Create Excel docs without excel installed GetAllWindowControls-Output all control data on a given window.
