Yuji

Html tag inside Html tag

11 posts in this topic

Guys, sorry for my bad english, but let's go.

I have the following html source, and i cant get objs like the select "cboTpTRN" because it is not in the main Html.

I can't _IEAttach the Html inside the Iframe too. I tried using title and instance with _IEAttach and dont get it.

Can u help me?

Thanks a lot ;)





<HTML xmlns="http://www.">
...

<IFRAME id=frConteudo height="100%" src="webInicio.htm" frameBorder=no width="100%" name=frConteudo

<html>
<head>
<title>Manutenção de Grupos</title>
</head>
<body>

<select name="cboTpTRN" onchange="javascript:setTimeout('__doPostBack(\'cboTpTRN\',\'\')', 0)" id="cboTpTRN" style="height:20px;width:138px;">

<option selected="selected" value="">Selecione</option>

<option value="1">1 </option>

<option value="2">2 </option>

<option value="3">3 </option>

</select>

;...

</body>
;...

</IFRAME>
</HTML>

Share this post


Link to post
Share on other sites



Hi Yuji,

In presence of iframe, you have to deal with nested documents,
have a look to the _IEFrameGetObjByName() function that allows you to get reference to the nested iframe from the main page.
have a look also to this link for an explanation.

1 person likes this

small minds discuss people average minds discuss events great minds discuss ideas.... and use AutoIt....

Share this post


Link to post
Share on other sites

Hi Chimp.

In first place, thanks for your help.

Do u said that i have to do something like these? That is what my code is looking like right now, but i cant take the objs inside the second html yet.

$oIE = _IEAttach("WindowTitle")

$oFrm = _IEFrameGetObjByName($oIE,"frConteudo")

$oObj = _IEGetObjById($oFrm,"cboTpTRN")

But I get an error in line 3. The error 7 of _IEGetObjById (7 ($_IEStatus_NoMatch) - No Match)

Share this post


Link to post
Share on other sites

#4 ·  Posted (edited)

try to use _IEGetObjByName() istead of _IEGetObjById()

#include <ie.au3>

$oIE = _IEAttach("WindowTitle")

$oFrm = _IEFrameGetObjByName($oIE, "frConteudo")

If IsObj($oFrm) Then
    ConsoleWrite("debug: get iframe obj OK" & @CR)
Else
    ConsoleWrite("debug: get iframe obj error" & @CR)
EndIf

$oObj = _IEGetObjByName($oFrm, "cboTpTRN")

If IsObj($oObj) Then
    ConsoleWrite("debug: get cboTpTRN obj OK" & @CR)
Else
    ConsoleWrite("debug: get cboTpTRN obj error" & @CR)
EndIf



Edited by Chimp
corrections to script
1 person likes this

small minds discuss people average minds discuss events great minds discuss ideas.... and use AutoIt....

Share this post


Link to post
Share on other sites

Dont worked too :/

Why i cant _IEAttach that? Something like:

$oIE = _IEAttach("Manutenção de Grupos","title")

I think     $oIE = _IEAttach("Manutenção de Grupos","windowtitle")    look at the window title, and the error is right, but why    $oIE = _IEAttach("Manutenção de Grupos","title")     dont found the html?

Share this post


Link to post
Share on other sites

check if the title of the window of the browser is exactly "WindowTitle"...?

try also this variation

#include <ie.au3>

$oIE = _IEAttach("WindowTitle") ; <- check the window title of your browser

$oFrames = _IEFrameGetCollection($oIE)
For $oFrm In $oFrames
    If $oFrm.id = "frConteudo" Then ExitLoop
Next

If IsObj($oFrm) Then
    ConsoleWrite("debug: get iframe obj OK" & @CR)
Else
    ConsoleWrite("debug: get iframe obj error" & @CR)
EndIf

$oObj = _IEGetObjByName($oFrm, "cboTpTRN")

If IsObj($oFrm) Then
    ConsoleWrite("debug: get cboTpTRN obj OK" & @CR)
Else
    ConsoleWrite("debug: get cboTpTRN obj error" & @CR)
EndIf



1 person likes this

small minds discuss people average minds discuss events great minds discuss ideas.... and use AutoIt....

Share this post


Link to post
Share on other sites

i think that that html source has some syntax problems...

1 person likes this

small minds discuss people average minds discuss events great minds discuss ideas.... and use AutoIt....

Share this post


Link to post
Share on other sites

The Title its ok... i will paste here exactly my code, its my last try ><



#include<IE.au3>

$oIE = _IEAttach(".:: Itaú Unibanco S.A. ::.") ; <- It works

_IENavigate($oIE,"javascript: ShowMenu(0);",0) ; <- It works

_IENavigate($oIE,"javascript: window.top.NavegaMenu('/PERFIL/ManutencaoPerfil.aspx');",0) ; <- It works

; I put 0 in _IENavigate because if i dont, the script stops forever. I dont know why.

Sleep(3000)

$oIE = _IEAttach(".:: Itaú Unibanco S.A. ::.")

$oFrm = _IEFrameGetObjByName($oIE, "frConteudo") ; <- It works

$oObjs = _IETagNameAllGetCollection($oFrm) ; <- It dont works

For $oObj in $oObjs ; <- Here the script is stopped because error

    If $oObj.id == "cboTpTRN" Then

        MsgBox(0,"","Sucess")

   Endif

Next

Share this post


Link to post
Share on other sites

if lines you marked as "; <- it works" are ok, then this snippet should give you reference to the "cboTpTRN" tag:

#include<IE.au3>

$oIE = _IEAttach(".:: Itaú Unibanco S.A. ::.") ; 1) reference to main page

$oFrm = _IEFrameGetObjByName($oIE, "frConteudo") ; 2) reference to iframe

$oObj = _IEGetObjByName($oFrm, "cboTpTRN") ; 3) reference to <select

If IsObj($oObj) Then
    MsgBox(0, "", "Success" & @CRLF & $oObj.id)
Else
    MsgBox(0, "", "fail")
EndIf




small minds discuss people average minds discuss events great minds discuss ideas.... and use AutoIt....

Share this post


Link to post
Share on other sites

@Yuji plesase use code tags when you post your code.

and Welcome to the forum.

mLipok


Signature beginning:   Wondering who uses AutoIT and what it can be used for ?
* GHAPI UDF - modest begining - comunication with GitHub REST API *
ADO.au3 UDF     POP3.au3 UDF     XML.au3 UDF    How to use IE.au3  UDF with  AutoIt v3.3.14.x  for other useful stuff click the following button

Spoiler

Any of my own code posted anywhere on the forum is available for use by others without any restriction of any kind.

My contribution (my own projects): * Debenu Quick PDF Library - UDF * Debenu PDF Viewer SDK - UDF * Acrobat Reader - ActiveX Viewer * UDF for PDFCreator v1.x.x * XZip - UDF * AppCompatFlags UDF * CrowdinAPI UDF * _WinMergeCompare2Files() * _JavaExceptionAdd() * _IsBeta() * Writing DPI Awareness App - workaround * _AutoIt_RequiredVersion() * Chilkatsoft.au3 UDF * TeamViewer.au3 UDF * JavaManagement UDF * VIES over SOAP * WinSCP UDF * GHAPI UDF - modest begining - comunication with GitHub REST API *

My contribution to others projects or UDF based on  others projects: * _sql.au3 UDF  * POP3.au3 UDF *  RTF Printer - UDF * XML.au3 - BETA * ADO.au3 UDF SMTP Mailer UDF *

Useful links: * Forum Rules * Forum etiquette *  Forum Information and FAQs * How to post code on the forum * AutoIt Online Documentation * AutoIt Online Beta Documentation * SciTE4AutoIt3 getting started * Convert text blocks to AutoIt code * Games made in Autoit * Programming related sites * Polish AutoIt Tutorial * DllCall Code Generator *

Wiki: Expand your knowledge - AutoIt Wiki * Collection of User Defined Functions * How to use HelpFile * Best coding practices *

IE Related:  * How to use IE.au3  UDF with  AutoIt v3.3.14.x * Why isn't Autoit able to click a Javascript Dialog? * Clicking javascript button with no ID * IE document >> save as MHT file * IETab Switcher (by LarsJ ) * HTML Entities * _IEquerySelectorAll() (by uncommon) *

I encourage you to read: * Global Vars * Best Coding Practices * Please explain code used in Help file for several File functions * OOP-like approach in AutoIt * UDF-Spec Questions *  EXAMPLE: How To Catch ConsoleWrite() output to a file or to CMD *

"Homo sum; humani nil a me alienum puto" - Publius Terentius Afer
"Program are meant to be read by humans and only incidentally for computers and execute" - Donald Knuth, "The Art of Computer Programming"
:naughty:  :ranting:, be  :) and       \\//_.

Anticipating Errors :  "Any program that accepts data from a user must include code to validate that data before sending it to the data store. You cannot rely on the data store, ...., or even your programming language to notify you of problems. You must check every byte entered by your users, making sure that data is the correct type for its field and that required fields are not empty."

Signature last update: 2017-06-04

Share this post


Link to post
Share on other sites

mLipok, sorry for that. I will start to use it. Thanks a lot!!!

Chimp, this dont worked too.

When i tried to get the objs inside de iFrame, with the _IETagNameAllGetCollection, the @extended show me that dont have anything inside.

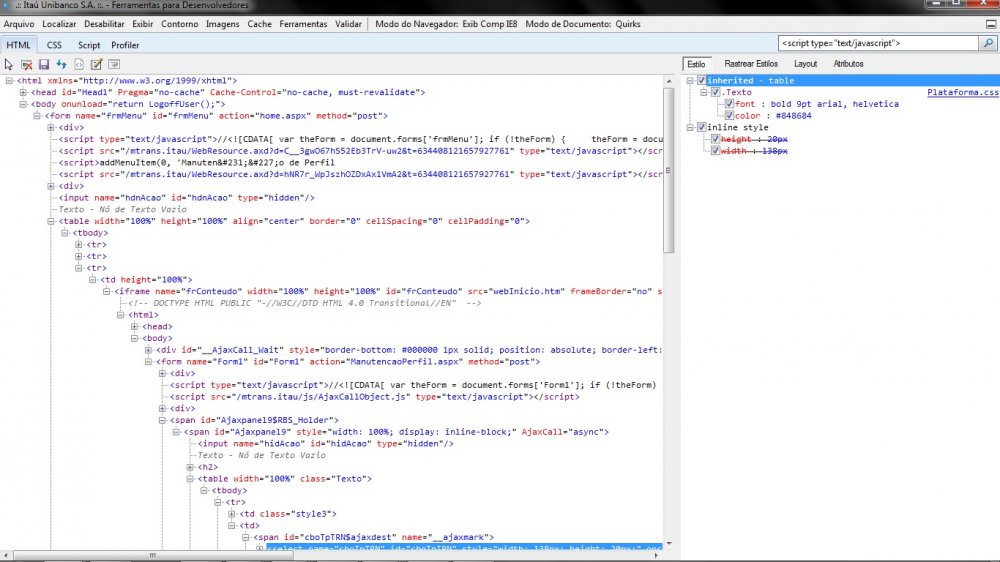

When I click with the right button in the page, and get the source code, i cant see what is inside the iFrame too. Only with the developers tool i can see the html inside the other html.

I get the source with _IEDocReadHTML on $oIE, and the iFrame is empty too.

So i think i have to get the sub html with something like _IEAttach.
