SantaCruz64

Interact with Internet Explorer File Save Dialog Box

7 posts in this topic

I am having trouble interacting with a file save as dialog box in internet explorer, and was hoping someone could give me some direction.

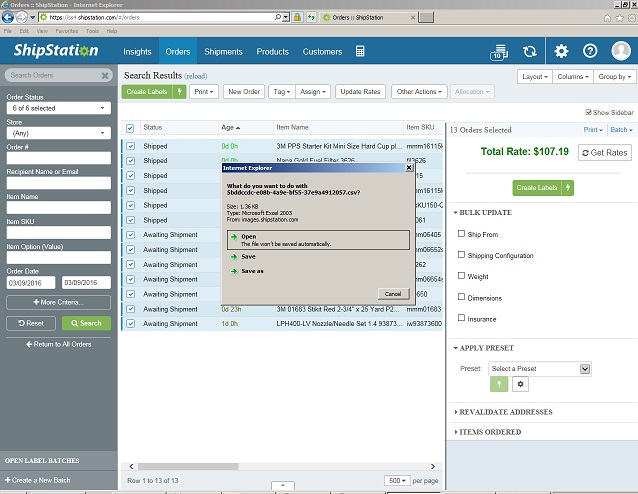

I've created a script that displays a list of orders that I want to download, and then click the export option to save the list as a csv file.  The trouble is when the dialog box pops up to open, save, or save as.  I would like to save as, and name the file based on yesterday's date.   I have tried clicking the box with a mouse click, but nothing happens.  I have also tried using WinActivate, but it still doesn't react.  If I push down twice and hit enter on my keyboard, the file name box opens, but that doesn't work using send keys.  I am guessing I am not controlling the window properly, and don't know how to troubleshoot that part.  Here is the window info and my code:

>>>> Window <<<<
Title:    Internet Explorer
Class:    #32770
Position:    441, 323
Size:    391, 288
Style:    0x96C80284
ExStyle:    0x00010101
Handle:    0x000804BC

>>>> Control <<<<
Class:    DirectUIHWND
Instance:    1
ClassnameNN:    DirectUIHWND1
Name:
Advanced (Class):    [CLASS:DirectUIHWND; INSTANCE:1]
ID:
Text:
Position:    0, 0
Size:    385, 262
ControlClick Coords:    133, 91
Style:    0x56000000
ExStyle:    0x00000000
Handle:    0x002202B0

>>>> Mouse <<<<
Position:    577, 437
Cursor ID:    0
Color:    0xD4D0C8

My Code:MouseClick($MOUSE_CLICK_LEFT, 928, 725, 1) ;export file
_IELoadWait($oIE,5000)
$hWND = WinWait("[CLASS:DirectUIHWND; INSTANCE:1]")
WinActivate($hWnd)
Sleep ("1000")
ControlClick("[CLASS:DirectUIHWND; INSTANCE:1]", "", "[CLASS:Button; INSTANCE:3]")
_IELoadWait($oIE,3000)
Send("onlinesales"&$M & $D & $Y&"{ENTER}") ;name the file, cursor should already be there


Share this post


Link to post
Share on other sites



#2 ·  Posted (edited)

I think you should use AdlibRegister and AdlibUnRegister.
Like this:

#include <MsgBoxConstants.au3>

Example()

Func Example()
    ; here you should search content on the website

    ; Register the function MyAdLibFunc() to be called every 250ms (default).
    AdlibRegister("MyAdLibFunc")

    ; here you need to click _IEAction($o...., 'click')  to popup FileSaveDialog

    ; Unregister the function MyAdLibFunc() from being called every 250ms.
    AdlibUnRegister("MyAdLibFunc")
EndFunc   ;==>Example

Func MyAdLibFunc()
    ; here you need to put your FILE SAVE DIALOG Management function
    $hWND = WinWait("[CLASS:DirectUIHWND; INSTANCE:1]")
    WinActivate($hWnd)
    ControlClick("[CLASS:DirectUIHWND; INSTANCE:1]", "", "[CLASS:Button; INSTANCE:3]")
    Send("onlinesales"&$M & $D & $Y&"{ENTER}") ;name the file, cursor should already be there
    WinWaitClose($hWnd)
EndFunc   ;==>MyAdLibFunc



Remarks:

This what you see in IE is normal behavior.
When you click in button and Dialog PopUps then IE is waiting ....... so _IELoadWait is never happend until you close PopUped Dialog.


This is how I understand this case:
When you click in object which PopUp dialog window then Click method will end when Dialog will be closed.
So the script is holding  not in AutoIt scirpt line but inside ActiveX object .



EDIT:
This is quite possible that

_IEAction($o...., 'click')

will hold your script even when you use AdlibRegister and AdlibUnRegister.
Check it and back with information.



Edited by mLipok

Signature beginning:   Wondering who uses AutoIT and what it can be used for ?
* GHAPI UDF - modest begining - comunication with GitHub REST API *
ADO.au3 UDF     POP3.au3 UDF     XML.au3 UDF    How to use IE.au3  UDF with  AutoIt v3.3.14.x  for other useful stuff click the following button

Spoiler

Any of my own code posted anywhere on the forum is available for use by others without any restriction of any kind.

My contribution (my own projects): * Debenu Quick PDF Library - UDF * Debenu PDF Viewer SDK - UDF * Acrobat Reader - ActiveX Viewer * UDF for PDFCreator v1.x.x * XZip - UDF * AppCompatFlags UDF * CrowdinAPI UDF * _WinMergeCompare2Files() * _JavaExceptionAdd() * _IsBeta() * Writing DPI Awareness App - workaround * _AutoIt_RequiredVersion() * Chilkatsoft.au3 UDF * TeamViewer.au3 UDF * JavaManagement UDF * VIES over SOAP * WinSCP UDF * GHAPI UDF - modest begining - comunication with GitHub REST API *

My contribution to others projects or UDF based on  others projects: * _sql.au3 UDF  * POP3.au3 UDF *  RTF Printer - UDF * XML.au3 - BETA * ADO.au3 UDF SMTP Mailer UDF *

Useful links: * Forum Rules * Forum etiquette *  Forum Information and FAQs * How to post code on the forum * AutoIt Online Documentation * AutoIt Online Beta Documentation * SciTE4AutoIt3 getting started * Convert text blocks to AutoIt code * Games made in Autoit * Programming related sites * Polish AutoIt Tutorial * DllCall Code Generator *

Wiki: Expand your knowledge - AutoIt Wiki * Collection of User Defined Functions * How to use HelpFile * Best coding practices *

IE Related:  * How to use IE.au3  UDF with  AutoIt v3.3.14.x * Why isn't Autoit able to click a Javascript Dialog? * Clicking javascript button with no ID * IE document >> save as MHT file * IETab Switcher (by LarsJ ) * HTML Entities * _IEquerySelectorAll() (by uncommon) *

I encourage you to read: * Global Vars * Best Coding Practices * Please explain code used in Help file for several File functions * OOP-like approach in AutoIt * UDF-Spec Questions *  EXAMPLE: How To Catch ConsoleWrite() output to a file or to CMD *

"Homo sum; humani nil a me alienum puto" - Publius Terentius Afer
"Program are meant to be read by humans and only incidentally for computers and execute" - Donald Knuth, "The Art of Computer Programming"
:naughty:  :ranting:, be  :) and       \\//_.

Anticipating Errors :  "Any program that accepts data from a user must include code to validate that data before sending it to the data store. You cannot rely on the data store, ...., or even your programming language to notify you of problems. You must check every byte entered by your users, making sure that data is the correct type for its field and that required fields are not empty."

Signature last update: 2017-06-04

Share this post


Link to post
Share on other sites

#3 ·  Posted (edited)

Instead of _ieaction 'click', you can 'focus'...then send enter at the browser to do the click...maybe it's spacebar?  One of those will do it.

That won't deadlock the script.

There are still lots of failures that can occur in doing that...I actually fileinstall an exe (compiled script), which I initiate (using run, not runwait) with command line params (one for the hwnd of the browser, and the other to id the object) to perform the click on the object, that way, that script is deadlocked, leaving my driving script the ability to perform action on the popup.

Edited by jdelaney

IEbyXPATH-Grab IE DOM objects by XPATH IEscriptRecord-Makings of an IE script recorder ExcelFromXML-Create Excel docs without excel installed GetAllWindowControls-Output all control data on a given window.

Share this post


Link to post
Share on other sites

Here is the bottom of my code with the function and adlibregister:

AdlibRegister("MyAdLibFunc")
MouseClick($MOUSE_CLICK_LEFT, 928, 725, 1) ;click export file link to open save dialog box
AdlibUnRegister("MyAdLibFunc")

Func MyAdLibFunc()
    ; here you need to put your FILE SAVE DIALOG Management function
    $hWND = WinWait("[CLASS:DirectUIHWND; INSTANCE:1]")
    WinActivate($hWnd)
    MouseClick($MOUSE_CLICK_LEFT, 441, 323, 1) ;move over save as button
    ControlClick("[CLASS:DirectUIHWND; INSTANCE:1]", "", "[CLASS:Button; INSTANCE:3]")
    Send("onlinesales"&$M & $D & $Y&"{ENTER}") ;name the file, cursor should already be there
    WinWaitClose($hWnd)
EndFunc   ;==>MyAdLibFunc

I am getting the same result.  Once I click on the button to export the file, it opens the save dialog box and the mouse doesn't move.

What does it mean for the script to be deadlocked, and what is causing that in my case?

Share this post


Link to post
Share on other sites

Thank you for directing me to that.  I can pnly get it to work when I have 2 separate scripts.  The first script opens ie and generates the save as dialog box, then I use the script generated by simplespy.au3 to click on it.  For some reason I can't get it to work when I put the simple spy script at the bottom of my original script.

Here is the basics of the first script:

$oIE = _IECreate ("http://website.com")
_IELoadWait($oIE)

;~ *** A few steps in the middle***

$oButtons6 = _IETagnameGetCollection($oIE, "a")
_IELinkClickByText($oIE,"Export Report")
_IELoadWait($oIE,3000)

AutoItSetOption("MustDeclareVars", 1)

Local $oP2=_UIA_getObjectByFindAll($UIA_oDesktop, "Title:=TAMSII - Data Review - Internet Explorer;controltype:=UIA_WindowControlTypeId;class:=IEFrame", $treescope_children)
_UIA_Action($oP2,"setfocus")
Local $oP1=_UIA_getObjectByFindAll($oP2, "Title:=;controltype:=UIA_PaneControlTypeId;class:=Frame Notification Bar", $treescope_children)
_UIA_Action($oP1,"setfocus")
Local $oP0=_UIA_getObjectByFindAll($oP1, "Title:=Notification;controltype:=UIA_ToolBarControlTypeId;class:=DirectUIHWND", $treescope_children)
_UIA_Action($oP0,"setfocus")
;~ First find the object in the parent before you can do something
;~$oUIElement=_UIA_getObjectByFindAll("Save.mainwindow", "title:=Save;ControlType:=UIA_SplitButtonControlTypeId", $treescope_subtree)
Local $oUIElement=_UIA_getObjectByFindAll($oP0, "title:=Save;ControlType:=UIA_SplitButtonControlTypeId", $treescope_subtree)
_UIA_action($oUIElement,"click")

Share this post


Link to post
Share on other sites

it seems like the _IELoadWait was the problem.  I removed it and it works fine now.  Thanks again.

Share this post


Link to post
Share on other sites
