IE.au3 & reading DOM forms

Recommended Posts


Hi all,


I am completely new to Autoit and am struggling with an issue here. I have scoured the forums and not been able to find a solution, here is my attempt at explaining the problem (excuse the newbie language),

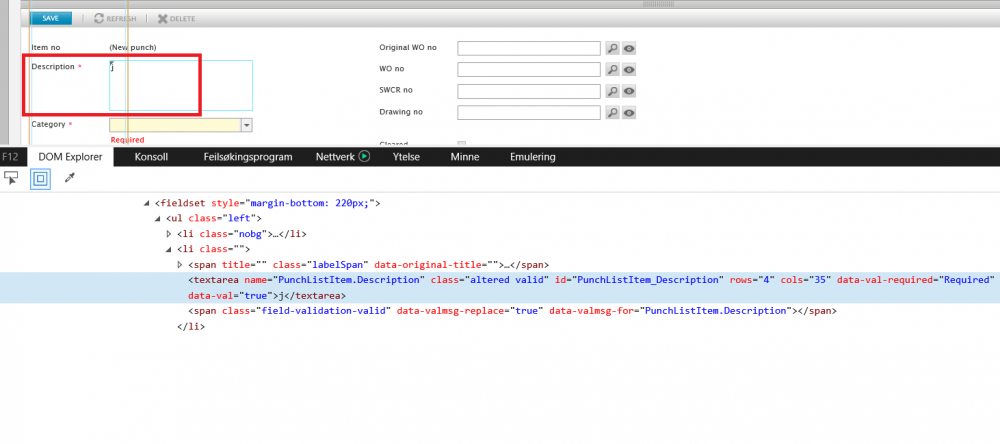

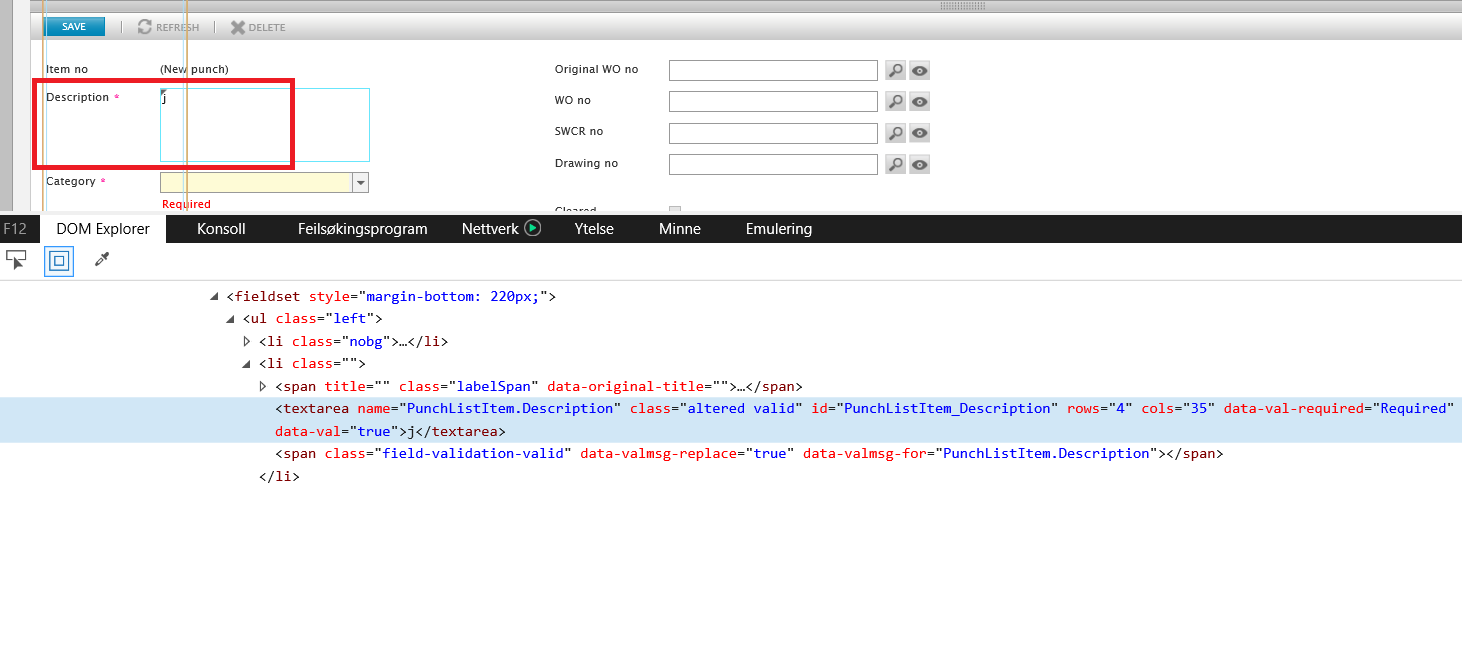

So at work we have to use a client web portal where we fill in a lot of information manually into forms that are seemingly generated by javascript. My problem is that no matter what twist I try to pull, AutoIT cant seem to read the forms or detect any of the fields. I have attached an example screenshot to this post. There you will see that the active element is a textarea, with ID "PunchListItem_Description".

I can not for the life of me have AutoIT read this field. I have tried the usual suspects, such as the _IEFormElement functions, but they either return empty values or errors.


I have now set up a script for testing that looks like this, to test whether I can have AutoIT read the active element when I click it manually while the script sleeps. All it returns is "0"


Local $oIE = _IECreate("website URL here")
Local $oElements = _IETagNameAllGetCollection($oIE)
Local $hFileOpen = FileOpen(@scriptDir & "\test.txt", $FO_APPEND)

Local $oDoc = _IEDocGetObj($oIE)

ConsoleWrite("active:" & $oDoc.activeElement)


Does anyone have any experience with similar issues, and if so can you point me in the right direction?


Share this post

Link to post
Share on other sites

Try something like this:

#include <IE.au3>

Local $oIE = _IECreate("website URL here")
If Not IsObj($oIE) Then Exit ConsoleWrite("Error in $oIE" & @CRLF)

Local $oTextArea = _IEGetObjById($oIE, "PunchListItem_Description")
If Not IsObj($oTextArea) Then Exit ConsoleWrite("Error in $oTextArea" & @CRLF)

$oTextArea.Value = "Hello!!!" ; this will change the text

MsgBox(0, "", $oTextArea.Value) ;this will read the text

Read the IEForm functions from the helpfile, there is many working examples there.

Share this post

Link to post
Share on other sites

Hi MichaelHB!


First, apologies for the poorly written OP, I wrote it late at night.


I have tried most of the examples on the IEForm helpfile, but nothing seems to work. I tried your code, and I get this error message:


--> IE.au3 T3.0-2 Warning from function _IEGetObjById, $_IESTATUS_NoMatch (PunchListItem_Description)


This is basically the same problem I have been having, the script can't find the fields which obviously exist when I use the DOM explorer in IE.

Share this post

Link to post
Share on other sites

Check if this website Use frames.
