ahha

Get excel workbook and sheet name

Recommended Posts

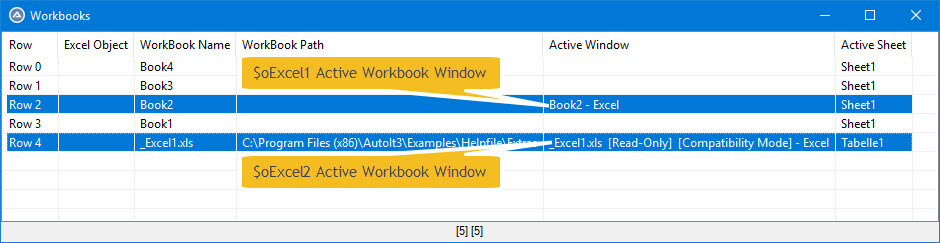

The .Application.Caption will display the objects top most window, for example from your previous post $oExcel1 would be Book2 (since it was opened last for $oExcel1), $oExcel2 would be _Excel1.xls - [Read Only] because that was opened last.  If you selected Book3 after the MsgBox, than the top most window for $oExcel2 (all 3 instances) would change to Book3 (although I only write the application.caption for the workbook that has the same name i.e. stringinstr)

Hope that makes sense.

Share this post


Link to post
Share on other sites

Thanks still testing.

This is what I initially got when I select a cell in _Excel1.xls.  I was surprised to see no Active Window Title.

---------------------------

---------------------------
Active Window Title:

Active WorkBook: _Excel1.xls

Active Sheet: Tabelle2
---------------------------
OK
---------------------------



When I select a cell in another workbook (not _Excel1.xls) it reverts back to the _Excel1.xls sheet not the one I selected.  Ugh.

*Edit* is this because of the 2 in  $iSearch = _ArraySearch($aWorkBooks, StringReplace($aWinList[$i][0], " - Excel", ""), 0, 0, 0, 1, 1, 2)



Here's the code:

#AutoIt3Wrapper_run_debug_mode=Y

#include <Array.au3>
#include <Excel.au3>
#include <MsgBoxConstants.au3>
#include <Debug.au3>

;Illustrate issue I'm having.  For a user seletecd range (possibly multiple $oWorkbooks open with multiple sheets), I need to determine the Excel application object of the selected cells and the sheet
;I need $oWorkbook, $WorkSheet, $Range
;look at: https://www.autoitscript.com/forum/topic/197347-get-excel-workbook-and-sheet-name/

;Simulate issue - in real world user may have opened Excel and I have no knowledge of the object
$oExcel1 = _Excel_Open()        ;open first instance
_Excel_BookNew($oExcel1)        ;workbook with 3 sheets
_Excel_BookNew($oExcel1)        ;another workbook in same instance with 3 sheets

$oExcel2 = _Excel_Open(Default, Default, Default, Default, True)    ;open second instance
_Excel_BookNew($oExcel2)        ;workbook with 3 sheets
_Excel_BookNew($oExcel2)        ;another workbook in same instance with 3 sheets
_Excel_BookOpen($oExcel2, "C:\Program Files (x86)\AutoIt3\Examples\Helpfile\Extras\_Excel1.xls")    ;open an existing workbook that has been saved so we have an entry in Col2 for full pathname

;now here's what I know without a priori knowledge of the objects
;the workbook names are unigue - that is there will never be a Book1 in any but one of the instances or filename (i.e. single open instance of a particular file)

$aWorkBooks = _Excel_BookList()     ;get an array of all workbooks open
;Success: a two-dimensional zero based array with the following information:
;col 0 - Object of the workbook
;col 1 - Name of the workbook/file
;col 2 - Complete path to the workbook/file
If @error Then Exit MsgBox($MB_SYSTEMMODAL, "Error listing workbooks.", "@error = '" & @error & "'" & @CRLF &"@extended = '" & @extended & "'")
_DebugArrayDisplay($aWorkBooks, "$aWorkBooks = _Excel_BookList()        ;get an array of all workbooks open.  Col 0 = Object, Col 1 = workbook name, Col 2 = full filename path")
;at this point we have the Object associated with the book name but no full filename path if not saved yet or previously

;now list the sheets for each Object Workbook
For $i = 0 to UBound($aWorkBooks, $UBOUND_ROWS) - 1 ;0 based
    $aWorkSheets = _Excel_SheetList($aWorkBooks[$i][0]) ;Col 0 = Workbook object
    ;Success: a two-dimensional zero based array with the following information:
   ; 0 - Name of the worksheet
   ; 1 - Object of the worksheet
    If @error Then Exit MsgBox($MB_SYSTEMMODAL, "Error listing Worksheets.", "@error = '" & @error & "'" & @CRLF & "@extended = '" & @extended & "'")
    _ArrayDisplay($aWorkSheets, "_Excel_SheetList() $aWorkSheets for $aWorkBooks[" & $i & "]" & " Col 0 = Worksheet Name, Col 1 = Worksheet object")
Next

MsgBox($MB_SYSTEMMODAL + $MB_OK, "Info", "Select a range in any Excel instance, any Workbook, and any sheet.  Then click OK.")

;new approach by Subz
ReDim $aWorkBooks[UBound($aWorkBooks)][5]
For $i = 0 To UBound($aWorkBooks) - 1
    $aWorkBooks[$i][3] = StringInStr($aWorkBooks[$i][0].Application.Caption, $aWorkBooks[$i][1]) > 0 ? $aWorkBooks[$i][0].Application.Caption : ""
    $aWorkBooks[$i][4] = $aWorkBooks[$i][0].ActiveSheet.Name
Next
Local $aWinList = WinList()
For $i = 1 To $aWinList[0][0]
    $iSearch = _ArraySearch($aWorkBooks, StringReplace($aWinList[$i][0], " - Excel", ""), 0, 0, 0, 1, 1, 2)
    If $iSearch > -1 Then
        MsgBox(4096, "", "Active Window Title: " & $aWorkBooks[$iSearch][3] & @CRLF & "Active WorkBook: " & $aWorkBooks[$iSearch][1] & @CRLF & "Active Sheet: " & $aWorkBooks[$iSearch][4])
        $oDefaultActiveExcelObject = _Excel_BookAttach($aWinList[$i][0], "Title")
        ExitLoop
    EndIf
Next


MsgBox($MB_SYSTEMMODAL, "Info", "Pause before exit.")

;force close all Excel w/o saving
_Excel_Close($oExcel1, False, True)
_Excel_Close($oExcel2, False, True)

Exit





Edited by ahha
Just tested with a sheet not _Excel1.xls

Share this post


Link to post
Share on other sites

Sorry forgot to update the second loop it should have been:

MsgBox($MB_SYSTEMMODAL + $MB_OK, "Info", "Select a range in any Excel instance, any Workbook, and any sheet.  Then click OK.")
ReDim $aWorkBooks[UBound($aWorkBooks)][5]
For $i = 0 To UBound($aWorkBooks) - 1
    $aWorkBooks[$i][3] = StringInStr($aWorkBooks[$i][0].Application.Caption, $aWorkBooks[$i][1]) > 0 ? $aWorkBooks[$i][0].Application.Caption : ""
    $aWorkBooks[$i][4] = $aWorkBooks[$i][0].ActiveSheet.Name
Next
Local $aWinList = WinList()
For $i = 1 To $aWinList[0][0]
    $iSearch = _ArraySearch($aWorkBooks, $aWinList[$i][0], 0, 0, 0, 1, 1, 3)
    If $iSearch > -1 Then
        MsgBox(4096, "", "Active Window Title: " & $aWorkBooks[$iSearch][3] & @CRLF & "Active WorkBook: " & $aWorkBooks[$iSearch][1] & @CRLF & "Active Sheet: " & $aWorkBooks[$iSearch][4])
        $oDefaultActiveExcelObject = _Excel_BookAttach($aWinList[$i][0], "Title")
        ExitLoop
    EndIf
Next



Share this post


Link to post
Share on other sites

Subz,

I now get neither working.  Not not even _Excel1.xls.  Could it be the 3 in $iSearch = _ArraySearch($aWorkBooks, $aWinList[$i][0], 0, 0, 0, 1, 1, 3) ?

Here's the full code now.

#AutoIt3Wrapper_run_debug_mode=Y

#include <Array.au3>
#include <Excel.au3>
#include <MsgBoxConstants.au3>
#include <Debug.au3>

;Illustrate issue I'm having.  For a user seletecd range (possibly multiple $oWorkbooks open with multiple sheets), I need to determine the Excel application object of the selected cells and the sheet
;I need $oWorkbook, $WorkSheet, $Range
;look at: https://www.autoitscript.com/forum/topic/197347-get-excel-workbook-and-sheet-name/

;Simulate issue - in real world user may have opened Excel and I have no knowledge of the object
$oExcel1 = _Excel_Open()        ;open first instance
_Excel_BookNew($oExcel1)        ;workbook with 3 sheets
_Excel_BookNew($oExcel1)        ;another workbook in same instance with 3 sheets

$oExcel2 = _Excel_Open(Default, Default, Default, Default, True)    ;open second instance
_Excel_BookNew($oExcel2)        ;workbook with 3 sheets
_Excel_BookNew($oExcel2)        ;another workbook in same instance with 3 sheets
_Excel_BookOpen($oExcel2, "C:\Program Files (x86)\AutoIt3\Examples\Helpfile\Extras\_Excel1.xls")    ;open an existing workbook that has been saved so we have an entry in Col2 for full pathname

;now here's what I know without a priori knowledge of the objects
;the workbook names are unigue - that is there will never be a Book1 in any but one of the instances or filename (i.e. single open instance of a particular file)

$aWorkBooks = _Excel_BookList()     ;get an array of all workbooks open
;Success: a two-dimensional zero based array with the following information:
;col 0 - Object of the workbook
;col 1 - Name of the workbook/file
;col 2 - Complete path to the workbook/file
If @error Then Exit MsgBox($MB_SYSTEMMODAL, "Error listing workbooks.", "@error = '" & @error & "'" & @CRLF &"@extended = '" & @extended & "'")
_DebugArrayDisplay($aWorkBooks, "$aWorkBooks = _Excel_BookList()        ;get an array of all workbooks open.  Col 0 = Object, Col 1 = workbook name, Col 2 = full filename path")
;at this point we have the Object associated with the book name but no full filename path if not saved yet or previously

;now list the sheets for each Object Workbook
For $i = 0 to UBound($aWorkBooks, $UBOUND_ROWS) - 1 ;0 based
    $aWorkSheets = _Excel_SheetList($aWorkBooks[$i][0]) ;Col 0 = Workbook object
    ;Success: a two-dimensional zero based array with the following information:
   ; 0 - Name of the worksheet
   ; 1 - Object of the worksheet
    If @error Then Exit MsgBox($MB_SYSTEMMODAL, "Error listing Worksheets.", "@error = '" & @error & "'" & @CRLF & "@extended = '" & @extended & "'")
    _ArrayDisplay($aWorkSheets, "_Excel_SheetList() $aWorkSheets for $aWorkBooks[" & $i & "]" & " Col 0 = Worksheet Name, Col 1 = Worksheet object")
Next

MsgBox($MB_SYSTEMMODAL + $MB_OK, "Info", "Select a range in any Excel instance, any Workbook, and any sheet.  Then click OK.")

;new approach by Subz - see his latest entry
ReDim $aWorkBooks[UBound($aWorkBooks)][5]
For $i = 0 To UBound($aWorkBooks) - 1
    $aWorkBooks[$i][3] = StringInStr($aWorkBooks[$i][0].Application.Caption, $aWorkBooks[$i][1]) > 0 ? $aWorkBooks[$i][0].Application.Caption : ""
    $aWorkBooks[$i][4] = $aWorkBooks[$i][0].ActiveSheet.Name
Next
Local $aWinList = WinList()
For $i = 1 To $aWinList[0][0]
    $iSearch = _ArraySearch($aWorkBooks, $aWinList[$i][0], 0, 0, 0, 1, 1, 3)
    If $iSearch > -1 Then
        MsgBox(4096, "", "Active Window Title: " & $aWorkBooks[$iSearch][3] & @CRLF & "Active WorkBook: " & $aWorkBooks[$iSearch][1] & @CRLF & "Active Sheet: " & $aWorkBooks[$iSearch][4])
        $oDefaultActiveExcelObject = _Excel_BookAttach($aWinList[$i][0], "Title")
        ExitLoop
    EndIf
Next

MsgBox($MB_SYSTEMMODAL, "Info", "Pause before exit.")

;force close all Excel w/o saving
_Excel_Close($oExcel1, False, True)
_Excel_Close($oExcel2, False, True)

Exit



Share this post


Link to post
Share on other sites

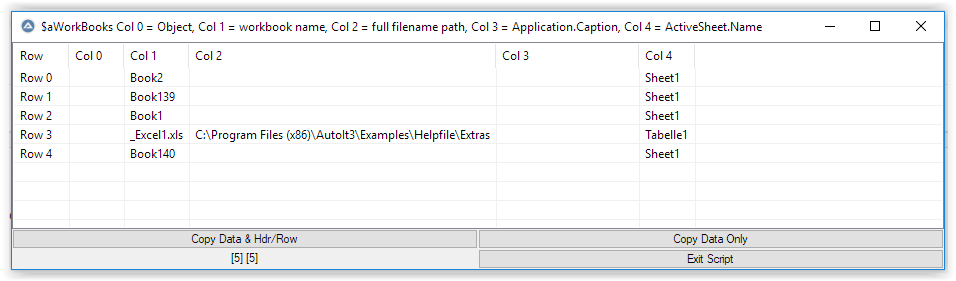

Here's what I'm getting it looks like what you call Active Window (Application.Caption) is blank.  I'm not sure why I'm using your code from above example.

It appears to be this line:

$aWorkBooks[$i][3] = StringInStr($aWorkBooks[$i][0].Application.Caption, $aWorkBooks[$i][1]) > 0 ? $aWorkBooks[$i][0].Application.Caption : ""


Share this post


Link to post
Share on other sites

I've been working in parallel on another variation, and so far this seems to work.

#AutoIt3Wrapper_run_debug_mode=Y

#include <Array.au3>
#include <Excel.au3>
#include <MsgBoxConstants.au3>
#include <Debug.au3>

;Illustrate issue I'm having.  For a user seletecd range (possibly multiple $oWorkbooks open with multiple sheets), I need to determine the Excel application object of the selected cells and the sheet
;I need $oWorkbook, $WorkSheet, $Range
;look at: https://www.autoitscript.com/forum/topic/197347-get-excel-workbook-and-sheet-name/

;Simulate issue - in real world user may have opened Excel and I have no knowledge of the object
$oExcel1 = _Excel_Open()        ;open first instance
_Excel_BookNew($oExcel1)        ;workbook with 3 sheets
_Excel_BookNew($oExcel1)        ;another workbook in same instance with 3 sheets

$oExcel2 = _Excel_Open(Default, Default, Default, Default, True)    ;open second instance
_Excel_BookNew($oExcel2)        ;workbook with 3 sheets
_Excel_BookNew($oExcel2)        ;another workbook in same instance with 3 sheets
_Excel_BookOpen($oExcel2, "C:\Program Files (x86)\AutoIt3\Examples\Helpfile\Extras\_Excel1.xls")    ;open an existing workbook that has been saved so we have an entry in Col2 for full pathname

;now here's what I know without a priori knowledge of the objects
;the workbook names are unigue - that is there will never be a Book1 in any but one of the instances or filename (i.e. single open instance of a particular file)

$aWorkBooks = _Excel_BookList()     ;get an array of all workbooks open
;Success: a two-dimensional zero based array with the following information:
;col 0 - Object of the workbook
;col 1 - Name of the workbook/file
;col 2 - Complete path to the workbook/file
If @error Then Exit MsgBox($MB_SYSTEMMODAL, "Error listing workbooks.", "@error = '" & @error & "'" & @CRLF &"@extended = '" & @extended & "'")
_DebugArrayDisplay($aWorkBooks, "$aWorkBooks = _Excel_BookList()        ;get an array of all workbooks open.  Col 0 = Object, Col 1 = workbook name, Col 2 = full filename path")
;at this point we have the Object associated with the book name but no full filename path if not saved yet or previously

;now list the sheets for each Object Workbook
For $i = 0 to UBound($aWorkBooks, $UBOUND_ROWS) - 1 ;0 based
    $aWorkSheets = _Excel_SheetList($aWorkBooks[$i][0]) ;Col 0 = Workbook object
    ;Success: a two-dimensional zero based array with the following information:
   ; 0 - Name of the worksheet
   ; 1 - Object of the worksheet
    If @error Then Exit MsgBox($MB_SYSTEMMODAL, "Error listing Worksheets.", "@error = '" & @error & "'" & @CRLF & "@extended = '" & @extended & "'")
    _ArrayDisplay($aWorkSheets, "_Excel_SheetList() $aWorkSheets for $aWorkBooks[" & $i & "]" & " Col 0 = Worksheet Name, Col 1 = Worksheet object")
Next

MsgBox($MB_SYSTEMMODAL + $MB_OK, "Info", "Select a range in any Excel instance, any Workbook, and any sheet.  Then click OK.")

;from Subz https://www.autoitscript.com/forum/topic/197347-get-excel-workbook-and-sheet-name/
Local $aWinList = WinList()
_DebugArrayDisplay($aWinList, "$aWinList ALL TOP LEVEL WINDOWS")
;~ For $i = 1 To $aWinList[0][0]    ;$aArray[0][0] = Number of windows returned
;~     ;$iSearch = _ArraySearch($aWorkBooks, StringReplace($aWinList[$i][0], " - Excel", ""), 0, 0, 0, 1, 1, 1)     ;original - partial search
;~     If $iSearch > -1 Then
;~         MsgBox(4096, "", "Current WorkBook: " & $aWorkBooks[$iSearch][1])
;~         $oDefaultActiveExcelObject = _Excel_BookAttach($aWorkBooks[$iSearch][1])
;~      MsgBox(0, "Info", "The name of the active sheet is '" & $oDefaultActiveExcelObject.ActiveSheet.Name & "'")
;~      ExitLoop
;~     EndIf
;~ Next

;okay the above does a wrong way partial match when _Excel_BookList() returns
;Row|Col 0|Col 1|Col 2
;Row 4||_Excel1.xls|C:\Program Files (x86)\AutoIt3\Examples\Helpfile\Extras
;and WinList returns
;Row|Col 0|Col 1
;Row 78|_Excel1.xls  [Read-Only]  [Compatibility Mode]|0x001318D4
;
;notice seaching "_Excel1.xls  [Read-Only]  [Compatibility Mode]" for a partial match with "_Excel1.xls"
;it should be looking for "_Excel1.xls" in "_Excel1.xls  [Read-Only]  [Compatibility Mode]"
;so writing our own
For $i = 1 To $aWinList[0][0]   ;$aArray[0][0] = Number of windows returned
    ;$aWinList[$i][0]   ;pull an entry from one row at a time in Col 0 which has the name
    For $j = 0 to UBound($aWorkBooks) - 1
        If StringInStr($aWinList[$i][0], $aWorkBooks[$j][1]) Then   ;found, otherwise go to next row
            ;because of the difference in what _Excel_Booklist() returns we need to keep what WinList returns for attaching
            ;then once we have the object we can just use that
            MsgBox(4096, "", "Current WorkBook: " & $aWinList[$i][0])
            ExitLoop 2  ;exit inner (j) and outer (i) loops
        EndIf
    Next
Next

;we have the current workbook so get other info from $aWorkBooks - recall
;$aWorkBooks[$j][0] ;has object
;$aWorkBooks[$j][1] ;has workbook name
;$aWorkBooks[$j][2] ;has full filename path

MsgBox(4096, "",    "Current WorkBook from $aWinList[$i][0]: " & $aWinList[$i][0] &@CRLF & _
                    "Current WorkBook from $aWorkBooks[$j][1]: " & $aWorkBooks[$j][1] &@CRLF)
;$aWorkBooks[$j][0] ;has object - use this rather than BookAttach since the names are different
MsgBox(0, "Info", "The name of the active sheet is '" & $aWorkBooks[$j][0].ActiveSheet.Name & "'")

MsgBox($MB_SYSTEMMODAL, "Info", "Pause before exit.")

;force close all Excel w/o saving
_Excel_Close($oExcel1, False, True)
_Excel_Close($oExcel2, False, True)

Exit

In either version _Excel_BookList() seems to be really slow.  Is it slow for you?

Edited by ahha

Share this post


Link to post
Share on other sites

Okay further testing done and there appears to be a fundamental problem using WinList - try the following program and you'll see that the Book in Excel is not listed in WinList - UGH :(  Or am I doing something wrong?

;test of WinList()
#AutoIt3Wrapper_run_debug_mode=Y

#include <Debug.au3>

MsgBox(0, "Info", "Open Excel manually then click OK.")

$aWinList = WinList()
MsgBox(0, "Info", "Try and find the Book in the array that follows.")
_DebugArrayDisplay($aWinList, "$aWinList ALL TOP LEVEL WINDOWS")



Share this post


Link to post
Share on other sites

Haven't read the whole thread but I would try the following.
This code is untested and might need a COM error handler to grab all COM errors so you can check @Error

#include <Excel.au3>
Global $oExcelTemp, $oExcelWindow
Global $oExcel = _Excel_Open()                      ; Connect to an already started Excel instance
Global $aWorkbooks = _Excel_BookList()              ; Get a list of workbooks for all Excel instances
For $i = 0 to UBound($aWorkbooks) - 1
   $oExcelTemp = $aWorkbooks[$i].Parent             ; Application object for the selected workbook
   $oExcelWindow = $oExcelTemp.ActiveWindow         ; Get active Window for the selected Excel instance
   If IsObj($oExcelWindow) Then                     ; Is there an active window for this Excel instance?
       $oExcelActiveCell = $oExcelWindow.ActiveCell ; Get the active cell of the window
       If @error = 0 Then ExitLoop                  ; If active cell found stop searching
   EndIf
Next




My UDFs and Tutorials:

Spoiler

UDFs:
Active Directory (NEW 2020-07-21 - Version 1.5.1.0) - Download - General Help & Support - Example Scripts - Wiki
OutlookEX (NEW 2020-06-27 - Version 1.6.1.0) - Download - General Help & Support - Example Scripts - Wiki
OutlookEX_GUI (NEW 2020-06-27 - Version 1.3.2.0) - Download
Outlook Tools (2019-07-22 - Version 0.6.0.0) - Download - General Help & Support - Wiki
ExcelChart (2017-07-21 - Version 0.4.0.1) - Download - General Help & Support - Example Scripts
PowerPoint (2017-06-06 - Version 0.0.5.0) - Download - General Help & Support
Excel - Example Scripts - Wiki
Word - Wiki
Task Scheduler (2019-12-03 - Version 1.5.1.0) - Download - General Help & Support - Wiki

Tutorials:
ADO - Wiki, WebDriver - Wiki



Share this post


Link to post
Share on other sites

I get this error:

 ==> Array variable has incorrect number of subscripts or subscript dimension range exceeded.:
$oExcelTemp = $aWorkbooks[$i].Parent
$oExcelTemp = ^ ERROR

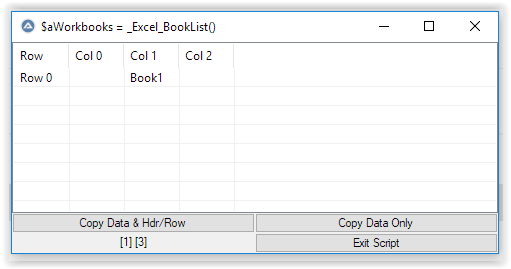

I added an ArrayDisplay and it shows




Here's the slight mod

#include <Excel.au3>
#include <Debug.au3>
MsgBox(0, "Info", "Open Excel manually then click OK.")
Global $oExcelTemp, $oExcelWindow
Global $oExcel = _Excel_Open()                      ; Connect to an already started Excel instance
Global $aWorkbooks = _Excel_BookList()              ; Get a list of workbooks for all Excel instances
_DebugArrayDisplay($aWorkbooks, "$aWorkbooks = _Excel_BookList()")  ;let's look at it
For $i = 0 to UBound($aWorkbooks) - 1
   $oExcelTemp = $aWorkbooks[$i].Parent             ; Application object for the selected workbook
   $oExcelWindow = $oExcelTemp.ActiveWindow         ; Get active Window for the selected Excel instance
;~    MsgBox(0, "Info",     "$aWorkbooks[$i].Parent = " & $aWorkbooks[$i].Parent & @CRLF & _
;~                      "$oExcelTemp.ActiveWindow = " & $oExcelTemp.ActiveWindow)
   If IsObj($oExcelWindow) Then                     ; Is there an active window for this Excel instance?
       $oExcelActiveCell = $oExcelWindow.ActiveCell ; Get the active cell of the window
       If @error = 0 Then ExitLoop                  ; If active cell found stop searching
   EndIf
Next



Share this post


Link to post
Share on other sites

My bad. It's a 2D array so the script should look like:

#include <Excel.au3>
Global $oExcelTemp, $oExcelWindow
Global $oExcel = _Excel_Open()                      ; Connect to an already started Excel instance
Global $aWorkbooks = _Excel_BookList()              ; Get a list of workbooks for all Excel instances
For $i = 0 to UBound($aWorkbooks) - 1
   $oExcelTemp = $aWorkbooks[$i][0].Parent          ; Application object for the selected workbook <== MODIFIED
   $oExcelWindow = $oExcelTemp.ActiveWindow         ; Get active Window for the selected Excel instance
   If IsObj($oExcelWindow) Then                     ; Is there an active window for this Excel instance?
       $oExcelActiveCell = $oExcelWindow.ActiveCell ; Get the active cell of the window
       If @error = 0 Then ExitLoop                  ; If active cell found stop searching
   EndIf
Next




My UDFs and Tutorials:

Spoiler

UDFs:
Active Directory (NEW 2020-07-21 - Version 1.5.1.0) - Download - General Help & Support - Example Scripts - Wiki
OutlookEX (NEW 2020-06-27 - Version 1.6.1.0) - Download - General Help & Support - Example Scripts - Wiki
OutlookEX_GUI (NEW 2020-06-27 - Version 1.3.2.0) - Download
Outlook Tools (2019-07-22 - Version 0.6.0.0) - Download - General Help & Support - Wiki
ExcelChart (2017-07-21 - Version 0.4.0.1) - Download - General Help & Support - Example Scripts
PowerPoint (2017-06-06 - Version 0.0.5.0) - Download - General Help & Support
Excel - Example Scripts - Wiki
Word - Wiki
Task Scheduler (2019-12-03 - Version 1.5.1.0) - Download - General Help & Support - Wiki

Tutorials:
ADO - Wiki, WebDriver - Wiki



Share this post


Link to post
Share on other sites

BTW: Your debugging statement  won't work as the Parent and ActiveWindow property return an object which can't be displayed using MsgBox.


My UDFs and Tutorials:

Spoiler

UDFs:
Active Directory (NEW 2020-07-21 - Version 1.5.1.0) - Download - General Help & Support - Example Scripts - Wiki
OutlookEX (NEW 2020-06-27 - Version 1.6.1.0) - Download - General Help & Support - Example Scripts - Wiki
OutlookEX_GUI (NEW 2020-06-27 - Version 1.3.2.0) - Download
Outlook Tools (2019-07-22 - Version 0.6.0.0) - Download - General Help & Support - Wiki
ExcelChart (2017-07-21 - Version 0.4.0.1) - Download - General Help & Support - Example Scripts
PowerPoint (2017-06-06 - Version 0.0.5.0) - Download - General Help & Support
Excel - Example Scripts - Wiki
Word - Wiki
Task Scheduler (2019-12-03 - Version 1.5.1.0) - Download - General Help & Support - Wiki

Tutorials:
ADO - Wiki, WebDriver - Wiki



Share this post


Link to post
Share on other sites

Thanks for that comment.  So how do I display the text of the parent, active window, and active cell?  I'd like to verify that I've got the correct objects.

Share this post


Link to post
Share on other sites
#include <Excel.au3>
Global $oExcelTemp, $oExcelWindow
Global $oExcel = _Excel_Open()                       ; Connect to an already started Excel instance
Global $aWorkbooks = _Excel_BookList()               ; Get a list of workbooks for all Excel instances
For $i = 0 to UBound($aWorkbooks) - 1
   $oExcelTemp = $aWorkbooks[$i][0].Parent           ; Application object for the selected workbook <== MODIFIED
   $oExcelWindow = $oExcelTemp.ActiveWindow          ; Get active Window for the selected Excel instance
   If IsObj($oExcelWindow) Then                      ; Is there an active window for this Excel instance?
       $oExcelActiveCell = $oExcelWindow.ActiveCell  ; Get the active cell of the window
       If @error = 0 Then
           MsgBox(0, "Result", $oActiveCell.Address) ; Displays the selected cell or the top left cell of a range
           ExitLoop                                  ; If active cell found stop searching
       EndIf
   EndIf
Next
Edited by water

My UDFs and Tutorials:

Spoiler

UDFs:
Active Directory (NEW 2020-07-21 - Version 1.5.1.0) - Download - General Help & Support - Example Scripts - Wiki
OutlookEX (NEW 2020-06-27 - Version 1.6.1.0) - Download - General Help & Support - Example Scripts - Wiki
OutlookEX_GUI (NEW 2020-06-27 - Version 1.3.2.0) - Download
Outlook Tools (2019-07-22 - Version 0.6.0.0) - Download - General Help & Support - Wiki
ExcelChart (2017-07-21 - Version 0.4.0.1) - Download - General Help & Support - Example Scripts
PowerPoint (2017-06-06 - Version 0.0.5.0) - Download - General Help & Support
Excel - Example Scripts - Wiki
Word - Wiki
Task Scheduler (2019-12-03 - Version 1.5.1.0) - Download - General Help & Support - Wiki

Tutorials:
ADO - Wiki, WebDriver - Wiki



Share this post


Link to post
Share on other sites

I'm trying.  I got this:


So I put $oActiveCell in the Global at top.

Now I get:

0013: 0-0:            MsgBox(0, "Result", $oActiveCell.Address) ; Displays the selected cell or the top left cell of a range
"C:\Program Files (x86)\AutoIt3\AH Code\water's approach v1a_DebugIt.au3" (50) : ==> Variable must be of type "Object".:
MsgBox(0, "Result", $oActiveCell.Address)
MsgBox(0, "Result", $oActiveCell^ ERROR



So far not my day ;) but I appreciate all the help.

Share this post


Link to post
Share on other sites

I will need to check this tomorrow when I get my hands on a Windows system. Linux with LibreOffice doesn't help much at the moment ;)


My UDFs and Tutorials:

Spoiler

UDFs:
Active Directory (NEW 2020-07-21 - Version 1.5.1.0) - Download - General Help & Support - Example Scripts - Wiki
OutlookEX (NEW 2020-06-27 - Version 1.6.1.0) - Download - General Help & Support - Example Scripts - Wiki
OutlookEX_GUI (NEW 2020-06-27 - Version 1.3.2.0) - Download
Outlook Tools (2019-07-22 - Version 0.6.0.0) - Download - General Help & Support - Wiki
ExcelChart (2017-07-21 - Version 0.4.0.1) - Download - General Help & Support - Example Scripts
PowerPoint (2017-06-06 - Version 0.0.5.0) - Download - General Help & Support
Excel - Example Scripts - Wiki
Word - Wiki
Task Scheduler (2019-12-03 - Version 1.5.1.0) - Download - General Help & Support - Wiki

Tutorials:
ADO - Wiki, WebDriver - Wiki



Share this post


Link to post
Share on other sites

water - thanks I really appreciate it.  No rush as I've been working on it for weeks.  What started out (see first post) as what I thought would be simple is, so far, not turning out to be so simple.

Share this post


Link to post
Share on other sites

A quick question @ahha. Can you tell me what you see in the Excel windows title bar of all your instances.  Since I am on Win7 and using Office 2003, it is a bit hard to figure it out...

Share this post


Link to post
Share on other sites

Create an account or sign in to comment

You need to be a member in order to leave a comment

Create an account

Sign up for a new account in our community. It's easy!

Register a new account

Sign in

Already have an account? Sign in here.

Sign In Now
Sign in to follow this

  • Recently Browsing   0 members

    No registered users viewing this page.

  • Similar Content

    • By Langmeister
      Hi, I'm sure that this is a simple question regarding webdriver udf but my search on the forum did not result in the exact same scenario that I need. I will adapt it to my corporate needs but at first I want it to work with an example everybody can reproduce if needed.
      I navigate to https://www.daysoftheyear.com/ and want to find out what special day today is. Using the following Code returns the wanted text that today is 'shark awareness day' in the console but it is not pasted in notepad as it is not copied as it probably should be.
      #include "wd_core.au3" #include "wd_helper.au3" Local $sDesiredCapabilities, $sSession, $sID _WD_Option("Driver", "C:\Program Files (x86)\AutoIt3\chromedriver.exe") _WD_Option('Port', 9515) _WD_Option('DriverParams', '--log-path="' & @ScriptDir & '\chrome.log"') $sDesiredCapabilities = '{"capabilities": {"alwaysMatch": {"goog:chromeOptions": {"w3c": true }}}}' _WD_Startup() $sSession = _WD_CreateSession($sDesiredCapabilities) _WD_Navigate($sSession, "https://www.daysoftheyear.com/?timezone_offset=nan") _WD_LoadWait($sSession) Sleep(3000) Local $sElement = _WD_FindElement($sSession, $_WD_LOCATOR_ByXPath, "/html/body/div[2]/header/div/div[1]/div/div[2]/h3/a") _WD_ElementAction($sSession, $sElement, 'text') ClipGet() Run("notepad.exe") Sleep(500) Send("^v") Scite returns this, therefore the text has been found but the last mile to paste it to notepad or excel does not work for me.
      __WD_Get: URL=HTTP://127.0.0.1:9515/session/b72166b774d7fefb258b3721fc1d4306/element/657e6b5d-31a9-46a8-85c4-acb7f72bf659/text __WD_Get: StatusCode=200; $iResult = 0; $sResponseText={"value":"Shark Awareness Day"}... _WD_ElementAction: {"value":"Shark Awareness Day"}... Thanks in advance!

    • By GOSM
      Hey,
      as part of a larger Programm I am trying to copy the values from one cell in an Excel file to another. The code I am using is the folowing.

      Local $oExcel = _Excel_Open() If @error Then Exit MsgBox($MB_SYSTEMMODAL, "Excel UDF: _Excel_RangeCopy Example", "Error creating the Excel application object." & @CRLF & "@error = " & @error & ", @extended = " & @extended) _Excel_RangeCopyPaste($oExcel.ActiveSheet, "V4:W43", "X4", False, $xlPasteValues, Default, True) If @error Then Exit MsgBox($MB_SYSTEMMODAL, "Excel UDF: _Excel_RangeCopy Example 4", "Error copying rows." & @CRLF & "@error = " & @error & ", @extended = " & @extended) MsgBox($MB_SYSTEMMODAL, "Excel UDF: _Excel_RangeCopy Example 4", "2 Rows successfully pasted from the clipboard to row 1.") As I understood it the option $xlPasteValues should do the trick  but it is still copying the inserted formulas. I attached a test code and excel file.
      Thanks for the help Simon
      Copy Values Test.zip
    • By Chimp
      An "improper" "unusual" use of Excel
      the script allows the creation of artistic images by simply coloring the background of the individual cells of the Excel workbook.
      Although definitely useless ... I find it quite funny though
      have a good time
      many thanks to @UEZ , @Malkey , @water
      p.s.
      I think the pixelite + color to array process can be simplified, but I used the two ready-made functions provided by UEZ and Malkey. I thank both of you (credits  and links in listing)
      p.p.s.
      strange behaviour: while excell is filling cells, if you move the mouse pointer off the excell window, the fill speed increases ... (?)


      ; =============================================================================================================================== ; Name ..........: Excel in art ; Description ...: This script allows the creation of artistic images in Excel from a choosed picture. ; The picture is done by simply coloring the background of the individual cells of an Excel workbook. ; Although definitely useless, I find it quite funny though ; ; Return values .: An artistic image in an Excel workbook ; Author ........: Addiego Gianni (chimp) ; Modified ......: ; Remarks .......: Many thanks to UEZ, Malkey and Water ; Related .......: ; Link ..........: ; Example .......: ; =============================================================================================================================== #include <GDIPlus.au3> #include <Excel.au3> _PixelsToCells(50) ; <-- Parameter 50 is the cumber of horizontal Excel cells to be filled MsgBox(64, "All done", "Excel art is ready") Func _PixelsToCells($iHcells = 50) ; Check application object Local $oExcel = _Excel_Open() If Not IsObj($oExcel) Then MsgBox(16, "Error", "Sorry, You need to have 'Excel' intalled") ; Choose Image File Local $sPath = FileOpenDialog("Choose Image File", @ScriptDir & "", "Images (*.gif;*.png;*.jpg;*.bmp)| All (*.*)") If $sPath = '' Then Exit MsgBox(16, "Error", "Sorry, no image was chosen") ; Create a new Excel workbook $oWorkbook = _Excel_BookNew($oExcel, 1) ; initialize GDI+ _GDIPlus_Startup() Local $hBmp = _GDIPlus_BitmapCreateFromFile($sPath) Local $iWidth = _GDIPlus_ImageGetWidth($hBmp) ; get image width ; Local $iHeight = _GDIPlus_ImageGetHeight($hBmp) ; not needed here Local $iStep = $iWidth / $iHcells ; calculate the pixelation factor Local $hBitmap_new = _GDIPlus_PixelateBitmap($hBmp, $iStep) ; pixelate the image Local $aPixelColors = _FileImageToArray($hBitmap_new) ; get pixel colors ; reduce Excel columns width Local $xx = 1, $yy = 1 For $iCol = 0 To UBound($aPixelColors, 2) - 1 Step $iStep $oWorkbook.Sheets(1).Columns($xx).ColumnWidth = 1 $xx += 1 Next ; reduce Excel rows height For $iRow = 0 To UBound($aPixelColors) - 1 Step $iStep $oWorkbook.Sheets(1).Rows($yy).RowHeight = 9 $yy += 1 Next $xx = 1 $yy = 1 For $iRow = 0 To UBound($aPixelColors) - 1 Step $iStep For $iCol = 0 To UBound($aPixelColors, 2) - 1 Step $iStep $oWorkbook.Sheets(1).Range(_Excel_ColumnToLetter($xx) & $yy).Interior.Color = Number("0x" & $aPixelColors[$iRow][$iCol]) $xx += 1 Next $yy += 1 $xx = 1 Next _GDIPlus_BitmapDispose($hBmp) _GDIPlus_Shutdown() EndFunc ;==>_PixelsToCells ; by UEZ ; https://www.autoitscript.com/forum/topic/167707-imagepixelate/?do=findComment&comment=1227509 Func _GDIPlus_PixelateBitmap($hBitmap, $iPixelate, $bSmooth = 1) Local $iWidth = _GDIPlus_ImageGetWidth($hBitmap), $iHeight = _GDIPlus_ImageGetHeight($hBitmap) Local $iNewW = Round($iWidth / $iPixelate, 0), $iNewH = Round($iHeight / $iPixelate, 0) Local $hBitmap_scaled = _GDIPlus_BitmapCreateFromScan0($iNewW, $iNewH) Local $hCtxt = _GDIPlus_ImageGetGraphicsContext($hBitmap_scaled) Local $iInterpolation = 5 If $bSmooth Then $iInterpolation = $GDIP_INTERPOLATIONMODE_BILINEAR _GDIPlus_GraphicsSetInterpolationMode($hCtxt, $iInterpolation) _GDIPlus_GraphicsDrawImageRect($hCtxt, $hBitmap, 0, 0, $iNewW, $iNewH) _GDIPlus_GraphicsDispose($hCtxt) Local $hBitmap_pixelated = _GDIPlus_BitmapCreateFromScan0($iWidth, $iHeight) $hCtxt = _GDIPlus_ImageGetGraphicsContext($hBitmap_pixelated) _GDIPlus_GraphicsSetInterpolationMode($hCtxt, $GDIP_INTERPOLATIONMODE_NearestNeighbor) _GDIPlus_GraphicsDrawImageRectRect($hCtxt, $hBitmap_scaled, 0, 0, $iNewW, $iNewH, -$iPixelate, -$iPixelate, $iWidth + 2 * $iPixelate, $iHeight + 2 * $iPixelate) _GDIPlus_GraphicsDispose($hCtxt) Return $hBitmap_pixelated EndFunc ;==>_GDIPlus_PixelateBitmap ; by Malkey ; https://www.autoitscript.com/forum/topic/112540-is-there-a-function-for-reading-images-into-2d-arrays/?do=findComment&comment=788472 Func _FileImageToArray($hImage) Local $Reslt, $stride, $format, $Scan0, $iIW, $iIH ; , $hImage Local $v_Buffer, $width, $height ; _GDIPlus_Startup() ; $hImage = _GDIPlus_ImageLoadFromFile($sFileName) $iIW = _GDIPlus_ImageGetWidth($hImage) $iIH = _GDIPlus_ImageGetHeight($hImage) ProgressOn("Progress Bar", "Filling a " & $iIW & " x " & $iIH & " size array.", "0 percent") $Reslt = _GDIPlus_BitmapLockBits($hImage, 0, 0, $iIW, $iIH, $GDIP_ILMREAD, $GDIP_PXF32ARGB) ;Get the returned values of _GDIPlus_BitmapLockBits () $width = DllStructGetData($Reslt, "width") $height = DllStructGetData($Reslt, "height") $stride = DllStructGetData($Reslt, "stride") $format = DllStructGetData($Reslt, "format") $Scan0 = DllStructGetData($Reslt, "Scan0") Local $aArray[$height][$width] For $j = 0 To $iIH - 1 For $i = 0 To $iIW - 1 $v_Buffer = DllStructCreate("dword", $Scan0 + ($j * $stride) + ($i * 4)) $aArray[$j][$i] = StringRegExpReplace(Hex(DllStructGetData($v_Buffer, 1), 6), "(.{2})(.{2})(.{2})", "\3\2\1") ; To RGB format Next ProgressSet(Int(100 * $j / ($iIH)), Int(100 * $j / ($iIH)) & " percent") Next _GDIPlus_BitmapUnlockBits($hImage, $Reslt) ProgressOff() _GDIPlus_ImageDispose($hImage) Return $aArray EndFunc ;==>_FileImageToArray
    • By Zaoka
      Hi guys
      Need little help with filtering.
      I'm trying to filter specific weeks from power pivot table using this code recorded with Excel VBA :

      #include <Excel.au3> Global $oExcel = _Excel_Open() Global $oWorkbook = _Excel_BookOpen($oExcel, "C:\Users\....\Orders.xlsb") $oWorkbook.PivotTables("PivotTable1").PivotFields( _ "[Report 2].[Week].[Week]").VisibleItemsList = Array( _ "[Report 2].[Week].&[10]", "[Report 2].[Week].&[11]", _ "[Report 2].[Week].&[12]", "[Report 2].[Week].&[13]", _ "[Report 2].[Week].&[14]", "[Report 2].[Week].&[15]") But get error
      error: Array(): undefined function. Not sure how to resolve this.
    • By Rajat231
      I am trying this code to create multiple workbooks eachone  shall be copy of one worksheet from a workbook having multiple sheets ( keeing the name same)
      SavingWorksheets.au3
×
×
  • Create New...
