vin1

window zoom out tool

12 posts in this topic

is it possible to make a window or desktop zoom out tool like the magnifier tool in windows 7

zoom out to 25% of the original size

Share this post


Link to post
Share on other sites



#2 ·  Posted (edited)

you mean zoom in, right?

example of taking screenshot, stretching it (zoom in)...if you really do want zoom out modify the $iZoomRatio to a decimal...like .25

note: I did not add in all the #includes, you will have to do that

AutoItSetOption ( "MouseCoordMode",1 )
$gsFILE_Background = "c:\screenshot.bmp"
$iWidth = 300
$iHeight = 300
$iZoomRatio = .75
Local $pos = MouseGetPos()
_ScreenCapture_Capture($gsFILE_Background, $pos[0]-$iWidth/$iZoomRatio, $pos[1]-$iHeight/$iZoomRatio, $pos[0]+$iWidth/$iZoomRatio, $pos[1]+$iHeight/$iZoomRatio)
GUICreate("ZoomIn", $iWidth, $iHeight) ; will create a dialog box that when displayed is centered
$hwndBackground = GUICtrlCreatePic($gsFILE_Background, 0, 0, $iWidth, $iHeight)
GUISetState(@SW_SHOW) ; will display an empty dialog box
; Run the GUI until the dialog is closed
$iPriorX = $pos[0]
$iPriorY = $pos[1]
While 1
 $msg = GUIGetMsg()
 If $msg = $GUI_EVENT_CLOSE Then ExitLoop
 Local $pos = MouseGetPos()
 If $pos[0]<>$iPriorX Or $iPriorY<>$pos[1] Then
  _ScreenCapture_Capture($gsFILE_Background, $pos[0]-$iWidth/$iZoomRatio, $pos[1]-$iHeight/$iZoomRatio, $pos[0]+$iWidth/$iZoomRatio, $pos[1]+$iHeight/$iZoomRatio)
  ;~  GUICtrlDelete($hwndBackground)
  ;~  $hwndBackground = GUICtrlCreatePic($gsFILE_Background, 0, 0, $iWidth, $iHeight)
  GUICtrlSetImage ( $hwndBackground, $gsFILE_Background )
  $iPriorX = $pos[0]
  $iPriorY = $pos[1]
 EndIf
WEnd
GUIDelete()
Edited by jdelaney

IEbyXPATH-Grab IE DOM objects by XPATH IEscriptRecord-Makings of an IE script recorder ExcelFromXML-Create Excel docs without excel installed GetAllWindowControls-Output all control data on a given window.

Share this post


Link to post
Share on other sites

vin1,

I wrote this a while ago - it might give you some ideas: ;)

#include <GUIConstantsEx.au3>
#include <WindowsConstants.au3>
#include <WinAPI.au3>
#include <Misc.au3>

Opt("GUICloseOnESC", 0)

HotKeySet("{ESC}", "On_Exit")

Global $hMag_GUI, $hMagDC, $hDeskDC, $hPen, $oObj, $aMouse_Pos[2], $iLast_Mouse_X = 0, $iLast_Mouse_Y = 0

; Create GUI
$hMag_Win = GUICreate("MAG", 100, 100, 0, 0, $WS_POPUP)
GUISetState(@SW_SHOW, $hMag_Win)
$hMag_GUI = WinGetHandle("MAG")
; Get device context for Mag GUI
$hMagDC = _WinAPI_GetDC($hMag_GUI)
If @error Then Exit
; Get device context for desktop
$hDeskDC = _WinAPI_GetDC(0)
If @error Then
    _WinAPI_ReleaseDC($hMag_GUI, $hMagDC)
    Exit
EndIf
; Create pen
$hPen = _WinAPI_CreatePen($PS_SOLID, 5, 0x7E7E7E)
$oObj = _WinAPI_SelectObject($hMagDC, $hPen)


While 1
    ; Check if cursor has moved
    $aMouse_Pos = MouseGetPos()
    If $aMouse_Pos[0] <> $iLast_Mouse_X Or $aMouse_Pos[1] <> $iLast_Mouse_Y Then
        ; Redraw Mag GUI
        Loupe($aMouse_Pos)
        ; Reset position
        $iLast_Mouse_X = $aMouse_Pos[0]
        $iLast_Mouse_Y = $aMouse_Pos[1]
    EndIf
WEnd

Func On_Exit()

    ; Clear up Mag GUI
    _WinAPI_SelectObject($hMagDC, $oObj)
    _WinAPI_DeleteObject($hPen)
    _WinAPI_ReleaseDC(0, $hDeskDC)
    _WinAPI_ReleaseDC($hMag_GUI, $hMagDC)
    GUIDelete($hMag_GUI)

    Exit

EndFunc   ;==>On_Exit

Func Loupe($aMouse_Pos)

    Local $iX, $iY

    ; Fill Mag GUI with 5x expanded contents of desktop area (10 pixels around mouse)
    DllCall("gdi32.dll", "int", "StretchBlt", _
        "int", $hMagDC,  "int", 0,                   "int", 0,                   "int", 100, "int", 100, _
        "int", $hDeskDC, "int", $aMouse_Pos[0] - 10, "int", $aMouse_Pos[1] - 10, "int",  20, "int",  20, _
        "long", $SRCCOPY)

    ; Keep Mag GUI on screen
    If $aMouse_Pos[0] < (@DesktopWidth - 120) Then
        $iX = $aMouse_Pos[0] + 20
    Else
        $iX = $aMouse_Pos[0] - 120
    EndIf
    If $aMouse_Pos[1] < (@DesktopHeight - 150) Then
        $iY = $aMouse_Pos[1] + 20
    Else
        $iY = $aMouse_Pos[1] - 120
    EndIf
    WinMove($hMag_GUI, "", $iX, $iY, 100, 100)

EndFunc   ;==>Loupe

Please ask if you have any questions. :)

M23


Any of my own code posted anywhere on the forum is available for use by others without any restriction of any kind._______My UDFs:

Spoiler

ArrayMultiColSort ---- Sort arrays on multiple columns
ChooseFileFolder ---- Single and multiple selections from specified path treeview listing
Date_Time_Convert -- Easily convert date/time formats, including the language used
ExtMsgBox --------- A highly customisable replacement for MsgBox
GUIExtender -------- Extend and retract multiple sections within a GUI
GUIFrame ---------- Subdivide GUIs into many adjustable frames
GUIListViewEx ------- Insert, delete, move, drag, sort, edit and colour ListView items
GUITreeViewEx ------ Check/clear parent and child checkboxes in a TreeView
Marquee ----------- Scrolling tickertape GUIs
NoFocusLines ------- Remove the dotted focus lines from buttons, sliders, radios and checkboxes
Notify ------------- Small notifications on the edge of the display
Scrollbars ----------Automatically sized scrollbars with a single command
StringSize ---------- Automatically size controls to fit text
Toast -------------- Small GUIs which pop out of the notification area



Share this post


Link to post
Share on other sites

#4 ·  Posted (edited)

Duh, that makes sense to wait for the cursor to move...save some cpu :)

edit: misappropriated into mine as well

Edited by jdelaney

IEbyXPATH-Grab IE DOM objects by XPATH IEscriptRecord-Makings of an IE script recorder ExcelFromXML-Create Excel docs without excel installed GetAllWindowControls-Output all control data on a given window.

Share this post


Link to post
Share on other sites

thank you both

Share this post


Link to post
Share on other sites

vin1

screen_magnifier_v1__ Siao

UEZ

greenmachine

http://www.autoitscript.com/forum/index.php?showtopic=24154&view=findpost&p=168674

AZJIO

http://autoit-script.ru/index.php/topic,4710.msg34075.html#msg34075

Share this post


Link to post
Share on other sites

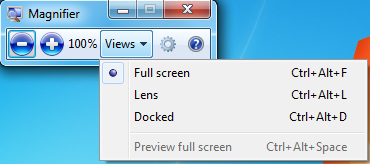

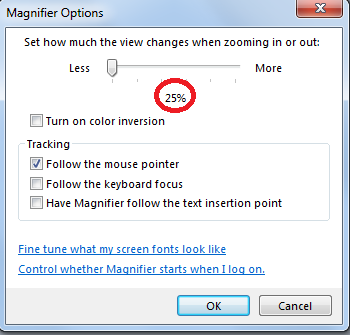

Actually i wanted there to be a configuration option like the windows 7 magnifier options. zoom ability from 25% to 400%. windows 7 magnifier has that option of 25% zoom rate but somehow it doesnt work at less than 100% zoom even if you set it to 25%.

im interested in an option of 25% zoom on the entire screen (full screen) because it will zoom out if less than 100%.

post-77939-0-38284700-1366744778_thumb.p

post-77939-0-37975300-1366744786_thumb.p

Share this post


Link to post
Share on other sites

bump

Share this post


Link to post
Share on other sites

Are you creating this yourself or do you want someone to create if for you? Why are you also reinventing the wheel?


_AdapterConnections()_AlwaysRun()_AppMon()_AppMonEx()_BinaryBin()_CheckMsgBox()_CmdLineRaw()_ContextMenu()_ConvertLHWebColor()/_ConvertSHWebColor()_DesktopDimensions()_DisplayPassword()_DotNet_Load()/_DotNet_Unload()_Fibonacci()_FileCompare()_FileCompareContents()_FileNameByHandle()_FilePrefix/SRE()_FindInFile()_GetBackgroundColor()/_SetBackgroundColor()_GetConrolID()_GetCtrlClass()_GetDirectoryFormat()_GetDriveMediaType()_GetFilename()/_GetFilenameExt()_GetHardwareID()_GetIP()_GetIP_Country()_GetOSLanguage()_GetSavedSource()_GetStringSize()_GetSystemPaths()_GetURLImage()_GIFImage()_GoogleWeather()_GUICtrlCreateGroup()_GUICtrlListBox_CreateArray()_GUICtrlListView_CreateArray()_GUICtrlListView_SaveCSV()_GUICtrlListView_SaveHTML()_GUICtrlListView_SaveTxt()_GUICtrlListView_SaveXML()_GUICtrlMenu_Recent()_GUICtrlMenu_SetItemImage()_GUICtrlTreeView_CreateArray()_GUIDisable()_GUIImageList_SetIconFromHandle()_GUIRegisterMsg()_GUISetIcon()_Icon_Clear()/_Icon_Set()_IdleTime()_InetGet()_InetGetGUI()_InetGetProgress()_IPDetails()_IsFileOlder()_IsGUID()_IsHex()_IsPalindrome()_IsRegKey()_IsStringRegExp()_IsSystemDrive()_IsUPX()_IsValidType()_IsWebColor()_Language()_Log()_MicrosoftInternetConnectivity()_MSDNDataType()_PathFull/GetRelative/Split()_PathSplitEx()_PrintFromArray()_ProgressSetMarquee()_ReDim()_RockPaperScissors()/_RockPaperScissorsLizardSpock()_ScrollingCredits_SelfDelete()_SelfRename()_SelfUpdate()_SendTo()_ShellAll()_ShellFile()_ShellFolder()_SingletonHWID()_SingletonPID()_Startup()_StringCompact()_StringIsValid()_StringRegExpMetaCharacters()_StringReplaceWholeWord()_StringStripChars()_Temperature()_TrialPeriod()_UKToUSDate()/_USToUKDate()_WinAPI_Create_CTL_CODE()_WinAPI_CreateGUID()_WMIDateStringToDate()/_DateToWMIDateString()Au3 script parsingAutoIt SearchAutoIt3 PortableAutoIt3WrapperToPragmaAutoItWinGetTitle()/AutoItWinSetTitle()CodingDirToHTML5FileInstallrFileReadLastChars()GeoIP databaseGUI - Only Close ButtonGUI ExamplesGUICtrlDeleteImage()GUICtrlGetBkColor()GUICtrlGetStyle()GUIEventsGUIGetBkColor()Int_Parse() & Int_TryParse()IsISBN()LockFile()Mapping CtrlIDsOOP in AutoItParseHeadersToSciTE()PasswordValidPasteBinPosts Per DayPreExpandProtect GlobalsQueue()Resource UpdateResourcesExSciTE JumpSettings INISHELLHOOKShunting-YardSignature CreatorStack()Stopwatch()StringAddLF()/StringStripLF()StringEOLToCRLF()VSCROLLWM_COPYDATAMore Examples...

Updated: 04/09/2015

Share this post


Link to post
Share on other sites

bump

Please wait at least 24 hours before bumping a thread. This is no 24 hours support forum!

My UDFs and Tutorials:

Spoiler

UDFs:
Active Directory (NEW 2017-04-18 - Version 1.4.8.0) - Download - General Help & Support - Example Scripts - Wiki
OutlookEX (NEW 2017-02-27 - Version 1.3.1.0) - Download - General Help & Support - Example Scripts - Wiki
ExcelChart (2015-04-01 - Version 0.4.0.0) - Download - General Help & Support - Example Scripts
Excel - Example Scripts - Wiki
Word - Wiki
PowerPoint (2015-06-06 - Version 0.0.5.0) - Download - General Help & Support

Tutorials:
ADO - Wiki



Share this post


Link to post
Share on other sites

@vin1: did you have a closer look to the examples? One of them has the feature applied indirectly!

Br,

UEZ


Please don't send me any personal message and ask for support! I will not reply!

Selection of finest graphical examples at Codepen.io

The own fart smells best!
Her 'sikim hıyar' diyene bir avuç tuz alıp koşma!
¯\_(ツ)_/¯  ٩(●̮̮̃•̃)۶ ٩(-̮̮̃-̃)۶ૐ
