Popular Post argumentum Posted July 28, 2023 Popular Post Share Posted July 28, 2023 (edited) ... lets do some marketing first: pardon the image size of 225% scale on another monitor The idea is to have some DPI awareness in our GUIs and with this all you have to do is prefix "_HiDpi_" to your current code. Simple. This version ( HiDpi v. 0.2023.7.29(b) stable.zip ) is stable but only system aware. ( pictures above ) This next version ( HiDpi v. 0.2023.8.3(a) under development.zip ) is what I've got so far in regards of per-monitor awareness This one ( HiDpi v. 0.2023.8.4(ResizeTestbed) under development.zip ) is for the brave of heart. I'm looking for ideas. This is a testbed for anyone wanting to contribute regarding resizing controls. I have now started to use _WinAPI_DPI.au3 because I feel that this UDF is ready for that UDF. Therefore, too many and too big files for copy and paste. And that is good. Means that the UDF is getting closer to stable. FAQ (of sorts) Q: When did you come up with this ? A: Never. These are helper functions for _WinAPI_SetDPIAwareness.au3 but I did not get to finish. Nonetheless it's functional as is and applies to most of the cases in need of DPI awareness. Per-monitor would need more involved coding and I only have so much time and know how for now. Q: Will you open a ticket and ask to be included in the standard UDFs ? A: No. This is a just for now. Eventually the functionality would be a standard feature without the need of this. Q: Will you add ... A: Only in the case that either, I realize is needed and code it or, you code it and ask to be included in this bundle of functions UDF Q: This is not working ... A: The best way to go about a problem with this code is to open it's own thread in GUI Help and Support and post there with a mention of me. I'll read and answer there. Q: Are you going to share "logo4.gif", "SampleAVI.avi", etc. A: You are right. I forgot to say that the example file will work as expected if created in "..\Examples\GUI\HiDpi_v_n.n.n.n\", as a subfolder of where "SampleControls.au3" is at. There it will find all the files required for the example. Because after all, this example is that example but "_HiDpi_fied" ( so to say ). Q: Is there a tool that will magically update all my old scripts ? A: I've posted a script to get you closer but is not magical. Should work just fine for simple GUIs. Q: Are you going to work on a Per-monitor version ? A: yes, as time permits. Edited February 13 by argumentum ..if dyslexia/ADD/ADHD are reasons for edit then yes. simplercoder000, bfgxp, mLipok and 3 others 5 1 Follow the link to my code contribution ( and other things too ). FAQ - Please Read Before Posting. Link to comment Share on other sites More sharing options...
UEZ Posted July 28, 2023 Share Posted July 28, 2023 (edited) Hi @argumentum, I will test your script on Monday in the office where I have 3 monitors and can set different DPI settings per monitor. Edited July 28, 2023 by UEZ argumentum 1 Please don't send me any personal message and ask for support! I will not reply! Selection of finest graphical examples at Codepen.io The own fart smells best! ✌Her 'sikim hıyar' diyene bir avuç tuz alıp koşma!¯\_(ツ)_/¯ ٩(●̮̮̃•̃)۶ ٩(-̮̮̃-̃)۶ૐ Link to comment Share on other sites More sharing options...
argumentum Posted July 29, 2023 Author Share Posted July 29, 2023 ...this approach is simple and should work flawlessly if, all monitors have the same scaling. Otherwise will take the scaling of the monitor declared as primary, and adjust in a blurry way the difference. As a first step, should work for most people as they have only one monitor. Those with more than one, if bought together then is also functional. Now, those like me that have, in my case say, a 21:9 1080p next to a 16:10 4k, it looks perfect only for the primary but again, most people don't have such setup. Hence an incentive for me to have a full "PER_MONITOR_AWARE_V2" instead of the "SYSTEM_AWARE" that I posted. mLipok 1 Follow the link to my code contribution ( and other things too ). FAQ - Please Read Before Posting. Link to comment Share on other sites More sharing options...
argumentum Posted July 29, 2023 Author Share Posted July 29, 2023 Updated the example on the first post to show the need for _HiDpi_WinGetPos(). Follow the link to my code contribution ( and other things too ). FAQ - Please Read Before Posting. Link to comment Share on other sites More sharing options...
mLipok Posted July 29, 2023 Share Posted July 29, 2023 (edited) 3 hours ago, argumentum said: _HiDpi_WinGetPos(). can you provide the same for _HiDpi_ControlGetPos() I mean there are many problems with clicking into Controls because of HiDpi, and some recalculation of control positions are needed before click point will be properly given. Edited July 29, 2023 by mLipok argumentum 1 Signature beginning:* Please remember: "AutoIt"..... * Wondering who uses AutoIt and what it can be used for ? * Forum Rules ** ADO.au3 UDF * POP3.au3 UDF * XML.au3 UDF * IE on Windows 11 * How to ask ChatGPT for AutoIt Code * for other useful stuff click the following button: Spoiler Any of my own code posted anywhere on the forum is available for use by others without any restriction of any kind. My contribution (my own projects): * Debenu Quick PDF Library - UDF * Debenu PDF Viewer SDK - UDF * Acrobat Reader - ActiveX Viewer * UDF for PDFCreator v1.x.x * XZip - UDF * AppCompatFlags UDF * CrowdinAPI UDF * _WinMergeCompare2Files() * _JavaExceptionAdd() * _IsBeta() * Writing DPI Awareness App - workaround * _AutoIt_RequiredVersion() * Chilkatsoft.au3 UDF * TeamViewer.au3 UDF * JavaManagement UDF * VIES over SOAP * WinSCP UDF * GHAPI UDF - modest begining - comunication with GitHub REST API * ErrorLog.au3 UDF - A logging Library * Include Dependency Tree (Tool for analyzing script relations) * Show_Macro_Values.au3 * My contribution to others projects or UDF based on others projects: * _sql.au3 UDF * POP3.au3 UDF * RTF Printer - UDF * XML.au3 UDF * ADO.au3 UDF * SMTP Mailer UDF * Dual Monitor resolution detection * * 2GUI on Dual Monitor System * _SciLexer.au3 UDF * SciTE - Lexer for console pane * Useful links: * Forum Rules * Forum etiquette * Forum Information and FAQs * How to post code on the forum * AutoIt Online Documentation * AutoIt Online Beta Documentation * SciTE4AutoIt3 getting started * Convert text blocks to AutoIt code * Games made in Autoit * Programming related sites * Polish AutoIt Tutorial * DllCall Code Generator * Wiki: * Expand your knowledge - AutoIt Wiki * Collection of User Defined Functions * How to use HelpFile * Good coding practices in AutoIt * OpenOffice/LibreOffice/XLS Related: WriterDemo.au3 * XLS/MDB from scratch with ADOX IE Related: * How to use IE.au3 UDF with AutoIt v3.3.14.x * Why isn't Autoit able to click a Javascript Dialog? * Clicking javascript button with no ID * IE document >> save as MHT file * IETab Switcher (by LarsJ ) * HTML Entities * _IEquerySelectorAll() (by uncommon) * IE in TaskScheduler * IE Embedded Control Versioning (use IE9+ and HTML5 in a GUI) * PDF Related: * How to get reference to PDF object embeded in IE * IE on Windows 11 * I encourage you to read: * Global Vars * Best Coding Practices * Please explain code used in Help file for several File functions * OOP-like approach in AutoIt * UDF-Spec Questions * EXAMPLE: How To Catch ConsoleWrite() output to a file or to CMD *I also encourage you to check awesome @trancexx code: * Create COM objects from modules without any demand on user to register anything. * Another COM object registering stuff * OnHungApp handler * Avoid "AutoIt Error" message box in unknown errors * HTML editor * winhttp.au3 related : * https://www.autoitscript.com/forum/topic/206771-winhttpau3-download-problem-youre-speaking-plain-http-to-an-ssl-enabled-server-port/ "Homo sum; humani nil a me alienum puto" - Publius Terentius Afer"Program are meant to be read by humans and only incidentally for computers and execute" - Donald Knuth, "The Art of Computer Programming" , be and \\//_. Anticipating Errors : "Any program that accepts data from a user must include code to validate that data before sending it to the data store. You cannot rely on the data store, ...., or even your programming language to notify you of problems. You must check every byte entered by your users, making sure that data is the correct type for its field and that required fields are not empty." Signature last update: 2023-04-24 Link to comment Share on other sites More sharing options...
mLipok Posted July 29, 2023 Share Posted July 29, 2023 4 hours ago, argumentum said: Now, those like me that have, in my case say, a 21:9 1080p next to a 16:10 4k, it looks perfect only for the primary but again, most people don't have such setup. I have. argumentum 1 Signature beginning:* Please remember: "AutoIt"..... * Wondering who uses AutoIt and what it can be used for ? * Forum Rules ** ADO.au3 UDF * POP3.au3 UDF * XML.au3 UDF * IE on Windows 11 * How to ask ChatGPT for AutoIt Code * for other useful stuff click the following button: Spoiler Any of my own code posted anywhere on the forum is available for use by others without any restriction of any kind. My contribution (my own projects): * Debenu Quick PDF Library - UDF * Debenu PDF Viewer SDK - UDF * Acrobat Reader - ActiveX Viewer * UDF for PDFCreator v1.x.x * XZip - UDF * AppCompatFlags UDF * CrowdinAPI UDF * _WinMergeCompare2Files() * _JavaExceptionAdd() * _IsBeta() * Writing DPI Awareness App - workaround * _AutoIt_RequiredVersion() * Chilkatsoft.au3 UDF * TeamViewer.au3 UDF * JavaManagement UDF * VIES over SOAP * WinSCP UDF * GHAPI UDF - modest begining - comunication with GitHub REST API * ErrorLog.au3 UDF - A logging Library * Include Dependency Tree (Tool for analyzing script relations) * Show_Macro_Values.au3 * My contribution to others projects or UDF based on others projects: * _sql.au3 UDF * POP3.au3 UDF * RTF Printer - UDF * XML.au3 UDF * ADO.au3 UDF * SMTP Mailer UDF * Dual Monitor resolution detection * * 2GUI on Dual Monitor System * _SciLexer.au3 UDF * SciTE - Lexer for console pane * Useful links: * Forum Rules * Forum etiquette * Forum Information and FAQs * How to post code on the forum * AutoIt Online Documentation * AutoIt Online Beta Documentation * SciTE4AutoIt3 getting started * Convert text blocks to AutoIt code * Games made in Autoit * Programming related sites * Polish AutoIt Tutorial * DllCall Code Generator * Wiki: * Expand your knowledge - AutoIt Wiki * Collection of User Defined Functions * How to use HelpFile * Good coding practices in AutoIt * OpenOffice/LibreOffice/XLS Related: WriterDemo.au3 * XLS/MDB from scratch with ADOX IE Related: * How to use IE.au3 UDF with AutoIt v3.3.14.x * Why isn't Autoit able to click a Javascript Dialog? * Clicking javascript button with no ID * IE document >> save as MHT file * IETab Switcher (by LarsJ ) * HTML Entities * _IEquerySelectorAll() (by uncommon) * IE in TaskScheduler * IE Embedded Control Versioning (use IE9+ and HTML5 in a GUI) * PDF Related: * How to get reference to PDF object embeded in IE * IE on Windows 11 * I encourage you to read: * Global Vars * Best Coding Practices * Please explain code used in Help file for several File functions * OOP-like approach in AutoIt * UDF-Spec Questions * EXAMPLE: How To Catch ConsoleWrite() output to a file or to CMD *I also encourage you to check awesome @trancexx code: * Create COM objects from modules without any demand on user to register anything. * Another COM object registering stuff * OnHungApp handler * Avoid "AutoIt Error" message box in unknown errors * HTML editor * winhttp.au3 related : * https://www.autoitscript.com/forum/topic/206771-winhttpau3-download-problem-youre-speaking-plain-http-to-an-ssl-enabled-server-port/ "Homo sum; humani nil a me alienum puto" - Publius Terentius Afer"Program are meant to be read by humans and only incidentally for computers and execute" - Donald Knuth, "The Art of Computer Programming" , be and \\//_. Anticipating Errors : "Any program that accepts data from a user must include code to validate that data before sending it to the data store. You cannot rely on the data store, ...., or even your programming language to notify you of problems. You must check every byte entered by your users, making sure that data is the correct type for its field and that required fields are not empty." Signature last update: 2023-04-24 Link to comment Share on other sites More sharing options...
mLipok Posted July 29, 2023 Share Posted July 29, 2023 I indicate this UDF as a candidate for:https://www.autoitscript.com/wiki/User_Defined_Functions argumentum 1 Signature beginning:* Please remember: "AutoIt"..... * Wondering who uses AutoIt and what it can be used for ? * Forum Rules ** ADO.au3 UDF * POP3.au3 UDF * XML.au3 UDF * IE on Windows 11 * How to ask ChatGPT for AutoIt Code * for other useful stuff click the following button: Spoiler Any of my own code posted anywhere on the forum is available for use by others without any restriction of any kind. My contribution (my own projects): * Debenu Quick PDF Library - UDF * Debenu PDF Viewer SDK - UDF * Acrobat Reader - ActiveX Viewer * UDF for PDFCreator v1.x.x * XZip - UDF * AppCompatFlags UDF * CrowdinAPI UDF * _WinMergeCompare2Files() * _JavaExceptionAdd() * _IsBeta() * Writing DPI Awareness App - workaround * _AutoIt_RequiredVersion() * Chilkatsoft.au3 UDF * TeamViewer.au3 UDF * JavaManagement UDF * VIES over SOAP * WinSCP UDF * GHAPI UDF - modest begining - comunication with GitHub REST API * ErrorLog.au3 UDF - A logging Library * Include Dependency Tree (Tool for analyzing script relations) * Show_Macro_Values.au3 * My contribution to others projects or UDF based on others projects: * _sql.au3 UDF * POP3.au3 UDF * RTF Printer - UDF * XML.au3 UDF * ADO.au3 UDF * SMTP Mailer UDF * Dual Monitor resolution detection * * 2GUI on Dual Monitor System * _SciLexer.au3 UDF * SciTE - Lexer for console pane * Useful links: * Forum Rules * Forum etiquette * Forum Information and FAQs * How to post code on the forum * AutoIt Online Documentation * AutoIt Online Beta Documentation * SciTE4AutoIt3 getting started * Convert text blocks to AutoIt code * Games made in Autoit * Programming related sites * Polish AutoIt Tutorial * DllCall Code Generator * Wiki: * Expand your knowledge - AutoIt Wiki * Collection of User Defined Functions * How to use HelpFile * Good coding practices in AutoIt * OpenOffice/LibreOffice/XLS Related: WriterDemo.au3 * XLS/MDB from scratch with ADOX IE Related: * How to use IE.au3 UDF with AutoIt v3.3.14.x * Why isn't Autoit able to click a Javascript Dialog? * Clicking javascript button with no ID * IE document >> save as MHT file * IETab Switcher (by LarsJ ) * HTML Entities * _IEquerySelectorAll() (by uncommon) * IE in TaskScheduler * IE Embedded Control Versioning (use IE9+ and HTML5 in a GUI) * PDF Related: * How to get reference to PDF object embeded in IE * IE on Windows 11 * I encourage you to read: * Global Vars * Best Coding Practices * Please explain code used in Help file for several File functions * OOP-like approach in AutoIt * UDF-Spec Questions * EXAMPLE: How To Catch ConsoleWrite() output to a file or to CMD *I also encourage you to check awesome @trancexx code: * Create COM objects from modules without any demand on user to register anything. * Another COM object registering stuff * OnHungApp handler * Avoid "AutoIt Error" message box in unknown errors * HTML editor * winhttp.au3 related : * https://www.autoitscript.com/forum/topic/206771-winhttpau3-download-problem-youre-speaking-plain-http-to-an-ssl-enabled-server-port/ "Homo sum; humani nil a me alienum puto" - Publius Terentius Afer"Program are meant to be read by humans and only incidentally for computers and execute" - Donald Knuth, "The Art of Computer Programming" , be and \\//_. Anticipating Errors : "Any program that accepts data from a user must include code to validate that data before sending it to the data store. You cannot rely on the data store, ...., or even your programming language to notify you of problems. You must check every byte entered by your users, making sure that data is the correct type for its field and that required fields are not empty." Signature last update: 2023-04-24 Link to comment Share on other sites More sharing options...
argumentum Posted July 29, 2023 Author Share Posted July 29, 2023 6 hours ago, mLipok said: can you provide the same for _HiDpi_ControlGetPos() Yes, added. And thanks for the idea. This UDF will build itself as ideas come to mind. In this case I did not think of ControlGetPos() because it did not cross my mind but thanks to sharing in a forum, we all pitch in Follow the link to my code contribution ( and other things too ). FAQ - Please Read Before Posting. Link to comment Share on other sites More sharing options...
argumentum Posted July 31, 2023 Author Share Posted July 31, 2023 What's new with version 0.2023.7.30(a) A first try at a per-monitor awareness. There is an array to keep tabs on what's going on BUT no maintenance yet. Nor proper font keeping. I don't even know how I'm planning to do what yet. I'm using $GUI_DOCKAUTO to keep controls in place but have to come up with something better. Don't know yet. Weekend is over and I'm out of time for now. Any ideas in the form of code example always welcomed Oh, the original file is there for download and so is this one, for those that rather get the files than copy'n'paste. Follow the link to my code contribution ( and other things too ). FAQ - Please Read Before Posting. Link to comment Share on other sites More sharing options...
UEZ Posted July 31, 2023 Share Posted July 31, 2023 (edited) In my office I have 3 monitors horizontally next to each other. The DPI for this: 100%, 125% and 150%. The main screen is in the middle (125%). HiDpi v. 0.2023.7.29(a) stable looks ok. The dev. version HiDpi v. 0.2023.7.30(a): Edited July 31, 2023 by UEZ argumentum 1 Please don't send me any personal message and ask for support! I will not reply! Selection of finest graphical examples at Codepen.io The own fart smells best! ✌Her 'sikim hıyar' diyene bir avuç tuz alıp koşma!¯\_(ツ)_/¯ ٩(●̮̮̃•̃)۶ ٩(-̮̮̃-̃)۶ૐ Link to comment Share on other sites More sharing options...
argumentum Posted July 31, 2023 Author Share Posted July 31, 2023 (edited) _HiDpi_fier("OwnTab.au3") ; set the filename of the script to HiDpiFY Func _HiDpi_fier($sFilenameFullpath) Local $aFile = FileReadToArray("GuiCtrls_HiDpi.au3") ; also, this one would be where you have it at Local $iToPrefix = 0, $aToPrefix[UBound($aFile)][5] = [[0]] For $n = 0 To UBound($aFile) -1 If StringLeft($aFile[$n], 15) <> "Func _HiDpi_GUI" Then ContinueLoop $iToPrefix += 1 $aToPrefix[0][0] = $iToPrefix $aToPrefix[$iToPrefix][0] = $aFile[$n] $aToPrefix[$iToPrefix][0] = StringTrimLeft($aToPrefix[$iToPrefix][0], 5) $aToPrefix[$iToPrefix][0] = StringLeft($aToPrefix[$iToPrefix][0], StringInStr($aToPrefix[$iToPrefix][0], "(")) $aToPrefix[$iToPrefix][1] = StringTrimLeft($aToPrefix[$iToPrefix][0], 7) Next ReDim $aToPrefix[$iToPrefix + 1][5] Local $sScriptToIfy = FileRead($sFilenameFullpath) If Not StringLen($sScriptToIfy) Then Return MsgBox(0, @ScriptName, "could not load:" & @LF & $sFilenameFullpath, 10) If StringInStr($sScriptToIfy, "_HiDpi_GUI") Then Return MsgBox(0, @ScriptName, "Already done ?", 10) For $n = 1 To $aToPrefix[0][0] $sScriptToIfy = StringReplace($sScriptToIfy, $aToPrefix[$n][1], $aToPrefix[$n][0]) $aToPrefix[$n][2] = @extended If $aToPrefix[$n][2] Then ConsoleWrite('- "' & $aToPrefix[$n][1] & ')"''s replaced: ' & $aToPrefix[$n][2] & @CRLF) Next $sScriptToIfy = '#include "GuiCtrls_HiDpi.au3"' & @CRLF & '_HiDpi_Ctrl_LazyInit() ; move this to, ..where it makes sense.' & @CRLF & @CRLF & $sScriptToIfy ConsoleWrite($sScriptToIfy & @CRLF) ClipPut($sScriptToIfy) ; ..ready to paste back after you made a backup of the original ;-) ; You may also need to add a "_HiDpi_CtrlAdjRatio( $iYourPixleValue, 1)" here and there. ; This script is just to get you closer and not have to edit everything by hand. EndFunc ..I say "..just prefix _HiDpi_ and you're good.." but in truth, is hard to visually replace stuff so, the above is meant to get you closer. Edited August 1, 2023 by argumentum better code Follow the link to my code contribution ( and other things too ). FAQ - Please Read Before Posting. Link to comment Share on other sites More sharing options...
argumentum Posted August 1, 2023 Author Share Posted August 1, 2023 What's new with version 0.2023.8.1(a) ..think I've got the font size right. Next is ... more font stuff. After, maintenance stuff. Follow the link to my code contribution ( and other things too ). FAQ - Please Read Before Posting. Link to comment Share on other sites More sharing options...

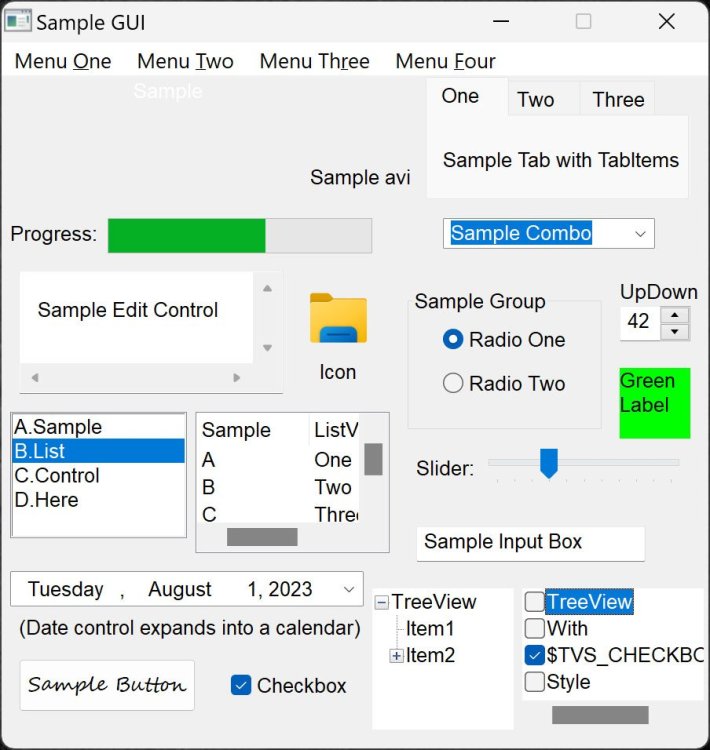

Shark007 Posted August 2, 2023 Share Posted August 2, 2023 using version 0.2023.8.1(a) The 1st Pic is a direct compie of the script supplied and the 2nd pic is using the manifest mod we spoke of in the other thread argumentum 1 Link to comment Share on other sites More sharing options...

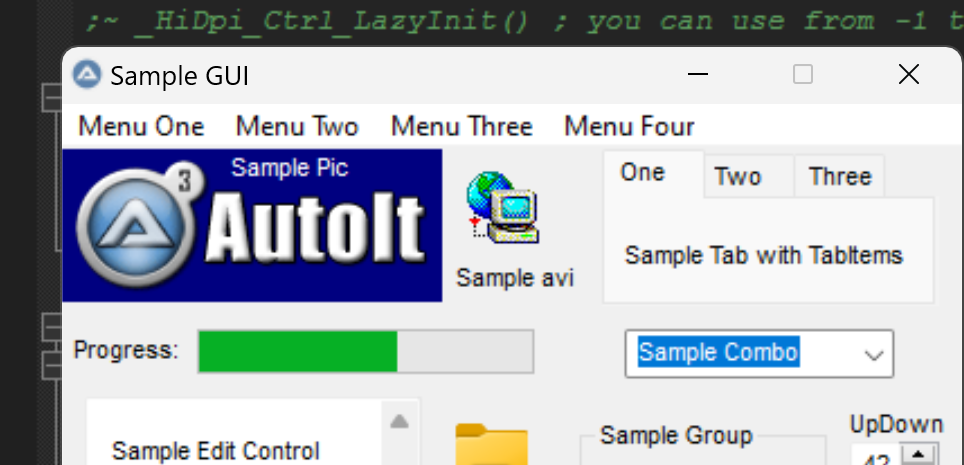

argumentum Posted August 2, 2023 Author Share Posted August 2, 2023 thanks for the post @Shark007. This is bewildering to me. The code itself should do away with a manifest as is making the call after the loading of the code, by which whatever was set as manifest should not matter, I say ( DllCall and what not ) to set DPI per process to such, or such. In any case, the manifest works well with the code as is in the example if the manifest aligns with it. Could you compile it removing the line that say "LazyInit" ?. That would be helpful. If it looks worse than the 2nd pic, I've got it, otherwise, I'll ask for your OS, monitors, monitor arrangement and settings and other hardware, and maiden name. Follow the link to my code contribution ( and other things too ). FAQ - Please Read Before Posting. Link to comment Share on other sites More sharing options...
argumentum Posted August 2, 2023 Author Share Posted August 2, 2023 ..all good. Got it. x32 don't matter but x64 needs the manifest. Follow the link to my code contribution ( and other things too ). FAQ - Please Read Before Posting. Link to comment Share on other sites More sharing options...
argumentum Posted August 2, 2023 Author Share Posted August 2, 2023 changed the example ( the copy'n'paste one ) to be able to show some pertinent info. : Follow the link to my code contribution ( and other things too ). FAQ - Please Read Before Posting. Link to comment Share on other sites More sharing options...

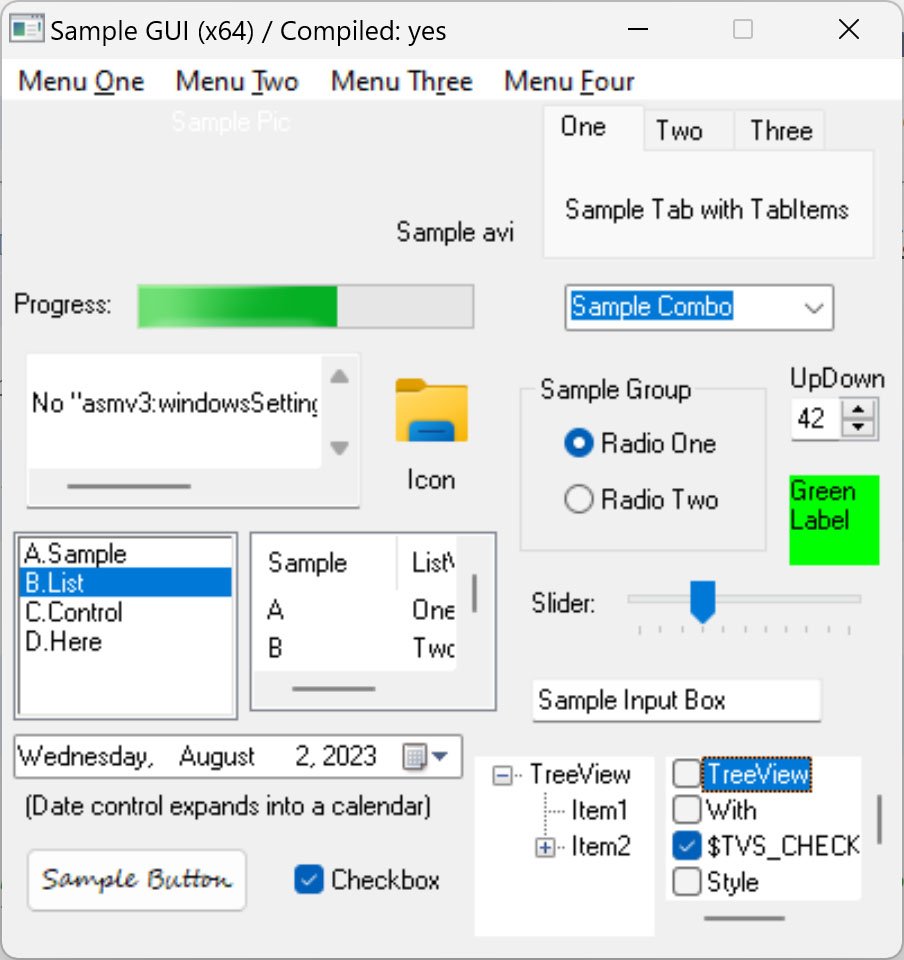

Shark007 Posted August 2, 2023 Share Posted August 2, 2023 (edited) The 1st pic is a direct compile of the code provided. ( 0.2023.8.1(d) ) The 2nd pic uses the manifest to enable DPI also take notice specifically ... the Sample Button text. Edited August 2, 2023 by Shark007 Link to comment Share on other sites More sharing options...
argumentum Posted August 2, 2023 Author Share Posted August 2, 2023 Thanks @Shark007. I found that under x64 the manifest is a must. Hence the reason to run the non-compiled script as x32 given that AutoIt3.exe does not have the "dpiAware" part on it's manifest. Follow the link to my code contribution ( and other things too ). FAQ - Please Read Before Posting. Link to comment Share on other sites More sharing options...
Shark007 Posted August 2, 2023 Share Posted August 2, 2023 1 minute ago, argumentum said: I found that under x64 the manifest is a must. x64 compile is an absolute MUST HAVE to avoid false positives. argumentum 1 Link to comment Share on other sites More sharing options...
argumentum Posted August 3, 2023 Author Share Posted August 3, 2023 What's new with version 0.2023.8.2(a) Font size is good. Array of controls has maintenance. Started to use _WinAPI_DPI.au3. So far so good. Follow the link to my code contribution ( and other things too ). FAQ - Please Read Before Posting. Link to comment Share on other sites More sharing options...
