Barcode - UDF

[ValeryVal]

While this is all nice work, why don't someone port the functions of the free library Zint ?  There is a Delphi Wrapper here. There is both an exe and DLL option. My skills are not enough to port the Delphi code, unfortunately.

But you get almost all barcodes at once, even the most exotic ones. And putting Zint DLL into a zintbarcode.udf  would allow all applications to use barcodes for many projects.

Just my 2c. And it's not advertising for commercialware. Zint is opensourced.



This isn't laborious work. There is the Ocvita Barcode ActiveX Control based on zint engine. It has more than 50 1D (EAN, ISBN, Code 128 and so on) and 2D (QR Code, Datamatrix, Aztec) symbologies.

You can download from here

http://ocvita.ru/content/view/90/35/

Register OcvitaBarcode.ocx by command

regsvr32 OcvitaBarcode.ocx

BCode.au3 is my simple example how to use Ocvita Barcode ActiveX by AutoIt3

$GUI = GUICreate("OCVITA_BARCODE by AutoIt3, Valery Ivanov, 19 September, 2013", 400, 400, -1, -1)
$oBCode = ObjCreate("Ocvita.Barcode")
$oBCodeGUI = GUICtrlCreateObj($oBCode, 10, 110, 380, 280)
$oBCode.barcode = "Valery"
$oBCode.hrtext = "Valery"
GUISetState()
While 1
    $nMsg = GUIGetMsg()
    Select
    Case $nMsg = -3
        Exit
    EndSelect
WEnd

Enjoy!

[Myicq]

This isn't laborious work. There is the Ocvita Barcode ActiveX Control based on zint engine. It has more than 50 1D (EAN, ISBN, Code 128 and so on) and 2D (QR Code, Datamatrix, Aztec) symbologies.

You can download from here

http://ocvita.ru/content/view/90/35/



Valery, огромное спасибо !

What a gem. How would I found this without you ?

I really feel that I miss a lot of good content hidden in Russian-speaking part of AutoIT world.

Do you know if there are more examples available for this project, and if a UDF project for it exists / has been started ? Perhaps an idea for my first UDF project.

[ValeryVal]

Do you know if there are more examples available for this project, and if a UDF project for it exists / has been started ? Perhaps an idea for my first UDF project.



The second example shows subset of barcodes supported by OcvitaBarcode.ocx. Script shows index of symbology in barcode (property hrtext) and gui label. It's good idea to reset combo by the wheel of mouse, though

expandcollapse popup

Global $Sym_Type_Line, $Sym_Index_Line, $Sym_Types, $Sym_Indexes
Global $oBCode, $oBCodeGUI
Global $SymIndex

InitSymTypes()

$GUI = GUICreate("OCVITA_BARCODE by AutoIt3, Valery Ivanov, 19 September, 2013", 400, 400, -1, -1)

$SymLabel = GuiCtrlCreateLabel("Symbology name:", 100, 15, 100, 20)

$Sym = GUICtrlCreateCombo("", 180, 10, 200, 20)
GUICtrlSetData(-1,$Sym_Type_Line,"BARCODE_QRCODE")

$SymIndex = GetIndexOfSym("BARCODE_QRCODE")

$SymILabel = GuiCtrlCreateLabel("Symbology index - " & $SymIndex, 100, 50, 300, 20)

$oBCode = ObjCreate("Ocvita.Barcode")
$oBCode.symbology = $SymIndex
$oBCodeGUI = GUICtrlCreateObj($oBCode, 10, 110, 380, 280)

GUISetState()
;$oBCode.AboutBox()
While 1
   $Msg = GUIGetMsg(1)
  Switch $Msg[0]
  Case -3
     Exit
  Case $Sym
     $Sym_Type = GUICtrlRead ($Sym)
     if $SymIndex <> GetIndexOfSym($Sym_Type) then
       $SymIndex = GetIndexOfSym($Sym_Type)
       GUICtrlSetData($SymILabel, "Symbology index - " & $SymIndex)
       RefreshBCode($SymIndex)
     endif
     ;set focus to combo
     GUICtrlSetState ($Sym,256)
  EndSwitch
WEnd

$oBCode = 0
GUICtrlDelete($oBCodeGUI)


;===============================
func InitSymTypes()
; API barcode types
;Local $SL = "1 BARCODE_CODE11,2 BARCODE_C25MATRIX,3 BARCODE_C25INTER,4 BARCODE_C25IATA,6 BARCODE_C25LOGIC,7 BARCODE_C25IND,8 BARCODE_CODE39,9 BARCODE_EXCODE39,13 BARCODE_EANX,16 BARCODE_EAN128,18 BARCODE_CODABAR,20 BARCODE_CODE128,21 BARCODE_DPLEIT,22 BARCODE_DPIDENT,23 BARCODE_CODE16K,24 BARCODE_CODE49,25 BARCODE_CODE93,28 BARCODE_FLAT,29 BARCODE_RSS14,30 BARCODE_RSS_LTD,31 BARCODE_RSS_EXP,32 BARCODE_TELEPEN,34 BARCODE_UPCA,37 BARCODE_UPCE,40 BARCODE_POSTNET,47 BARCODE_MSI_PLESSEY,49 BARCODE_FIM,50 BARCODE_LOGMARS,51 BARCODE_PHARMA,52 BARCODE_PZN,53 BARCODE_PHARMA_TWO,55 BARCODE_PDF417 PDF417,56 BARCODE_PDF417TRUNC,57 BARCODE_MAXICODE,58 BARCODE_QRCODE,60 BARCODE_CODE128B,63 BARCODE_AUSPOST,66 BARCODE_AUSREPLY,67 BARCODE_AUSROUTE,68 BARCODE_AUSREDIRECT,69 BARCODE_ISBNX,70 BARCODE_RM4SCC,71 BARCODE_DATAMATRIX,72 BARCODE_EAN14,75 BARCODE_NVE18,76 BARCODE_JAPANPOST,77 BARCODE_KOREAPOST,79 BARCODE_RSS14STACK,80 BARCODE_RSS14STACK_OMNI,81 BARCODE_RSS_EXPSTACK,82 BARCODE_PLANET,84 BARCODE_MICROPDF417,85 BARCODE_ONECODE,86 BARCODE_PLESSEY,87 BARCODE_TELEPEN_NUM,89 BARCODE_ITF14,90 BARCODE_KIX,92 BARCODE_AZTEC,93 BARCODE_DAFT,97 BARCODE_MICROQR,98 BARCODE_HIBC_128,99 BARCODE_HIBC_39,102 BARCODE_HIBC_DM,104 BARCODE_HIBC_QR,106 BARCODE_HIBC_PDF,108 BARCODE_HIBC_MICPDF,112 BARCODE_HIBC_AZTEC,128 BARCODE_AZRUNE,129 BARCODE_CODE32,130 BARCODE_EANX_CC,131 BARCODE_EAN128_CC,132 BARCODE_RSS14_CC,133 BARCODE_RSS_LTD_CC,134 BARCODE_RSS_EXP_CC,135 BARCODE_UPCA_CC,136 BARCODE_UPCE_CC,137 BARCODE_RSS14STACK_CC,138 BARCODE_RSS14_OMNI_CC,139 BARCODE_RSS_EXPSTACK_CC,140 BARCODE_CHANNEL,141 BARCODE_CODEONE,142 BARCODE_GRIDMATRIX"
; barcode types supported
Local $SL = "1 BARCODE_CODE11,2 BARCODE_C25MATRIX,3 BARCODE_C25INTER,4 BARCODE_C25IATA,6 BARCODE_C25LOGIC,7 BARCODE_C25IND,8 BARCODE_CODE39,9 BARCODE_EXCODE39,13 BARCODE_EANX,20 BARCODE_CODE128,21 BARCODE_DPLEIT,22 BARCODE_DPIDENT,23 BARCODE_CODE16K,24 BARCODE_CODE49,25 BARCODE_CODE93,28 BARCODE_FLAT,29 BARCODE_RSS14,30 BARCODE_RSS_LTD,32 BARCODE_TELEPEN,34 BARCODE_UPCA,37 BARCODE_UPCE,40 BARCODE_POSTNET,47 BARCODE_MSI_PLESSEY,50 BARCODE_LOGMARS,51 BARCODE_PHARMA,52 BARCODE_PZN,53 BARCODE_PHARMA_TWO,55 BARCODE_PDF417 PDF417,56 BARCODE_PDF417TRUNC,58 BARCODE_QRCODE,60 BARCODE_CODE128B,70 BARCODE_RM4SCC,71 BARCODE_DATAMATRIX,72 BARCODE_EAN14,75 BARCODE_NVE18,76 BARCODE_JAPANPOST,77 BARCODE_KOREAPOST,79 BARCODE_RSS14STACK,80 BARCODE_RSS14STACK_OMNI,82 BARCODE_PLANET,84 BARCODE_MICROPDF417,86 BARCODE_PLESSEY,87 BARCODE_TELEPEN_NUM,89 BARCODE_ITF14,90 BARCODE_KIX,92 BARCODE_AZTEC,97 BARCODE_MICROQR,98 BARCODE_HIBC_128,99 BARCODE_HIBC_39,102 BARCODE_HIBC_DM,104 BARCODE_HIBC_QR,106 BARCODE_HIBC_PDF,108 BARCODE_HIBC_MICPDF,112 BARCODE_HIBC_AZTEC,129 BARCODE_CODE32,140 BARCODE_CHANNEL,141 BARCODE_CODEONE,142 BARCODE_GRIDMATRIX"
Local $Syms = StringSplit($SL,",")
 $Sym_Type_Line = ""
 $Sym_Index_Line = ""
 for $i = 1 to $Syms[0]
  $Parts = StringSplit($Syms[$i]," ")
  $Sym_Type_Line &= $Parts[2]& "|"
  $Sym_Index_Line &= $Parts[1]& "|"
 next
 $Sym_Type_Line = StringTrimRight($Sym_Type_Line,1)
 $Sym_Index_Line = StringTrimRight($Sym_Index_Line,1)
 $Sym_Types = StringSplit($Sym_Type_Line,"|")
 $Sym_Indexes = StringSplit($Sym_Index_Line,"|")
endfunc

;===============================
func GetIndexOfSym($Item)
 for $i = 1 to $Sym_Types[0]
  if $Item = $Sym_Types[$i] then return $Sym_Indexes[$i]
 next
 return 1
endfunc

;===============================
func RefreshBCode($NewSymIndex)
 $oBCode = 0
 GUICtrlDelete($oBCodeGUI)
 $oBCode = ObjCreate("Ocvita.Barcode")
 $oBCode.symbology = $NewSymIndex
 $oBCode.barcode = $NewSymIndex
 $oBCode.hrtext = $NewSymIndex
 $oBCodeGUI = GUICtrlCreateObj($oBCode, 10, 110, 380, 280)
endfunc

[hhzz]

Zedna,

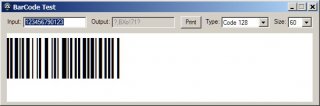

Thanks for putting out this UDF!  I am really excited in getting this to work, but I am having problem with the Code 128 where it does create the bar code, but I can't get my scanner to scan it.  The output field also displays different character codes. I tried creating the same code using a free online bar code creater, and the code comes out differently.  I attached a screen shot of the result.

Any help on how to troubleshoot this would be greatly appreciated!

Thanks,

HHzz

--- updated ---

I realized that I am setup with Window's default local for Chinese in "non-UTF" application (Region and Language --> Administrative, Language for Non-Unicode Program).  When I switched to "English" then it's OK.

More permanent solution would be to change "chr()" to "chrW()", which seem to work in either case.

Hope this helps someone.

- HHzz

Edited March 19, 2014 by hhzz

[mLipok]

Thank you to everyone participating in this thread.



Using script from post #23 AutoIt end with HardCrash #2819

It can be omitted by the appropriate writing the script.

I am in the process of creating a complete UDF file.

Best regards

mLipok

[mLipok]

btw.

Here is additional useful manual:

ftp://ftp.heanet.ie/mirrors/sourceforge/z/project/zi/zint/zint/2.4.2/zint_manual_242.pdf

[AutID]

mLipok did you found a solution on this crash?

[mLipok]

Yes, there is a workaround.

But please ask me tomorrow.

mLipok

[AutID]

I just did some small tests with the script above and I am seeing that there are some barcodes types that may crash the script. It could be because of the range of the string coded im not sure. Didn't do a workaround.

However, without having done any research, I am wondering, is there a way to decode the barcode with this dll?
My purpose of this is to make a barcode scanner for a project.

[mLipok]

AutID

You forget to ask.

Change this:

$oBCodeGUI = GUICtrlCreateObj($oBCode, 10, 110, 380, 280)
GUISetState()

to this:

GUISetState()
$oBCodeGUI = GUICtrlCreateObj($oBCode, 10, 110, 380, 280)

just swap this two lines.

[meomeo192]

Hello,

I want create the code 2 of 5 because the output image is sort, i use from 1 to 7 characters.

But when i use this UDF, i input 789 but the output is 7894, i input 7890 but the output is empty.

Anyone can help me? Thank you very much.

[Zedna]

Look here

https://en.wikipedia.org/wiki/Interleaved_2_of_5

Quote



Because digits are encoded by pairs, only an even number of digits can be encoded. Typically an odd number of digits is encoded by adding a "0" as first digit, but sometimes an odd number of digits is encoded by using five narrow spaces in the last digit.^[1]

A checksum can be added as last digit, which is calculated in the same way as UPC checksums.







[Lowus]

Hi, Thank you Zedna for this UDF  I´m testing but get this error, What could be the problem?

[Lowus]

Just now, Lowus said:

Hi, Thank you Zedna for this UDF  I´m testing but get this error, What could be the problem?

>Running AU3Check (3.3.14.5)  from:C:\Program Files\AutoIt3  input:D:\FontsAutoit\barcode_test.au3
"D:\FontsAutoit\print.au3"(55,57) : error: _WinAPI_TextOut() already defined.
Func _WinAPI_TextOut($hDC, $iXStart, $iYStart, $sString)
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~^
D:\FontsAutoit\barcode_test.au3 - 1 error(s), 0 warning(s)
!>19:51:04 AU3Check ended. Press F4 to jump to next error.rc:2
+>19:51:04 AutoIt3Wrapper Finished.
>Exit code: 2    Time: 3.387


[Zedna]

Just comment or remove definition of function _WinAPI_TextOut() in print.au3.



In old AutoIt this function wasn't defined as standard UDF so I added its definition to my code.

In new AutoIt this function is already defined as standard UDF so in my code it isn't needed anymore.

[berni]

Hallo,

thanks for all the work. I wanted to let everyone know of a problem I had with the display of a 25i barcode in barcode_test.au3.

It happened on a specific barcode i needed - the barcode in the label was incorrectly displayed - while printing etc all was OK. Finally I found that my barcode started with a "&" (ampersand). The complete barcode is 05185160121072706 (control character 0 not included). The string for the label is É&3T]-+ig]Ê  but the barcode displayed was É3T]-+ig]Ê the ampersand dissapeared.

The solution was by defining the stile of the label with $SS_NOPREFIX. The hepltext for Label Styles says:

Prevents interpretation of any ampersand (&) characters in the control's text as accelerator prefix characters.


I added the style to the label definition and now the barcode was displayed correctly

$barcode = GUICtrlCreateLabel("", 10, 39, 580, 130,$SS_NOPREFIX)

I hope someone finds this useful



[berni]

for completeness, the string for the label was correctly displayed in the $Output box (GUICtrlCreateInput). Checking the styles - there seems no interpretation of the ampersand (&) in an input box.

[ybwzhp]

thanks
