Acrobat Reader - ActiveX Viewer

[mLipok]

Today, in the end as well, worked out using the Acrobat Reader ActiveX COM Object "AcroPDF.PDF.1"

expandcollapse popup

#include-once
#include <Constants.au3>
#include <GUIConstantsEx.au3>
#include <WindowsConstants.au3>
#include <Misc.au3>
#include <MenuConstants.au3>
#include <WinAPI.au3>

;~ Thanks to BrewManNH
;~ http://www.autoitscript.com/forum/topic/134878-guiregistermsg-replacement-for-guictrlsetonevent-and-guigetmsg/
;~ Thanks to mikell
;~ http://www.autoitscript.com/forum/topic/161985-how-to-close-gui-with-guiregistermsg/


; Install a custom error handler
Global $oMyError = ObjEvent("AutoIt.Error", "_ComErrFunc")

Global $__hExampleGUI
Global $__idOPEN
Global $_fExit

Global $__hACROBAT_GUI = ''
Global $__idACROBAT_GUI_CTRL_AX = ''
Global $__oACROBAT_READER = ''

#include <GUIConstantsEx.au3>

;~ GUIRegisterMsg($WM_ERASEBKGND, "_WM_EXTRACTOR")
;~ GUIRegisterMsg($WM_PAINT, "_WM_EXTRACTOR")
;~ GUIRegisterMsg($WM_ACTIVATE, "_WM_EXTRACTOR")
;~ GUIRegisterMsg($WM_CAPTURECHANGED, "_WM_EXTRACTOR")
;~ GUIRegisterMsg($WM_DEVICECHANGE, "_WM_EXTRACTOR")
GUIRegisterMsg($WM_EXITSIZEMOVE, "_WM_EXTRACTOR")
GUIRegisterMsg($WM_COMMAND, "_WM_EXTRACTOR")
GUIRegisterMsg($WM_SYSCOMMAND, "_WM_EXTRACTOR")
GUIRegisterMsg($WM_HSCROLL, "_WM_EXTRACTOR")

_ExampleProgram_Gui()

While 1
    Sleep(10)
    If $_fExit Then
        _ACROBAT_GUI_DELETE()
        DeleteGui()
        Exit
    EndIf
WEnd


Func DeleteGui()
    GUIDelete($__hExampleGUI)
EndFunc   ;==>DeleteGui

Func _ExampleProgram_Gui()
    ; Create a GUI with various controls.
    $__hExampleGUI = GUICreate("Example")
    $__idOPEN = GUICtrlCreateButton("&Open", 310, 370, 85, 25)

    ; Display the GUI.
    GUISetState(@SW_SHOW, $__hExampleGUI)
EndFunc   ;==>_ExampleProgram_Gui



#Region ACROBAT FUNCTION
Func _AcrobatInit()
    $__oACROBAT_READER = ObjCreate("AcroPDF.PDF.1");
    Return $__oACROBAT_READER.GetVersions
EndFunc   ;==>_AcrobatInit

Func _Acrobat_Events(ByRef $aMSG)
    If $aMSG[1] = $__hACROBAT_GUI Then
        Switch $aMSG[0]
            Case $GUI_EVENT_CLOSE
                _ACROBAT_GUI_DELETE()
        EndSwitch
    EndIf
EndFunc   ;==>_Acrobat_Events

Func _ACROBAT_Destroy()
    $__oACROBAT_READER = ""
;~  MsgBox(1,'test','destroyed')
EndFunc   ;==>_ACROBAT_Destroy

Func _AcrobatShow($sFile, $sTitle = "PDF ", $iLeft = 50, $iTop = 0, $iWidth = 1000, $iHeight = 700)
    If FileExists($sFile) Then
        _AcrobatInit()

        ; Set option
        $__oACROBAT_READER.src = $sFile
        $__oACROBAT_READER.SetLayoutMode(4)
        $__oACROBAT_READER.SetPageMode(1)
        $__oACROBAT_READER.SetShowToolbar(0)
        $__oACROBAT_READER.SetView(1)

        ; Create GUI
        $__hACROBAT_GUI = GUICreate($sTitle, $iWidth, $iHeight, $iLeft, $iTop, BitOR($GUI_SS_DEFAULT_GUI, $WS_SIZEBOX, $WS_MAXIMIZEBOX))
        $__idACROBAT_GUI_CTRL_AX = GUICtrlCreateObj($__oACROBAT_READER, 5, 5, $iWidth - 20, $iHeight - 10)
        GUICtrlSetStyle($__idACROBAT_GUI_CTRL_AX, $WS_VISIBLE)

        GUISetState()
    EndIf
EndFunc   ;==>_AcrobatShow


Func _ACROBAT_Refresh()
    If IsObj($__oACROBAT_READER) Then
        Local $hPreviouslyGui = GUISwitch($__hACROBAT_GUI)
        GUISetState(@SW_LOCK)
        Local $iGUI_PDFWidth = WinGetPos($__hACROBAT_GUI)[2] - 20
        Local $iGUI_PDFHeight = WinGetPos($__hACROBAT_GUI)[3] - 40
        Local $sFile = $__oACROBAT_READER.src

        ; this below line do not works with Acro Reader
        ; Local $iCurrentPage = $__oACROBAT_READER.GetNumber
        Local $iCurrentPage = 0
        _ACROBAT_Destroy()
        GUICtrlDelete($__idACROBAT_GUI_CTRL_AX)
        _AcrobatInit()
        $__idACROBAT_GUI_CTRL_AX = GUICtrlCreateObj($__oACROBAT_READER, 5, 5, $iGUI_PDFWidth, $iGUI_PDFHeight)
        $__oACROBAT_READER.src = $sFile
;~      $__oACROBAT_READER.SetCurrentPage($iCurrentPage)
        GUISetState(@SW_UNLOCK)
        GUISwitch($hPreviouslyGui)
    EndIf
EndFunc   ;==>_ACROBAT_Refresh

Func _ACROBAT_GUI_DELETE()
    _ACROBAT_Destroy()
    if IsHWnd($__hACROBAT_GUI) then GUIDelete($__hACROBAT_GUI)
EndFunc   ;==>_ACROBAT_GUI_DELETE

#EndRegion ACROBAT FUNCTION

#Region MSG and ERROR  HANDLER
Func _WM_EXTRACTOR($hWnd, $iMsg, $wParam, $lParam)
;~  ConsoleWrite('! $hWnd = ' & $hWnd & '    $iMsg = ' & $iMsg & '('&HEX($iMsg)&')'& '    $wParam = ' & $wParam & '    $lParam = ' & $lParam & @CRLF)
    If $hWnd = ControlGetHandle($__hACROBAT_GUI, '', $__idACROBAT_GUI_CTRL_AX) Then
        ConsoleWrite('! --------------  $hWnd = ' & $hWnd & '    $iMsg = ' & $iMsg & '(' & Hex($iMsg) & ')' & '    $wParam = ' & $wParam & '    $lParam = ' & $lParam & @CRLF)
    EndIf
    If $hWnd = $__hACROBAT_GUI Then
        Switch $iMsg
            Case $WM_COMMAND
                #cs
                    Case $WM_ACTIVATE
                    Local $test = BitAND($wParam, 0x00000004)
                    if $test <> 0 then
                    MsgBox(1,'$WM_ACTIVATE','test')
                    _ACROBAT_Refresh()
                    EndIf
                    Case $WM_ERASEBKGND
                    WinGetHandle("[ACTIVE]")
                    if $__hACROBAT_GUI <> _WinAPI_GetWindow ( $__hACROBAT_GUI, $GW_HWNDPREV ) then
                    ConsoleWrite('!  Case $WM_ERASEBKGND' & @CRLF)
                    _ACROBAT_Refresh()
                    _WinAPI_RedrawWindow($__hACROBAT_GUI,0,0,$RDW_NOERASE)
                    EndIf
                    Case $WM_PAINT
                    _WinAPI_RedrawWindow($__hACROBAT_GUI,0,0,$RDW_NOERASE)
                    Case $WM_CAPTURECHANGED
                    _ACROBAT_Refresh()
                    Case $WM_DEVICECHANGE
                    _ACROBAT_Refresh()
                #ce
            Case $WM_EXITSIZEMOVE
                _ACROBAT_Refresh()
            Case $WM_SYSCOMMAND
;~              Local $test = BitAND($wParam, 0xFFF0)
                Local $test = BitAND($wParam, 0x0000FFFF)
                Switch $test
                    Case $SC_CLOSE
                        _ACROBAT_GUI_DELETE()
                    Case $SC_CONTEXTHELP
                    Case $SC_DEFAULT
                    Case $SC_HOTKEY
                    Case $SC_HSCROLL
                    Case $SC_KEYMENU
                    Case $SC_MAXIMIZE
                        _ACROBAT_Refresh()
                    Case $SC_MINIMIZE
                    Case $SC_MONITORPOWER
                    Case $SC_MOUSEMENU
                    Case $SC_MOVE
;~                      _ACROBAT_Refresh()
                    Case $SC_NEXTWINDOW
;~                      _ACROBAT_Refresh()
                    Case $SC_PREVWINDOW
;~                      _ACROBAT_Refresh()
                    Case $SC_RESTORE
                        _ACROBAT_Refresh()
                    Case $SC_SCREENSAVE
                    Case $SC_SIZE
                    Case $SC_TASKLIST
                    Case $SC_VSCROLL
                EndSwitch
        EndSwitch
    EndIf


    If $hWnd = $__hExampleGUI Then
        Switch $iMsg
            Case $WM_COMMAND
                Local $nID = BitAND($wParam, 0x0000FFFF)
                Local $hCtrl = $lParam
                Switch $nID
                    Case $__idOPEN
                        if not IsObj($__oACROBAT_READER) then
                            _AcrobatShow(FileOpenDialog("Choose PDF", "C:\Temp", "PDF Files(*.pdf)", 3)) ; put your own start folder here)
                        EndIf
                EndSwitch

            Case $WM_SYSCOMMAND
                Local $test = BitAND($wParam, 0xFFF0)
                Switch $test
                    Case $SC_CLOSE
                        $_fExit = True
                    Case $SC_CONTEXTHELP
                    Case $SC_DEFAULT
                    Case $SC_HOTKEY
                    Case $SC_HSCROLL
                    Case $SC_KEYMENU
                    Case $SC_MAXIMIZE
                    Case $SC_MINIMIZE
                    Case $SC_MONITORPOWER
                    Case $SC_MOUSEMENU
                    Case $SC_MOVE
                    Case $SC_NEXTWINDOW
                    Case $SC_PREVWINDOW
                    Case $SC_RESTORE
                    Case $SC_SCREENSAVE
                    Case $SC_SIZE
                    Case $SC_TASKLIST
                    Case $SC_VSCROLL
                EndSwitch
        EndSwitch
    EndIf

    Return $GUI_RUNDEFMSG
EndFunc   ;==>_WM_EXTRACTOR

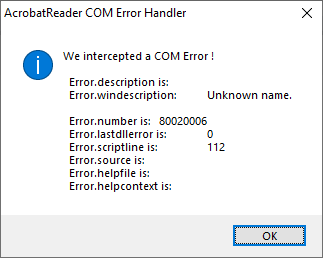

Func _ComErrFunc()
    Local $HexNumber = Hex($oMyError.number, 8)
    MsgBox(0, "AutoItCOM Test", _
            "We intercepted a COM Error !" & @CRLF & @CRLF & _
            "err.description is: " & @TAB & $oMyError.description & @CRLF & _
            "err.windescription:" & @TAB & $oMyError.windescription & @CRLF & _
            "err.number is: " & @TAB & $HexNumber & @CRLF & _
            "err.lastdllerror is: " & @TAB & $oMyError.lastdllerror & @CRLF & _
            "err.scriptline is: " & @TAB & $oMyError.scriptline & @CRLF & _
            "err.source is: " & @TAB & $oMyError.source & @CRLF & _
            "err.helpfile is: " & @TAB & $oMyError.helpfile & @CRLF & _
            "err.helpcontext is: " & @TAB & $oMyError.helpcontext _
            )
    SetError(1)
EndFunc   ;==>_ComErrFunc

#EndRegion MSG and ERROR  HANDLER

Any comments are welcome.

Cheers

mLipok

Edited July 1, 2019 by mLipok
fix code highlighitng

[mLipok]

Below I would like to introduce a new version of "AcrobatReaderViewer.au3," which uses my new UDF file:

"GUIRegisterMsg_API.au3"



mLipok



EDIT: added link

EDIT: I forgot about example:

expandcollapse popup

#include "AcrobatReaderViewer.au3"
#include "GUIRegisterMsg_API.au3"

Global $oMyError = ObjEvent("AutoIt.Error", "_ComErrFunc")

Global $_hExampleGUI
Global $_idOPEN
Global $_bExit

Main()

Func Main()
    _GUIRegisterMsg_API_Start()
    ; here you add support for _MY_CURRENT_GUI_WM_EXTRACTOR
    _GUIRegisterMsg_API_AddFunc(_MY_CURRENT_GUI_WM_EXTRACTOR)
    ; here you add support for _ACROBAT_WM_EXTRACTOR
    _GUIRegisterMsg_API_AddFunc(_ACROBAT_WM_EXTRACTOR)

    ; here you can chceck what happen when you remove Remove Function from $__aGUIRegisterMsg_API[] by using _GUIRegisterMsg_API_RemoveFunc
    ; _GUIRegisterMsg_API_RemoveFunc(_ACROBAT_WM_EXTRACTOR)

    _ExampleProgram_Gui()

    While 1
        Sleep(10)
        If $_bExit Then
            _ACROBAT_GUI_DELETE()
            DeleteGui()
            Exit
        EndIf
    WEnd

EndFunc   ;==>Main
Exit

#Region EXAMPLE GUI
Func DeleteGui()
    GUIDelete($_hExampleGUI)
EndFunc   ;==>DeleteGui

Func _ExampleProgram_Gui()
    ; Create a GUI with various controls.
    $_hExampleGUI = GUICreate("Example")
    $_idOPEN = GUICtrlCreateButton("&Open", 310, 370, 85, 25)

    ; Display the GUI.
    GUISetState(@SW_SHOW, $_hExampleGUI)
EndFunc   ;==>_ExampleProgram_Gui
#EndRegion EXAMPLE GUI

#Region _MY_CURRENT_GUI_WM_EXTRACTOR
Func _MY_CURRENT_GUI_WM_EXTRACTOR($hWnd, $iMsg, $wParam, $lParam)
    If $hWnd = $_hExampleGUI Then
        Switch $iMsg
            Case $WM_COMMAND
                Local $nID = BitAND($wParam, 0x0000FFFF)
                Local $hCtrl = $lParam
                Switch $nID
                    Case $_idOPEN
                        If Not IsObj($__oACROBAT_READER) Then
                            _AcrobatShow(FileOpenDialog("Choose PDF", "C:\Temp", "PDF Files(*.pdf)", 3)) ; put your own start folder here)
                        EndIf
                EndSwitch

            Case $WM_SYSCOMMAND
                Local $test = BitAND($wParam, 0xFFF0)
                Switch $test
                    Case $SC_CLOSE
                        $_bExit = True
                    Case $SC_CONTEXTHELP
                    Case $SC_DEFAULT
                    Case $SC_HOTKEY
                    Case $SC_HSCROLL
                    Case $SC_KEYMENU
                    Case $SC_MAXIMIZE
                    Case $SC_MINIMIZE
                    Case $SC_MONITORPOWER
                    Case $SC_MOUSEMENU
                    Case $SC_MOVE
                    Case $SC_NEXTWINDOW
                    Case $SC_PREVWINDOW
                    Case $SC_RESTORE
                    Case $SC_SCREENSAVE
                    Case $SC_SIZE
                    Case $SC_TASKLIST
                    Case $SC_VSCROLL
                EndSwitch
        EndSwitch
    EndIf


EndFunc   ;==>_MY_CURRENT_GUI_WM_EXTRACTOR

#EndRegion _MY_CURRENT_GUI_WM_EXTRACTOR

btw.

_EXAMPLE_RegisterMsg() is not used so I removed them.

AcrobatReaderViewer.au3.Download.html

Edited July 4, 2014 by mLipok

[Biatu]

Using this would there be a way to export text/tables/generated graphics from a pdf?

If you want an example PDF:
https://drive.google.com/file/d/0B8M7MDYfpD20bnFZSkxMU2lNYVk/edit?usp=sharing

[mLipok]

No.

This is just a viewer based on Acrobat Reader ActiveX control.

But you  can try to use my Debenu Quick PDF UDF

[Biatu]

I tried that before, but I couldn't do much with the eval version, thanks though

[mike13]

old topic but... is there a way to open password-protected PDF by providing the password internally?

it would be not strong protection but for some user impossible to crack the way of open some confidential information ....

[Qwerty212]

  On 9/19/2017 at 3:30 PM, mike13 said:

old topic but... is there a way to open password-protected PDF by providing the password internally?

it would be not strong protection but for some user impossible to crack the way of open some confidential information ....

Expand

I'm just looking for the same right now

[seadoggie01]

@Qwerty212 There aren't any command line parameters for opening a PDF like that in Acrobat. If you're looking to manipulate it, I've used a python library to concatenate encrypted PDFs and I post the name of it tomorrow. If you just want to open it, start it minimized, wait for the popup, fill it out, and maximize it again. Alternately, decrypt it with a python library and encrypt it again when you are done

[Qwerty212]

  On 9/25/2019 at 12:46 AM, seadoggie01 said:

@Qwerty212 There aren't any command line parameters for opening a PDF like that in Acrobat. If you're looking to manipulate it, I've used a python library to concatenate encrypted PDFs and I post the name of it tomorrow. If you just want to open it, start it minimized, wait for the popup, fill it out, and maximize it again. Alternately, decrypt it with a python library and encrypt it again when you are done

Expand

I would really appreciate it.

I need to open pdf's files from an ftp (ideally without downloading them to the local disc).

I have tried to use a secured version of SumatraPDF, but it can not open password protected files and it can not also play embedded media inside the pdfs, so I thought that creating a GUI with Acrobat Reader embedded might be a good alternative.



Greets from Barcelona

[seadoggie01]

@Qwerty212 The python library I used was PyPDF2. It's very quick and seems quite reliable. Good luck!

[mLipok]

  On 10/10/2019 at 12:36 PM, Qwerty212 said:

I need to open pdf's files from an ftp (ideally without downloading them to the local disc).

Expand

You can do this with QucikPDF UDF.....

[Qwerty212]

  On 10/10/2019 at 1:59 PM, mLipok said:

You can do this with QucikPDF UDF.....

Expand

I didn't know it. Thanks a lot!

Is it possible to read pdf with embedded videos with this udf?



Greets from Barcelona

[mLipok]

I do not know... never tried before.

Just ask in the support topic, but could you post any example pdf file?

Edit:

as far I only embend xml, and html file in pdf.

Edited October 14, 2019 by mLipok

[mLipok]

For current AcrobatReader UDF BETA version check the attached file.



AcrobatReader.zipFetching info...

Edited March 26, 2021 by mLipok

[mLipok]

I have still few problems with this implementation, which I try to describe later this weekend.



Edited March 26, 2021 by mLipok

[dmob]

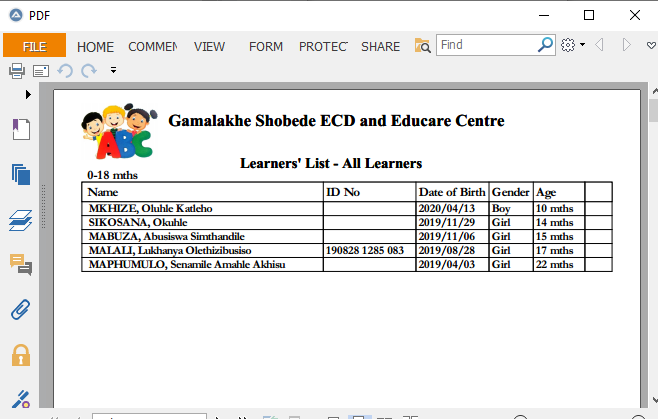

I get 5 of these at lines 112 to 116, but it does open the pdf file.















Edited March 30, 2021 by dmob
Sorry I attached wrong images, cant seem to remove them.

[mLipok]

Here is second example like a "Slide Show"

AcrobatReader_Example_2_Folder_SlideShow.au3Fetching info...

[mLipok]

  On 3/26/2021 at 3:19 PM, dmob said:

Expand

This is because this few lines use properties or method which exist only for ArobatReader object, and not for Foxit.
Just comment these few lines.



Check here:

https://developers.foxitsoftware.com/resources/pdf-sdk-activex/FoxitPDFActiveX_5_9_Manual.pdf

and take a look here:
https://www.vbforums.com/showthread.php?882115-PDF-Reader-ActiveX-Control

Also take a look here:
https://github.com/pvginkel/PdfiumBuild/tree/master/Builds/2018-04-08
https://github.com/pvginkel/PdfiumViewer


[mLipok]

  On 3/26/2021 at 2:35 PM, mLipok said:

I have still few problems with this implementation, which I try to describe later this weekend.

Expand

please check:

  On 3/29/2021 at 10:07 PM, mLipok said:

Here is second example like a "Slide Show"

AcrobatReader_Example_2_Folder_SlideShow.au3 560 B · 0 downloads

Expand

This example ask for directory with PDF files.
It shows how how the window is still "blinking" when the next PDF files are loaded,

Any one have any idea how to prevent "blinking".

?


[mLipok]

  On 3/26/2021 at 3:19 PM, dmob said:

I get 5 of these at lines 112 to 116, but it does open the pdf file.........

Expand

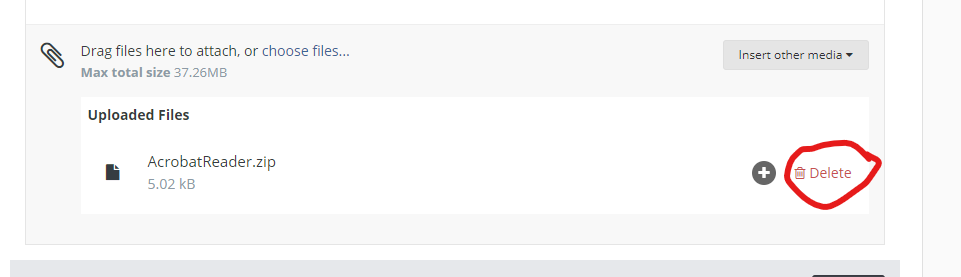

In edit you wrote that "Sorry I attached wrong images, cant seem to remove them."

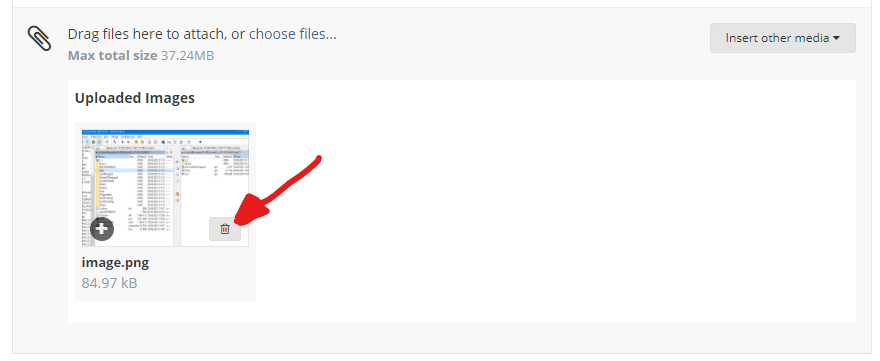

Try to edit post and then focus on the panel below the text you edit.
There are listed all files and screenshot.
