MSDN <> AutoIt : Developing a Per-Monitor DPI-Aware WPF Application

Recommended Posts

mLipok

How to use this example in AutoIt ?

MSDN: Developing a Per-Monitor DPI-Aware WPF Application

MSDN: Per-Monitor Aware WPF Sample

Below other useful links:

MSDN: DPI Tutorial sample

MSDN: High DPI

MSDN: User Interface - High DPI Awareness

mLipok

Edited by mLipok

Signature beginning:   Wondering who uses AutoIT and what it can be used for ?
* GHAPI UDF - modest begining - comunication with GitHub REST API *
ADO.au3 UDF     POP3.au3 UDF     XML.au3 UDF    How to use IE.au3  UDF with  AutoIt v3.3.14.x  for other useful stuff click the following button

Spoiler

Any of my own code posted anywhere on the forum is available for use by others without any restriction of any kind.

My contribution (my own projects): * Debenu Quick PDF Library - UDF * Debenu PDF Viewer SDK - UDF * Acrobat Reader - ActiveX Viewer * UDF for PDFCreator v1.x.x * XZip - UDF * AppCompatFlags UDF * CrowdinAPI UDF * _WinMergeCompare2Files() * _JavaExceptionAdd() * _IsBeta() * Writing DPI Awareness App - workaround * _AutoIt_RequiredVersion() * Chilkatsoft.au3 UDF * TeamViewer.au3 UDF * JavaManagement UDF * VIES over SOAP * WinSCP UDF * GHAPI UDF - modest begining - comunication with GitHub REST API *

My contribution to others projects or UDF based on  others projects: * _sql.au3 UDF  * POP3.au3 UDF *  RTF Printer - UDF * XML.au3 UDF * ADO.au3 UDF SMTP Mailer UDF *

Useful links: * Forum Rules * Forum etiquette *  Forum Information and FAQs * How to post code on the forum * AutoIt Online Documentation * AutoIt Online Beta Documentation * SciTE4AutoIt3 getting started * Convert text blocks to AutoIt code * Games made in Autoit * Programming related sites * Polish AutoIt Tutorial * DllCall Code Generator *

Wiki: Expand your knowledge - AutoIt Wiki * Collection of User Defined Functions * How to use HelpFile * Good coding practices in AutoIt *

IE Related:  * How to use IE.au3  UDF with  AutoIt v3.3.14.x * Why isn't Autoit able to click a Javascript Dialog? * Clicking javascript button with no ID * IE document >> save as MHT file * IETab Switcher (by LarsJ ) * HTML Entities * _IEquerySelectorAll() (by uncommon) *

I encourage you to read: * Global Vars * Best Coding Practices * Please explain code used in Help file for several File functions * OOP-like approach in AutoIt * UDF-Spec Questions *  EXAMPLE: How To Catch ConsoleWrite() output to a file or to CMD *

"Homo sum; humani nil a me alienum puto" - Publius Terentius Afer
"Program are meant to be read by humans and only incidentally for computers and execute" - Donald Knuth, "The Art of Computer Programming"
:naughty:  :ranting:, be  :) and       \\//_.

Anticipating Errors :  "Any program that accepts data from a user must include code to validate that data before sending it to the data store. You cannot rely on the data store, ...., or even your programming language to notify you of problems. You must check every byte entered by your users, making sure that data is the correct type for its field and that required fields are not empty."

Signature last update: 2018-03-17

Share this post


Link to post
Share on other sites
orbs
I know this is not the answer you are looking for, but I once tried to delve into the depths of programming GUI appearance, I found that the issue is much more complex than I expected. The solution however may be very simple (for a controlled environment, at least).

In general, an application can be written to detect DPI settings and draw its GUI accordingly. Some modern applications (e.g. Microsoft Office 2007) are written from scratch to do that; but most applications, and legacy applications in specific, require practically a complete re-write.

Fortunately, Microsoft acknowledge that this would be a trouble for developers, so since Windows Vista, a feature called “DPI Virtualization” is introduced. This feature detects when an application GUI is not fit to high DPI, and draws the GUI to fit. This is done by the operating system, and the application itself does not need to be aware of this. This is a decent solution for legacy applications, until a newer version is written to be DPI-aware and can do it on its own. This is not a perfect solution; DPI-virtualized GUI may appear blurry.

By default, DPI virtualization is not enabled (until Windows 8.1, where it is enabled and cannot be easily disabled…). To enable it and use it properly, follow these steps:

Step 1: enable DPI Virtualization system-wide:

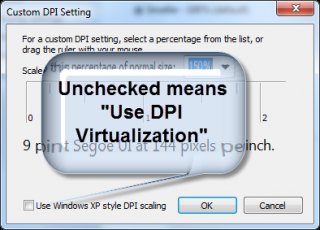

Go to: “Control Panel” “Display” “Set custom text size (DPI)”
Uncheck the checkbox “Use Windows XP style DPI scaling”.

post-47848-0-48421300-1403720806_thumb.p

This requires log-off/log-on to apply.

Step 2: launch your application to see that this indeed solves the issue.

Step 3: check impact on other application:

Some applications may not react well to DPI Virtualization. For example, I was surprised to see that the modern browser Safari is impacted. Fortunately, You can disable DPI Virtualization per application.

(Unfortunately, you cannot enable DPI Virtualization per application; you must enable DPI Virtualization system-wide and then disable DPI Virtualization per application.)

To disable DPI Virtualization per application: right-click the application, select “Properties”, switch to the “Compatibility” tab, and check the checkbox “Disable display scaling on high DPI settings”.

post-47848-0-70108900-1403720863_thumb.p

Note that you can disable DPI Virtualization per application for you only (current user) or for all users.
