maniootek

RecordSet GetRows() column name

5 posts in this topic

#1 ·  Posted (edited)

I use my script to open connection with my SQL Server. I send query and receive results by method called "GetRows()", example:

$connection = ObjCreate ("ADODB.Connection")
$result = ObjCreate("ADODB.RecordSet")
$connection.Open("DRIVER={SQL Server};" & $SQL_Login_Details & ";")
$result.Open($SQL_Query, $connection)
$array = $result.GetRows()
_ArrayDisplay($array)

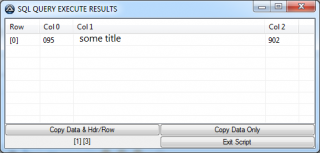

in results, I get this:

post-51823-0-57262800-1428654113_thumb.p

As you can see all colums are named by default (Col 0, Col1 ,Col 2...)

when I execute this query in "SQL Server Management Studio" then I got table with named colums like this:

post-51823-0-64895000-1428654273_thumb.p

any chance to get same column names in autoit array?

Edited by maniootek

Share this post


Link to post
Share on other sites



Have a look at this:

#Region    ;************ Includes ************
#include <Array.au3>
#include <Date.au3>
#EndRegion    ;************ Includes ************
; Global Variables
Global $adUseServer = 2
Global $adUseClient = 3

; Initialize COM error handler
Global $oMyError = ObjEvent('AutoIt.Error', 'MyErrFunc')
Global $provider = 'IBMDADB2'
;~ Global $IP = 'db2entsrv'
Global $IP = 'db2entsrv.gaxeg.de'
Global $port = 60116
Global $DSN = 'DSPZ4988'
Global $userID = 'xxx'
Global $password = 'xxx'

Global $connection_Obj = _connectDB($provider, $IP, $port, $DSN, $userID, $password)

If $connection_Obj = -1 Then Exit(999)

Global $sqlRs = ObjCreate('ADODB.Recordset')
If Not @error Then
    $sqlRs.open("select * from ""DSPTMCP"".""KENNZAHL_KOMMENTAR""", $connection_Obj)
    _getColumns($connection_Obj, "select * from ""DSPTMCP"".""KENNZAHL_KOMMENTAR""")
    _displayTable($connection_Obj, "select * from ""DSPTMCP"".""KENNZAHL_KOMMENTAR""")
EndIf
$sqlRs.close
$connection_Obj.close

Func _connectDB($provider, $IP, $port, $DSN, $userID, $password)
    Local $sqlCon = ObjCreate('ADODB.Connection')
    $sqlCon.Mode = 16 ; Erlaubt im MultiUser-Bereich das öffnen anderer Verbindungen ohne Beschränkungen [Lesen/Schreiben/Beides]
    $sqlCon.CursorLocation = $adUseClient ; client side cursor Schreiben beim Clienten

;~  $sqlCon.Open('Provider=' & $provider & ';IP=' & $IP & ';Port=' & $port & ';DSN=' & $DSN & ';User ID=' & $userID & ';Password=' & $password) ; XP
    $sqlCon.Open('Provider=' & $provider & ';Server=' & $IP & ':' & $port & ';DSN=' & $DSN & ';UID=' & $userID & ';PWD=' & $password) ; win 7
;~  $sqlCon.Open('Provider=' & $provider & ';Server=' & $IP & ':' & $port &';Database=' & $DSN & ';UID=' & $userID & ';PWD=' & $password)
    If @error Then Return -1
    Return $sqlCon
EndFunc   ;==>_connectDB

Func _getColumns($sqlCon, $SQL)
    Local $sqlRs = ObjCreate('ADODB.Recordset')
    If Not @error Then
        $sqlRs.open($SQL, $sqlCon)
        If Not @error Then
            For $i = 0 To $sqlRs.Fields.Count - 1
                ConsoleWrite($sqlRs.Fields($i).Name & @CRLF)
            Next
            $sqlRs.close
        EndIf
    EndIf
EndFunc   ;==>_getColumns

Func _displayTable($sqlCon, $SQL)
    Local $sqlRs = ObjCreate('ADODB.Recordset')
    If Not @error Then
        $sqlRs.open($SQL, $sqlCon)
        If Not @error Then
            Local $header[$sqlRs.Fields.Count], $rows
            For $i = 0 To $sqlRs.Fields.Count - 1
                $header[$i] = $sqlRs.Fields($i).Name
            Next
            $rows = $sqlRs.GetRows()
            $sqlRs.close
        EndIf
    EndIf
    _ArrayDisplay_WithHeader($rows, $header)
EndFunc   ;==>_displayTable

Func MyErrFunc()
    $HexNumber = Hex($oMyError.number, 8)
    MsgBox(0, 'COM Test', 'We intercepted a COM Error !' & @CRLF & @CRLF & _
            'err.description is: ' & @TAB & $oMyError.description & @CRLF & _
            'err.windescription:' & @TAB & $oMyError.windescription & @CRLF & _
            'err.number is: ' & @TAB & $HexNumber & @CRLF & _
            'err.lastdllerror is: ' & @TAB & $oMyError.lastdllerror & @CRLF & _
            'err.scriptline is: ' & @TAB & $oMyError.scriptline & @CRLF & _
            'err.source is: ' & @TAB & $oMyError.source & @CRLF & _
            'err.helpfile is: ' & @TAB & $oMyError.helpfile & @CRLF & _
            'err.helpcontext is: ' & @TAB & $oMyError.helpcontext _
            )
    SetError(1) ; to check for after this function returns
EndFunc   ;==>MyErrFunc

Func _ArrayDisplay_WithHeader(Const ByRef $avArray, $header, $sTitle = "Array: ListView Display", $iItemLimit = -1, $iTranspose = 0, $sSeparator = "", $sReplace = "|")
    If Not IsArray($avArray) Then Return SetError(1, 0, 0)

    ; Dimension checking
    Local $iDimension = UBound($avArray, 0), $iUBound = UBound($avArray, 1) - 1, $iSubMax = UBound($avArray, 2) - 1
    If $iDimension > 2 Then Return SetError(2, 0, 0)

    ; Separator handling
;~  If $sSeparator = "" Then $sSeparator = Chr(1)
    If $sSeparator = "" Then $sSeparator = Chr(124)

    ; Declare variables
    Local $i, $j, $vTmp, $aItem, $avArrayText, $sHeader = "Row", $iBuffer = 64
    Local $iColLimit = 250, $iLVIAddUDFThreshold = 4000, $iWidth = 640, $iHeight = 480
    Local $iOnEventMode = Opt("GUIOnEventMode", 0), $sDataSeparatorChar = Opt("GUIDataSeparatorChar", $sSeparator)

    ; Swap dimensions if transposing
    If $iSubMax < 0 Then $iSubMax = 0
    If $iTranspose Then
        $vTmp = $iUBound
        $iUBound = $iSubMax
        $iSubMax = $vTmp
    EndIf

    ; Set limits for dimensions
    If $iSubMax > $iColLimit Then $iSubMax = $iColLimit
    If $iItemLimit = 1 Then $iItemLimit = $iLVIAddUDFThreshold
    If $iItemLimit < 1 Then $iItemLimit = $iUBound
    If $iUBound > $iItemLimit Then $iUBound = $iItemLimit
    If $iLVIAddUDFThreshold > $iUBound Then $iLVIAddUDFThreshold = $iUBound

    ; Set header up
    For $i = 0 To UBound($header) - 1
        $sHeader &= $sSeparator & $header[$i]
    Next

    ; Convert array into text for listview
    Local $avArrayText[$iUBound + 1]
    For $i = 0 To $iUBound
        $avArrayText[$i] = "[" & $i & "]"
        For $j = 0 To $iSubMax
            ; Get current item
            If $iDimension = 1 Then
                If $iTranspose Then
                    $vTmp = $avArray[$j]
                Else
                    $vTmp = $avArray[$i]
                EndIf
            Else
                If $iTranspose Then
                    $vTmp = $avArray[$j][$i]
                Else
                    $vTmp = $avArray[$i][$j]
                EndIf
            EndIf

            ; Add to text array
            $vTmp = StringReplace($vTmp, $sSeparator, $sReplace, 0, 1)
            $avArrayText[$i] &= $sSeparator & $vTmp

            ; Set max buffer size
            $vTmp = StringLen($vTmp)
            If $vTmp > $iBuffer Then $iBuffer = $vTmp
        Next
    Next
    $iBuffer += 1

    ; GUI Constants
    Local Const $_ARRAYCONSTANT_GUI_DOCKBORDERS = 0x66
    Local Const $_ARRAYCONSTANT_GUI_DOCKBOTTOM = 0x40
    Local Const $_ARRAYCONSTANT_GUI_DOCKHEIGHT = 0x0200
    Local Const $_ARRAYCONSTANT_GUI_DOCKLEFT = 0x2
    Local Const $_ARRAYCONSTANT_GUI_DOCKRIGHT = 0x4
    Local Const $_ARRAYCONSTANT_GUI_EVENT_CLOSE = -3
    Local Const $_ARRAYCONSTANT_LVIF_PARAM = 0x4
    Local Const $_ARRAYCONSTANT_LVIF_TEXT = 0x1
    Local Const $_ARRAYCONSTANT_LVM_GETCOLUMNWIDTH = (0x1000 + 29)
    Local Const $_ARRAYCONSTANT_LVM_GETITEMCOUNT = (0x1000 + 4)
    Local Const $_ARRAYCONSTANT_LVM_GETITEMSTATE = (0x1000 + 44)
    Local Const $_ARRAYCONSTANT_LVM_INSERTITEMA = (0x1000 + 7)
    Local Const $_ARRAYCONSTANT_LVM_SETEXTENDEDLISTVIEWSTYLE = (0x1000 + 54)
    Local Const $_ARRAYCONSTANT_LVM_SETITEMA = (0x1000 + 6)
    Local Const $_ARRAYCONSTANT_LVS_EX_FULLROWSELECT = 0x20
    Local Const $_ARRAYCONSTANT_LVS_EX_GRIDLINES = 0x1
    Local Const $_ARRAYCONSTANT_LVS_SHOWSELALWAYS = 0x8
    Local Const $_ARRAYCONSTANT_WS_EX_CLIENTEDGE = 0x0200
    Local Const $_ARRAYCONSTANT_WS_MAXIMIZEBOX = 0x00010000
    Local Const $_ARRAYCONSTANT_WS_MINIMIZEBOX = 0x00020000
    Local Const $_ARRAYCONSTANT_WS_SIZEBOX = 0x00040000
    Local Const $_ARRAYCONSTANT_tagLVITEM = "int Mask;int Item;int SubItem;int State;int StateMask;ptr Text;int TextMax;int Image;int Param;int Indent;int GroupID;int Columns;ptr pColumns"

    Local $iAddMask = BitOR($_ARRAYCONSTANT_LVIF_TEXT, $_ARRAYCONSTANT_LVIF_PARAM)
    Local $tBuffer = DllStructCreate("char Text[" & $iBuffer & "]"), $pBuffer = DllStructGetPtr($tBuffer)
    Local $tItem = DllStructCreate($_ARRAYCONSTANT_tagLVITEM), $pItem = DllStructGetPtr($tItem)
    DllStructSetData($tItem, "Param", 0)
    DllStructSetData($tItem, "Text", $pBuffer)
    DllStructSetData($tItem, "TextMax", $iBuffer)

    ; Set interface up
    Local $hGUI = GUICreate($sTitle, $iWidth, $iHeight, 10, 10, BitOR($_ARRAYCONSTANT_WS_SIZEBOX, $_ARRAYCONSTANT_WS_MINIMIZEBOX, $_ARRAYCONSTANT_WS_MAXIMIZEBOX))
    Local $aiGUISize = WinGetClientSize($hGUI)
    Local $hListView = GUICtrlCreateListView($sHeader, 0, 0, $aiGUISize[0], $aiGUISize[1] - 26, $_ARRAYCONSTANT_LVS_SHOWSELALWAYS)
    Local $hCopy = GUICtrlCreateButton("Copy Selected", 3, $aiGUISize[1] - 23, $aiGUISize[0] - 6, 20)
    GUICtrlSetResizing($hListView, $_ARRAYCONSTANT_GUI_DOCKBORDERS)
    GUICtrlSetResizing($hCopy, $_ARRAYCONSTANT_GUI_DOCKLEFT + $_ARRAYCONSTANT_GUI_DOCKRIGHT + $_ARRAYCONSTANT_GUI_DOCKBOTTOM + $_ARRAYCONSTANT_GUI_DOCKHEIGHT)
    GUICtrlSendMsg($hListView, $_ARRAYCONSTANT_LVM_SETEXTENDEDLISTVIEWSTYLE, $_ARRAYCONSTANT_LVS_EX_GRIDLINES, $_ARRAYCONSTANT_LVS_EX_GRIDLINES)
    GUICtrlSendMsg($hListView, $_ARRAYCONSTANT_LVM_SETEXTENDEDLISTVIEWSTYLE, $_ARRAYCONSTANT_LVS_EX_FULLROWSELECT, $_ARRAYCONSTANT_LVS_EX_FULLROWSELECT)
    GUICtrlSendMsg($hListView, $_ARRAYCONSTANT_LVM_SETEXTENDEDLISTVIEWSTYLE, $_ARRAYCONSTANT_WS_EX_CLIENTEDGE, $_ARRAYCONSTANT_WS_EX_CLIENTEDGE)

    ; Fill listview
    For $i = 0 To $iLVIAddUDFThreshold
        GUICtrlCreateListViewItem($avArrayText[$i], $hListView)
    Next
    For $i = ($iLVIAddUDFThreshold + 1) To $iUBound
        $aItem = StringSplit($avArrayText[$i], $sSeparator)
        DllStructSetData($tBuffer, "Text", $aItem[1])

        ; Add listview item
        DllStructSetData($tItem, "Item", $i)
        DllStructSetData($tItem, "SubItem", 0)
        DllStructSetData($tItem, "Mask", $iAddMask)
        GUICtrlSendMsg($hListView, $_ARRAYCONSTANT_LVM_INSERTITEMA, 0, $pItem)

        ; Set listview subitem text
        DllStructSetData($tItem, "Mask", $_ARRAYCONSTANT_LVIF_TEXT)
        For $j = 2 To $aItem[0]
            DllStructSetData($tBuffer, "Text", $aItem[$j])
            DllStructSetData($tItem, "SubItem", $j - 1)
            GUICtrlSendMsg($hListView, $_ARRAYCONSTANT_LVM_SETITEMA, 0, $pItem)
        Next
    Next

    ; ajust window width
    $iWidth = 0
    For $i = 0 To $iSubMax + 1
        $iWidth += GUICtrlSendMsg($hListView, $_ARRAYCONSTANT_LVM_GETCOLUMNWIDTH, $i, 0)
    Next
    If $iWidth < 250 Then $iWidth = 230
    WinMove($hGUI, "", Default, Default, $iWidth + 20)

    ; Show dialog
    GUISetState(@SW_SHOW, $hGUI)

    While 1
        Switch GUIGetMsg()
            Case $_ARRAYCONSTANT_GUI_EVENT_CLOSE
                ExitLoop

            Case $hCopy
                Local $sClip = ""

                ; Get selected indices [ _GUICtrlListView_GetSelectedIndices($hListView, True) ]
                Local $aiCurItems[1] = [0]
                For $i = 0 To GUICtrlSendMsg($hListView, $_ARRAYCONSTANT_LVM_GETITEMCOUNT, 0, 0)
                    If GUICtrlSendMsg($hListView, $_ARRAYCONSTANT_LVM_GETITEMSTATE, $i, 0x2) Then
                        $aiCurItems[0] += 1
                        ReDim $aiCurItems[$aiCurItems[0] + 1]
                        $aiCurItems[$aiCurItems[0]] = $i
                    EndIf
                Next

                ; Generate clipboard text
                If Not $aiCurItems[0] Then
                    For $sItem In $avArrayText
                        $sClip &= $sItem & @CRLF
                    Next
                Else
                    For $i = 1 To UBound($aiCurItems) - 1
                        $sClip &= $avArrayText[$aiCurItems[$i]] & @CRLF
                    Next
                EndIf
                ClipPut($sClip)
        EndSwitch
    WEnd
    GUIDelete($hGUI)

    Opt("GUIOnEventMode", $iOnEventMode)
    Opt("GUIDataSeparatorChar", $sDataSeparatorChar)

    Return 1
EndFunc   ;==>_ArrayDisplay_WithHeader

Scripts & functions Organize Includes Let Scite organize the include files

Yahtzee The game "Yahtzee" (Kniffel, DiceLion)

LoginWrapper Secure scripts by adding a query (authentication)

_RunOnlyOnThis UDF Make sure that a script can only be executed on ... (Windows / HD / ...)

Internet-Café Server/Client Application Open CD, Start Browser, Lock remote client, etc.

MultipleFuncsWithOneHotkey Start different funcs by hitting one hotkey different times

Share this post


Link to post
Share on other sites

Yes, that is nearly that what the

_displayTable

function in my script does.


Scripts & functions Organize Includes Let Scite organize the include files

Yahtzee The game "Yahtzee" (Kniffel, DiceLion)

LoginWrapper Secure scripts by adding a query (authentication)

_RunOnlyOnThis UDF Make sure that a script can only be executed on ... (Windows / HD / ...)

Internet-Café Server/Client Application Open CD, Start Browser, Lock remote client, etc.

MultipleFuncsWithOneHotkey Start different funcs by hitting one hotkey different times

Share this post


Link to post
Share on other sites

#5 ·  Posted (edited)

maniootek

Try to use this

http://www.autoitscript.com/forum/index.php?app=core&module=attach&section=attach&attach_id=45581

Edit:

@Xeno

An interesting implementation, I will look at more closely in the coming days.

Edited by mLipok

Signature beginning:   Wondering who uses AutoIT and what it can be used for ?
* GHAPI UDF - modest begining - comunication with GitHub REST API *
ADO.au3 UDF     POP3.au3 UDF     XML.au3 UDF    How to use IE.au3  UDF with  AutoIt v3.3.14.x  for other useful stuff click the following button

Spoiler

Any of my own code posted anywhere on the forum is available for use by others without any restriction of any kind.

My contribution (my own projects): * Debenu Quick PDF Library - UDF * Debenu PDF Viewer SDK - UDF * Acrobat Reader - ActiveX Viewer * UDF for PDFCreator v1.x.x * XZip - UDF * AppCompatFlags UDF * CrowdinAPI UDF * _WinMergeCompare2Files() * _JavaExceptionAdd() * _IsBeta() * Writing DPI Awareness App - workaround * _AutoIt_RequiredVersion() * Chilkatsoft.au3 UDF * TeamViewer.au3 UDF * JavaManagement UDF * VIES over SOAP * WinSCP UDF * GHAPI UDF - modest begining - comunication with GitHub REST API *

My contribution to others projects or UDF based on  others projects: * _sql.au3 UDF  * POP3.au3 UDF *  RTF Printer - UDF * XML.au3 - BETA * ADO.au3 UDF SMTP Mailer UDF *

Useful links: * Forum Rules * Forum etiquette *  Forum Information and FAQs * How to post code on the forum * AutoIt Online Documentation * AutoIt Online Beta Documentation * SciTE4AutoIt3 getting started * Convert text blocks to AutoIt code * Games made in Autoit * Programming related sites * Polish AutoIt Tutorial * DllCall Code Generator *

Wiki: Expand your knowledge - AutoIt Wiki * Collection of User Defined Functions * How to use HelpFile * Best coding practices *

IE Related:  * How to use IE.au3  UDF with  AutoIt v3.3.14.x * Why isn't Autoit able to click a Javascript Dialog? * Clicking javascript button with no ID * IE document >> save as MHT file * IETab Switcher (by LarsJ ) * HTML Entities * _IEquerySelectorAll() (by uncommon) *

I encourage you to read: * Global Vars * Best Coding Practices * Please explain code used in Help file for several File functions * OOP-like approach in AutoIt * UDF-Spec Questions *  EXAMPLE: How To Catch ConsoleWrite() output to a file or to CMD *

"Homo sum; humani nil a me alienum puto" - Publius Terentius Afer
"Program are meant to be read by humans and only incidentally for computers and execute" - Donald Knuth, "The Art of Computer Programming"
:naughty:  :ranting:, be  :) and       \\//_.

Anticipating Errors :  "Any program that accepts data from a user must include code to validate that data before sending it to the data store. You cannot rely on the data store, ...., or even your programming language to notify you of problems. You must check every byte entered by your users, making sure that data is the correct type for its field and that required fields are not empty."

Signature last update: 2017-06-04

Share this post


Link to post
Share on other sites

Create an account or sign in to comment

You need to be a member in order to leave a comment

Create an account

Sign up for a new account in our community. It's easy!


Register a new account

Sign in

Already have an account? Sign in here.


Sign In Now
