Is it possible to create a GUI to place many controls in a limited amount of "height" ?

Recommended Posts

rudi

Hi.

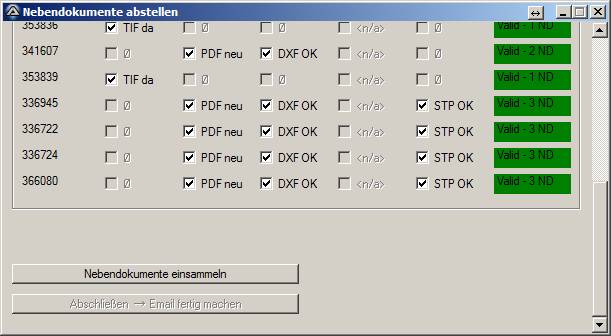

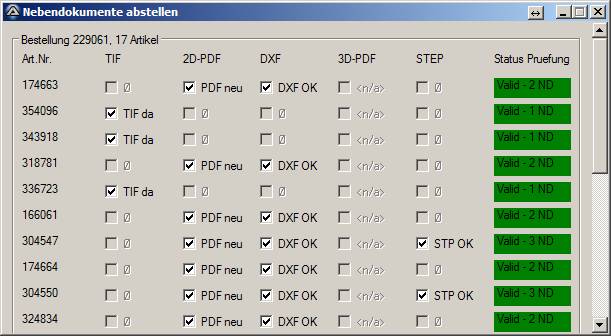

For a certain task I need to display a too long grid of controls.



As I want to avoid to split this on multiple tabs, I'd like to use a scroll bar on the right hand side, as visible in this "manually faked" GUID below.



Is this possible? Looking through the various GuiCtrlCreate*() functions, as well at the controls I can create using the Koda FormDesigner I couldn't see, howto...





Regards, Rudi.



Earth is flat, pigs can fly, and Nuclear Power is SAFE!

Share this post


Link to post
Share on other sites
jchd

Can't you use a listview?


This wonderful site allows debugging and testing regular expressions (many flavors available). An absolute must have in your bookmarks.
Another excellent RegExp tutorial. Don't forget downloading your copy of up-to-date pcretest.exe and pcregrep.exe here
RegExp tutorial: enough to get started
PCRE v8.33 regexp documentation latest available release and currently implemented in AutoIt beta.

SQLitespeed is another feature-rich premier SQLite manager (includes import/export). Well worth a try.
SQLite Expert (freeware Personal Edition or payware Pro version) is a very useful SQLite database manager.
An excellent eBook covering almost every aspect of SQLite3: a must-read for anyone doing serious work.
SQL tutorial (covers "generic" SQL, but most of it applies to SQLite as well)
A work-in-progress SQLite3 tutorial. Don't miss other LxyzTHW pages!
SQLite official website with full documentation (may be newer than the SQLite library that comes standard with AutoIt)

Share this post


Link to post
Share on other sites
Melba23

rudi,

My Scrollbars UDF (look in my sig for the link) makes this easy to do. But I agree with jchd - why not use a ListView?

M23


Public_Domain.png.2d871819fcb9957cf44f4514551a2935.png Any of my own code posted anywhere on the forum is available for use by others without any restriction of any kind

Open spoiler to see my UDFs:

Spoiler

ArrayMultiColSort ---- Sort arrays on multiple columns
ChooseFileFolder ---- Single and multiple selections from specified path treeview listing
Date_Time_Convert -- Easily convert date/time formats, including the language used
ExtMsgBox --------- A highly customisable replacement for MsgBox
GUIExtender -------- Extend and retract multiple sections within a GUI
GUIFrame ---------- Subdivide GUIs into many adjustable frames
GUIListViewEx ------- Insert, delete, move, drag, sort, edit and colour ListView items
GUITreeViewEx ------ Check/clear parent and child checkboxes in a TreeView
Marquee ----------- Scrolling tickertape GUIs
NoFocusLines ------- Remove the dotted focus lines from buttons, sliders, radios and checkboxes
Notify ------------- Small notifications on the edge of the display
Scrollbars ----------Automatically sized scrollbars with a single command
StringSize ---------- Automatically size controls to fit text
Toast -------------- Small GUIs which pop out of the notification area



Share this post


Link to post
Share on other sites
mLipok

Maybe here:

btw. I think there was beter example for Panels but I'm not able to find them.




Signature beginning:   Wondering who uses AutoIT and what it can be used for ?
* GHAPI UDF - modest begining - comunication with GitHub REST API Forum Rules *
ADO.au3 UDF     POP3.au3 UDF     XML.au3 UDF    How to use IE.au3  UDF with  AutoIt v3.3.14.x  for other useful stuff click the following button

Spoiler

Any of my own code posted anywhere on the forum is available for use by others without any restriction of any kind.

My contribution (my own projects): * Debenu Quick PDF Library - UDF * Debenu PDF Viewer SDK - UDF * Acrobat Reader - ActiveX Viewer * UDF for PDFCreator v1.x.x * XZip - UDF * AppCompatFlags UDF * CrowdinAPI UDF * _WinMergeCompare2Files() * _JavaExceptionAdd() * _IsBeta() * Writing DPI Awareness App - workaround * _AutoIt_RequiredVersion() * Chilkatsoft.au3 UDF * TeamViewer.au3 UDF * JavaManagement UDF * VIES over SOAP * WinSCP UDF * GHAPI UDF - modest begining - comunication with GitHub REST APIErrorLog.au3 UDF - A logging Library


My contribution to others projects or UDF based on  others projects: * _sql.au3 UDF  * POP3.au3 UDF *  RTF Printer - UDF * XML.au3 UDF * ADO.au3 UDF SMTP Mailer UDF * Dual Monitor resolution detection * * 2GUI on Dual Monitor System * _SciLexer.au3 UDF *

Useful links: * Forum Rules * Forum etiquette *  Forum Information and FAQs * How to post code on the forum * AutoIt Online Documentation * AutoIt Online Beta Documentation * SciTE4AutoIt3 getting started * Convert text blocks to AutoIt code * Games made in Autoit * Programming related sites * Polish AutoIt Tutorial * DllCall Code Generator *

Wiki: Expand your knowledge - AutoIt Wiki * Collection of User Defined Functions * How to use HelpFile * Good coding practices in AutoIt *

IE Related:  * How to use IE.au3  UDF with  AutoIt v3.3.14.x * Why isn't Autoit able to click a Javascript Dialog? * Clicking javascript button with no ID * IE document >> save as MHT file * IETab Switcher (by LarsJ ) * HTML Entities * _IEquerySelectorAll() (by uncommon) * IE in TaskScheduler

I encourage you to read: * Global Vars * Best Coding Practices * Please explain code used in Help file for several File functions * OOP-like approach in AutoIt * UDF-Spec Questions *  EXAMPLE: How To Catch ConsoleWrite() output to a file or to CMD *

"Homo sum; humani nil a me alienum puto" - Publius Terentius Afer
"Program are meant to be read by humans and only incidentally for computers and execute" - Donald Knuth, "The Art of Computer Programming"
:naughty:  :ranting:, be  :) and       \\//_.

Anticipating Errors :  "Any program that accepts data from a user must include code to validate that data before sending it to the data store. You cannot rely on the data store, ...., or even your programming language to notify you of problems. You must check every byte entered by your users, making sure that data is the correct type for its field and that required fields are not empty."

Signature last update: 2018-10-31

Share this post


Link to post
Share on other sites
Bilgus

See here for another example



Share this post


Link to post
Share on other sites
Melba23

mLipok,

Quote

I think there was beter example for Panels

Are you perhaps thinking of my GUIExtender UDF? It allows you hide/show multiple controls in one command, but I do not think it is suitable for this as you need to be able to see all of these items at once.

M23


Public_Domain.png.2d871819fcb9957cf44f4514551a2935.png Any of my own code posted anywhere on the forum is available for use by others without any restriction of any kind

Open spoiler to see my UDFs:

Spoiler

ArrayMultiColSort ---- Sort arrays on multiple columns
ChooseFileFolder ---- Single and multiple selections from specified path treeview listing
Date_Time_Convert -- Easily convert date/time formats, including the language used
ExtMsgBox --------- A highly customisable replacement for MsgBox
GUIExtender -------- Extend and retract multiple sections within a GUI
GUIFrame ---------- Subdivide GUIs into many adjustable frames
GUIListViewEx ------- Insert, delete, move, drag, sort, edit and colour ListView items
GUITreeViewEx ------ Check/clear parent and child checkboxes in a TreeView
Marquee ----------- Scrolling tickertape GUIs
NoFocusLines ------- Remove the dotted focus lines from buttons, sliders, radios and checkboxes
Notify ------------- Small notifications on the edge of the display
Scrollbars ----------Automatically sized scrollbars with a single command
StringSize ---------- Automatically size controls to fit text
Toast -------------- Small GUIs which pop out of the notification area



Share this post


Link to post
Share on other sites
rudi

Hello,

thanks to all of you for your replies, I will follow up your suggestions.

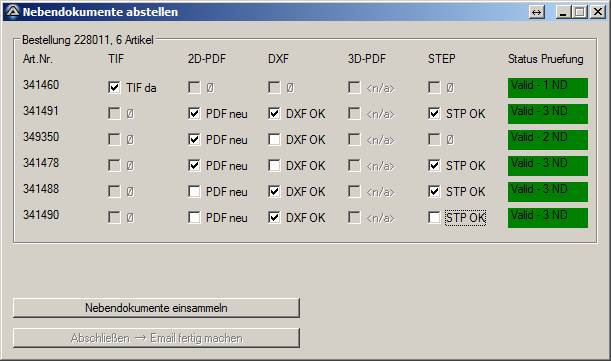

With ListView I can only display, but don't select entries, right? It will look often like this, only the "checked" files will be collected for further processing

REgards, Rudi.


Edited by rudi
added picture, added text

Earth is flat, pigs can fly, and Nuclear Power is SAFE!

Share this post


Link to post
Share on other sites
rudi

@Melba23

Great UDF!!!

Is it possible to also create scrollbars just for the "Group Control" within the whole GUI, so that everything below that group will remain visible at all times?

I tried to use

_GUIScrollbars_Generate($hGroup,$wGroup-20,$hGroup)

... instead of ...

_GUIScrollbars_Generate($MyGui,$wGUI-20,$hGUI)

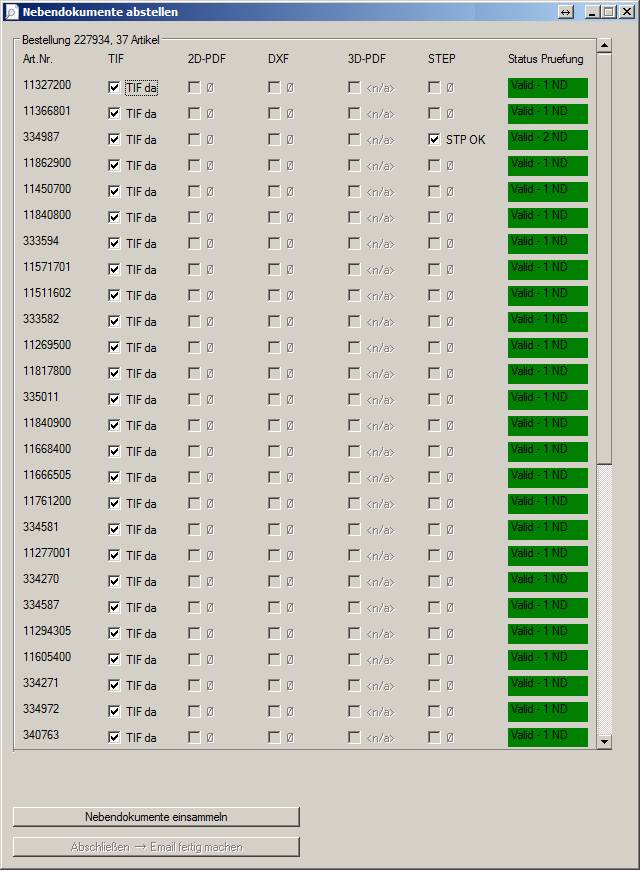

The first post shows how I would like it to look like.



Regards, Rudi.



Edited by rudi
grammar

Earth is flat, pigs can fly, and Nuclear Power is SAFE!

Share this post


Link to post
Share on other sites
Melba23

rudi,

As I show in the first example script in the UDF zip package, you need a child window to do this:

#include <GUIConstantsEx.au3>
#include <WindowsConstants.au3>

#include "GUIScrollbars_Ex.au3"

; Create main GUI
$hGUI = GUICreate("Test", 500, 500)

GUICtrlCreateButton("Always visible", 10, 10, 80, 30)

GUICtrlCreateGroup("Scrollable", 10, 50, 480, 380)

GUICtrlCreateButton("Always visible", 10, 460, 80, 30)

GUISetState(@SW_HIDE, $hGUI)

; Create child window which will be scrollable
$hAperture = GUICreate("", 440, 340, 30, 70, $WS_POPUP, $WS_EX_MDICHILD, $hGUI)
GUISetBkColor(0xFF0000)

For $i = 0 To 20
    For $j = 0 To 6
        GUICtrlCreateLabel($i & "-" & $j, 10 + ($j * 60), 10 + ($i * 40), 50, 30)
        GUICtrlSetBkColor(-1, 0x00FF00)
    Next
Next

GUISetState(@SW_HIDE, $hAperture)

; make the scrollbars
_GUIScrollbars_Generate($hAperture, 0, 21 * 40)

GUISetState(@SW_SHOW, $hGUI)
GUISetState(@SW_SHOW, $hAperture)

While 1

    Switch GUIGetMsg()
        Case $GUI_EVENT_CLOSE
            Exit
    EndSwitch

WEnd

M23


Public_Domain.png.2d871819fcb9957cf44f4514551a2935.png Any of my own code posted anywhere on the forum is available for use by others without any restriction of any kind

Open spoiler to see my UDFs:

Spoiler

ArrayMultiColSort ---- Sort arrays on multiple columns
ChooseFileFolder ---- Single and multiple selections from specified path treeview listing
Date_Time_Convert -- Easily convert date/time formats, including the language used
ExtMsgBox --------- A highly customisable replacement for MsgBox
GUIExtender -------- Extend and retract multiple sections within a GUI
GUIFrame ---------- Subdivide GUIs into many adjustable frames
GUIListViewEx ------- Insert, delete, move, drag, sort, edit and colour ListView items
GUITreeViewEx ------ Check/clear parent and child checkboxes in a TreeView
Marquee ----------- Scrolling tickertape GUIs
NoFocusLines ------- Remove the dotted focus lines from buttons, sliders, radios and checkboxes
Notify ------------- Small notifications on the edge of the display
Scrollbars ----------Automatically sized scrollbars with a single command
StringSize ---------- Automatically size controls to fit text
Toast -------------- Small GUIs which pop out of the notification area



Share this post


Link to post
Share on other sites
rudi

@Melba23

Hi, thanks for the explanation with the child window. I missed, that this is even possible...



$hAperture = GUICreate("", 440, 340, 30, 70, $WS_POPUP, $WS_EX_MDICHILD, $hGUI)

Have a nice weekend, regards, Rudi.



edit: Questions...



#include <GUIConstantsEx.au3>
#include <WindowsConstants.au3>

#include "GUIScrollbars_Ex.au3"

; Create main GUI
$hGUI = GUICreate("Test", 500, 500)

; button at the top of GUI
GUICtrlCreateButton("Always visible", 10, 10, 80, 30)

; just an empty "frame"
GUICtrlCreateGroup("Scrollable", 10, 50, 480, 380)

; Button at the bottom of the GUI
GUICtrlCreateButton("Always visible", 10, 460, 80, 30)

GUISetState(@SW_HIDE, $hGUI)

; Create child window which will be scrollable
$hAperture = GUICreate("", 400, 340, 30, 70, $WS_POPUP, $WS_EX_MDICHILD, $hGUI)
; this child window is just "fitting over" the empty "group element" by it's coordinates, no relation to the Group Element, right?
GUISetBkColor(0xFF0000)

For $i = 0 To 20 ; why does this go to the child window, not the main $hGUI window? Because it's going to the "last" GUI created?
    For $j = 0 To 6
        GUICtrlCreateLabel($i & "-" & $j, 10 + ($j * 60), 10 + ($i * 40), 50, 30)
        GUICtrlSetBkColor(-1, 0x00FF00)
    Next
Next

GUISetState(@SW_HIDE, $hAperture)

; make the scrollbars
_GUIScrollbars_Generate($hAperture, 0, 21 * 40)

GUISetState(@SW_SHOW, $hGUI)
GUISetState(@SW_SHOW, $hAperture)

While 1

    Switch GUIGetMsg()
        Case $GUI_EVENT_CLOSE
            Exit
    EndSwitch

WEnd



Edited by rudi

Earth is flat, pigs can fly, and Nuclear Power is SAFE!

Share this post


Link to post
Share on other sites
jchd
4 hours ago, rudi said:

With ListView I can only display, but don't select entries, right?

Of course not. You can display whatever you want, select, change, edit things.


This wonderful site allows debugging and testing regular expressions (many flavors available). An absolute must have in your bookmarks.
Another excellent RegExp tutorial. Don't forget downloading your copy of up-to-date pcretest.exe and pcregrep.exe here
RegExp tutorial: enough to get started
PCRE v8.33 regexp documentation latest available release and currently implemented in AutoIt beta.

SQLitespeed is another feature-rich premier SQLite manager (includes import/export). Well worth a try.
SQLite Expert (freeware Personal Edition or payware Pro version) is a very useful SQLite database manager.
An excellent eBook covering almost every aspect of SQLite3: a must-read for anyone doing serious work.
SQL tutorial (covers "generic" SQL, but most of it applies to SQLite as well)
A work-in-progress SQLite3 tutorial. Don't miss other LxyzTHW pages!
SQLite official website with full documentation (may be newer than the SQLite library that comes standard with AutoIt)

Share this post


Link to post
Share on other sites
Melba23

rudi,

Quote

; this child window is just "fitting over" the empty "group element" by it's coordinates, no relation to the Group Element, right?

Correct. And you also have determine the size of the scroll to use in _GUIScrollbars_Generate by doing some basic maths on the controls you create in this GUI so that they all fit

Quote

; why does this go to the child window, not the main $hGUI window? Becaus it's going to the "last" GUI created?

Also correct. AutoIt uses what is termed the "current" GUI to create controls - this is the last one created or the one set by GUISwitch.

M23


Public_Domain.png.2d871819fcb9957cf44f4514551a2935.png Any of my own code posted anywhere on the forum is available for use by others without any restriction of any kind

Open spoiler to see my UDFs:

Spoiler

ArrayMultiColSort ---- Sort arrays on multiple columns
ChooseFileFolder ---- Single and multiple selections from specified path treeview listing
Date_Time_Convert -- Easily convert date/time formats, including the language used
ExtMsgBox --------- A highly customisable replacement for MsgBox
GUIExtender -------- Extend and retract multiple sections within a GUI
GUIFrame ---------- Subdivide GUIs into many adjustable frames
GUIListViewEx ------- Insert, delete, move, drag, sort, edit and colour ListView items
GUITreeViewEx ------ Check/clear parent and child checkboxes in a TreeView
Marquee ----------- Scrolling tickertape GUIs
NoFocusLines ------- Remove the dotted focus lines from buttons, sliders, radios and checkboxes
Notify ------------- Small notifications on the edge of the display
Scrollbars ----------Automatically sized scrollbars with a single command
StringSize ---------- Automatically size controls to fit text
Toast -------------- Small GUIs which pop out of the notification area



Share this post


Link to post
Share on other sites
rudi

Hi.

thanks for your answer.

GUISwitch() I didn't notice before as well.

It might be a good idea to mention this "current GUI" thing and this function  GUISwitch() in the help file for all the GuiCtrlCreate*() functions?

Regards, Rudi.


Earth is flat, pigs can fly, and Nuclear Power is SAFE!

Share this post


Link to post
Share on other sites

Create an account or sign in to comment

You need to be a member in order to leave a comment

Create an account

Sign up for a new account in our community. It's easy!

Register a new account

Sign in

Already have an account? Sign in here.

Sign In Now

  • Similar Content

    • Blueman
      By Blueman
      Hey Guys,
      Maybe you can help me with something small.
      It is not terrible but it slows down my script and after a while even crash the script.

      First i explain what i have;
      I have a GUI with a lot of GUICtrlCreateInput controls, lets say 600 pieces.
      All the controls are hidden when the GUI is displayed, i have 3 buttons attached to 200 pieces each.
      When i press button-1 the first 200 controls are showed,
      When i press button-2 the first 200 controls are hidden and the next 200 controls are showed,
      etc, etc.
      This is working perfectly but after a while the GUI is getting slower and slower.
      After a while the controls aren't responding anymore and the script crashes.
      When i compile the script to 64-Bits version the speed is a lot better but you can still see the script slowing down each time i use the buttons.
      I think there has to be a buffer somewhere that is filling each time i show and hide the controls, but how can i clear that buffer without restarting the script?
      Deleting and re-creating the controls didn't help, deleting the entire gui (and controls) and re-creating it didn't help also.
      The only thing that is working is restarting the script.

      Thanks guys!

      PS: If you need a working example i can add it to this topic, just let me know. It is not rocket science, i just create the controls and show/hide them with a while loop and 3 buttons.

    • TheDcoder
      By TheDcoder

      ProxAllium
      ProxAllium is a GUI frontend to Tor, it aims to make the usage of Tor easier by directly exposing its SOCK5 proxy which can be used to access the Tor network. The GUI is designed to be simple and user-friendly and it has a few other features... namely:
      Fully portable - doesn't write outside its own directory Integrated with Tor via the controller interface and properly communicates with it Minimize to tray Option to start with Windows Interface to configure bridges if Tor is censored in your region Many customization options are available via the config.ini file Screenshots:
      The code is made with pure AutoIt, is fully open source and you are free to adapt it to your needs
      The GitHub repository hosts all the releases and code. As a bonus it has a somewhat sparsely documented Tor UDF which can be used to control Tor, the code also demonstrates the proper usage of my Process UDF which might be interesting if you want to deal with processes.

      As some of my friends know, I no longer use Windows as my main operating system. I switched to Linux a few months back as my primary operating system and haven't looked back since. Unfortunately that meant I could no longer use my own program due to it being Windows only... after a few months of playing around with C and making a basic program, I have decided to rewrite all of ProxAllium into C and make it cross-platform. Sadly this means that the AutoIt version of ProxAllium will not receive any major updates now.
      Let me know if this is something you guys would use, I used it daily with my IRC client to connect via Tor (to protect my I.P). I hope you enjoy using my program!
    • morion84
      By morion84
      Hi, when I call a MsgBox function I can use a "$MB_SERVICE_NOTIFICATION" flag so it will be displayed "on the current active desktop, even if there is no user logged on to the computer.". That works just great. Is there a way to do the same to Autoit GUI Form so it will be visible on desktop even if running from system account and user is not logged?
    • remin
      By remin
      I do have one autoit script file with multiple functions.
      p.e.

      #include <ButtonConstants.au3> #include <GUIConstantsEx.au3> #include <WindowsConstants.au3> #include <String.au3> #include <GuiButton.au3> #include <Constants.au3> #include <EditConstants.au3> #include <Misc.au3> #include <MsgBoxConstants.au3> #include <HotString.au3> Func ACase() $Form4=GUICreate("ACase", 100, 195, 290, 142) etc etc GUISetState(@SW_SHOW, $Form4) While 1 $nMsg = GUIGetMsg() Switch $nMsg Case $GUI_EVENT_CLOSE SUB_Write2ini(....) ;I write a few things in an ini file Case $a Case $b etc EndSwitch WEnd EndFunc Func BCase() $Form5=GUICreate("BCase", 100, 195, 290, 142) etc etc GUISetState(@SW_SHOW, $Form5) While 1 $nMsg = GUIGetMsg() Switch $nMsg Case $GUI_EVENT_CLOSE SUB_Write2ini(....) ;I write a few things in an ini file Case $a Case $b etc EndSwitch WEnd EndFunc When I activate the 1st function (ACase), using a shortcut and the 2nd function (BCase) (with a different shortcut) and I click on a button in whatever of these 2 Gui's, I can't use the other Gui anymore. It doesn't do the right thing as if autoit only remembers the Gui I first used.
      What did I wrong? How can I let autoit know which GUI is active and to connect to the function of that Gui?
      Hope I made myself clear.

    • Sven-Seyfert
      By Sven-Seyfert
      Hi Community,

      I use a UDF by @smashly to play a video in a GUI. That works fine for my main monitor.
      But when I change the X and Y positions of the GUI (also for the video) to my second or third monitor, the video plays, I can hear the sound of it, but I don't see the video.

      I debugged the UDF and checked the Microsoft description for MCI Command Strings which are used in the UDF (docs.microsoft...) - everything is fine, so I got no clue why the video isn't displayed.

      PlayVideoTest.au3:

      VideoInGui_by_Smashky.au3 (UDF):

      The example video:

      It would be great when anyone can help .
      Is there maybe a other way to play (display videos in GUI)?

      Thanks for any suggestion - I'm grateful!
      Sven
×
