water

Update the Excel UDF that comes with AutoIt

Recommended Posts

The functions will be changed this way: Check if an instance of Excel is already running. If true, don't start a new instance.

$oExcel = ObjGet("", "Excel.Application")
if @error Then $oExcel = ObjCreate("Excel.Application")
This saves ressources (processing time, memory) and allows to access all workbooks at once.

As long as you're checking for any errors after the ObjCreate, that might be a good way of going about it.

@Spiff59

I misunderstood where you were going with that, using ExcelBookOpen to use the object previously opened and not the file previously opened. Mea culpa.


If I posted any code, assume that code was written using the latest release version unless stated otherwise. Also, if it doesn't work on XP I can't help with that because I don't have access to XP, and I'm not going to.
Give a programmer the correct code and he can do his work for a day. Teach a programmer to debug and he can do his work for a lifetime - by Chirag Gude
How to ask questions the smart way!

I hereby grant any person the right to use any code I post, that I am the original author of, on the autoitscript.com forums, unless I've specifically stated otherwise in the code or the thread post. If you do use my code all I ask, as a courtesy, is to make note of where you got it from.

Back up and restore Windows user files _Array.au3 - Modified array functions that include support for 2D arrays.  -  ColorChooser - An add-on for SciTE that pops up a color dialog so you can select and paste a color code into a script.  -  Customizable Splashscreen GUI w/Progress Bar - Create a custom "splash screen" GUI with a progress bar and custom label.  -  _FileGetProperty - Retrieve the properties of a file  -  SciTE Toolbar - A toolbar demo for use with the SciTE editor  -  GUIRegisterMsg demo - Demo script to show how to use the Windows messages to interact with controls and your GUI.  -   Latin Square password generator

Share this post


Link to post
Share on other sites

As long as you're checking for any errors after the ObjCreate, that might be a good way of going about it.

It's just a stripped down example to demonstrate what I have in mind. Error checking has been greatly enhanced. A function of this UDF should crash never again but return a meaningful error code to the calling script in case of an error.

My UDFs and Tutorials:

Spoiler

UDFs:
Active Directory (NEW 2020-07-21 - Version 1.5.1.0) - Download - General Help & Support - Example Scripts - Wiki
OutlookEX (NEW 2020-06-27 - Version 1.6.1.0) - Download - General Help & Support - Example Scripts - Wiki
OutlookEX_GUI (NEW 2020-06-27 - Version 1.3.2.0) - Download
Outlook Tools (2019-07-22 - Version 0.6.0.0) - Download - General Help & Support - Wiki
ExcelChart (2017-07-21 - Version 0.4.0.1) - Download - General Help & Support - Example Scripts
PowerPoint (2017-06-06 - Version 0.0.5.0) - Download - General Help & Support
Excel - Example Scripts - Wiki
Word - Wiki
Task Scheduler (2019-12-03 - Version 1.5.1.0) - Download - General Help & Support - Wiki

Tutorials:
ADO - Wiki, WebDriver - Wiki



Share this post


Link to post
Share on other sites

I'm using this at work:

Func _ExcelBookOpen($sFilePath, $fVisible = True, $fReadOnly = False, $sPassword = "", $sWritePassword = "")
If Not FileExists($sFilePath) Then Return SetError(2, 0, 0)
$fVisible = ($fVisible > 0)
$fReadOnly = ($fReadOnly > 0)
If Not ($fVisible + $fReadOnly) Then
  $i = FileOpen($sFilePath, 1)
  If $i = -1 Then Return SetError(3, 0, 0)
  FileClose($i)
EndIf
Local $oExcel = ObjCreate("Excel.Application")
If Not IsObj($oExcel) Then Return SetError(1, 0, 0)
With $oExcel
  .Visible = $fVisible
  .WorkBooks.Open($sFilePath, Default, $fReadOnly, Default, $sPassword, $sWritePassword)
  ; Select the first *visible* worksheet.
  For $i = 1 To .ActiveWorkbook.Sheets.Count
   If .ActiveWorkbook.Sheets($i).Visible =  -1 Then ; $xlSheetVisible
    .ActiveWorkbook.Sheets($i).Select()
    ExitLoop
   EndIf
  Next
EndWith
Return $oExcel
EndFunc   ;==>_ExcelBookOpen

Which appears to be the same as the one I linked to a few posts back. I'm not using the UDF in scripts that process large numbers of spreadsheets (because of the constant starting and stopping of the excel process). The example above does have some worthwhile improvements. Why launch Excel and then error out for a "file not found" a couple lines later? The FileExists() test should be the first line. The edits of fVisible and fReadOnly can be done in a single line. The 4 in-line compound If statements that tack 8 compares onto every call are unnecessary as sending "" for either password is the same as sending "Default".

The fileopen/fileclose test (@error = 3) I added, to see if a file is already open when being requested in write-mode, probably should be changed to use the .Readonly method like that other function that had the same issue.

Share this post


Link to post
Share on other sites

I hope to soon release another beta including this changes to _ExcelBookOpen().

Depends on the weather - I need a few rainy days ;)


My UDFs and Tutorials:

Spoiler

UDFs:
Active Directory (NEW 2020-07-21 - Version 1.5.1.0) - Download - General Help & Support - Example Scripts - Wiki
OutlookEX (NEW 2020-06-27 - Version 1.6.1.0) - Download - General Help & Support - Example Scripts - Wiki
OutlookEX_GUI (NEW 2020-06-27 - Version 1.3.2.0) - Download
Outlook Tools (2019-07-22 - Version 0.6.0.0) - Download - General Help & Support - Wiki
ExcelChart (2017-07-21 - Version 0.4.0.1) - Download - General Help & Support - Example Scripts
PowerPoint (2017-06-06 - Version 0.0.5.0) - Download - General Help & Support
Excel - Example Scripts - Wiki
Word - Wiki
Task Scheduler (2019-12-03 - Version 1.5.1.0) - Download - General Help & Support - Wiki

Tutorials:
ADO - Wiki, WebDriver - Wiki



Share this post


Link to post
Share on other sites

I hope to soon release another beta including this changes to _ExcelBookOpen().

Depends on the weather - I need a few rainy days ;)

Well you are water so I think that shouldn't be a problem. The UDF is coming on nicely, no complaints thus far.

Edit: Well there is one, I fixed an issue in which Au3Check was returning an 'unused variable' but inserting #foreceref fixed this. Any ideas why this could be? As it's clearly being used.

Edited by guinness

UDF List:


_AdapterConnections()_AlwaysRun()_AppMon()_AppMonEx()_ArrayFilter/_ArrayReduce_BinaryBin()_CheckMsgBox()_CmdLineRaw()_ContextMenu()_ConvertLHWebColor()/_ConvertSHWebColor()_DesktopDimensions()_DisplayPassword()_DotNet_Load()/_DotNet_Unload()_Fibonacci()_FileCompare()_FileCompareContents()_FileNameByHandle()_FilePrefix/SRE()_FindInFile()_GetBackgroundColor()/_SetBackgroundColor()_GetConrolID()_GetCtrlClass()_GetDirectoryFormat()_GetDriveMediaType()_GetFilename()/_GetFilenameExt()_GetHardwareID()_GetIP()_GetIP_Country()_GetOSLanguage()_GetSavedSource()_GetStringSize()_GetSystemPaths()_GetURLImage()_GIFImage()_GoogleWeather()_GUICtrlCreateGroup()_GUICtrlListBox_CreateArray()_GUICtrlListView_CreateArray()_GUICtrlListView_SaveCSV()_GUICtrlListView_SaveHTML()_GUICtrlListView_SaveTxt()_GUICtrlListView_SaveXML()_GUICtrlMenu_Recent()_GUICtrlMenu_SetItemImage()_GUICtrlTreeView_CreateArray()_GUIDisable()_GUIImageList_SetIconFromHandle()_GUIRegisterMsg()_GUISetIcon()_Icon_Clear()/_Icon_Set()_IdleTime()_InetGet()_InetGetGUI()_InetGetProgress()_IPDetails()_IsFileOlder()_IsGUID()_IsHex()_IsPalindrome()_IsRegKey()_IsStringRegExp()_IsSystemDrive()_IsUPX()_IsValidType()_IsWebColor()_Language()_Log()_MicrosoftInternetConnectivity()_MSDNDataType()_PathFull/GetRelative/Split()_PathSplitEx()_PrintFromArray()_ProgressSetMarquee()_ReDim()_RockPaperScissors()/_RockPaperScissorsLizardSpock()_ScrollingCredits_SelfDelete()_SelfRename()_SelfUpdate()_SendTo()_ShellAll()_ShellFile()_ShellFolder()_SingletonHWID()_SingletonPID()_Startup()_StringCompact()_StringIsValid()_StringRegExpMetaCharacters()_StringReplaceWholeWord()_StringStripChars()_Temperature()_TrialPeriod()_UKToUSDate()/_USToUKDate()_WinAPI_Create_CTL_CODE()_WinAPI_CreateGUID()_WMIDateStringToDate()/_DateToWMIDateString()Au3 script parsingAutoIt SearchAutoIt3 PortableAutoIt3WrapperToPragmaAutoItWinGetTitle()/AutoItWinSetTitle()CodingDirToHTML5FileInstallrFileReadLastChars()GeoIP databaseGUI - Only Close ButtonGUI ExamplesGUICtrlDeleteImage()GUICtrlGetBkColor()GUICtrlGetStyle()GUIEventsGUIGetBkColor()Int_Parse() & Int_TryParse()IsISBN()LockFile()Mapping CtrlIDsOOP in AutoItParseHeadersToSciTE()PasswordValidPasteBinPosts Per DayPreExpandProtect GlobalsQueue()Resource UpdateResourcesExSciTE JumpSettings INISHELLHOOKShunting-YardSignature CreatorStack()Stopwatch()StringAddLF()/StringStripLF()StringEOLToCRLF()VSCROLLWM_COPYDATAMore Examples...

Updated: 22/04/2018

Share this post


Link to post
Share on other sites

Another idea to discuss:

To make the UDF work faster (faster processing of many workbooks etc.) a few design decisions of the current UDF need to be changed. This means "script breaking" changes!

I can imagine a "compatibility flag". If set to True the UDF will behave as it does now, else the new design will be activated.

Example:

If you use _ExcelBookOpen to open a workbook that another user already has write access and flag $fReadOnly = False then the current UDF returns a read-only copy of the workbook.

If the compatibility flag is set to False then an error will be returned.

With such a compatibility mode the users could easily test their scripts and change them to the new design.

One or two AutoIt releases later the compatibility mode could be removed.

WHAT DO YOU THINK?

Edited by water

My UDFs and Tutorials:

Spoiler

UDFs:
Active Directory (NEW 2020-07-21 - Version 1.5.1.0) - Download - General Help & Support - Example Scripts - Wiki
OutlookEX (NEW 2020-06-27 - Version 1.6.1.0) - Download - General Help & Support - Example Scripts - Wiki
OutlookEX_GUI (NEW 2020-06-27 - Version 1.3.2.0) - Download
Outlook Tools (2019-07-22 - Version 0.6.0.0) - Download - General Help & Support - Wiki
ExcelChart (2017-07-21 - Version 0.4.0.1) - Download - General Help & Support - Example Scripts
PowerPoint (2017-06-06 - Version 0.0.5.0) - Download - General Help & Support
Excel - Example Scripts - Wiki
Word - Wiki
Task Scheduler (2019-12-03 - Version 1.5.1.0) - Download - General Help & Support - Wiki

Tutorials:
ADO - Wiki, WebDriver - Wiki



Share this post


Link to post
Share on other sites

Here is an example for function _ExcelBookOpen. If compatibility mode is set to False then the function

  • tries to connect to an existing Excel instance (in compatibility mode always a new instance is created)
  • Returns an error if you asked for write access but the workbook is in use by another user/task (in compatibility mode you get a readonly copy of the workbook)
  • The function returns the object of the workbook ((in compatibility mode the object of the Excel application is returned)
  • The difference between compatibility mode on/off is documented in the remarks section
; #FUNCTION# ====================================================================================================================
; Name...........: _ExcelBookOpen
; Description ...: Opens an existing workbook and returns its object identifier.
; Syntax.........: _ExcelBookOpen($sFilePath[, $fVisible = 1[, $fReadOnly = False[, $sPassword = ""[, $sWritePassword = ""]]]])
; Parameters ....: $sFilePath     - Path and filename of the file to be opened
;                 $fVisible    - Flag, whether to show or hide the workbook (0=not visible, 1=visible) (default=1)
;                 $fReadOnly      - Flag, whether to open the workbook as read-only (True or False) (default=False)
;                 $sPassword      - The password that was used to read-protect the workbook, if any (default is none)
;                 $sWritePassword - The password that was used to write-protect the workbook, if any (default is none)
; Return values .: Success - Returns new object identifier
;                 Failure - Returns 0 and sets @error:
;                 |1 - Unable to create the Excel COM object. @extended is set to the error code returned by the ObjCreate method
;                 |2 - File does not exist
;                 |3 - Unable to open $sFilePath. @extended is set to the error code returned by the Open method
;                 |4 - Readwrite access could not be granted. Workbook might be open by another users/task.
; Author ........: SEO <locodarwin at yahoo dot com>
; Modified.......: litlmike, water
; Remarks .......: If $__bExcelCompatibility = True:
;                   Tries to connect to an existing Excel instance. If none exists a new one is created
;                   Returns the object of the Excel workbook
;                   If a workbook was opened readonly but you asked for readwrite access then an error is returned
; Related .......: _ExcelBookAttach
; Link ..........:
; Example .......: Yes
; ===============================================================================================================================
Func _ExcelBookOpen($sFilePath, $fVisible = 1, $fReadOnly = False, $sPassword = "", $sWritePassword = "")
    Local $oAppl, $oWorkBook
    If Not FileExists($sFilePath) Then Return SetError(2, 0, 0)
    If $__bExcelCompatibility Then
        $oAppl = ObjCreate("Excel.Application")
        If Not IsObj($oAppl) Then Return SetError(1, 0, 0)
    Else
        $oAppl = ObjGet("", "Excel.Application")
        If @error Then
            $oAppl = ObjCreate("Excel.Application")
            If @error Then Return SetError(1, @error, 0)
        EndIf
    EndIf
    If $fVisible > 1 Then $fVisible = 1
    If $fVisible < 0 Then $fVisible = 0
    If $fReadOnly > 1 Then $fReadOnly = 1
    If $fReadOnly < 0 Then $fReadOnly = 0
    With $oAppl
        .Visible = $fVisible
        If $sPassword <> "" And $sWritePassword <> "" Then $oWorkBook = .WorkBooks.Open($sFilePath, Default, $fReadOnly, Default, $sPassword, $sWritePassword)
        If $sPassword = "" And $sWritePassword <> "" Then $oWorkBook = .WorkBooks.Open($sFilePath, Default, $fReadOnly, Default, Default, $sWritePassword)
        If $sPassword <> "" And $sWritePassword = "" Then $oWorkBook = .WorkBooks.Open($sFilePath, Default, $fReadOnly, Default, $sPassword, Default)
        If $sPassword = "" And $sWritePassword = "" Then $oWorkBook = .WorkBooks.Open($sFilePath, Default, $fReadOnly)
        If @error Then Return SetError(3, @error, 0)
        ; If a readwrite workbook was opened readonly then return an error
        If $__bExcelCompatibility And $fReadOnly = False And .ActiveWorkBook.Readonly Then
            $oWorkBook.Close(False)
            $oWorkBook = 0
            Return SetError(4, 0, 0)
        EndIf
        ; Select the first *visible* worksheet.
        For $i = 1 To .ActiveWorkbook.Sheets.Count
            If .ActiveWorkbook.Sheets($i).Visible = $xlSheetVisible Then
                .ActiveWorkbook.Sheets($i).Select()
                ExitLoop
            EndIf
        Next
    EndWith
    If $__bExcelCompatibility Then
        Return $oAppl
    Else
        Return $oWorkBook
    EndIf
EndFunc   ;==>_ExcelBookOpen

My UDFs and Tutorials:

Spoiler

UDFs:
Active Directory (NEW 2020-07-21 - Version 1.5.1.0) - Download - General Help & Support - Example Scripts - Wiki
OutlookEX (NEW 2020-06-27 - Version 1.6.1.0) - Download - General Help & Support - Example Scripts - Wiki
OutlookEX_GUI (NEW 2020-06-27 - Version 1.3.2.0) - Download
Outlook Tools (2019-07-22 - Version 0.6.0.0) - Download - General Help & Support - Wiki
ExcelChart (2017-07-21 - Version 0.4.0.1) - Download - General Help & Support - Example Scripts
PowerPoint (2017-06-06 - Version 0.0.5.0) - Download - General Help & Support
Excel - Example Scripts - Wiki
Word - Wiki
Task Scheduler (2019-12-03 - Version 1.5.1.0) - Download - General Help & Support - Wiki

Tutorials:
ADO - Wiki, WebDriver - Wiki



Share this post


Link to post
Share on other sites

This

$oWorkBook = .WorkBooks.Open($sFilePath, Default, $fReadOnly, Default, $sPassword, $sWritePassword)

really would replace all this

If $sPassword <> "" And $sWritePassword <> "" Then $oWorkBook = .WorkBooks.Open($sFilePath, Default, $fReadOnly, Default, $sPassword, $sWritePassword)
If $sPassword = "" And $sWritePassword <> "" Then $oWorkBook = .WorkBooks.Open($sFilePath, Default, $fReadOnly, Default, Default, $sWritePassword)
If $sPassword <> "" And $sWritePassword = "" Then $oWorkBook = .WorkBooks.Open($sFilePath, Default, $fReadOnly, Default, $sPassword, Default)
If $sPassword = "" And $sWritePassword = "" Then $oWorkBook = .WorkBooks.Open($sFilePath, Default, $fReadOnly)

without causing any issues.

Edit:

And these are functionally equivalent:

$FVisible = ($fVisible > 0)

If $fVisible > 1 Then $fVisible = 1
If $fVisible < 0 Then $fVisible = 0
Edited by Spiff59

Share this post


Link to post
Share on other sites

What do you think of the compatibility flag?

Many desing changes are needed to remove the limitations of the current UDF. Either a complete rewrite with a lot of script breaking changes, a complete new UDF (ExcelEX) that co-exists with the current Excel UDF or a combined UDF with the compatibility flag to select the behavior of the UDF.

What woud you prefer?


My UDFs and Tutorials:

Spoiler

UDFs:
Active Directory (NEW 2020-07-21 - Version 1.5.1.0) - Download - General Help & Support - Example Scripts - Wiki
OutlookEX (NEW 2020-06-27 - Version 1.6.1.0) - Download - General Help & Support - Example Scripts - Wiki
OutlookEX_GUI (NEW 2020-06-27 - Version 1.3.2.0) - Download
Outlook Tools (2019-07-22 - Version 0.6.0.0) - Download - General Help & Support - Wiki
ExcelChart (2017-07-21 - Version 0.4.0.1) - Download - General Help & Support - Example Scripts
PowerPoint (2017-06-06 - Version 0.0.5.0) - Download - General Help & Support
Excel - Example Scripts - Wiki
Word - Wiki
Task Scheduler (2019-12-03 - Version 1.5.1.0) - Download - General Help & Support - Wiki

Tutorials:
ADO - Wiki, WebDriver - Wiki



Share this post


Link to post
Share on other sites

So, was trying to use this UDF, because I use ready to array, and readsheettoarray a LOT. As well as write to array. Was hoping for dramatic speed improvements(which I thought were listed). I copied the excel.au3 from the 1st post over the one in my include folders... yet I am experiencing no change in speeds? I assume I am doing something wrong, thoughts on what it is?

Share this post


Link to post
Share on other sites

The Alpha 1 version you can download from page 1 only contains an enhanced _ExcelReadSheetToArray version. Only this function shows the speed improvement.


My UDFs and Tutorials:

Spoiler

UDFs:
Active Directory (NEW 2020-07-21 - Version 1.5.1.0) - Download - General Help & Support - Example Scripts - Wiki
OutlookEX (NEW 2020-06-27 - Version 1.6.1.0) - Download - General Help & Support - Example Scripts - Wiki
OutlookEX_GUI (NEW 2020-06-27 - Version 1.3.2.0) - Download
Outlook Tools (2019-07-22 - Version 0.6.0.0) - Download - General Help & Support - Wiki
ExcelChart (2017-07-21 - Version 0.4.0.1) - Download - General Help & Support - Example Scripts
PowerPoint (2017-06-06 - Version 0.0.5.0) - Download - General Help & Support
Excel - Example Scripts - Wiki
Word - Wiki
Task Scheduler (2019-12-03 - Version 1.5.1.0) - Download - General Help & Support - Wiki

Tutorials:
ADO - Wiki, WebDriver - Wiki



Share this post


Link to post
Share on other sites

The Alpha 1 version you can download from page 1 only contains an enhanced _ExcelReadSheetToArray version. Only this function shows the speed improvement.

Does the speed improvement only show itself on Excel 2010+. I have a VM runnign excel 2003, a gig of ram, XP and it showed no speed increase(my laptop on the other hand was blazingly fast).

Also is there a way to get the alpha 2 already?

Either way, thanks for your work, its definitely a improvement so far.

Share this post


Link to post
Share on other sites

The speed enhancement can be seen on all Excel versions. The "old" UDF has written the array cell by cell whereas the "new" uses a range.

At the moment I'm running a to decide how important compatibility is for the users of the UDF. Did you vote already?

At the moment it looks like I'm going to move to a complete rewrite of the UDF. This means better design but script breaking changes for the users.


My UDFs and Tutorials:

Spoiler

UDFs:
Active Directory (NEW 2020-07-21 - Version 1.5.1.0) - Download - General Help & Support - Example Scripts - Wiki
OutlookEX (NEW 2020-06-27 - Version 1.6.1.0) - Download - General Help & Support - Example Scripts - Wiki
OutlookEX_GUI (NEW 2020-06-27 - Version 1.3.2.0) - Download
Outlook Tools (2019-07-22 - Version 0.6.0.0) - Download - General Help & Support - Wiki
ExcelChart (2017-07-21 - Version 0.4.0.1) - Download - General Help & Support - Example Scripts
PowerPoint (2017-06-06 - Version 0.0.5.0) - Download - General Help & Support
Excel - Example Scripts - Wiki
Word - Wiki
Task Scheduler (2019-12-03 - Version 1.5.1.0) - Download - General Help & Support - Wiki

Tutorials:
ADO - Wiki, WebDriver - Wiki



Share this post


Link to post
Share on other sites

Fair enough. If you are willing to, I am very interested in the Alpha 2 for my current scripting purposes, can give you feedback on it etc.

The only other obvious question I have is, why sheet to array is so fast, but readtoarray is not. I assume its a similar improvement/problem. I use readtoarray more than sheetreadtoarray.

Share this post


Link to post
Share on other sites

As soon as I have something to show I will post it for you to play with. Remember that the Alpha 1 I posted was an enhancement of the current UDF, the next Alpha will be a rewrite of the UDF causing some script breaking changes.

Stay tuned ...


My UDFs and Tutorials:

Spoiler

UDFs:
Active Directory (NEW 2020-07-21 - Version 1.5.1.0) - Download - General Help & Support - Example Scripts - Wiki
OutlookEX (NEW 2020-06-27 - Version 1.6.1.0) - Download - General Help & Support - Example Scripts - Wiki
OutlookEX_GUI (NEW 2020-06-27 - Version 1.3.2.0) - Download
Outlook Tools (2019-07-22 - Version 0.6.0.0) - Download - General Help & Support - Wiki
ExcelChart (2017-07-21 - Version 0.4.0.1) - Download - General Help & Support - Example Scripts
PowerPoint (2017-06-06 - Version 0.0.5.0) - Download - General Help & Support
Excel - Example Scripts - Wiki
Word - Wiki
Task Scheduler (2019-12-03 - Version 1.5.1.0) - Download - General Help & Support - Wiki

Tutorials:
ADO - Wiki, WebDriver - Wiki



Share this post


Link to post
Share on other sites

Where it's sensible, yes. Which functions doy ou have in mind?


My UDFs and Tutorials:

Spoiler

UDFs:
Active Directory (NEW 2020-07-21 - Version 1.5.1.0) - Download - General Help & Support - Example Scripts - Wiki
OutlookEX (NEW 2020-06-27 - Version 1.6.1.0) - Download - General Help & Support - Example Scripts - Wiki
OutlookEX_GUI (NEW 2020-06-27 - Version 1.3.2.0) - Download
Outlook Tools (2019-07-22 - Version 0.6.0.0) - Download - General Help & Support - Wiki
ExcelChart (2017-07-21 - Version 0.4.0.1) - Download - General Help & Support - Example Scripts
PowerPoint (2017-06-06 - Version 0.0.5.0) - Download - General Help & Support
Excel - Example Scripts - Wiki
Word - Wiki
Task Scheduler (2019-12-03 - Version 1.5.1.0) - Download - General Help & Support - Wiki

Tutorials:
ADO - Wiki, WebDriver - Wiki



Share this post


Link to post
Share on other sites

I have added the Alpha 2 to the first post for download. It's a complete rewrite of the UDF so do not expect it to work with your existing scripts.

You need to run the example scripts with Beta 3.3.9.2 or later.

Please tell me what you think!


My UDFs and Tutorials:

Spoiler

UDFs:
Active Directory (NEW 2020-07-21 - Version 1.5.1.0) - Download - General Help & Support - Example Scripts - Wiki
OutlookEX (NEW 2020-06-27 - Version 1.6.1.0) - Download - General Help & Support - Example Scripts - Wiki
OutlookEX_GUI (NEW 2020-06-27 - Version 1.3.2.0) - Download
Outlook Tools (2019-07-22 - Version 0.6.0.0) - Download - General Help & Support - Wiki
ExcelChart (2017-07-21 - Version 0.4.0.1) - Download - General Help & Support - Example Scripts
PowerPoint (2017-06-06 - Version 0.0.5.0) - Download - General Help & Support
Excel - Example Scripts - Wiki
Word - Wiki
Task Scheduler (2019-12-03 - Version 1.5.1.0) - Download - General Help & Support - Wiki

Tutorials:
ADO - Wiki, WebDriver - Wiki



Share this post


Link to post
Share on other sites

Alpha 2 of the new Excel UDF released on the first post. Be aware that Alpha 2 is a complete rewrite of the UDF. That means the UDF is not compatible with the UDF that is distributed with AutoIt now nor with the Alpha 1.

Just check the example script to see how it works.

Any feedback is welcome!


My UDFs and Tutorials:

Spoiler

UDFs:
Active Directory (NEW 2020-07-21 - Version 1.5.1.0) - Download - General Help & Support - Example Scripts - Wiki
OutlookEX (NEW 2020-06-27 - Version 1.6.1.0) - Download - General Help & Support - Example Scripts - Wiki
OutlookEX_GUI (NEW 2020-06-27 - Version 1.3.2.0) - Download
Outlook Tools (2019-07-22 - Version 0.6.0.0) - Download - General Help & Support - Wiki
ExcelChart (2017-07-21 - Version 0.4.0.1) - Download - General Help & Support - Example Scripts
PowerPoint (2017-06-06 - Version 0.0.5.0) - Download - General Help & Support
Excel - Example Scripts - Wiki
Word - Wiki
Task Scheduler (2019-12-03 - Version 1.5.1.0) - Download - General Help & Support - Wiki

Tutorials:
ADO - Wiki, WebDriver - Wiki



Share this post


Link to post
Share on other sites

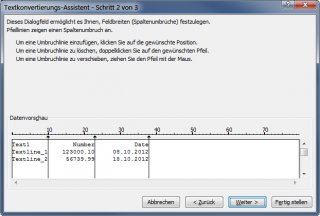

I am about to add functions to import text files into Excel.

Importing CSV (comma separated values) files is easy.

Importing fixed width files is more complex.

Does anyone need a function to import fixed width files?

post-7903-0-47948200-1351692111_thumb.pn


My UDFs and Tutorials:

Spoiler

UDFs:
Active Directory (NEW 2020-07-21 - Version 1.5.1.0) - Download - General Help & Support - Example Scripts - Wiki
OutlookEX (NEW 2020-06-27 - Version 1.6.1.0) - Download - General Help & Support - Example Scripts - Wiki
OutlookEX_GUI (NEW 2020-06-27 - Version 1.3.2.0) - Download
Outlook Tools (2019-07-22 - Version 0.6.0.0) - Download - General Help & Support - Wiki
ExcelChart (2017-07-21 - Version 0.4.0.1) - Download - General Help & Support - Example Scripts
PowerPoint (2017-06-06 - Version 0.0.5.0) - Download - General Help & Support
Excel - Example Scripts - Wiki
Word - Wiki
Task Scheduler (2019-12-03 - Version 1.5.1.0) - Download - General Help & Support - Wiki

Tutorials:
ADO - Wiki, WebDriver - Wiki



Share this post


Link to post
Share on other sites

Create an account or sign in to comment

You need to be a member in order to leave a comment

Create an account

Sign up for a new account in our community. It's easy!

Register a new account

Sign in

Already have an account? Sign in here.

Sign In Now
Sign in to follow this

  • Recently Browsing   0 members

    No registered users viewing this page.

  • Similar Content

    • By Langmeister
      Hi, I'm sure that this is a simple question regarding webdriver udf but my search on the forum did not result in the exact same scenario that I need. I will adapt it to my corporate needs but at first I want it to work with an example everybody can reproduce if needed.
      I navigate to https://www.daysoftheyear.com/ and want to find out what special day today is. Using the following Code returns the wanted text that today is 'shark awareness day' in the console but it is not pasted in notepad as it is not copied as it probably should be.
      #include "wd_core.au3" #include "wd_helper.au3" Local $sDesiredCapabilities, $sSession, $sID _WD_Option("Driver", "C:\Program Files (x86)\AutoIt3\chromedriver.exe") _WD_Option('Port', 9515) _WD_Option('DriverParams', '--log-path="' & @ScriptDir & '\chrome.log"') $sDesiredCapabilities = '{"capabilities": {"alwaysMatch": {"goog:chromeOptions": {"w3c": true }}}}' _WD_Startup() $sSession = _WD_CreateSession($sDesiredCapabilities) _WD_Navigate($sSession, "https://www.daysoftheyear.com/?timezone_offset=nan") _WD_LoadWait($sSession) Sleep(3000) Local $sElement = _WD_FindElement($sSession, $_WD_LOCATOR_ByXPath, "/html/body/div[2]/header/div/div[1]/div/div[2]/h3/a") _WD_ElementAction($sSession, $sElement, 'text') ClipGet() Run("notepad.exe") Sleep(500) Send("^v") Scite returns this, therefore the text has been found but the last mile to paste it to notepad or excel does not work for me.
      __WD_Get: URL=HTTP://127.0.0.1:9515/session/b72166b774d7fefb258b3721fc1d4306/element/657e6b5d-31a9-46a8-85c4-acb7f72bf659/text __WD_Get: StatusCode=200; $iResult = 0; $sResponseText={"value":"Shark Awareness Day"}... _WD_ElementAction: {"value":"Shark Awareness Day"}... Thanks in advance!

    • By pat4005
      A tiny UDF that can shoot magic packets at your computers to wake them the heck up. All credits to Olish.
      The only parameter it needs to be specified – is your machine's MAC-address (ip address (the second parameter), at which you will be sending magic packet is generating automatically from @IPAddress1 macro)
      Example:
      _WoL_WakeDevice('001CC0CAED7A') ; the second parameter (if necessery) must be a broadcast address of your local network segment (i.e. 192.168.0.255 for a network 192.168.0.0)
      _WakeOnLan.au3
    • By GOSM
      Hey,
      as part of a larger Programm I am trying to copy the values from one cell in an Excel file to another. The code I am using is the folowing.

      Local $oExcel = _Excel_Open() If @error Then Exit MsgBox($MB_SYSTEMMODAL, "Excel UDF: _Excel_RangeCopy Example", "Error creating the Excel application object." & @CRLF & "@error = " & @error & ", @extended = " & @extended) _Excel_RangeCopyPaste($oExcel.ActiveSheet, "V4:W43", "X4", False, $xlPasteValues, Default, True) If @error Then Exit MsgBox($MB_SYSTEMMODAL, "Excel UDF: _Excel_RangeCopy Example 4", "Error copying rows." & @CRLF & "@error = " & @error & ", @extended = " & @extended) MsgBox($MB_SYSTEMMODAL, "Excel UDF: _Excel_RangeCopy Example 4", "2 Rows successfully pasted from the clipboard to row 1.") As I understood it the option $xlPasteValues should do the trick  but it is still copying the inserted formulas. I attached a test code and excel file.
      Thanks for the help Simon
      Copy Values Test.zip
    • By Chimp
      An "improper" "unusual" use of Excel
      the script allows the creation of artistic images by simply coloring the background of the individual cells of the Excel workbook.
      Although definitely useless ... I find it quite funny though
      have a good time
      many thanks to @UEZ , @Malkey , @water
      p.s.
      I think the pixelite + color to array process can be simplified, but I used the two ready-made functions provided by UEZ and Malkey. I thank both of you (credits  and links in listing)
      p.p.s.
      strange behaviour: while excell is filling cells, if you move the mouse pointer off the excell window, the fill speed increases ... (?)


      ; =============================================================================================================================== ; Name ..........: Excel in art ; Description ...: This script allows the creation of artistic images in Excel from a choosed picture. ; The picture is done by simply coloring the background of the individual cells of an Excel workbook. ; Although definitely useless, I find it quite funny though ; ; Return values .: An artistic image in an Excel workbook ; Author ........: Addiego Gianni (chimp) ; Modified ......: ; Remarks .......: Many thanks to UEZ, Malkey and Water ; Related .......: ; Link ..........: ; Example .......: ; =============================================================================================================================== #include <GDIPlus.au3> #include <Excel.au3> _PixelsToCells(50) ; <-- Parameter 50 is the cumber of horizontal Excel cells to be filled MsgBox(64, "All done", "Excel art is ready") Func _PixelsToCells($iHcells = 50) ; Check application object Local $oExcel = _Excel_Open() If Not IsObj($oExcel) Then MsgBox(16, "Error", "Sorry, You need to have 'Excel' intalled") ; Choose Image File Local $sPath = FileOpenDialog("Choose Image File", @ScriptDir & "", "Images (*.gif;*.png;*.jpg;*.bmp)| All (*.*)") If $sPath = '' Then Exit MsgBox(16, "Error", "Sorry, no image was chosen") ; Create a new Excel workbook $oWorkbook = _Excel_BookNew($oExcel, 1) ; initialize GDI+ _GDIPlus_Startup() Local $hBmp = _GDIPlus_BitmapCreateFromFile($sPath) Local $iWidth = _GDIPlus_ImageGetWidth($hBmp) ; get image width ; Local $iHeight = _GDIPlus_ImageGetHeight($hBmp) ; not needed here Local $iStep = $iWidth / $iHcells ; calculate the pixelation factor Local $hBitmap_new = _GDIPlus_PixelateBitmap($hBmp, $iStep) ; pixelate the image Local $aPixelColors = _FileImageToArray($hBitmap_new) ; get pixel colors ; reduce Excel columns width Local $xx = 1, $yy = 1 For $iCol = 0 To UBound($aPixelColors, 2) - 1 Step $iStep $oWorkbook.Sheets(1).Columns($xx).ColumnWidth = 1 $xx += 1 Next ; reduce Excel rows height For $iRow = 0 To UBound($aPixelColors) - 1 Step $iStep $oWorkbook.Sheets(1).Rows($yy).RowHeight = 9 $yy += 1 Next $xx = 1 $yy = 1 For $iRow = 0 To UBound($aPixelColors) - 1 Step $iStep For $iCol = 0 To UBound($aPixelColors, 2) - 1 Step $iStep $oWorkbook.Sheets(1).Range(_Excel_ColumnToLetter($xx) & $yy).Interior.Color = Number("0x" & $aPixelColors[$iRow][$iCol]) $xx += 1 Next $yy += 1 $xx = 1 Next _GDIPlus_BitmapDispose($hBmp) _GDIPlus_Shutdown() EndFunc ;==>_PixelsToCells ; by UEZ ; https://www.autoitscript.com/forum/topic/167707-imagepixelate/?do=findComment&comment=1227509 Func _GDIPlus_PixelateBitmap($hBitmap, $iPixelate, $bSmooth = 1) Local $iWidth = _GDIPlus_ImageGetWidth($hBitmap), $iHeight = _GDIPlus_ImageGetHeight($hBitmap) Local $iNewW = Round($iWidth / $iPixelate, 0), $iNewH = Round($iHeight / $iPixelate, 0) Local $hBitmap_scaled = _GDIPlus_BitmapCreateFromScan0($iNewW, $iNewH) Local $hCtxt = _GDIPlus_ImageGetGraphicsContext($hBitmap_scaled) Local $iInterpolation = 5 If $bSmooth Then $iInterpolation = $GDIP_INTERPOLATIONMODE_BILINEAR _GDIPlus_GraphicsSetInterpolationMode($hCtxt, $iInterpolation) _GDIPlus_GraphicsDrawImageRect($hCtxt, $hBitmap, 0, 0, $iNewW, $iNewH) _GDIPlus_GraphicsDispose($hCtxt) Local $hBitmap_pixelated = _GDIPlus_BitmapCreateFromScan0($iWidth, $iHeight) $hCtxt = _GDIPlus_ImageGetGraphicsContext($hBitmap_pixelated) _GDIPlus_GraphicsSetInterpolationMode($hCtxt, $GDIP_INTERPOLATIONMODE_NearestNeighbor) _GDIPlus_GraphicsDrawImageRectRect($hCtxt, $hBitmap_scaled, 0, 0, $iNewW, $iNewH, -$iPixelate, -$iPixelate, $iWidth + 2 * $iPixelate, $iHeight + 2 * $iPixelate) _GDIPlus_GraphicsDispose($hCtxt) Return $hBitmap_pixelated EndFunc ;==>_GDIPlus_PixelateBitmap ; by Malkey ; https://www.autoitscript.com/forum/topic/112540-is-there-a-function-for-reading-images-into-2d-arrays/?do=findComment&comment=788472 Func _FileImageToArray($hImage) Local $Reslt, $stride, $format, $Scan0, $iIW, $iIH ; , $hImage Local $v_Buffer, $width, $height ; _GDIPlus_Startup() ; $hImage = _GDIPlus_ImageLoadFromFile($sFileName) $iIW = _GDIPlus_ImageGetWidth($hImage) $iIH = _GDIPlus_ImageGetHeight($hImage) ProgressOn("Progress Bar", "Filling a " & $iIW & " x " & $iIH & " size array.", "0 percent") $Reslt = _GDIPlus_BitmapLockBits($hImage, 0, 0, $iIW, $iIH, $GDIP_ILMREAD, $GDIP_PXF32ARGB) ;Get the returned values of _GDIPlus_BitmapLockBits () $width = DllStructGetData($Reslt, "width") $height = DllStructGetData($Reslt, "height") $stride = DllStructGetData($Reslt, "stride") $format = DllStructGetData($Reslt, "format") $Scan0 = DllStructGetData($Reslt, "Scan0") Local $aArray[$height][$width] For $j = 0 To $iIH - 1 For $i = 0 To $iIW - 1 $v_Buffer = DllStructCreate("dword", $Scan0 + ($j * $stride) + ($i * 4)) $aArray[$j][$i] = StringRegExpReplace(Hex(DllStructGetData($v_Buffer, 1), 6), "(.{2})(.{2})(.{2})", "\3\2\1") ; To RGB format Next ProgressSet(Int(100 * $j / ($iIH)), Int(100 * $j / ($iIH)) & " percent") Next _GDIPlus_BitmapUnlockBits($hImage, $Reslt) ProgressOff() _GDIPlus_ImageDispose($hImage) Return $aArray EndFunc ;==>_FileImageToArray
    • By MrCreatoR
      This UDF allows to create formatted label using pseudo element RichLabel (RichEdit actually). Formating is set by using special modificator similar to <font> tag in Html.
      Notes: This UDF is a transformation-continuation of related UDF


      Example:
      Download:
      GUIRichLabel_1.2.zip
      Small syntax related fix: GUIRichLabel_1.1.zip
      GUIRichLabel_1.1.zip

      History version:
×
×
  • Create New...
