JohnOne

Listview in Tab

19 posts in this topic

After >JohnMcloud showing me how to select individual items in a listview earlier, I've been pulling my hair out trying to get it to work in my own script for quite a while.

I finally discovered the problem was occurring because the listview was on a tab item.

The symptoms are:

You have to click on the selection you want, and then the one above it, for the actuall selection to happen.

I'd love some help on this. I've created a reproducer, below...

#include <WindowsConstants.au3>
#include <GUIConstantsEx.au3>
#include <GuiListView.au3>

Global $hGUI, $hListview, $aHit[2] = [-1, -1]

$hGUI = GUICreate("Listview in TAB", 250, 180)

GUISetBkColor(0x00E0FFFF)
GUISetFont(9, 300)

Local $idTab = GUICtrlCreateTab(0, 0, 250, 130)

GUICtrlCreateTabItem("tab")

$iListview = GUICtrlCreateListView("one|two|three", 0, 20, 350, 130, $LVS_REPORT, BitOR($LVS_EX_GRIDLINES, $LVS_EX_FULLROWSELECT))
$hListview = GUICtrlGetHandle($iListview)
GUICtrlCreateListViewItem("0-0|0-1|0-2", $iListview)
GUICtrlCreateListViewItem("1-0|1-1|1-2", $iListview)
GUICtrlCreateListViewItem("2-0|2-1|2-2", $iListview)
GUICtrlCreateTabItem("")

$hButton = GUICtrlCreateButton("Click", 0, 155, 250, 20)

GUISetState(@SW_SHOW)
GUIRegisterMsg($WM_NOTIFY, "WM_NOTIFY")
Local $idMsg

While 2
    Switch GUIGetMsg()
        Case $GUI_EVENT_CLOSE
            ExitLoop
        Case $hButton
            MsgBox(0, "Info", "Cell selected: " & _GUICtrlListView_GetItemText($hListview, $aHit[0], $aHit[1]) & @CR, 0, $hGUI)
    EndSwitch
WEnd


Func WM_NOTIFY($hWnd, $iMsg, $wParam, $lParam)
    #forceref $hWnd, $iMsg, $wParam
    Local $tNMHDR, $hWndFrom, $iCode
    $tNMHDR = DllStructCreate($tagNMHDR, $lParam)
    $hWndFrom = HWnd(DllStructGetData($tNMHDR, "hWndFrom"))
    $iCode = DllStructGetData($tNMHDR, "Code")
    Switch $hWndFrom
        Case $hListview
            Switch $iCode
                Case $LVN_ITEMCHANGED
                    Local $tNMLISTVIEW, $iItem, $aInfo
                    $tNMLISTVIEW = DllStructCreate($tagNMLISTVIEW, $lParam)
                    $iItem = DllStructGetData($tNMLISTVIEW, "Item")
                    _GUICtrlListView_SetItemSelected($hListview, $iItem, False)
                    Local $aInfo = GUIGetCursorInfo($hGUI)
                    If $aInfo[2] Then
                        $aInfo = _GUICtrlListView_SubItemHitTest($hListview, $aInfo[0] - 2, $aInfo[1] - 2) ; Upper left = ( 2, 2 )
                        If $aInfo[0] > -1 And $aInfo[1] > -1 And $aInfo[0] = $iItem Then
                            If $aHit[0] > -1 Then _GUICtrlListView_RedrawItems($hListview, $aHit[0], $aHit[0])
                            If $aHit[0] <> $aInfo[0] Or $aHit[1] <> $aInfo[1] Then
                                $aHit[0] = $aInfo[0] ; Row
                                $aHit[1] = $aInfo[1] ; Col
                            Else
                                $aHit[0] = -1 ; Row
                                $aHit[1] = -1 ; Col
                            EndIf
                            _GUICtrlListView_RedrawItems($hListview, $iItem, $iItem)
                        EndIf
                    EndIf
                Case $NM_CUSTOMDRAW
                    Local $tNMLVCUSTOMDRAW = DllStructCreate($tagNMLVCUSTOMDRAW, $lParam)
                    Local $dwDrawStage = DllStructGetData($tNMLVCUSTOMDRAW, "dwDrawStage")
                    Switch $dwDrawStage ; Holds a value that specifies the drawing stage
                        Case $CDDS_PREPAINT ; Before the paint cycle begins
                            Return $CDRF_NOTIFYITEMDRAW ; Notify the parent window of any ITEM-related drawing operations
                        Case $CDDS_ITEMPREPAINT ; Before painting an item
                            Return $CDRF_NOTIFYSUBITEMDRAW ; Notify the parent window of any SUBITEM-related drawing operations
                        Case BitOR($CDDS_ITEMPREPAINT, $CDDS_SUBITEM) ; Before painting a subitem
                            Local $dwItemSpec = DllStructGetData($tNMLVCUSTOMDRAW, "dwItemSpec") ; Item index
                            Local $iSubItem = DllStructGetData($tNMLVCUSTOMDRAW, "iSubItem") ; Subitem index
                            Local $uItemState = DllStructGetData($tNMLVCUSTOMDRAW, "uItemState") ; Item state
                            If $dwItemSpec = $aHit[0] Then ; Marked row
                                Switch $iSubItem
                                    Case $aHit[1] ; Marked column
                                        DllStructSetData($tNMLVCUSTOMDRAW, "ClrText", 0xFFFFFF) ; Forecolor white
                                        DllStructSetData($tNMLVCUSTOMDRAW, "clrTextBk", 0xCC6600) ; Backcolor dark blue, BGR
                                    Case Else ; Other columns
                                        DllStructSetData($tNMLVCUSTOMDRAW, "ClrText", 0x000000) ; Forecolor black
                                        DllStructSetData($tNMLVCUSTOMDRAW, "ClrTextBk", 0xFFFFFF) ; Backcolor white
                                EndSwitch
                            Else ; Other rows
                                DllStructSetData($tNMLVCUSTOMDRAW, "ClrText", 0x000000)
                                DllStructSetData($tNMLVCUSTOMDRAW, "ClrTextBk", 0xFFFFFF)
                            EndIf
                            Return $CDRF_NEWFONT ; $CDRF_NEWFONT must be returned after changing font or colors
                    EndSwitch
            EndSwitch
    EndSwitch
    Return $GUI_RUNDEFMSG
EndFunc   ;==>WM_NOTIFY

AutoIt Absolute Beginners    Require a serial    Pause Script    Video Tutorials by Morthawt   ipify

Monkey's are, like, natures humans.

Share this post


Link to post
Share on other sites



I'am not sure, but maybe this:

;~                         $aInfo = _GUICtrlListView_SubItemHitTest($hListview, $aInfo[0] - 2, $aInfo[1] - 2) ; Upper left = ( 2, 2 )
                        $aInfo = _GUICtrlListView_SubItemHitTest($hListview, -1, -1) ; Upper left = ( 2, 2 )
1 person likes this

Signature beginning:   Wondering who uses AutoIT and what it can be used for ?
* GHAPI UDF - modest begining - comunication with GitHub REST API *
ADO.au3 UDF     POP3.au3 UDF     XML.au3 UDF    How to use IE.au3  UDF with  AutoIt v3.3.14.x  for other useful stuff click the following button

Spoiler

Any of my own code posted anywhere on the forum is available for use by others without any restriction of any kind.

My contribution (my own projects): * Debenu Quick PDF Library - UDF * Debenu PDF Viewer SDK - UDF * Acrobat Reader - ActiveX Viewer * UDF for PDFCreator v1.x.x * XZip - UDF * AppCompatFlags UDF * CrowdinAPI UDF * _WinMergeCompare2Files() * _JavaExceptionAdd() * _IsBeta() * Writing DPI Awareness App - workaround * _AutoIt_RequiredVersion() * Chilkatsoft.au3 UDF * TeamViewer.au3 UDF * JavaManagement UDF * VIES over SOAP * WinSCP UDF * GHAPI UDF - modest begining - comunication with GitHub REST API *

My contribution to others projects or UDF based on  others projects: * _sql.au3 UDF  * POP3.au3 UDF *  RTF Printer - UDF * XML.au3 - BETA * ADO.au3 UDF SMTP Mailer UDF *

Useful links: * Forum Rules * Forum etiquette *  Forum Information and FAQs * How to post code on the forum * AutoIt Online Documentation * AutoIt Online Beta Documentation * SciTE4AutoIt3 getting started * Convert text blocks to AutoIt code * Games made in Autoit * Programming related sites * Polish AutoIt Tutorial * DllCall Code Generator *

Wiki: Expand your knowledge - AutoIt Wiki * Collection of User Defined Functions * How to use HelpFile * Best coding practices *

IE Related:  * How to use IE.au3  UDF with  AutoIt v3.3.14.x * Why isn't Autoit able to click a Javascript Dialog? * Clicking javascript button with no ID * IE document >> save as MHT file * IETab Switcher (by LarsJ ) * HTML Entities * _IEquerySelectorAll() (by uncommon) *

I encourage you to read: * Global Vars * Best Coding Practices * Please explain code used in Help file for several File functions * OOP-like approach in AutoIt * UDF-Spec Questions *  EXAMPLE: How To Catch ConsoleWrite() output to a file or to CMD *

"Homo sum; humani nil a me alienum puto" - Publius Terentius Afer
"Program are meant to be read by humans and only incidentally for computers and execute" - Donald Knuth, "The Art of Computer Programming"
:naughty:  :ranting:, be  :) and       \\//_.

Anticipating Errors :  "Any program that accepts data from a user must include code to validate that data before sending it to the data store. You cannot rely on the data store, ...., or even your programming language to notify you of problems. You must check every byte entered by your users, making sure that data is the correct type for its field and that required fields are not empty."

Signature last update: 2017-06-04

Share this post


Link to post
Share on other sites

#4 ·  Posted (edited)

The problem is that you are not selecting a cell explicitly. Your code will work till you select a cell and not mark a row only -> not tab related!

Try this:

Switch $iCode
                Case $NM_CLICK
                    $tInfo = DllStructCreate($tagNMITEMACTIVATE, $lParam)
                    $aHit[0] = $tInfo.Index
                    $aHit[1] = $tInfo.SubItem
                Case $LVN_ITEMCHANGED

Br,

UEZ

Edited by UEZ
1 person likes this

Please don't send me any personal message and ask for support! I will not reply!

Selection of finest graphical examples at Codepen.io

The own fart smells best!
Her 'sikim hıyar' diyene bir avuç tuz alıp koşma!
¯\_(ツ)_/¯  ٩(●̮̮̃•̃)۶ ٩(-̮̮̃-̃)۶ૐ

Share this post


Link to post
Share on other sites

#6 ·  Posted (edited)

You have to check your code in the WM_NOTIFY function -> $LVN_ITEMCHANGED and $NM_CUSTOMDRAW.

If you disable those check it will work properly but you have no explicitly cell selection.

Br,

UEZ

Edited by UEZ
1 person likes this

Please don't send me any personal message and ask for support! I will not reply!

Selection of finest graphical examples at Codepen.io

The own fart smells best!
Her 'sikim hıyar' diyene bir avuç tuz alıp koşma!
¯\_(ツ)_/¯  ٩(●̮̮̃•̃)۶ ٩(-̮̮̃-̃)۶ૐ

Share this post


Link to post
Share on other sites

#7 ·  Posted (edited)

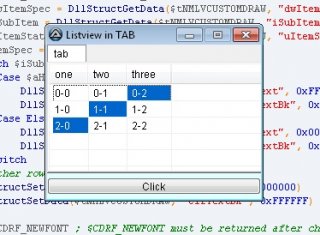

do you want to select X ??

Edit:
I mean:



0-0|   |0-2

   |1-1|
2-0|   |2-2

Edited by mlipok
1 person likes this

Signature beginning:   Wondering who uses AutoIT and what it can be used for ?
* GHAPI UDF - modest begining - comunication with GitHub REST API *
ADO.au3 UDF     POP3.au3 UDF     XML.au3 UDF    How to use IE.au3  UDF with  AutoIt v3.3.14.x  for other useful stuff click the following button

Spoiler

Any of my own code posted anywhere on the forum is available for use by others without any restriction of any kind.

My contribution (my own projects): * Debenu Quick PDF Library - UDF * Debenu PDF Viewer SDK - UDF * Acrobat Reader - ActiveX Viewer * UDF for PDFCreator v1.x.x * XZip - UDF * AppCompatFlags UDF * CrowdinAPI UDF * _WinMergeCompare2Files() * _JavaExceptionAdd() * _IsBeta() * Writing DPI Awareness App - workaround * _AutoIt_RequiredVersion() * Chilkatsoft.au3 UDF * TeamViewer.au3 UDF * JavaManagement UDF * VIES over SOAP * WinSCP UDF * GHAPI UDF - modest begining - comunication with GitHub REST API *

My contribution to others projects or UDF based on  others projects: * _sql.au3 UDF  * POP3.au3 UDF *  RTF Printer - UDF * XML.au3 - BETA * ADO.au3 UDF SMTP Mailer UDF *

Useful links: * Forum Rules * Forum etiquette *  Forum Information and FAQs * How to post code on the forum * AutoIt Online Documentation * AutoIt Online Beta Documentation * SciTE4AutoIt3 getting started * Convert text blocks to AutoIt code * Games made in Autoit * Programming related sites * Polish AutoIt Tutorial * DllCall Code Generator *

Wiki: Expand your knowledge - AutoIt Wiki * Collection of User Defined Functions * How to use HelpFile * Best coding practices *

IE Related:  * How to use IE.au3  UDF with  AutoIt v3.3.14.x * Why isn't Autoit able to click a Javascript Dialog? * Clicking javascript button with no ID * IE document >> save as MHT file * IETab Switcher (by LarsJ ) * HTML Entities * _IEquerySelectorAll() (by uncommon) *

I encourage you to read: * Global Vars * Best Coding Practices * Please explain code used in Help file for several File functions * OOP-like approach in AutoIt * UDF-Spec Questions *  EXAMPLE: How To Catch ConsoleWrite() output to a file or to CMD *

"Homo sum; humani nil a me alienum puto" - Publius Terentius Afer
"Program are meant to be read by humans and only incidentally for computers and execute" - Donald Knuth, "The Art of Computer Programming"
:naughty:  :ranting:, be  :) and       \\//_.

Anticipating Errors :  "Any program that accepts data from a user must include code to validate that data before sending it to the data store. You cannot rely on the data store, ...., or even your programming language to notify you of problems. You must check every byte entered by your users, making sure that data is the correct type for its field and that required fields are not empty."

Signature last update: 2017-06-04

Share this post


Link to post
Share on other sites

#8 ·  Posted (edited)

J1,

This works for me...

<code deleted>

To recolor the items I believe you have to loop back throught the listview, not sure though...

Have you seen M23's listview UDF?  I think it's called _GuiCtrlListViewEX...

Edited by kylomas
1 person likes this

Forum Rules         Procedure for posting code

"I like pigs.  Dogs look up to us.  Cats look down on us.  Pigs treat us as equals."

- Sir Winston Churchill

Share this post


Link to post
Share on other sites

If I comment out customdraw...

Switch $iCode
                Case $NM_CLICK
                    $tInfo = DllStructCreate($tagNMITEMACTIVATE, $lParam)
                    $aHit[0] = $tInfo.Index
                    $aHit[1] = $tInfo.SubItem
                    ;#cs
                Case $LVN_ITEMCHANGED
                    Local $tNMLISTVIEW, $iItem, $aInfo
                    $tNMLISTVIEW = DllStructCreate($tagNMLISTVIEW, $lParam)
                    $iItem = DllStructGetData($tNMLISTVIEW, "Item")
                    _GUICtrlListView_SetItemSelected($hListview, $iItem, False)
                    Local $aInfo = GUIGetCursorInfo($hGUI)
                    If $aInfo[2] Then
                        $aInfo = _GUICtrlListView_SubItemHitTest($hListview, $aInfo[0] - 2, $aInfo[1] - 2) ; Upper left = ( 2, 2 )
                        If $aInfo[0] > -1 And $aInfo[1] > -1 And $aInfo[0] = $iItem Then
                            If $aHit[0] > -1 Then _GUICtrlListView_RedrawItems($hListview, $aHit[0], $aHit[0])
                            If $aHit[0] <> $aInfo[0] Or $aHit[1] <> $aInfo[1] Then
                                $aHit[0] = $aInfo[0] ; Row
                                $aHit[1] = $aInfo[1] ; Col
                            Else
                                $aHit[0] = -1 ; Row
                                $aHit[1] = -1 ; Col
                            EndIf
                            _GUICtrlListView_RedrawItems($hListview, $iItem, $iItem)
                        EndIf
                    EndIf
                    ;#ce
                    #cs
                Case $NM_CUSTOMDRAW
                    Local $tNMLVCUSTOMDRAW = DllStructCreate($tagNMLVCUSTOMDRAW, $lParam)
                    Local $dwDrawStage = DllStructGetData($tNMLVCUSTOMDRAW, "dwDrawStage")
                    Switch $dwDrawStage ; Holds a value that specifies the drawing stage
                        Case $CDDS_PREPAINT ; Before the paint cycle begins
                            Return $CDRF_NOTIFYITEMDRAW ; Notify the parent window of any ITEM-related drawing operations
                        Case $CDDS_ITEMPREPAINT ; Before painting an item
                            Return $CDRF_NOTIFYSUBITEMDRAW ; Notify the parent window of any SUBITEM-related drawing operations
                        Case BitOR($CDDS_ITEMPREPAINT, $CDDS_SUBITEM) ; Before painting a subitem
                            Local $dwItemSpec = DllStructGetData($tNMLVCUSTOMDRAW, "dwItemSpec") ; Item index
                            Local $iSubItem = DllStructGetData($tNMLVCUSTOMDRAW, "iSubItem") ; Subitem index
                            Local $uItemState = DllStructGetData($tNMLVCUSTOMDRAW, "uItemState") ; Item state
                            If $dwItemSpec = $aHit[0] Then ; Marked row
                                Switch $iSubItem
                                    Case $aHit[1] ; Marked column
                                        DllStructSetData($tNMLVCUSTOMDRAW, "ClrText", 0xFFFFFF) ; Forecolor white
                                        DllStructSetData($tNMLVCUSTOMDRAW, "clrTextBk", 0xCC6600) ; Backcolor dark blue, BGR
                                    Case Else ; Other columns
                                        DllStructSetData($tNMLVCUSTOMDRAW, "ClrText", 0x000000) ; Forecolor black
                                        DllStructSetData($tNMLVCUSTOMDRAW, "ClrTextBk", 0xFFFFFF) ; Backcolor white
                                EndSwitch
                            Else ; Other rows
                                DllStructSetData($tNMLVCUSTOMDRAW, "ClrText", 0x000000)
                                DllStructSetData($tNMLVCUSTOMDRAW, "ClrTextBk", 0xFFFFFF)
                            EndIf
                            Return $CDRF_NEWFONT ; $CDRF_NEWFONT must be returned after changing font or colors

                    EndSwitch
                    #ce
            EndSwitch

Then the correct item is returned, but obviously no selection is shown.

I'm looking at the code in that block for a while, but my head is just spinning.


AutoIt Absolute Beginners    Require a serial    Pause Script    Video Tutorials by Morthawt   ipify

Monkey's are, like, natures humans.

Share this post


Link to post
Share on other sites

Just relax awhile watching a european league match which has just started.

I'm watching Sporting Lissabon - Wolfburg...



Br,

UEZ

1 person likes this

Please don't send me any personal message and ask for support! I will not reply!

Selection of finest graphical examples at Codepen.io

The own fart smells best!
Her 'sikim hıyar' diyene bir avuç tuz alıp koşma!
¯\_(ツ)_/¯  ٩(●̮̮̃•̃)۶ ٩(-̮̮̃-̃)۶ૐ

Share this post


Link to post
Share on other sites

Belay the above, the cell selection is jumping all over the place...sorry...

1 person likes this

Forum Rules         Procedure for posting code

"I like pigs.  Dogs look up to us.  Cats look down on us.  Pigs treat us as equals."

- Sir Winston Churchill

Share this post


Link to post
Share on other sites

Maybe here you can find your hints

I'am thinking about makeing an array to check what was clicked , and using this array to change back color in selected cell.

1 person likes this

Signature beginning:   Wondering who uses AutoIT and what it can be used for ?
* GHAPI UDF - modest begining - comunication with GitHub REST API *
ADO.au3 UDF     POP3.au3 UDF     XML.au3 UDF    How to use IE.au3  UDF with  AutoIt v3.3.14.x  for other useful stuff click the following button

Spoiler

Any of my own code posted anywhere on the forum is available for use by others without any restriction of any kind.

My contribution (my own projects): * Debenu Quick PDF Library - UDF * Debenu PDF Viewer SDK - UDF * Acrobat Reader - ActiveX Viewer * UDF for PDFCreator v1.x.x * XZip - UDF * AppCompatFlags UDF * CrowdinAPI UDF * _WinMergeCompare2Files() * _JavaExceptionAdd() * _IsBeta() * Writing DPI Awareness App - workaround * _AutoIt_RequiredVersion() * Chilkatsoft.au3 UDF * TeamViewer.au3 UDF * JavaManagement UDF * VIES over SOAP * WinSCP UDF * GHAPI UDF - modest begining - comunication with GitHub REST API *

My contribution to others projects or UDF based on  others projects: * _sql.au3 UDF  * POP3.au3 UDF *  RTF Printer - UDF * XML.au3 - BETA * ADO.au3 UDF SMTP Mailer UDF *

Useful links: * Forum Rules * Forum etiquette *  Forum Information and FAQs * How to post code on the forum * AutoIt Online Documentation * AutoIt Online Beta Documentation * SciTE4AutoIt3 getting started * Convert text blocks to AutoIt code * Games made in Autoit * Programming related sites * Polish AutoIt Tutorial * DllCall Code Generator *

Wiki: Expand your knowledge - AutoIt Wiki * Collection of User Defined Functions * How to use HelpFile * Best coding practices *

IE Related:  * How to use IE.au3  UDF with  AutoIt v3.3.14.x * Why isn't Autoit able to click a Javascript Dialog? * Clicking javascript button with no ID * IE document >> save as MHT file * IETab Switcher (by LarsJ ) * HTML Entities * _IEquerySelectorAll() (by uncommon) *

I encourage you to read: * Global Vars * Best Coding Practices * Please explain code used in Help file for several File functions * OOP-like approach in AutoIt * UDF-Spec Questions *  EXAMPLE: How To Catch ConsoleWrite() output to a file or to CMD *

"Homo sum; humani nil a me alienum puto" - Publius Terentius Afer
"Program are meant to be read by humans and only incidentally for computers and execute" - Donald Knuth, "The Art of Computer Programming"
:naughty:  :ranting:, be  :) and       \\//_.

Anticipating Errors :  "Any program that accepts data from a user must include code to validate that data before sending it to the data store. You cannot rely on the data store, ...., or even your programming language to notify you of problems. You must check every byte entered by your users, making sure that data is the correct type for its field and that required fields are not empty."

Signature last update: 2017-06-04

Share this post


Link to post
Share on other sites

JohnOne,

You need to set the correct coordinates of your ListView in this line:

$aInfo = _GUICtrlListView_SubItemHitTest($hListview, $aInfo[0] - 2, $aInfo[1] - 20) ; Upper left = ( 2, 20 )
As you still had the coordinates of the other example it was not giving you the correct return in $aHit. ;)

M23

1 person likes this

Any of my own code posted anywhere on the forum is available for use by others without any restriction of any kind._______My UDFs:

Spoiler

ArrayMultiColSort ---- Sort arrays on multiple columns
ChooseFileFolder ---- Single and multiple selections from specified path treeview listing
Date_Time_Convert -- Easily convert date/time formats, including the language used
ExtMsgBox --------- A highly customisable replacement for MsgBox
GUIExtender -------- Extend and retract multiple sections within a GUI
GUIFrame ---------- Subdivide GUIs into many adjustable frames
GUIListViewEx ------- Insert, delete, move, drag, sort, edit and colour ListView items
GUITreeViewEx ------ Check/clear parent and child checkboxes in a TreeView
Marquee ----------- Scrolling tickertape GUIs
NoFocusLines ------- Remove the dotted focus lines from buttons, sliders, radios and checkboxes
Notify ------------- Small notifications on the edge of the display
Scrollbars ----------Automatically sized scrollbars with a single command
StringSize ---------- Automatically size controls to fit text
Toast -------------- Small GUIs which pop out of the notification area



Share this post


Link to post
Share on other sites

JohnOne,

Hope your luck changes - and look at post #14. :)

M23

1 person likes this

Any of my own code posted anywhere on the forum is available for use by others without any restriction of any kind._______My UDFs:

Spoiler

ArrayMultiColSort ---- Sort arrays on multiple columns
ChooseFileFolder ---- Single and multiple selections from specified path treeview listing
Date_Time_Convert -- Easily convert date/time formats, including the language used
ExtMsgBox --------- A highly customisable replacement for MsgBox
GUIExtender -------- Extend and retract multiple sections within a GUI
GUIFrame ---------- Subdivide GUIs into many adjustable frames
GUIListViewEx ------- Insert, delete, move, drag, sort, edit and colour ListView items
GUITreeViewEx ------ Check/clear parent and child checkboxes in a TreeView
Marquee ----------- Scrolling tickertape GUIs
NoFocusLines ------- Remove the dotted focus lines from buttons, sliders, radios and checkboxes
Notify ------------- Small notifications on the edge of the display
Scrollbars ----------Automatically sized scrollbars with a single command
StringSize ---------- Automatically size controls to fit text
Toast -------------- Small GUIs which pop out of the notification area



Share this post


Link to post
Share on other sites

JohnOne,

My pleasure as always. :)

M23


Any of my own code posted anywhere on the forum is available for use by others without any restriction of any kind._______My UDFs:

Spoiler

ArrayMultiColSort ---- Sort arrays on multiple columns
ChooseFileFolder ---- Single and multiple selections from specified path treeview listing
Date_Time_Convert -- Easily convert date/time formats, including the language used
ExtMsgBox --------- A highly customisable replacement for MsgBox
GUIExtender -------- Extend and retract multiple sections within a GUI
GUIFrame ---------- Subdivide GUIs into many adjustable frames
GUIListViewEx ------- Insert, delete, move, drag, sort, edit and colour ListView items
GUITreeViewEx ------ Check/clear parent and child checkboxes in a TreeView
Marquee ----------- Scrolling tickertape GUIs
NoFocusLines ------- Remove the dotted focus lines from buttons, sliders, radios and checkboxes
Notify ------------- Small notifications on the edge of the display
Scrollbars ----------Automatically sized scrollbars with a single command
StringSize ---------- Automatically size controls to fit text
Toast -------------- Small GUIs which pop out of the notification area



Share this post


Link to post
Share on other sites

Damn it, M23...

#include <WindowsConstants.au3>
#include <GUIConstantsEx.au3>
#include <GuiListView.au3>

Global $hGUI, $hListview, $aHit[2] = [-1, -1]

$hGUI = GUICreate("Listview in TAB", 250, 180)

GUISetBkColor(0x00E0FFFF)
GUISetFont(9, 300)

Local $idTab = GUICtrlCreateTab(0, 0, 250, 130)

GUICtrlCreateTabItem("tab")

$iListview = GUICtrlCreateListView("one|two|three", 0, 20, 350, 130, $LVS_REPORT, BitOR($LVS_EX_GRIDLINES, $LVS_EX_FULLROWSELECT))
$hListview = GUICtrlGetHandle($iListview)
GUICtrlCreateListViewItem("0-0|0-1|0-2", $iListview)
GUICtrlCreateListViewItem("1-0|1-1|1-2", $iListview)
GUICtrlCreateListViewItem("2-0|2-1|2-2", $iListview)
GUICtrlCreateTabItem("")

$hButton = GUICtrlCreateButton("Click", 0, 155, 250, 20)

GUISetState(@SW_SHOW)
GUIRegisterMsg($WM_NOTIFY, "WM_NOTIFY")
Local $idMsg

While 2
    Switch GUIGetMsg()
        Case $GUI_EVENT_CLOSE
            ExitLoop
        Case $hButton
            MsgBox(0, "Info", "Cell selected: " & _GUICtrlListView_GetItemText($hListview, $aHit[0], $aHit[1]) & @CR, 0, $hGUI)
    EndSwitch
WEnd


Func WM_NOTIFY($hWnd, $iMsg, $wParam, $lParam)
    Local $tNMHDR, $hWndFrom, $iCode
    $tNMHDR = DllStructCreate($tagNMHDR, $lParam)
    Switch $tNMHDR.hWndFrom
        Case $hListview
            Switch $tNMHDR.Code
                Case $LVN_ITEMCHANGED
                    Local $tNMLISTVIEW, $iItem, $aInfo
                    $tNMLISTVIEW = DllStructCreate($tagNMLISTVIEW, $lParam)
                    $iItem = DllStructGetData($tNMLISTVIEW, "Item")
                    _GUICtrlListView_SetItemSelected($hListview, $iItem, false)
                    Local $aInfo = GUIGetCursorInfo($hGUI)
                    If $aInfo[2] Then
                        $aInfo = _GUICtrlListView_SubItemHitTest($hListview) ; Upper left = ( 2, 2 )
                        If $aInfo[0] > -1 And $aInfo[1] > -1 And $aInfo[0] = $iItem Then
                            If $aHit[0] > -1 Then _GUICtrlListView_RedrawItems($hListview, $aHit[0], $aHit[0])
                            If $aHit[0] <> $aInfo[0] Or $aHit[1] <> $aInfo[1] Then
                                $aHit[0] = $aInfo[0] ; Row
                                $aHit[1] = $aInfo[1] ; Col
                            Else
                                $aHit[0] = -1 ; Row
                                $aHit[1] = -1 ; Col
                            EndIf
                            _GUICtrlListView_RedrawItems($hListview, $iItem, $iItem)
                        EndIf
                    EndIf
                Case $NM_CLICK
                    $tInfo = DllStructCreate($tagNMITEMACTIVATE, $lParam)
                    $aHit[0] = $tInfo.Index
                    $aHit[1] = $tInfo.SubItem
                Case $NM_CUSTOMDRAW
                    Local $tNMLVCUSTOMDRAW = DllStructCreate($tagNMLVCUSTOMDRAW, $lParam)
                    Local $dwDrawStage = DllStructGetData($tNMLVCUSTOMDRAW, "dwDrawStage")
                    Switch $dwDrawStage ; Holds a value that specifies the drawing stage
                        Case $CDDS_PREPAINT ; Before the paint cycle begins
                            Return $CDRF_NOTIFYITEMDRAW ; Notify the parent window of any ITEM-related drawing operations
                        Case $CDDS_ITEMPREPAINT ; Before painting an item
                            Return $CDRF_NOTIFYSUBITEMDRAW ; Notify the parent window of any SUBITEM-related drawing operations
                        Case BitOR($CDDS_ITEMPREPAINT, $CDDS_SUBITEM) ; Before painting a subitem
                            Local $dwItemSpec = DllStructGetData($tNMLVCUSTOMDRAW, "dwItemSpec") ; Item index
                            Local $iSubItem = DllStructGetData($tNMLVCUSTOMDRAW, "iSubItem") ; Subitem index
                            Local $uItemState = DllStructGetData($tNMLVCUSTOMDRAW, "uItemState") ; Item state
                            If $dwItemSpec = $aHit[0] Then ; Marked row
                                Switch $iSubItem
                                    Case $aHit[1] ; Marked column
                                        DllStructSetData($tNMLVCUSTOMDRAW, "ClrText", 0xFFFFFF) ; Forecolor white
                                        DllStructSetData($tNMLVCUSTOMDRAW, "clrTextBk", 0xCC6600) ; Backcolor dark blue, BGR
                                    Case Else ; Other columns
                                        DllStructSetData($tNMLVCUSTOMDRAW, "ClrText", 0x000000) ; Forecolor black
                                        DllStructSetData($tNMLVCUSTOMDRAW, "ClrTextBk", 0xFFFFFF) ; Backcolor white
                                EndSwitch
                            Else ; Other rows
                                DllStructSetData($tNMLVCUSTOMDRAW, "ClrText", 0x000000)
                                DllStructSetData($tNMLVCUSTOMDRAW, "ClrTextBk", 0xFFFFFF)
                            EndIf
                            Return $CDRF_NEWFONT ; $CDRF_NEWFONT must be returned after changing font or colors
                    EndSwitch
            EndSwitch
    EndSwitch
    Return $GUI_RUNDEFMSG
EndFunc   ;==>WM_NOTIFY
1 person likes this

Forum Rules         Procedure for posting code

"I like pigs.  Dogs look up to us.  Cats look down on us.  Pigs treat us as equals."

- Sir Winston Churchill

Share this post


Link to post
Share on other sites

Create an account or sign in to comment

You need to be a member in order to leave a comment

Create an account

Sign up for a new account in our community. It's easy!


Register a new account

Sign in

Already have an account? Sign in here.


Sign In Now
