Tidy major Update (2-Nov-2018)

[Jos]

I am reaching out to you all to test this version of Tidy to see whether that works on your scripts and report back your finding.

Changes in this version:

• Leave inline comments on the original position when the line is tidied, where possible.
• Handle None Breaking Spaces (NBS) for Ascii and UTF8 files:
  • NBS characters within the leading & trailing whitespace and inside the code will be replaced by a regular space to allow tidy to properly tidy the code.
  • NBS characters in a literal string will not be replaced as they are presumably there for a reason.
  • NBS characters inside an inline comment will be left alone too.
• Added support for directive: #Tidy_ILC_Pos=nn (See below for details)
• Replaced /Skip_Commentblock & /scb  for /Tidy_Comment block & /tcb and made the default not to tidy comment blocks, as they are frequently used for simple documentation which would making tidying impossible.
  • /tcb=0               =>only indent the whole commentblock  (default)
  • /tcb  or /tcb=1 =>Tidy inside commentblock
  • /tcb=-1              =>leave whole commentbock alone
• Added support for the following tidy.ini settings:
  • #-->Define the TabSize size
    tabsize=4
  • #--> Tidy commentblock 1=Tidy, 0=Do not tidy  default=0
    Tidy_commentblock=0
    #-->Define the default column for inline comments, 0=keep current position
    icl_pos=0

• Changed the logic for the comment part of #directives. See last example for an explanation
• Fixed issue in "Variable proper" function, sometimes not updating the variable to the proper caps.
• Changed the program to CUI to show console output when ran from CMD prompt.
• Changed the returncode to -1 when no changes are made.
  • A change in AutoIt3Wrapper will test for this and show as such.

Updated support for inline comments:

One of the items that has been on my wish-/todolist for a long time was to leave inline comments as they were, instead of removing all whitespace between statement and inline comment: For example that this untidied code:

global $A=1
if $a=1 then     ; test $a
$a=2             ; Set $a
endif            ; end test

The current production version will change that to:

Global $A = 1
If $a = 1 Then ; test $a
    $a = 2 ; Set $a
EndIf ; end test

The new Beta version will change that to: (leaving the Comment start column the same as it was)

Global $A = 1
If $A = 1 Then    ; test $a
    $A = 2        ; Set $a
EndIf             ; end test

Tidy.Ini optional change

Tidy will determine the position of the inline comment by using the tabchar & tabsize parameter from Tidy.ini:

[ProgramSettings]
 * * *  Indent  0 = Tabs  >0 = Number of Space
tabchar=0
tabsize=4
#-->Define the default column for inline comments, 0=keep current position
icl_pos=0
#--> Tidy commentblock 0=only indent the whole commentblock  (default=0)
#                      1=Tidy inside commentblock
#                     -1=leave whole commentbock alone
Tidy_commentblock=0

When not provided in the INI it will be defaulted to Using Tabs with a size of 4.
When running from within SciTE, a warning is shown in the SciTE console, when they deviate from the SciTE Settings for:
use.tabs=1
indent.size=4

It could help while testing to use Winmerge to see what exactly was changed during the Tidy run by adding this to Tidy.ini:

ShowDiffPgm = """C:\Program Files (x86)\WinMerge\winmergeu.exe" "%new%" "%old%"""

Support for directive #Tidy_ILC_Pos=nn

Tidy will keep inline comment on their original position, but this can be overridden by the directive: #Tidy_ILC_Pos=nn
When nn is greater than 0, Tidy will use the defined number as the Inline comment start column going forward.
When nn= 0 then use the old ILC column.
When nn= -1 then strip the spaces between Code and ILC (Old Tidy behavior)

EG  Original Tidied script:

Global Enum _
        $ADO_ERR_SUCCESS, _            ; No Error
        $ADO_ERR_GENERAL, _             ; General - some ADO Error - Not classified type of error
        $ADO_ERR_ENUMCOUNTER           ; just for testing

Global Const $ADO_EXT_DEFAULT          ; default Extended Value
Global Const $ADO_EXT_PARAM1            ; Error Occurs in Parameter #1
Global Const $ADO_EXT_PARAM2          ; Error Occurs in Parameter #2
Global Const $ADO_EXT_PARAM3           ; Error Occurs in Parameter #3

Now with new directive added to line up the inline comments:

#Tidy_ILC_Pos=40
Global Enum _
        $ADO_ERR_SUCCESS, _            ; No Error
        $ADO_ERR_GENERAL, _            ; General - some ADO Error - Not classified type of error
        $ADO_ERR_ENUMCOUNTER           ; just for testing

Global Const $ADO_EXT_DEFAULT          ; default Extended Value
Global Const $ADO_EXT_PARAM1           ; Error Occurs in Parameter #1
Global Const $ADO_EXT_PARAM2           ; Error Occurs in Parameter #2
Global Const $ADO_EXT_PARAM3           ; Error Occurs in Parameter #3

Example  Setting the new column to different values and back to original (0)
Before Tidy run:

#Tidy_ILC_Pos=30
Global Enum _
        $ADO_ERR_SUCCESS, _            ; No Error
        $ADO_ERR_GENERAL, _            ; General - some ADO Error - Not classified type of error
        $ADO_ERR_ENUMCOUNTER           ; just for testing
#Tidy_ILC_Pos=50
Global Const $ADO_EXT_DEFAULT          ; default Extended Value
Global Const $ADO_EXT_PARAM1           ; Error Occurs in Parameter #1
Global Const $ADO_EXT_PARAM2           ; Error Occurs in Parameter #2
Global Const $ADO_EXT_PARAM3           ; Error Occurs in Parameter #3
Global Const $ADO_EXT_PARAM4           ; Error Occurs in Parameter #4
#Tidy_ILC_Pos=0
Global Const $ADO_EXT_PARAM5           ; Error Occurs in Parameter #5
Global Const $ADO_EXT_PARAM6           ; Error Occurs in Parameter #6
Global Const $ADO_EXT_INTERNALFUNCTION ; Error Related to internal Function - should not happend - UDF Developer make something wrong ???
Global Const $ADO_EXT_ENUMCOUNTER      ; just for testing

After Tidy run:

#Tidy_ILC_Pos=30
Global Enum _
        $ADO_ERR_SUCCESS, _  ; No Error
        $ADO_ERR_GENERAL, _  ; General - some ADO Error - Not classified type of error
        $ADO_ERR_ENUMCOUNTER ; just for testing
#Tidy_ILC_Pos=50
Global Const $ADO_EXT_DEFAULT                    ; default Extended Value
Global Const $ADO_EXT_PARAM1                     ; Error Occurs in Parameter #1
Global Const $ADO_EXT_PARAM2                     ; Error Occurs in Parameter #2
Global Const $ADO_EXT_PARAM3                     ; Error Occurs in Parameter #3
Global Const $ADO_EXT_PARAM4                     ; Error Occurs in Parameter #4
#Tidy_ILC_Pos=0
Global Const $ADO_EXT_PARAM5           ; Error Occurs in Parameter #5
Global Const $ADO_EXT_PARAM6           ; Error Occurs in Parameter #6
Global Const $ADO_EXT_INTERNALFUNCTION ; Error Related to internal Function - should not happend - UDF Developer make something wrong ???
Global Const $ADO_EXT_ENUMCOUNTER      ; just for testing

Example  what happens with the different directives
Before Tidy run:

#Tidy_ILC_Pos=40

#UnknowDirective test           ; comment

; Know directives/preprocessor Table -> au3.keywords.properties
;~ au3.keywords.special=#endregion #forcedef #forceref #ignorefunc #pragma #region
#Region test   ;test            ; comment there not enough spaces, so simply copy Eveything after #Region to #EndRegion
#EndRegion test                 ; will be replaced
#Region    test                 ; comment there are 4 spaces after #region so can line it up with EndRegion
#EndRegion test                 ; will be replaced
#forcedef aaaaaa                ; comment - linedup at Pos 40
#pragma compile(UPX, False)     ; comment - linedup at Pos 40

;~ au3.keywords.preprocessor=#ce #comments-end #comments-start #cs #include #include-once \
;~  #notrayicon #onautoitstartregister #requireadmin
#NoTrayIcon                     ; comment - linedup at Pos 40
#RequireAdmin                   ; comment - linedup at Pos 40
#OnAutoItStartRegister "test"   ; comment - linedup at Pos 40
; -- Special treatment in au3lexer
#cs test                        ; comment Start - copy all after #CS to #CE
#ce test                        ; will be replaced
#comments-start                 ; comment Start copy all after #CS to #CE
#comments-end                   ; will be replaced

; Knows Direcitves/Special table -> autoit3wrapper.keywords.properties
#AutoIt3Wrapper_Add_Constants=n ; comment - linedup at Pos 40
#Au3Stripper_Ignore_Variables   ; comment - linedup at Pos 40
#Tidy_Parameters=1              ; comment - linedup at Pos 40

After Tidy run:

#Tidy_ILC_Pos=40

#UnknowDirective test           ; comment

; Know directives/preprocessor Table -> au3.keywords.properties
;~ au3.keywords.special=#endregion #forcedef #forceref #ignorefunc #pragma #region
#Region test   ;test            ; comment there not enough spaces, so simply copy Eveything after #Region to #EndRegion
#EndRegion test   ;test            ; comment there not enough spaces, so simply copy Eveything after #Region to #EndRegion
#Region    test                 ; comment there are 4 spaces after #region so can line it up with EndRegion
#EndRegion test                 ; comment there are 4 spaces after #region so can line it up with EndRegion
#forcedef aaaaaa                       ; comment - linedup at Pos 40
#pragma compile(UPX, False)            ; comment - linedup at Pos 40

;~ au3.keywords.preprocessor=#ce #comments-end #comments-start #cs #include #include-once \
;~  #notrayicon #onautoitstartregister #requireadmin
#NoTrayIcon                            ; comment - linedup at Pos 40
#RequireAdmin                          ; comment - linedup at Pos 40
#OnAutoItStartRegister "test"          ; comment - linedup at Pos 40
; -- Special treatment in au3lexer
#cs test                        ; comment Start - copy all after #CS to #CE
#ce test                        ; comment Start - copy all after #CS to #CE
#comments-start                 ; comment Start copy all after #CS to #CE
#comments-end                   ; comment Start copy all after #CS to #CE

; Knows Direcitves/Special table -> autoit3wrapper.keywords.properties
#AutoIt3Wrapper_Add_Constants=n        ; comment - linedup at Pos 40
#Au3Stripper_Ignore_Variables          ; comment - linedup at Pos 40
#Tidy_Parameters=1                     ; comment - linedup at Pos 40

I like to thank @mLipok for the testing/ideas/questions during the development of this change.

Jos

Edited November 9, 2018 by Jos

[mLipok]

Thanks @Jos

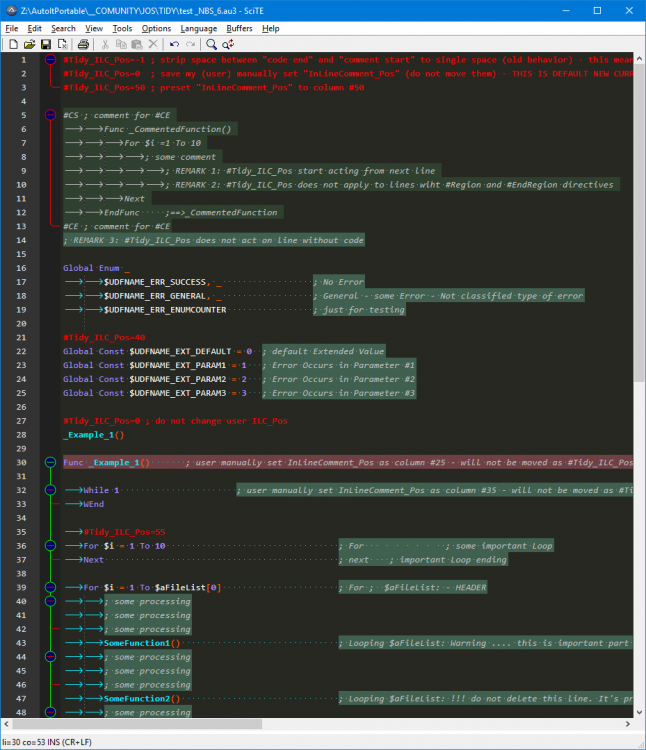

To all interested in testing: This is my testing script:


expandcollapse popup

#Tidy_ILC_Pos=-1 ; strip space between "code end" and "comment start" to single space (old behavior) - this mean move dynamicaly "InLineComment_Pos" starting in line at "comment start" to nearest "code end" column position
#Tidy_ILC_Pos=0  ; save my (user) manually set "InLineComment_Pos" (do not move them) - THIS IS DEFAULT NEW CURRENT BEHAVIOR
#Tidy_ILC_Pos=50 ; preset "InLineComment_Pos" to column #50

#cs ; comment for #CE
    Func _CommentedFunction()
        For $i =1 To 10
            ; some comment
                ; REMARK 1: #Tidy_ILC_Pos start acting from next line
                ; REMARK 2: #Tidy_ILC_Pos does not apply to lines wiht #Region and #EndRegion directives
        Next
    EndFunc     ;==>_CommentedFunction
#CE ; comment for #CE
; REMARK 4: #Tidy_ILC_Pos does not act on line without code

Global Enum _
        $UDFNAME_ERR_SUCCESS, _              ; No Error
        $UDFNAME_ERR_GENERAL, _              ; General - some Error - Not classified type of error
        $UDFNAME_ERR_ENUMCOUNTER              ; just for testing

#Tidy_ILC_Pos=40
Global Const $UDFNAME_EXT_DEFAULT =0          ; default Extended Value
Global Const $UDFNAME_EXT_PARAM1 =1            ; Error Occurs in Parameter #1
Global Const $UDFNAME_EXT_PARAM2 =2             ; Error Occurs in Parameter #2
Global Const $UDFNAME_EXT_PARAM3 =3             ; Error Occurs in Parameter #3

#Tidy_ILC_Pos=0 ; do not change user ILC_Pos
_Example_1()

Func _Example_1()       ; user manually set InLineComment_Pos as column #25 - will not be moved as #Tidy_ILC_Pos=0

              While        1      ; user manually set InLineComment_Pos as column #35 - will not be moved as #Tidy_ILC_Pos=0
    WEnd

    #Tidy_ILC_Pos=55
    For $i = 1      To      10   ; For                ; some important Loop
    Next   ; next    ; important Loop ending

    For $i = 1      To $aFileList[0]                 ; For ;  $aFileList: - HEADER
        ; some processing
        ; some processing
        ; some processing
        SomeFunction1()              ; Looping $aFileList: Warning .... this is important part ....
        ; some processing
        ; some processing
        ; some processing
        SomeFunction2()               ; Looping $aFileList: !!! do not delete this line. It's prventing ERROR on .....
        ; some processing
        ; some processing
        ; some processing
        SomeFunction3()          ; Looping $aFileList: CleanUp for GPDR !
    Next   ; Next ;  $aFileList: - END Looping

    #Tidy_ILC_Pos=80
            MsgBox(      0    ,      '              '        ,       1)                           ; SOME DISTANT COMMENT AT 99 COLUMN
EndFunc

#Tidy_ILC_Pos=45
Func _Example2() ; STEP BY STEP FUNCTION
While 1
Switch GUIGetMsg()
Case $1;     STEP 1
Return
Case $1;     STEP 2
MsgBox(0, '', 1)
Case $GUI_EVENT_CLOSE
ExitLoop
Case $1;     STEP 3
Return
EndSwitch
WEnd
EndFunc

    #Region - Any             description1              ; comment #1
    #EndRegion

    #Region - Any             description2                  ; comment #2
    #EndRegion

    #Region - Any             dscription              ; comment #3
    #EndRegion

    #Region - Any             dscription                    ; comment #4
    #EndRegion

#Tidy_ILC_Pos=-1                      ; strip space between "code end" and "comment" to single space (old behavior)
Func SomeFunction1()                ;  TEST 1
EndFunc

Func SomeFunction2()           ; TEST 2
EndFunc

Func SomeFunction3()      ; TEST 3
EndFunc



REMARKS:
This testing script is intended for testing NEW TIDY FEATURE, it is not intended to run nor testing with Au3Check tools.

Regards,
mLipok

EDIT: To bo sure that you will see what is doing with NonBreakingSpace, I attach this testing au3 file test _NBS_6.au3



and here are screenshots

HOW TO VIEW NBS IN SciTE:

 BEFORE USING TIDY:

AFTER USING TIDY:

test _NBS_6.au3

Edited October 26, 2018 by mLipok

[mLipok]

btw.
For testing use also recent beta files:

https://www.autoitscript.com/autoit3/scite/download/beta_SciTE4AutoIt3/AutoIt3Wrapper.au3

https://www.autoitscript.com/autoit3/scite/download/beta_SciTE4AutoIt3/SciTE.exe

https://www.autoitscript.com/autoit3/scite/download/beta_SciTE4AutoIt3/SciLexer.dll

https://www.autoitscript.com/autoit3/scite/download/beta_SciTE4AutoIt3/tidy.ini

REMARKS: remember to make copy of this files (yours current version) before you replace them with this beta versions.



Edited October 26, 2018 by mLipok
added link to beta SciTE.exe

[mLipok]

@Jos I found one problem with #cs <> #ce blocks

Just try to tidy this code few times:

#cs ; comment for #CE
    Func _CommentedFunction()
        For $i =1 To 10
            ; any code
            ; any code
            ; any code
        Next
    EndFunc     ;==>_CommentedFunction
#CE ; comment for #CE

the effect will be like this:

#cs ; comment for #CE
                Func _CommentedFunction()
                    For $i =1 To 10
                        ; any code
                        ; any code
                        ; any code
                    Next
                EndFunc     ;==>_CommentedFunction
#CE ; comment for #CE

It look like that TIDY add new TAB each time.

[Jos]

1 hour ago, mLipok said:

For testing use also recent beta files:

They aren't really needed for testing, as those are more cosmetic changes for AutoIt3Wrapper.au3 and SciLexer.dll.

[Jos]

1 hour ago, mLipok said:

It look like that TIDY add new TAB each time.

Doesn't do that for me when I cut&paste the code from the post. Can you attach the file to ensure I have the same type of whitespace?

Jos

[mLipok]

19 minutes ago, Jos said:

Doesn't do that for me when I cut&paste the code from the post. Can you attach the file to ensure I have the same type of whitespace?

Jos

test _NBS_7.au3

Edited October 26, 2018 by mLipok

[Jos]

Ah, found the reason why it didn't cause issues for me. I had this in Tidy.ini

Skip_commentblock=0

As the default is now  1, and when set to 1 it causes the issue you see.
Will have a look now.

Jos

Edited October 26, 2018 by Jos

[Jos]

Fix v 18.708.9999.10 uploaded to dev for:

2 hours ago, mLipok said:

It look like that TIDY add new TAB each time.

Jos

[mLipok]

fixed.... but not this following case:

Func _CommentedFunction()
#cs ; comment for #CE
    For $i =1 To 10
        ; any code
        ; any code
        ; any code
    Next
#ce ; comment for #CE
EndFunc   ;==>_CommentedFunction



Edited October 26, 2018 by mLipok

[Jos]

unbelievable how many scenarios need to be considered.
Should be (better) Fixed v 18.708.9999.11, uploaded to Dev.

[mLipok]

next scenario

expandcollapse popup

#Tidy_ILC_Pos=50 ; preset "InLineComment_Pos" to column #50

Func _CommentedFunction()
    #cs ; comment for #CE
For $i =1 To 10
    ; any code
    ; any code
    ; any code
Next
    #CE ; comment for #CE
EndFunc   ;==>_CommentedFunction

Func _CommentedFunction()
    #CS ; comment for #CE
        For $i =1 To 10
            ; any code
            ; any code
            ; any code
    Next
    #CE ; comment for #CE
EndFunc   ;==>_CommentedFunction

Func _CommentedFunction()
    #CS ; comment for #CE
For $i =1 To 10
    ; any code
    ; any code
    ; any code
Next
    #CE ; comment for #CE
EndFunc   ;==>_CommentedFunction

Func _CommentedFunction()
#CS ; comment for #CE
For $i =1 To 10
    ; any code
    ; any code
    ; any code
Next
    #CE ; comment for #CE
EndFunc   ;==>_CommentedFunction

Func _CommentedFunction()
    #CS ; comment for #CE
For $i =1 To 10
    ; any code
    ; any code
    ; any code
Next
#CE ; comment for #CE
EndFunc   ;==>_CommentedFunction

Func _CommentedFunction()
    While 1
        #CS ; comment for #CE
        For $i =1 To 10
            ; any code
            ; any code
            ; any code
        Next
            #CE ; comment for #CE
    WEnd
EndFunc   ;==>_CommentedFunction

Func _CommentedFunction()
    While 1
        #CS ; comment for #CE
    For $i =1 To 10
        ; any code
                ; any code - not well positioned should keep the same place
        ; any code
    Next
#CE ; comment for #CE
    WEnd
EndFunc   ;==>_CommentedFunction

After TIDY I think this should look like:

expandcollapse popup

#Tidy_ILC_Pos=50 ; preset "InLineComment_Pos" to column #50

Func _CommentedFunction()
    #cs ; comment for #CE
For $i =1 To 10
    ; any code
    ; any code
    ; any code
Next
    #CE ; comment for #CE
EndFunc   ;==>_CommentedFunction

Func _CommentedFunction()
    #CS ; comment for #CE
        For $i =1 To 10
            ; any code
            ; any code
            ; any code
    Next
    #CE ; comment for #CE
EndFunc   ;==>_CommentedFunction

Func _CommentedFunction()
    #CS ; comment for #CE
For $i =1 To 10
    ; any code
    ; any code
    ; any code
Next
    #CE ; comment for #CE
EndFunc   ;==>_CommentedFunction

Func _CommentedFunction()
    #CS ; comment for #CE
For $i =1 To 10
    ; any code
    ; any code
    ; any code
Next
    #CE ; comment for #CE
EndFunc   ;==>_CommentedFunction

Func _CommentedFunction()
    #CS ; comment for #CE
For $i =1 To 10
    ; any code
    ; any code
    ; any code
Next
    #CE ; comment for #CE
EndFunc   ;==>_CommentedFunction

Func _CommentedFunction()
    While 1
        #CS ; comment for #CE
        For $i =1 To 10
            ; any code
            ; any code
            ; any code
        Next
        #CE ; comment for #CE
    WEnd
EndFunc   ;==>_CommentedFunction

Func _CommentedFunction()
    While 1
        #CS ; comment for #CE
    For $i =1 To 10
        ; any code
                ; any code - not well positioned should keep the same place
        ; any code
    Next
        #CE ; comment for #CE
    WEnd
EndFunc   ;==>_CommentedFunction



I mean INNER CONTENT should be keep the same positions as this is user choice

but OUTER CS/CE directives  should be positioned according to current SCOPE/INTERNALL CODE LEVEL.



[mLipok]

#AutoIt3Wrapper_Run_Tidy=y
#Tidy_ILC_Pos=50 ; preset "InLineComment_Pos" to column #50
#Tidy_Parameters=/scb
#Tidy_Parameters=/Skip_commentblock
;~ #Tidy_Parameters=/scb=0
;~ #Tidy_Parameters=/Skip_commentblock=0
;~ #Tidy_Parameters=/scb=1
;~ #Tidy_Parameters=/Skip_commentblock=1

Func _CommentedFunction()
    While 1
    #cs ; comment for #CE
        For $i =1 To 10
            ; any code
            ; any code
            ; any code
        Next
        #ce ; comment for #CE
    WEnd
EndFunc   ;==>_CommentedFunction

Func _CommentedFunction()
    While 1
        #cs ; comment for #CE
    For $i =1 To 10
        ; any code
                ; any code - not well positioned should keep the same place
        ; any code
    Next
    #ce ; comment for #CE
    WEnd
EndFunc   ;==>_CommentedFunction

as you can see I try few #Tidy_Parameters settings .

I wonder how to properly disable this feature by using paramters ? As I see I'm doing something wrong with disabling this feature.

13 minutes ago, Jos said:

.. and keep the test scripts a small as possible?

When you mention about scenarios, I start thinking about scenarios, and I think this was a complete list of possible scenarios, at least the ones that I managed to come up with.



Edited October 26, 2018 by mLipok

[Jos]

5 minutes ago, mLipok said:

I wonder how to properly disable this feature by using paramters ?

good point... that is why the default as for Skip_CommentBlock was 0 as the directive doesn't accept options and simply sets it to 1. Will change the default back to 0 for now and might retink the directivenames.

7 minutes ago, mLipok said:

When you mention about scenarios, I start thinking about scenarios, and I think this was a complete list of possible scenarios, at least the ones that I managed to come up with.

Part of that story was also to make things as small as possible, not all inclusive, which overwhelms the recipient.



[mLipok]

30 minutes ago, mLipok said:

I mean INNER CONTENT should be keep the same positions as this is user choice

but OUTER CS/CE directives  should be positioned according to current SCOPE/INTERNALL CODE LEVEL.

#AutoIt3Wrapper_Run_Tidy=y
#Tidy_ILC_Pos=50 ; preset "InLineComment_Pos" to column #50
#Tidy_Parameters=/scb
#Tidy_Parameters=/Skip_commentblock
;~ #Tidy_Parameters=/scb=0
;~ #Tidy_Parameters=/Skip_commentblock=0
;~ #Tidy_Parameters=/scb=1
;~ #Tidy_Parameters=/Skip_commentblock=1

Func _CommentedFunction()
    While 1
    While 1
    While 1
    While 1
        For $i To 10
        Next
        ConsoleWrite("! test" & @CRLF)
        FileWrite('log.txt','test')
        #cs ; comment for #CE
    For $i =1 To 10
        ; any code
                ; any code - not well positioned should keep the same place
        ; any code
    Next
    #CE ; comment for #CE
    WEnd
    WEnd
    WEnd
    WEnd
EndFunc   ;==>_CommentedFunction



Edited October 26, 2018 by mLipok

[Jos]

#Tidy_Parameters=/scb                  ; sets it to 1
#Tidy_Parameters=/Skip_commentblock    ; sets it to 1
#Tidy_Parameters=/scb=0
#Tidy_Parameters=/Skip_commentblock=0
#Tidy_Parameters=/scb=1
#Tidy_Parameters=/Skip_commentblock=1

These are all supported now and the default to 0 in the current Dev version.

Jos

[Jos]

9 minutes ago, mLipok said:

I mean INNER CONTENT should be keep the same positions as this is user choice

but OUTER CS/CE directives  should be positioned according to current SCOPE/INTERNALL CODE LEVEL.

Ok you want the #CS/#CE not be part of the commentblock and still indent them with the other code.
That doesn't make sense to me as those 2 lines are really part of the commentblock and thus should not be touched when Skip_Commentblock is active.

Jos

[mLipok]

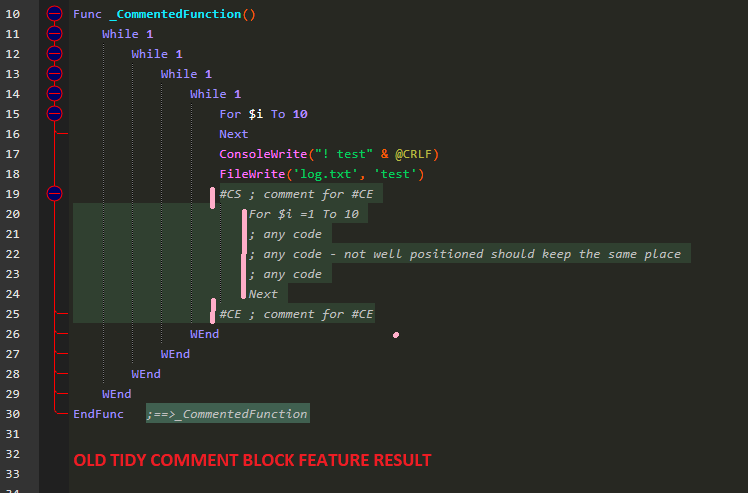

so maybe lik this:

EDIT:

I mean \Skip_commentblock=0 should also do not touch user specyfic positionning, but only move entire block (look at pink vertical lines in my above screenshot)

EDIT 2:

Edited October 26, 2018 by mLipok

[Jos]

24 minutes ago, mLipok said:

I mean \Skip_commentblock=0 should also do not touch user specyfic positionning, but only move entire block (look at pink vertical lines in my above screenshot)

I don't agree as those lines are standard linecomments which tidy like this:

Before

#Tidy_Parameters=/scb=1
Func _CommentedFunction()
While 1
; any code
; any code
; any code
WEnd
EndFunc   ;==>_CommentedFunction

After:

#Tidy_Parameters=/scb=1
Func _CommentedFunction()
    While 1
        ; any code
        ; any code
        ; any code
    WEnd
EndFunc   ;==>_CommentedFunction

We could however consider changing the behavior totall leaving a commentblock alone when skip_commentblock is set by atleast lining it up with the indent of the code it is in.
Example:
Before:

#Tidy_Parameters=/scb=1
Func _CommentedFunction()
While 1
#cs ; comment for #CE
For $i = 1 To 10
; any code
; any code
; any code
Next
#ce ; comment for #CE
WEnd
EndFunc   ;==>_CommentedFunction

Current After:

#Tidy_Parameters=/scb=1
Func _CommentedFunction()
    While 1
#cs ; comment for #CE
For $i = 1 To 10
; any code
; any code
; any code
Next
#ce ; comment for #CE
    WEnd
EndFunc   ;==>_CommentedFunction

Proposed After:

#Tidy_Parameters=/scb=1
Func _CommentedFunction()
    While 1
        #cs ; comment for #CE
        For $i = 1 To 10
        ; any code
        ; any code
        ; any code
        Next
        #ce ; comment for #CE
    WEnd
EndFunc   ;==>_CommentedFunction

Jos

Edited October 26, 2018 by Jos

[mLipok]

10 minutes ago, Jos said:

I don't agree as those lines are standard linecomments which tidy like this:

Before

#Tidy_Parameters=/scb=1
Func _CommentedFunction()
While 1
; any code
; any code
; any code
WEnd
EndFunc   ;==>_CommentedFunction

After:

#Tidy_Parameters=/scb=1
Func _CommentedFunction()
    While 1
        ; any code
        ; any code
        ; any code
    WEnd
EndFunc   ;==>_CommentedFunction

We could however consider changing the behavior totall leaving a commentblock alone when skip_commentblock is set by atleast lining it up with the indent of the code it is in.

I thought that Skip_commentblock option was related only to #cs #ce but not to normaly comment which starts with semicolon.
