July 8, 2018: New SciTE4AutoIt3 available with the updated SciTE v4.1.0 release

[argumentum]

2 hours ago, argumentum said:

I have a request: to add ["Language Neutral", "0000"]

never mind. Based on https://docs.microsoft.com/en-us/windows/desktop/intl/language-identifier-constants-and-strings I'm using 0x1000 now and it works with the script by just adding the country code to the array.

[Jos]

So you've changed it something like this? :

Func Language_Code(ByRef $code, ByRef $CountryTable, ByRef $Country, $task = 1)
    Local $CountryArray[120][2] = [["Neutral", "0000"],["Afrikaans", "1078"],

Jos

[argumentum]

12 hours ago, Jos said:

something like this? :

Nope. the 0x0000 don't work as the code interprets a zero as a missing value. So I used 0x1000

Func Language_Code(ByRef $code, ByRef $CountryTable, ByRef $Country, $task = 1)
    Local $CountryArray[121][2] = [["Afrikaans", "1078"], ["Albanian", "1052"], ["Arabic (Algeria)", "5121"], ["Arabic (Bahrain)", "15361"], _
    , ....... , ["Zulu", "1077"], ["Language Neutral", "1000"]]

Also added some variables I wanted:

; way up close to the top:
Global $g__FileVersion = VerMinuteOfMonth() ; mod. by argumentum
__ConsoleWrite("--- VerMinuteOfMonth >" & $g__FileVersion & "<" & @CRLF) ; mod. by argumentum

; then, lower down
Func VerMinuteOfMonth() ; mod. by argumentum
    $g__FileVersion = Int(@YEAR) & "." & Int(@MON) &"."& Int(_DateDiff("n", @YEAR & "/" & @MON & "/01 00:00:00", @YEAR & "/" & @MON & "/" & @MDAY & " " & @HOUR & ":" & @MIN & ":" & @SEC))
    Return $g__FileVersion
EndFunc

Func Convert_Variables($I_String, $text = 0)
    $I_String = StringReplace($I_String, "%scriptver%", $g__FileVersion) ; mod. by argumentum
    $I_String = StringReplace($I_String, "%YYYY.M.H%", $g__FileVersion) ; mod. by argumentum
    $I_String = StringReplace($I_String, "%YYYY.M.D%", Int(@YEAR)&"."&Int(@MON)&"."&Int(@MDAY)) ; mod. by argumentum

where I'd add like #AutoIt3Wrapper_Res_Fileversion=0.%scriptver% and that would build a timestamp that is very human readable  then use it as in

#AutoIt3Wrapper_Run_After="md "%scriptdir%\Versions" "
#AutoIt3Wrapper_Run_After="copy /Y "%scriptfile%_stripped.au3" "%scriptdir%\Versions\%scriptfile%_%scriptver%_SourceStripped.au3" "

and things like

If Not StringInStr($INP_Fileversion, "%") And $INP_Fileversion <> "" Then $INP_Fileversion = Valid_FileVersion($INP_Fileversion) ; mod. by argumentum

as to not replace the variable with the variable's value, after updating the script once compiled/saved. There are more tweaks ( not very elegant tho ) =)

My patch of the script is not a "most awesome", but is functional without having to bug you for my custom requests.

PS: I can give you the modded file if you'd like to look at it. I made a point to add "mod. by" on each area I've touched.

PS2:

#AutoIt3Wrapper_Run_Au3Stripper=y
#Au3Stripper_Parameters=/MO
#EndRegion ;**** Directives created by AutoIt3Wrapper_GUI ****
#AutoIt3Wrapper_Res_ProductName=%scriptfile%.exe

on my tweaks, to avoid replacing ProductName=%scriptfile%.exe by it's value, the entry falls bellow the #region =/

Edited October 7, 2018 by argumentum

[mLipok]

Why CTRL+F6 is not run AU3Info any more ?

[Jos]

4 minutes ago, mLipok said:

Why CTRL+F6 is not run AU3Info any more ?

That never worked, but rather Ctrl+Shift+F6, which indeed is broken!

Current config in au3.properties:

# 06 AU3Info program
command.6.$(au3)="$(SciteDefaultHome)\..\AutoIt3.exe" "$(SciteDefaultHome)\AutoIt3Wrapper\AutoIt3Wrapper.au3" /AU3info
command.name.6.$(au3)=AU3Info
command.shortcut.6.$(au3)=Ctrl+Shif+F6
command.subsystem.6.$(au3)=2
command.save.before.6.$(au3)=2
command.quiet.6.$(au3)=1

Which indeed is wrong now....   spot the issue?

Jos

[mLipok]

should be

command.shortcut.6.$(au3)=Ctrl+Shift+F6

instead

command.shortcut.6.$(au3)=Ctrl+Shif+F6

there is lack of letter "t" in word "Shift"

[Jos]

We have a winner !



[mLipok]

hmm.
Was there other change in SciTE v 4.1.2 which leed to this following problem:

Try this snippet:

#AutoIt3Wrapper_Run_Au3Check=Y
#AutoIt3Wrapper_Au3Check_Parameters=-d -w 1 -w 2 -w 3 -w 4 -w 5 -w 6 -w 7


_Example('Test')

Func _Example($test)
EndFunc   ;==>_Example

when you notice:

Quote

c:\....\JumpInLine.au3"(7,20) : warning: $test: declared, but not used in func.
Func _Example($test)
~~~~~~~~~~~~~~~~~~~^
c:\....\JumpInLine.au3 - 0 error(s), 1 warning(s)

Just hit F4 and you should be moved to line 7 and column 20
but SciTE move cursor to line 7 column 1

I also have the same problem with:

expandcollapse popup

#include <Array.au3>

_Example()

Func _Example()
    MsgBox(0, '', StringRegExp(@AutoItExe, '.+\\', $STR_REGEXPARRAYMATCH)[0] & "Include\Array.au3")
    _SciTE_OpenFile(StringRegExp(@AutoItExe, '.+\\', $STR_REGEXPARRAYMATCH)[0] & "Include\Array.au3")
    _SciTE_GoTo(5, 10)
EndFunc   ;==>_Example

Func _SciTE_OpenFile($sFileFullPath)
    $sFileFullPath = StringReplace($sFileFullPath, "\", "\\")
    Local $vRet = __SciTE_SendCommand('open:' & $sFileFullPath)
    Return SetError(@error, @extended, $vRet)
EndFunc   ;==>_SciTE_OpenFile

Func _SciTE_GoTo($iLine, $iColumn)
    Local $vRet = __SciTE_SendCommand("goto:" & $iLine & ":" & $iColumn)
    Return SetError(@error, @extended, $vRet)
EndFunc   ;==>_SciTE_GoTo

Func __SciTE_SendCommand($sCommand)
    Opt("WinSearchChildren", 1)
    ; Get SciTE DirectorHandle
    Local $SciTE_hwnd = WinGetHandle("DirectorExtension")
    Local $CmdStruct = DllStructCreate('Char[' & StringLen($sCommand) + 1 & ']')
    DllStructSetData($CmdStruct, 1, $sCommand)
    Local $COPYDATA = DllStructCreate('Ptr;DWord;Ptr')
    DllStructSetData($COPYDATA, 1, 1)
    DllStructSetData($COPYDATA, 2, StringLen($sCommand) + 1)
    DllStructSetData($COPYDATA, 3, DllStructGetPtr($CmdStruct))
    Local $WM_COPYDATA = 74
    DllCall('User32.dll', 'None', 'SendMessage', _
            'HWnd', $SciTE_hwnd, _
            'Int', $WM_COPYDATA, _
            'HWnd', 0, _
            'Ptr', DllStructGetPtr($COPYDATA) _
            )
EndFunc   ;==>__SciTE_SendCommand



Edited October 18, 2018 by mLipok

[Jos]

Looks like this is an issue since version of SciTE since v 3.6 (2015) so broken for about 3 years already..... funny nobody noticed including me.

Edited October 18, 2018 by Jos

[Zein]

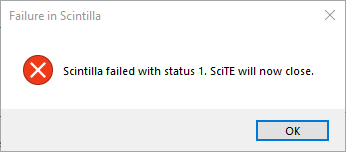

I'm unsure how many people use VisualUIAVerify for finding UI attributes for UI automation, but if you're in Hover Mode for it and move to SciTE, it crashes with code 1.



[mLipok]

You, me, and entire AutoItForum community.

I just checked here:
https://www.scintilla.org/SciTEDoc.html

goto:

line number[,column number]

So solution was to change:


__SciTE_SendCommand("goto:" & $iLine & ":" & $iColumn)

to:

__SciTE_SendCommand("goto:" & $iLine & "," & $iColumn)

but using:

_SciTE_GoTo(5, 10)

is jumping to Col=30

And answer for this I found here:

https://sourceforge.net/p/scintilla/bugs/516/



[Jos]

5 minutes ago, mLipok said:

You, me, and entire AutoItForum community.

I know..

I had actually fixed that way back when but with one of the merges this change was lost. Have it now better marked in the source so should be fine going forward.
Try the current Beta.

Jos

[Jos]

12 minutes ago, Zein said:

I'm unsure how many people use VisualUIAVerify for finding UI attributes for UI automation, but if you're in Hover Mode for it and move to SciTE, it crashes with code 1.

No idea as I am not using this. So does the original SciTE distributed by Neil also have this issue or is it just my version?

Jos

Edited October 18, 2018 by Jos

[Zein]

5 minutes ago, Jos said:

No idea as I am not using this. So does the original SciTE distributed by Neil also have this issue or is it just my version?

Jos

I will check when I get home and get back to you on that.

[mLipok]

19 minutes ago, Jos said:

Try the current Beta.

Currently I'm using version from here:

https://www.autoitscript.com/autoit3/scite/download/beta_SciTE4AutoIt3/SciTE.exe

from 2018-10-01 13:07

Do you plan to update them or you wanted to be sure which version I use ?



[Jos]

They are there now.... 10/18  21:19

[mLipok]

13 minutes ago, Jos said:

They are there now.... 10/18  21:19

Checked ... fixed.

Thanks.



[Jos]

There is an update for AutoIt3Wrapper v18.708.1148.5 available in Beta which:

Quote

    - 18.708.1148.5 Added logic to be able to display Console Output of script that have #RequireAdmin while SciTE runs at normal level.

This is one of those other many requested features that wasn't possible till now. Let me know when there are questions.

Edited November 1, 2018 by Jos

[Jos]

There is an update for AutoIt3Wrapper v18.708.1148.6 available in Beta which

- 18.708.1148.5 Added logic to be able to display Console Output of script that have #RequireAdmin while SciTE runs at normal level.
- 18.708.1148.6 Also allows to Stop Execution or Restart for  #RequireAdmin while SciTE runs at normal level.
                It won't hang anymore when you reply No on the UAC and detect the elevated process didn;t start.

Jos

Edited November 1, 2018 by Jos

[Jos]

New Tidy moved to beta. See this thread for all the details of the changes:

Jos
