Creating a "brushed up" Task Scheduler UDF?

[water]

Something like this?

; #INDEX# =======================================================================================================================
; Title .........: Microsoft Task Scheduler Function Library
; AutoIt Version : 3.3.14.5
; UDF Version ...: 1.5.3.0
; Language ......: English
; Description ...: A collection of functions to access and manipulate the Microsoft Tasks Scheduler Service
; Author(s) .....: allow2010, AdamUL, water
; Modified.......: 20201113 (YYYYMMDD)
; Contributors ..:
; Resources .....: https://docs.microsoft.com/en-us/windows/win32/taskschd/task-scheduler-reference
;                  https://www.experts-exchange.com/articles/11326/VBScript-and-Task-Scheduler-2-0-Listing-Scheduled-Tasks.html
; Links .........: Forum:    https://www.autoitscript.com/forum/topic/200068-creating-a-brushed-up-task-scheduler-udf
;                  Download: https://www.autoitscript.com/forum/files/file/487-task-scheduler/
; ===============================================================================================================================



[mLipok]

just what I mean.\

[mLipok]

After considration maybe this way

Quote

; Forum link .........: https://www.autoitscript.com/forum/topic/200068-creating-a-brushed-up-task-scheduler-udf
; Download link ......: https://www.autoitscript.com/forum/files/file/487-task-scheduler/
; ===============================================================================================================================

would be better.

What you think ?

[mLipok]

Thanks for new version.


[water]

Nothing new. Just  modified the text a bit.
Seems the forum reports a new version even when there was no file upload

[mLipok]

No I just notice that on "Latest File Updates" panel.

btw.

Could you please consider to place all this HTML TXT CSS files in subdirectory for example in ".\TaskScheduler UDF Documentation"
And the same with example: ".\TaskScheduler Examples"

In this way the main directory will  contain only main UDF files (UDF+CONST)

Because currently when I unzip them, then when I put them to "my INCLUDE DIR", it looks "little messy", some way of hierarchical structure would make this clean/clear.



Edited February 4, 2021 by mLipok

[water]

Good point!
Will have a look. Will take some time as I have to update the creation process for the ZIP-file as well.

[mLipok]

Why you are using #include-once in examples ?

[mLipok]

Check my fixes :

1. structurized directory
2. in examples #include "..\TaskScheduler.au3"   instead  #include <TaskScheduler.au3>
3. in examples #include <Array.au3>   before    #include "..\TaskScheduler.au3"
4. in examples #include-once removed from examples

TaskScheduler.zip

[water]

1 hour ago, mLipok said:

Why you are using #include-once in examples ?

By accident.
But only two examples out of 32 were affected: _TS_TaskList and _TS_RunningTaskList.

[water]

On 2/4/2021 at 1:14 PM, mLipok said:

in examples #include <Array.au3>   before    #include "..\TaskScheduler.au3"

Why? I do not think the sequence of the includes matters.

[mLipok]

2 hours ago, water said:

Why? I do not think the sequence of the includes matters.

1. at first standard include, in alphabetical order
2. and then "user's" include, in any "user's" resonable order (prefered alphabetical order)

IMHO:

Because "AutoIt Team" maintain the quality of the delivered standard function package, I mean that Standard Include are "standard" and should be "error free".
They are <standard>, and users files are not "standard".

This should be ordered in this way because code should be clean, easy to read, easy to understand, easy to maintain.
And for the last argument this ordering keep it easier to focus on problem solving/finding.



Edited February 5, 2021 by mLipok

[guidok]

Hello,

I have a little problem creating a task. My goal is, the a task has to be run under an useraccount with higher privileges. This user will not be logged on, so - in the task planner of Windows (10, German) the checkbox "Unabhängig von der Benutzeranmeldung ausführen" should be checked.

I played around with the TASK_LOGON_TYPE constants, but the checkbox stays permanent unchecked.


Quote



$sPassword = InputBox("FeWaTasker - Passwortabfrage", "Das Eintragen und Ausführen des Tasks wird als " & @UserName & ".admin " & "ausgeführt." & @crlf & "Daher hier bitte das Passwort angeben.", $sPassword, "*", 450, 150)
            If @error Then Exit

    $oService = _TS_Open("\\mz10adm00", @username & ".admin", "POLRP", $sPassword)
            If @error Then Exit MsgBox($MB_ICONERROR, "FeWaTasker - Fehler", "_TS_Open returned @error=" & @error & ", @extended=" & @extended & @CRLF & @CRLF & _TS_ErrorText(@error))

    $oTaskDefinition = _TS_Wrapper_TaskCreate($oService, $tdescription, "")
                    If @error Then Exit MsgBox($MB_ICONERROR, "_TS_Wrapper_TaskCreate", "_TS_Wrapper_TaskCreate returned @error=" & @error & ", @extended=" & @extended & @CRLF & @CRLF & _TS_ErrorText(@error))

    _TS_Wrapper_PrincipalSet($oTaskDefinition, $TASK_LOGON_PASSWORD)
                    If @error Then Exit MsgBox($MB_ICONERROR, "_TS_Wrapper_TaskCreate", "_TS_Wrapper_PrincipalSet returned @error=" & @error & ", @extended=" & @extended & @CRLF & @CRLF & _TS_ErrorText(@error))

    _TS_Wrapper_TriggerDateTime($oTaskDefinition, $TASK_TRIGGER_TIME, 0, 0, $EventTime)
                    If @error Then Exit MsgBox($MB_ICONERROR, "_TS_Wrapper_TaskCreate", "DateTime returned @error=" & @error & ", @extended=" & @extended & @CRLF & @CRLF & _TS_ErrorText(@error))

    _TS_Wrapper_ActionCreate($oTaskDefinition, "cmd.exe","c:\bin\","/c c:\bin\acc_enadis.cmd" & $taction)
                    If @error Then Exit MsgBox($MB_ICONERROR, "_TS_Wrapper_TaskCreate", "_TS_Wrapper_ActionCreate returned @error=" & @error & ", @extended=" & @extended & @CRLF & @CRLF & _TS_ErrorText(@error))

    _TS_Wrapper_TaskRegister($oService, "IT1_Tasks\Fernwartung", $tname, $oTaskDefinition, Default, Default, $TASK_LOGON_INTERACTIVE_TOKEN)
                    If @error Then Exit MsgBox($MB_ICONERROR, "", "_TS_Wrapper_TaskRegister returned @error=" & @error & ", @extended=" & @extended & @CRLF & @CRLF & _TS_ErrorText(@error))

    MsgBox($MB_ICONINFORMATION, "FeWaTasker - Taskerstellung",  "Task " & $tname & " wurde erstellt.")
    _TS_Close()



What have I to do to set this checkbox checked.

Thank you ... Guido



[water]

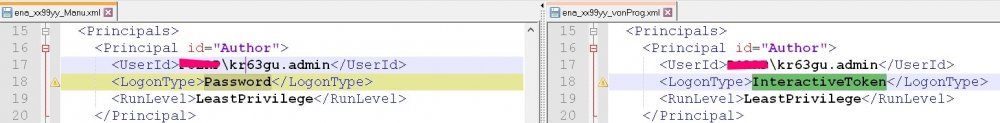

You could manually create a dummy task without the checked checkbox and export this task as XML, then check the checkbox and export the task again.
Use WinMerge to compare the files to get the relevant parameter.

[guidok]

ok. Thank you for the tipp. Helped for finding out the parameters.
But the trick was using the other credentials  in function  _TS_Wrapper_TaskRegister
Thank you Water



[water]

Glad you got it working

[mLipok]

12 minutes ago, guidok said:

But the trick was using the other credentials  in function  _TS_Wrapper_TaskRegister

Please provide example for this specific usage, which is realated to your case.



[mLipok]

I just start using this UDF.

For my purposes, I added 2 new function:

expandcollapse popup

; #FUNCTION# ====================================================================================================================
; Name ..........: _TS_RunningTaskListAsString
; Description ...: Returns a string containing a list of all currently running Tasks.
; Syntax ........: _TS_RunningTaskListAsString($oService[, $iShowHidden = 0])
; Parameters ....: $oService            - an object. Task Scheduler Service object as returned by _TS_Open
;                  $iShowHidden         - [optional] an integer value. The same as in _TS_RunningTaskList
; Return values .: string or @error (The same as in _TS_RunningTaskList)
; Author ........: mLipok
; Modified ......:
; Remarks .......:
; Related .......:  _TS_RunningTaskList
; Link ..........:
; Example .......: No
; ===============================================================================================================================
Func _TS_RunningTaskListAsString($oService, $iShowHidden = 0)
    Local $aRunningTasks = _TS_RunningTaskList($oService, $iShowHidden)
    If @error Then Return SetError(@error, @extended, $aRunningTasks)
    Return _ArrayToString($aRunningTasks)
EndFunc   ;==>_TS_RunningTaskList

; #FUNCTION# ====================================================================================================================
; Name ..........: _TS_IsRunFromTaskScheduler
; Description ...: check if process is run form Task Scheduler
; Syntax ........: _TS_IsRunFromTaskScheduler($oService[, $iPID = @AutoItPID])
; Parameters ....: $oService            - Task Scheduler Service object as returned by _TS_Open
;                  $iPID                - [optional] an integer value. Default is @AutoItPID (current process).
; Return values .: True / False
; Author ........: mLipok
; Modified ......:
; Remarks .......:
; Related .......:
; Link ..........:
; Example .......: No
; ===============================================================================================================================
Func _TS_IsRunFromTaskScheduler($oService, $iPID = @AutoItPID)
    Local $aRunningTasks = _TS_RunningTaskList($oService, 1)
    For $IDX_Task = 0 To UBound($aRunningTasks) - 1
        If $aRunningTasks[$IDX_Task][$TASK_LIST_1_EnginePID] = $iPID Then Return True
    Next
    Return False
EndFunc   ;==>_TS_IsRunFromTaskScheduler

@water you can add this function to your's UDF.

Back to the case.
_TS_RunningTaskListAsString() is not always return proper results.
On some PC's it is ok on another I had issue with this function.

So I do testing scenario.
When I use testing code like this following few lines:

_log('@AutoItPID=' & @AutoItPID)
_log('### Running Task List - START')
_log(_TS_RunningTaskListAsString($oTaskScheduler))
_log('### Running Task List - END')

Then I get in the logs:

Quote

--> @AutoItPID=12496
--> ### Running Task List - START
--> C:\Users\Administrator\Desktop\ML_Downloader.exe|13144|{B4449A63-493A-452C-841F-0B52EE3D4041}|ML_Downloader|\MICHAELO\ML_Downloader|4
Wininet Cache task object|10492|{46C9DB83-0119-436D-BD44-55E10E945600}|CacheTask|\Microsoft\Windows\Wininet\CacheTask|4
--> ### Running Task List - END

And the problem is that this PID are not equal.
My question is why TaskScheduler shows different PID than @AutoItPID ?


btw.
Of course I run the exe form TaskScheduler and before I run this particular task from TaskScheduler I checked if there are no other running processes named "ML_Downloader.exe".

Edited October 16, 2021 by mLipok

[water]

I do not think it is sensible to add _TS_RunningTaskListAsString to the UDF. _TS_RunningTaskList returns an array. If a string is needed every AutoIt coder knows by heart that _ArrayToString is the function he needs to get the desired result.
The function does not wrap complex coding. Too much overhead for a single well known function.

Same for _TS_IsRunFromTaskScheduler. It's just a simple loop.

Do you use #RequireAdmin in your example script? This would explain the different PID.

[mLipok]

7 minutes ago, water said:

Do you use #RequireAdmin in your example script? This would explain the different PID.

No.
But the Task in TaskScheduler have setup raised level.
What does it change? How does this affect PID?

As to your's opinion on my proposals with new functions: ok.

Edited October 17, 2021 by mLipok
