Open any excel file as an array


Recommended Posts

I've had issues in the past dealing with excel so I decided to cut out the middle man and build a script that would take any file that opens in excel (csv, xml, xls, etc) and convert it into an array so I can handle the raw data in a cleaner way. I used czardas' CSV parser to do this and added a simple save in excel to save it as a csv to parse.



Func _CreateCSV($fnImportFile)
    $oExcel = ObjCreate("Excel.Application")
    $oExcel.Visible=False
    $oBook= $oExcel.Workbooks.Open($fnImportFile)
    $oSheet=$oBook.ActiveSheet
    $fnMaster=@TempDir&"\"&Chr(Round(Random(0,24),0)+64)&Random(0,24)&Chr(Round(Random(0,24),0)+64)&Random(0,24)&Chr(Round(Random(0,24),0)+64)&".csv"
    ConsoleWrite($fnMaster&@CRLF)
    $oSheet.SaveAs($fnMaster, 6)
    $oBook.Close(False)
    $oExcel.Quit
    $aReturnArray=_CSVSplit(FileRead($fnMaster))
    FileDelete($fnMaster)
    If not @error Then
        Return $aReturnArray
    Else
        Return -1
    EndIf
EndFunc

; #FUNCTION# ====================================================================================================================
; Name...........: _CSVSplit
; Description ...: Converts a string in CSV format to a two dimensional array (see comments)
; Syntax.........: CSVSplit ( $aArray [, $sDelim ] )
; Parameters ....: $aArray  - The array to convert
;                  $sDelim  - Optional - Delimiter set to comma by default (see 2nd comment)
; Return values .: Success  - Returns a two dimensional array or a one dimensional array (see 1st comment)
;                  Failure  - Sets @error to:
;                 |@error = 1 - First parameter is not a valid string
;                 |@error = 2 - Second parameter is not a valid string
;                 |@error = 3 - Could not find suitable delimiter replacements
; Author ........: czardas
; Comments ......; Returns a one dimensional array if the input string does not contain the delimiter string
;                ; Some CSV formats use semicolon as a delimiter instead of a comma
;                ; Set the second parameter to @TAB To convert to TSV
; ===============================================================================================================================

Func _CSVSplit($string, $sDelim = ",") ; Parses csv string input and returns a one or two dimensional array
    If Not IsString($string) Or $string = "" Then Return SetError(1, 0, 0) ; Invalid string
    If Not IsString($sDelim) Or $sDelim = "" Then Return SetError(2, 0, 0) ; Invalid string

    $string = StringRegExpReplace($string, "[\r\n]+\z", "") ; [Line Added] Remove training breaks
    Local $iOverride = 63743, $asDelim[3] ; $asDelim => replacements for comma, new line and double quote
    For $i = 0 To 2
        $asDelim[$i] = __GetSubstitute($string, $iOverride) ; Choose a suitable substitution character
        If @error Then Return SetError(3, 0, 0) ; String contains too many unsuitable characters
    Next
    $iOverride = 0

    Local $aArray = StringRegExp($string, '\A[^"]+|("+[^"]+)|"+\z', 3) ; Split string using double quotes delim - largest match
    $string = ""

    Local $iBound = UBound($aArray)
    For $i = 0 To $iBound -1
        $iOverride += StringInStr($aArray[$i], '"', 0, -1) ; Increment by the number of adjacent double quotes per element
        If Mod ($iOverride +2, 2) = 0 Then ; Acts as an on/off switch
            $aArray[$i] = StringReplace($aArray[$i], $sDelim, $asDelim[0]) ; Replace comma delimeters
            $aArray[$i] = StringRegExpReplace($aArray[$i], "(\r\n)|[\r\n]", $asDelim[1]) ; Replace new line delimeters
        EndIf
        $aArray[$i] = StringReplace($aArray[$i], '""', $asDelim[2]) ; Replace double quote pairs
        $aArray[$i] = StringReplace($aArray[$i], '"', '') ; Delete enclosing double quotes - not paired
        $aArray[$i] = StringReplace($aArray[$i], $asDelim[2], '"') ; Reintroduce double quote pairs as single characters
        $string &= $aArray[$i] ; Rebuild the string, which includes two different delimiters
    Next
    $iOverride = 0

    $aArray = StringSplit($string, $asDelim[1], 2) ; Split to get rows
    $iBound = UBound($aArray)
    Local $aCSV[$iBound][2], $aTemp
    For $i = 0 To $iBound -1
        $aTemp = StringSplit($aArray[$i], $asDelim[0]) ; Split to get row items
        If Not @error Then
            If $aTemp[0] > $iOverride Then
                $iOverride = $aTemp[0]
                ReDim $aCSV[$iBound][$iOverride] ; Add columns to accomodate more items
            EndIf
        EndIf
        For $j = 1 To $aTemp[0]
            If StringLen($aTemp[$j]) Then
                If Not StringRegExp($aTemp[$j], '[^"]') Then ; Field only contains double quotes
                    $aTemp[$j] = StringTrimLeft($aTemp[$j], 1) ; Delete enclosing double quote single char
                EndIf
                $aCSV[$i][$j -1] = $aTemp[$j] ; Populate each row
            EndIf
        Next
    Next

    If $iOverride > 1 Then
        Return $aCSV ; Multiple Columns
    Else
        For $i = 0 To $iBound -1
            If StringLen($aArray[$i]) And (Not StringRegExp($aArray[$i], '[^"]')) Then ; Only contains double quotes
                $aArray[$i] = StringTrimLeft($aArray[$i], 1) ; Delete enclosing double quote single char
            EndIf
        Next
        Return $aArray ; Single column
    EndIf

EndFunc ;==> _CSVSplit

; #INTERNAL_USE_ONLY# ===========================================================================================================
; Name...........: __GetSubstitute
; Description ...: Searches for a character to be used for substitution, ie one not contained within the input string
; Syntax.........: __GetSubstitute($string, ByRef $iCountdown)
; Parameters ....: $string   - The string of characters to avoid
;                  $iCountdown - The first code point to begin checking
; Return values .: Success   - Returns a suitable substitution character not found within the first parameter
;                  Failure   - Sets @error to 1 => No substitution character available
; Author ........: czardas
; Comments ......; This function is connected to the function _CSVSplit and was not intended for general use
;                  $iCountdown is returned ByRef to avoid selecting the same character on subsequent calls to this function
;                  Initially $iCountown should be passed with a value = 63743
; ===============================================================================================================================

Func __GetSubstitute($string, ByRef $iCountdown)
    If $iCountdown < 57344 Then Return SetError(1, 0, "") ; Out of options
    Local $sTestChar
    For $i = $iCountdown To 57344 Step -1
        $sTestChar = ChrW($i)
        $iCountdown -= 1
        If Not StringInStr($string, $sTestChar) Then
            Return $sTestChar
        EndIf
    Next
    Return SetError(1, 0, "") ; Out of options
EndFunc ;==> __GetSubstitute





Edit:

The code above is pretty junk (my part at least) so I wanted to improve it... This will return an array of arrays based on the excel file

#include <Array.au3>

Func _GetExcelArrays($fnImportFile)
    $oExcel = ObjCreate("Excel.Application")
    $oExcel.Visible=False
    $oBook= $oExcel.Workbooks.Open($fnImportFile)
    $sheetCount=$oBook.Worksheets.Count
    Local $aReturnArray[$sheetCount]
    For $x=1 to $sheetCount
        $oSheet=$oBook.Worksheets($x)
        $oSheet.Activate
        $fnMaster=@TempDir&"\"&Chr(Round(Random(0,24),0)+64)&Random(0,24)&Chr(Round(Random(0,24),0)+64)&Random(0,24)&Chr(Round(Random(0,24),0)+64)&".csv"
        $oSheet.SaveAs($fnMaster, 6)
        $aReturnArray[$x-1]=_CSVSplit(FileRead($fnMaster))
        FileDelete($fnMaster)
    Next
    $oBook.Close(False)
    $oExcel.Quit
    Return $aReturnArray
EndFunc



Edited by Jewtus
Link to post
Share on other sites
  • 1 year later...

Why not use _Excel_RangeRead?

My UDFs and Tutorials:

Spoiler

UDFs:
Active Directory (NEW 2021-06-05 - Version 1.5.4.0) - Download - General Help & Support - Example Scripts - Wiki
ExcelChart (2017-07-21 - Version 0.4.0.1) - Download - General Help & Support - Example Scripts
OutlookEX (NEW 2021-06-14 - Version 1.6.5.0) - Download - General Help & Support - Example Scripts - Wiki
OutlookEX_GUI (2021-04-13 - Version 1.4.0.0) - Download
Outlook Tools (2019-07-22 - Version 0.6.0.0) - Download - General Help & Support - Wiki
PowerPoint (NEW 2021-08-31 - Version 1.5.0.0) - Download - General Help & Support - Example Scripts - Wiki
Task Scheduler (2019-12-03 - Version 1.5.1.0) - Download - General Help & Support - Wiki

Standard UDFs:
Excel - Example Scripts - Wiki
Word - Wiki

Tutorials:
ADO - Wiki
WebDriver - Wiki



Link to post
Share on other sites

Toss a message box in before the file delete and see if the file name that gets dumped to the console exists... You can also change the visible to true to see if its a problem with opening the excel file or something. That will isolate where the issue is. However, water is correct... If you know the range, rangeread is so much easier... I didn't always have the range... or the worksheet name...

Edited by Jewtus
Link to post
Share on other sites

Maybe ADO.au3 UDF ?




Func _Example_MSExcel()

    Local $sFileFullPath = Default ; Here put FileFullPath to your Excel File or use Default to open FileOpenDialog
    Local $sProvider = Default
    Local $sExtProperties = Default
    Local $HDR = Default
    Local $IMEX = Default

    Local $sConnectionString = _ADO_ConnectionString_Excel($sFileFullPath, $sProvider, $sExtProperties, $HDR, $IMEX)

    _Example_1_RecordsetToConsole($sConnectionString, "select * from [Sheet1$]")
    _Example_2_RecordsetDisplay($sConnectionString, "select * from [Sheet1$]")
    _Example_3_ConnectionProperties($sConnectionString)

EndFunc   ;==>_Example_MSExcel



Signature beginning:
Please remember: "AutoIt"..... *  Wondering who uses AutoIt and what it can be used for ? * Forum Rules *
ADO.au3 UDF * POP3.au3 UDF * XML.au3 UDF * for other useful stuff click the following button:

Spoiler

Any of my own code posted anywhere on the forum is available for use by others without any restriction of any kind.

My contribution (my own projects): * Debenu Quick PDF Library - UDF * Debenu PDF Viewer SDK - UDF * Acrobat Reader - ActiveX Viewer * UDF for PDFCreator v1.x.x * XZip - UDF * AppCompatFlags UDF * CrowdinAPI UDF * _WinMergeCompare2Files() * _JavaExceptionAdd() * _IsBeta() * Writing DPI Awareness App - workaround * _AutoIt_RequiredVersion() * Chilkatsoft.au3 UDF * TeamViewer.au3 UDF * JavaManagement UDF * VIES over SOAP * WinSCP UDF * GHAPI UDF - modest begining - comunication with GitHub REST APIErrorLog.au3 UDF - A logging Library * Include Dependency Tree (Tool for analyzing script relations) *

My contribution to others projects or UDF based on  others projects: * _sql.au3 UDF  * POP3.au3 UDF *  RTF Printer - UDF * XML.au3 UDF * ADO.au3 UDF SMTP Mailer UDF * Dual Monitor resolution detection * * 2GUI on Dual Monitor System * _SciLexer.au3 UDF * SciTE - Lexer for console pane

Useful links: * Forum Rules * Forum etiquette *  Forum Information and FAQs * How to post code on the forum * AutoIt Online Documentation * AutoIt Online Beta Documentation * SciTE4AutoIt3 getting started * Convert text blocks to AutoIt code * Games made in Autoit * Programming related sites * Polish AutoIt Tutorial * DllCall Code Generator *

Wiki: Expand your knowledge - AutoIt Wiki * Collection of User Defined Functions * How to use HelpFile * Good coding practices in AutoIt *

OpenOffice/LibreOffice/XLS Related: WriterDemo.au3 * XLS/MDB from scratch with ADOX

IE Related:  * How to use IE.au3  UDF with  AutoIt v3.3.14.x * Why isn't Autoit able to click a Javascript Dialog? * Clicking javascript button with no ID * IE document >> save as MHT file * IETab Switcher (by LarsJ ) * HTML Entities * _IEquerySelectorAll() (by uncommon) * IE in TaskSchedulerIE Embedded Control Versioning (use IE9+ and HTML5 in a GUI) * PDF Related:How to get reference to PDF object embeded in IE *

I encourage you to read: * Global Vars * Best Coding Practices * Please explain code used in Help file for several File functions * OOP-like approach in AutoIt * UDF-Spec Questions *  EXAMPLE: How To Catch ConsoleWrite() output to a file or to CMD *

I also encourage you to check awesome @trancexx code:  * Create COM objects from modules without any demand on user to register anything. * Another COM object registering stuffOnHungApp handlerAvoid "AutoIt Error" message box in unknown errors  * HTML editor

winhttp.au3 related : * https://www.autoitscript.com/forum/topic/206771-winhttpau3-download-problem-youre-speaking-plain-http-to-an-ssl-enabled-server-port/

"Homo sum; humani nil a me alienum puto" - Publius Terentius Afer
"Program are meant to be read by humans and only incidentally for computers and execute" - Donald Knuth, "The Art of Computer Programming"
:naughty:  :ranting:, be  :) and       \\//_.

Anticipating Errors :  "Any program that accepts data from a user must include code to validate that data before sending it to the data store. You cannot rely on the data store, ...., or even your programming language to notify you of problems. You must check every byte entered by your users, making sure that data is the correct type for its field and that required fields are not empty."

Signature last update: 2021-10-18

Link to post
Share on other sites

thanks, water it did the job, simple and elegant. range_read does the exact same

#include <Excel.au3>
#include <File.au3>
#include <Array.au3>



Local $oExcel =_Excel_Open()


$datawb = _Excel_BookOpen($oExcel,@ScriptDir & "\test.xls")
$datawb.worksheets("info").select
$LastRow = $datawb.ActiveSheet.UsedRange.Rows.Count
$mydata = _Excel_RangeRead($datawb, Default, "A1:AI" & $LastRow)
If IsArray($mydata) Then _ArrayDisplay($mydata)


_Excel_BookClose($datawb)



Link to post
Share on other sites

Are there any columns beyond "AI" which you do not want to read?

My UDFs and Tutorials:

Spoiler

UDFs:
Active Directory (NEW 2021-06-05 - Version 1.5.4.0) - Download - General Help & Support - Example Scripts - Wiki
ExcelChart (2017-07-21 - Version 0.4.0.1) - Download - General Help & Support - Example Scripts
OutlookEX (NEW 2021-06-14 - Version 1.6.5.0) - Download - General Help & Support - Example Scripts - Wiki
OutlookEX_GUI (2021-04-13 - Version 1.4.0.0) - Download
Outlook Tools (2019-07-22 - Version 0.6.0.0) - Download - General Help & Support - Wiki
PowerPoint (NEW 2021-08-31 - Version 1.5.0.0) - Download - General Help & Support - Example Scripts - Wiki
Task Scheduler (2019-12-03 - Version 1.5.1.0) - Download - General Help & Support - Wiki

Standard UDFs:
Excel - Example Scripts - Wiki
Word - Wiki

Tutorials:
ADO - Wiki
WebDriver - Wiki



Link to post
Share on other sites

If you want to "ignore" some columns then your solution is fine. Else you simply could set the range to "Default" and the function would return all used cells.

My UDFs and Tutorials:

Spoiler

UDFs:
Active Directory (NEW 2021-06-05 - Version 1.5.4.0) - Download - General Help & Support - Example Scripts - Wiki
ExcelChart (2017-07-21 - Version 0.4.0.1) - Download - General Help & Support - Example Scripts
OutlookEX (NEW 2021-06-14 - Version 1.6.5.0) - Download - General Help & Support - Example Scripts - Wiki
OutlookEX_GUI (2021-04-13 - Version 1.4.0.0) - Download
Outlook Tools (2019-07-22 - Version 0.6.0.0) - Download - General Help & Support - Wiki
PowerPoint (NEW 2021-08-31 - Version 1.5.0.0) - Download - General Help & Support - Example Scripts - Wiki
Task Scheduler (2019-12-03 - Version 1.5.1.0) - Download - General Help & Support - Wiki

Standard UDFs:
Excel - Example Scripts - Wiki
Word - Wiki

Tutorials:
ADO - Wiki
WebDriver - Wiki



Link to post
Share on other sites

can i have someone assistance here, ?  all i am trying to do is to read the input (numerical between 3 or 4 digits )  then match in column G or  "location name" then if found select the number to the left column F or "location code"



example if number read match  at " location name" or  G = 5321, therefore  my location code or F   should be 344742463 and if  my script was correct     my $ssstore should contain 344742463

#include <Excel.au3>
                                 #include <File.au3>
                                 #include <Array.au3>

                                 $Dealer = IniRead(@ScriptDir & "\config.ini", "data", "Dealer", "")
                                 $checknum = GUICtrlRead($Input3)


                                Local $oExcel =_Excel_Open()
                                $datawb1 = _Excel_BookOpen($oExcel, $Dealer, True)
                                $datawb1.worksheets("Locations").select
                                $LastRow = $datawb1.ActiveSheet.UsedRange.Rows.Count
                                $mydealer = _Excel_RangeRead($datawb1, Default, "j1:H" & $LastRow)
                                _Excel_BookClose($datawb1, False)


                              ;_ArrayDisplay($mydealer, $checknum)

                    for $i = 1 to UBound($mydata)-1
                    $check = False
                    if $mydata[$i][0] = $checknum Then   ; look for value

                        $ssstore = ""
                        ;MsgBox(0, "", UBound($mydealer)-1)
                        for $j = 1 to UBound($mydealer)-1
                            $tmp = StringSplit($mydealer[$j][1], " ")
                            if $j = 99 then
                            ;   _ArrayDisplay($tmp)
                            ;    MsgBox(0, Int($tmp[$ji]) , Int($checknum) )
                            EndIf

                            for $ji = 1 to UBound($tmp)-1
                                if Int($tmp[$ji]) = Int($checknum) Then
                                    $ssstore = $mydealer[$j][0]     ;found value

                                     MsgBox(0, "", $ssstore)                                                                                                                                              $j = UBound($mydealer)+1
                                    $ji = UBound($tmp)+1
                                EndIf
                            Next
                        Next




Link to post
Share on other sites

Something like this should do the trick.

For $iCounter = 1 To UBound($mydealer, 1) - 1
    If StringInStr(" " & CheckNum & " ", " " & $mydealer[$iCounter][1] & " ") > 0 Then
        MsgBox("0, " Found", " Result = " & $mydealer[$iCounter][1])
        ExitLoop
    EndIf
Next

This adds spaces at start/end of the array element and the search string so that you only find blank delimited numbers.

My UDFs and Tutorials:

Spoiler

UDFs:
Active Directory (NEW 2021-06-05 - Version 1.5.4.0) - Download - General Help & Support - Example Scripts - Wiki
ExcelChart (2017-07-21 - Version 0.4.0.1) - Download - General Help & Support - Example Scripts
OutlookEX (NEW 2021-06-14 - Version 1.6.5.0) - Download - General Help & Support - Example Scripts - Wiki
OutlookEX_GUI (2021-04-13 - Version 1.4.0.0) - Download
Outlook Tools (2019-07-22 - Version 0.6.0.0) - Download - General Help & Support - Wiki
PowerPoint (NEW 2021-08-31 - Version 1.5.0.0) - Download - General Help & Support - Example Scripts - Wiki
Task Scheduler (2019-12-03 - Version 1.5.1.0) - Download - General Help & Support - Wiki

Standard UDFs:
Excel - Example Scripts - Wiki
Word - Wiki

Tutorials:
ADO - Wiki
WebDriver - Wiki



Link to post
Share on other sites

:)

My UDFs and Tutorials:

Spoiler

UDFs:
Active Directory (NEW 2021-06-05 - Version 1.5.4.0) - Download - General Help & Support - Example Scripts - Wiki
ExcelChart (2017-07-21 - Version 0.4.0.1) - Download - General Help & Support - Example Scripts
OutlookEX (NEW 2021-06-14 - Version 1.6.5.0) - Download - General Help & Support - Example Scripts - Wiki
OutlookEX_GUI (2021-04-13 - Version 1.4.0.0) - Download
Outlook Tools (2019-07-22 - Version 0.6.0.0) - Download - General Help & Support - Wiki
PowerPoint (NEW 2021-08-31 - Version 1.5.0.0) - Download - General Help & Support - Example Scripts - Wiki
Task Scheduler (2019-12-03 - Version 1.5.1.0) - Download - General Help & Support - Wiki

Standard UDFs:
Excel - Example Scripts - Wiki
Word - Wiki

Tutorials:
ADO - Wiki
WebDriver - Wiki



Link to post
Share on other sites

I need some help I just can not figure out I am for the exact same issue that i thought that was fixed. I am getting this error

any ideas what am I doing wrong or this just a generic error when excel does not open.  some error checking tips is welcome. please improve in my code thanks

this is the error.

Local $bVisible

            ElseIf $checknum <> "" Then


                                $oExcel = _Excel_Open(False)
                                $datawb = _Excel_BookOpen($oExcel, $STORENUM, True, False)
                                $datawb.worksheets("Black").Select
                                 $LastRow = $datawb.ActiveSheet.UsedRange.Rows.Count
                                 $mydata = _Excel_RangeRead($datawb, Default, "A1:AI" & $LastRow)
                                 _Excel_BookClose($datawb,$bVisible =True)

C:\Program Files (x86)\AutoIt3\Include\Excel.au3" (227) : ==> Variable must be of type "Object".:
$oExcel.Windows($oWorkbook.Name).Visible = $bVisible
$oExcel.Windows($oWorkbook.Name)^ ERROR

Edited by antonioj84
made an awfull mistake
Link to post
Share on other sites
  • 2 weeks later...

Do you mean the problem has been solved by you?

My UDFs and Tutorials:

Spoiler

UDFs:
Active Directory (NEW 2021-06-05 - Version 1.5.4.0) - Download - General Help & Support - Example Scripts - Wiki
ExcelChart (2017-07-21 - Version 0.4.0.1) - Download - General Help & Support - Example Scripts
OutlookEX (NEW 2021-06-14 - Version 1.6.5.0) - Download - General Help & Support - Example Scripts - Wiki
OutlookEX_GUI (2021-04-13 - Version 1.4.0.0) - Download
Outlook Tools (2019-07-22 - Version 0.6.0.0) - Download - General Help & Support - Wiki
PowerPoint (NEW 2021-08-31 - Version 1.5.0.0) - Download - General Help & Support - Example Scripts - Wiki
Task Scheduler (2019-12-03 - Version 1.5.1.0) - Download - General Help & Support - Wiki

Standard UDFs:
Excel - Example Scripts - Wiki
Word - Wiki

Tutorials:
ADO - Wiki
WebDriver - Wiki



Link to post
Share on other sites

yes it was solved I did 2 things

I added   #RequireAdmin and a sleep( 2000) )_Excel_open

$oExcel = _Excel_Open(False)
                Sleep(2000)  ; I added this sleep pause
                $datawb = _Excel_BookOpen($oExcel, $STORENUM)
                $datawb.worksheets("Black").Select
                $LastRow = $datawb.ActiveSheet.UsedRange.Rows.Count
                $mydata = _Excel_RangeRead($datawb, Default, "A1:AI" & $LastRow)
                _Excel_BookClose($datawb,$bVisible =True)



Link to post
Share on other sites
  • 2 weeks later...

can anyone else help.

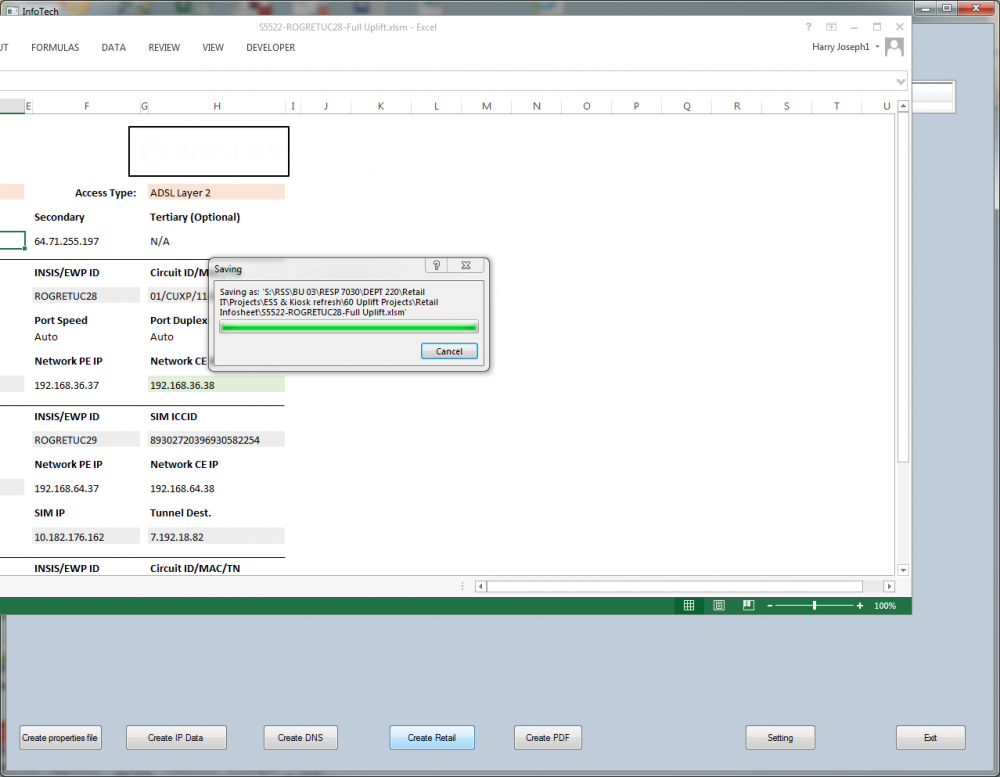

I am using widows 7, with the latest autoit,  and excel 2013 quite often excel will be visible on the screen  is there is a way I can hide it for good

Local $oExcel =_Excel_Open(False)
$datawb = _Excel_BookOpen($oExcel,$Retail &"\"& $aFileList[$i], 0)
 ;$datawb = _Excel_BookOpen($oExcel,$sFolderPathSource & $aFileList[$i], 0)
 $datawb.worksheets("info").Select
$LastRow = $datawb.ActiveSheet.UsedRange.Rows.Count
$mydata = _Excel_RangeRead($datawb, Default, "B1:K" & $LastRow)
_Excel_BookClose($datawb,True)



Edited by antonioj84
Link to post
Share on other sites

Try:

Local $oExcel =_Excel_Open(False)
$datawb = _Excel_BookOpen($oExcel,$Retail &"\"& $aFileList[$i], 0)
$datawb.worksheets("info").Activate
$LastRow = $datawb.ActiveSheet.UsedRange.Rows.Count
$mydata = _Excel_RangeRead($datawb, Default, "B1:K" & $LastRow)
_Excel_BookClose($datawb,True)

BTW: "Quite often" means always, one out of ten ...? Can you reproduce?

My UDFs and Tutorials:

Spoiler

UDFs:
Active Directory (NEW 2021-06-05 - Version 1.5.4.0) - Download - General Help & Support - Example Scripts - Wiki
ExcelChart (2017-07-21 - Version 0.4.0.1) - Download - General Help & Support - Example Scripts
OutlookEX (NEW 2021-06-14 - Version 1.6.5.0) - Download - General Help & Support - Example Scripts - Wiki
OutlookEX_GUI (2021-04-13 - Version 1.4.0.0) - Download
Outlook Tools (2019-07-22 - Version 0.6.0.0) - Download - General Help & Support - Wiki
PowerPoint (NEW 2021-08-31 - Version 1.5.0.0) - Download - General Help & Support - Example Scripts - Wiki
Task Scheduler (2019-12-03 - Version 1.5.1.0) - Download - General Help & Support - Wiki

Standard UDFs:
Excel - Example Scripts - Wiki
Word - Wiki

Tutorials:
ADO - Wiki
WebDriver - Wiki



Link to post
Share on other sites

that snippet of code from water,  have fixed the crashing and the visibility issue opening excel. add that code and  use the _Excel_BookOpenEX instead of _Excel_BookOpen

Func _Excel_BookOpenEX($oExcel, $sFilePath, $bReadOnly = Default, $bVisible = Default, $sPassword = Default, $sWritePassword = Default, $bUpdateLinks = Default)
    ; Error handler, automatic cleanup at end of function
    Local $oError = ObjEvent("AutoIt.Error", "__Excel_COMErrFunc")
    #forceref $oError
    If Not IsObj($oExcel) Or ObjName($oExcel, 1) <> "_Application" Then Return SetError(1, @error, 0)
    If Not FileExists($sFilePath) Then Return SetError(2, 0, 0)
    If $bReadOnly = Default Then $bReadOnly = False
    If $bVisible = Default Then $bVisible = True
    Local $oWorkbook = $oExcel.Workbooks.Open($sFilePath, $bUpdateLinks, $bReadOnly, Default, $sPassword, $sWritePassword)
    If @error Then Return SetError(3, @error, 0)
    Local $oWindow = $oExcel.Windows($oWorkbook.Name) ; <== Modified
    If IsObj($oWindow) Then $oWindow.Visible = $bVisible ; <== Modified
    ; If a read-write workbook was opened read-only then set @extended = 1
    If $bReadOnly = False And $oWorkbook.Readonly = True Then Return SetError(0, 1, $oWorkbook)
    Return $oWorkbook
EndFunc   ;==>_Excel_BookOpen



Link to post
Share on other sites

Create an account or sign in to comment

You need to be a member in order to leave a comment

Create an account

Sign up for a new account in our community. It's easy!

Register a new account

Sign in

Already have an account? Sign in here.

Sign In Now
  • Recently Browsing   0 members

    No registered users viewing this page.

  • Similar Content

    • By EmilyLove
      I have a string containing the full path of an executable and an array of executables without their paths. I am trying to compare the string to the list in the array and if a match is found, remove it from the array. The entry get removed from the array successfully, and after checking its return result, uses it to update the ubound if it succeeded, but it doesn't want to update to the new value. Any ideas what I am doing wrong? It acts like it is read-only.
      #include <Array.au3> #include <File.au3> Local $sApp_Exe = "F:\App\Nextcloud\nextcloud.exe" Local $aWaitForEXEX = [3, "Nextcloud.exe", "nextcloudcmd.exe", "QtWebEngineProcess.exe"] For $h = 1 To $aWaitForEXEX[0] If StringInStr($sApp_Exe, $aWaitForEXEX[$h]) <> 0 Then $iRet = _ArrayDelete($aWaitForEXEX, $h) If $iRet <> -1 Then $aWaitForEXEX[0] = $iRet ;this line doesn't work. $aWaitForEXEX[0] doesn't update and shortly gives Error: Array variable has incorrect number of subscripts or subscript dimension range exceeded.: _ArrayDisplay($aWaitForEXEX) EndIf Next
    • By Hermes
      Hello, the script below will read column A from an excel file - and if a value matches in the browser, it will click the corresponding link and click on a specific button to paste the data, then writes "Completed" in Column B. It will continue to read from the excel file and do the same thing for all the remaining rows.
      #Include "Chrome.au3" #Include "wd_core.au3" #Include "wd_helper.au3" #Include "WinHttp.au3" #include <MsgBoxConstants.au3> #include <File.au3> #include <IE.au3> #include <Array.au3> #include <INet.au3> #include <AutoItConstants.au3> #include <WinAPIFiles.au3> #include <GDIPlus.au3> #include <Excel.au3> #Include "WinHttp.au3" #Include "_HtmlTable2Array.au3" Local $sDesiredCapabilities, $sSession SetupChrome() _WD_Startup() $sSession = _WD_CreateSession($sDesiredCapabilities) _WD_LoadWait($sSession) _WD_Navigate($sSession, "table1.html") _WD_LoadWait($sSession) _WD_WaitElement($sSession, $_WD_LOCATOR_ByXPath, "//table[@class='main']") Local $sElement = _WD_FindElement($sSession, $_WD_LOCATOR_ByXPath, "//table[@class='main']") ;ConsoleWrite ("mat-table " & $sElement & @CRLF) Local $aArray1 = _WD_FindElement($sSession, $_WD_LOCATOR_ByXPath, ".//td[contains(@class,'data')]", $sElement, True) sleep(1000) For $i = 0 to UBound($aArray1) - 1 $aArray1[$i] = _WD_ElementAction($sSession, $aArray1[$i], 'text') Next ;_ArrayDisplay($aArray1) ;Email variables $SmtpServer = "" ; address for the smtp-server to use - REQUIRED $FromName = "Hermes" ; name from who the email was sent $FromAddress = "sender@gmail.com" ; address from where the mail should come $ToAddress = "recipient@gmail.com" ; destination address of the email - REQUIRED, use commas (,) to add more email addresses $Subject = "File not found" ; subject from the email - can be anything you want it to be $Body = "File not found!" ; the messagebody from the mail - can be left blank but then you get a blank mail $AttachFiles = "" ; the file(s) you want to attach seperated with a ; (Semicolon) - leave blank if not needed $CcAddress = "" ; address for cc - leave blank if not needed $BccAddress = "" ; address for bcc - leave blank if not needed $Importance = "High" ; Send message priority: "High", "Normal", "Low" $Username = "" ; username for the account used from where the mail gets sent - REQUIRED $Password = "" ; password for the account used from where the mail gets sent - REQUIRED $IPPort = 25 ; port used for sending the mail $ssl = 0 ; enables/disables secure socket layer sending - put to 1 if using httpS $tls = 0 ; enables/disables TLS when required Local $oAppl = _Excel_Open() Local $sWorkbook = "c:\test.xlsx" Local $oWorkbook = _Excel_BookOpen($oAppl, $sWorkbook) ;open excel and pass both parameters If FileExists($sWorkbook) Then ;Check if the file exist. Local $oAppl = _Excel_Open() Local $sWorkbook = "c:\test.xlsx" Local $oWorkbook = _Excel_BookOpen($oAppl, $sWorkbook) ;open excel and pass both parameters Local $aArray2 = _Excel_RangeRead($oWorkbook,Default,$oWorkbook.ActiveSheet.Usedrange.Columns("A:A")) Local $iIdx Local $Skipline = 0 ;0==> first line Do Local $temprf For $i = 0 To UBound($aArray2) - 1 $temprf &= $aArray2[$i] _WD_WaitElement($sSession, $_WD_LOCATOR_ByXPath, ".//a[contains(@class,'edit') and contains(text(),'Edit')]") Local $aElement = _WD_FindElement($sSession, $_WD_LOCATOR_ByXPath, ".//a[contains(@class,'edit') and contains(text(),'Edit')]", $sElement, True) $iIdx = _ArraySearch($aArray1, $aArray2[$i]) If @error Then ContinueLoop _WD_ElementAction($sSession, $aElement[$iIdx], 'click') If $i < $Skipline Then ContinueLoop $oRange = $oWorkbook.ActiveSheet.Range("B" & $i + 1 & ":XFD" & $i + 1) _Excel_RangeCopyPaste($oWorkbook.Activesheet, $oRange) ;Paste Local $oTest4 = _WD_FindElement($sSession, $_WD_LOCATOR_ByCSSSelector, "pastebutton") _WD_ElementAction($sSession, $oTest4, 'click') Sleep(1000) ;Save Button Local $save3 = _WD_FindElement($sSession, $_WD_LOCATOR_ByCSSSelector, "button.button") _WD_ElementAction($sSession, $save3, 'click') _Excel_RangeWrite($oWorkbook, $oWorkbook.Activesheet, "Completed", "B" & $i+1) sleep(1000) Next Until (Not @error) _Excel_Close($oWorkbook) Else _INetSmtpMailCom($SmtpServer, $FromName, $FromAddress, $ToAddress, $Subject, $Body, $CcAddress, $BccAddress, $Importance, $Username, $Password, $IPPort, $ssl, $tls) Exit EndIf _WD_LoadWait($sSession) ;Attaching files to emails Func _INetSmtpMailCom($s_SmtpServer, $s_FromName, $s_FromAddress, $s_ToAddress, $s_Subject = "", $as_Body = "", $s_CcAddress = "", $s_BccAddress = "", $s_Importance="Normal", $s_Username = "", $s_Password = "", $IPPort = 25, $ssl = 0, $tls = 0) Local $objEmail = ObjCreate("CDO.Message") $objEmail.From = '"' & $s_FromName & '" <' & $s_FromAddress & '>' $objEmail.To = $s_ToAddress Local $i_Error = 0 Local $i_Error_desciption = "" If $s_CcAddress <> "" Then $objEmail.Cc = $s_CcAddress If $s_BccAddress <> "" Then $objEmail.Bcc = $s_BccAddress $objEmail.Subject = $s_Subject If StringInStr($as_Body, "<") And StringInStr($as_Body, ">") Then $objEmail.HTMLBody = $as_Body Else $objEmail.Textbody = $as_Body & @CRLF EndIf $objEmail.Configuration.Fields.Item ("http://schemas.microsoft.com/cdo/configuration/sendusing") = 2 $objEmail.Configuration.Fields.Item ("http://schemas.microsoft.com/cdo/configuration/smtpserver") = $s_SmtpServer If Number($IPPort) = 0 then $IPPort = 25 $objEmail.Configuration.Fields.Item ("http://schemas.microsoft.com/cdo/configuration/smtpserverport") = $IPPort ;Authenticated SMTP If $s_Username <> "" Then $objEmail.Configuration.Fields.Item ("http://schemas.microsoft.com/cdo/configuration/smtpauthenticate") = 1 $objEmail.Configuration.Fields.Item ("http://schemas.microsoft.com/cdo/configuration/sendusername") = $s_Username $objEmail.Configuration.Fields.Item ("http://schemas.microsoft.com/cdo/configuration/sendpassword") = $s_Password EndIf ; Set security params If $ssl Then $objEmail.Configuration.Fields.Item ("http://schemas.microsoft.com/cdo/configuration/smtpusessl") = True If $tls Then $objEmail.Configuration.Fields.Item ("http://schemas.microsoft.com/cdo/configuration/sendtls") = True ;Update settings $objEmail.Configuration.Fields.Update ; Set Email Importance Switch $s_Importance Case "High" $objEmail.Fields.Item ("urn:schemas:mailheader:Importance") = "High" Case "Normal" $objEmail.Fields.Item ("urn:schemas:mailheader:Importance") = "Normal" Case "Low" $objEmail.Fields.Item ("urn:schemas:mailheader:Importance") = "Low" EndSwitch $objEmail.Fields.Update ; Sent the Message $objEmail.Send $objEmail="" EndFunc ;==>_INetSmtpMailCom Local $aDir = _FileListToArrayRec(@TempDir, "scoped_dir*;chrome_*", $FLTAR_FOLDERS, $FLTAR_NORECUR, $FLTAR_NOSORT, $FLTAR_FULLPATH) Sleep(2000) For $i = 1 To $aDir[0] DirRemove($aDir[$i], $DIR_REMOVE) Next _WD_LoadWait($sSession) _WD_Shutdown() Func SetupChrome() _WD_Option('Driver', 'chromedriver.exe') _WD_Option('Port', 9515) _WD_Option('DriverParams', '--log-path="' & @ScriptDir & '\chrome.log"') $sDesiredCapabilities = '{"capabilities": {"alwaysMatch": {"goog:chromeOptions": {"w3c": true, "args":["start-maximized","disable-infobars"]}}}}' EndFunc ;==>SetupChrome If the excel file doesn't exists in the folder, it will send an email to a specific recipient.
      What i am trying figure out now is if the excel crashes while the script/loop is running, I want to relaunch the excel file continue to the last row before the excel crashed. So if the value of column B is not marked as "completed", it should continue from that row
      Appreciate any help that I can get to achieve this.
      table1.html test.xlsx
    • By vinnyMS
      #Include <Array.au3> #include <Constants.au3> $s = FileRead("2.txt") Local $w = StringRegExp($s, '(?is)(\b\w+\b)(?!.*\b\1\b)', 3) _ArrayColInsert($w, 1) For $i = 0 to UBound($w)-1 StringRegExpReplace($s, '(?i)\b' & $w[$i][0] & '\b', $w[$i][0]) $w[$i][1] = @extended Next _ArraySort($w, 1, 0, 0, 1) _ArrayDisplay($w) i have this script that returns 3 columns

      i need to copy the  Col 0 and Col 1 as text to paste on notepad or excel
      you will have to create a "copy" button if possible
      array.au3 2.txt
    • By DannyJ
      I have a dataset like this, (a strubg)
      Username: User1 Type: Admin RegDate: 1999 Username: User2 Type: User RegDate: 2000 How to make a 2 dimensional array that I can display with _ArrayDisplay?
      This would be a perfect 2D array to represent my data:
      Username           Tpye RegDate User1              Admin 1999 User2              User 2000   If you run this Powershell this powershell command, you can get this dataset that I am talking about:
      Get-LocalUser | Select * With this code you can try it to read into a string:
      #include <GuiConstantsEx.au3> #include <WindowsConstants.au3> #include "GUIListViewEx.au3" #include <Array.au3> ; Just for display in example #RequireAdmin #Region ;**** Directives created by AutoIt3Wrapper_GUI **** #AutoIt3Wrapper_UseX64=y #EndRegion $sCommand = "powershell.exe Get-LocalUser | Select *" Local $iPid = Run($sCommand, @WorkingDir , @SW_SHOW , $STDOUT_CHILD) ProcessWaitClose($iPid) Local $sOutput = StdoutRead($iPID) ConsoleWrite($sOutput) How can I correctly split $sOutput into a 2D array (with the above mentioned layout) that I can display and I work with?
    • By kovlad
      My solution is to write nested arrays without copying.
      The problem was described hier.

      Function:
      #include <Array.au3> ; #FUNCTION# ==================================================================================================================== ; Name ..........: _ArrayNestedSet ; Description ...: Assigns a value to an element of a nested 1D array. ; Syntax ........: _ArrayNestedSet(ByRef $aArray, $vIndex, $vValue) ; Parameters ....: $aArray - an array of arrays. ; $vIndex - an index or 1d-array of indexes; ; a size if $vValue not defined (zero to delete). ; $vValue - a value (create, resize or delete if not defined). ; ; Return values .: on success - 1 ; @extended - nesting level of operation ; on failure - 0 ; @extended - nesting level of error ; @error = 1 - invalid array ; @error = 2 - invalid index ; Author ........: ; Modified ......: kovlad ; Remarks .......: ; Related .......: ; Link ..........: https://www.autoitscript.com/forum/topic/185638-assign-a-value-to-an-array-in-array-element/ ; https://www.autoitscript.com/trac/autoit/ticket/3515?replyto=description ; Example .......: Yes ; =============================================================================================================================== Func _ArrayNestedSet(ByRef $aArray, $vIndex, $vValue = Default) Local $extended = @extended + 1 If IsArray($vIndex) Then If UBound($vIndex, 0) <> 1 Then _ Return SetError(2, $extended) If UBound($vIndex) > 1 Then If UBound($aArray, 0) <> 1 Then _ Return SetError(1, $extended) ; keep index for this array Local $i = $vIndex[0] If $i < 0 Or UBound($aArray) <= $i Then _ Return SetError(2, $extended) ; delete index of this array _ArrayDelete($vIndex, 0) ; recursive function call Local $return = _ArrayNestedSet($aArray[$i], $vIndex, $vValue) If @error Then Return SetError(@error, @extended + 1, 0) Else Return SetExtended(@extended + 1, 1) EndIf Else $vIndex = $vIndex[0] EndIf EndIf If $vValue = Default Then If $vIndex < 0 Then _ Return SetError(2, $extended) If $vIndex = 0 Then ; delete array and free memory $aArray = 0 Return SetExtended($extended, 1) EndIf If UBound($aArray, 0) = 1 Then ; resize array keeping data ReDim $aArray[$vIndex] Return SetExtended($extended, 1) Else ; create new nested array Local $aTmp[$vIndex] $aArray = $aTmp Return SetExtended($extended, 1) EndIf Else If UBound($aArray) <= $vIndex Then _ Return SetError(2, $extended + 1) ; set value of array entry $aArray[$vIndex] = $vValue Return SetExtended($extended, 1) EndIf EndFunc
      Examples:
      ; write value to 1st nested array ConsoleWrite("@@ Debug(" & @ScriptLineNumber & ") : write value to 1st nested array" & @CRLF) Local $aTmp1[4] = [1,2,3,4] _ArrayDisplay($aTmp1, "$aTmp1") Local $aArray[2] = [$aTmp1] ConsoleWrite( _ "_ArrayNestedSet($aArray[0], 3, 14) = " & _ArrayNestedSet($aArray[0], 3, 14) & @CRLF & _ " @error = " & @error & @CRLF & _ " @extended = " & @extended & @CRLF & @CRLF) _ArrayDisplay($aArray[0], "$aArray[0]") ; resize 1st nested array ConsoleWrite("@@ Debug(" & @ScriptLineNumber & ") : resize 1st nested array" & @CRLF) ConsoleWrite( _ "_ArrayNestedSet($aArray[0], 8) = " & _ArrayNestedSet($aArray[0], 8) & @CRLF & _ " @error = " & @error & @CRLF & _ " @extended = " & @extended & @CRLF & @CRLF) _ArrayDisplay($aArray[0], "$aArray[0]") ; write array to 1st nested array ConsoleWrite("@@ Debug(" & @ScriptLineNumber & ") : write array to 1st nested array" & @CRLF) Local $aTmp11[4] = [11,12,13,14] _ArrayDisplay($aTmp11, "$aTmp11") ConsoleWrite( _ "_ArrayNestedSet($aArray[0], 2, $aTmp11) = " & _ArrayNestedSet($aArray[0], 2, $aTmp11) & @CRLF & _ " @error = " & @error & @CRLF & _ " @extended = " & @extended & @CRLF & @CRLF) _ArrayDisplay(($aArray[0])[2], "($aArray[0])[2]") ; write value to 2nd nested array using index array ConsoleWrite("@@ Debug(" & @ScriptLineNumber & ") : write value to 2nd nested array using index array" & @CRLF) Local $aIndex1[2] = [2,3] _ArrayDisplay($aIndex1, "$aIndex1") ConsoleWrite( _ "_ArrayNestedSet($aArray[0], $aIndex1, 140) = " & _ArrayNestedSet($aArray[0], $aIndex1, 140) & @CRLF & _ " @error = " & @error & @CRLF & _ " @extended = " & @extended & @CRLF & @CRLF) _ArrayDisplay(($aArray[0])[2], "($aArray[0])[2]") ; resize 2nd nested array ConsoleWrite("@@ Debug(" & @ScriptLineNumber & ") : resize 2nd nested array" & @CRLF) Local $aIndex1[2] = [2,8] _ArrayDisplay($aIndex1, "$aIndex1") ConsoleWrite( _ "_ArrayNestedSet($aArray[0], $aIndex1) = " & _ArrayNestedSet($aArray[0], $aIndex1) & @CRLF & _ " @error = " & @error & @CRLF & _ " @extended = " & @extended & @CRLF & @CRLF) _ArrayDisplay(($aArray[0])[2], "($aArray[0])[2]") ; create new 3rd nested array ConsoleWrite("@@ Debug(" & @ScriptLineNumber & ") : create new 3rd nested array" & @CRLF) Local $aIndex2[3] = [2,7,6] _ArrayDisplay($aIndex2, "$aIndex2") ConsoleWrite( _ "_ArrayNestedSet($aArray[0], $aIndex2) = " & _ArrayNestedSet($aArray[0], $aIndex2) & @CRLF & _ " @error = " & @error & @CRLF & _ " @extended = " & @extended & @CRLF & @CRLF) _ArrayDisplay((($aArray[0])[2])[7], ")($aArray[0])[2])[7]") ; delete 3rd nested array ConsoleWrite("@@ Debug(" & @ScriptLineNumber & ") : delete 3rd nested array" & @CRLF) Local $aIndex3[3] = [2,7,0] _ArrayDisplay($aIndex3, "$aIndex2") ConsoleWrite( _ "_ArrayNestedSet($aArray[0], $aIndex3) = " & _ArrayNestedSet($aArray[0], $aIndex3) & @CRLF & _ " @error = " & @error & @CRLF & _ " @extended = " & @extended & @CRLF) ConsoleWrite("IsArray((($aArray[0])[2])[7]) = " & IsArray((($aArray[0])[2])[7]) & @CRLF & @CRLF) ; write 0 in 1st nested array to delete the 2nd nested array ConsoleWrite("@@ Debug(" & @ScriptLineNumber & ") : write 0 in 1st nested array to delete the 2nd nested array" & @CRLF) Local $aIndex4[1] = [2] _ArrayDisplay($aIndex4, "$aIndex4") ConsoleWrite( _ "_ArrayNestedSet($aArray[0], $aIndex4, 0) = " & _ArrayNestedSet($aArray[0], $aIndex4, 0) & @CRLF & _ " @error = " & @error & @CRLF & _ " @extended = " & @extended & @CRLF) ConsoleWrite("IsArray(($aArray[0])[2]) = " & IsArray(($aArray[0])[2]) & @CRLF & @CRLF) ; delete 1st nested array (same as '$aArray[0] = 0') ConsoleWrite("@@ Debug(" & @ScriptLineNumber & ") : delete 1st nested array (same as '$aArray[0] = 0')" & @CRLF) Local $aIndex5[1] = [0] _ArrayDisplay($aIndex5, "$aIndex5") ConsoleWrite( _ "_ArrayNestedSet($aArray[0], $aIndex5) = " & _ArrayNestedSet($aArray[0], $aIndex5) & @CRLF & _ " @error = " & @error & @CRLF & _ " @extended = " & @extended & @CRLF) ConsoleWrite("IsArray($aArray[0]) = " & IsArray($aArray[0]) & @CRLF & @CRLF)
×
×
  • Create New...
