Display message box while in progress of copying

[gahhon]

If FileExists($DIR_WA_FOLDER) = 0 Then
    Local $Decisions = _Metro_MsgBox(4, "", "Do you want to install Extension?")
    If $Decisions = "Yes" Then
        DirCopy($CUR_WA_FOLDER, $DIR_WA_FOLDER, 1)
        _Metro_MsgBox(0, "", "Extension is installed")
        _FileWriteLog($LOG_INSTALLATION, "Debug: Application is installed.")
    Else
        _Close_Application()
    EndIf
EndIf

Due to the folder have a lot of files need to copy, so it need some time to complete the copy process.

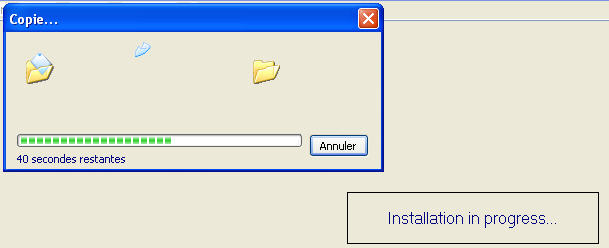

But in the meantime, how can I display a message box saying that "Installation is in progress. Please wait....", with this Metro GUI UDF design?
I know that inside the Metro UDF have a function called ProgressBar, but I am not very sure how to use them with my copying progress. Please kindly advise.

Here is the sample code of Metro UDF use of ProgressBar

$Progress1 = _Metro_CreateProgress(100, 195, 300, 26)

For $i = 0 To 85 Step +2
    Sleep(1)
    _Metro_SetProgress($Progress1, $i)
Next

Here is the function declaration:

expandcollapse popup

; #FUNCTION# ====================================================================================================================
; Name ..........: _Metro_CreateProgress
; Description ...: Creates a simple progressbar.
; Syntax ........: _Metro_CreateProgress($Left, $Top, $Width, $Height[, $EnableBorder = False[, $Backgroud_Color = $CB_Radio_Color[,
;                  $Progress_Color = $ButtonBKColor]]])
; Parameters ....: $Left                - Left pos.
;                  $Top                 - Top pos.
;                  $Width               - Width.
;                  $Height              - Height.
;                  $EnableBorder        - [optional] Enables a 1px border from each side for the progressbar. Default is False.
;                  $Backgroud_Color     - [optional] Background color. Default is $CB_Radio_Color.
;                  $Progress_Color      - [optional] Progress color. Default is $ButtonBKColor.
; Return values .: Array containing basic information about the progressbar that is required to set the % progress.
; ===============================================================================================================================
Func _Metro_CreateProgress($Left, $Top, $Width, $Height, $EnableBorder = False, $Backgroud_Color = $CB_Radio_Color, $Progress_Color = $ButtonBKColor)
    Local $Progress_Array[8]

    If $HIGHDPI_SUPPORT Then
        $Left = Round($Left * $gDPI)
        $Top = Round($Top * $gDPI)
        $Width = Round($Width * $gDPI)
        $Height = Round($Height * $gDPI)
    EndIf
    $Progress_Array[1] = $Width
    $Progress_Array[2] = $Height
    $Progress_Array[3] = "0xFF" & Hex($Backgroud_Color, 6)
    $Progress_Array[4] = "0xFF" & Hex($Progress_Color, 6)
    $Progress_Array[5] = StringReplace($CB_Radio_Hover_Color, "0x", "0xFF")
    $Progress_Array[7] = $EnableBorder

    ;Set Colors
    Local $ProgressBGPen = _GDIPlus_PenCreate($Progress_Array[5], 2)

    ;Create Graphics
    Local $Progress_Graphic = _iGraphicCreate($Width, $Height, $Progress_Array[3], 1, 5)

    ;Draw Progressbar border
    If $EnableBorder Then
        _GDIPlus_GraphicsDrawRect($Progress_Graphic[0], 0, 0, $Width, $Height, $ProgressBGPen)
    EndIf

    ;Release created objects
    _GDIPlus_PenDispose($ProgressBGPen)

    ;Create bitmap handles and set graphics
    $Progress_Array[0] = GUICtrlCreatePic("", $Left, $Top, $Width, $Height)
    $Progress_Array[6] = _iGraphicCreateBitmapHandle($Progress_Array[0], $Progress_Graphic)

    ;For GUI Resizing
    GUICtrlSetResizing($Progress_Array[0], 768)

    Return $Progress_Array
EndFunc   ;==>_Metro_CreateProgress

; #FUNCTION# ====================================================================================================================
; Name ..........: _Metro_SetProgress
; Description ...: Sets the progress in % of a progressbar.
; Syntax ........: _Metro_SetProgress(Byref $Progress, $Percent)
; Parameters ....: $Progress            - Array of the progressbar that has been returned by _Metro_CreateProgress function.
;                  $Percent             - A value from 0-100. (In %)
; ===============================================================================================================================
Func _Metro_SetProgress(ByRef $Progress, $Percent)
    ;Set Colors
    Local $ProgressBGPen = _GDIPlus_PenCreate($Progress[5], 2)
    Local $ProgressBGBrush = _GDIPlus_BrushCreateSolid($Progress[4])

    ;Create Graphics
    Local $Progress_Graphic = _iGraphicCreate($Progress[1], $Progress[2], $Progress[3], 1, 5)

    ;Draw Progressbar
    If $Percent > 100 Then $Percent = 100
    If $Progress[7] Then
        Local $ProgressWidth = (($Progress[1] - 2) / 100) * $Percent
        _GDIPlus_GraphicsDrawRect($Progress_Graphic[0], 0, 0, $Progress[1], $Progress[2], $ProgressBGPen)
        _GDIPlus_GraphicsFillRect($Progress_Graphic[0], 1, 1, $ProgressWidth, $Progress[2] - 2, $ProgressBGBrush)
    Else
        Local $ProgressWidth = (($Progress[1]) / 100) * $Percent
        _GDIPlus_GraphicsFillRect($Progress_Graphic[0], 0, 0, $ProgressWidth, $Progress[2], $ProgressBGBrush)
    EndIf

    ;Release created objects
    _GDIPlus_PenDispose($ProgressBGPen)
    _GDIPlus_BrushDispose($ProgressBGBrush)

    ;Create bitmap handles
    Local $SetProgress = _iGraphicCreateBitmapHandle($Progress[0], $Progress_Graphic)
    _WinAPI_DeleteObject($Progress[6])

    $Progress[6] = $SetProgress
EndFunc   ;==>_Metro_SetProgress



It is not necessary need to use ProgressBar, instead I just to display some meaningful information while waiting the copy progress to complete.

Thanks for advanced information.



Edited January 31, 2019 by gahhon
updated source

[JLogan3o13]

So you have the UDF, and you have the example script to show you how it is used. What have you tried on your own that is not working?

[gahhon]

6 hours ago, JLogan3o13 said:

So you have the UDF, and you have the example script to show you how it is used. What have you tried on your own that is not working?

The UDF example script is using For LOOP to increase the progress percentage, but how to link to real-copy progress instead?

Like I said, not need to have progressbar, maybe a messagebox will do the trick.

[caramen]

Post a complet sample of your code when you are copying.



without see your code i could say,

just add a msgbox after each DirCopy,,,

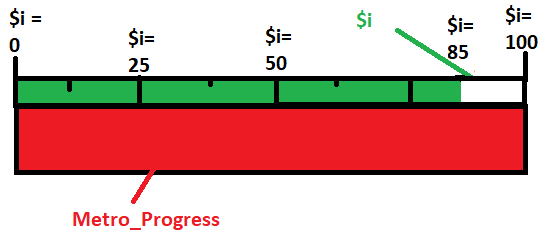

For your understanding :

$Progress1 = _Metro_CreateProgress(100, 195, 300, 26)

For $i = 0 To 85 Step +2
    Sleep(1)
    _Metro_SetProgress($Progress1, $i)
Next



If $i = 85 then metro progress show 85% bar

Edited February 1, 2019 by caramen

[gahhon]

3 hours ago, caramen said:

Post a complet sample of your code when you are copying.



without see your code i could say,

just add a msgbox after each DirCopy,,,



For your understanding :

$Progress1 = _Metro_CreateProgress(100, 195, 300, 26)

For $i = 0 To 85 Step +2
    Sleep(1)
    _Metro_SetProgress($Progress1, $i)
Next



If $i = 85 then metro progress show 85% bar

I did posted my code when I am copying. Please kindly refer to the very top post.

If FileExists($DIR_WA_FOLDER) = 0 Then
    Local $Decisions = _Metro_MsgBox(4, "", "Do you want to install Extension?")
    If $Decisions = "Yes" Then
        DirCopy($CUR_WA_FOLDER, $DIR_WA_FOLDER, 1)
        _Metro_MsgBox(0, "", "Extension is installed")
        _FileWriteLog($LOG_INSTALLATION, "Debug: Application is installed.")
    Else
        _Close_Application()
    EndIf
EndIf

And also, for your information, there is no each DirCopy. Instead, there is only 1 DirCopy, but the folder contains a lot of files so it will take sometimes to copy to destination.

[caramen]

1 hour ago, gahhon said:

I did posted my code when I am copying. Please kindly refer to the very top post.

If FileExists($DIR_WA_FOLDER) = 0 Then
    Local $Decisions = _Metro_MsgBox(4, "", "Do you want to install Extension?")
    If $Decisions = "Yes" Then
        DirCopy($CUR_WA_FOLDER, $DIR_WA_FOLDER, 1)
        _Metro_MsgBox(0, "", "Extension is installed")
        _FileWriteLog($LOG_INSTALLATION, "Debug: Application is installed.")
    Else
        _Close_Application()
    EndIf
EndIf

And also, for your information, there is no each DirCopy. Instead, there is only 1 DirCopy, but the folder contains a lot of files so it will take sometimes to copy to destination.

Ok Use this UDF then :

_CopyDirWithProgress($sOriginalDir, $sDestDir)



expandcollapse popup

Func _CopyDirWithProgress($sOriginalDir, $sDestDir)
  ;$sOriginalDir and $sDestDir are quite selfexplanatory...
  ;This func returns:
  ; -1 in case of critical error, bad original or destination dir
  ;  0 if everything went all right
  ; >0 is the number of file not copied and it makes a log file
  ;  if in the log appear as error message '0 file copied' it is a bug of some windows' copy command that does not redirect output...

   If StringRight($sOriginalDir, 1) <> '\' Then $sOriginalDir = $sOriginalDir & '\'
   If StringRight($sDestDir, 1) <> '\' Then $sDestDir = $sDestDir & '\'
   If $sOriginalDir = $sDestDir Then Return -1

   ProgressOn('Copie en cours...', 'Liste les fichiers...' & @LF & @LF, '', -1, -1, 18)
   Local $aFileList = _FileSearch($sOriginalDir)
   If $aFileList[0] = 0 Then
      ProgressOff()
      SetError(1)
      Return -1
   EndIf

   If FileExists($sDestDir) Then
      If Not StringInStr(FileGetAttrib($sDestDir), 'd') Then
         ProgressOff()
         SetError(2)
         Return -1
      EndIf
   Else
      DirCreate($sDestDir)
      If Not FileExists($sDestDir) Then
         ProgressOff()
         SetError(2)
         Return -1
      EndIf
   EndIf

   Local $iDirSize, $iCopiedSize = 0, $fProgress = 0
   Local $c, $FileName, $iOutPut = 0, $sLost = '', $sError
   Local $Sl = StringLen($sOriginalDir)

   _Quick_Sort($aFileList, 1, $aFileList[0])

   $iDirSize = Int(DirGetSize($sOriginalDir) / 1024)

   ProgressSet(Int($fProgress * 100), $aFileList[$c], 'Copie des fichiers:')
   For $c = 1 To $aFileList[0]
      $FileName = StringTrimLeft($aFileList[$c], $Sl)
      ProgressSet(Int($fProgress * 100), $aFileList[$c] & ' -> '& $sDestDir & $FileName & @LF & 'Total Kb: ' & $iDirSize & @LF & 'Done Kb: ' & $iCopiedSize, 'Copies des fichiers:  ' & Round($fProgress * 100, 2) & ' %   ' & $c & '/' &$aFileList[0])

      If StringInStr(FileGetAttrib($aFileList[$c]), 'd') Then
         DirCreate($sDestDir & $FileName)
      Else
         If Not FileCopy($aFileList[$c], $sDestDir & $FileName, 1) Then
            If Not FileCopy($aFileList[$c], $sDestDir & $FileName, 1) Then;Tries a second time
               If RunWait(@ComSpec & ' /c copy /y "' & $aFileList[$c] & '" "' & $sDestDir & $FileName & '">' & @TempDir & '\o.tmp', '', @SW_HIDE)=1 Then;and a third time, but this time it takes the error message
                  $sError = FileReadLine(@TempDir & '\o.tmp',1)
                  $iOutPut = $iOutPut + 1
                  $sLost = $sLost & $aFileList[$c] & '  ' & $sError & @CRLF
               EndIf
               FileDelete(@TempDir & '\o.tmp')
            EndIf
         EndIf

         FileSetAttrib($sDestDir & $FileName, "+A-RSH");<- Comment this line if you do not want attribs reset.

         $iCopiedSize = $iCopiedSize + Int(FileGetSize($aFileList[$c]) / 1024)
         $fProgress = $iCopiedSize / $iDirSize
      EndIf
   Next

   ProgressOff()

   If $sLost <> '' Then;tries to write the log somewhere.
      If FileWrite($sDestDir & 'notcopied.txt',$sLost) = 0 Then
         If FileWrite($sOriginalDir & 'notcopied.txt',$sLost) = 0 Then
            FileWrite(@WorkingDir & '\notcopied.txt',$sLost)
         EndIf
      EndIf
   EndIf

   Return $iOutPut
EndFunc  ;==>_CopyDirWithProgress

Func _FileSearch($sIstr, $bSF = 1)
  ; $bSF = 1 means looking in subfolders
  ; $sSF = 0 means looking only in the current folder.
  ; An array is returned with the full path of all files found. The pos [0] keeps the number of elements.
   Local  $sCriteria, $sBuffer, $iH, $iH2, $sCS, $sCF, $sCF2, $sCP, $sFP, $sOutPut = '', $aNull[1] ;, $sIstr, $bSF
   $sCP = StringLeft($sIstr, StringInStr($sIstr, '\', 0, -1))
   If $sCP = '' Then $sCP = @WorkingDir & '\'
   $sCriteria = StringTrimLeft($sIstr, StringInStr($sIstr, '\', 0, -1))
   If $sCriteria = '' Then $sCriteria = '*.*'

  ;To begin we seek in the starting path.
   $sCS = FileFindFirstFile($sCP & $sCriteria)
   If $sCS <> - 1 Then
      Do
         $sCF = FileFindNextFile($sCS)
         If @error Then
            FileClose($sCS)
            ExitLoop
         EndIf
         If $sCF = '.' Or $sCF = '..' Then ContinueLoop
         $sOutPut = $sOutPut & $sCP & $sCF & @LF
      Until 0
   EndIf

  ;And after, if needed, in the rest of the folders.
   If $bSF = 1 Then
      $sBuffer = @CR & $sCP & '*' & @LF;The buffer is set for keeping the given path plus a *.
      Do
         $sCS = StringTrimLeft(StringLeft($sBuffer, StringInStr($sBuffer, @LF, 0, 1) - 1), 1);current search.
         $sCP = StringLeft($sCS, StringInStr($sCS, '\', 0, -1));Current search path.
         $iH = FileFindFirstFile($sCS)
         If $iH <> - 1 Then
            Do
               $sCF = FileFindNextFile($iH)
               If @error Then
                  FileClose($iH)
                  ExitLoop
               EndIf
               If $sCF = '.' Or $sCF = '..' Then ContinueLoop
               If StringInStr(FileGetAttrib($sCP & $sCF), 'd') Then
                  $sBuffer = @CR & $sCP & $sCF & '\*' & @LF & $sBuffer;Every folder found is added in the begin of buffer
                  $sFP = $sCP & $sCF & '\';                               for future searches
                  $iH2 = FileFindFirstFile($sFP & $sCriteria);         and checked with the criteria.
                  If $iH2 <> - 1 Then
                     Do
                        $sCF2 = FileFindNextFile($iH2)
                        If @error Then
                           FileClose($iH2)
                           ExitLoop
                        EndIf
                        If $sCF2 = '.' Or $sCF2 = '..' Then ContinueLoop
                        $sOutPut = $sOutPut & $sFP & $sCF2 & @LF;Found items are put in the Output.
                     Until 0
                  EndIf
               EndIf
            Until 0
         EndIf
         $sBuffer = StringReplace($sBuffer, @CR & $sCS & @LF, '')
      Until $sBuffer = ''
   EndIf

   If $sOutPut = '' Then
      $aNull[0] = 0
      Return $aNull
   Else
      Return StringSplit(StringTrimRight($sOutPut, 1), @LF)
   EndIf
EndFunc  ;==>_FileSearch

Func _Quick_Sort(ByRef $SortArray, $First, $Last);Larry's code
   Dim $Low, $High
   Dim $Temp, $List_Separator

   $Low = $First
   $High = $Last
   $List_Separator = StringLen($SortArray[ ($First + $Last) / 2])
   Do
      While (StringLen($SortArray[$Low]) < $List_Separator)
         $Low = $Low + 1
      WEnd
      While (StringLen($SortArray[$High]) > $List_Separator)
         $High = $High - 1
      WEnd
      If ($Low <= $High) Then
         $Temp = $SortArray[$Low]
         $SortArray[$Low] = $SortArray[$High]
         $SortArray[$High] = $Temp
         $Low = $Low + 1
         $High = $High - 1
      EndIf
   Until $Low > $High
   If ($First < $High) Then _Quick_Sort($SortArray, $First, $High)
   If ($Low < $Last) Then _Quick_Sort($SortArray, $Low, $Last)
EndFunc  ;==>_Quick_Sort



Edited February 1, 2019 by caramen

[alienclone]

if you dont want to show progress, but just to let the user know that the files are copying, use a SplashTextOn() before your DirCopy, then a SplashOff  after.

[mikell]

+1 for SplashTextOn() , it can be updated during the copy process while a Msgbox is blocking

[Nine]

The best way to keep control under a long action is to run that action with the option run a single line of code...

[careca]

The difficulty of this is that you dont have a way to know how much of the file has been copied.

Thus you cannot do the usual percentage calculation.

So the best, easiest option is to have anything but that, maybe something like the marquee udf

[Nine]

1 minute ago, careca said:

The difficulty of this is that you dont have a way to know how much of the file has been copied.

Yes you can know how much by looking at the size of the source folder compare to the destination folder...

[water]

Maybe this copy UDF helps:



[gahhon]

Actually I am don't mind using any approach to display meaning information while copying.

The ProgressBar is already exist in the Metro UDF, so I might think to use it tho.

But anyway, to use SplashTextOn is another useful approach tho. But I need to figure it how to use it with the Metro UDF design.

[caramen]

47 minutes ago, water said:

Maybe this copy UDF helps:



*Sorry water i'am just out of testing it. the x64 dll is down. it worked for me during 1 day and for unknow reason it does not work anymore. And the owner is not in our community anymore sine 2016

[caramen]

@gahhon

Look you past the 3 func in my last post at the end of your script.



Then you change your code to this :

If FileExists($DIR_WA_FOLDER) = 0 Then
    Local $Decisions = _Metro_MsgBox(4, "", "Do you want to install Extension?")
    If $Decisions = "Yes" Then
        _CopyDirWithProgress($CUR_WA_FOLDER, $DIR_WA_FOLDER)
        _Metro_MsgBox(0, "", "Extension is installed")
        _FileWriteLog($LOG_INSTALLATION, "Debug: Application is installed.")
    Else
        _Close_Application()
    EndIf
EndIf

And you are done

Give it a try.

And yeah maybe this solution isn't the best one but it will work fine . If you dont care about the way used.

[gahhon]

If FileExists($DIR_WA_FOLDER) = 0 Then
    Local $Decisions = _Metro_MsgBox(4, "", "Do you want to install Extension?")
    If $Decisions = "Yes" Then
        SplashTextOn("Test", "Copying...", -1, 100, -1, -1, $DLG_TEXTLEFT, "Arial", 11, 600)
        DirCopy($CUR_WA_FOLDER, $DIR_WA_FOLDER, 1)
        Splashoff()
        _Metro_MsgBox(0, "", "Extension is installed")
        _FileWriteLog($LOG_INSTALLATION, "Debug: Application is installed.")
    Else
        _Close_Application()
    EndIf
EndIf

I did tried this approach, but how can I change the interface into Metro GUI tho?
And also It is possible to make the word "Copying..." to display like Copying then repeat . by . (3 times or 6 times)?
I thinking of using WHILE-LOOP, WHILE sizeDestination <> sizeSource then use ControlSetText("Test", "", "Static1", $sMessage).
In overall idea would be like this

SplashTextOn("Test", $sMessage, -1, -1, -1, -1, $DLG_TEXTLEFT, "")
For $i = 1 To 20
    $sMessage = $sMessage & "."
    ControlSetText("Test", "", "Static1", $sMessage)
    Sleep(500)

    If Mod($i, 3) = 0 Then
        $sMessage = "Copying"
    EndIf
Next



13 minutes ago, caramen said:

@gahhon

Look you past the 3 func in my last post at the end of your script.



Then you change your code to this :

If FileExists($DIR_WA_FOLDER) = 0 Then
    Local $Decisions = _Metro_MsgBox(4, "", "Do you want to install Extension?")
    If $Decisions = "Yes" Then
        _CopyDirWithProgress($CUR_WA_FOLDER, $DIR_WA_FOLDER)
        _Metro_MsgBox(0, "", "Extension is installed")
        _FileWriteLog($LOG_INSTALLATION, "Debug: Application is installed.")
    Else
        _Close_Application()
    EndIf
EndIf

And you are done

Give it a try.

And yeah maybe this solution isn't the best one but it will work fine . If you dont care about the way used.

@caramen
I have tried your UDF, but the interface wasn't that I am needed tho.
It is possible to apply your UDF approach into Metro GUI UDF, and not displaying what kind of files is being copy?

Thanks for the information.

[caramen]

Ahhh you whant to see the progresse without file name etc ?



If yes i can rework the udf for you.

But you can do it as wel. It s not so hard.

Edited February 1, 2019 by caramen

[gahhon]

3 hours ago, caramen said:

Ahhh you whant to see the progresse without file name etc ?



If yes i can rework the udf for you.

But you can do it as wel. It s not so hard.

I am working at it as well.

But please do also, use Metro UDF as the GUI design. It would be look great if the application show every dialog boxes are the same GUI.

Other than that, can try other approach displaying a text like SplashTextOn method. Then repeating the dot
Example:

Copying.
Copying..
Copying...

Edited February 1, 2019 by gahhon
missing

[caramen]

I ll give a shot on this this night. Nothing esle to do this week end.

[pixelsearch]

Hi all
Just to share with you the simplest way to copy a folder into another one, displaying Windows native progress bar at same time :

#include <AutoItConstants.au3>
#include <WinAPIShellEx.au3>

SplashTextOn("", "Installation in progress...", _
    250, 50, -1, 220, $DLG_NOTITLE + $DLG_TEXTVCENTER)

_WinAPI_ShellFileOperation("C:\From Folder\*.*", "C:\To Folder", _
    $FO_COPY, $FOF_SIMPLEPROGRESS)

SplashOff()

Edited February 2, 2019 by pixelsearch
changed C:\From Folder => C:\From Folder\*.*
