OrangeCoder

Send vs ControlSend

Recommended Posts

Hey Guys - I am trying to write a very simple script that just types a value into ONE field and presses and next

That's it!

Here is what I am trying to do:

I have a software product that used Installshield to package it - I wrote a response file per installshield directions /  for the software and it automated almost everything except one window... sadly the company that makes the software doesn't want to help, installshield won't help since I don't have a license . So I am trying to write and autoit script to fill in the one window that doesn't get recorded in the response file to finish the installation

My write activated the window but when I follow it with a send() it doesn't work



here is what I have

WinActivate("Server Information")
Send("xx-xxx-xx")
Send("!n")
Send("{SPACE}")

any ideas ?

Share this post


Link to post
Share on other sites

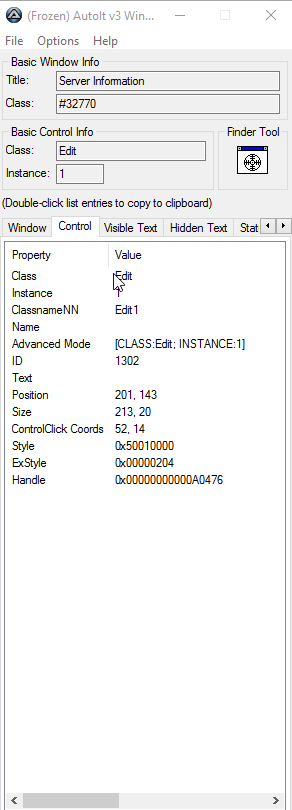

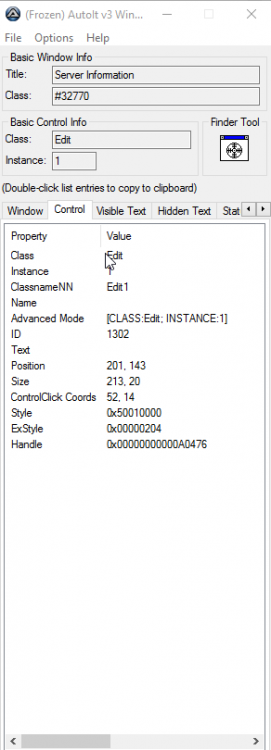

Did you try the AutoIt WIndow Info Tool to retrieve the Control-ID so ControlSend can be used?


My UDFs and Tutorials:

Spoiler

UDFs:
Active Directory (NEW 2020-09-05 - Version 1.5.1.1) - Download - General Help & Support - Example Scripts - Wiki
OutlookEX (NEW 2020-06-27 - Version 1.6.1.0) - Download - General Help & Support - Example Scripts - Wiki
OutlookEX_GUI (NEW 2020-06-27 - Version 1.3.2.0) - Download
Outlook Tools (2019-07-22 - Version 0.6.0.0) - Download - General Help & Support - Wiki
ExcelChart (2017-07-21 - Version 0.4.0.1) - Download - General Help & Support - Example Scripts
PowerPoint (2017-06-06 - Version 0.0.5.0) - Download - General Help & Support
Excel - Example Scripts - Wiki
Word - Wiki
Task Scheduler (2019-12-03 - Version 1.5.1.0) - Download - General Help & Support - Wiki

Tutorials:
ADO - Wiki, WebDriver - Wiki



Share this post


Link to post
Share on other sites

What is the return value of ControlSend?


My UDFs and Tutorials:

Spoiler

UDFs:
Active Directory (NEW 2020-09-05 - Version 1.5.1.1) - Download - General Help & Support - Example Scripts - Wiki
OutlookEX (NEW 2020-06-27 - Version 1.6.1.0) - Download - General Help & Support - Example Scripts - Wiki
OutlookEX_GUI (NEW 2020-06-27 - Version 1.3.2.0) - Download
Outlook Tools (2019-07-22 - Version 0.6.0.0) - Download - General Help & Support - Wiki
ExcelChart (2017-07-21 - Version 0.4.0.1) - Download - General Help & Support - Example Scripts
PowerPoint (2017-06-06 - Version 0.0.5.0) - Download - General Help & Support
Excel - Example Scripts - Wiki
Word - Wiki
Task Scheduler (2019-12-03 - Version 1.5.1.0) - Download - General Help & Support - Wiki

Tutorials:
ADO - Wiki, WebDriver - Wiki



Share this post


Link to post
Share on other sites
WinActivate("Server Information")
Local $iReturnValue = ControlSend("Server Information","",1302,"xx-xxx-xx")
MsgBox(0,"", "Returnvalue of ControlSend: " & $iReturnValue)

My UDFs and Tutorials:

Spoiler

UDFs:
Active Directory (NEW 2020-09-05 - Version 1.5.1.1) - Download - General Help & Support - Example Scripts - Wiki
OutlookEX (NEW 2020-06-27 - Version 1.6.1.0) - Download - General Help & Support - Example Scripts - Wiki
OutlookEX_GUI (NEW 2020-06-27 - Version 1.3.2.0) - Download
Outlook Tools (2019-07-22 - Version 0.6.0.0) - Download - General Help & Support - Wiki
ExcelChart (2017-07-21 - Version 0.4.0.1) - Download - General Help & Support - Example Scripts
PowerPoint (2017-06-06 - Version 0.0.5.0) - Download - General Help & Support
Excel - Example Scripts - Wiki
Word - Wiki
Task Scheduler (2019-12-03 - Version 1.5.1.0) - Download - General Help & Support - Wiki

Tutorials:
ADO - Wiki, WebDriver - Wiki



Share this post


Link to post
Share on other sites

This is the only window with title "Server Information" when you install the software?


My UDFs and Tutorials:

Spoiler

UDFs:
Active Directory (NEW 2020-09-05 - Version 1.5.1.1) - Download - General Help & Support - Example Scripts - Wiki
OutlookEX (NEW 2020-06-27 - Version 1.6.1.0) - Download - General Help & Support - Example Scripts - Wiki
OutlookEX_GUI (NEW 2020-06-27 - Version 1.3.2.0) - Download
Outlook Tools (2019-07-22 - Version 0.6.0.0) - Download - General Help & Support - Wiki
ExcelChart (2017-07-21 - Version 0.4.0.1) - Download - General Help & Support - Example Scripts
PowerPoint (2017-06-06 - Version 0.0.5.0) - Download - General Help & Support
Excel - Example Scripts - Wiki
Word - Wiki
Task Scheduler (2019-12-03 - Version 1.5.1.0) - Download - General Help & Support - Wiki

Tutorials:
ADO - Wiki, WebDriver - Wiki



Share this post


Link to post
Share on other sites

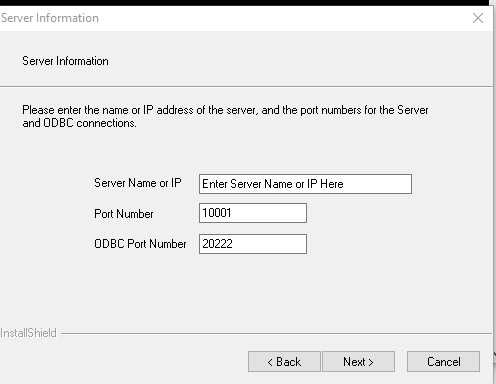

I wonder why the AutoIt Window Info Tool does not display "Enter Server Name or IP Here" for the text of the Control.


My UDFs and Tutorials:

Spoiler

UDFs:
Active Directory (NEW 2020-09-05 - Version 1.5.1.1) - Download - General Help & Support - Example Scripts - Wiki
OutlookEX (NEW 2020-06-27 - Version 1.6.1.0) - Download - General Help & Support - Example Scripts - Wiki
OutlookEX_GUI (NEW 2020-06-27 - Version 1.3.2.0) - Download
Outlook Tools (2019-07-22 - Version 0.6.0.0) - Download - General Help & Support - Wiki
ExcelChart (2017-07-21 - Version 0.4.0.1) - Download - General Help & Support - Example Scripts
PowerPoint (2017-06-06 - Version 0.0.5.0) - Download - General Help & Support
Excel - Example Scripts - Wiki
Word - Wiki
Task Scheduler (2019-12-03 - Version 1.5.1.0) - Download - General Help & Support - Wiki

Tutorials:
ADO - Wiki, WebDriver - Wiki



Share this post


Link to post
Share on other sites
23 hours ago, water said:

I wonder why the AutoIt Window Info Tool does not display "Enter Server Name or IP Here" for the text of the Control.

I think this is not normal text but "cue hint" , maybe this is the case.


Signature beginning:   Wondering who uses AutoIT and what it can be used for ?
* GHAPI UDF - modest beginning - communication with GitHub REST API Forum Rules *
Include Dependency Tree (Tool for analyzing script relations)
ADO.au3 UDF     POP3.au3 UDF     XML.au3 UDF    How to use IE.au3  UDF with  AutoIt v3.3.14.x  for other useful stuff click the following button

Spoiler

Any of my own code posted anywhere on the forum is available for use by others without any restriction of any kind.

My contribution (my own projects): * Debenu Quick PDF Library - UDF * Debenu PDF Viewer SDK - UDF * Acrobat Reader - ActiveX Viewer * UDF for PDFCreator v1.x.x * XZip - UDF * AppCompatFlags UDF * CrowdinAPI UDF * _WinMergeCompare2Files() * _JavaExceptionAdd() * _IsBeta() * Writing DPI Awareness App - workaround * _AutoIt_RequiredVersion() * Chilkatsoft.au3 UDF * TeamViewer.au3 UDF * JavaManagement UDF * VIES over SOAP * WinSCP UDF * GHAPI UDF - modest begining - comunication with GitHub REST APIErrorLog.au3 UDF - A logging Library *

My contribution to others projects or UDF based on  others projects: * _sql.au3 UDF  * POP3.au3 UDF *  RTF Printer - UDF * XML.au3 UDF * ADO.au3 UDF SMTP Mailer UDF * Dual Monitor resolution detection * * 2GUI on Dual Monitor System * _SciLexer.au3 UDF * SciTE - Lexer for console pane

Useful links: * Forum Rules * Forum etiquette *  Forum Information and FAQs * How to post code on the forum * AutoIt Online Documentation * AutoIt Online Beta Documentation * SciTE4AutoIt3 getting started * Convert text blocks to AutoIt code * Games made in Autoit * Programming related sites * Polish AutoIt Tutorial * DllCall Code Generator *

Wiki: Expand your knowledge - AutoIt Wiki * Collection of User Defined Functions * How to use HelpFile * Good coding practices in AutoIt *

IE Related:  * How to use IE.au3  UDF with  AutoIt v3.3.14.x * Why isn't Autoit able to click a Javascript Dialog? * Clicking javascript button with no ID * IE document >> save as MHT file * IETab Switcher (by LarsJ ) * HTML Entities * _IEquerySelectorAll() (by uncommon) * IE in TaskScheduler

PDF Related:https://www.autoitscript.com/forum/topic/177368-how-to-get-reference-to-pdf-object-embeded-in-ie/ *

I encourage you to read: * Global Vars * Best Coding Practices * Please explain code used in Help file for several File functions * OOP-like approach in AutoIt * UDF-Spec Questions *  EXAMPLE: How To Catch ConsoleWrite() output to a file or to CMD *

"Homo sum; humani nil a me alienum puto" - Publius Terentius Afer
"Program are meant to be read by humans and only incidentally for computers and execute" - Donald Knuth, "The Art of Computer Programming"
:naughty:  :ranting:, be  :) and       \\//_.

Anticipating Errors :  "Any program that accepts data from a user must include code to validate that data before sending it to the data store. You cannot rely on the data store, ...., or even your programming language to notify you of problems. You must check every byte entered by your users, making sure that data is the correct type for its field and that required fields are not empty."

Signature last update: 2020-09-20

Share this post


Link to post
Share on other sites
