Raviteja

Appending data in excel sheet.

21 posts in this topic

I have a data, in 100 files excel files. The data will be in fixed columns in those 100 files. And number of rows will be variable. I need copy all those data in to 1 excel sheet and to one column sequentially. I am able to copy any(one) file to output file. But unable to do appending one after another. Can any one help?

Share this post


Link to post
Share on other sites



Should be possible with the Excel UDF. Will post an example after my vacation after 26th of October.


My UDFs and Tutorials:

Spoiler

UDFs:
Active Directory (2016-08-18 - Version 1.4.6.0) - Download - General Help & Support - Example Scripts - Wiki
OutlookEX (2016-07-20 - Version 1.2.1.0) - Download - General Help & Support - Example Scripts - Wiki
ExcelChart (2015-04-01 - Version 0.4.0.0) - Download - General Help & Support - Example Scripts
Excel - Example Scripts - Wiki
Word - Wiki
Tutorials:
ADO - Wiki



Share this post


Link to post
Share on other sites

#3 ·  Posted (edited)

You mean all data from multiple column into one column ?. If so, Declare a multidimensional array (If those files has uniformity in column numbers, it is easy to declare array) and read all excel files one by one. here is the pseudocode.

1. If all excel files are in a folder loop through them.

2. Read each column and fill the data in each dimension of array.

3. Open the output file and write all data in array to single column. Then empty the array.

4. Repeat this process.



Edited by kcvinu

My Contributions

UDF Link Viewer   --- A tool to visit the links of some most important UDFs

 Includer_2  ----- A tool to type the #include statement automatically

 Digits To Date  ----- date from 3 integer values

PrintList ----- prints arrays into console for testing.

 Alert  ------ An alternative for MsgBox

 MousePosition ------- A simple tooltip display of mouse position

GRM Helper -------- A littile tool to help writing code with GUIRegisterMsg function

Access_UDF  -------- An UDF for working with access database files. (.*accdb only)



Share this post


Link to post
Share on other sites

Hi,

Thank u for the reply.

First i tried to work on this project using simulated data, with which i able to open the file and copy the data.

But failed in appending data. Immediately started working on the pseudo code what u given.

Later i got the files on what i need to work on. Here i am facing another issue, i am unable to open the file.

When i opened normally(directly with out script) it is saying the excel sheet consists unreadable characters

do u want me to open. May be because of this, i am unable to open using script. Can u help me in this.

Error: Fail to open "First file name in the folder"

This is the script what i wrote:

#include <File.au3>
#include <Array.au3>
#include <Excel.au3>
#include <Constants.au3>
#include <MsgBoxConstants.au3>

;
; AutoIt Version: 3.0
; Language:       English
; Platform:       Win9x/NT
; Author:         Raviteja
;
; Script Function:

Local $i
Local $j
Local $l = 1
Local $path = "D:\AUTO_IT\Simulator\"

; Create application object
Local $oExcel = _Excel_Open()
If @error Then Exit MsgBox(16, "Excel UDF: _Excel_BookOpen Example", "Error creating the Excel application object." & @CRLF & "@error = " & @error & ", @extended = " & @extended)
$newbook = _Excel_BookNew($oExcel, 5)

Local $FileArray = _FileListToArray($path,"*.xlsm")
For $i = 1 To $FileArray[0]
   Local $book = _Excel_BookOpen($oExcel, $path & $FileArray[$i])
   If @error Then Exit MsgBox($MB_SYSTEMMODAL, "Error", "Fail to open " & $FileArray[$i], 0)
   For $j = 14 To 24  ; For now i made it fixed
      _ExcelReadCell($book, $j, 2)
      _ExcelWriteCell($newbook, $l, 2)
      $l = $l + 1
   Next
Next

_Excel_BookSaveAs($newbook, "D:\AUTO_IT\Final_Report\Report.xlsx", $xlWorkbookDefault, True)
If @error Then Exit MsgBox($MB_SYSTEMMODAL, "Status", "Failed to save " & "Report", 0)
MsgBox($MB_SYSTEMMODAL, "Status", "Saved successfully", 0)

Sleep(2000)

_Excel_Close ($oExcel)

Share this post


Link to post
Share on other sites
#include <File.au3>
#include <Array.au3>
#include <Excel.au3>
#include <Constants.au3>
#include <MsgBoxConstants.au3>

;
; AutoIt Version: 3.0
; Language:       English
; Platform:       Win9x/NT
; Author:         Raviteja
;
; Script Function:

Local $i
Local $j
Local $l = 1
Local $path = "D:\AUTO_IT\Simulator\"

; Create application object
Local $oExcel = _Excel_Open()
If @error Then Exit MsgBox(16, "Excel UDF: _Excel_BookOpen Example", "Error creating the Excel application object." & @CRLF & "@error = " & @error & ", @extended = " & @extended)
$newbook = _Excel_BookNew($oExcel, 5)

Local $FileArray = _FileListToArray($path,"*.xlsm")
For $i = 1 To $FileArray[0]
   Local $book = _Excel_BookOpen($oExcel, $path & $FileArray[$i])
   If @error Then Exit MsgBox($MB_SYSTEMMODAL, "Error", "Fail to open " & $FileArray[$i], 0)
   For $j = 14 To 24  ; For now i made it fixed
      _ExcelReadCell($book, $j, 2)
      _ExcelWriteCell($newbook, $l, 2)
      $l = $l + 1
   Next
Next

_Excel_BookSaveAs($newbook, "D:\AUTO_IT\Final_Report\Report.xlsx", $xlWorkbookDefault, True)
If @error Then Exit MsgBox($MB_SYSTEMMODAL, "Status", "Failed to save " & "Report", 0)
MsgBox($MB_SYSTEMMODAL, "Status", "Saved successfully", 0)

Sleep(2000)

_Excel_Close ($oExcel)

I have posted ur code for clarity. Please use code inserting option when you post code on forum.




My Contributions

UDF Link Viewer   --- A tool to visit the links of some most important UDFs

 Includer_2  ----- A tool to type the #include statement automatically

 Digits To Date  ----- date from 3 integer values

PrintList ----- prints arrays into console for testing.

 Alert  ------ An alternative for MsgBox

 MousePosition ------- A simple tooltip display of mouse position

GRM Helper -------- A littile tool to help writing code with GUIRegisterMsg function

Access_UDF  -------- An UDF for working with access database files. (.*accdb only)



Share this post


Link to post
Share on other sites

@Raviteja please read this:  How to post code on the forum *

And if you could, please edit your post accordingly.
Thanks.

1 person likes this

NEW:     ADO.au3 UDF     POP3.au3 UDF     XML.au3 UDF    How to use IE.au3  UDF with  AutoIt v3.3.14.x  for other useful stuff click the following button:

Spoiler

Last update: 2016-11-12
Any of my own code posted anywhere on the forum is available for use by others without any restriction of any kind.

My contribution (my own projects): * Debenu Quick PDF Library - UDF * Debenu PDF Viewer SDK - UDF * Acrobat Reader - ActiveX Viewer * UDF for PDFCreator v1.x.x * XZip - UDF * AppCompatFlags UDF * CrowdinAPI UDF * _WinMergeCompare2Files() * _JavaExceptionAdd() * _IsBeta() * Writing DPI Awareness App - workaround * _AutoIt_RequiredVersion() * Chilkatsoft Components * TeamViewer API -UDF * JavaManagement UDF * VIES over SOAPPOP3.au3 UDF *  RTF Printer - UDF * XML.au3 - BETA * ADO.au3 UDF SMTP Mailer UDF * WinSCP UDF *

My contribution to others projects: * _sql.au3 UDF  *

Useful links: * Forum Rules * Forum etiquette *  Forum Information and FAQs * How to post code on the forum * AutoIt Online Documentation * AutoIt Online Beta Documentation * SciTE4AutoIt3 getting started * Convert text blocks to AutoIt code * Games made in Autoit * Programming related sites * Polish AutoIt Tutorial * DllCall Code Generator *

Wiki: Expand your knowledge - AutoIt Wiki * Collection of User Defined Functions * How to use HelpFile * Best coding practices *

IE Related:  * How to use IE.au3  UDF with  AutoIt v3.3.14.x * Why isn't Autoit able to click a Javascript Dialog? * Clicking javascript button with no ID * IE document >> save as MHT file * IETab Switcher (by LarsJ ) * HTML Entities *

I encourage you to read: * Global Vars * Best Coding Practices * Please explain code used in Help file for several File functions * OOP-like approach in AutoIt * UDF-Spec Questions *  EXAMPLE: How To Catch ConsoleWrite() output to a file or to CMD *

"Homo sum; humani nil a me alienum puto" - Publius Terentius Afer
"Program are meant to be read by humans and only incidentally for computers and execute" - Donald Knuth, The Art of Computer Programming
:naughty:  :ranting:, be  :) and       \\//_.

Anticipating Errors :  "Any program that accepts data from a user must include code to validate that data before sending it to the data store. You cannot rely on the data store, ...., or even your programming language to notify you of problems. You must check every byte entered by your users, making sure that data is the correct type for its field and that required fields are not empty."



Share this post


Link to post
Share on other sites

Can you post your _ExcelReadCell and WriteCell functions here ?




My Contributions

UDF Link Viewer   --- A tool to visit the links of some most important UDFs

 Includer_2  ----- A tool to type the #include statement automatically

 Digits To Date  ----- date from 3 integer values

PrintList ----- prints arrays into console for testing.

 Alert  ------ An alternative for MsgBox

 MousePosition ------- A simple tooltip display of mouse position

GRM Helper -------- A littile tool to help writing code with GUIRegisterMsg function

Access_UDF  -------- An UDF for working with access database files. (.*accdb only)



Share this post


Link to post
Share on other sites

Why not use _Excel_RangeRead and _Excel_RangeWrite?


My UDFs and Tutorials:

Spoiler

UDFs:
Active Directory (2016-08-18 - Version 1.4.6.0) - Download - General Help & Support - Example Scripts - Wiki
OutlookEX (2016-07-20 - Version 1.2.1.0) - Download - General Help & Support - Example Scripts - Wiki
ExcelChart (2015-04-01 - Version 0.4.0.0) - Download - General Help & Support - Example Scripts
Excel - Example Scripts - Wiki
Word - Wiki
Tutorials:
ADO - Wiki



Share this post


Link to post
Share on other sites

Range read and range write is ok.

In my app, need to access two columns having 1500 lines(rows)  at a time.

So it will increase my application area. So that's why I didn't prefer range read and write.

Read cell and write cell functions I taken it from an UDF and that UDF is also found in this forum itself.

Function is validating the column and rows. If both are valid it is going and reading/writing the cell.

For write:

$oExcel.Activesheet.Cells($sRangeOrRow, $iColumn).Value = $sValue

For read:

$sValue = $oExcel.Activesheet.Cells($sRangeOrRow, $iColumn).Value

are the lines of code in write cell and read cell functions respectively.



After reading approx 3000 cells it is throwing the below error

$sValue = $oExcel.Activesheet.Cells($sRangeOrRow, $iColumn).Value
$oExcel.Activesheet.Cells($sRangeOrRow, $iColumn)^ ERROR



Using do while I tried to read it once again. But no luck.





Share this post


Link to post
Share on other sites

#10 ·  Posted

Hi "Water"



Please check the below link

The same error I am getting but when I am doing read.

In that link I didn't find any ans. If u have any solution it will

help me greatly.

Share this post


Link to post
Share on other sites

#11 ·  Posted

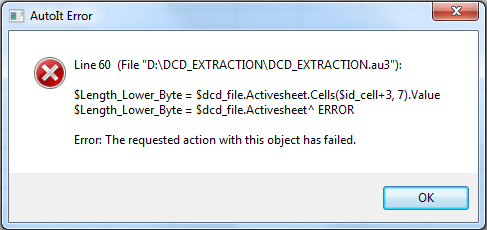

Can you please post the full error message you see in SciTE?


My UDFs and Tutorials:

Spoiler

UDFs:
Active Directory (2016-08-18 - Version 1.4.6.0) - Download - General Help & Support - Example Scripts - Wiki
OutlookEX (2016-07-20 - Version 1.2.1.0) - Download - General Help & Support - Example Scripts - Wiki
ExcelChart (2015-04-01 - Version 0.4.0.0) - Download - General Help & Support - Example Scripts
Excel - Example Scripts - Wiki
Word - Wiki
Tutorials:
ADO - Wiki



Share this post


Link to post
Share on other sites

#12 ·  Posted


Share this post


Link to post
Share on other sites

#13 ·  Posted

Did you check that $dcd_file is an Excel workbook or application object?
Did you check that $id_Cell is a valid number?


My UDFs and Tutorials:

Spoiler

UDFs:
Active Directory (2016-08-18 - Version 1.4.6.0) - Download - General Help & Support - Example Scripts - Wiki
OutlookEX (2016-07-20 - Version 1.2.1.0) - Download - General Help & Support - Example Scripts - Wiki
ExcelChart (2015-04-01 - Version 0.4.0.0) - Download - General Help & Support - Example Scripts
Excel - Example Scripts - Wiki
Word - Wiki
Tutorials:
ADO - Wiki



Share this post


Link to post
Share on other sites

#14 ·  Posted

It is a Excel workbook.

And sure it is a valid number. After your post i validated again.

Share this post


Link to post
Share on other sites

#15 ·  Posted

I just tried and it works fine here. AutoIt 3.3.12.0 and Excel 2010.

Can you please insert the following line before the crashing line 60 in your script?

MsgBox(0, "",IsObj($dcd_file) & " - " & objname($dcd_file, 1))




My UDFs and Tutorials:

Spoiler

UDFs:
Active Directory (2016-08-18 - Version 1.4.6.0) - Download - General Help & Support - Example Scripts - Wiki
OutlookEX (2016-07-20 - Version 1.2.1.0) - Download - General Help & Support - Example Scripts - Wiki
ExcelChart (2015-04-01 - Version 0.4.0.0) - Download - General Help & Support - Example Scripts
Excel - Example Scripts - Wiki
Word - Wiki
Tutorials:
ADO - Wiki



Share this post


Link to post
Share on other sites

#16 ·  Posted (edited)

Please go through the code..



Edited by Raviteja

Share this post


Link to post
Share on other sites

#17 ·  Posted (edited)

Which version of Excel do you run?
Which version of AutoIt do you run?

Could you please post an example workbook that shows the mentioned error we could play with?



Edited by water

My UDFs and Tutorials:

Spoiler

UDFs:
Active Directory (2016-08-18 - Version 1.4.6.0) - Download - General Help & Support - Example Scripts - Wiki
OutlookEX (2016-07-20 - Version 1.2.1.0) - Download - General Help & Support - Example Scripts - Wiki
ExcelChart (2015-04-01 - Version 0.4.0.0) - Download - General Help & Support - Example Scripts
Excel - Example Scripts - Wiki
Word - Wiki
Tutorials:
ADO - Wiki



Share this post


Link to post
Share on other sites

#18 ·  Posted (edited)

I am using Autoit 3.3.14.2 version.

Excel sheet attached.



Edited by Raviteja

Share this post


Link to post
Share on other sites

#19 ·  Posted

With AutoIt 3.3.12.0 the script runs to an end without problem.
With 3.3.14.2. I can reproduce your error!




My UDFs and Tutorials:

Spoiler

UDFs:
Active Directory (2016-08-18 - Version 1.4.6.0) - Download - General Help & Support - Example Scripts - Wiki
OutlookEX (2016-07-20 - Version 1.2.1.0) - Download - General Help & Support - Example Scripts - Wiki
ExcelChart (2015-04-01 - Version 0.4.0.0) - Download - General Help & Support - Example Scripts
Excel - Example Scripts - Wiki
Word - Wiki
Tutorials:
ADO - Wiki



Share this post


Link to post
Share on other sites

#20 ·  Posted

What is the issue with 3.3.14.2?

Share this post


Link to post
Share on other sites

Create an account or sign in to comment

You need to be a member in order to leave a comment

Create an account

Sign up for a new account in our community. It's easy!


Register a new account

Sign in

Already have an account? Sign in here.


Sign In Now
